Classic and Vintage Bicycles: Whats it Worth? Appraisals. Use this subforum for all requests as to "How much is this vintage bike worth?"Do NOT try to sell it in here, use the Marketplaces.

French Frame Identify Please Help

Old 04-29-19, 06:32 PM
  #1
NothEndReCycle
Junior Member
Thread Starter

Join Date: Apr 2019
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
French Frame Identify Please Help

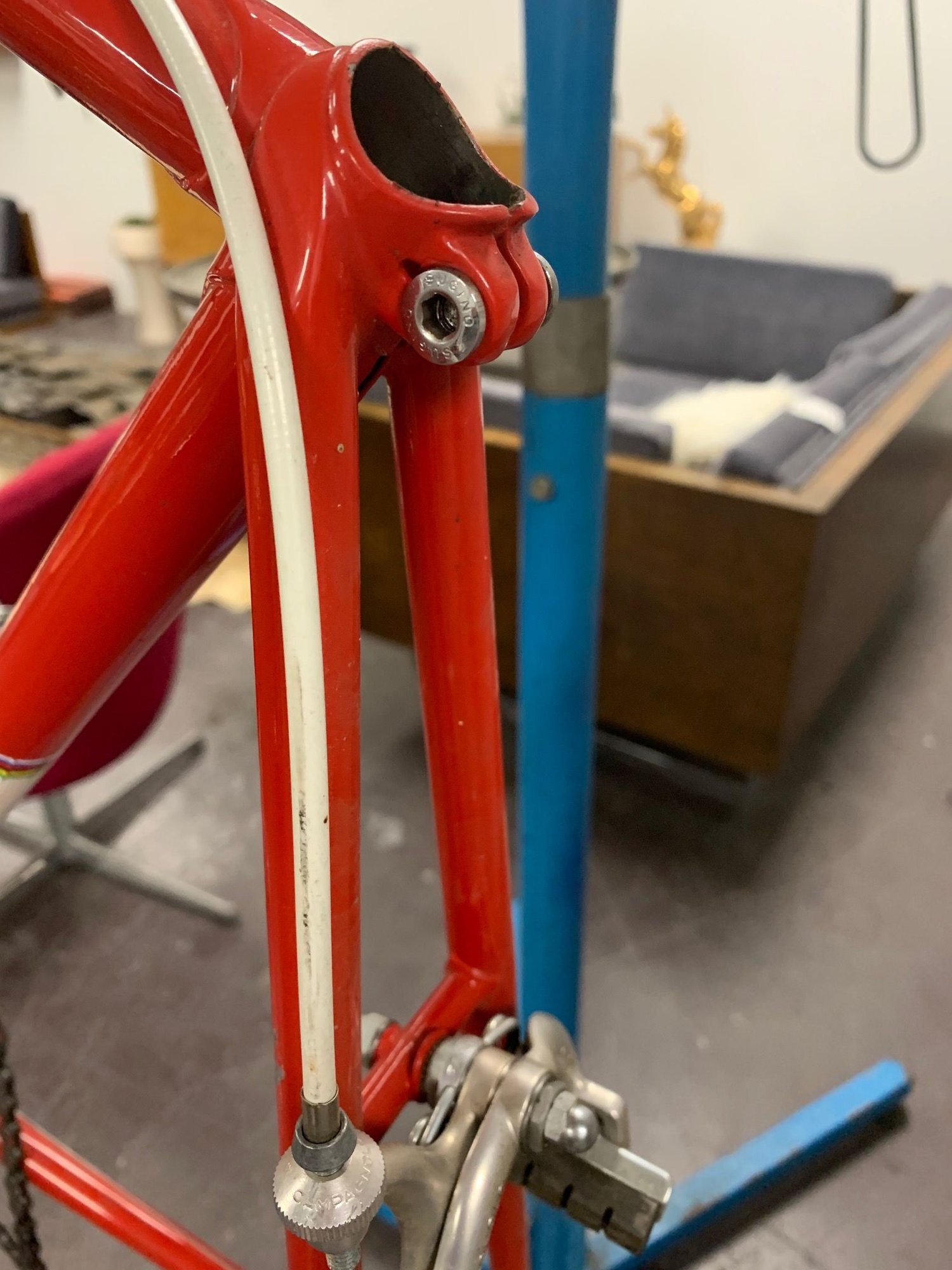

I purchased this frame in a lot with KHS Track Frame, Moultons, A Bruce Gordon Frame even; and then this thing. I've think I've narrowed it down to French and believe it's a 1970s Peugeot. Has a 26.4 Seatpost and a 7 Seven Digit Serial that reads 1340169 as best I can tell. I'm pretty good at this but am unsure on this one. Any help be appreciated. The Forkouts are Campagnolo along with the Rear Dropouts. Atala? Gitane?





NothEndReCycle is offline
Old 04-29-19, 06:54 PM
  #2
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,930
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 17 Times in 14 Posts
I doubt it is a Peugeot, which as far as I know never used Campy dropouts or lugs of that pattern. But then, I am more experienced with the cheap ones!
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 04-29-19, 07:12 PM
  #3
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 35 Times in 32 Posts
I think the fork was a replacement
unterhausen is offline
Old 04-29-19, 07:20 PM
  #4
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,158

Bikes: A bunch of old bikes and a few new ones

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 3629 Post(s)
Liked 79 Times in 71 Posts
I've never seen a Pug with campy drop outs either.
bikemig is offline
Old 04-30-19, 06:56 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 35 Times in 32 Posts
I just saw a picture of a Peugeot that looked a lot like this, but it had Simplex drops. But peugeot had a custom shop, maybe they would put Campagnolo dropouts on if you wanted?
unterhausen is offline
Old 04-30-19, 09:02 AM
  #6
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 775

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1973 Raleigh Competition, 1971 Gitane Tour de France and others

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 267 Post(s)
Liked 39 Times in 25 Posts
Not a Peugeot. I've never seen the fish mouth stay ends treatment on Peugeots, but they were featured by other French makers. The lugs look to me like Prugnat 62 something or other, which Peugeot didn't use, either - they used Nervex Professional or DuBois patterns. And while Gitane used Prugnats at various points, I've never seen this pattern on a Gitane.

I think the fork is a replacement because of the chisel-end treatment of the blade to dropout junction. What is the threading on that Sugino headset? That points to replacement there, since the French tended to use real French manufactured headsets.
rustystrings61 is offline
Old 04-30-19, 09:29 AM
  #7
Steelman54
Senior Member

Join Date: Jun 2014
Location: SW Ohio
Posts: 98

Bikes: Allegro Model 77, Gitane Pro SLX, Waterford R2200

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 10 Times in 6 Posts
Interesting, the Swiss Allegro used that style of chainstay wrap around the seat tube, though it doesn't seem to look exactly like mine. And, yes they did use Campy dropouts. Bottom bracket, at least on mine, is Swiss threaded.
Steelman54 is offline
Old 04-30-19, 01:29 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,126
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1626 Post(s)
Liked 31 Times in 28 Posts
-----

Lugset Prugnat 62/d.

Frok crown somewhat of a clinker - does not really "go" with other frame bits.

1010 dropouts have eyelets whilst forkends do not - supports suggestion that fork may be a replacement.

Allegro's seat stay wraparound is nothing like that of subject frame -.



Lejeune might be one possibility. ( Not an ID assertion.)

---

Edit -

frame looks like it could be a Stella -



https://cimg3.ibsrv.net/gimg/bikefor...4967ec8840.jpg

original fork would have had a Vagner flat top crown.
@ollo_ollo @Hudson308 @73StellaSX76

-----

Last edited by juvela; 04-30-19 at 02:20 PM. Reason: spellin'
juvela is offline
Old 04-30-19, 07:43 PM
  #9
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,535

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Likes: 0
Liked 25 Times in 19 Posts
I agree, looks like a Stella with a replacement fork.
My stay-to-dropout treatment is a bit different, however.



__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 04-30-19, 11:38 PM
  #10
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,780

Bikes: Still have a few left!

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
Liked 1 Time in 1 Post
The wrap around seat stays and lugs do look like our Stella's. Mine has the same stay ends as Hudson 308. Also every Stella I have seen has a serial number on the lower jaw of NDS dropout.
But this mystery bike is blank, too bad, as first two digits give the year. Don
Attached Images
File Type: jpg
ollo_ollo is offline
Old 05-01-19, 12:22 PM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,126
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1626 Post(s)
Liked 31 Times in 28 Posts
-----

thanks or your posts Don!

am thinking subject frame to be model SX76.

have you been able to learn a model name for your example Don?


-----
juvela is offline
Old 05-01-19, 08:23 PM
  #12
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,226
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 35 Times in 32 Posts
Originally Posted by Hudson308 View Post
I agree, looks like a Stella with a replacement fork.
My stay-to-dropout treatment is a bit different, however.
I feel like the stay ends are pretty close to the same except yours is fully filled with brazing filler.
unterhausen is offline
Old 05-02-19, 08:33 AM
  #13
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,261

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 17 Post(s)
Tagged: 1 Thread(s)
Quoted: 283 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
I think there is a good chance this bike is Spanish built based on the frame details and Campy dropouts. It does resemble several examples of 70's Marotias bikes i have seen.

View Single Frame
zukahn1 is offline
Old 05-03-19, 12:08 AM
  #14
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,055

Bikes: Yes

Mentioned: 288 Post(s)
Tagged: 0 Thread(s)
Quoted: 1740 Post(s)
Liked 23 Times in 21 Posts
I'd also say Stella, but the color scheme made that my initial bias and it looks to be a repaint so color scheme is circumstantial evidence at best. Matching details from my Stella...

Wrap around seat stays


Fish mouth at the other end


Of course those are relatively common features on a French bike.

The brake bridge also looks right.

__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 05-03-19, 02:08 PM
  #15
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,126
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1626 Post(s)
Liked 31 Times in 28 Posts
-----

We have a winner!

Big thanks.


-----
juvela is offline
