Need help with Bianchi 3 speed ID

Old 08-20-20, 10:58 PM
  #1
Brad L
Full Member
Thread Starter

Brad L's Avatar

Join Date: Dec 2018
Location: Southeast TX
Posts: 345

Bikes: 1947 Ciclo Piave, 1969 Colnago Super, 1972 Legnano Olimpiade Record Specialissima, 1980 Mercian Vincitore, 1983 Gitane Interclub, 1985 Peugeot PGN10, 1986 Bianchi Vittoria,1989 Vitus 979, 1990 Specialized Sirrus, 2001 Colnago Dream B-Stay, 2007 Trek

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 355 Times in 140 Posts
Need help with Bianchi 3 speed ID

Can anyone identify this purported Bianchi 3 speed? More photos are coming from the seller, so hopefully they'll help discern how bad the rust might be, especially since the bike's color hides the rust. Though, the coloration on the head lugs look like the rust may be terminal. These are all I have at this point.

What I can make out is what appears to be a Magistroni crankset, which should date it to no later than the mid-60s. There are several Bianchi catalogs online, but there are none from the 1950s or 60s that I can find.

Any help would be appreciated.


Brad L is offline
Old 08-21-20, 11:26 AM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 629 Post(s)
Tagged: 1 Thread(s)
Quoted: 4703 Post(s)
Likes: 0
Liked 2,968 Times in 1,841 Posts
I thought the discolouration around the head lugs looked heat related, like a repair attempt.
T-Mar is offline
Old 08-21-20, 12:05 PM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 629 Post(s)
Tagged: 1 Thread(s)
Quoted: 4703 Post(s)
Likes: 0
Liked 2,968 Times in 1,841 Posts
I went back and checked my archive, as I thought I had a 1950s Bianchi catalogue. Sure enough, there was one reported to be from 1995. It seems reasonable as the top model is the Campione del Mondo in references to Coppi's 1953 victory and consequently is no older than 1954. All the non-racing models show the seat post binder bolt in front of the seat lug, on the top of the top tube. Consequently, the subject bicycle is no older than late 1950s. I know that doesn't narrow things down much, but it's a start. FWIW, the 3 speed models in the catalogue are all derailleur equipped, either Campagnolo Sport or Gran Sport.
T-Mar is offline
Old 08-21-20, 03:34 PM
  #4
Brad L
Full Member
Thread Starter

Brad L's Avatar

Join Date: Dec 2018
Location: Southeast TX
Posts: 345

Bikes: 1947 Ciclo Piave, 1969 Colnago Super, 1972 Legnano Olimpiade Record Specialissima, 1980 Mercian Vincitore, 1983 Gitane Interclub, 1985 Peugeot PGN10, 1986 Bianchi Vittoria,1989 Vitus 979, 1990 Specialized Sirrus, 2001 Colnago Dream B-Stay, 2007 Trek

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 355 Times in 140 Posts
Originally Posted by T-Mar View Post
FWIW, the 3 speed models in the catalogue are all derailleur equipped, either Campagnolo Sport or Gran Sport.
There a couple of late 50s, Sturmey Archer equipped Bianchi 3 speeds show on this page on The Cabe.

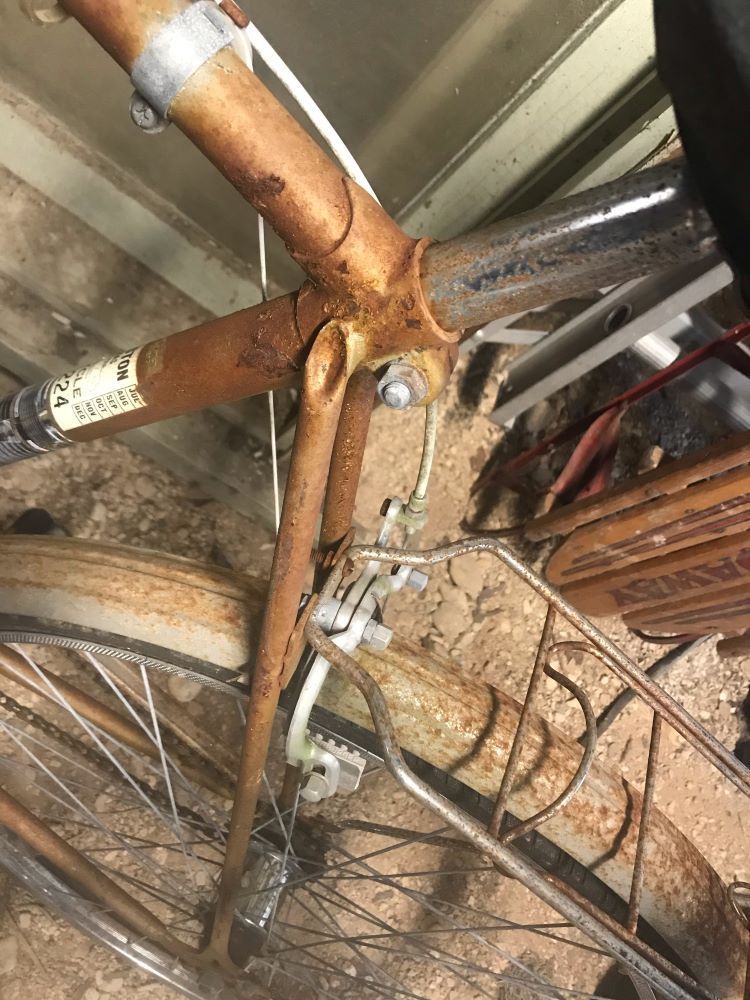

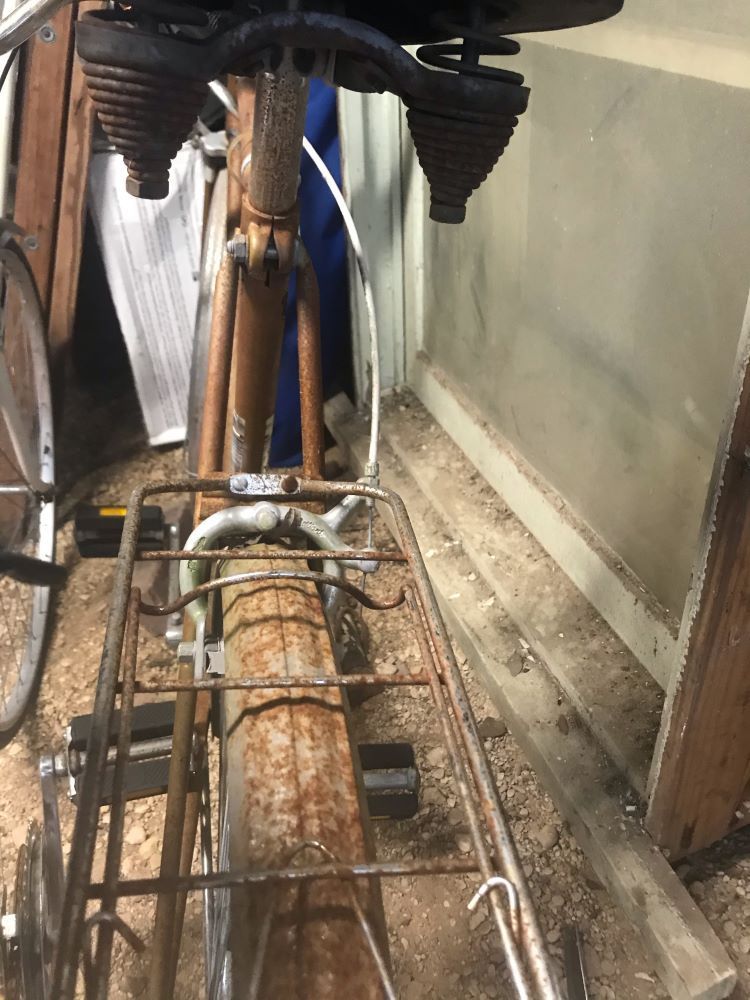

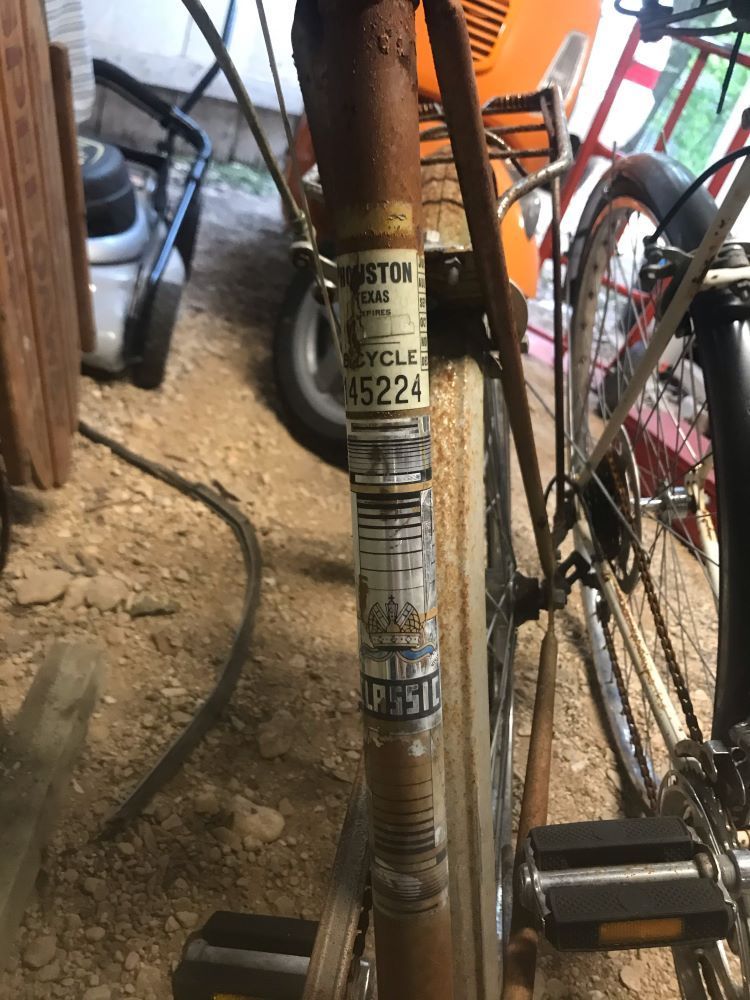

And here are a few more photos. Brakes are Altenburger Brilliant sidepulls.
It's definitely crusty, but is it too crusty to save? We'll see.



Brad L is offline
Old 08-23-20, 11:03 AM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,308
Mentioned: 350 Post(s)
Tagged: 1 Thread(s)
Quoted: 3024 Post(s)
Liked 1,735 Times in 1,249 Posts
-----

Hello Brad L,

Thank you for posting this question.

The additional images are a big help.

All of the Italian produced Bianchi three speeds of this era I have seen exhibit Bianchi integral headsets, Ambrosio steel stem/bar sets of exquisite finish, Universal Mignon brakes and pedals from Way-Assauto, Sheffield or Agrati. Seat stay treatment is always bullet. They have handsome flambouyant finishes.

this "de Luxe" example is dated 1959 and has had its mudguards removed and bar/brake levers replaced with a drop model. otherwise appears stock:




the more commonly encountered Bianchi 3-speed model of this era is the "Sports"; here is a fine example from 1958:




---

photos of subject machine set off a number of "red flags" for me straightaway. the seat stay attachment is very German, the seat tube transfer reminded me of one employed by a maker in Germany. the black accent colour seen on the head and fork crown areas is typical of a German type "fade" or "stencil" paint scheme.

subject machine looks to have been manufactured by Pantherwerke AG:

https://de.wikipedia.org/wiki/Panther_Fahrradwerke

if not a case of private labelling it may have been badged as Jaguar.

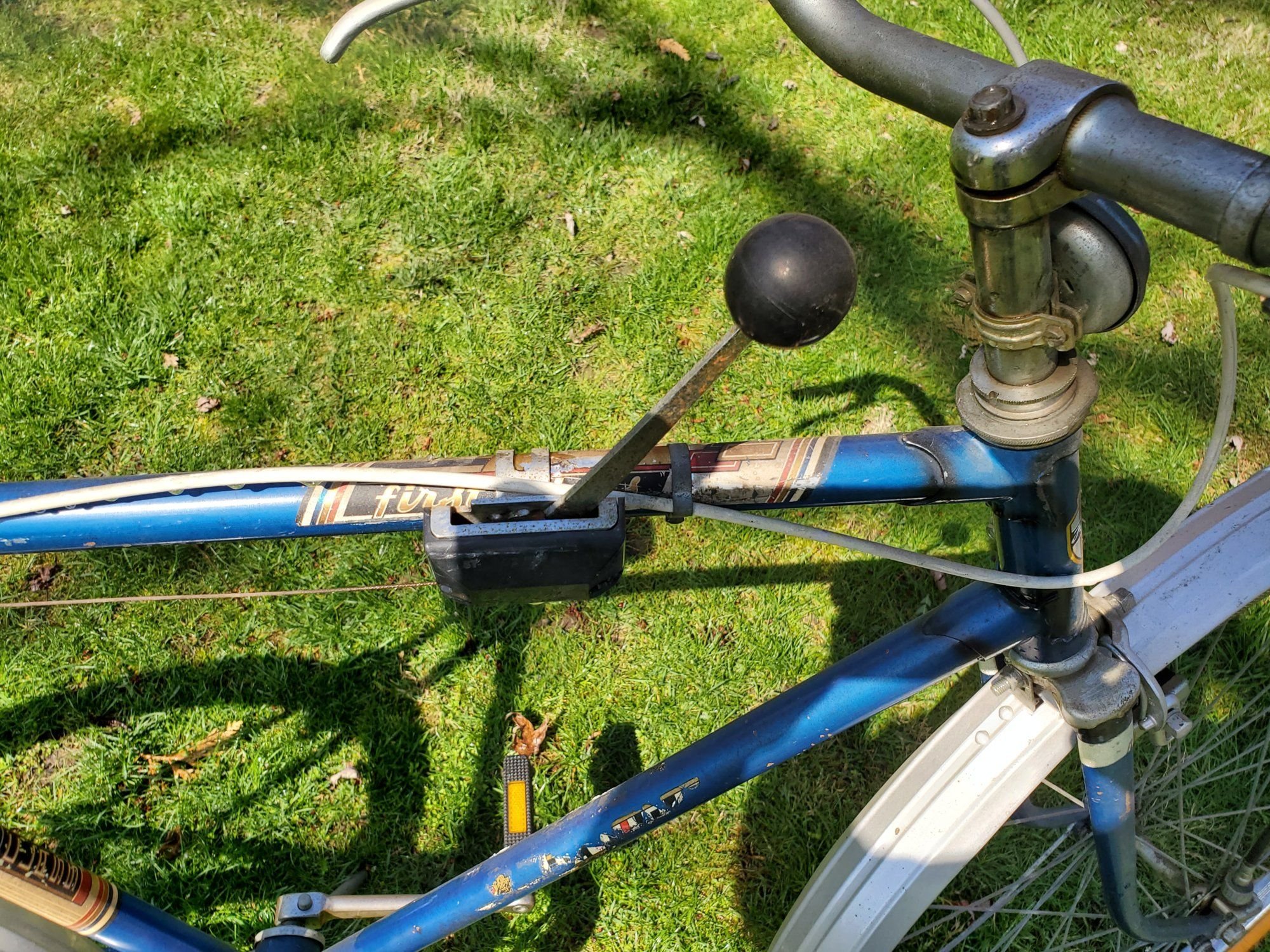

here is a 1960's era Jaguar 3-speed whose frame exhibits the same lugs, seat stay treatment and fork crown as the machine under discussion. note that stem, bar, chainset, brakes and pedals are also matches. chainset is likely to be a Thun product, rather than Magistroni. view the same accent black painting around head lugs and fork crown.






---

the Jaguar brand name amongst German cycles can be a source of confusion as there is also a "Standard Jaguar"/"Jaguar Standard" badge produced by an unrelated firm based in Granichen -




-----
juvela is offline
Old 08-23-20, 11:58 PM
  #6
Brad L
Full Member
Thread Starter

Brad L's Avatar

Join Date: Dec 2018
Location: Southeast TX
Posts: 345

Bikes: 1947 Ciclo Piave, 1969 Colnago Super, 1972 Legnano Olimpiade Record Specialissima, 1980 Mercian Vincitore, 1983 Gitane Interclub, 1985 Peugeot PGN10, 1986 Bianchi Vittoria,1989 Vitus 979, 1990 Specialized Sirrus, 2001 Colnago Dream B-Stay, 2007 Trek

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 355 Times in 140 Posts
Thanks for the info, Juvela. In the end I passed on the bike. It was very inexpensive ($40), but would have been a 300 mile round trip to purchase it, and things just didn't add up to being a Bianchi.

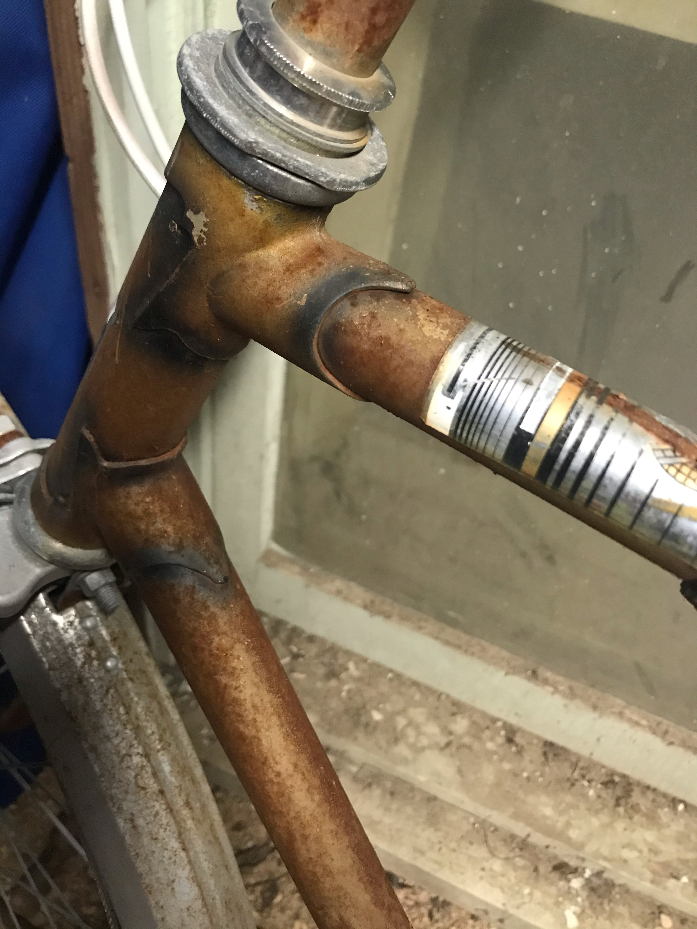

FYI, here's the last photo she sent me. It definitely shows the black fade painting at the lugs.

Brad L is offline
