Any info please?

Old 11-08-20, 09:21 AM
  #1
Thruhiker
Senior Member
Thread Starter

Thruhiker's Avatar

Join Date: May 2020
Location: Greencastle Pa
Posts: 128

Bikes: Fuji touring, jeep hybrid Trek 1100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 28 Times in 20 Posts
Any info please?

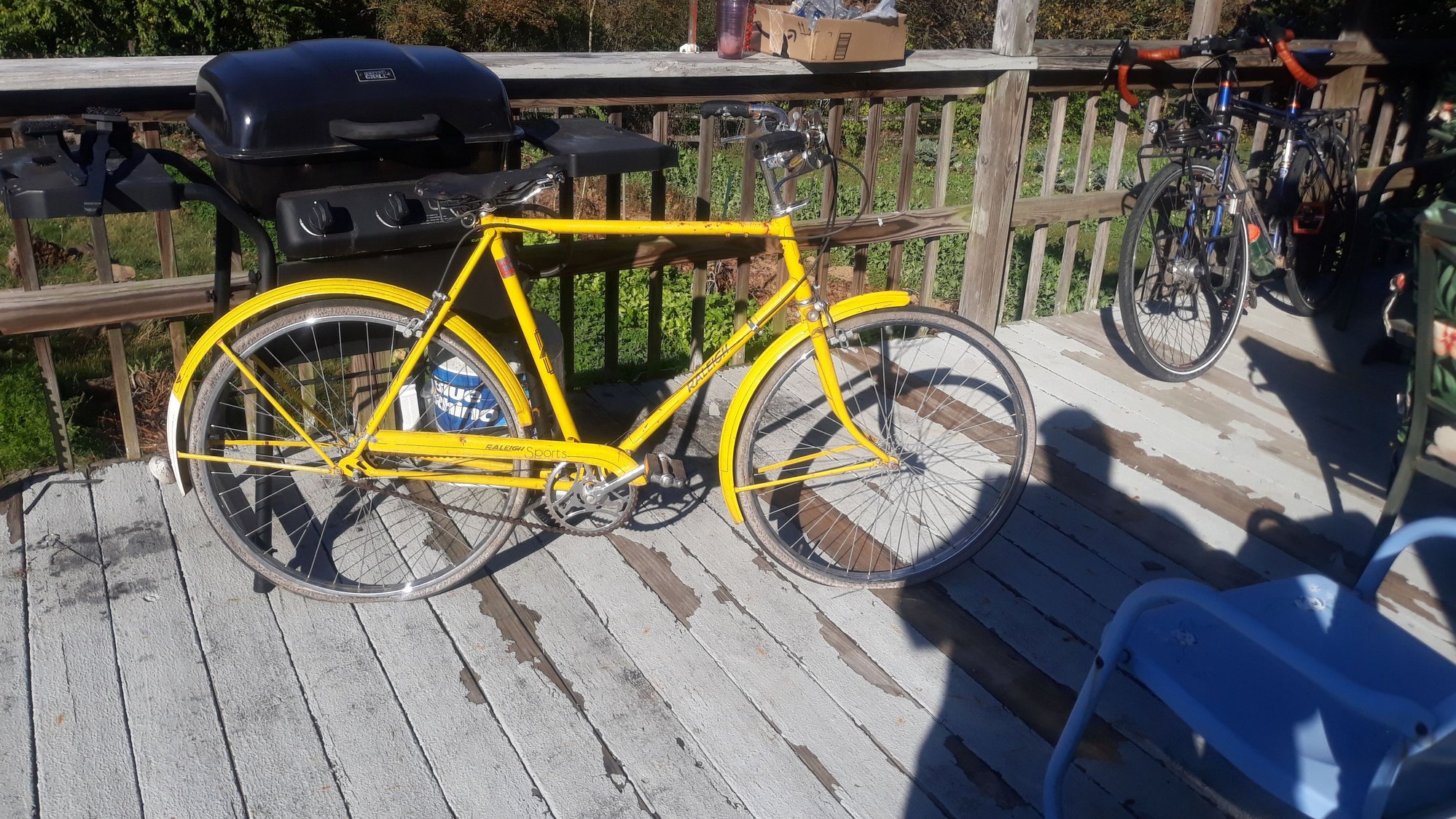

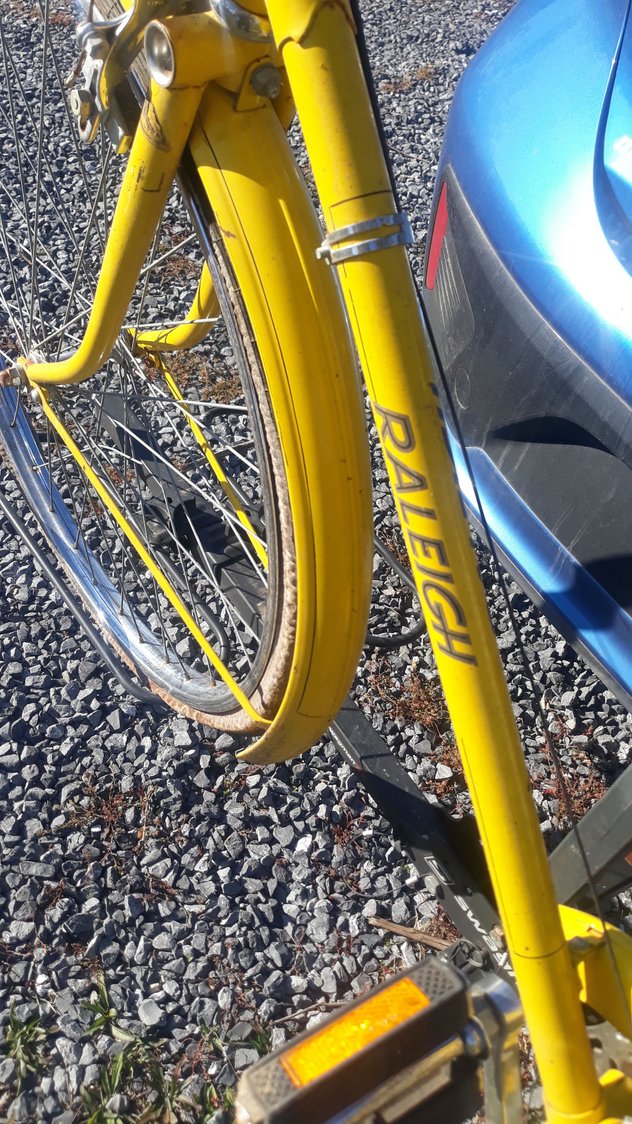

I picked this Raleigh up for 25 dollars. I have no idea what it is. I enjoy working on bikes and this is my first real vintage project. It's a 3 speed sturmey archer hub. Chain guard says raleigh sports. Top tube says made in England. Any idea on the year it was made? The brooks saddle is way too far gone to be saved and theres a bit of surface rust and tires are shot. It has cottered cranks all the bolts and cap nuts have R on them. Curious about the year it's worth or anything else you want to share. I'm intending to fix it up for myself. It seems to shift but if not I might just replace the hub with a single speed. I've never worked on an internal gear hub before. Are they serviceable. Thanks every one. I just got it this morning on the way back from getting coffee and now I have to go to work. Maybe I should call in sick








* cottered cranks

Last edited by Thruhiker; 11-08-20 at 09:23 AM. Reason: Auto correct was not correct
Thruhiker is offline
Old 11-08-20, 09:27 AM
  #2
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 7,790

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1989 Post(s)
Liked 2,636 Times in 1,096 Posts
Look for a date code on the 3 speed hub.

Also, ton of info on these here.

For the love of English 3 speeds...
__________________
Steel is real...and comfy.
jamesdak is offline
Old 11-08-20, 09:44 AM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,750

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3050 Post(s)
Liked 2,175 Times in 1,298 Posts
Looks like an early to mid-70s Raleigh Sports. It appears to be in decent condition; should make a nice city bike.
JohnDThompson is offline
Old 11-08-20, 09:55 AM
  #4
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
A 22” frame as well, nice for sizing. The brake moderator and absence of the 6 tines on the crank all point to a 72-73 or more modern model year. Check the hub for date, two numbers as was said earlier.

Nice colour for driver awareness! Make sure you anchor the rear fender down at the BB. Also grease the bearings and check for damage done by the clamp kickstand.
3speedslow is offline
Old 11-08-20, 10:02 AM
  #5
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,174
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1465 Post(s)
Liked 1,111 Times in 666 Posts
Originally Posted by 3speedslow View Post
A 22” frame as well, nice for sizing. The brake moderator and absence of the 6 tines on the crank all point to a 72-73 or more modern model year. Check the hub for date, two numbers as was said earlier.

Nice colour for driver awareness! Make sure you anchor the rear fender down at the BB. Also grease the bearings and check for damage done by the clamp kickstand.
The "brake moderator" is actually an automatic self adjuster, notice that there is no adjustment barrel on the brake caliper.

Last edited by alcjphil; 11-08-20 at 10:33 AM.
alcjphil is offline
Old 11-08-20, 10:07 AM
  #6
Thruhiker
Senior Member
Thread Starter

Thruhiker's Avatar

Join Date: May 2020
Location: Greencastle Pa
Posts: 128

Bikes: Fuji touring, jeep hybrid Trek 1100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 28 Times in 20 Posts
Thanks for the info so far guys. So it does it have a model name? Or is it just a Raleigh 3 spd? I'm at work now and cant check much before my original post I did a breif search but everything seemed to have a model name.
Thruhiker is offline
Old 11-08-20, 10:16 AM
  #7
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,174
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1465 Post(s)
Liked 1,111 Times in 666 Posts
The model name is on the chainguard
alcjphil is offline
Old 11-08-20, 10:16 AM
  #8
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,898
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 4,088 Times in 1,785 Posts
Sports is the model. Those style brake levers (which are pretty awful) appeared for just a couple of years, 74 & 75, iirc. Date code on the rear hub, assuming that wheel is original, will tell you for sure.
nlerner is offline
Old 11-08-20, 10:18 AM
  #9
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 713

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 387 Times in 220 Posts
Originally Posted by Thruhiker View Post
Thanks for the info so far guys. So it does it have a model name? Or is it just a Raleigh 3 spd? I'm at work now and cant check much before my original post I did a breif search but everything seemed to have a model name.
The Model name is Raleigh Sports. They were made for several decades with that name.
Pcampeau is offline
Old 11-08-20, 02:23 PM
  #10
GMS
Bike Dealer since 1972

GMS's Avatar

Join Date: Dec 2007
Location: Eastern North Carolina
Posts: 288

Bikes: Some of the bikes I've collected: Raleighs ( about 20), Trek ( oldest 1978 770 Columbus tubes), Mercian, Condor, Bob Jackson, Falcon, Holdsworth, Jacques Anquetil, Bianchi, LeMond, Cannondale, Schwinn, Iver Johnson, Dunelt

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 70 Times in 29 Posts

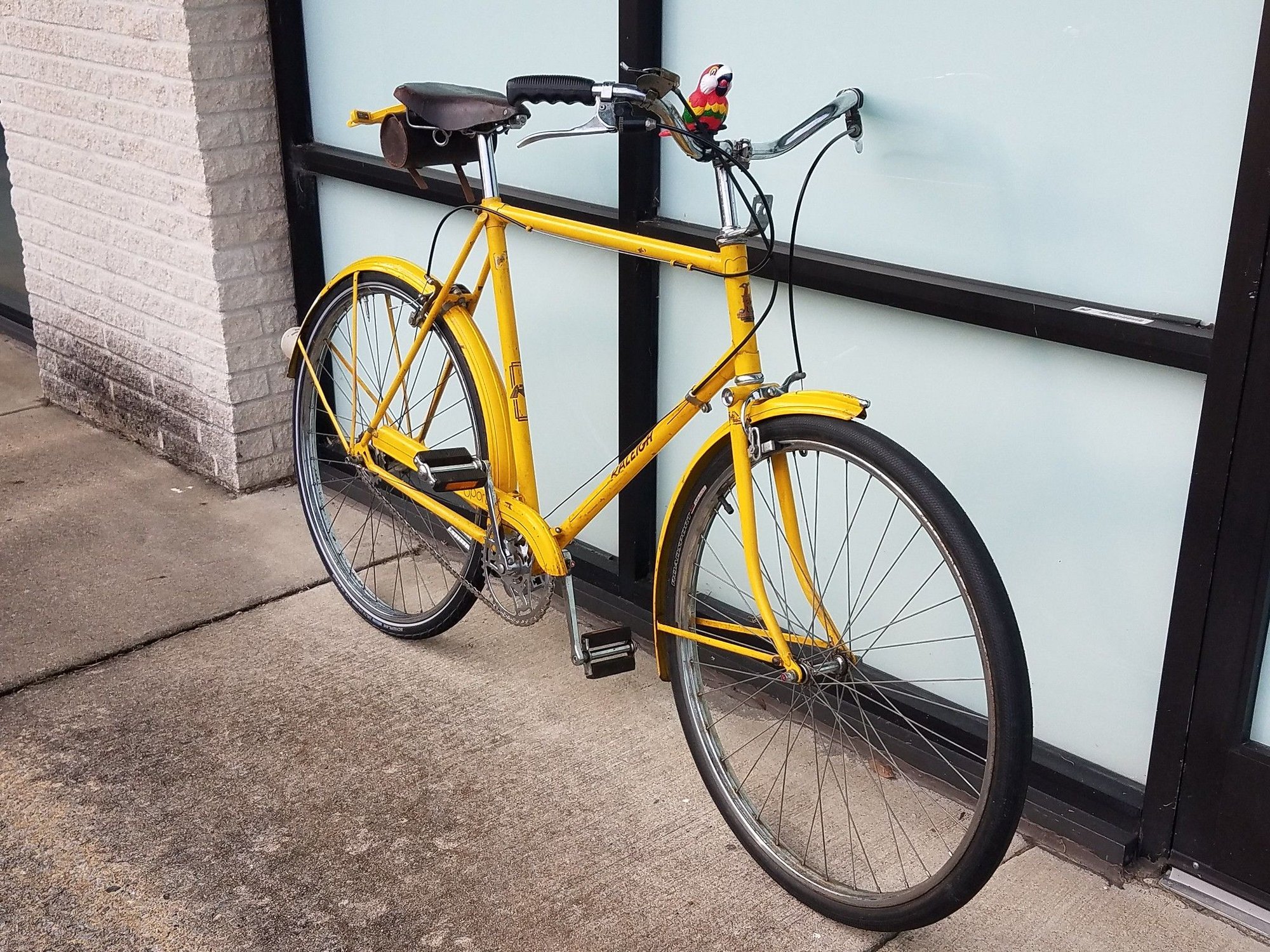

Just like my 1975 Sports. I searched for a couple years before finding a yellow one. Fun classic ride.
GMS is offline
Likes For GMS:
Old 11-08-20, 08:10 PM
  #11
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,550

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Colnago Classic Rabobank

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 2792 Post(s)
Liked 4,755 Times in 2,809 Posts
Originally Posted by Thruhiker View Post
Curious about...it's worth...
Thread moved from C&V to C&V Appraisals.
__________________
Originally Posted by Retro Grouch View Post
Fenders protect you from tire splatter. Mudguards protect you from tyre splatter.







cb400bill is offline
Old 11-10-20, 11:10 PM
  #12
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,124
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2066 Post(s)
Liked 1,182 Times in 862 Posts
Looks like you can JUST make out a "76" on the hub.
madpogue is offline
Old 11-11-20, 10:48 AM
  #13
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,019

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23839 Post(s)
Liked 7,538 Times in 5,325 Posts
.
...there are a gajillion tutorials on the internet now on servicing SA 3 speed AW hubs. Here is one, but there is abundant information. It's a much better choice for a city bike than a coaster brake, single speed hub. I notice the Frederick, MD registration sticker. in the 1970's bike boom, when everyone and his uncle was buying a new fangled, derailleur, 10 speed bike, those same people n Washington DC and suburban Maryland were all giving their Raleigh 3 speeds to the Goodwill and Salvation Army. Those bikes got me all the way through my college years at the U Md College Park.

They are great transportation, and thee was a pretty good chance my bike would still be where I parked it when I went to ride home.

The general rule on servicing is to just ad a half teaspoon of 20 weight oil every now and then (through the oil port) if it is working well. If it starts to stick or skip or miss shifts, flush it with kerosene and then relube and adjust. If you still have an issue after that, take it apart and clean everything, reassemble (replace worn parts like the clutch thingy), add oil and go. They pretty much last forever.

https://www.youtube.com/watch?v=O-0w-8aUGU0
3alarmer is online now
Old 11-11-20, 01:26 PM
  #14
Thruhiker
Senior Member
Thread Starter

Thruhiker's Avatar

Join Date: May 2020
Location: Greencastle Pa
Posts: 128

Bikes: Fuji touring, jeep hybrid Trek 1100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 28 Times in 20 Posts
3alamer thanks for the link. I'm looking forward to working on it. Ordered tires for it so waiting on them (26x1⅜) in the meantime I'll replace the wheel and headset bearings. There was 2 broken spokes but replaced them already. Good eye on spotting the registration sticker. I been meaning to try to research that. I'm not sure what they were for. In some citys did bikes have to be registered in the 70s? ( I wasnt born till 81) Also the hub is marked 74 so I guess that's the year it was made.
Thruhiker is offline
Old 11-11-20, 02:37 PM
  #15
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,415

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 1,231 Times in 725 Posts
Originally Posted by Thruhiker View Post
3alamer thanks for the link. I'm looking forward to working on it. Ordered tires for it so waiting on them (26x1⅜) in the meantime I'll replace the wheel and headset bearings. There was 2 broken spokes but replaced them already. Good eye on spotting the registration sticker. I been meaning to try to research that. I'm not sure what they were for. In some citys did bikes have to be registered in the 70s? ( I wasnt born till 81) Also the hub is marked 74 so I guess that's the year it was made.
Here in California it was required through the seventies although I rarely did any of mine and never got hassled. It cost a couple of bucks and they would take down the serial # of the bike.
Kabuki12 is offline
