Please help to identify this old bike

Hi Guys,

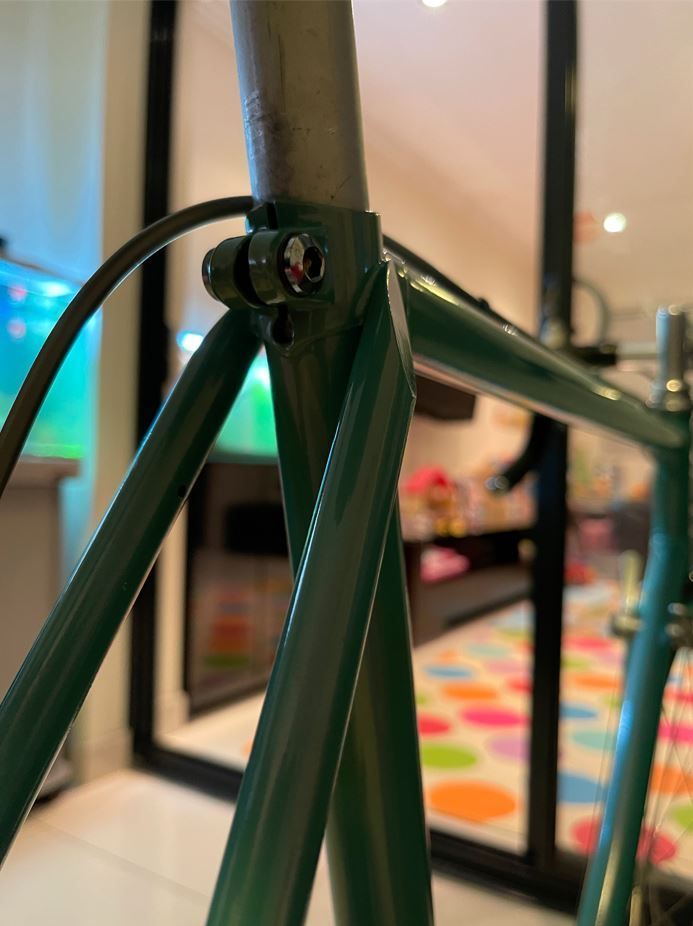

I came across this old frame in great condition, it's probably northing special but would be nice to know what kind of bike it is.
I couldn't find any stickers or serial number on it and it's most likely been repainted. It has a full Shimano 105 FC-1055 groupset on it, headset, brakes, gear etc...according to the 2 letter shimano date code it was built on March 1991. The frame itself has some unique features which I have attached in the photos below. It has some columbus engraved on the tubing here and there and on the fork, seat tube has 74A lettering on it. Any ideas what bike is this?







Last edited by NDL; 09-10-21 at 04:36 AM.
NDL is offline
Likes For NDL:
Old 09-08-21, 06:27 AM
  #2
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,608
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 3199 Post(s)
Liked 1,921 Times in 1,122 Posts
the 74A is probably the seat tube angle.
himespau is offline
Old 09-08-21, 07:20 PM
  #3
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,290

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1367 Post(s)
Liked 1,259 Times in 880 Posts
Miele? BMZ? Giordano?

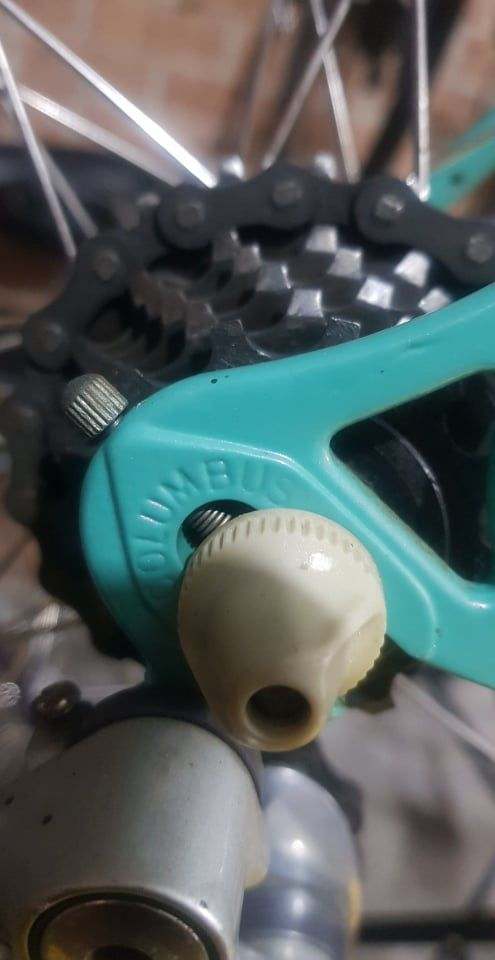

The only major brands that used Columbus drops were Bottecchia, Daccordi, Cinelli and maybe Presto, or Macario or something...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 09-08-21, 07:40 PM
  #4
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,530

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 687 Post(s)
Liked 281 Times in 226 Posts
Well, it's Italian. Of course. And, with those particular cut outs I would guess that's a Colnago or De Rosa. But, I'm leaning more towards a De Rosa
ramzilla is offline
Old 09-08-21, 09:06 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,880
Mentioned: 329 Post(s)
Tagged: 1 Thread(s)
Quoted: 2876 Post(s)
Liked 1,447 Times in 1,057 Posts
Originally Posted by ramzilla View Post
Well, it's Italian. Of course. And, with those particular cut outs I would guess that's a Colnago or De Rosa. But, I'm leaning more towards a De Rosa
-----

yes, it probably is of Italian origin although can see nothing which would preclude a birthplace in Flanderland

two images which might assist the forum's frame detectives are one giving a closeup of the underside of the shell and one of the brake bridge

keep in mind also that we have not been as yet informed of the frame's threading

the A on the 74A marking may be a means of indicating the the lug's sockets are intended for ISO dimension tubes

lug pattern is BOCAMA Professionnelle Luxe BA B1011 with cutout nr. B1

MauriceMoss is sure to sort all matters upon his next visit

-----

Last edited by juvela; 09-09-21 at 03:18 PM. Reason: addition
juvela is offline
Old 09-08-21, 10:41 PM
  #6
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts

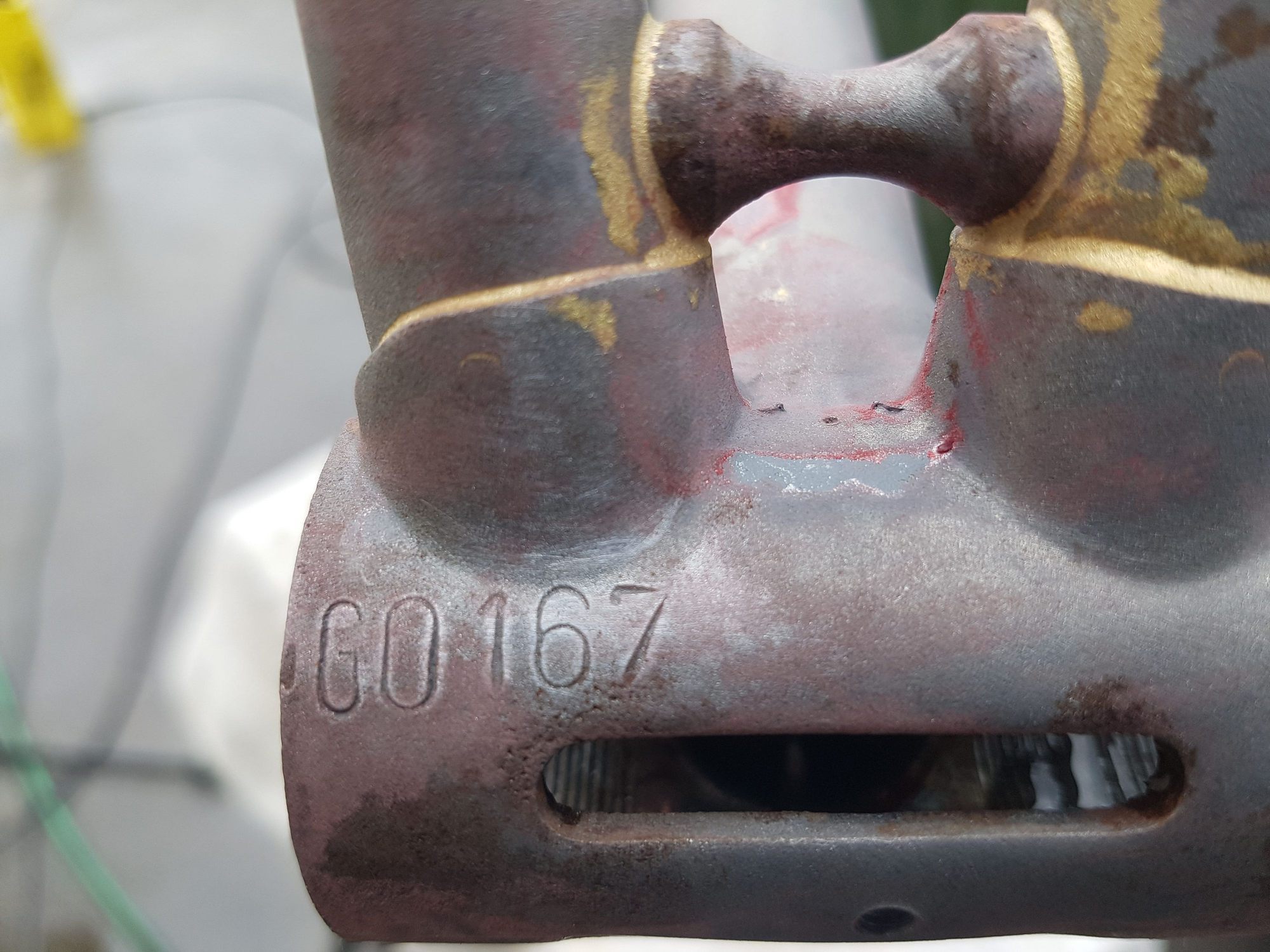

Thanks, I just found this numbers under the BB in direct sunlight, I couldn't see it the other night. would this help?
NDL is offline
Old 09-09-21, 05:56 AM
  #7
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 4,331

Bikes: Panasonic PT-4500

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1340 Post(s)
Liked 1,081 Times in 763 Posts
NDL, you might check under the BB cable guide. Often serial numbers extend under there so might be missing a digit or two
WGB is offline
Old 09-09-21, 07:21 AM
  #8
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,538

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,198 Times in 660 Posts
LOL! If there is a SN, it can't be a Colnago! Not to mention that he lug cutouts are typically a clover.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 09-09-21, 03:34 PM
  #9
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,290

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1367 Post(s)
Liked 1,259 Times in 880 Posts
Originally Posted by NDL View Post
Thanks, I just found this numbers under the BB in direct sunlight, I couldn't see it the other night. would this help?
is it a single cutout under the bottom bracket or is there another one on the other side of the plastic guide?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 09-09-21, 05:46 PM
  #10
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts
yes there are two cutouts
NDL is offline
Old 09-10-21, 08:18 AM
  #11
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts

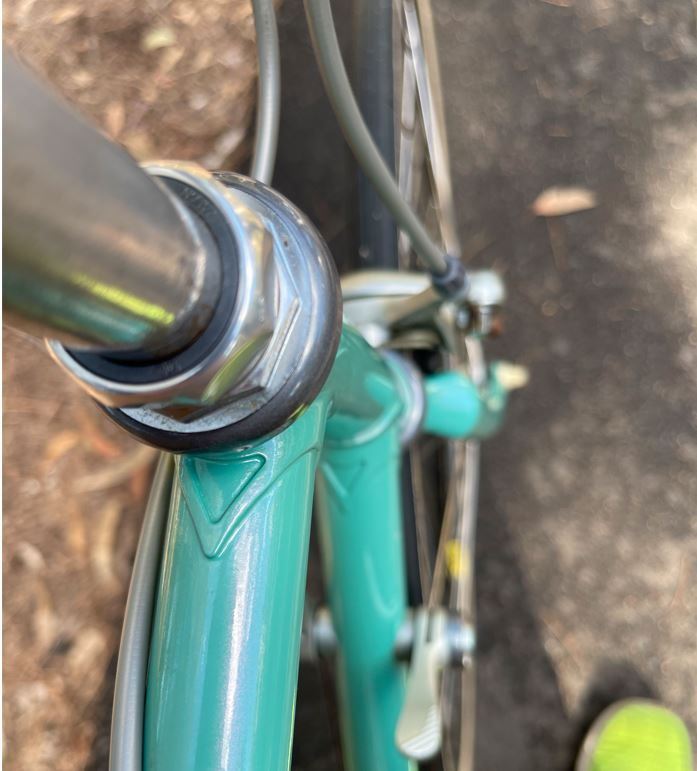

added extra photos
NDL is offline
Old 09-10-21, 10:05 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,880
Mentioned: 329 Post(s)
Tagged: 1 Thread(s)
Quoted: 2876 Post(s)
Liked 1,447 Times in 1,057 Posts
-----

here we are now at a dozen posts on this inquiry and we have yet to be informed of frame's threading or of its tubing diameters

if these checks are inconvenient one easy one would be to measure the shell width

a 70mm shell would be consistent with an Italian origin & would not rule out a Belgian one

while a 68mm shell would tend to rule out and Italian origin

"by eye" it appears to be a 70...


-----
juvela is offline
Old 09-10-21, 10:21 AM
  #13
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,658

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 590 Post(s)
Liked 662 Times in 325 Posts
Based on the apparent age of the bike and the quality it is interesting that it has no distinctive details or makers marking on the frame which would tend to rule most of the major makers. So likely a smaller maker around this time there a couple dozen lesser Italian makers producing similar bikes in Italy and Europe. As for the BB threading it is likely marked on the face of the cups and the tubing size can be determined by the markings sizing on the bottom half of the seat post.
zukahn1 is offline
Old 09-10-21, 09:55 PM
  #14
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts
Originally Posted by juvela View Post
-----

here we are now at a dozen posts on this inquiry and we have yet to be informed of frame's threading or of its tubing diameters

if these checks are inconvenient one easy one would be to measure the shell width

a 70mm shell would be consistent with an Italian origin & would not rule out a Belgian one

while a 68mm shell would tend to rule out and Italian origin

"by eye" it appears to be a 70...


-----
Sorry I am new to the C & V scene, here are the tubing measurement
Head tube 32mm
Top tube 26mm
Down tube 29mm
Seat tube 29mm
Seat Post 27mm
BB width 68mm
NDL is offline
Likes For NDL:
Old 09-11-21, 11:44 PM
  #15
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts
Originally Posted by WGB View Post
NDL, you might check under the BB cable guide. Often serial numbers extend under there so might be missing a digit or two
I removed the cable guide today, there is no extra numbers underneath it.
NDL is offline
Old 09-12-21, 04:42 PM
  #16
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,195

Bikes: Yes, please.

Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 1880 Post(s)
Liked 2,600 Times in 1,143 Posts
Nice bike! It looks to be well made, and the style is Italianesque, but with a 68mm shell I would not rule out a Belgian build.
__________________
Woo hoo!









non-fixie is offline
Likes For non-fixie:
Old 09-12-21, 05:03 PM
  #17
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 362 Times in 128 Posts
Thanks for the tag, juvela .

NDL - you wouldn't happen to be in Australia, possibly Sydney area, would you?

The reason I ask is that most features of this frame seem point to a well regarded Sydney area builder named Kerry Hopkins.
The seat stay caps and the serial number location (although I can't fully make it out in the pic) are both consistent with Kerry's builds. He also often used Columbus dropouts, as well as the same chainstay bridge and bottom bracket shell. It would be helpful to see a pic of the stay end treatment as well as a clearer pic of the serial number.

Serial numbers on Hopkins frames changed over the years and I've seen 4 different formats, but they were all stamped in the same part of the bottom bracket shell. The first character in the serial on your bike looks rounded, so it could be a very narrow "G" that you'll find most commonly on Hopkins built bikes. I've also seen serials with no letter prefix as well as ones with "KH" and "ABK."
You could try to get more info by contacting ABC Bikes (Kerry might be retired by now but maybe someone there might still have the books with serial numbers (perhaps his son Shaun?)). Shaun Hopkins, btw, won a couple of silver medals at the 2008 Paralympic Games in Beijing.

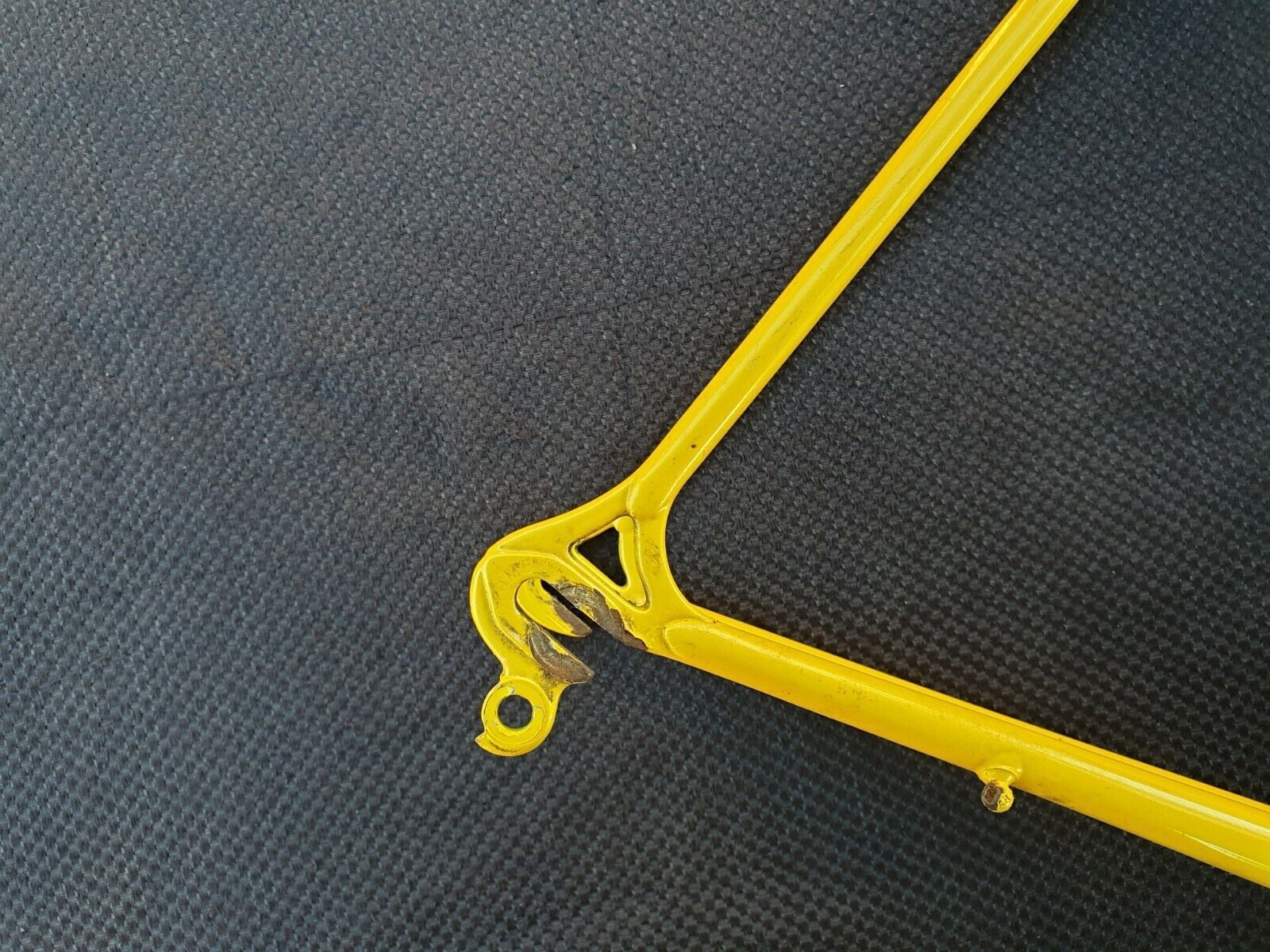

Pics:








MauriceMoss is offline
Likes For MauriceMoss:
Old 09-12-21, 08:52 PM
  #18
NDL
Member
Thread Starter

Join Date: Sep 2021
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 9 Times in 6 Posts
Originally Posted by MauriceMoss View Post
Thanks for the tag, juvela .

NDL - you wouldn't happen to be in Australia, possibly Sydney area, would you?

The reason I ask is that most features of this frame seem point to a well regarded Sydney area builder named Kerry Hopkins.
The seat stay caps and the serial number location (although I can't fully make it out in the pic) are both consistent with Kerry's builds. He also often used Columbus dropouts, as well as the same chainstay bridge and bottom bracket shell. It would be helpful to see a pic of the stay end treatment as well as a clearer pic of the serial number.

Serial numbers on Hopkins frames changed over the years and I've seen 4 different formats, but they were all stamped in the same part of the bottom bracket shell. The first character in the serial on your bike looks rounded, so it could be a very narrow "G" that you'll find most commonly on Hopkins built bikes. I've also seen serials with no letter prefix as well as ones with "KH" and "ABK."
You could try to get more info by contacting ABC Bikes (Kerry might be retired by now but maybe someone there might still have the books with serial numbers (perhaps his son Shaun?)). Shaun Hopkins, btw, won a couple of silver medals at the 2008 Paralympic Games in Beijing.


Pics:








AMAZING!! How you gathered all these info is beyond me, such wealth of knownlege in bikes across the globe. I am from Sydney and everything you said matches my bike, I am so glad I joined this forum instead of some other local ones.
NDL is offline
Likes For NDL:
Old 09-13-21, 11:48 AM
  #19
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,195

Bikes: Yes, please.

Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 1880 Post(s)
Liked 2,600 Times in 1,143 Posts
Originally Posted by NDL View Post
AMAZING!! How you gathered all these info is beyond me, such wealth of knownlege in bikes across the globe. I am from Sydney and everything you said matches my bike, I am so glad I joined this forum instead of some other local ones.
Well, he didn't come cheap, but since the MVP laurels will probably go to MauriceMoss again this week, I'm happy.
