WTB: French thread fixed BB cup, Campy

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

WTB: French thread fixed BB cup, Campy

Old 05-29-20, 11:13 PM
  #1
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 2,000
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 36 Times in 28 Posts
WTB: French thread fixed BB cup, Campy

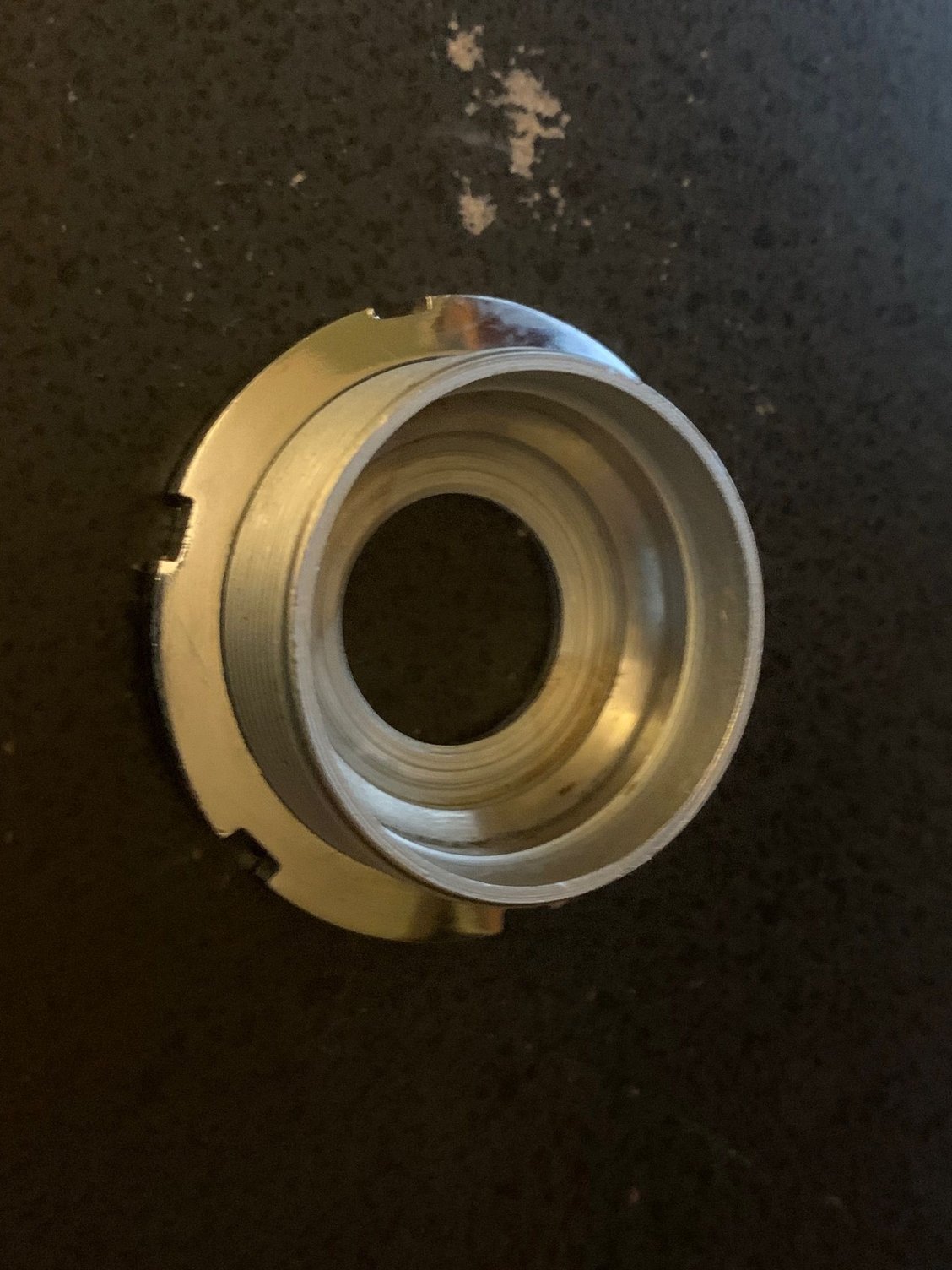

Looking for the fixed cup to match the cup in the photo here. Apparently, there were "thick" and "thin" versions. I don't know which I have; I need a match to the cup I have. (Maybe someone can identify which I have)
thanks.

vintagerando is offline
Old 05-30-20, 02:31 AM
  #2
100bikes
Industry guy

Join Date: Nov 2007
Location: Minnesota
Posts: 319

Bikes: To many to name - I ride a custom built steel frame.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 51 Times in 34 Posts
I believe you have the "thin" version. The "thick" version has rifled opening, to facilitate keeping the dirt from reaching the grease in the bb.

You can see one here..................

https://rustybicycleshop.com/745-camp...-cup-35-x-1-g/

Last edited by 100bikes; 05-30-20 at 02:37 AM.
100bikes is offline
Old 05-30-20, 07:15 AM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,755

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3052 Post(s)
Liked 2,181 Times in 1,302 Posts
Originally Posted by 100bikes View Post
I believe you have the "thin" version. The "thick" version has rifled opening, to facilitate keeping the dirt from reaching the grease in the bb.

You can see one here..................

703 Campagnolo Allen bolt
Yes. Only Nuovo Record road cups came in the "thick" variety. Record road, Record and Super Record pista, and Gran Sport cups were all "thin:"

JohnDThompson is offline
Old 05-30-20, 07:19 AM
  #4
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,023

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23856 Post(s)
Liked 7,541 Times in 5,328 Posts
.
...maybe you already know this, but you can also use another matching adjustable cup and lock ring on the fixed side with both sides threaded RH.
3alarmer is offline
Old 05-31-20, 09:14 PM
  #5
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 2,000
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 36 Times in 28 Posts
Originally Posted by 3alarmer View Post
.
...maybe you already know this, but you can also use another matching adjustable cup and lock ring on the fixed side with both sides threaded RH.
ok....but will it have to "match" the spindle? Are the ends spindle a specific shape for Campy?
vintagerando is offline
Old 05-31-20, 11:20 PM
  #6
orangeology
category ii hoarder

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 52 Times in 33 Posts
Originally Posted by vintagerando View Post
ok....but will it have to "match" the spindle? Are the ends spindle a specific shape for Campy?
no specific 'campy' shape of the ends spindle—you pro'ly meant the bearing interface of the either side of the spindle—although, the old spindles do have R & L by slight difference in length between the bearing interface and the square tapered part, depending on whether it was for double or triple crankset. in general, longer side is R, being the crank side with the chainring clearance.

IMO tho, sourcing another adjustable cup in french threads will be as hard as sourcing the fixed cup... good luck!

IIRC, the Sugino BBs from the same era were Campy copies. (someone pls correct me if i'm wrong). that case, there are some on the fleabay at lower tags. like this one:
https://www.ebay.com/itm/Sugino-Bott...sAAOSwR6lesbiw

Last edited by orangeology; 05-31-20 at 11:24 PM.
orangeology is offline
Old 06-01-20, 04:11 AM
  #7
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,052
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 764 Post(s)
Likes: 0
Liked 810 Times in 497 Posts
Originally Posted by orangeology View Post
IIRC, the Sugino BBs from the same era were Campy copies. (someone pls correct me if i'm wrong). that case, there are some on the fleabay at lower tags. like this one:
https://www.ebay.com/itm/Sugino-Bott...sAAOSwR6lesbiw
I have some of those Sugino cups. They're good, but they are neither as good, nor copies of, Campagnolo.
oneclick is offline
Old 06-01-20, 06:55 AM
  #8
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
Sugino BB Cups

Originally Posted by oneclick View Post
I have some of those Sugino cups. They're good, but they are neither as good, nor copies of, Campagnolo.
Not sure what you mean by "...nor copies of, Campagnolo."?

BITD Sugino BBs were a poor mans replacement for Campy parts. Maybe we didn't know any better back then but... A Campy BB could cost a day or two's wages.

As far as interchanging spindle brands there's a lot of variation in the ball track dimensions.

A way to check is to remove all the grease from the parts and use a product called Dyekem Layout Fluid or you could use a Magic Marker to coat the bearing contact surfaces Hand assemble with some caged bearings and rotate the spindle to check the points of contact.



Ball bearing contact angle



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 06-01-20 at 06:59 AM.
verktyg is offline
