WTB: some Unoptanium Low-Stack-Height Headsets

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

WTB: some Unoptanium Low-Stack-Height Headsets

Old 07-31-20, 02:13 PM
  #1
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,236

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 31 Times in 24 Posts
WTB: some Unoptanium Low-Stack-Height Headsets

searched all over for quite a while, finally decided to search 'within'.
looking for a functioning, aka fair-to-good condition vintage threaded headsets with low stack-height <33mm ish. one headset or source-able partial.
(i've returned a Tange Passage, didn't like the overall finishing quality, wasn't like the earlier ones)

the list of the ones i'm looking for is here. no specific order. BSA or ITA* threaded + 26.4 crown race, pls.

Dura Ace HP 7500 or 7600: literally an unobtanium but shooting anyway. both models were for Track/Pista hence some of them are with NJS stamps. 7500 has a couple mm lower SH.
Campagnolo Pista* or Gran Sports: pretty much same looking, in terms of shape. both have non-scripted round cups. (vs most of Campy HS w 'Brev Campagnolo Italy' script on the outside curve on the cups).
(1. we do see these on the 'bay but mostly located in Eastern Euro. don't want to wait another 2 months. *2. i realize Tange Passage is a poor copy of Campy Pista)
Shimano 600 (Ultegra 6400): only the one for 600 Tricolor group, also with rounded cups, Not the EX or Arabesque or Arrow. last choice, as not a fan of anodized mat finish.

i understand that any of 'em are hard to come by, would be generous to the aesthetic condition as long as with no grinding/pitts where matters.
willing to mix-match if partially—upper only or lower only—available. holler, pls.


(all images from Velobase)
DA 7500


DA 7600 (one has whopping 31mm SH!)


Campy Pista


Campy GS


Shimano 600 (HP6400)

Last edited by orangeology; 07-31-20 at 08:07 PM.
orangeology is offline
Old 07-31-20, 02:39 PM
  #2
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 115

Bikes: 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2005 LeMond Alpe D'Huez | 2002 LeMond Zurich Women's (SO's)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 20 Times in 18 Posts
Since you mentioned a Passage, got one (I think) with a fork I bought a while back if you want to give it a try. Circa 1999 (LeMond Tourmalet fork - should be a Passage). I know itís not on your preferred list but if you strike out otherwise. Still dirty I never even cleaned it up. Also got a Vantage DX2 (1999 LeMond Buenos Aires) but looks a bit taller stack on that one. Happy to measure whatever youíd like.

AJI125 is online now
Likes For AJI125:
Old 07-31-20, 04:40 PM
  #3
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,236

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 31 Times in 24 Posts
Originally Posted by AJI125 View Post
Since you mentioned a Passage, got one (I think) with a fork I bought a while back if you want to give it a try. Circa 1999 (LeMond Tourmalet fork - should be a Passage). I know itís not on your preferred list but if you strike out otherwise. Still dirty I never even cleaned it up. Also got a Vantage DX2 (1999 LeMond Buenos Aires) but looks a bit taller stack on that one. Happy to measure whatever youíd like.
the one in the pic seems made of alloy, perhaps DX model (vs. regular Passage being steel). also should be in better quality comparing to the recent ones being from '90s. good option. let me hold on to it as the last resort, trying to give a few more days to see if any in the list popping up?

thanks very much, Alex!
orangeology is offline
Old 07-31-20, 05:58 PM
  #4
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,052

Bikes: Many, and the list changes frequently

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Liked 350 Times in 217 Posts
Tange Seiki Levin CDS headsets are decent low stack alternatives for Campy Gran Sports (which seem to be identical to the Pistas). I've used the Levin CDSs on a few Italian frames and they work well and look good IMO.

Good luck on your search.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 07-31-20, 06:20 PM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,385

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2273 Post(s)
Likes: 0
Liked 691 Times in 478 Posts
The Tange headset with very low stack height is their OEM model. Cheap, no seals. Both races and hardware above are low stack. It mixed and matches with the other Tanges. $8 at any bike shop. (As I said, no seals, You need either a cover over the bottom race, a fender or lots of marine grease to keep road dirt out. I've used them many times to reduce stack, trying to keep the better sealed higher model lower race if possible.)

Ben
79pmooney is online now
Old 08-01-20, 06:31 AM
  #6
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 169

Bikes: (built) 1983 Univega Gran Premio, 1972 Raleigh Competition s/s, 1972 Bob Jackson (Unbuilt: 1968 Cilo Pacer, 198? Marinoni Special)

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 43 Times in 27 Posts
Seconded on mix+match: i've been able to use Tange Levin hardware at the lower end and also the upper cone, and a Passage top cup + locknut, and ended up with what seems like Passage stackheight but without the worst of the Passage fuglies
niliraga is offline
Likes For niliraga:
Old 08-01-20, 06:37 AM
  #7
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 115

Bikes: 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2005 LeMond Alpe D'Huez | 2002 LeMond Zurich Women's (SO's)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 20 Times in 18 Posts
Originally Posted by orangeology View Post
the one in the pic seems made of alloy, perhaps DX model (vs. regular Passage being steel). also should be in better quality comparing to the recent ones being from '90s. good option. let me hold on to it as the last resort, trying to give a few more days to see if any in the list popping up?

thanks very much, Alex!
Take your time, this headset wonít be anywhere other than the drawer. Some quick measurements yesterday were just <33 stack with the washer but Iím talking quick so no guarantees. I actually have the fork with the race still installed so Iíll pop that off whenever I remember (steerer was wrong length, from a 53 not a 55 I gander).
AJI125 is online now
Likes For AJI125:
Old 08-01-20, 08:55 AM
  #8
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,353

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 354 Times in 237 Posts
Tange Low Stack Height Headsets

The Tange Passage is an inexpensive headset that's fine for replacement on a low usage beater or gas pipe bike.

They're better quality than many OEM headsets but they're "case hardened", only the surface is hard. The steel underneath is softer and wears out quickly as the bearings wear through the case hardened layer. Also the chrome plating covers the bearing races and starts to flake off in short order. The chrome flakes are abrasive and add to the quick wear.

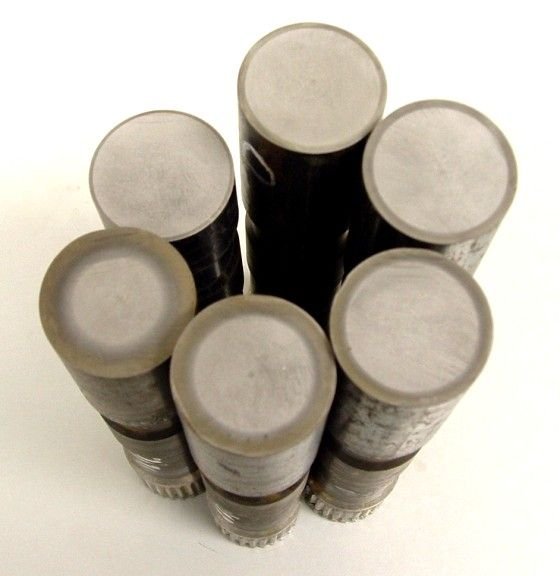

The darker areas on these 1/2" test samples show the depth of the case hardening which can range from <.005" to .050" deep (.13mm to 1.3mm thick).




Passage headsets have a stack height of 30.3mm. They come in Satin Chrome, "C. P." Polished Chrome and Black finish. The standard crown race is 26.4mm but they are made in hard to find 27.0mm too. They have plastic dust shields to protect the bearings.

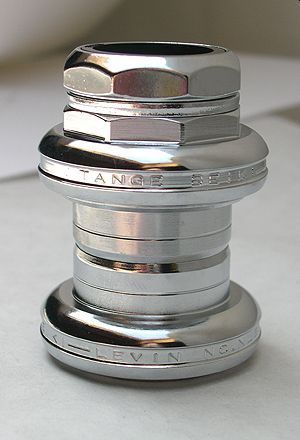

Tange Levin CDS headsets are much higher quality. They have a 33mm stack height and are made of through hardened Chrome Moly steel with polished bearing races. Levin CDS headsets come in the same finishes as the Passage and same plastic dust shields. 26.4mm crown races are standard but they are also made in hard to find 27.0mm.


The Levine CDS headsets are far better quality than the low stack height Campy Pista headsets. Same thing with the Shimano headsets with the plastic "skirts" on the cups.

Quick and dirty was to measure the stack height on a frame with the headset components removed:

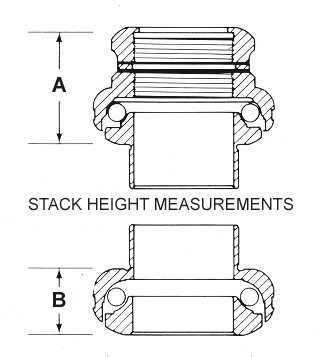

Headset Stack Height measurements.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Likes For verktyg:
Old 08-01-20, 09:02 AM
  #9
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,088
Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 654 Times in 382 Posts
At one point, I had a Shimano 105 (HP-1055) headset that seemed to have a much lower stack than anything else in the bin. I think it was this one on Velobase, which lists a 33.5mm stack. It seemed even lower than that, iirc. I think I ended up putting it on a flip that had a steerer a smidge too short for any other headset, but I can look in the bin when I'm home (which won't be for another week).
nlerner is online now
Likes For nlerner:
Old 08-01-20, 09:14 AM
  #10
TimmyT
Keener splendor

TimmyT's Avatar

Join Date: Jun 2011
Location: New York, NY
Posts: 2,545

Bikes: Black Mountain Cycles Road, Cannondale CAAD12, Bob Jackson, Simoncini, Kinesis Tripster

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 14 Times in 11 Posts
Originally Posted by nlerner View Post
At one point, I had a Shimano 105 (HP-1055) headset that seemed to have a much lower stack than anything else in the bin. I think it was this one on Velobase, which lists a 33.5mm stack. It seemed even lower than that, iirc. I think I ended up putting it on a flip that had a steerer a smidge too short for any other headset, but I can look in the bin when I'm home (which won't be for another week).
Haha. You sent it to me, and it's here in the bin. I was just about to send it back.
TimmyT is offline
Old 08-01-20, 09:16 AM
  #11
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,088
Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 654 Times in 382 Posts
Originally Posted by TimmyT View Post
Haha. You sent it to me, and it's here in the bin. I was just about to send it back.
Hah! Maybe you should send it directly to orangeology .
nlerner is online now
Likes For nlerner:
Old 08-01-20, 09:17 AM
  #12
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,236

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 31 Times in 24 Posts
Originally Posted by verktyg View Post
The Tange Passage is an inexpensive headset that's fine for replacement on a low usage beater or gas pipe bike.

They're better quality than many OEM headsets but they're "case hardened", only the surface is hard. The steel underneath is softer and wears out quickly as the bearings wear through the case hardened layer. Also the chrome plating covers the bearing races and starts to flake off in short order. The chrome flakes are abrasive and add to the quick wear.

The darker areas on these 1/2" test samples show the depth of the case hardening which can range from <.005" to .050" deep (.13mm to 1.3mm thick).
ahhhh, thanks for the awesomely detailed info, sir. had always believed so but with skepticism that: Levin was higher model to Passage but their naming structure: CDS, WTF, and another "Levin" model more look like Record Campy etc etc on top of crazy price fluctuation on the web. at some point, it was hard to see which one is better or lesser in Tange world. now it makes total sense. used to have Levin CDS one point (pretty sure i used it when i rebuild a Ralleigh Gran Sport). also good to know it's better quality than Campy Pista. had no idea.

i mean in this case, no meaning of trying mix-match up with Passage part. 33mm is low enough, i can work it out. sans-washer, it will be around 31mm, i've got 30.5mm clearance on the fork!

*another funny thing i've noticed. correct me if i'm wrong. the 'recent/current' production of all Tange headsets seem lesser quality than the ones from 90s or early 2000's even same models. new ones are definitely cheaper in terms of price but not with convincible quality. it's like still rolling the dice in cases.
orangeology is offline
Old 08-01-20, 09:20 AM
  #13
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,236

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 31 Times in 24 Posts
Originally Posted by nlerner View Post
Hah! Maybe you should send it directly to orangeology .
LOL.
thanks but hold on to it, pls. i'm giving a few more days to this. i still have a wild dream of a DA's popping up like a dream. lol
orangeology is offline
Likes For orangeology:
Old 08-01-20, 08:07 PM
  #14
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,353

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 354 Times in 237 Posts
Tange Headset Naming???

Originally Posted by orangeology View Post
ahhhh, thanks for the awesomely detailed info, sir. had always believed so but with skepticism that: Levin was higher model to Passage but their naming structure: CDS, WTF, and another "Levin" model more look like Record Campy etc etc on top of crazy price fluctuation on the web. at some point, it was hard to see which one is better or lesser in Tange world. now it makes total sense. used to have Levin CDS one point (pretty sure i used it when i rebuild a Ralleigh Gran Sport). also good to know it's better quality than Campy Pista. had no idea.
Also niliraga and 79pmooney

Just to set the record straight, the Tange Levin model headset was/is a Campagnolo Record Strada # 1039 knockoff headset that's been around for decades. Very different from the Levin CDS model which was essentially a Campagnolo Record Pista/GranSport Strada knockoff...







Now to clear or muddy the water....

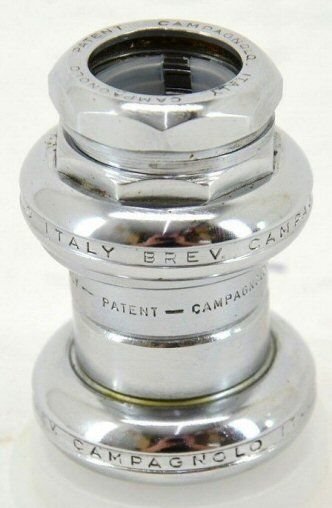

1. I've measured steel Campy Record Strada # 1039 headsets with stack heights from 40+ mm to 43mm!!! I've also seen specs of 38mm, 39.1mm and so on. Tange lists the Levin model with a 38.2mm stack height.

2. Sutherland's Handbook For Bicycle Mechanics - I still have my 2nd Edition from 1977 plus I have 1990 5th Edition.

Olde Russian proverb: DoveryŠy, no proveryŠy = Trust But Verify!!!!!!!!!!!!!!

For example the 1977 2nd Edition lists Campy Record Strada with a 39.1mm stack height. The 1990 5th Edition lists a Nuovo Record Strada with a 39.1mm stack height. There was NEVER a Nuovo Record headset, only Record...picky, picky picky.

BITD, we'd lookup specs in Sutherland's and scratch our heads - WTF?

Caveat Emptor: It a good starting point for reference but in reality we could never figure out how they got some of their measurements

BASTA EDITORIAL....


Originally Posted by orangeology View Post
i mean in this case, no meaning of trying mix-match up with Passage part. 33mm is low enough, i can work it out. sans-washer, it will be around 31mm, i've got 30.5mm clearance on the fork!
It's always a good idea to reface the head tube and crown race when you work on a headset. I've seen high zoots top quality holy sacred Italian frames that were never properly faced from the get go.

Refacing can easily buy you 1+ mm of stack height.

Finding someone with the correct tools and... how to use them can require some research but the results will be worthwhile.

Originally Posted by orangeology View Post
*another funny thing i've noticed. correct me if i'm wrong. the 'recent/current' production of all Tange headsets seem lesser quality than the ones from 90s or early 2000's even same models. new ones are definitely cheaper in terms of price but not with convincible quality. it's like still rolling the dice in cases.
Tange Seiki private labeled the Levin CDS headsets for Specialized BITD. I used them on a number of bikes from the late 80's to early 2000's.



I started using these Specialized/Tange Levin CDS headsets in the late 80's. Never had a problem. They were great for bikes that needed a short stack headset. Also used a few Passage headsets with lower end frames.

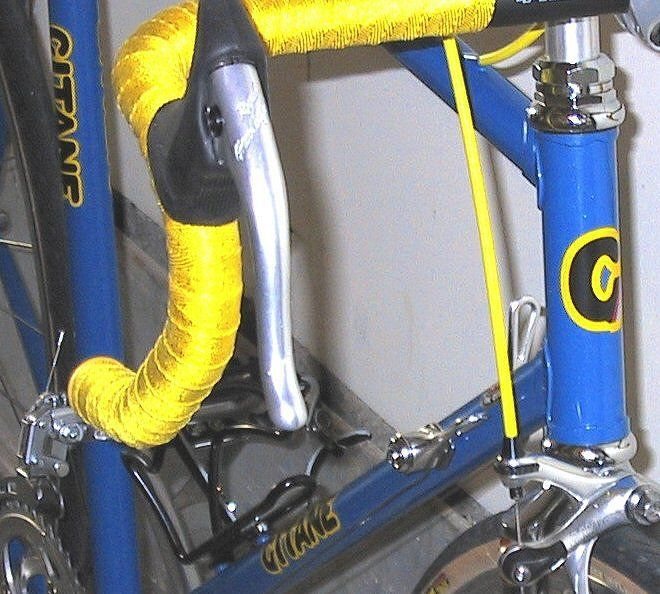

Specialized headset in my 2004 Gitane Super Corsa that I got as a bare frame. Replaced a plastic skirted Shimano headset.



As far as quality is concerned, never saw a problem but about 10 years ago I bought a bunch of new Tange Levin headsets for $16.00 to ~$22.00. Still have some of them in boxes.

Got a few Passage headsets too for cheap low stack height frames.

One other thing, it's usually only the crown race and lower cup that get indentations. I've replaced those parts with Passage or Levin CDS crown races and lower cups on a number of bikes.

Works great with metric headsets because the upper parts are usually OK and the Tange lower parts look C & V.

Hope this helps...

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 08-01-20 at 08:13 PM.
verktyg is offline
Likes For verktyg:
Old 08-01-20, 09:41 PM
  #15
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,236

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 31 Times in 24 Posts
thanks for another detailed breakdown and the photos, verktyg
1. aware of the difference between high-stack-height Levin & Levin CDS. have used both. 2
2. facing the headtube is not an option at the moment. Masi 3V headtube shape would become like a knife blade with even a mm more cut. luckily, Cudak888 helped me shaving about .75mm on the crown when he knurled the race seat.
3. guess the verdict at the moment is Levin CDS. looks like i can get one less than $30 inc shipping. found a NOS DA7500 (Pitch 10 track headset) from a seller in Taiwan, but it's $200 + with JIS crown race that would require me to use shim on top of already knurled surface. don't think it's worth the hassles. unless another 7500 or 7600 miraculously pops up, which is never likely.
orangeology is offline
Old 08-01-20, 10:21 PM
  #16
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,353

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 354 Times in 237 Posts
Tange Levin CDS Headsets On eBay

Originally Posted by orangeology View Post
thanks for another detailed breakdown and the photos, verktyg
1. aware of the difference between high-stack-height Levin & Levin CDS. have used both. 2
2. facing the headtube is not an option at the moment. Masi 3V headtube shape would become like a knife blade with even a mm more cut. luckily, Cudak888 helped me shaving about .75mm on the crown when he knurled the race seat.
3. guess the verdict at the moment is Levin CDS. looks like i can get one less than $30 inc shipping. found a NOS DA7500 (Pitch 10 track headset) from a seller in Taiwan, but it's $200 + with JIS crown race that would require me to use shim on top of already knurled surface. don't think it's worth the hassles. unless another 7500 or 7600 miraculously pops up, which is never likely.
There are a bunch of new Tange Levin CDS C.P. polished chrome headsets with 26.4mm crown races on eBay with free shipping for $29 to $32.

https://www.ebay.com/itm/Tange-Levin...sAAOSwg3FUfjkw

https://www.ebay.com/itm/NEW-Tange-L...r/303374903106

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 08-01-20 at 10:25 PM.
verktyg is offline
Likes For verktyg:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
