WTB Crankset for mid 70's Motobecane

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

WTB Crankset for mid 70's Motobecane

Old 08-09-20, 04:30 PM
  #1
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
WTB Crankset for mid 70's Motobecane

Building up a Motobecane Super Mirage mixte for a friend. Looking for some period appropriate cranks with a 42 to 45 tooth small ring. This will be single speed so I really only need the one. French would be cool but Japanese would be fine. Looking for one in above average shape.
polymorphself is offline
Old 08-09-20, 04:39 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,321

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4621 Post(s)
Liked 996 Times in 682 Posts
Do you have a bottom bracket for the bike? You may want to start with the bottom bracket or find a bottom bracket with the proper threading and a matching crank.
bikemig is offline
Old 08-09-20, 04:59 PM
  #3
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Originally Posted by bikemig View Post
Do you have a bottom bracket for the bike? You may want to start with the bottom bracket or find a bottom bracket with the proper threading and a matching crank.
I don't, but I'll be using a newer sealed unit. A un55 or equivalent.
polymorphself is offline
Old 08-09-20, 07:28 PM
  #4
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 247

Bikes: 1972 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1989 Marinoni Special, 1985 Fuji Touring Series IV

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 59 Times in 39 Posts
I was always under the impression that VO was the only place to find modern BBs with french threading. Have I been missing something all this time?

Originally Posted by polymorphself View Post
I don't, but I'll be using a newer sealed unit. A un55 or equivalent.
niliraga is offline
Old 08-09-20, 07:30 PM
  #5
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Originally Posted by niliraga View Post
I was always under the impression that VO was the only place to find modern BBs with french threading. Have I been missing something all this time?
I thought Motobecane was the only one that actually didn't use French threading, but I'm probably wrong!
polymorphself is offline
Old 08-10-20, 06:23 AM
  #6
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,154
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Liked 182 Times in 122 Posts
“Definitely French”

Originally Posted by polymorphself View Post
I thought Motobecane was the only one that actually didn't use French threading, but I'm probably wrong!
At least your second statement is right!
Seriously, it is most likely French. Possibly Swiss.
Did any vintage Motos use British threading?
due ruote is offline
Likes For due ruote:
Old 08-10-20, 07:06 AM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,719

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2243 Post(s)
Liked 637 Times in 428 Posts
Originally Posted by polymorphself View Post
I don't, but I'll be using a newer sealed unit. A un55 or equivalent.
A mid-70s Motobécane is likely to have metric (aka "French" or possibly even "Swiss") bottom bracket thread. I don't think the UN55 or other Shimano cartridges were offered with metric thread. Velo-Orange has a French thread cartridge, but if your frame turns out to have Swiss thread, you'll likely need a threadless cartridge or a Phil Wood cartridge with the appropriate mounting rings.
JohnDThompson is offline
Likes For JohnDThompson:
Old 08-10-20, 07:06 AM
  #8
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,040

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 301 Post(s)
Liked 177 Times in 121 Posts
Here are some newer bottom bracket cups I got that work very well actually.
https://www.ebay.com/itm/New-Bottom-...AAAOSwnSxZiKpU

Finding the axle is a bit tricky though.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 08-10-20, 07:25 AM
  #9
Last ride 76
1/2 as far in 2x the time

Last ride 76's Avatar

Join Date: Nov 2013
Location: Northern Bergen County, NJ
Posts: 1,936

Bikes: Yes, Please.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 497 Post(s)
Liked 277 Times in 218 Posts
The price may likely be prohibitive, but I have a complete French thread phil bottom bracket in very nice condition, if you want to go that route.
__________________
I seem to have lost what little mind I had left before this all started.
Last ride 76 is offline
Old 08-10-20, 07:56 AM
  #10
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,252
Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 1670 Post(s)
Liked 803 Times in 456 Posts

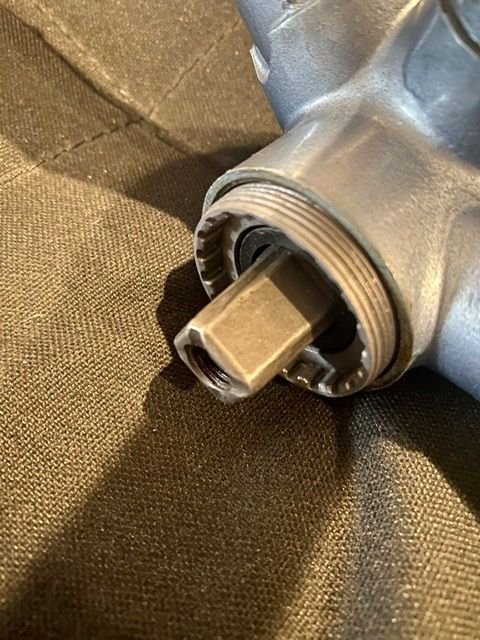

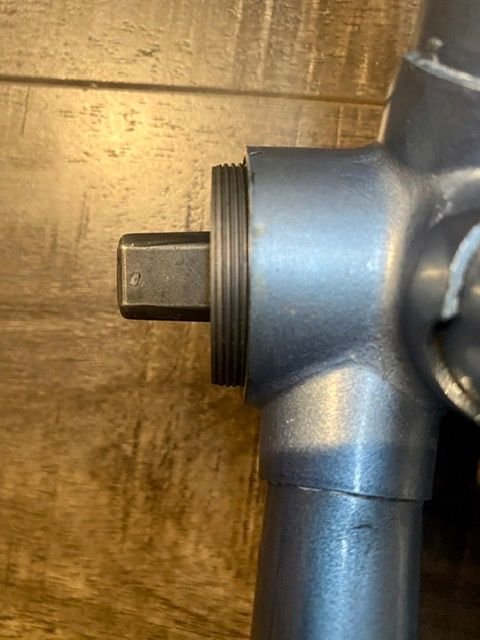

On a recent Moto project with Swiss threading, I went with a YST threadless BB. About $30. Worked just fine.
nlerner is offline
Likes For nlerner:
Old 08-10-20, 09:10 AM
  #11
mountaindave
Happy Commuter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,594

Bikes: Red bikes. Why do I have so many red bikes?! I thought green was my favorite color

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 129 Times in 90 Posts
You won’t know until you remove it. At least the NDS will come of the regular way no matter the size. It’s the DS cup that can be challenging. I had to examine the threads visible inside the BB to confirm I had French threading on my Gitane.

Sheldon’s BB fixed cup removal tool is your friend on a 45 year old fixed cup...
mountaindave is offline
Old 08-10-20, 09:39 AM
  #12
Nubra
Senior Member

Nubra's Avatar

Join Date: Sep 2008
Location: Santa Cruz, CA
Posts: 78

Bikes: Miyata six-ten, Miyata Grand Touring, Univega Sport Tour, Univega Gran Turismo, 80's Trek MTB, 2008 Dahon Mariner

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 23 Times in 15 Posts
Originally Posted by nlerner View Post
On a recent Moto project with Swiss threading, I went with a YST threadless BB. About $30. Worked just fine.
Thanks so much Niener! I was reading this thread becuase I was just gifted an very old Moto with cottered cranks and want to get those off. I just hope that the 116 is long enough for the cranks I hope to put on to line up the chain line.
Cheers.
__________________
"Ever since happiness heard your name, it has been running through the streets trying to find you."

~Hafiz
Nubra is offline
Old 08-10-20, 01:24 PM
  #13
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Ah, whoops, looks like what I had read was that they were the only ones using Swiss threading at the time rather than French. Still metric though! Thanks nlerner, that looks like it'll do.
polymorphself is offline
Old 08-16-20, 05:33 AM
  #14
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,022

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 846 Post(s)
Likes: 0
Liked 401 Times in 266 Posts

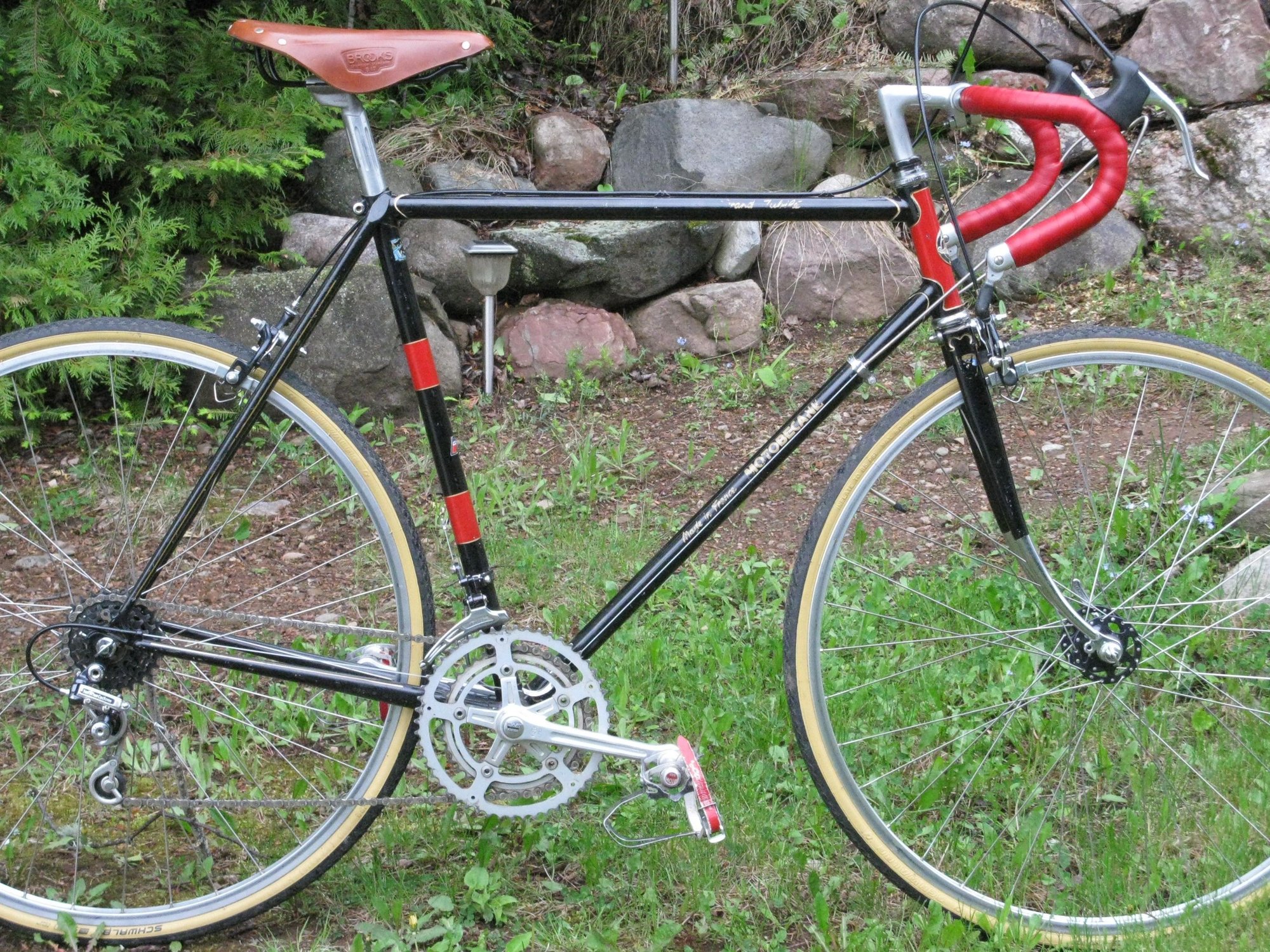

Motobecane went to standard threading in the mid seventies. This 1978 Motobecane Grand Jubilee was full standard, no French, threading. I believe the changes started in mid-1976...


__________________
"98% of the bikes I buy are projects".
randyjawa is online now
Old 08-17-20, 10:29 PM
  #15
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,154
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Liked 182 Times in 122 Posts
Originally Posted by randyjawa View Post
Motobecane went to standard threading in the mid seventies. This 1978 Motobecane Grand Jubilee was full standard, no French, threading. I believe the changes started in mid-1976...
And yet my 78 Team Champion has French bb threads and headset.
due ruote is offline
Likes For due ruote:
Old 08-18-20, 12:48 AM
  #16
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,272

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 1871 Post(s)
Liked 822 Times in 588 Posts
Originally Posted by due ruote View Post
And yet my 78 Team Champion has French bb threads and headset.
That's cause they kept using the "good" stuff on the top of the line.
merziac is offline
Old 08-18-20, 03:09 AM
  #17
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,381

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 731 Post(s)
Liked 373 Times in 251 Posts
Motobecane Frame Threads

I have 11 Motos plus 2 that I sold off. They date from 1972 to 1982.

None of them British threads... I don't recall ever seeing or working on any either. A few Motos had Swiss metric BBs with LH fixed cups.

That's not to say that like Peugeot and Gitane, they didn't start using British threads on their lower cost models in the early 80's??? Not likely in the mid 70's.

My latest Motobecane, a 1982 Team Champion:



polymorphself Like others, I suggest that you find either a crank set or a BB and then get the matching parts.

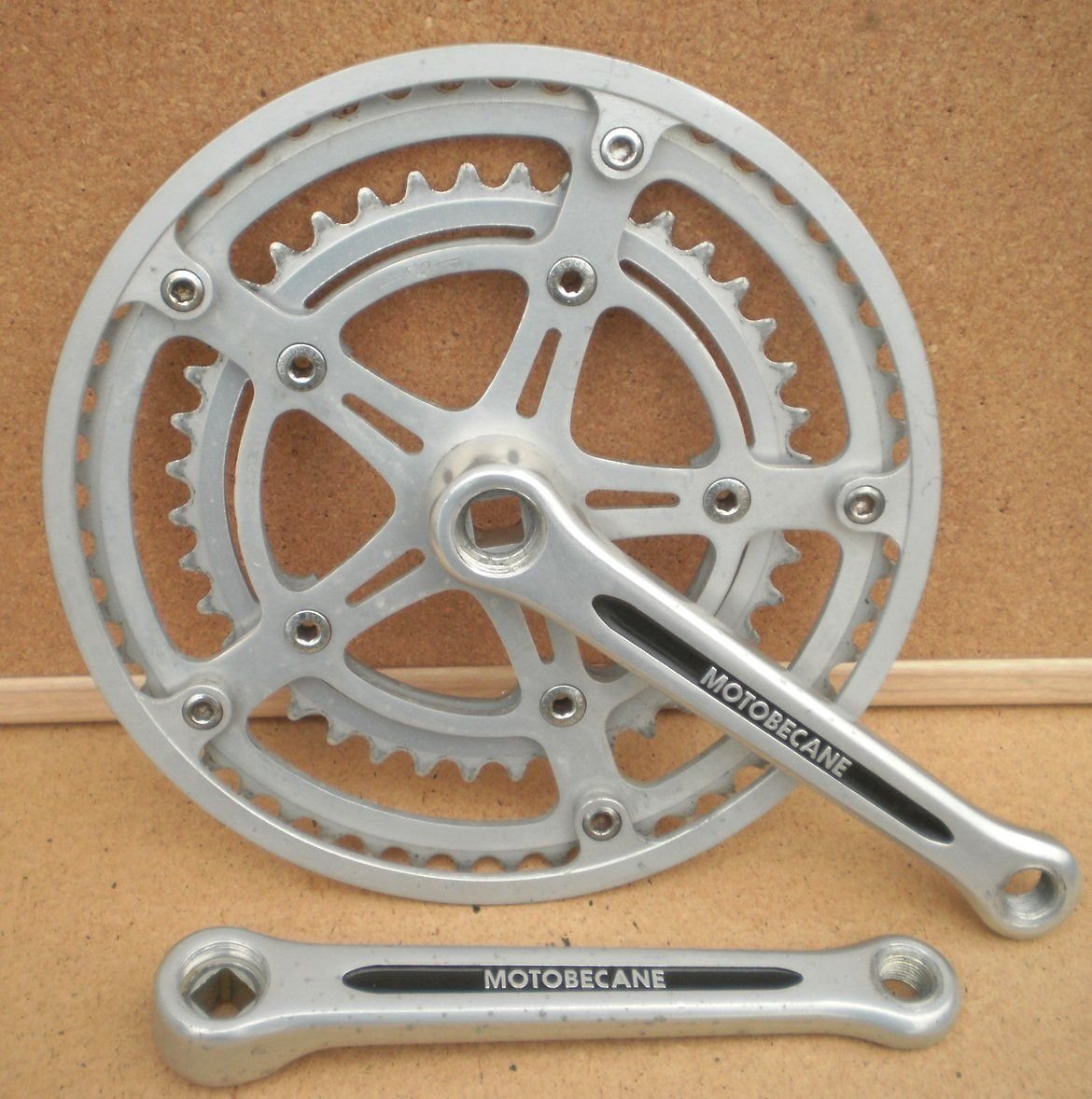

One thing to look for, Motobecane used SR Sakae Ringyo cast aluminum cotterless cranks on a lot of bikes from the mid 70's on. They can be found with the proper metric BBs too. If you can find one of these setups it would solve a lot of issues.



randyjawa You picture the headset on your 1978 Grand Jubile and said it has British threads.

Stronglight made those Motobecane badged headsets. They were good quality, equivalent to the P3 model. I have one on my 1980 Grand Jubile. plus another one in a box. They are definitely metric threaded....



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 08-18-20 at 03:16 AM.
verktyg is offline
Old 08-18-20, 04:34 AM
  #18
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 2,275
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 108 Times in 80 Posts
Neither French, nor Japanese, but certainly above average and available.

Campagnolo Triomphe Crankset - VGC
plonz is offline
Old 08-18-20, 08:53 AM
  #19
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,152

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1973 Raleigh Competition, 1971 Gitane Tour de France and others

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 387 Post(s)
Liked 263 Times in 151 Posts
Stronglight made those Motobecane badged headsets. They were good quality, equivalent to the P3 model. I have one on my 1980 Grand Jubile. plus another one in a box. They are definitely metric threaded....
verktyg [/QUOTE]

I did NOT know that - but the Motobecane badged headset upper combined with a Tange Levin lower cup and crown race assembly (for where the fork was machine for a Campagnolo unit) works PERFECTLY on my Allegro that came stock with a Stronglight P3. So I got a Stronglight P3 analog built by Stronglight after all. Cool.
rustystrings61 is offline
Old 09-02-20, 02:21 PM
  #20
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Originally Posted by nlerner View Post
On a recent Moto project with Swiss threading, I went with a YST threadless BB. About $30. Worked just fine.
Do you imagine the 68x110 would be a good length for single speed?
polymorphself is offline
Old 09-02-20, 04:41 PM
  #21
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,252
Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 1670 Post(s)
Liked 803 Times in 456 Posts
Originally Posted by polymorphself View Post
Do you imagine the 68x110 would be a good length for single speed?
It'll likely depend on the crankset you're going to use. Is it normally a double and you'll be using a single ring or is it made to be a single?
nlerner is offline
Old 09-02-20, 04:57 PM
  #22
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Originally Posted by nlerner View Post
It'll likely depend on the crankset you're going to use. Is it normally a double and you'll be using a single ring or is it made to be a single?
Normally a double and using a single ring. Stronglight 93.

However, was just at a LBS and they had a look and told me I could use an English threaded BB. I was skeptical and told them it’s likely French or Swiss. The drive side went it fine, clockwise. Non drive side went in counter clockwise but is sticking out quite a lot as shown in this pic and took a bit of torque to get it this far. They assured me that this was normal. I have sealed cartridge BB’s on three other bikes. Only one of them sticks out at all and it’s about one thread. The size here is 68x103.

This can’t be normal, can it?


polymorphself is offline
Old 09-02-20, 05:05 PM
  #23
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 247

Bikes: 1972 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1989 Marinoni Special, 1985 Fuji Touring Series IV

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 59 Times in 39 Posts
An *English* threaded BB went in *clockwise* on the drive side? whaa... ?!??

the threading is quite close, i recall, so on the NDS i could imagine that photo shows about where the ring would finally bind up.

but still, not getting my head around the DS.


Originally Posted by polymorphself View Post
Normally a double and using a single ring. Stronglight 93.

However, was just at a LBS and they had a look and told me I could use an English threaded BB. I was skeptical and told them it’s likely French or Swiss. The drive side went it fine, clockwise. Non drive side went in counter clockwise but is sticking out quite a lot as shown in this pic and took a bit of torque to get it this far. They assured me that this was normal. I have sealed cartridge BB’s on three other bikes. Only one of them sticks out at all and it’s about one thread. The size here is 68x103.

This can’t be normal, can it?


niliraga is offline
Old 09-02-20, 05:11 PM
  #24
polymorphself
Senior Member
Thread Starter

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 854

Bikes: 1986 Schwinn Voyageur, 1985 Miyata 310.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 233 Times in 122 Posts
Originally Posted by niliraga View Post
An *English* threaded BB went in *clockwise* on the drive side? whaa... ?!??

the threading is quite close, i recall, so on the NDS i could imagine that photo shows about where the ring would finally bind up.

but still, not getting my head around the DS.
Sorry, opposite! Drive side went in counter clockwise, NDS clockwise.

So you would say all seems well enough? I’m just pretty confused on how an English threaded BB would work and be correct when it likely takes Swiss or french.

Here’s a slightly better angle...



Last edited by polymorphself; 09-02-20 at 05:41 PM.
polymorphself is offline
Old 09-02-20, 06:51 PM
  #25
Iowegian
Senior Member

Iowegian's Avatar

Join Date: Dec 2005
Location: Boulder, Colo
Posts: 2,017
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 7 Times in 7 Posts
That looks like a 73mm BB in a 68mm shell. Sometimes cartridge BB's can make it tough to get the NDS cup in without a bit of wiggling if the DS is already installed. You should be able to get either side to thread in with finger pressure or by hand with a tool if the opposing side is out.

Edit to add: with Shimano cartridge BB's sometimes the only difference between 68mm and 73mm is the NDS cup. A lot of them are marked or you can just measure the BB while it is uninstalled.
Iowegian is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
