FS: SunTour bar-ends; Shimano bar ends indexed

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

FS: SunTour bar-ends; Shimano bar ends indexed

Old 09-20-21, 07:27 AM
  #1
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
FS: SunTour bar-ends; Shimano bar ends indexed

Up for sale are:

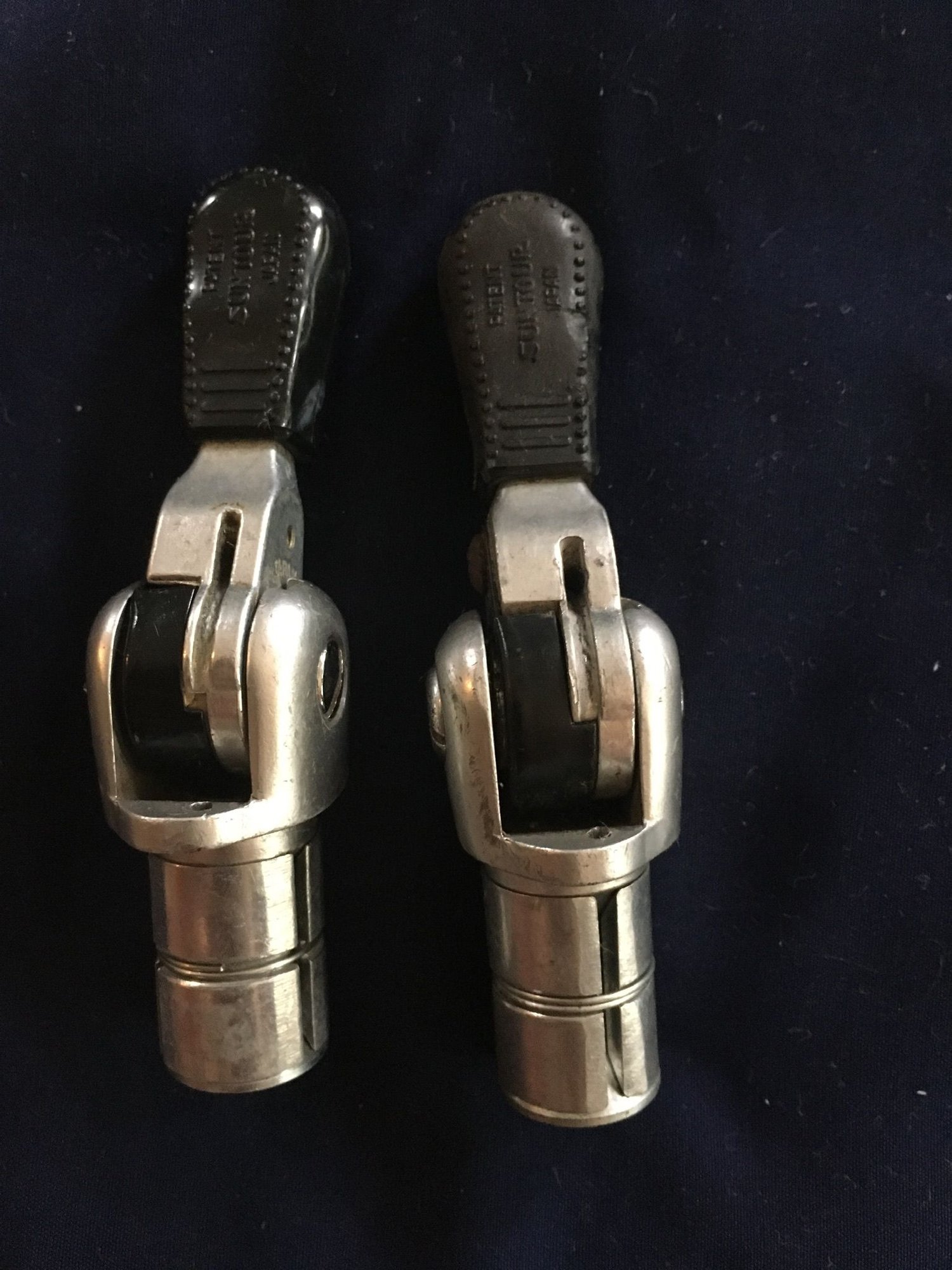

1. SunTour bar-end ratcheting shifters; light use, plastic is good. $45 shipped. SOLD and SHIPPED!

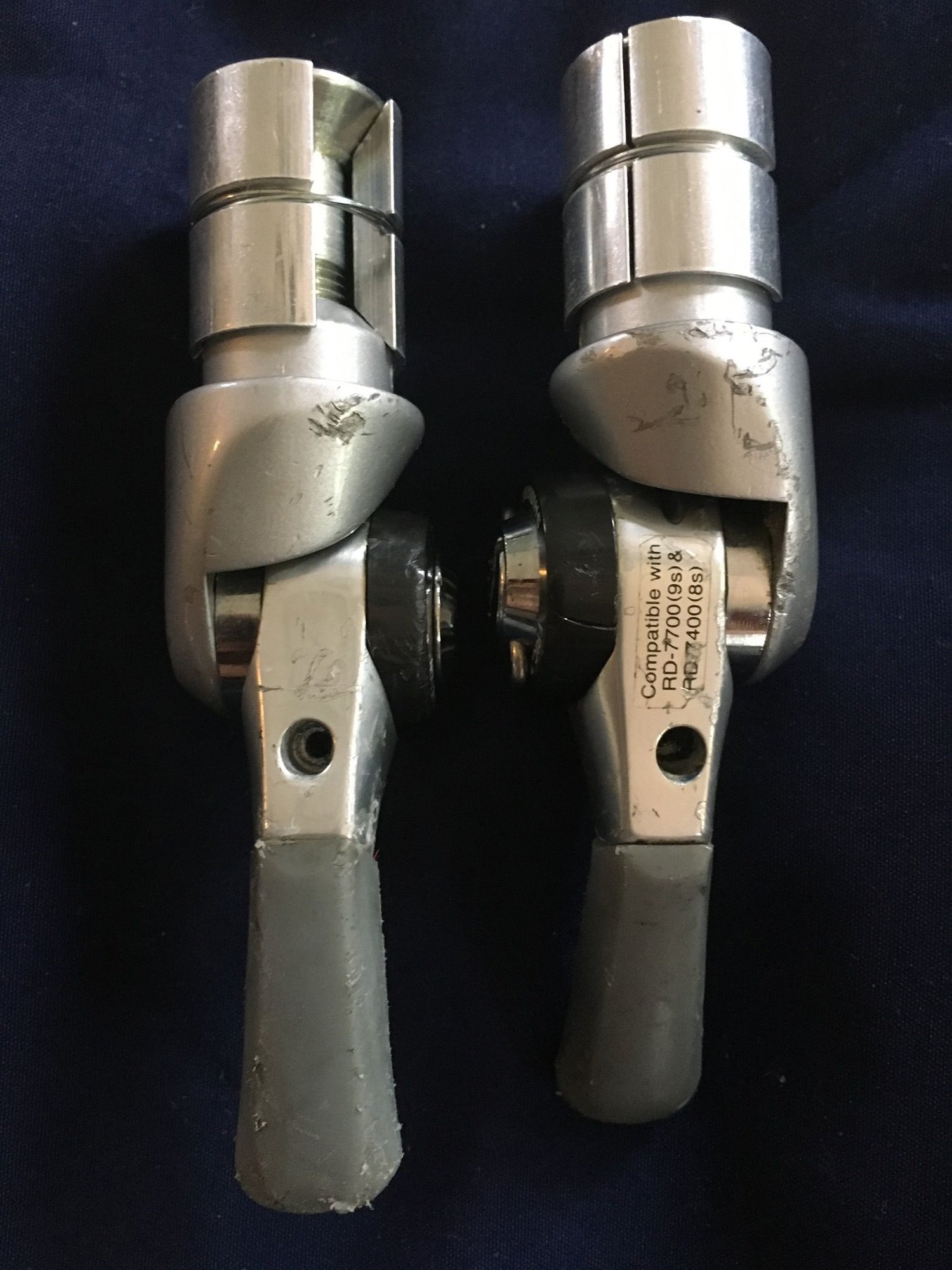

2. Shimano 8 or 9 speed indexed bar-ends; slight scuffs but great condition. SOLD!



__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.






Last edited by jdawginsc; 09-26-21 at 04:21 PM.
jdawginsc is offline
Old 09-20-21, 07:42 AM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
Shimano BEs... 8 or 9?

interested in purchase.
3speedslow is offline
Old 09-20-21, 07:47 AM
  #3
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
Originally Posted by 3speedslow View Post
Shimano BEs... 8 or 9?

interested in purchase.
I think they are 8 AND 9. The label says 8 if 7400 series, and 9 if 7700 series? I have never used them though. Not a bar end fan.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 09-20-21, 10:34 AM
  #4
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by jdawginsc View Post
I think they are 8 AND 9. The label says 8 if 7400 series, and 9 if 7700 series? I have never used them though. Not a bar end fan.
that's indicating what derailleurs they're compatible with. if you get eight clicks on them after the first position, they're 9spd. if seven clicks, then 8spd
thook is offline
Old 09-20-21, 10:58 AM
  #5
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
Originally Posted by thook View Post
that's indicating what derailleurs they're compatible with. if you get eight clicks on them after the first position, they're 9spd. if seven clicks, then 8spd
Yep. Absolutely. I just have not counted the clicks to confirm! I was saving them to put on a flat bar conversion of sorts, but then decided otherwise.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 09-20-21, 11:30 AM
  #6
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by jdawginsc View Post
Yep. Absolutely. I just have not counted the clicks to confirm! I was saving them to put on a flat bar conversion of sorts, but then decided otherwise.
okay. i was just trying to clarify they will only index for 8 speeds OR 9 speeds. just not both. of course, in friction mode, you can shift any speed
thook is offline
Old 09-20-21, 02:09 PM
  #7
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
Originally Posted by thook View Post
okay. i was just trying to clarify they will only index for 8 speeds OR 9 speeds. just not both. of course, in friction mode, you can shift any speed
Is there a setting on the shifters or a particular adjustment to switch?

I need to take a closer look!
jdawginsc is offline
Old 09-20-21, 03:31 PM
  #8
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,008

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 774 Post(s)
Liked 659 Times in 373 Posts
I have 2 sets of these Shimano shifters and they index for 9 speed using either a 7700 Dura-Ace RD or an Ultegra 6700 RD. I think that the 7400 series uses these and will work with these with an extra click
bwilli88 is offline
Old 09-20-21, 03:33 PM
  #9
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
Originally Posted by bwilli88 View Post
I have 2 sets of these Shimano shifters and they index for 9 speed using either a 7700 Dura-Ace RD or an Ultegra 6700 RD. I think that the 7400 series uses these and will work with these with an extra click
So basically, you have an un-used extra click when using the 74xx RD?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 09-20-21, 06:29 PM
  #10
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by jdawginsc View Post
Is there a setting on the shifters or a particular adjustment to switch?

I need to take a closer look!
yes. for the right hand shifter, there's a little ring on the periphery of the flat head assembly bolt you turn according the indicators on the surrounding black plastic ring. should say "friction mode" or "SIS"
thook is offline
Old 09-20-21, 06:34 PM
  #11
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by bwilli88 View Post
I have 2 sets of these Shimano shifters and they index for 9 speed using either a 7700 Dura-Ace RD or an Ultegra 6700 RD. I think that the 7400 series uses these and will work with these with an extra click
i had to look it up, but is there a six speed 7400 group and an eight speed 7400? and, were the dura ace eight and nine speeds the same spacing?

Last edited by thook; 09-20-21 at 06:38 PM.
thook is offline
Old 09-20-21, 07:06 PM
  #12
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,114

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 823 Times in 519 Posts
Will these work with other derailleur not DA or Ultegra? Is the left hand for a double or a triple?
3speedslow is offline
Old 09-20-21, 07:18 PM
  #13
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by 3speedslow View Post
Will these work with other derailleur not DA or Ultegra? Is the left hand for a double or a triple?
(if i may? he's never used the shifters, so...)

i know the front will shift triple. otherwise, perhaps sheldon can clarify the rear shifting....
https://sheldonbrown.com/dura-ace.html
thook is offline
Old 09-20-21, 08:00 PM
  #14
rjhammett
Senior Member

rjhammett's Avatar

Join Date: Dec 2011
Location: Saint Paul, Minnesota
Posts: 2,302

Bikes: 92 Colnago Master PIU, 83 Pinarello Record, 92 Tommaso, 92 Merckx MX Leader, 90 Serotta Colorado II, 99 Tommasini Sintesi, 90 Pinarello Montello, 89 Tommasini Super Prestige, 08 Look 585, 89 Merckx Corsa Extra, 72 Holdsworth Professional and 3 more

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Liked 390 Times in 183 Posts
Just to add a little clarification/confusion. I am running 9 speed STIs (7700 series) with an 8 speed (7400 series) rear derailleur and 8 speed cassette on one of my bikes. It shifts perfectly.
So.... the bar end shifters should work with both 7400 series 8 speed and 7700 series 9 speed.
rjhammett is offline
Old 09-20-21, 08:01 PM
  #15
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,096

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
Liked 1,938 Times in 760 Posts
Front shifter is friction and works with any FD.
In theory, rear shifter will index only with a 740X RD for 8 speeds OR with any Shimano RD except 740X for 9 speeds, OR any RD in friction setting.
Never used one that way myself, but that’s what’s supposed to happen according to legend.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-20-21, 08:07 PM
  #16
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
I am embarrassed to know so much less about these than you all...yeesh!

I do know the friction setting is okay.

i just assumed it could only shift eight speed versions of 7400 and all versions of the x700 series of nine speeds (DA, Ult, etc...)

Like I said above, I was going to try to use it at the end of flat bars on a city gravel thing with an a Ultegra 9 RD and a triple up front. I figured it was intended for the 9...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 09-20-21, 11:32 PM
  #17
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by rccardr View Post
Front shifter is friction and works with any FD.
In theory, rear shifter will index only with a 740X RD for 8 speeds OR with any Shimano RD except 740X for 9 speeds, OR any RD in friction setting.
Never used one that way myself, but thatís whatís supposed to happen according to legend.
sorry, i'm just quite intrigued as to how this is possible that a shifter can index both 8 and 9 speed spacing. how can a change in the derailleur affect that functioning?
thook is offline
Old 09-21-21, 03:08 PM
  #18
BradH
Catching Smallmouth

BradH's Avatar

Join Date: Oct 2013
Location: In a boat
Posts: 519

Bikes: 1990 Specialized Sirrus Triple, 1985 Trek 460, 2005 Lemond Tourmalet, 1984 Schwinn LeTour 'Luxe, 1988 Trek 400T, 1985 Trek 450, 1997 Lemond Zurich, 1993 Diamond Back Apex, 1988 Schwinn Circuit, 1988 Schwinn Prologue, 1978 Trek TX700, Sannino

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Liked 87 Times in 48 Posts
PM sent on Shimano shifters.
BradH is offline
Old 09-26-21, 03:47 PM
  #19
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,792

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
Originally Posted by jdawginsc View Post
Up for sale are:
1. SunTour bar-end ratcheting shifters; light use, plastic is good. $45 shipped. Pending?




sold?
thook is offline
Old 09-26-21, 05:35 PM
  #20
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,683

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 1,437 Times in 997 Posts
Originally Posted by thook View Post
sold?
Fixed!
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Likes For jdawginsc:
Old 09-27-21, 11:48 AM
  #21
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,684

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 19 Times in 9 Posts
Clarification on the 8/9 question.

For its 8 speed generation, Dura Ace had a different pull ratio from the other groups -- ultegra, 105, the mountain stuff. That's why you can't use a 7400 rear derailleur with any other 8 speed shimano shifter. It will only work with a 7400 shifter.

When Shimano went to 9 speed, they adopted the pull ratio from 7400 and applied it across the board to all groups. So 9 speed Dura Ace is cross compatible with 9 speed XT and 9 speed ultegra, etc.

These shifters have that same 7400/9 speed pull ratio. They will therefore work in 8 speed with 7400 or in 9 speed with anything else. If 7400, you will have an extra click, but that would be prohibited by properly limiting out the RD.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Likes For icepick_trotsky:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
