89 Bianchi Mondiale Frameset 57 X 56

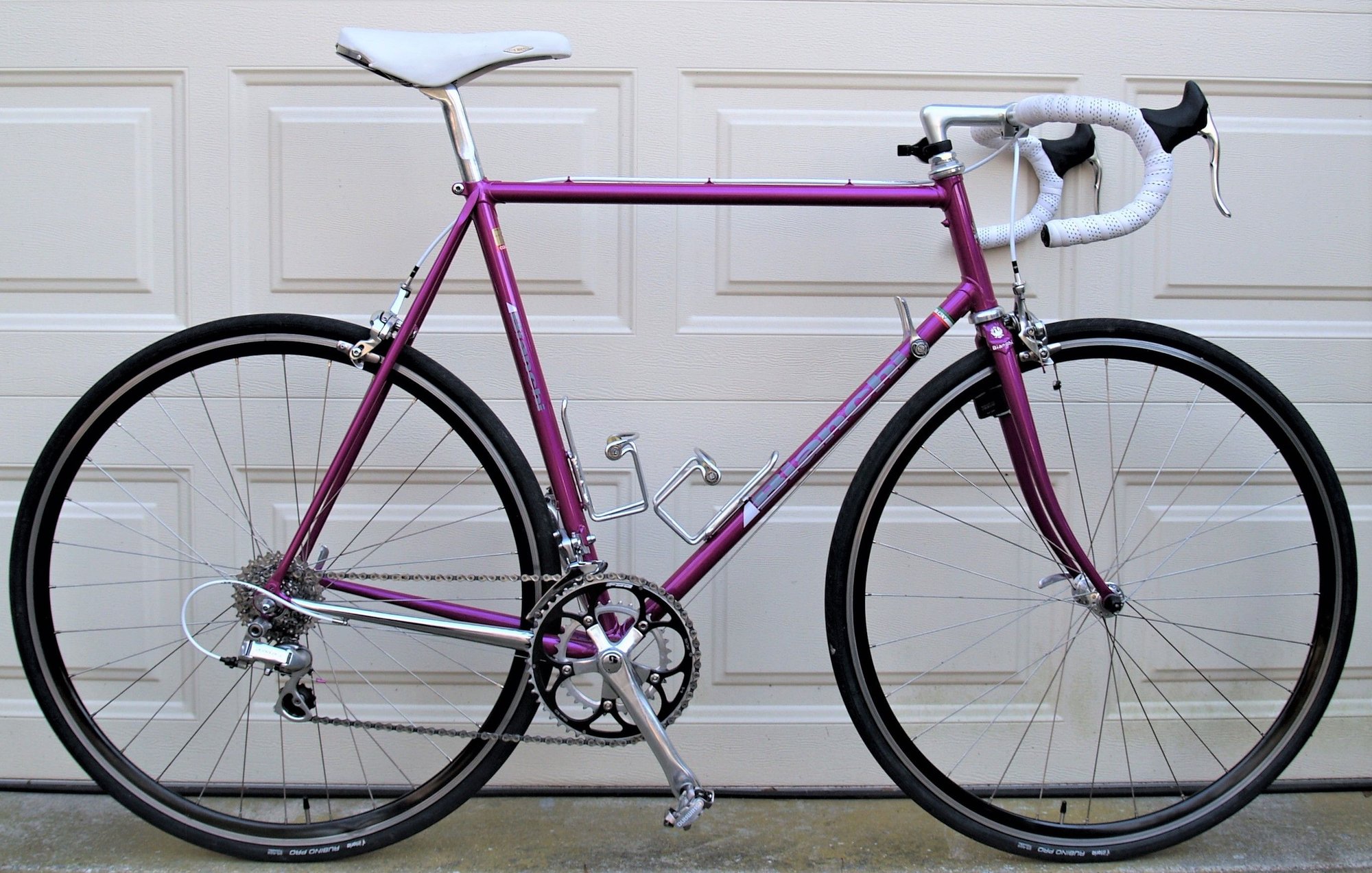

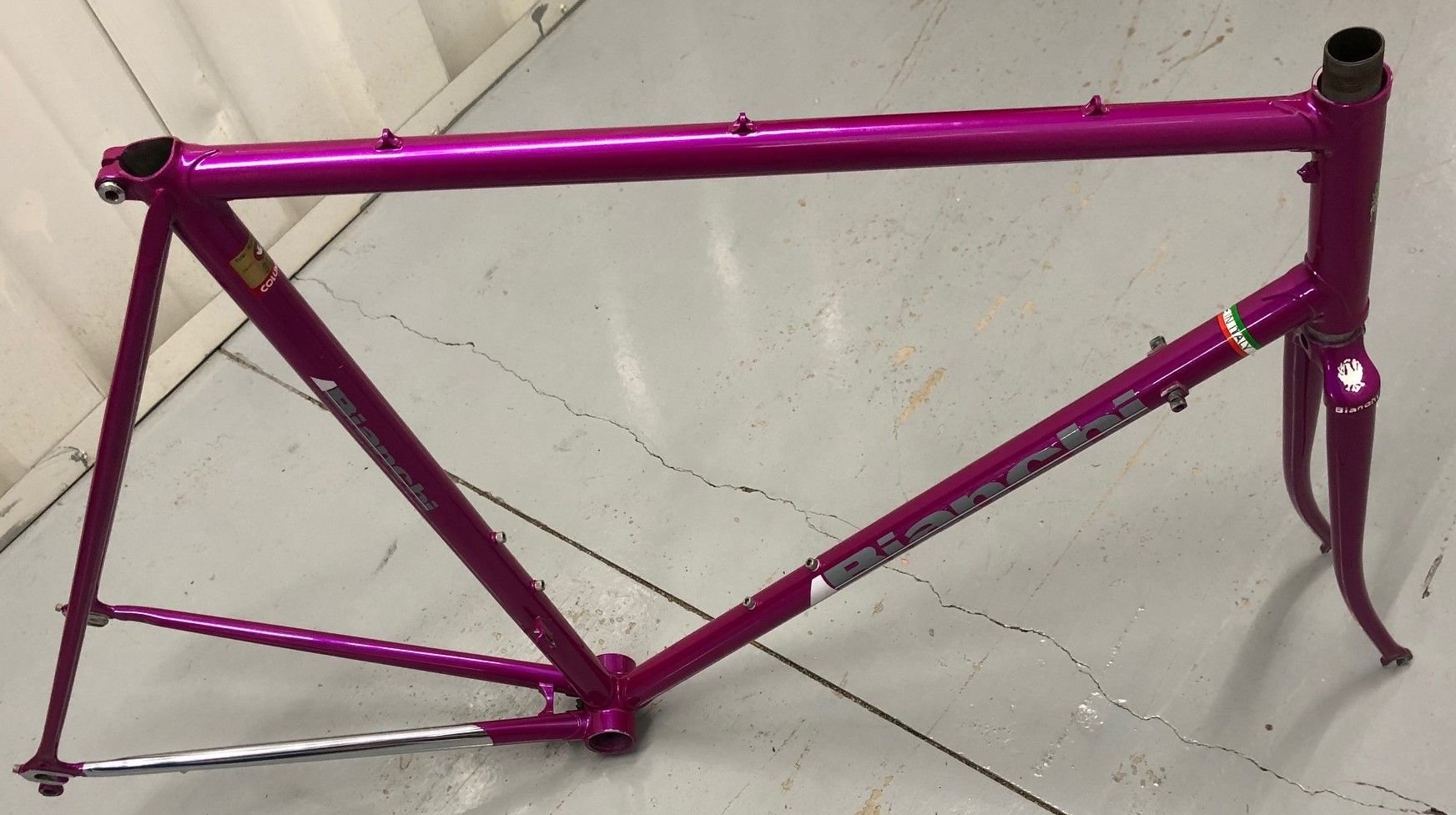

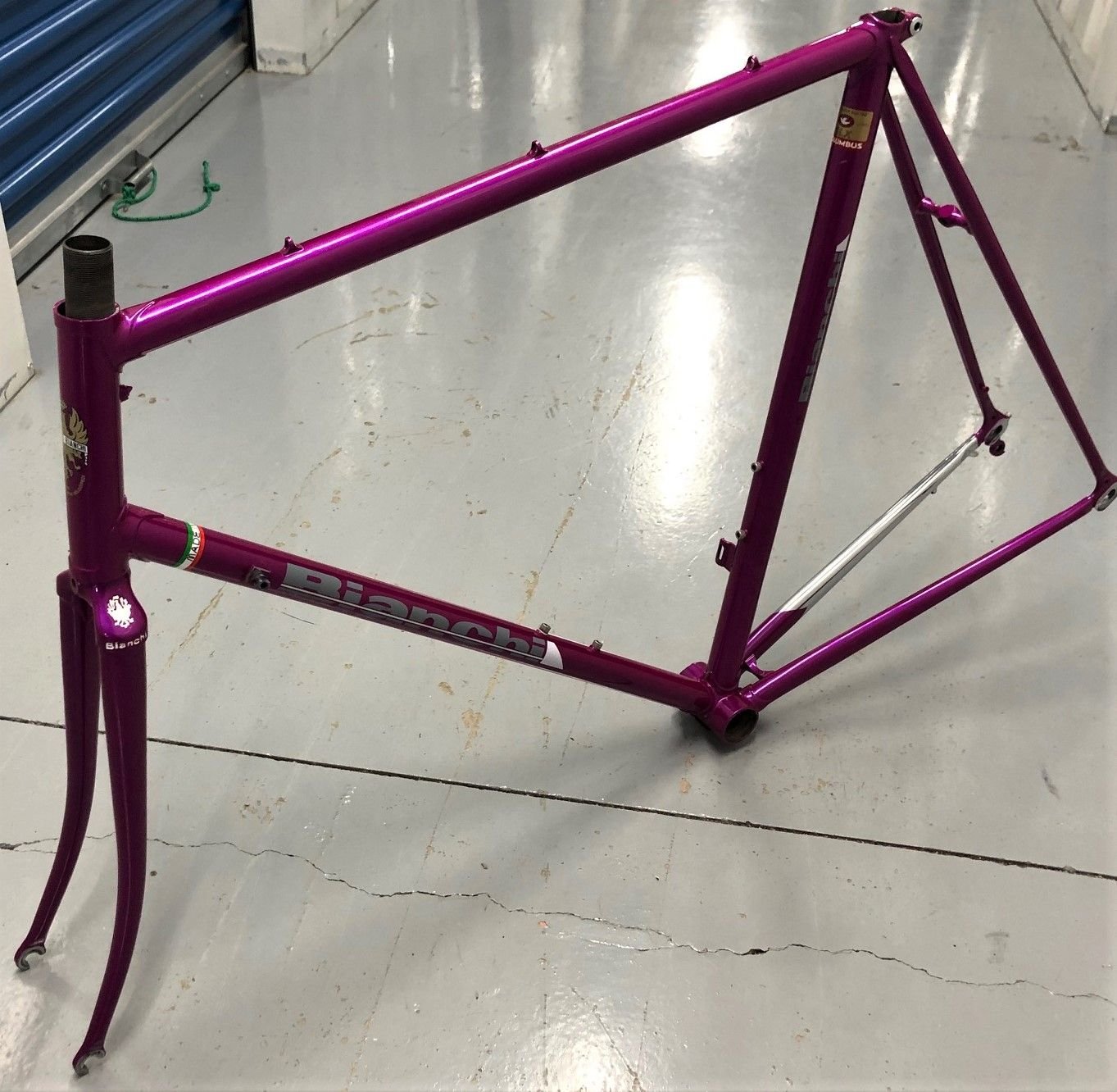

Gorgeous 1989 Bianchi Mondiale frameset. This was Bianchi's top of the line frameset in 1989. Columbus SLX, 57cm CTC seat tube, 56cm CTC top tube, 164mm head tube. $600 shipped.

Lovely respray in 2019 by Jack Trumbull of Franklin Frames in House of Kolor Hot Pink Pearl. The final color came out closer to Violet than pink, but the pictures speak for themselves. Custom decals by VeloCals under the clear coat. Paint job alone was over $500 and is still glossy and in outstanding condition, no dents or frame problems.

130 rear spacing, 100 front, takes an Italian threaded bottom bracket, a 27.2 seat post, and has a 26.4 fork crown race. Will accept virtually any cable operated vintage or modern component group (I built it up using Dura Ace 9 speed, see attached build pic). Comes with seat post binder bolt, dropout screws and bottle cage bolts.

Also have two DA 7700 groups (one down tube, the other STI) that could be combined with frame purchase in a package deal.


Very comfortable all-day rider ridden in several centuries (Palm Springs, Tucson, etc.) and felt great at the end of the day. Great bike but arrival of new bike and personal policy of "one comes in, one must go out" dictates sale.

Thanks for looking!




__________________
Hard at work in the Secret Underground Laboratory...

Last edited by rccardr; 10-10-21 at 12:37 PM.
rccardr is offline
Likes For rccardr:
Old 10-10-21, 02:01 PM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,669

Bikes: Too many to list here check my signature.

Mentioned: 146 Post(s)
Tagged: 2 Thread(s)
Quoted: 2059 Post(s)
Liked 929 Times in 565 Posts
That’s pretty.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 10-10-21, 03:44 PM
  #3
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,734

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 896 Post(s)
Liked 747 Times in 457 Posts
1990 Mondial

Looks GREAT!

My tale of 2 bikes - sorry to digress but I'll tie this in below:

In 2007 in a pique of Celeste envy, I bought a like new 1988 Bianchi Giro on eBay. It had a last generation Campy Victory gruppo along with a Columbus Formula Two frame (which is most likely Chromor main tubes with Aelle forks and stays???). The Giro fit me perfectly and handled superbly but was heavy, clunky and rode like a tank due to the mystery Formula Two frame tubing.

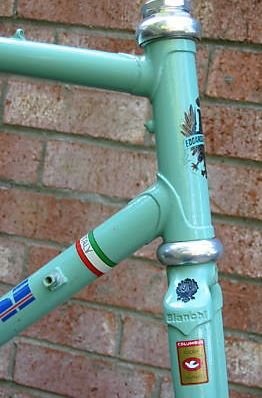

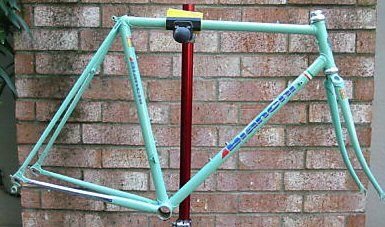

Jump ahead to 2010, I found a NOS 55cm 1990 Mondiale frame on eBay and bought it for $600. It came with a Specialized alloy headset and was made of Columbus SLX tubing.

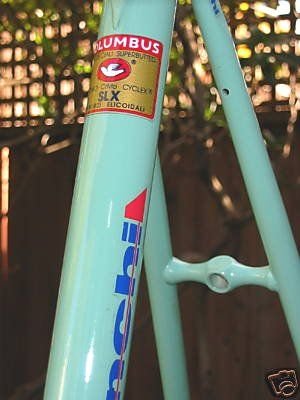

eBay photos





The seller was local and he bought the frame from an LBS that had it sitting a box since 1990. We concluded the deal at frame builder Ed Litton's shop. While there, I had Ed check out the alignment - it was perfect!

Ed knew my proclivity for smooth riding bikes and mentioned "Charles, this is going to be a stiff riding bike because of the SLX tubing!"

HUH? Silly me I thought that Columbus SLX was a lighter version of SL tubing! He showed me the reinforcements in the seat tube, down tube and chain stays.

During the 1980's Columbus had been introducing a new flavor of tubing at least every year. Since my Columbus frame bikes were made of SL I didn't pay any attention to all the latest stuff.

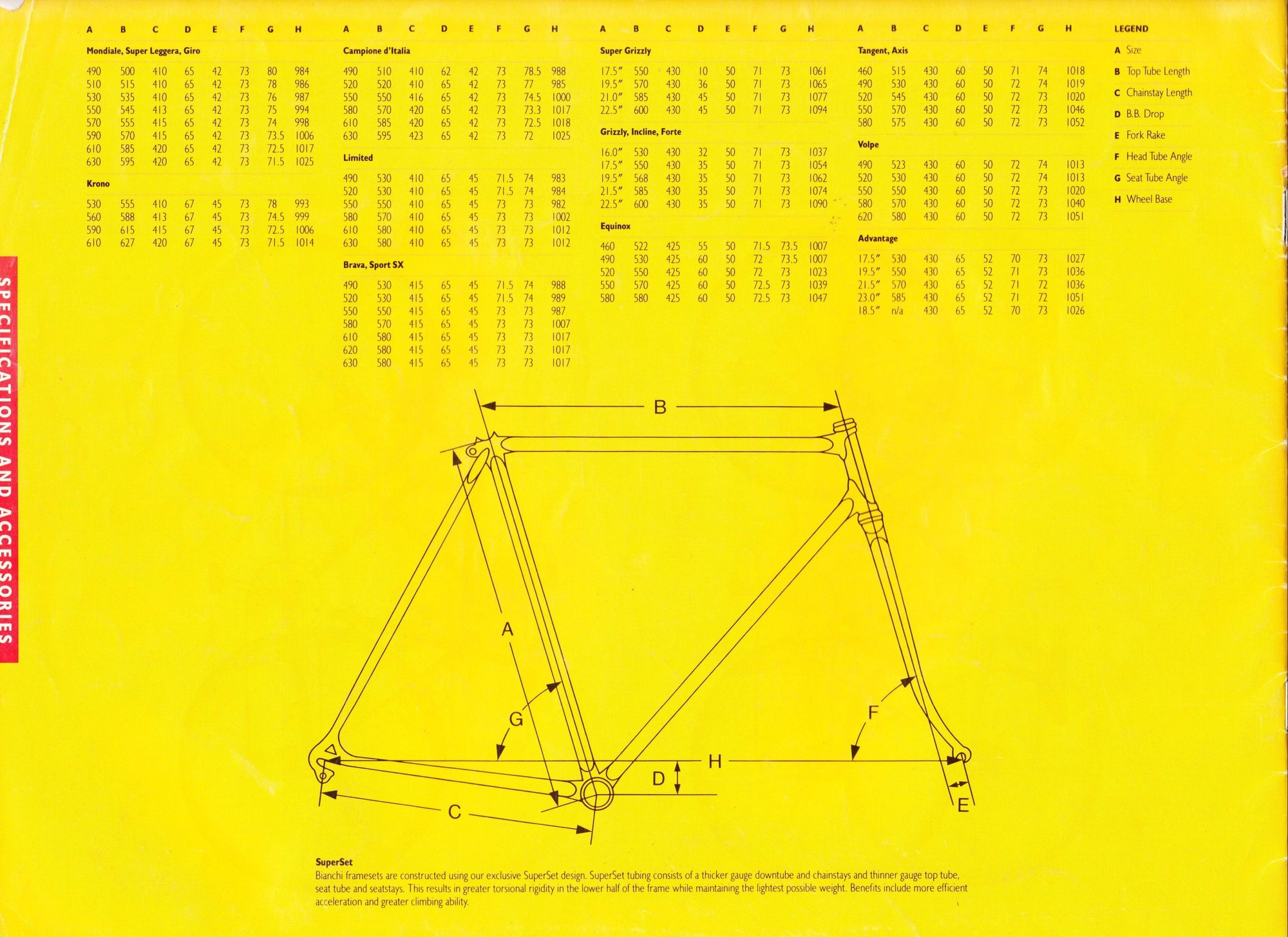

Here's the tie in with the 88 Giro above, from ~1987 to 1990 or so, Bianchi used the same frame geometry on the Giro, Super Leggera and Mondiale frames. In 1990 those models all used the same SLX frames. Bianchi sold bare "Mondiale" frames but there was no model name on the top tube like on their complete bikes.

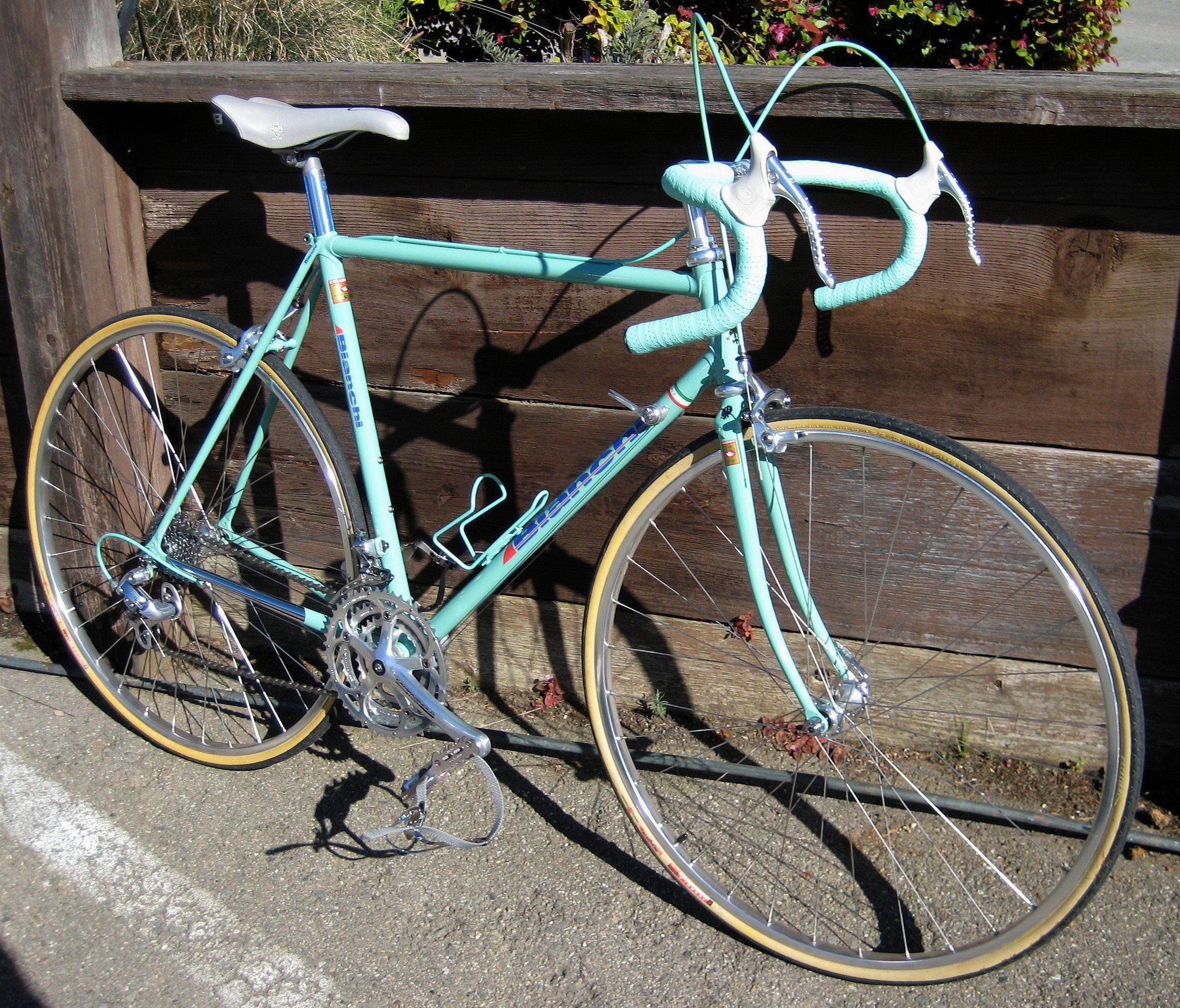

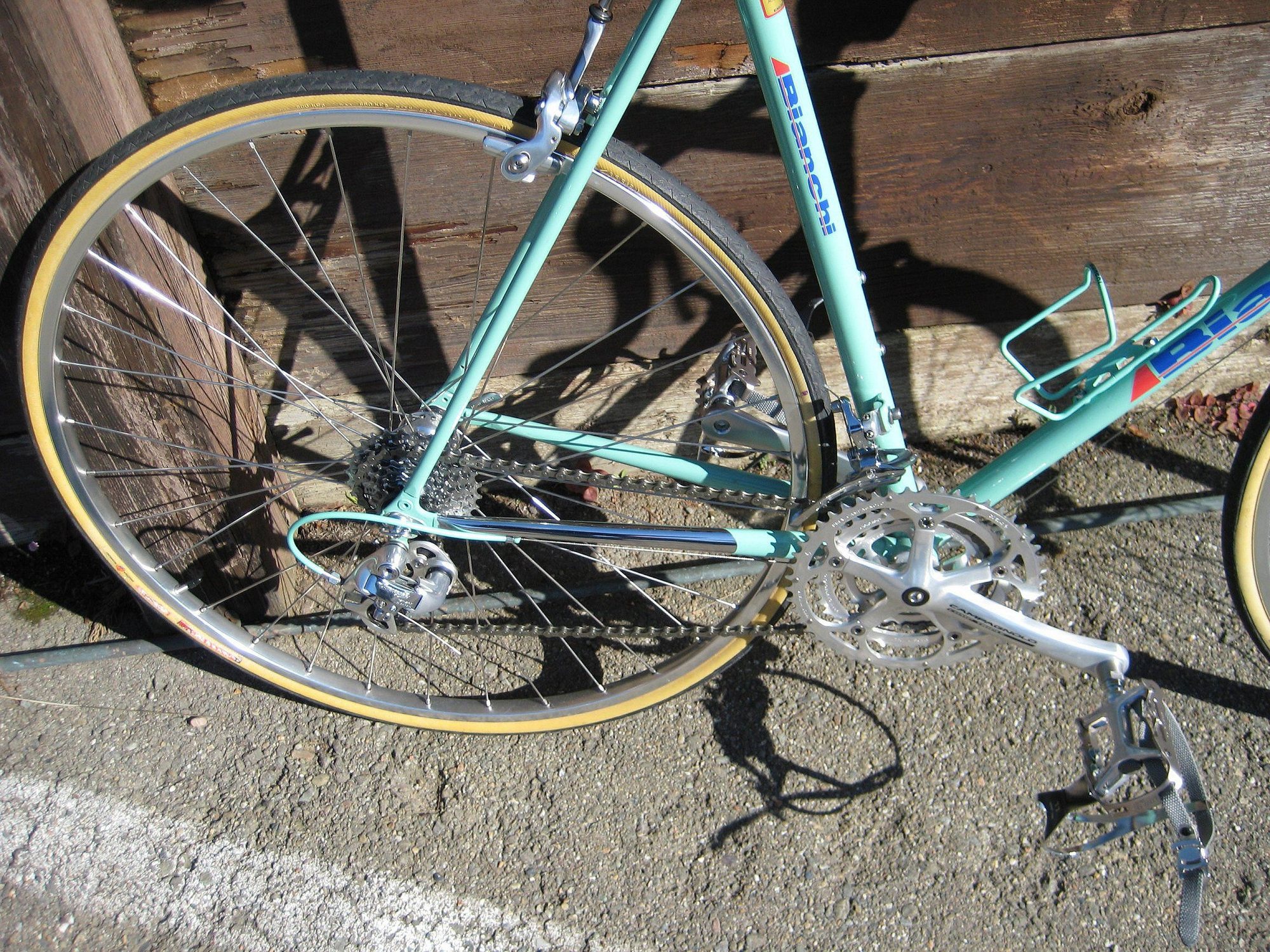

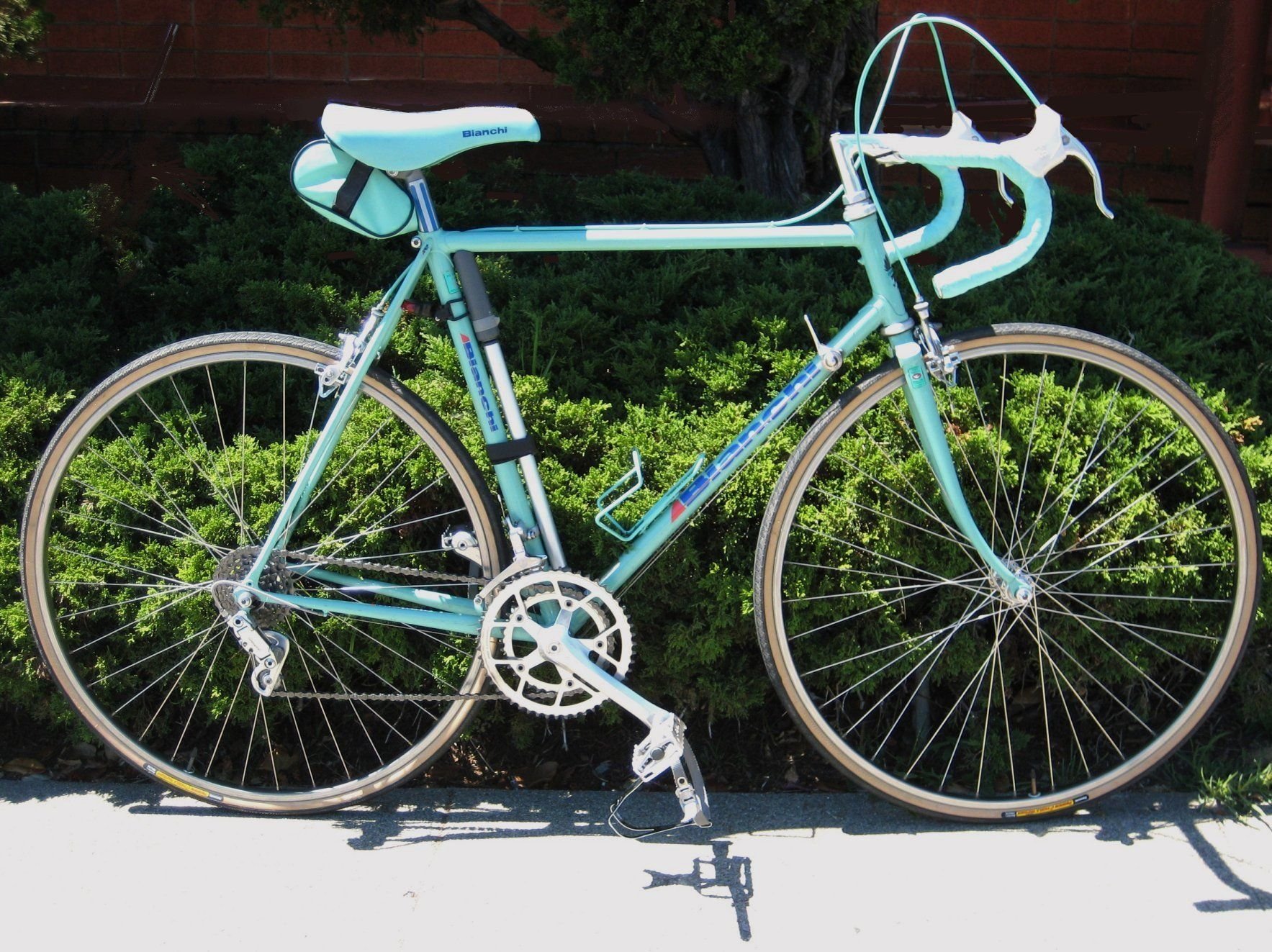

I assembled my Mondiale frame with a multi generation mishmash of Campy components, most of which I had on hand. Since it was going to be "stiff" I set it up for climbing with Campy Comp Triple cranks. The Campy Dopler retrofriction levers shift the 9 speed Mirage RD smoother than index levers!




The bike has the same geometry as my Giro so the fit and handling are the same - PERFECT but the ride is a lot smoother! It's one of my top 10 riding bikes!

Don't let my comment about stiff riding scare anyone off. Mine is a 55cm frame and I'm an old geezer!

The larger 57cm (59cm C-to-T) size of rccardr frame is enough to smooth out the ride plus for climbing or stomping on it the SLX tubing will give you a nice positive feel.

Highly recommended frame!


verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 10-10-21 at 03:55 PM.
verktyg is offline
Likes For verktyg:
Old 10-10-21, 09:15 PM
  #4
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 274

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 122 Times in 59 Posts
Originally Posted by rccardr View Post
What a stunner! Nice looking build too. May I ask what bottle cages you used in that photo? (and would you recommend them?)

In any case, GLWS!
panzerwagon is online now
Old 10-11-21, 06:31 AM
  #5
rccardr
aka: Dr. Cannondale
Thread Starter

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1586 Post(s)
Liked 1,054 Times in 500 Posts
They are Ciussi Elite cages. Highly recommended!
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 10-11-21, 10:49 AM
  #6
oceanhaitang
Haleakalacraterlove

Join Date: Sep 2020
Posts: 49

Bikes: 1988 Bianchi Giro with full Campagnolo Victory Groupset

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 21 Times in 12 Posts
Gorgeous 😍

Too bad it’s not a 50/51cm… I would snatch that up so fast.

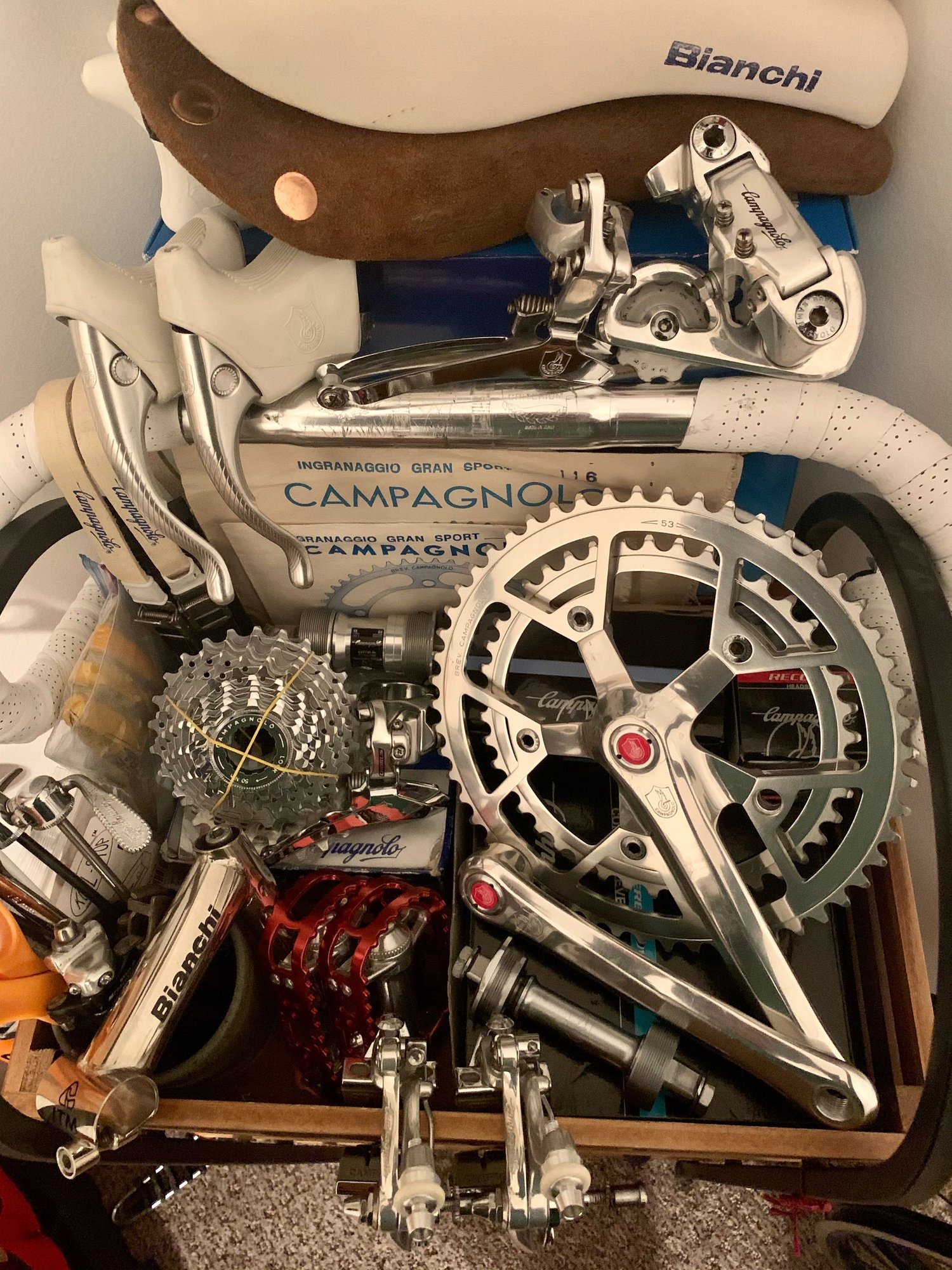

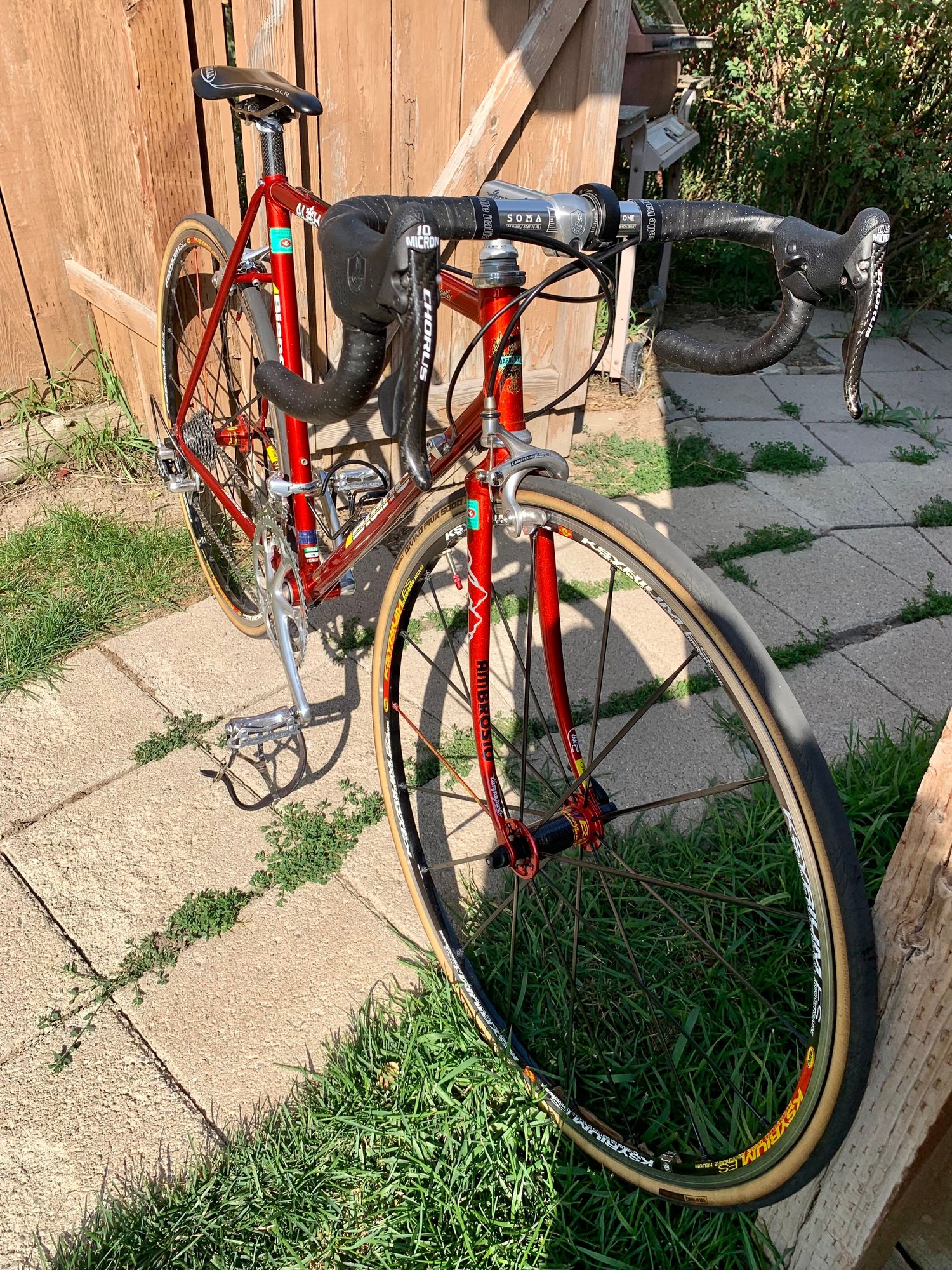

I got an ‘88 Bianchi Giro with full Campagnolo Chorus 10-speed. Got the Formula 2 frame so not top of the line but she’s just over 19lbs setup as is. Would love to transfer all those components to a top end frame set and throw the original Victory gruppo back on the Giro.

Still in search of my dream X4 frame… one day 🙏🏽




Last edited by oceanhaitang; 10-11-21 at 10:59 AM.
oceanhaitang is offline
Old 10-11-21, 02:05 PM
  #7
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 2,820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Liked 714 Times in 494 Posts
Originally Posted by oceanhaitang View Post
Gorgeous 😍

Too bad it’s not a 50/51cm… I would snatch that up so fast.

I got an ‘88 Bianchi Giro with full Campagnolo Chorus 10-speed. Got the Formula 2 frame so not top of the line but she’s just over 19lbs setup as is. Would love to transfer all those components to a top end frame set and throw the original Victory gruppo back on the Giro.

Still in search of my dream X4 frame… one day 🙏🏽

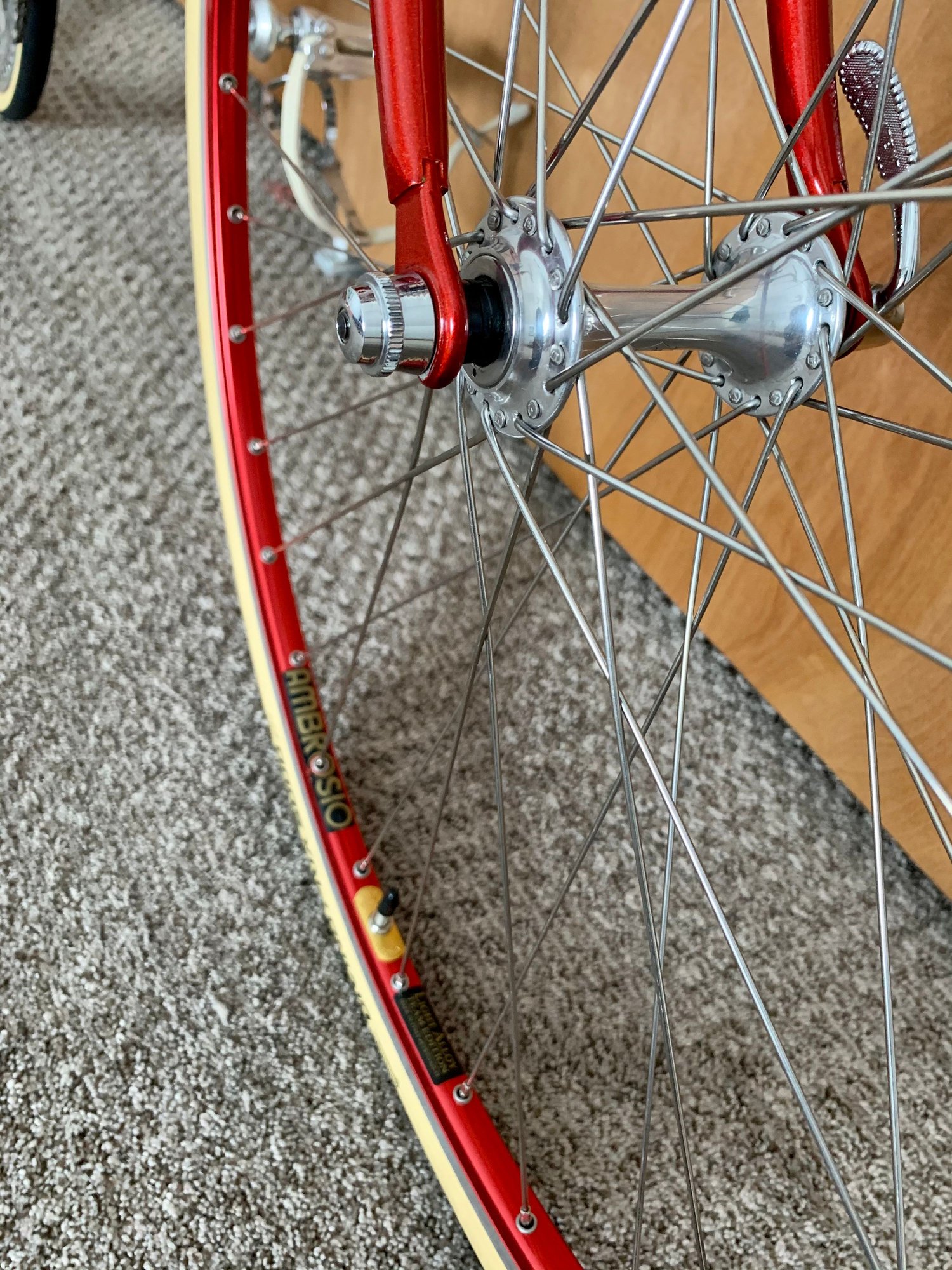

Victory stuff and the wheels are beautiful!
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is online now
Old 10-11-21, 02:49 PM
  #8
oceanhaitang
Haleakalacraterlove

Join Date: Sep 2020
Posts: 49

Bikes: 1988 Bianchi Giro with full Campagnolo Victory Groupset

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 21 Times in 12 Posts
Originally Posted by jdawginsc View Post
Victory stuff and the wheels are beautiful!
thx… let me know if you see a 49x51 or 50x52 Italian BB 126mm/130mm frame around in Mint condition please 🙏🏽
oceanhaitang is offline
Old 10-11-21, 03:17 PM
  #9
515Cycling
Senior Member

515Cycling's Avatar

Join Date: Jan 2017
Location: Austin, TX
Posts: 99

Bikes: 2020 Trek Emonda, Ridley - Crossfire, 1976 Colnago Super, 1983 Pinarello Treviso 1984 De Rosa Professional, 1974 Masi Gran Criterium

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 64 Times in 24 Posts
Pretty Italian lady

PM sent
515Cycling is offline
Old 10-11-21, 04:25 PM
  #10
rccardr
aka: Dr. Cannondale
Thread Starter

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1586 Post(s)
Liked 1,054 Times in 500 Posts
Sold.
