WTB: Flat handlebar with 20-35 degrees sweep, 630-700mm wide. 25.4mm clamp, 22.2 OD

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

WTB: Flat handlebar with 20-35 degrees sweep, 630-700mm wide. 25.4mm clamp, 22.2 OD

Old 06-24-22, 10:24 PM
  #1
Piff
Senior Member
Thread Starter

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 1,013
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 224 Times in 144 Posts
WTB: Flat handlebar with 20-35 degrees sweep, 630-700mm wide. 25.4mm clamp, 22.2 OD

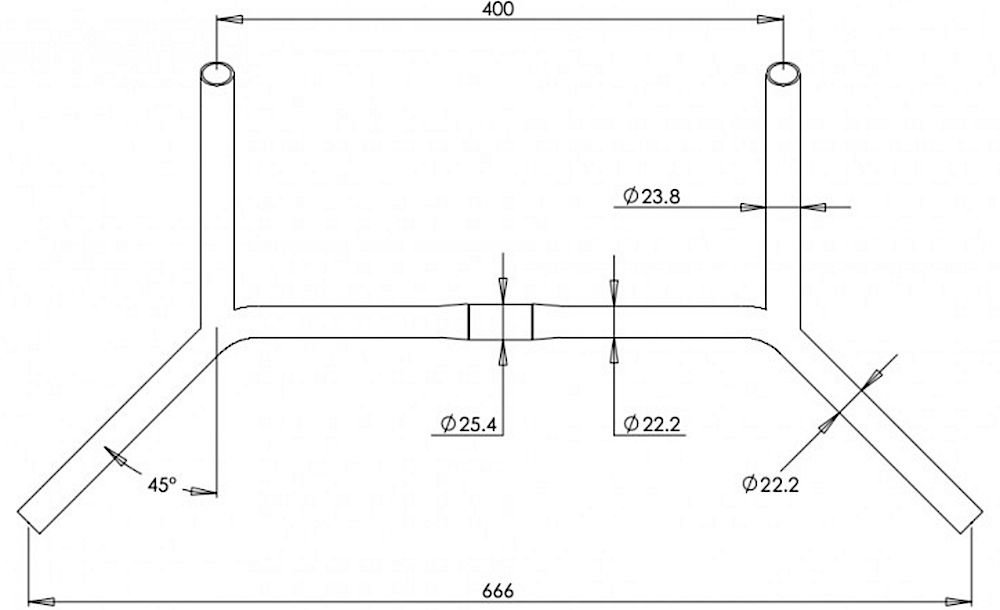

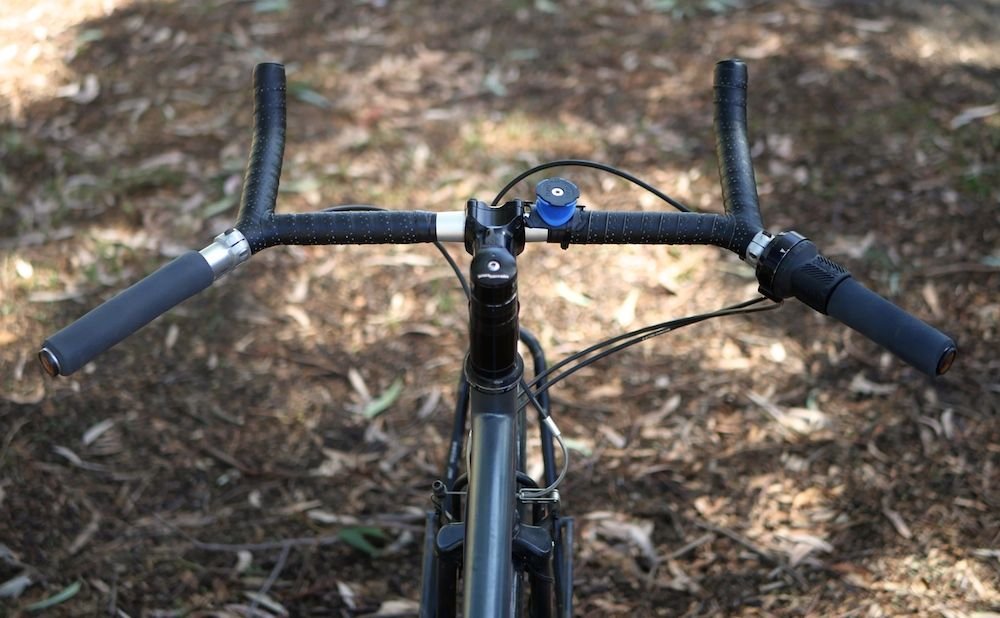

Basically, I'm trying to put together some DIY Crazy Casey bars (pics below) on the cheap. I've already got some bar ends, just need the bars. Budget: $40
Clamp diameter: 25.4mm
OD: 22.2mm

My ideal handlebars would be:

Width: 670mm
Rise: 0
Sweep: 30 degrees

But I'm not that picky. Acceptable range:

Width: 630-700mm
Rise: 0-50mm
Sweep: 20-35 degrees

And, I should mention that I don't mind a forward bend in the bars.

I don't expect any real measurements other than width. If you could just estimate to your best abilities and and take a picture if possible. Thank you. Oh, and if you happen to know of some handlebars being sold that match my desired traits, please let me know!

Pictures:



Last edited by Piff; 06-24-22 at 11:18 PM.
Piff is offline
Old 06-24-22, 11:49 PM
  #2
Piff
Senior Member
Thread Starter

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 1,013
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 224 Times in 144 Posts
Wellllll, I finally found what I was looking for. Took me quite a while of googling. It's the "Arc" bar made by Dimension. 660mm wide, 27 degrees of sweep, no rise, 25.4mm clamp. Didn't think it could be done! In case anyone else finds their way here googling, it's the HB2018 or HB2019 model #.
Piff is offline
Likes For Piff:
Old 06-25-22, 05:45 AM
  #3
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,887
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 3427 Post(s)
Liked 2,174 Times in 1,285 Posts
I like the functionality of the Crazy Bars on a bike I built for my wife. Put some interupter levers on the very end of the forward bar extensions along with the flat bar levers on the swept back bits and it's almost like you've got non-aero-routed drop bar levers AND flat bar levers on the same bike. Works great (even if looks aren't quite as nice).
himespau is offline
Old 06-25-22, 09:21 AM
  #4
Senior Ryder 00
Old bikes, Older guy

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 668

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 74 Times in 55 Posts
Nifty concept! I think it would make a highly functional, fast commuter. May try it on my next city bike build.
Cheers,
Van
​​​​​​.
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
