ISO: 8 Speed Dura Ace Bar End Shifters

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

ISO: 8 Speed Dura Ace Bar End Shifters

Old 10-22-22, 04:38 PM
  #1
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
ISO: 8 Speed Dura Ace Bar End Shifters

Looking for Dura Ace 8 speed bar end shifters to work with 7402/7403 8 speed setup. Not sure if these even existed back in the day. I have seen 8 speed Ultegra bar ends but it appears they are not compatible with the Dura Ace rear derailleur. I am also interested in determining whether 9 speed Dura Ace bar end shifters will work with this 8 speed drive train. I have seen that in a couple of places online and I would like to get some confirmation of that here and maybe some details about how the 9 speed shifters work with the 8 speed read derailleur. Whether it's just a matter of setting the limits properly on the RD with one wasted gear space on the shifters or something else. Has anyone got any experience with any of this? Thanks in advance for any information.
cpsqlrwn is offline
Old 10-22-22, 05:12 PM
  #2
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,358

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4461 Post(s)
Liked 2,564 Times in 1,666 Posts
Ultegra 8-speed bar end shifters are widely compatible in friction mode. That's how I've used 'em for awhile, with a mismatched set of old 7-speed Exage 500 CX RD (nearly identical to Deore long cage RD) and MicroShift 8-speed cassette. There's a stop molded into the metal of those derailleurs that limits cage swing just enough to prevent reliable index shifting into the big cog of my 8-speed MicroTech 12-32 cassette. As soon as I put any pressure on for a climb, it'll click down to the next smaller cog. But it holds fine in friction mode. With only 8 cogs, friction shifting isn't too closely spaced or fiddly, so with practice it's quick enough, including mid-climb.

I've considered taking a file or moto tool to the internal limit stop of one of those rear derailleurs so I can use index shifting across the 8-speed cassettes.

But I haven't tried the Ultegra bar ends with my Dura Ace 8-speed rear derailleurs. I think I have at least one, maybe two of those in a box somewhere, intended to rebuild my early 1990s Trek 5900 OCLV.

I have Dura Ace 10-speed bar ends scavenged from an older time trial/triathlon bike. Friction shifting would be more fiddly with the closely spaced cogs on the DA 10-speed cassettes, so I'll keep that group together on a future build for easy index shifting.
canklecat is offline
Old 10-22-22, 05:53 PM
  #3
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,884
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 430 Post(s)
Liked 2,079 Times in 561 Posts

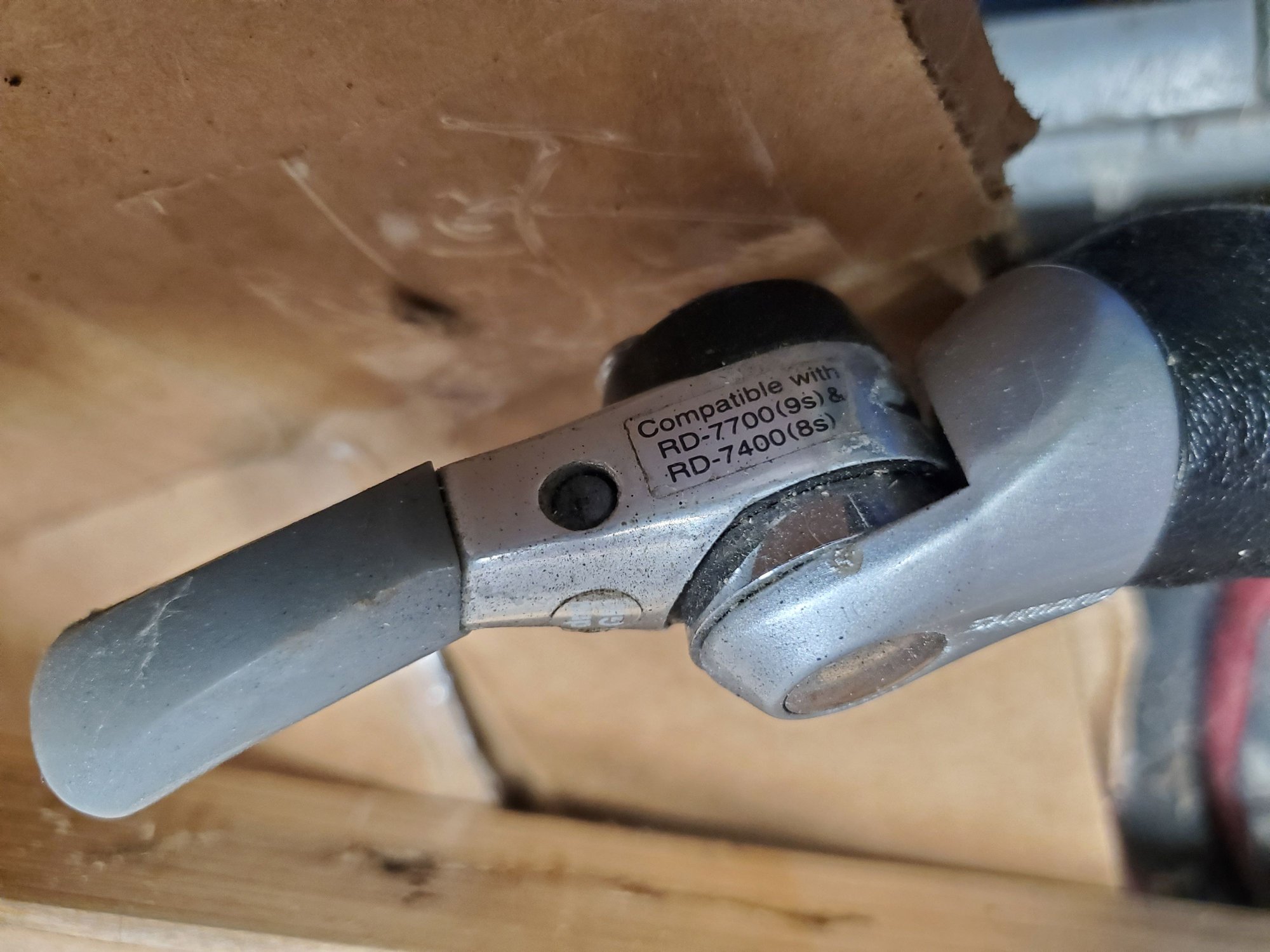

I've been using 7700 bar ends for a few years. They will shift a 7700 derailleur or a 7400 8 speed derailleur.


Fwiw, I have shifted a 7402 rd in 9 speed mode with no problems, on two different bikes.

Sorry, but these aren't for sale.
Roger M is offline
Likes For Roger M:
Old 10-22-22, 05:55 PM
  #4
BradH
Catching Smallmouth

BradH's Avatar

Join Date: Oct 2013
Location: In a boat
Posts: 550

Bikes: 1990 Specialized Sirrus Triple, 1985 Trek 460, 2005 Lemond Tourmalet, 1984 Schwinn LeTour 'Luxe, 1988 Trek 400T, 1985 Trek 450, 1997 Lemond Zurich, 1993 Diamond Back Apex, 1988 Schwinn Circuit, 1988 Schwinn Prologue, 1978 Trek TX700, Sannino

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 106 Times in 60 Posts
Yep. You want 7700 bar ends. 8 speed dura ace and 9 speed sis pull the same amount of cable per shift.
BradH is offline
Likes For BradH:
Old 10-22-22, 07:04 PM
  #5
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
I hadn't actually looked yet at any of the 7700s. It is clearly marked as being 8 and 9 speed compatible. Thanks so much for all the info.
cpsqlrwn is offline
Likes For cpsqlrwn:
Old 10-22-22, 10:38 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,191
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 648 Times in 507 Posts
I might have a set and IIRC they were specifically sold as being "for DA 8-spd" but I expected to try them on whatever I had...
I will look and get back here with an update
unworthy1 is offline
Old 10-23-22, 05:26 AM
  #7
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Originally Posted by unworthy1 View Post
I might have a set and IIRC they were specifically sold as being "for DA 8-spd" but I expected to try them on whatever I had...
I will look and get back here with an update
Thank you very much. I'd be very interested in hearing about those if they are specifically for 8 speed. Maybe those were late in the 8 speed time period before 9 speed came out. Haven't come across any of those in my search.
cpsqlrwn is offline
Old 10-23-22, 02:31 PM
  #8
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,371

Bikes: More than I care to admit

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1090 Post(s)
Liked 749 Times in 396 Posts
Originally Posted by Roger M View Post
I've been using 7700 bar ends for a few years. They will shift a 7700 derailleur or a 7400 8 speed derailleur.

This is what I use on my 8s 7400 drive train.

Any Shimano 9s shifter should work with an 8s 7400 RD.
mountaindave is offline
Likes For mountaindave:
Old 10-24-22, 09:11 AM
  #9
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,191
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 648 Times in 507 Posts
What I think I have (but need to confirms) is a pair of SL-BS 50-8 Bar End Shifters which were specified as "8-speed shifting for Dura Ace" and "...cannot be used with DA 6-speed or 7-speed", but has friction mode as well as SIS.
Will update later when I have time.
unworthy1 is offline
Old 10-24-22, 12:58 PM
  #10
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Originally Posted by unworthy1 View Post
What I think I have (but need to confirms) is a pair of SL-BS 50-8 Bar End Shifters which were specified as "8-speed shifting for Dura Ace" and "...cannot be used with DA 6-speed or 7-speed", but has friction mode as well as SIS.
Will update later when I have time.
I'd be interested in taking a look at those if you can hunt them down. Thank you.
cpsqlrwn is offline
Old 10-24-22, 08:38 PM
  #11
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,371

Bikes: More than I care to admit

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1090 Post(s)
Liked 749 Times in 396 Posts
I have a pair of BS50, but they shifted non-7400 7 speed or 6 speed with a little plastic clip in the channel for the shift cable to increase the pull for the larger 6s spacing. Pretty dang cool.
mountaindave is offline
Old 10-25-22, 11:21 AM
  #12
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,191
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 648 Times in 507 Posts
Well I had a bad feeling something was weird and so my spidey-sense was confirmed: what I have is the Shimano BOX for a set (levers, cables, housing and H-bar coozies) for SL-BS50-8 bar end shifters.

But what's IN that box (and noted in the stick-on paper label the vendor applied) are a pair of SL-BS64 lever which are made to work with Ultegra drivetrains (RD6401 is the reco) and NOT compatible with DA RDs, says the sticker right on one lever itself plus first thing on the instruction sheet. So SOL for your needs, sorry to say.

I guess that's why these were on sale when I bought them years back!
unworthy1 is offline
Old 10-25-22, 11:35 AM
  #13
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 5,355

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1709 Post(s)
Liked 1,774 Times in 1,190 Posts
Originally Posted by unworthy1 View Post
Well I had a bad feeling something was weird and so my spidey-sense was confirmed: what I have is the Shimano BOX for a set (levers, cables, housing and H-bar coozies) for SL-BS50-8 bar end shifters.

But what's IN that box (and noted in the stick-on paper label the vendor applied) are a pair of SL-BS64 lever which are made to work with Ultegra drivetrains (RD6401 is the reco) and NOT compatible with DA RDs, says the sticker right on one lever itself plus first thing on the instruction sheet. So SOL for your needs, sorry to say.

I guess that's why these were on sale when I bought them years back!
Not that the tricolor RD is any slouch. 6401 would be the 7 speed, right? I canít remember which moved to 8 speed.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 10-25-22, 12:10 PM
  #14
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,191
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 648 Times in 507 Posts
Originally Posted by jdawginsc View Post
Not that the tricolor RD is any slouch. 6401 would be the 7 speed, right? I canít remember which moved to 8 speed.
the instruction sheet says "designed for exclusive use with the 600 Ultegra 8-speed system" and did NOT come with those plastic inserts that "step-up" the cable diameter to adapt for "lower speeds" use.
unworthy1 is offline
Old 10-25-22, 02:28 PM
  #15
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Originally Posted by unworthy1 View Post
Well I had a bad feeling something was weird and so my spidey-sense was confirmed: what I have is the Shimano BOX for a set (levers, cables, housing and H-bar coozies) for SL-BS50-8 bar end shifters.

But what's IN that box (and noted in the stick-on paper label the vendor applied) are a pair of SL-BS64 lever which are made to work with Ultegra drivetrains (RD6401 is the reco) and NOT compatible with DA RDs, says the sticker right on one lever itself plus first thing on the instruction sheet. So SOL for your needs, sorry to say.

I guess that's why these were on sale when I bought them years back!
Thanks for making the effort to locate the box and establish the contents. I have gone through this same experience many times not knowing exactly what I had lurking on the shelves and then reading the label, getting pumped up, and then finding a slight variation inside the box, always just a little less valuable than what I was seeking. The most likely culprit for these occurrences are long ago upgrades to components where the old components make a new home in the upgrade box! Happens all the time. Those 8 speed shifters (based on my search, almost non existent now) must have made their way onto somebody's bike somewhere long ago, maybe even one of yours. No worries. I think I will be well served with the aforementioned 7700 shifters which are also available new at multiple retail stores such as Jenson, Performance, Nashbar, etc. Must still be a market for these shifters being that they are also 9 speed. Thanks for your efforts.
