Seeking campy bb spindle for campy strada triple

Notices
Classic and Vintage Sales Private Sales Only, no online storefronts. All prices must be quoted, we are not an auction site.

Seeking campy bb spindle for campy strada triple

Old 11-29-22, 11:40 AM
  #1
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
Seeking campy bb spindle for campy strada triple

I posted yesterday, and it now says, “can’t load, error”

anyway, 1978 colnago, 70mm wide bb. Adding same year triple crankset.

according to the campy catalogue, I need a 120. When I try to eyeball it, to my untrained self, a 115 should suffice.

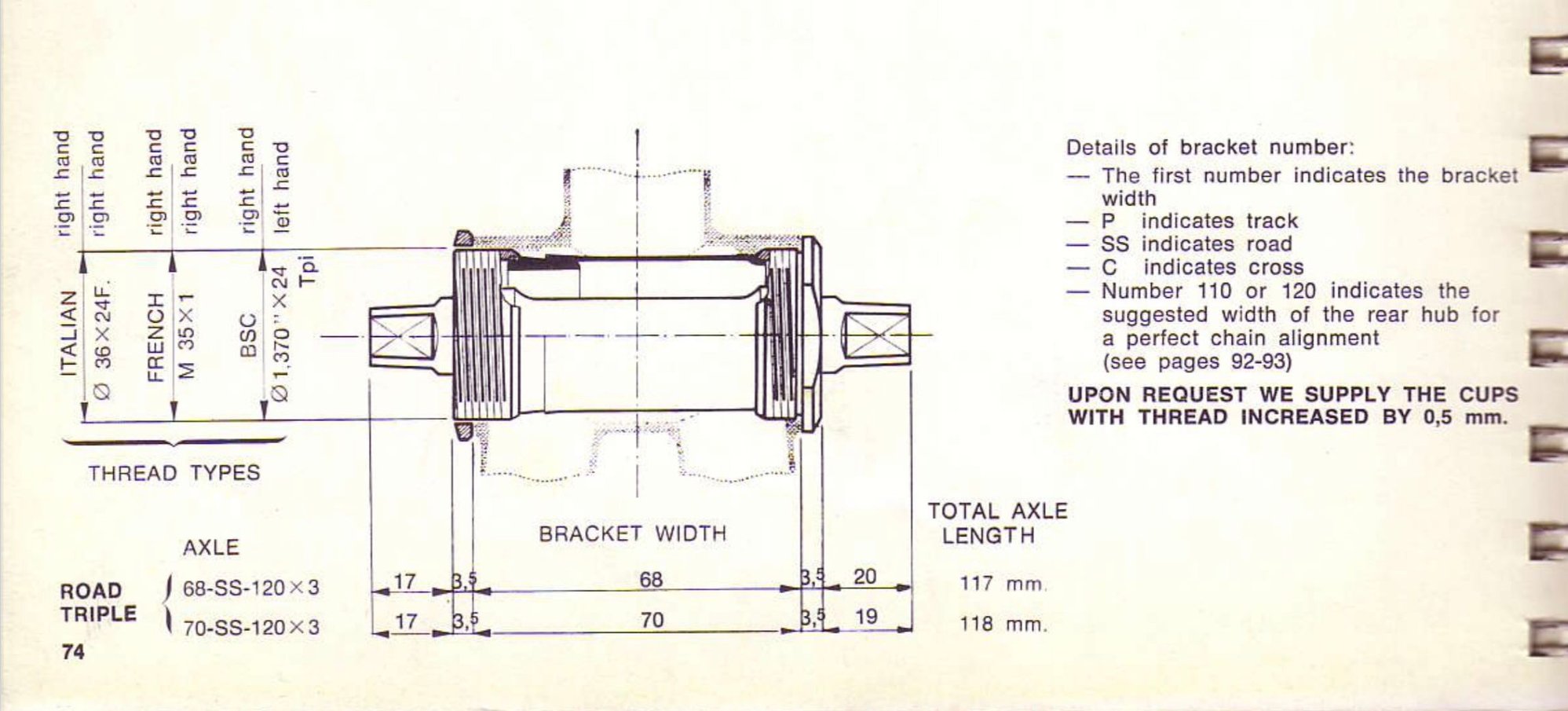

the catalogue shows this guy. Looks like 118 to me

you might know better.

thanks,
Robert


__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 11-29-22, 04:44 PM
  #2
cyclophilia
Junior Member

Join Date: Apr 2014
Location: Desert Southwest
Posts: 152
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Likes: 0
Liked 49 Times in 32 Posts
The bottom bracket spindle you need will be marked:

70-SS-120
X3

where "X3" indicates a triple.

Here is a photo, for reference, of the comparable part for a 68mm bottom bracket:

cyclophilia is offline
Likes For cyclophilia:
Old 11-29-22, 06:11 PM
  #3
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
thank you so much for the info.

Question, what does the "Z" mean?

I saw another without the X3, but had the Z
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 11-29-22, 09:55 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,075

Bikes: Several, mostly not name brands.

Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3194 Post(s)
Liked 2,503 Times in 1,471 Posts
Originally Posted by Robvolz View Post
Question, what does the "Z" mean?

I saw another without the X3, but had the Z
The "Z" is a production code, of no relevance in selecting the proper spindle.
https://drive.google.com/file/d/1TZw...usp=share_link
JohnDThompson is offline
Old 11-29-22, 10:16 PM
  #5
Catnap
zungguzungguguzungguzeng

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,669

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 233 Times in 99 Posts
I also need one of these but for a 68mm English threaded BB. Anyone holding?
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 11-29-22, 11:35 PM
  #6
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,847

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 727 Post(s)
Liked 387 Times in 219 Posts
Here's my NR/SR spindle length cheat sheet:

Italian:
Double -Pre CPSC (1978): 113mm. Post: 115.5
Triple - Pre: 118. Post: 124

English:
Double - Pre: 112. Post: 114.5
Triple - Pre:117. Post: 123
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Likes For jeirvine:
Old 11-30-22, 08:30 AM
  #7
Catnap
zungguzungguguzungguzeng

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,669

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 233 Times in 99 Posts
Based on the varying widths, does the pre / post-CPSC designation mean that the BB cups are thinner/ thicker?
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 11-30-22, 10:41 AM
  #8
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,673
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Liked 1,091 Times in 637 Posts
The campy triple bb set is thin cup
Mr. 66 is offline
Old 12-01-22, 12:01 AM
  #9
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
Hey John Thompson….

whst a great educational link.

still trying to wrap my head around the “before and after” consumer safety situation.

If my understanding is correct, the front derailer had more movement thanks to the lip?

At the same time spacing in the rear was moving from 120 to something greater. Thanks to the want of more gears on the rear hub.
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 12-01-22, 07:58 AM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,040

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1404 Post(s)
Liked 1,681 Times in 859 Posts
@Robvolz - My understanding is the lipped FD needs to be match to the crankset from the same era. The distance between the crank arm and the ring sprocket was increased to accommodate the lip. A post -CPSC crank will work fine with a non-lipped FD but the reverse may not. A narrower chain in this last configuration may not work well due to the need to move the chain a bit further to engage the sprocket. The result is a FD cage that rubs on the crank arm.

Not to hijack the thread, but do the thin cups require a spindle with wider spacing of the races on the spindle? See bottom spindle. @JohnDThompson?
P1030105 on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 12-01-22, 08:25 AM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,075

Bikes: Several, mostly not name brands.

Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3194 Post(s)
Liked 2,503 Times in 1,471 Posts
Originally Posted by SJX426 View Post
[MENTION=557277]Not to hijack the thread, but do the thin cups require a spindle with wider spacing of the races on the spindle? See bottom spindle. @JohnDThompson?
P1030105 on Flickr
Yes, they do.
JohnDThompson is offline
Likes For JohnDThompson:
Old 12-01-22, 11:12 AM
  #12
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
Thanks for all the tips. Any hi-jacking that informs us all is always welcome.

Sounds like not only do I need the pre-safety lip spindle, but thin 70mm cups too? or are 68 cups thin on their own.
Robert
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 12-01-22, 01:23 PM
  #13
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,847

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 727 Post(s)
Liked 387 Times in 219 Posts
Originally Posted by Robvolz View Post
Thanks for all the tips. Any hi-jacking that informs us all is always welcome.

Sounds like not only do I need the pre-safety lip spindle, but thin 70mm cups too? or are 68 cups thin on their own.
Robert
Both 68 and 70 cups come in thick (rifled) and thin. Thin cups came with triples and pista BBs, but also with GS cranks. Any will work fine with an x3 spindle.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Likes For jeirvine:
Old 12-01-22, 06:34 PM
  #14
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
man o man. I have a 70mm pista set. I'm half way there!! Thank you for clearing this up for me.

Though I was going to have to go new Phil.
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 12-01-22, 07:09 PM
  #15
Duke7777
Full Member

Join Date: Aug 2014
Posts: 231

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 62 Holdsworth Cyclone, 49 Carpenter, 55 Condor, 49 Gillott, 78 R Sachs, 65 Masi Special, 81 Sequoia, 76 Eisentraut, 72 Proteus, 60 Paramount

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 119 Times in 49 Posts
Originally Posted by Robvolz View Post
Thanks for all the tips. Any hi-jacking that informs us all is always welcome.

Sounds like not only do I need the pre-safety lip spindle, but thin 70mm cups too? or are 68 cups thin on their own.
Robert
Is the crank dated 78? If so, it is likely post-CPSC and you will need the post-CPSC Record spindle (122 mm long, stamped either 70 SS 120 X3 (+1.0, 1.5) or 70 SS X3), together with thin cups. A post-CPSC Gran Sport spindle would probably also work (124 mm long, stamped 70 SS X3, but black oxide finish)
Duke7777 is offline
Old 12-02-22, 01:12 AM
  #16
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
no, the crank is dated 74.
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Old 12-02-22, 01:18 AM
  #17
Duke7777
Full Member

Join Date: Aug 2014
Posts: 231

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 62 Holdsworth Cyclone, 49 Carpenter, 55 Condor, 49 Gillott, 78 R Sachs, 65 Masi Special, 81 Sequoia, 76 Eisentraut, 72 Proteus, 60 Paramount

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 119 Times in 49 Posts
Originally Posted by jeirvine View Post
Both 68 and 70 cups come in thick (rifled) and thin. Thin cups came with triples and pista BBs, but also with GS cranks. Any will work fine with an x3 spindle.
To put it another way, all Gran Sport and Record bottom brackets have thin cups, whether they are pre or post CPSC. Rifled steel cups are Nuovo Record. The Nuovo Record series did not contain either a track or a triple bottom bracket.
Duke7777 is offline
Old 12-02-22, 01:33 AM
  #18
Duke7777
Full Member

Join Date: Aug 2014
Posts: 231

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 62 Holdsworth Cyclone, 49 Carpenter, 55 Condor, 49 Gillott, 78 R Sachs, 65 Masi Special, 81 Sequoia, 76 Eisentraut, 72 Proteus, 60 Paramount

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 119 Times in 49 Posts
Originally Posted by Robvolz View Post
no, the crank is dated 74.
OK, in your first post you said "1978 colnago, 70mm wide bb. Adding same year triple crankset", which I assumed meant a '78 crank. A '74 crank should work with the "Old Style" Record X3 bottom bracket (thin cups, 118 mm spindle). A couple of years ago I converted all my Campagnolo equipped bikes to triples, so I spent a lot of time studying those tables and searching ebay for X3 spindles and thin cups.
Duke7777 is offline
Likes For Duke7777:
Old 12-02-22, 09:37 AM
  #19
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 564
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 323 Times in 140 Posts
Yes, the frame is a 78 Colnago.
I assumed the crank was the same. It is a few years earlier. Its also my understanding that the crank did not change, but the FD changed when the safety stuff came out. I have both lipped and non-lipped FDs campy to choose from.

So, either newer or older spindle will work.

Other than ebay, have you had any luck locating spindles elsewhere?

Still searching.

Thanks all, learned so much. Chain lines, relationship between spindle length and rear drop-out spacing. New vs Old derailleurs.
Things I've never really thought about and now it all adds up.
__________________
*In search of a colnago pantographed kick-stand!*
Robvolz is offline
Likes For Robvolz:
Old 12-02-22, 01:56 PM
  #20
Duke7777
Full Member

Join Date: Aug 2014
Posts: 231

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 62 Holdsworth Cyclone, 49 Carpenter, 55 Condor, 49 Gillott, 78 R Sachs, 65 Masi Special, 81 Sequoia, 76 Eisentraut, 72 Proteus, 60 Paramount

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 119 Times in 49 Posts
Originally Posted by Robvolz View Post
Yes, the frame is a 78 Colnago.
I assumed the crank was the same. It is a few years earlier. Its also my understanding that the crank did not change, but the FD changed when the safety stuff came out. I have both lipped and non-lipped FDs campy to choose from.

So, either newer or older spindle will work.

Other than ebay, have you had any luck locating spindles elsewhere?

Still searching.

Thanks all, learned so much. Chain lines, relationship between spindle length and rear drop-out spacing. New vs Old derailleurs.
Things I've never really thought about and now it all adds up.
The front derailleur cage, crank, and bottom bracket spindle all changed together in 1978. The lip on the derailleur cage necessitated moving the crank arm outboard 1.5mm to clear the lip. The chainline stayed the same, so just the crank arm was moved outboard relative to the spider. The spindle length was increased to reach the new crank arm position. So mixing pre and post CPSC parts may cause chain line and derailleur clearance issues. You will definitely want to use a non-lipped derailleur with your 74 crank. If you use a post-CPSC X3 spindle with your 74 triple crank, the derailleur may have difficulty reaching the outer chain ring.

I think I found a few X3 spindles from CR members, but most from ebay. I set up some daily searches and watched for a year or two, but I needed several.

Here's another mix-n-match trick that will work for many bikes with 68 mm bottom bracket shells. A pre-CPSC crank installed on a post-CPSC Nuovo Record (thick cup) 70 SS bottom bracket will give about the right chainline for a triple if you use a 2 mm spacer behind the fixed cup. This 70 SS is about the easiest bottom bracket to find, much easier than finding an X3 bottom bracket. I did this on a couple of bikes.
Duke7777 is offline
Likes For Duke7777:
Old 12-03-22, 07:43 AM
  #21
norskagent
car dodger

norskagent's Avatar

Join Date: Aug 2005
Location: garner/raleigh nc
Posts: 3,446
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 101 Times in 47 Posts
I mounted a pre CPSC campy triple on my Mclean with thin cups, but the spindle I had was 118mm for 70mm BB shell...I used a 1 mm spacer on the drive side and it has worked well for years now.
__________________
1989 Schwinn Paramount OS
1980 Mclean/Silk Hope Sport Touring
1983 Bianchi pista
1976 Fuji Feather track
1979 raleigh track
"I've consulted my sources and I'm pretty sure your derailleur does not exist"
norskagent is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
