$5 Peugeot Triathlon - Reynolds 501/Shimano 105 7sp -- in the workshop

A buddy from down the street -- another Cub Scout dad -- texted me and asked if I Was around. I knew it meant that he'd be showing up with his garage sale Pugeot.

I thought it would be a basket case not-worth-fixing pug like the rusty Mixte hanging in my garage, but I first saw the Celeste blue of a Reynolds 501 sticker and then the 105 group. (1st gen bio pace...) It had clearly done hard time in a damp dusty basement on a trainer, but what a perfect bike to get someone into riding!

In two plus hours, we sanded the worst rust and touched it up, cleaned 30 years of grease off, pulled and overhauled the BB, (the spindle is hopelessly brinelled) removed the crap from the bars, cleaned and oiled the chain, removed surface rust from the front wheel spokes, threw on a new tube, refreshed the brake pad surfaces and switched out the 105 pedals for the old rat traps from my mother's Atala (my first road bike...)

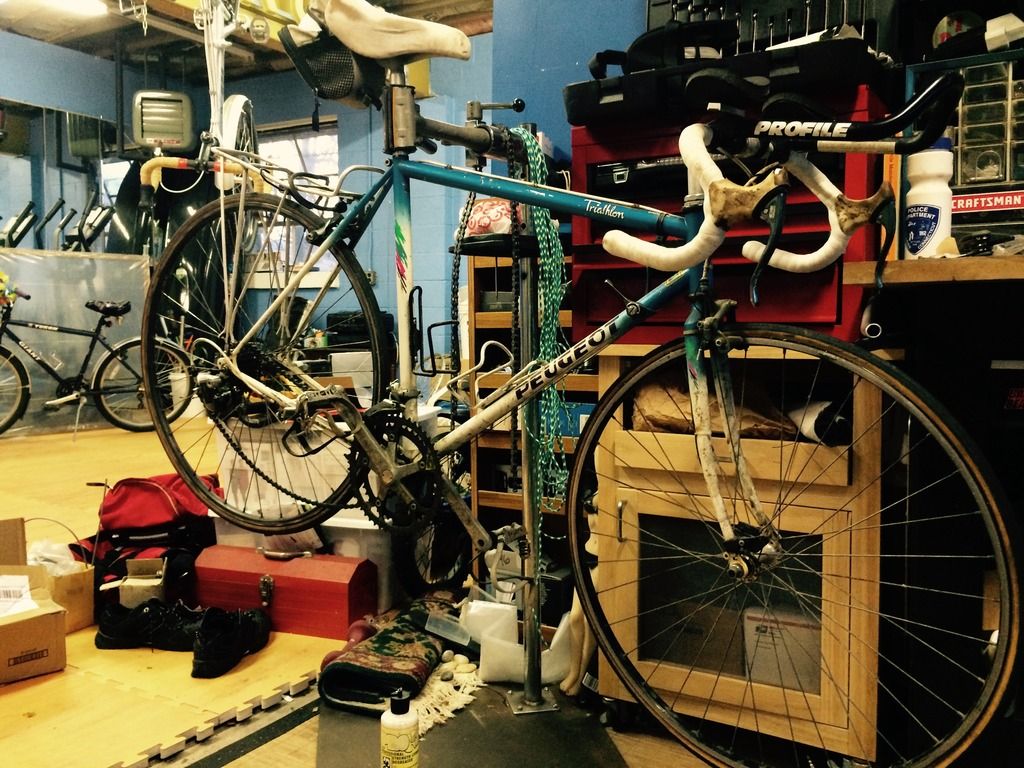

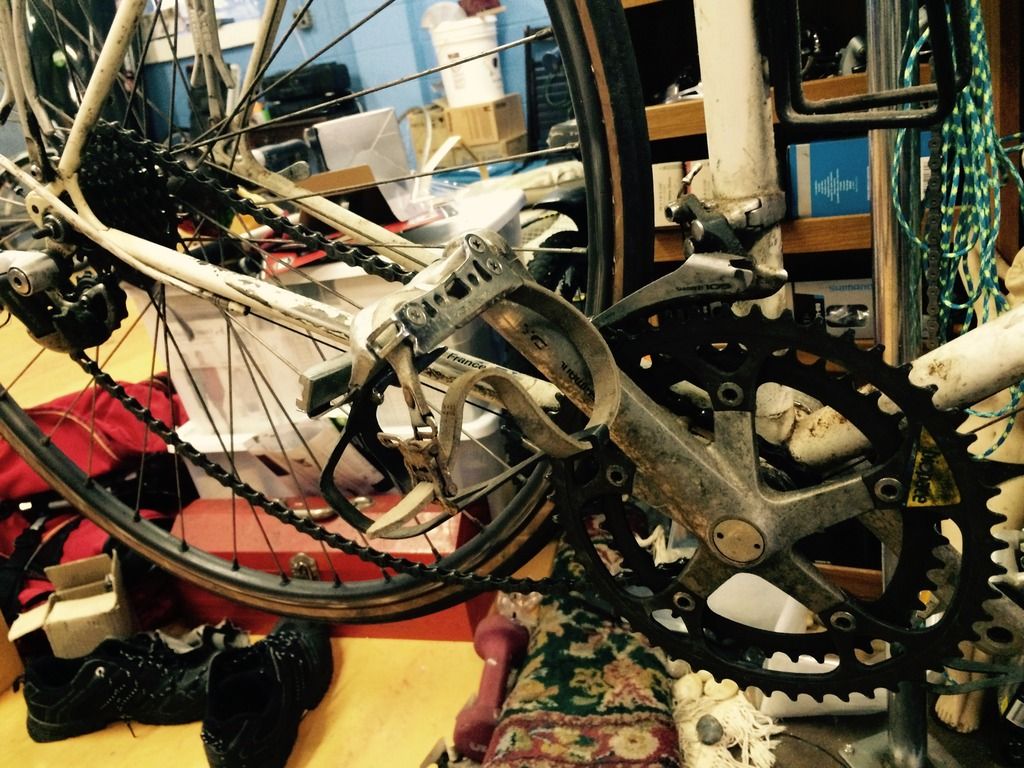

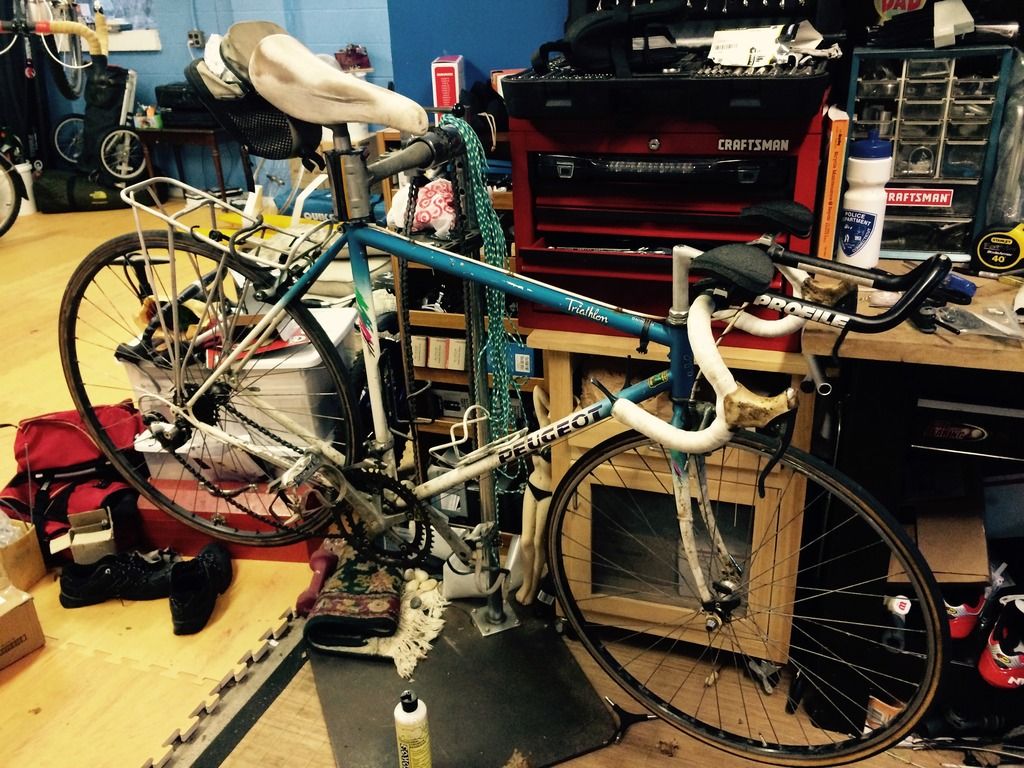

These were the before pictures. She still looks rough, but rides pretty nicely. Going for a shakedown cruise on Wednesday!
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 04-13-15, 10:00 PM
  #2
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,493

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1085 Post(s)
Liked 1,439 Times in 785 Posts
good man to help with the service, lets see some after photos. What merit badge comes with fixing up a Peugeot?
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 04-14-15, 06:07 AM
  #3
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100 with 110% humidity
Posts: 1,277

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 266 Times in 126 Posts
Rear rack and aerobars? Not chic but definitely utilitarian...
tyler_fred is offline
Old 04-14-15, 06:24 AM
  #4
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,881

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 827 Post(s)
Liked 1,400 Times in 602 Posts
thinktubes is offline
Old 04-14-15, 09:11 AM
  #5
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,398

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Liked 40 Times in 27 Posts
The rack stayed, the aerobars and 105 pedals went. I did not spend much time getting the oxidation off the crankset. The grease that ran down the fork from the headset is kind of baked in.

So the "after" pictures aren't going to be all that amazing.

I'm now thinking that it's a 24tpi english BB, and can replace the whole thing with one of the sealed jobs I have sitting around.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 04-14-15, 10:10 AM
  #6
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,942

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3574 Post(s)
Liked 1,967 Times in 1,256 Posts
Originally Posted by Standalone View Post
The rack stayed, the aerobars and 105 pedals went. I did not spend much time getting the oxidation off the crankset. The grease that ran down the fork from the headset is kind of baked in.

So the "after" pictures aren't going to be all that amazing.

I'm now thinking that it's a 24tpi english BB, and can replace the whole thing with one of the sealed jobs I have sitting around.
There's an excellent chance of that. Can't wait to see the "after" pics!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 04-14-15, 10:16 AM
  #7
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,398

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Liked 40 Times in 27 Posts
Originally Posted by ThermionicScott View Post
There's an excellent chance of that. Can't wait to see the "after" pics!

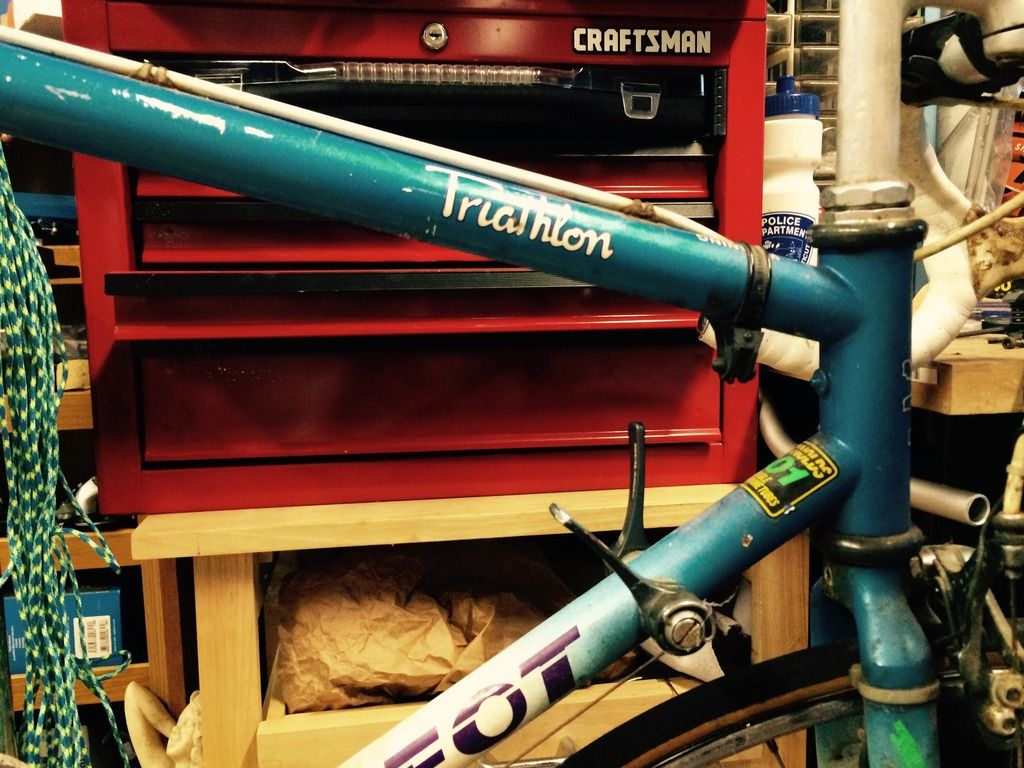

It's a nicely put together frame. Simplex forged dropouts, attractively finished seat stays at the seat cluster, very nice modern fork crown. I like late 1980's bikes quite a bit. We'll have to wait until I take my buddy out for a ride tomorrow. Will snap some action shots.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 04-14-15, 10:18 AM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,357

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5438 Post(s)
Liked 2,278 Times in 1,476 Posts
Best $5 bike I've seen in a while.
bikemig is offline
Old 04-14-15, 10:20 AM
  #9
oddjob2
Still learning

oddjob2's Avatar

Join Date: May 2012
Location: North of Canada, Adirondacks
Posts: 11,620

Bikes: Still a garage full

Mentioned: 92 Post(s)
Tagged: 2 Thread(s)
Quoted: 846 Post(s)
Liked 62 Times in 40 Posts
Given the late 1980's paint, definitely no French threading on that bike.

Hardened grease can be cleaned up with goof off, the canned version not the plastic bottle.
oddjob2 is offline
Old 04-14-15, 04:37 PM
  #10
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,417

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 102 Times in 62 Posts
Originally Posted by Standalone View Post
overhauled the BB, (the spindle is hopelessly brinelled)
Always heartwarming to hear about a nice but neglected bike eventually finding its way into caring hands.
Are you sure the failure is brinelling? That would be a little unusual for a BB spindle. Properly speaking, brinelling is indentation of the BBs into the races due to extreme momentary overloads.
Other possible failure modes are
  • false brinelling (frequently seen on head sets, especally cheap ones, caused by continuous cyclic loading within the normal load range on a roller bearing system that stays nominally in one position; can be exacerbated by inadequate lubrication and/or contamination. This too would be unusual to see in a bottom bracket spindle.
  • fatigue - this results from cumulative damage from use exceeding design life expectancy of the bearing system, from too many cycles and/or sustained excessive loads, in any conceiveable combination. This is not unheard of in a bottom bracket.
  • simple corrosion, due to ingress of moisture and no corrective action for a long period of time. This is the most likely failure of a bottom bracket spindle, especially in the case of this particular bike, given the history.

When I say "failure", I mean in a manner as insinuated in the OP, i.e. the bearing surface becoming roughened to a degree precluding further use.
old's'cool is offline
Old 04-15-15, 12:25 PM
  #11
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,398

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Liked 40 Times in 27 Posts
"Hopelessly" meaning it looks like hell but was made "rideable." The cranks feel crunchier than I'd like them to after cleaning and re-greasing, but we just did a thirty mile ride (my friend's first road ride) and things were "fine."




it's time for a new one and new bearings.

looked a bit like this, only worn more in line-- this one looks like it was also loose... https://www.bikeforums.net/classic-vi...l#post16102012
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 04-15-15, 09:41 PM
  #12
Standalone
The Drive Side is Within
Thread Starter

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,398

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Liked 40 Times in 27 Posts


after.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 04-15-15, 10:49 PM
  #13
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1150 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Nice job! Feel good about yourself, dads taking care of dads
gugie is offline
Old 04-16-15, 04:47 PM
  #14
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,417

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 102 Times in 62 Posts
Originally Posted by Standalone View Post
"Hopelessly" meaning it looks like hell but was made "rideable." The cranks feel crunchier than I'd like them to after cleaning and re-greasing, but we just did a thirty mile ride (my friend's first road ride) and things were "fine."
BTW, any incipient failure of a roller bearing system will quickly become a runaway failure, if operation continues, leading to destruction of all the components, high friction & noise, looseness, and possibly catastrophic failure of a spindle/axle. Before that happened, however, I would expect the bike to become unrideable.



it's time for a new one and new bearings.

looked a bit like this, only worn more in line-- this one looks like it was also loose... https://www.bikeforums.net/classic-vi...l#post16102012
If the damage is somewhat evenly distributed around the race, it is most likely fatigue. Corrosion damage tends to be localized, and normally not very deep.

Last edited by old's'cool; 04-16-15 at 04:52 PM. Reason: incipient-runaway
old's'cool is offline
Old 04-16-15, 05:46 PM
  #15
BentLink
Senior Member

BentLink's Avatar

Join Date: Jan 2010
Location: Pennsyl-tuckey
Posts: 684

Bikes: '86 Cannondale SR400, '86 Pugeot PX10, '92 Bianchi Axis, '95 Bianchi Campione d'Italia, '00 Fondriest X-Status, '08 Specialized Roubaix, '13 Cannondale CAADX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That looks like a very fine ride! I really like that vintage of Pug...
