Miyata one thousand

Recently I pulled my Miyata one thousand, purchased new in 1984, out of the garage and started riding again after 20 year hiatus. I put new tires on and changed the toe clips to platforms. On one of my first outings I inadvertently went from one sidewalk to another which was about 3 or 4 ft lower. I belly flopped on the concrete: Cracked my helmet, cracked a rib, and suffered some bruising and minor road rash. I took my bike in for a tune up. Two days ago they finished and I picked it up and rode home. (previously I purchased a new helmet - I hope I get more than two or three rides out of each helmet). After I got home I noticed that the handle bars are bent. (I didn't notice it riding home nor did the shop notice when they worked on it.) I don't know if they are both bent or only one. I think I and the bike landed on our left side. I don't really like drop bars anymore so would not be adverse to replacing with straight bars. I read how much trouble that can be but the shifters and derailleurs should not be affected, right? Will I be able to reuse my brake levers? Is it safe to ride as is? How do I know if the frame is ok? Any help, comments, and encouragement are welcome.

Attached Images
File Type: jpg
File Type: jpg
captbixley is offline
Old 06-09-15, 02:00 PM
  #2
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 13,931
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 325 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Bent.

Converting to flat bar shouldn't be too difficult.

Bar, levers, grips, cables. That's it.
miamijim is offline
Old 06-09-15, 02:10 PM
  #3
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,560

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 28 Times in 23 Posts
Since it is a steel frame it's probably OK unless you see some bends or bad ripples in the paint. I'd suggest that you inspect it very carefully, checking out the straightness of all the tubes, especially near the lugs (or have a bike mechanic do so if that doesn't sound like something you can do). With most flat bars you'll need to change the brake levers...depends a little on the shape of bars you end up with. Personally, I'd just try to bend the bars back since they don't seem that badly bent. There's a little bit of a risk since aluminum doesn't take as well to that treatment as steel, but it's probably fairly minimal. It's probably fine to ride as is.
davester is offline
Old 06-09-15, 02:56 PM
  #4
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,556

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Likes: 0
Liked 19 Times in 17 Posts
Dude, ditch the drop bars. Life is way too short to be hunched over in pain while trying to get some fresh air and exercise. I've converted about a dozen drop bar bikes to upright bars. It's an amazing upgrade. Very satisfying. You'll spend around $150 in parts for that bike because of the down tube shifters. Here's a very similar bike I converted. ......

It's got some combination brake levers & shifters made by Shimano on the handlebars. The carbon fiber road weenies really freak out when I blow past them doing 25mph.
Attached Images
File Type: jpg
100 TREK 520.jpg (96.3 KB, 90 views)
ramzilla is offline
Old 06-09-15, 05:12 PM
  #5
captbixley
Junior Member
Thread Starter

Join Date: Jun 2015
Location: Seattle
Posts: 6

Bikes: Miyata 1000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ramzilla - Your rig looks good - you replaced the threaded stem with a threadless stem (do I have lingo right?) and the bifters are they indexed and will they work with my Shimano derailleurs with the friction shifters? Where did you get the bars?

Thx
captbixley is offline
Old 06-09-15, 05:37 PM
  #6
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,501

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1769 Post(s)
Liked 93 Times in 74 Posts
Replace your bars if they're bent.

My advice about drops or flat bars is that on flat bars, my hands are done after about mile 7. So I prefer drop bars, but you should do what's comfortable to you.

You should be able to find a plethora of stems that will suit your porpoises rather cheaply yet elegantly.

"Brifters" are generally considered the shifter/brake levers on drop bars- but I guess- those are integrated brake and shift levers.

Personally- If I were to go to a flat bar on that bike (which is a company Flagship model bike and considered one of the finest of all time) I would not skimp on what you'd be putting on there. I think you should look for some of the Suntour Power ratcheting thumb shifters. They're among the finest shifters ever and they were concurrent at the time of your bike's manufacture. Score a set of Bull Moose bars and some some Shimano Deore XT brake levers and you're in business.

__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 06-09-15, 06:03 PM
  #7
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,251

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 711 Post(s)
Liked 19 Times in 16 Posts
The drop bars that were on there look quite narrow relative to the size of the frame. I echo TGB's comments about bars. If your bars were uncomfortable, it might have been more a matter of positioning than bar style. I don't set mine as low as I used to, but I don't tolerate single hand positions for more than about 10 miles.

Absolutely shocked that your shop didn't notice the damage.
__________________
In search of what to search for.
USAZorro is offline
Old 06-09-15, 06:58 PM
  #8
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 960
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by USAZorro View Post
The drop bars that were on there look quite narrow relative to the size of the frame. I echo TGB's comments about bars. If your bars were uncomfortable, it might have been more a matter of positioning than bar style. I don't set mine as low as I used to, but I don't tolerate single hand positions for more than about 10 miles.

Absolutely shocked that your shop didn't notice the damage.
Yes! Consider a new shop unless you really like that one for some reason!
tricky is offline
Old 06-09-15, 08:46 PM
  #9
mountaindave
Happy Commuter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,345

Bikes: Red bikes. Why do I have so many red bikes?! I thought green was my favorite color

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 12 Times in 9 Posts
+1, I'd be worried about frame damage wih bars bent that much. You should measure the frame and if it's a 58cm, just ship it to me for personal inspection.

On the plus side, you're halfway to making a set of randonneur bars!

I briefly converted a road bike to something similar to what @ramzilla made. I liked it for a while then had a hankering for going original... but not before I did a few centuries - one of which was mostly on gravel roads. If you don't like drops, you may as well go for something comfortable to keep you riding - we don't want anymore 20 gaps. Plus, it's not like you're carving something in stone.

Welcome to the forums!!
mountaindave is offline
Old 06-09-15, 08:58 PM
  #10
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,556

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Likes: 0
Liked 19 Times in 17 Posts
It's a regular threaded stem. An upright stem that would normally be found on a hybrid or mountain bike. I've got no idea what people are talking about when I hear about all the various riding positions on drop bars vs upright bars. It's a lot of bunk. IMHO if you want to go really fast - like average speed of 20mph - then use drop bars. If you just want to get some exercise - average 10 to 15mph - use upright bars. Upright handlebars are naturally more comfortable than drop bars.
The shifter brake combos came with cables included. It's a Trek 520 equipped with Deore RD. Indexing works fine.
Attached Images
File Type: jpg
ramzilla is offline
Old 06-09-15, 09:07 PM
  #11
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,251

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 711 Post(s)
Liked 19 Times in 16 Posts
With drop bars, it's mainly hand positions (I count 6 that I personally use, though I spend 80%+ in 3 of them), but there are three rather distinct riding postures as well. On a mountain bike with extensions, I have 3 hand positions. With upright bars, there's one. Granted, there tends to be less weight on the hands with upright bars, but only one hand position.
__________________
In search of what to search for.
USAZorro is offline
Old 06-09-15, 09:39 PM
  #12
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,560

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 28 Times in 23 Posts
I agree with Golden Boy and USAZorro. If drop bars are uncomfortable or painful then you don't have your bike set up to fit you properly. It may be that you need to get someone to help fit you so that you don't have that problem. Also, from experience flat bars with a single hand position are terrible for riding any distance. Especially because you have an epic top of the line long distance tourer, I would humbly suggest that you experiment a bit before fundamentally changing its character.
davester is offline
Old 06-09-15, 09:53 PM
  #13
ncrnelson
Senior Member

ncrnelson's Avatar

Join Date: Jul 2010
Location: Champlin, MN
Posts: 208

Bikes: 1983 Cannondale ST500, 1987 Cannondale SM400 with SA 3 speed hub, 1987 Schwinn Tempo, 1982 Schwinn Voyageur SP, 1992 Kona Explosif

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 5 Times in 3 Posts
You could try trekking bars, they're pretty dorky looking, but if you go for longer rides that one hand position gets a bit uncomfortable. Then again I may be more prone to hand numbness than others.

Random internet photo.


No drops, but all the hand positions you could imagine.
ncrnelson is offline
Old 06-09-15, 11:09 PM
  #14
Fahrenheit531
50th Anniversary Edition

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,519

Bikes: Schwinn Paramount ('71) and Volare ('78); Raleigh Competition GS ('79)

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 93 Times in 51 Posts
Originally Posted by davester View Post
Especially because you have an epic top of the line long distance tourer, I would humbly suggest that you experiment a bit before fundamentally changing its character.
I agree with this.

I'm curious about where on the bars the OP was riding at the time of the fall, and more about the whole sidewalk-to-sidewalk thing. @captbixley: Are you riding in the drops? Your not really liking drop bars "anymore" and your not noticing a really nasty dropoff has me wondering more about your posture than anything. Glad you're more or less okay and not just putting the bike away for another 20; many would.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 06-10-15, 12:22 AM
  #15
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,376

Bikes: A green one, "Ragleigh," or something.

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 1365 Post(s)
Liked 70 Times in 47 Posts
I simply cannot live without drop bars, but you may be different. It's a real pain for me if can't change hand positions several times per mile and a 30 mile ride on my MTB (flat bars) is the absolute max I can do.

On any of my road bikes, 60, 80, 100 miles; my hands are pretty happy. Tops, drops, flats, drops, hoods, drops, shoulders, drops... all day long.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Old 06-10-15, 07:06 AM
  #16
tarwheel
Senior Member

tarwheel's Avatar

Join Date: May 2007
Location: Raleigh, NC
Posts: 8,902

Bikes: Waterford RST-22, Bob Jackson World Tour, Ritchey Breakaway Cross, Soma Saga, De Bernardi SL, Specialized Sequoia

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Likes: 0
Liked 1 Time in 1 Post
You definitely should replace the handlebar if bent, particularly on a bike that old. A broken bar could lead to another crash.

I would think twice about adding straight bars. Your Miyata is a touring bike not a hybrid or mountain bike. Drop bars give you a range of positions if you ever decide to tour or ride longer distances, and you can always ride on the bar tops or hoods. Rather than straight bars, check out some of the excellent shallow-drop handlebars such as the Soma Highway 1. Also consider a taller stem, such as a Nitto Deluxe or Technomic. With those changes, you might find that it is suddenly very comfortable riding on the bar tops, hoods and even drops. If you are dead-set against drops, at least consider some bullhorns, which give you two positions for your hands. Straight bars give you one position, period. On a long ride, or in windy weather, you may find yourself wishing you had a way to stretch out or become more aerodynamic.
tarwheel is offline
Old 06-10-15, 07:22 AM
  #17
Saddle Up
I Love My Dream

Join Date: Jan 2008
Posts: 1,075
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by captbixley View Post
On one of my first outings I inadvertently went from one sidewalk to another which was about 3 or 4 ft lower.

Did you mean to say 3 or 4 inches? Sounds really unsafe to have a 4 foot drop down to another sidewalk. Glad you are okay. Original dropbars are often too narrow IMO. Nitto makes dropbars with similar bends to the originals but wider. They also make taller stems.

Last edited by Saddle Up; 06-10-15 at 07:25 AM.
Saddle Up is offline
Old 06-10-15, 10:05 AM
  #18
JReade
Senior Member

JReade's Avatar

Join Date: Sep 2010
Location: Vancouver, WA
Posts: 1,617
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by captbixley View Post
I inadvertently went from one sidewalk to another which was about 3 or 4 ft lower.
I can't say that I've fallen off a bridge while riding, but anything is possible.
JReade is offline
Old 06-10-15, 10:12 AM
  #19
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,372

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Ignore anyone who tells you that any one style is inherently better than another without understanding whatever problem you're trying to solve.

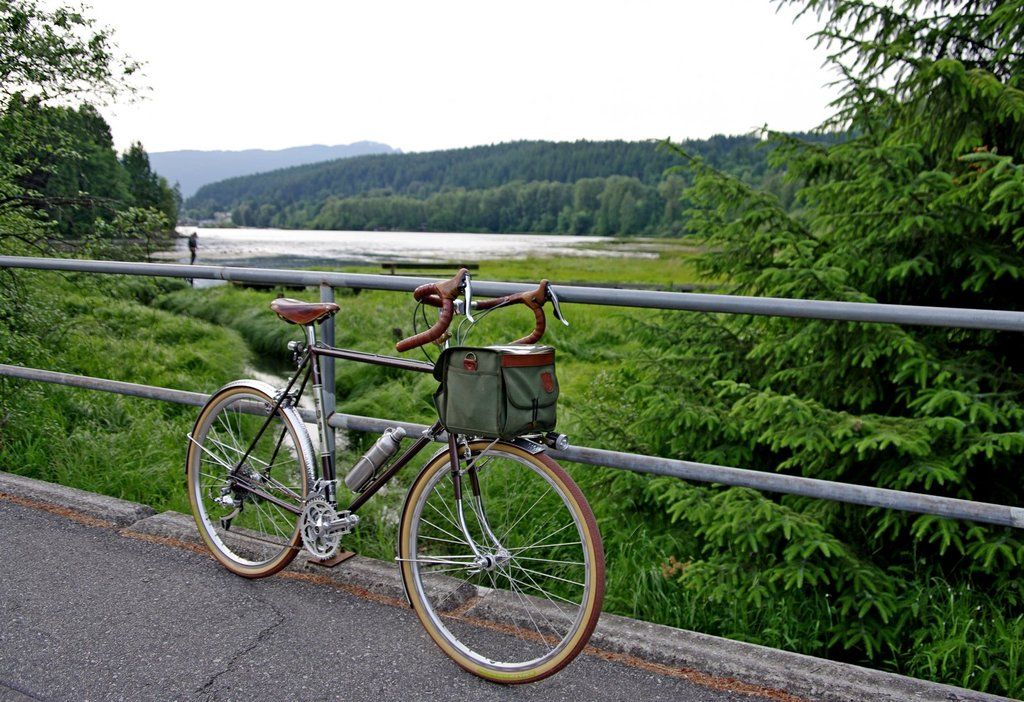

I like both the narrow, randonneur bend handlebars that I have installed on two of my touring bikes and the "city" bend upright bars on my heavy city bike. I frequently take the heavy city bike on impromptu 30 or 40 mile rides in flat, extremely windy coastal areas and they suit my riding style and setup on that bike so well that I'm contemplating a nice city-bend bar conversion on one of my touring bikes to improve my comfort for long rides and keep me looking at the scenery.
DiegoFrogs is offline
Old 06-10-15, 10:48 AM
  #20
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,480

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 13 Times in 11 Posts
I also have a Miyata that I purchased new in 1984. I really like the bike but I just don't have the same flexibility that I did then. I do like the multiple hand positions of drop bars, so I bought a set of wider bars (42cm vs. 38cm) and a Nitto Technomic stem to mimic the position of my newer Jamis Quest that I find very comfortable. The only other change s new brake cables, but they needed done anyways. The bike still retained its classic look and I can ride it like I used to.
Pompiere is offline
Old 06-10-15, 11:08 AM
  #21
captbixley
Junior Member
Thread Starter

Join Date: Jun 2015
Location: Seattle
Posts: 6

Bikes: Miyata 1000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks to everyone for their contributions to this thread -
My fall: I was on the sidewalk parallel to the street about a half block from my destination. I am not sure exactly how it happened. Maybe my foot came off the pedal, maybe I was trying to change gears, I don't know for sure but I got wobbly and unstable which would have been a momentary thing if not for the stairway leading off to my right. About three or four steps down to the sidewalk leading away from the street to the back of the building. Then BAM and it was all over. I made it to my apt and afterwards actually road my bike to the nearest bus route - put my bike on the bus rack and rode the rest of the way home. Now I have healed and want to get going again. I once rode across the state of Washington, from Seattle to the Tri-Cities but now I am looking forward to 10 mile rides or shorter.

I really didn't appreciate what I had - but now I agree that I should retain the touring character of down tube bars. Would it make sense to install an adapter tube and an angled (17 degree) stem so that the down tube bars would be up and back some. I feel comfortable riding more up right but then my fingertips just reach the top of the handle bar. Sometimes my hands are on the hoods, but rarely down on the bottoms.

What about moving the shifters to the handle bars? Friction shifters? Index shifters - does than mean a new derailleur?
Thanks again for all the input.
captbixley is offline
Old 06-10-15, 11:38 AM
  #22
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,361

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 7 Times in 7 Posts
@captbixley - Despite some comments, the handle bars (drop) were straight prior to forming to the drop configuration. Age is not a factor in discriminating against the current handlebar (its not wood with bugs in it!). You can bend the bar back by making sure it is secured properly and use a 2x4 of some length to control the force. Bend slowly and check frequently. Drillium Dude, while in DG, bent one side of his drops and bent it back. Don't think he ever replaced it. I did the same thing with my Pinarello. Everyone thinks that because they are made of AL, they will break with the slightest force. Not true. They were bent to their current configuration using tools to make sure the tube didn't collapse but the material selection required a reasonable amount of deformation without failure by design. Shouldn't do it too many times but one more time won't hurt if you are careful.

I am making my own Dirt Drops from road bars:
[IMG]P1030009 on Flickr[/IMG]

I commute on two different bikes, the "truck" is a RockHopper with bar extensions. Doesn't matter which position I use, my hands tingle on every ride. My other "commuter" bike has drops and my hands never tingle. There is something to be said about drops versatile configuration and it speaks through the variety and quantity of them around. Put them where you need them. Sometimes it takes some time and experimentation.

I applaud you returning to the world of two wheels, especially with the bike you left with! I went 30 years before returning. The only tragedy was the loss of the bike due to an uninsured motorist who didn't see me and some personal permanent damage. I am lucky and appreciate the use of my body for the years I have had it!

Good idea to start slow and build up. You will come back based on how much effort you put into it.

There are threadless stems with 35 degree angles too, if you choose. Just pick what you think will work and go from there.

Shifters can be nearly anywhere. The limit is what you want to spend and how comfortable or easy it is to use them. Indexing may require new RD depending on the shifters. It is about the index "spacing" of the lever. It must line up with the spacing on the rear cluster of sprockets (not cogs). In addition, you will need a cable length adjuster. I added one to a Suntour Superbe Pro RD, that didn't have one built in, to use with the index shifters.

Good to know you are healed.
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 06-10-15 at 11:41 AM.
SJX426 is offline
Old 06-10-15, 11:41 AM
  #23
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,494

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 436 Post(s)
Tagged: 0 Thread(s)
Quoted: 5639 Post(s)
Liked 220 Times in 159 Posts
You can find friction-type stem-mounted or handlebar-mounted shifters. They would be your best bet, as they wouldn't require you to change derailleurs. Going to indexed is expensive and complicated on an old bike. I don't think it's worth it.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 06-10-15, 11:53 AM
  #24
VintageRide
Senior Member

VintageRide's Avatar

Join Date: Jul 2008
Location: Burnaby,B.C., Canada
Posts: 539

Bikes: 1952 Urago " Tour De France ",late '50's/early '60's P. Peschi: Early '70's Chrome Garlatti ; 1981 Fuji S12S 650b conversion : 1985 Apollo/Kuwahara Sierra Grande: 2013 Rawland Stag 650b

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As we get older it is not unusual to want a more upright position when riding - especially if you have neck or back issues - I use a Nitto Technomic stem on two of my bikes, and they are typically 55 - 60 cm. They have a recent version that allows a bit more height, I believe from around 180 mm in the original to about 225mm or so. Also you could get some Velo Orange Grand Cru randonneur handlebars, they have one that was recently introduced that is 48 cm wide - measured at the drops so at the brake hoods it is approx. 7 cm narrower as they flare out where measured, still giving a 41 cm width. Because they also rise from the stem to the hoods you get more height and quite a few people like rando handlebars - you can look into them and see what you think - I find them quite good.

You also might want to look into some earlier Campagnolo ergo shifters that are integrated with the brake levers. Not sure if you have a 5 or 6 speed freewheel but there is an adapter that attaches where your shift cable enters the rear derailleur called the ShiftMate that allows many different combinations between various years of Campy Ergo shifters and freewheels. There is a chart that was provided by a site that shows which combinations work together by themselves as well ( ctc.org.uk ). I use Campagnolo brifters on two of my bikes and find them easy to use and well worth having, both with Shimano rear derailleurs and cassettes ( 9 speed ). I am pretty certain that a pre year 2000 8 speed ergo shifter will work with earlier Shimano 5 speed freewheels. None of this is cheap of course but well worth it on a bike you intend to use and want to be comfortable on. I will not deny that it is nice to shift and keep your hands on the bars!
i
There are deals on Ebay if you look and the V.O. handlebars are 60.00, the Nitto stem around the same, sometimes cheaper, ShiftMate about 25.00 if needed and the Campy ergo shifters around 100.00 a pair and up depending on the year and model. It is all relative of course and your Miyata 1000 is a worthy bike, certainly worth investing in but of course it is your decision but being well informed does help. Here is a picture of my '81 Fuju S12S - a 150.00 frame that I put almost 2000.00 into but could not be happier regarding the final results. It has a ShftMate on it and the V.O. bars, Nitto stem and 2009 Campagnolo 10 speed brifters with a Shinamo 9 speed XT rear derailleur and Shimano 9 speed 11-34 cassette.









Last edited by VintageRide; 06-10-15 at 03:42 PM.
VintageRide is offline
Old 06-10-15, 11:58 AM
  #25
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,251

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 711 Post(s)
Liked 19 Times in 16 Posts
fwiw - it looks to me that the right hand portion of the bar is as it should be, and only the left side would need to be returned to shape. disclaimer is that I am basing this on a single, two dimensional view.
__________________
In search of what to search for.
USAZorro is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
