Speaking Of Headtube Angle

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Speaking Of Headtube Angle

Old 06-13-15, 07:15 AM
  #1
OldsCOOL
Senior Member
Thread Starter

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,402

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 411 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Speaking Of Headtube Angle

For our Colnago experts....does anyone know the headtube angle on a '77 Colnago Super?
OldsCOOL is offline
Old 06-13-15, 07:39 AM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,263
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by OldsCOOL View Post
For our Colnago experts....does anyone know the headtube angle on a '77 Colnago Super?
Like the earlier bikes, I expect it to vary with the size.
Slack for the ver small, and progressively steeper on the bigger bikes.
repechage is offline
Old 06-13-15, 08:04 AM
  #3
OldsCOOL
Senior Member
Thread Starter

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,402

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 411 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This one, a 23" frame....

OldsCOOL is offline
Old 06-13-15, 08:44 AM
  #4
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

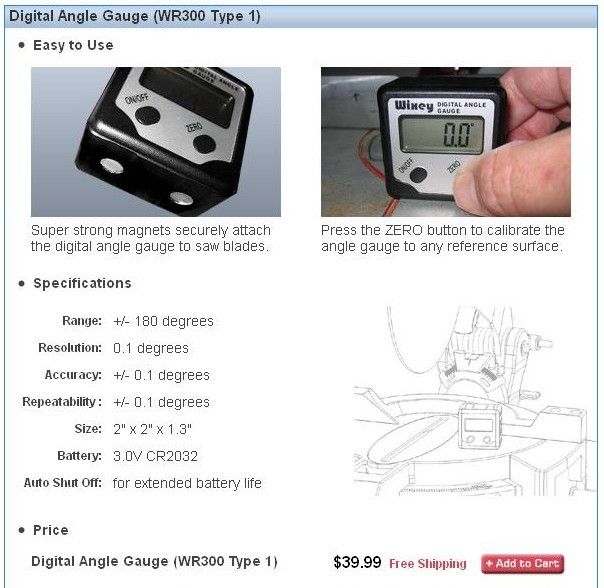

IMHO the easiest way to find the HTA or STA of a frame is to use a Wixey WR300 digital angle gauge. They're cheap and come in handy often. Make sure the front and rear wheels/tires have exactly the same diameter.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 06-13-15, 08:47 AM
  #5
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,456

Bikes: Too many to list here check my signature.

Mentioned: 89 Post(s)
Tagged: 2 Thread(s)
Quoted: 1181 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I am guessing somewhere right around 72-73. Isn't 73.5 parallel the holy grail or something?
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 06-13-15, 12:14 PM
  #6
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 998
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
Isn't 73.5 parallel the holy grail or something?
No.
rando_couche is offline
Old 06-13-15, 12:50 PM
  #7
OldsCOOL
Senior Member
Thread Starter

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,402

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 411 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
I am guessing somewhere right around 72-73. Isn't 73.5 parallel the holy grail or something?
My Cannondale Criterium Series is 74. Love me some steep angles. My Trek 760 is closer to your grail number.
OldsCOOL is offline
Old 06-13-15, 02:08 PM
  #8
BradH
Catching Smallmouth

BradH's Avatar

Join Date: Oct 2013
Location: In a boat
Posts: 401

Bikes: 1990 Specialized Sirrus Triple, 1985 Trek 460, 2005 Lemond Tourmalet, 1984 Schwinn LeTour 'Luxe, 1988 Trek 400T, 1985 Trek 450, 1997 Lemond Zurich, 1993 Diamond Back Apex, 1988 Schwinn Circuit, 1988 Schwinn Prologue, 1978 Trek TX700, Sannino

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you have an android phone, download the free "Angle Meter" app.
BradH is offline
Old 06-13-15, 02:17 PM
  #9
Metacortex
Senior Member

Join Date: Apr 2011
Posts: 2,347

Bikes: Fillet-brazed Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use this Magnetic Digital Angle Guage from Harbor Freight and it seems to work well: Digital Angle Finder / Angle Gauge

On bikes with horizontal top tubes I just zero it on the top tube and then take the angles of the seat and head tubes from there. This eliminates errors due to potential variations in tires, wheels, forks, dropouts etc.
Metacortex is offline
Old 06-13-15, 11:09 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,263
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Metacortex View Post
I use this Magnetic Digital Angle Guage from Harbor Freight and it seems to work well: Digital Angle Finder / Angle Gauge

On bikes with horizontal top tubes I just zero it on the top tube and then take the angles of the seat and head tubes from there. This eliminates errors due to potential variations in tires, wheels, forks, dropouts etc.
I would not assume that a "level" top tube is level.
I have run across plenty of bikes that are not, usually the top tube runs "uphill" to the head tube when out of level.
Biggest variation i have found to date is 8 mm higher at the head tube intersection from the seat tube, had I assumed the top tube was level, the dimensions would be pretty far off. Note, that the rear wheel was all the way forward in the dropouts, sliding the wheel back will make a very minor difference, but I measure all at the forward position.
The angle finder is not a bad idea, I would set the bike on a known level surface, I have used a 48" long level on edge and a set of wheels sans tires with matching rims.
My conjecture on the 58-59 cm Colnago will be fron 73 to 74 degrees.
repechage is offline
Old 06-13-15, 11:59 PM
  #11
Metacortex
Senior Member

Join Date: Apr 2011
Posts: 2,347

Bikes: Fillet-brazed Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by repechage View Post
I would not assume that a "level" top tube is level.
I knew that the TT was level by design on the bikes I've used it on. However as you say if you are at all unsure about the TT being level then using a level surface as a reference would be necessary.
Metacortex is offline
Old 06-14-15, 12:12 PM
  #12
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Some years ago I saw a Raleigh factory drawing of a frame that from all appearances had a level top tube, but in fact specified a 0.8° slope. I came to the conclusion that I couldn't rely on a frame appearing to have a 'level top tube' actually having one. The one reference point on a bike frame that doesn't change is a line through the centers of the rear dropouts and the front fork dropouts, and assuming the front and rear wheels have identical rims and tires, by extension the dropouts will be parallel to the floor the bike is on since the front and rear wheels will have the same radius, or distance from the dropouts to the floor.
__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 06-14-15, 03:40 PM
  #13
RosyRambler
Senior Member

Join Date: Aug 2007
Location: New Jersey
Posts: 241

Bikes: 2000 GT I-Drive Team MTB, 2005 Specialized Sirrus, 1973 Schwinn World Voyager (frame only), 1975 Peugeot Mixte, 1980 Raleigh Sport, 1980(?) Peugeot, Giant ATX MTB, 2006 GT I-Drive MTB Frame, 2005 Jamis Dakar XLT MTB

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
To be 100%+ accurate, if that's what you're after, wouldn't you have to take a measurement of the surface the bikes sitting on, and make sure that's completely level?
RosyRambler is offline
Old 06-14-15, 04:58 PM
  #14
OldsCOOL
Senior Member
Thread Starter

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,402

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 411 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RosyRambler View Post
To be 100%+ accurate, if that's what you're after, wouldn't you have to take a measurement of the surface the bikes sitting on, and make sure that's completely level?
No need for engineer's accuracy here. Just wanted to get an idea of the angle. I tend toward the steep side so it's all good. Thanx!
OldsCOOL is offline
Old 06-14-15, 06:08 PM
  #15
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,006

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 164 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've spent my whole life not really knowing what my head angles were.

I don't think I've missed anything important.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 06-14-15, 06:44 PM
  #16
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RosyRambler View Post
To be 100%+ accurate, if that's what you're after, wouldn't you have to take a measurement of the surface the bikes sitting on, and make sure that's completely level?
No; that's not necessary with the Wixey WR300 as once the "zero" button is pushed, subsequent angular readings are referenced to the initial "zero" setting.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 06-14-15, 06:56 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,263
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Scooper View Post
No; that's not necessary with the Wixey WR300 as once the "zero" button is pushed, subsequent angular readings are referenced to the initial "zero" setting.

That is a nice feature.

Yes Scooper, most everyone assumes that traditional lugged construction bikes have level top tubes. You are correct.
When I measure I made up a fixture that holds the axle centers level, I use it to reference bottom bracket drop too.
Kind of a student of bike geometry, I want to understand why a bike feels the way it does.

A few takeaways, short chain stays are over rated.
A low bottom bracket helps descending much more than I would have anticipated.
Many modern makers of bikes have bottom brackets higher than I think they need to considering the design of the pedals today provide much more cornering clearance compared to say, the long lived and copied C&V era Campagnolo Record Pedal.
repechage is offline
Old 06-14-15, 07:34 PM
  #18
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by repechage View Post
That is a nice feature.

Yes Scooper, most everyone assumes that traditional lugged construction bikes have level top tubes. You are correct.
When I measure I made up a fixture that holds the axle centers level, I use it to reference bottom bracket drop too.
Kind of a student of bike geometry, I want to understand why a bike feels the way it does.

A few takeaways, short chain stays are over rated.
A low bottom bracket helps descending much more than I would have anticipated.
Many modern makers of bikes have bottom brackets higher than I think they need to considering the design of the pedals today provide much more cornering clearance compared to say, the long lived and copied C&V era Campagnolo Record Pedal.

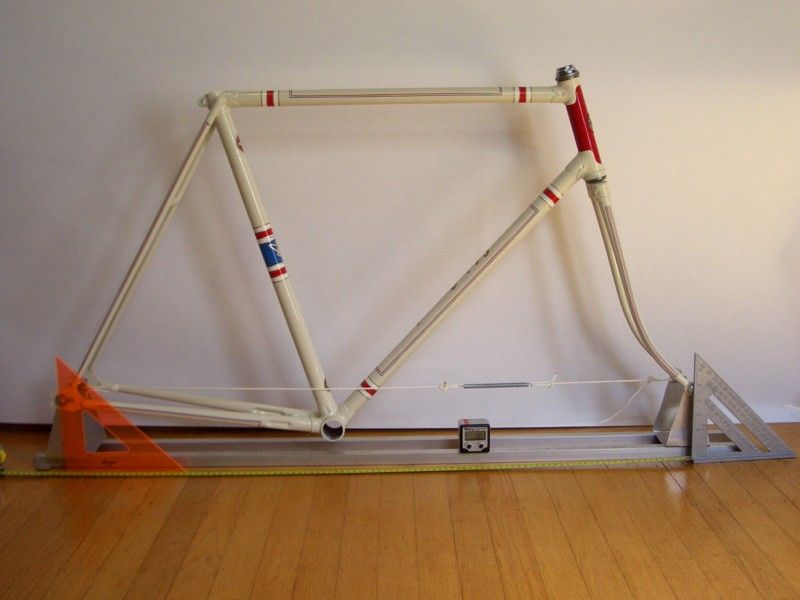

I built a pair of axle standoffs used to position the dropout centers precisely the same distance above the floor to do the same thing.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 06-14-15, 07:39 PM
  #19
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,263
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Scooper View Post
I built a pair of axle standoffs used to position the dropout centers precisely the same distance above the floor to do the same thing.

My Mom would say, great minds' think alike.
repechage is offline
Old 06-14-15, 09:25 PM
  #20
Fred Smedley
Senior Member

Join Date: Nov 2005
Posts: 1,706
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bianchigirll View Post
I am guessing somewhere right around 72-73. Isn't 73.5 parallel the holy grail or something?
Yes
Fred Smedley is offline
Old 07-02-15, 06:55 PM
  #21
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Curious about the question of measuring STA and HTA relative to the top tube and assuming the top tube is exactly parallel to a line through the front and rear dropouts, I measured the angles of my 2007 Waterford RS-22. From all appearances the top tube is level and there is nothing on the factory geometry drawing to indicate a slope.

In fact, the top tube has a 0.7° slope down from the head tube to the seat tube.

Here's the factory geo drawing.

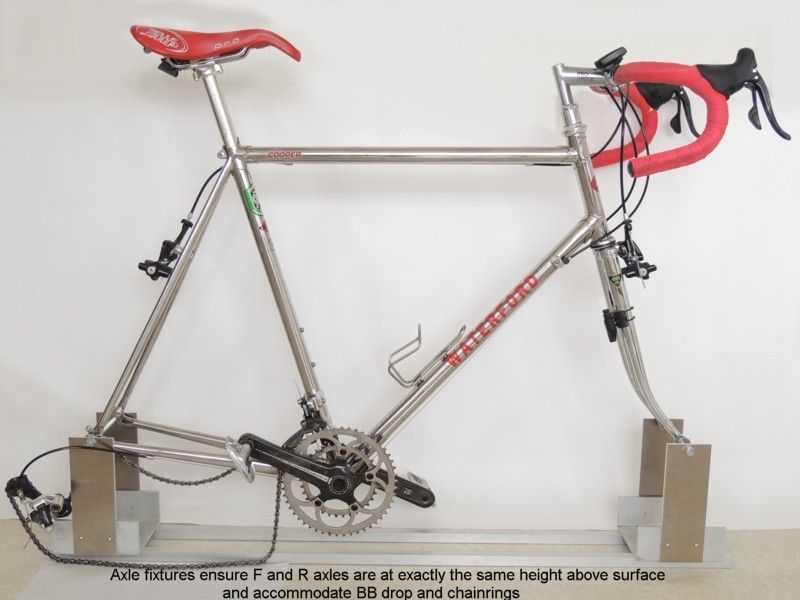

Here is the set-up for measuring the frame angles.

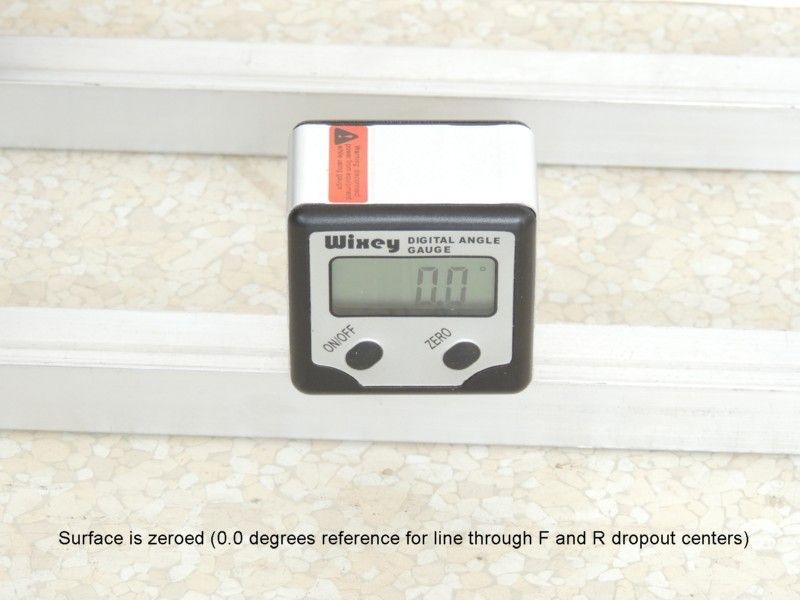

Here is the angle gauge "zeroed" to level on the extruded aluminum box beams the axle standoffs are on. Subsequent angle measurements are relative to the axles' baseline.

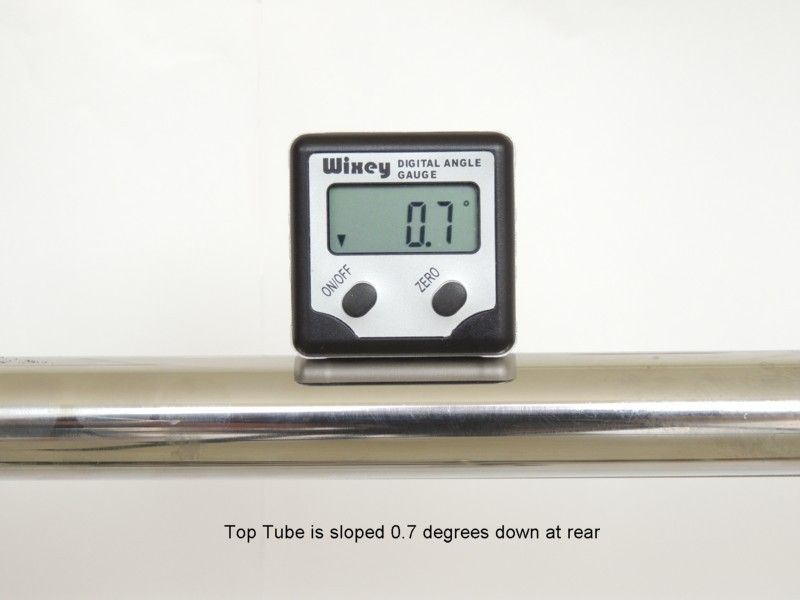

Here is the 0.7° slope of the top tube.

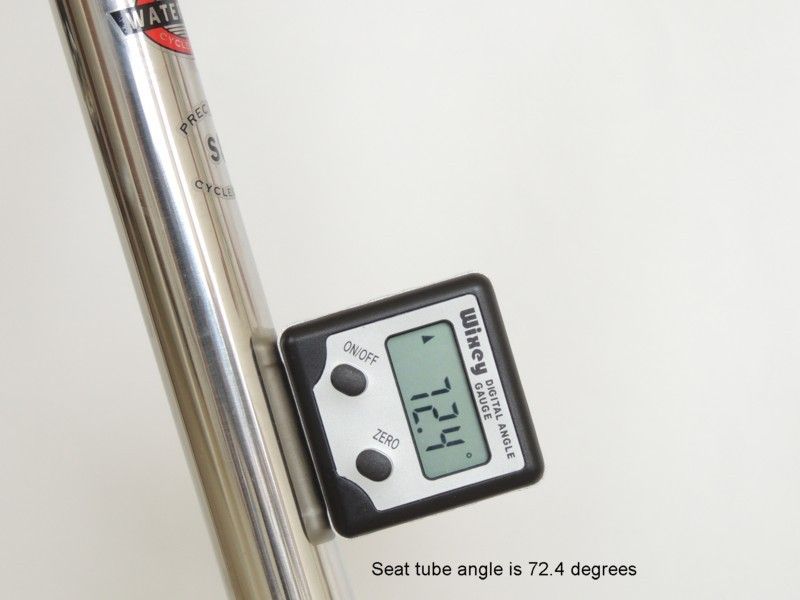

The seat tube measurement shows 72.4° while the factory drawing shows 72.5°. That's pretty close.

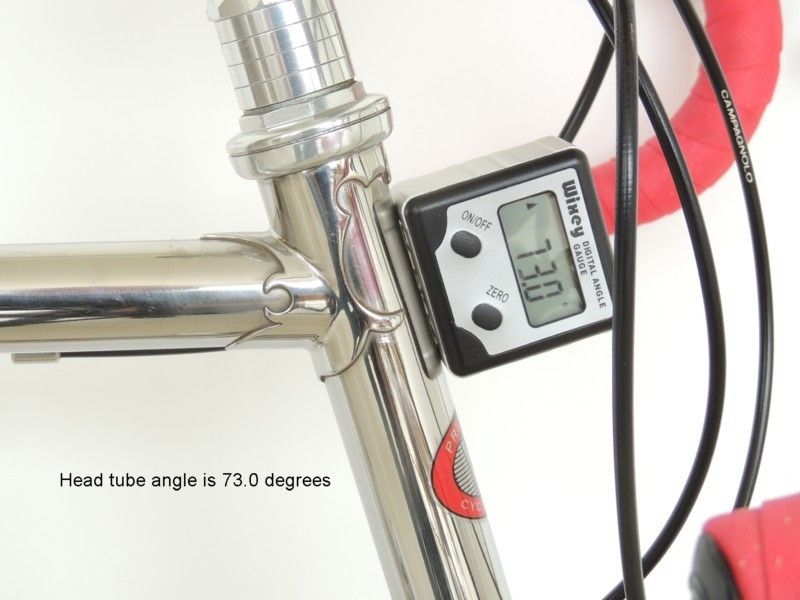

Finally, the head tube measurement shows 73.0°, which is what is shown on the drawing.



I was frankly surprised the top tube is sloped, and it's pretty clear trying to derive the STA and HTA by measuring their angles relative to the top tube and assuming the TT is level would result in erroneous results.
__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 07-02-15, 07:30 PM
  #22
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,006

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 164 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Scooper View Post
I was frankly surprised the top tube is sloped
Very interesting. Horizontal rear DOs are typically sloped so moving the axle forward will lift the rear. Sin .7deg = .012 so for a wheelbase ~1m, that's 12mm. Which is to say you can change it by a significant fraction of a degree with your DO screws.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 07-02-15, 07:50 PM
  #23
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,490

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Right. This frame has vertical dropouts, which fixes the baseline vertically.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Old 07-02-15, 07:52 PM
  #24
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,573

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1502 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jimmuller View Post
Very interesting. Horizontal rear DOs are typically sloped so moving the axle forward will lift the rear. Sin .7deg = .012 so for a wheelbase ~1m, that's 12mm. Which is to say you can change it by a significant fraction of a degree with your DO screws.
So moving the wheel does little to the rim-brakepad relationship. I looked at that hard when I designed my fix gear with its near 2" wheel travel in the dropout. Went with 11 degrees dropout angle. Less pedal clarance than I likes withthe wheel all the way back (to accommodate a 12t cog) but means using a Velocity Aero semi-deep rim I never having to mess with the brake pad.

Ben
79pmooney is offline
Old 07-02-15, 08:12 PM
  #25
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,147

Bikes: Mostly English - predominantly Raleighs

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This thread shows one more advantage of steel frames over aluminum.

Cool set-up and tool usage.
__________________
In search of what to search for.
USAZorro is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
