How to remove freewheel from unlaced hub?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How to remove freewheel from unlaced hub?

Old 07-01-15, 09:45 AM
  #1
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How to remove freewheel from unlaced hub?

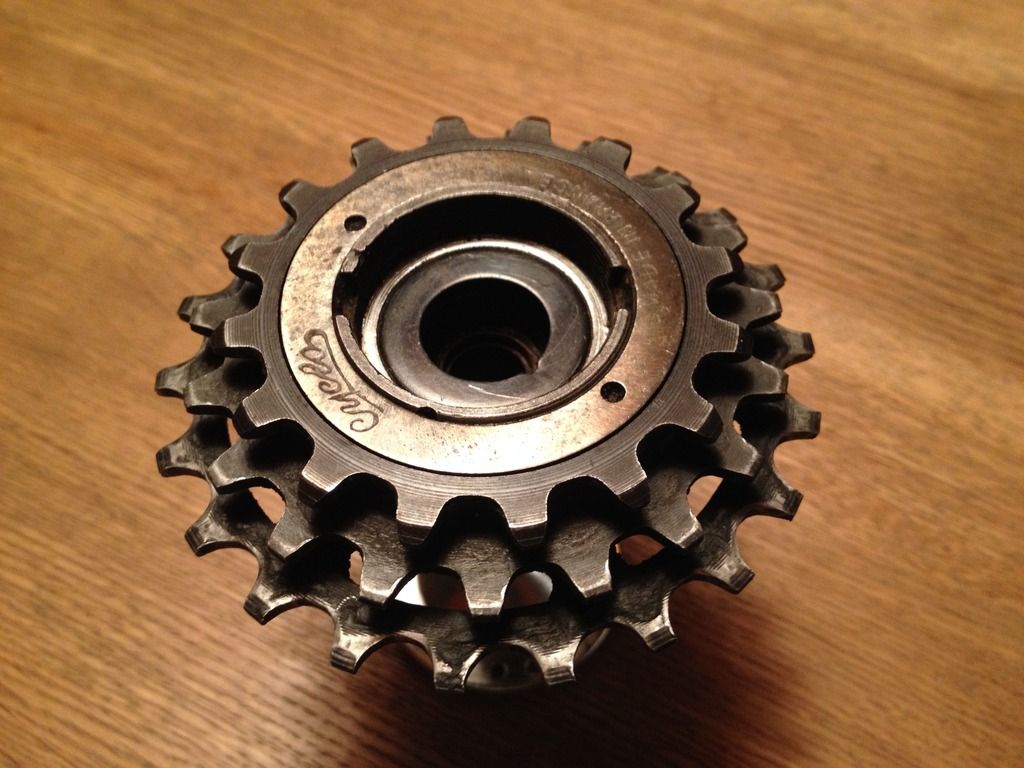

I received this old hub (1940?) with 3 speed freewheel from France with the knowledge that it is going to be a challenge to remove the FW from the hub. Some of this was discussed in the ISO and for Trade thread (page 544) but I wanted to move it to its own thread.



If you have been successful in removing the FW without destroying it in this process what did you do?
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 09:55 AM
  #2
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 1,322

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium DA, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not done this, but I'd bore a hole in a 2x6, cut it in half and then put in 18 finishing nails into each half to line up with the hub spoke holes. Clamp it in a vice and remove the freewheel.

Basically all you are doing is replacing the spoke heads with nails.

John
70sSanO is offline
Old 07-01-15, 09:58 AM
  #3
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,974

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1490 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yes, good idea, it should be a separate thread. Here's what I wrote elsewhere, slightly edited:

Originally Posted by rhm View Post
I've successfully pulled freewheels from unlaced hubs a couple times. My technique was to lace the drive side flange of the hub to a spare rim using scrap brake cables. The rim doesn't need to be big; 20" will do it, or whatever you have on hand. Weave the cable through a spoke hole on the rim through one on the flange, back to another hole on the rim, back to another hole on the flange, going through as many spoke holes in the flange as possible. When you get to the end of that cable, crimp a spoke nipple onto the free end of the cable to hold it. Then do the same thing with another cable. Use as many cables as you can fit, get the cables as tight as you can without undue effort. You don't have to make the cables very tight, since they'll tighten up when you apply pressure, but try to get all the cables about equally tight.

Do not use the non-drive side flange for this job.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 07-01-15, 09:59 AM
  #4
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 70sSanO View Post
Not done this, but I'd bore a hole in a 2x6, cut it in half and then put in 18 finishing nails into each half to line up with the hub spoke holes. Clamp it in a vice and remove the freewheel.

Basically all you are doing is replacing the spoke heads with nails.

John
This is definitely an option I'm considering. And if I'm not able to remove it with a FW tool I can disassemble the Freewheel. I don't even HAVE to remove the threaded core right?
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 10:00 AM
  #5
lord_athlon
Senior Member

lord_athlon's Avatar

Join Date: Sep 2009
Posts: 934
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Dog Leg Spokes.
lord_athlon is offline
Old 07-01-15, 10:07 AM
  #6
Velocivixen
Senior Member

Velocivixen's Avatar

Join Date: Oct 2013
Location: The Great Pacific Northwest
Posts: 4,469
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I disassembled a wheel in order to get the hub, and while doing so decided to leave the freewheel attaché to the hub and to remove the spokes first. I was more than a little bit perturbed to realize what I had done. So I laced the non drive side of the hub (couldn't get spokes in on the drive side because freewheel was in the way) to the rim. Then I placed the hub in a vice and turned the rim hard & fast to break the seal. Then spun it right off.

Boy....I won't do that again.
__________________
"Unthinking respect for authority is the greatest enemy of truth." Albert Einstein.
"Opportunity is missed by most people because it is dressed in overalls & looks like work" - Thomas Edison

“Great minds discuss ideas; average minds discuss events; small minds discuss people.” ~ Eleanor Roosevelt
Velocivixen is offline
Old 07-01-15, 10:40 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,264
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Velocivixen View Post
I disassembled a wheel in order to get the hub, and while doing so decided to leave the freewheel attaché to the hub and to remove the spokes first. I was more than a little bit perturbed to realize what I had done. So I laced the non drive side of the hub (couldn't get spokes in on the drive side because freewheel was in the way) to the rim. Then I placed the hub in a vice and turned the rim hard & fast to break the seal. Then spun it right off.

Boy....I won't do that again.
I have seen that way done and the hub body twisted under the load of removal. Depends on if you need the hub shell I think.
repechage is offline
Old 07-01-15, 10:40 AM
  #8
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lord_athlon View Post
Dog Leg Spokes.
Interesting. I found more info on this approach here.
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 10:52 AM
  #9
lord_athlon
Senior Member

lord_athlon's Avatar

Join Date: Sep 2009
Posts: 934
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Its really the easiest. Ive taken a bmx rim and some old spokes, cut the end off, bent it into a z with a vice and have the freewheel off in about 25 min.
lord_athlon is offline
Old 07-01-15, 10:59 AM
  #10
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lord_athlon View Post
Its really the easiest. Ive taken a bmx rim and some old spokes, cut the end off, bent it into a z with a vice and have the freewheel off in about 25 min.
Sounds good. Where do you live?

Another reason to hang on to old spokes.
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30

Last edited by b dub; 07-01-15 at 11:40 AM.
b dub is offline
Old 07-01-15, 11:09 AM
  #11
Ed.
Senior Member

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,542

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
An alloy hub? Thermo is your friend. Dunk the hub (not including the freewheel!) in liquid nitrogen. I bet that would do the trick.
Ed. is offline
Old 07-01-15, 11:24 AM
  #12
Velocivixen
Senior Member

Velocivixen's Avatar

Join Date: Oct 2013
Location: The Great Pacific Northwest
Posts: 4,469
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
@repechage - I, apparently, was very lucky.
__________________
"Unthinking respect for authority is the greatest enemy of truth." Albert Einstein.
"Opportunity is missed by most people because it is dressed in overalls & looks like work" - Thomas Edison

“Great minds discuss ideas; average minds discuss events; small minds discuss people.” ~ Eleanor Roosevelt
Velocivixen is offline
Old 07-01-15, 11:40 AM
  #13
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,974

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1490 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ed. View Post
An alloy hub? Thermo is your friend. Dunk the hub (not including the freewheel!) in liquid nitrogen. I bet that would do the trick.
That may weaken or even break the bond between the parts, but the problem is one of getting a firm grip on the hub without damaging it.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 07-01-15, 11:54 AM
  #14
lord_athlon
Senior Member

lord_athlon's Avatar

Join Date: Sep 2009
Posts: 934
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by b dub View Post
Sounds good. Where do you live?

Another reason to hang on to old spokes.
Go down to the co-op and buy some spokes and a cheap bmx rim.
lord_athlon is offline
Old 07-01-15, 12:20 PM
  #15
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lord_athlon View Post
Go down to the co-op and buy some spokes and a cheap bmx rim.
I have an old 24" steel wheel from a kid size Schwinn Traveler boat anchor that I'm never going to use. Perfect for this purpose.
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 12:22 PM
  #16
Ed.
Senior Member

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,542

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rhm View Post
That may weaken or even break the bond between the parts, but the problem is one of getting a firm grip on the hub without damaging it.
Hey, what are you, a man or a mouse. Grab that baby with your hand, I guarantee it will stick!
Ed. is offline
Old 07-01-15, 12:25 PM
  #17
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ed. View Post
Hey, what are you, a man or a mouse. Grab that baby with your hand, I guarantee it will stick!
Not necessarily. I know that the two nudge hubs are notorious for slipping. Regina FWs can be a dog to remove.
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 12:27 PM
  #18
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,974

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1490 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ed. View Post
Hey, what are you, a man or a mouse. Grab that baby with your hand, I guarantee it will stick!
In this case, I think, I want to be a spectator.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 07-01-15, 02:48 PM
  #19
mparker326
Senior Member

mparker326's Avatar

Join Date: Aug 2006
Location: Knoxville, TN
Posts: 1,977

Bikes: Schwinn Paramount P15, Fisher Montare, Proteus, Rivendell Quickbeam

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I removed one by disassembling the freewheel and removing the body. That gave me enough space to lace some spokes in the drive side and non-drive side into an old rim. I was then able to remove the freewheel.
mparker326 is offline
Old 07-01-15, 04:25 PM
  #20
Fidbloke
Senior Member

Join Date: Jan 2015
Location: Hampshire, UK
Posts: 227
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've never tried this but...

You could hold the freewheel tool in a vice, then jam the freewheel up against it, to hold it in place.
Then, you grip the hub with a strap wrench (oil filter removal tool) and use that to turn it.

With some luck, some brute force and ignorance (and a following wind), you should be able to get the freewheel off without too much damage or loss of life...

I started by saying that I hadn't tried this method. What I meant was that I've not tried it on a bicycle hub. This method has worked for me, on various bits of old car in the past...
Fidbloke is offline
Old 07-01-15, 04:26 PM
  #21
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,035

Bikes: A few

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1150 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mparker326 View Post
I removed one by disassembling the freewheel and removing the body. That gave me enough space to lace some spokes in the drive side and non-drive side into an old rim. I was then able to remove the freewheel.
This I did also, 'crept I went full Monty and laced both sides. Overkill !
3speedslow is online now
Old 07-01-15, 04:29 PM
  #22
jiangshi
Senior Member

Join Date: Jul 2013
Posts: 1,396
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Depends on how attached that freewheel is to the hub. If it's been there a long time, you're gonna have a hard time.

My prediction is that the labor will exceed the worth.
jiangshi is offline
Old 07-01-15, 09:57 PM
  #23
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 878
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How to remove freewheel from unlaced hub?

Turns out the Suntour tool is way too small for this freewheel. The Cyclo compatible tool must look huge compared to the FW tools I'm familiar with.
__________________
'50s Leon Cattrysse - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta -
'84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus - '88 Trek 2000 - '92 Schwinn Paramount Series 30
b dub is offline
Old 07-01-15, 10:16 PM
  #24
Ed.
Senior Member

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,542

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What is the diameter? Shouldn't be too hard to make something that might work out of some flat stock. Any machinist friends?
Ed. is offline
Old 07-04-15, 02:38 PM
  #25
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 1/2 Atlanta GA 1/2 Fernandina FL
Posts: 2,365

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Big ass pipe wrench or pair of channel locks might do it. But, if it doesn't break loose immediately I wouldn't force it.
ramzilla is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
