Brifter conversion questions (for SWIMPAL's bike)

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Brifter conversion questions (for SWIMPAL's bike)

Old 09-06-15, 10:33 PM
  #1
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Brifter conversion questions (for SWIMPAL's bike)

I've done some reading, the reviews seem mixed.

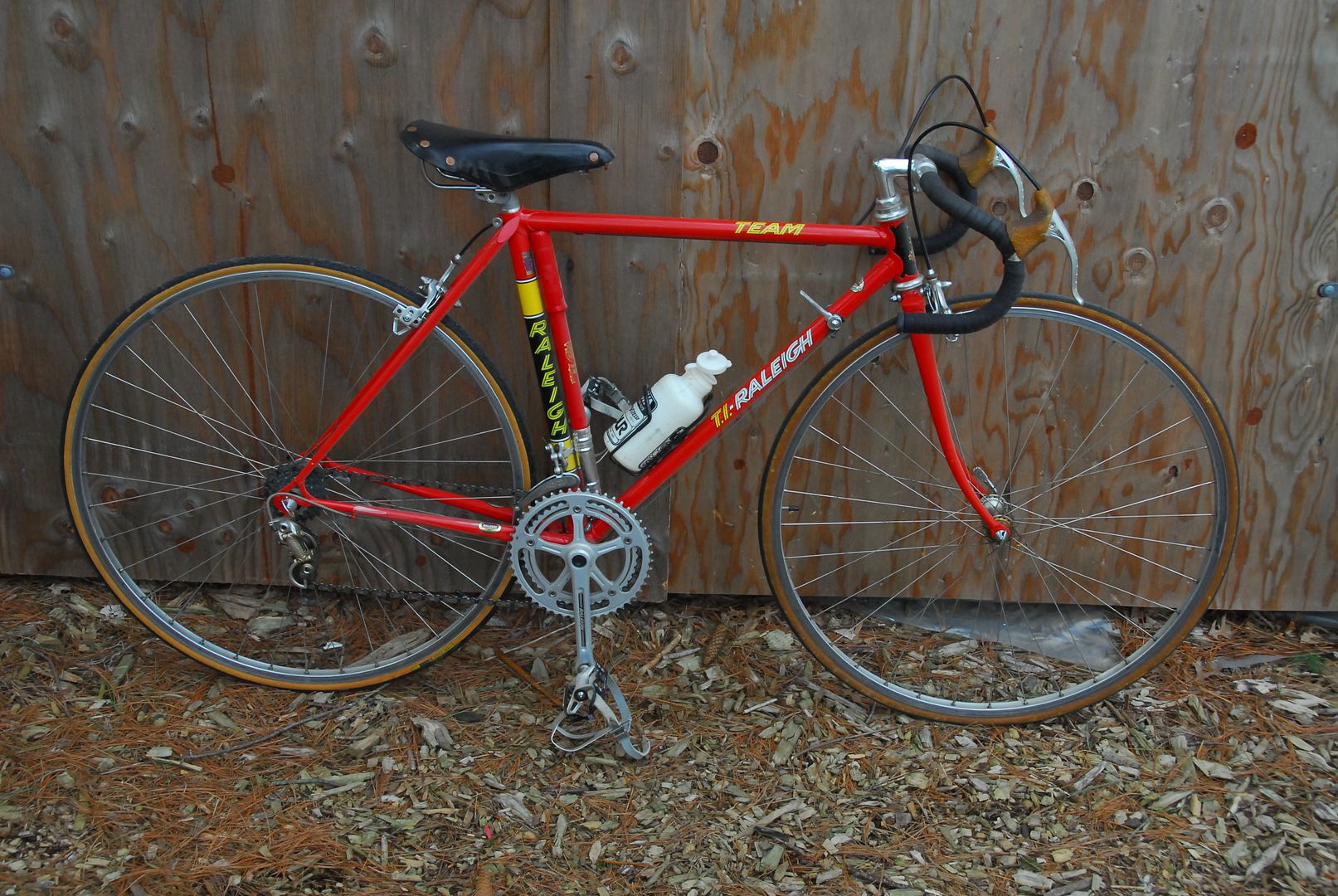

Bike: SBDU, 753, 126mm spacing
Current setup: Campag NR rear, Campag front with Suntour Ultra6 7-speed freewheel.

Been there, done that, here's what you do... (answers, please)

Thank you!
Ed. is offline
Old 09-06-15, 11:05 PM
  #2
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13361 Post(s)
Liked 1,788 Times in 1,353 Posts
There is a long thread for brifter upgrades for classic bikes.
https://www.bikeforums.net/classic-vi...i-s-ergos.html

I've added brifters onto a couple of bikes. But, it has been building frames up.

I converted to a 9s cassette on my old Colnago (126 spacing, Off Center Rim), but chose to keep the downtube shifters for now.

A couple of brands including DNP Epoch do 7, 8, 9, and 10s freewheels, although the DNP does have a bit more backspacing than other brands. I stopped at 7s with my freewheels, then jumped to a 9s cassette (with 126 spacing and an OC rim).

Anyway, it would seem like there are a lot of variables, and you need to decide what your ultimate goals are before plunging into the project.
CliffordK is offline
Old 09-07-15, 07:15 AM
  #3
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,580

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Likes: 0
Liked 749 Times in 462 Posts
Campy SR on my Cyclops...



Now upgraded to Shimano ten speed - yahoo..!



Cost a doner bicycle and a wee bit for consumables.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 09-07-15, 07:19 AM
  #4
custermustache
Senior Member

custermustache's Avatar

Join Date: Sep 2008
Location: Plano, TX
Posts: 790

Bikes: 1968 Falcon San Remo 1973 Raleigh International, 1974 Schwinn Suburban, 1987 Schwinn High Sierra, 1992 Univega Ultraleggera, 2007 Dahon Vitesse DH7G

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Look for a Sora 7 speed setup - I didnthat with an already 7 speed Fuji and it worked out very well.
custermustache is offline
Old 09-07-15, 07:37 AM
  #5
RobbieTunes
Banned

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,370 Times in 884 Posts
custermustache is right, and work101 is too kind.

Even though you have a Suntour freewheel, it's an Ultra, so it's spaced the same as the Shimano freewheel.
This is good.

For a conversion with the least fuss, 7-sp:
Shimano RSX 7-sp (metal, repairable) or Shimano Sora (lighter, not repairable).
Simply swap in and go, which I've done several times when someone wanted "modern" with low expense.
I'd try the NR RD, just in case it works, but a Shimano 7-sp RD is really the way to go.

When you "upgrade" to STI, generally it's easier to match 3 things: cassette/freewheel=RD=shifters.
I like this method for any speed. Other options work. This method has fewer obstacles.

Last edited by RobbieTunes; 09-07-15 at 07:41 AM.
RobbieTunes is offline
Old 09-07-15, 09:28 PM
  #6
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Thank you, but old fogy that I am, I'm still confused, LOL. These 'recent developments'.

By mixed, I didn't mean like/dislike, but issues of fitting them to older bikes, esp with 126mm spacing.

RT, I've emailed you further questions.

SwimPAL has never been terribly comfortable having to take her hands off the bars to shift, especially after my recent escapade, so fitting her bike with brifters seems a good idea to me.

At the suggestion, I did review the 'STI ergo*' thread, but it seemed long on photos and short on real detail (It's mighty long and I did just give it a pretty brief over-view) *Foreign terms to me.
Ed. is offline
Old 09-07-15, 09:38 PM
  #7
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
PS: Shimano Sora St 3300 33003 3x8 Speed Dual Control Shift Brake Lever Set | eBay

This is a link to a Sora listing for 3x8. Can I assume that the limit stops on the derailleurs are 'boss', and that these would work OK with our 2x7 setup? Thanks!
Ed. is offline
Old 09-07-15, 10:14 PM
  #8
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13361 Post(s)
Liked 1,788 Times in 1,353 Posts
I would reccomend your friend at least try a bike with brifters before investing a ton of time and money into the update.

Originally Posted by Ed. View Post
PS: Shimano Sora St 3300 33003 3x8 Speed Dual Control Shift Brake Lever Set | eBay

This is a link to a Sora listing for 3x8. Can I assume that the limit stops on the derailleurs are 'boss', and that these would work OK with our 2x7 setup? Thanks!
You could assume that.
However, it may not be a valid assumption though.

Actually, you may be half right, just with the wrong shifters.

See Table 1 on this page.
https://en.wikibooks.org/wiki/Bicycl...et_Stack_Width

Shimano changed from a 5mm pitch to a 4.8mm pitch with the jump from 7 spd to 8 spd. So, all their shifters would expect a 4.8mm spacing from cog to cog.

Campagnolo, however, kept the 5mm pitch for their 8s cassettes.

So, if you chose 8 spd Campagnolo shifters with an 8s or EARLY 9s Campagnolo rear derailleur, then you would be fine with most 7s freewheels.
Vintage 1992 Campagnolo C Record 8 Speed Ergopower Shifters ? | eBay
Campagnolo Record Titanium 8 Speed Ergopower Shifters Carbon BB | eBay
Campagnolo Athena 8 Speed Ergopower Shifters | eBay
Campagnolo Chorus 8 Speed Ergopower Shifters Carbon BB CA 1995 | eBay

All Campy 8s derailleurs would work, plus only those 9s derailleurs with a B-Screw at the derailleur attachment point (and no cage tension adjustment).

You could also calculate your pull ratio and pick up a Jtek Shiftmate.... I think.

Cable Travel Adapter Cribsheet

So... Say your shifters are designed for a 4.8 pitch cassette, and you wish to use a 5.0 pitch freewheel. I think you can just divide 5.0/4.8 = 1.042

Hmm, so the Shiftmate #1 is listed for a pull ratio of 1.051, giving a pitch of 5.0448. Better than without it, but not perfect.
CliffordK is offline
Old 09-07-15, 10:21 PM
  #9
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13361 Post(s)
Liked 1,788 Times in 1,353 Posts
Oh,
Here are some 7 speed brifters.

https://www.amazon.com/Shimano-ST-A07.../dp/B007Q4MM1I

You might not have to do a full Campy conversion after all.
CliffordK is offline
Old 09-07-15, 10:21 PM
  #10
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,638

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 942 Times in 621 Posts
Originally Posted by RobbieTunes View Post
I'd try the NR RD, just in case it works, but a Shimano 7-sp RD is really the way to go.
A while ago on a whim I worked out a huge table of Shimergo-type stuff. I unfortunately don't have any Suntour in it. But I can tell you that a NR RD has a much higher gain taking much less cable than an SIS for equivalent movement. You can see this by looking at the spools on SIS indexing shifters compared to the little spools on the NR shifters. I measured the cable pull by making a mark on the cable and worked out a ratio of about 2.2 (1cm pull vs 2.2 cm across a 5-speed cassette). You can therefore work out that a Shimano 10x shifter, which has the tiniest pull of all (2.3 mm cable per shift), might do a NR RD on Ultra or 7s cogs (2.3 x 2.2 = 5.1 where the cogs are 5.0). I sure haven't tried it, though, especially since I don't have the shifters. I also have no data whatsoever on how much tension each RD makes in its cable and whether the RD's spring might be too much or too little for the shifter.
__________________
Genesis 49:16-17

Last edited by Darth Lefty; 09-07-15 at 10:31 PM.
Darth Lefty is offline
Old 09-07-15, 10:30 PM
  #11
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Thank you! My head is spinning... Going to bed!

PS: Appreciate the 'have her try them first' comment. Other than our daughter in Montana, I don't know anyone with a teenie tiny frame with brifters for her to try.
Ed. is offline
Old 09-07-15, 10:37 PM
  #12
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13361 Post(s)
Liked 1,788 Times in 1,353 Posts
A store?

You don't have to buy it.

Maybe a local cycling club.

I suppose I do like to just try things too. I have heard of issues with proper reach adjustment with brifters, but there usually are ways to adjust them a bit.
CliffordK is offline
Old 09-08-15, 05:47 AM
  #13
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,911

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1022 Post(s)
Liked 296 Times in 207 Posts
I'm not clear on what's being asked. Apparently missed the initial thread.

I've set up a few bikes with 9 speed brifters - including an SDBU Team Pro. It works pretty well, imo.

I have two or three 9 speed rear derailleurs sitting around. Two Campagnolo road derailleurs for certain. No sure if I have a Shimano or not. Would be happy to see one of them be able to advance a worthy project.

edit... a triple on an SDBU frame? I am relatively accepting of build ideas, but that one might cross my line.
__________________
In search of what to search for.

Last edited by USAZorro; 09-08-15 at 05:52 AM. Reason: last comment added
USAZorro is offline
Old 09-08-15, 08:13 AM
  #14
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I just completed my first go at this, @Ed. It was easier than I thought, but you're right, there's not a lot of top-down overview information out there. Here are the basic considerations:

1. Wheelset/speeds. The only way to keep the current wheelset is to use a 7 speed setup. As others have mentioned, you can go with Shimano RSX, older Sora, Tourney, or Microshift. The latter setup is really affordable. You can get the brifters, FD, and RD for about $90 on Amazon. Shimano 7 speed freewheels are also insanely inexpensive for how well they work. Like $12 on Amazon.

If you change the wheelset, that opens up a whole world of possibilities of 8, 9, 10, or 11 speed groups. Velomine.com has great prices on wheels, or the forum classifieds, obviously. Shimano 9 speed stuff seems very easy to find used at good prices. Ribble in the UK has the best prices on new groupsets. Be aware that Campagnolo 8 speed is not compatible with 9, 10, or 11 speed wheelsets and vice versa. Likewise, Shimano 11 speed is not compatible with 8, 9, and 10 speed wheelsets and vice versa.

2. Spacing. If you stay with 7 speed, the 126 spacing will be right on. If you go to 8+ speeds, the spacing will be 130mm. This is not a big deal. You can cold set it if you like, but really you just need to spread the stays a tiny bit when getting the rear wheel in and out. It's only 2mm per side.

3. Cable stops. Does the frame have downtube braze ons? If yes, you'll need some basic downtube barrel adjusters to route the shifter cable. If not, you'll need a clamp on stop.

4. Brakes. Is the frame drilled for nutted or recessed calipers? If you are switching the brakes for dual pivots to match the groupset, you may have problems with recessed brakes. There are workarounds, or you can drill the frame. There are also nutted options available ala Tektro or Dia Compe.

5. Fit/reach. Modern brifters are really long, so modern handlebars have compensated by having shorter reach with drops that sweep back farther. You might try something like the Soma Highway One bar -- comes in silver with a 26.0mm clamp area, so quill stems fit.



Overall, I was surprised how idiot-proof the whole process was. You just have to route the cables and use the RD's barrel adjuster to make sure the indexing matches up, and off you go.
__________________
"Party on comrades" -- Lenin, probably

Last edited by icepick_trotsky; 09-08-15 at 08:20 AM.
icepick_trotsky is offline
Old 09-08-15, 08:43 AM
  #15
velofinds
Senior Member

velofinds's Avatar

Join Date: Mar 2014
Location: NYC
Posts: 2,406
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by icepick_trotsky View Post
I just completed my first go at this, @Ed. It was easier than I thought, but you're right, there's not a lot of top-down overview information out there. Here are the basic considerations:

1. Wheelset/speeds. The only way to keep the current wheelset is to use a 7 speed setup. As others have mentioned, you can go with Shimano RSX, older Sora, Tourney, or Microshift. The latter setup is really affordable. You can get the brifters, FD, and RD for about $90 on Amazon. Shimano 7 speed freewheels are also insanely inexpensive for how well they work. Like $12 on Amazon.

If you change the wheelset, that opens up a whole world of possibilities of 8, 9, 10, or 11 speed groups. Velomine.com has great prices on wheels, or the forum classifieds, obviously. Shimano 9 speed stuff seems very easy to find used at good prices. Ribble in the UK has the best prices on new groupsets. Be aware that Campagnolo 8 speed is not compatible with 9, 10, or 11 speed wheelsets and vice versa. Likewise, Shimano 11 speed is not compatible with 8, 9, and 10 speed wheelsets and vice versa.

2. Spacing. If you stay with 7 speed, the 126 spacing will be right on. If you go to 8+ speeds, the spacing will be 130mm. This is not a big deal. You can cold set it if you like, but really you just need to spread the stays a tiny bit when getting the rear wheel in and out. It's only 2mm per side.

3. Cable stops. Does the frame have downtube braze ons? If yes, you'll need some basic downtube barrel adjusters to route the shifter cable. If not, you'll need a clamp on stop.

4. Brakes. Is the frame drilled for nutted or recessed calipers? If you are switching the brakes for dual pivots to match the groupset, you may have problems with recessed brakes. There are workarounds, or you can drill the frame. There are also nutted options available ala Tektro or Dia Compe.

5. Fit/reach. Modern brifters are really long, so modern handlebars have compensated by having shorter reach with drops that sweep back farther. You might try something like the Soma Highway One bar -- comes in silver with a 26.0mm clamp area, so quill stems fit.



Overall, I was surprised how idiot-proof the whole process was. You just have to route the cables and use the RD's barrel adjuster to make sure the indexing matches up, and off you go.
Is that your bike? It looks outstanding! Honestly, I'm tempted to do this -- thanks for the thorough write-up.
velofinds is offline
Old 09-08-15, 08:54 AM
  #16
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by leegf View Post
Is that your bike? It looks outstanding! Honestly, I'm tempted to do this -- thanks for the thorough write-up.
I wish! I pulled it from google image as an example of the Soma Highway 1 bars. I seem to remember this Colnago belonging to a forum member, though. Anyone know who?
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Old 09-08-15, 09:03 AM
  #17
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
You should totally go for it, @leegf. It was a fun project and the parts can be had for a song if you're patient. Someone just let go of a complete 9 speed Dura Ace group on the classifieds for like $200 recently. I went with 10 speed Campy, and it's dead gorgeous.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Old 09-08-15, 09:44 AM
  #18
Warren128
Senior Member

Join Date: Jul 2007
Location: San Francisco
Posts: 202

Bikes: 1987 Raleigh 531C Team Replica, 1996 Litespeed Classic, 2001 Lemond Tete-De-Course, 2001 Lemond Zurich, 1999 Mongoose RX10.9, 2003 Lemond Wayzata, 2000 Litespeed Appalachian

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 19 Times in 13 Posts
I recently completed this full conversion to a modern drivetrain. Mine is a 531C frame from the Lightweight Unit in Nottingham (not SBDU). The only parts I kept from the original build are the Campy Record Seatpost and the Campy Record headset. I have close to 300 miles on her now, and all is fine. Mine had 125mm dropout spacing, and I did not have to cold set it, I just manually spread the dropouts by hand when I mounted the rear wheel. If your frame is 753, and you want to use a 130mm hub on it, you need to research carefully because I read that 753 cannot be cold-set, and I heard that some people had problems manually spreading it to accept a 130mm hub so proceed with caution.

I chose to use mostly Campy 10 speed Centaur Red/Black groupset, except I wanted to use an Ultra Torque crankset instead of the Red/Black group's Power Torque one. Feel free to PM me with any other questions you might have.

Warren128 is offline
Old 09-08-15, 09:54 AM
  #19
Tim_Iowa
Senior Member

Tim_Iowa's Avatar

Join Date: Jun 2013
Location: Cedar Rapids, IA
Posts: 1,643

Bikes: 1997 Rivendell Road Standard 650b conversion (tourer), 1988 Schwinn Project KOM-10 (gravel/tour), 2013 Foundry Auger disc (CX/gravel), 2016 Cannondale Fat CAAD 2 (MTB/winter), 2011 Cannondale Flash 29er Lefty (trail MTB)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by CliffordK View Post
So, if you chose 8 spd Campagnolo shifters with an 8s or EARLY 9s Campagnolo rear derailleur, then you would be fine with most 7s freewheels.
Vintage 1992 Campagnolo C Record 8 Speed Ergopower Shifters ? | eBay
Campagnolo Record Titanium 8 Speed Ergopower Shifters Carbon BB | eBay
Campagnolo Athena 8 Speed Ergopower Shifters | eBay
Campagnolo Chorus 8 Speed Ergopower Shifters Carbon BB CA 1995 | eBay

All Campy 8s derailleurs would work, plus only those 9s derailleurs with a B-Screw at the derailleur attachment point (and no cage tension adjustment).
+1, Campagnolo 8 speed indexes a 7 speed freewheel perfectly. I ran this setup recently on my Rivendell, with:
8 speed Athena brifters
8 speed Racing T rear derailleur
7 speed DNP 11-30 freewheel

I liked the rear shifting action, it was solid and precise. However, I didn't like the front shifting on my Campy triple crank. I changed the bike back to bar-end shifters because I prefer them for a triple crank.

If you're interested in the Athena brifters and RD, PM me. I'm not using them on anything, and they're in good shape.

Or, get Shimano 7-speed brifters. Go with used, or try the Tourney ST-A070 brifters. They are reported to work fine, and are cheap.
Tim_Iowa is offline
Old 09-08-15, 02:39 PM
  #20
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Originally Posted by Warren128 View Post
I recently completed this full conversion to a modern drivetrain. Mine is a 531C frame from the Lightweight Unit in Nottingham (not SBDU). The only parts I kept from the original build are the Campy Record Seatpost and the Campy Record headset. I have close to 300 miles on her now, and all is fine. Mine had 125mm dropout spacing, and I did not have to cold set it, I just manually spread the dropouts by hand when I mounted the rear wheel. If your frame is 753, and you want to use a 130mm hub on it, you need to research carefully because I read that 753 cannot be cold-set, and I heard that some people had problems manually spreading it to accept a 130mm hub so proceed with caution.

...
Very nice.

With respect to 126mm spacing, etc. Yes, 753 and it will remain as GOD and Mike Mullett delivered. I still chuckle when I think of GOD's comment, "Well, Ed, we'll make it as small as we can and then give it a hot wash."

Ed. is offline
Old 09-08-15, 03:55 PM
  #21
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,911

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1022 Post(s)
Liked 296 Times in 207 Posts
Messing with 753 spacing is bad mojo. The derailleur offer remains, if it would be helpful.
__________________
In search of what to search for.
USAZorro is offline
Old 09-08-15, 04:22 PM
  #22
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Originally Posted by USAZorro View Post
Messing with 753 spacing is bad mojo. The derailleur offer remains, if it would be helpful.
Thank you, Sir. Let's see how things fall out.
Ed. is offline
Old 09-09-15, 08:06 PM
  #23
Ed.
Senior Member
Thread Starter

Ed.'s Avatar

Join Date: Mar 2014
Location: Hopkinton, MA
Posts: 1,539

Bikes: 1938 Raleigh Record Ace (2), 1938 Schwinn Paramount, 1961 Torpado, 1964? Frejus, 1980 Raleigh 753 Team Pro, Moulton, other stuff...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
So I've spilled the beans. She's liking the idea.
Ed. is offline
Old 09-09-15, 09:26 PM
  #24
billytwosheds
Senior Member

billytwosheds's Avatar

Join Date: Aug 2015
Location: Honolulu, HI
Posts: 939

Bikes: Peugeot, Legnano, Fuji, Zunow, De Rosa, Miyata, Bianchi, Pinarello, Specialized, Bridgestone

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 121 Times in 62 Posts
Originally Posted by icepick_trotsky View Post
I just completed my first go at this, @Ed. It was easier than I thought, but you're right, there's not a lot of top-down overview information out there. Here are the basic considerations:

1. Wheelset/speeds. The only way to keep the current wheelset is to use a 7 speed setup. As others have mentioned, you can go with Shimano RSX, older Sora, Tourney, or Microshift. The latter setup is really affordable. You can get the brifters, FD, and RD for about $90 on Amazon. Shimano 7 speed freewheels are also insanely inexpensive for how well they work. Like $12 on Amazon.

If you change the wheelset, that opens up a whole world of possibilities of 8, 9, 10, or 11 speed groups. Velomine.com has great prices on wheels, or the forum classifieds, obviously. Shimano 9 speed stuff seems very easy to find used at good prices. Ribble in the UK has the best prices on new groupsets. Be aware that Campagnolo 8 speed is not compatible with 9, 10, or 11 speed wheelsets and vice versa. Likewise, Shimano 11 speed is not compatible with 8, 9, and 10 speed wheelsets and vice versa.

2. Spacing. If you stay with 7 speed, the 126 spacing will be right on. If you go to 8+ speeds, the spacing will be 130mm. This is not a big deal. You can cold set it if you like, but really you just need to spread the stays a tiny bit when getting the rear wheel in and out. It's only 2mm per side.

3. Cable stops. Does the frame have downtube braze ons? If yes, you'll need some basic downtube barrel adjusters to route the shifter cable. If not, you'll need a clamp on stop.

4. Brakes. Is the frame drilled for nutted or recessed calipers? If you are switching the brakes for dual pivots to match the groupset, you may have problems with recessed brakes. There are workarounds, or you can drill the frame. There are also nutted options available ala Tektro or Dia Compe.

5. Fit/reach. Modern brifters are really long, so modern handlebars have compensated by having shorter reach with drops that sweep back farther. You might try something like the Soma Highway One bar -- comes in silver with a 26.0mm clamp area, so quill stems fit.


Overall, I was surprised how idiot-proof the whole process was. You just have to route the cables and use the RD's barrel adjuster to make sure the indexing matches up, and off you go.
I feel like this (or some variation of it) should be stickied somewhere. You covered all of the big topics that people looking to make this conversion would need to know. Nice job.
billytwosheds is offline
Old 09-10-15, 07:44 AM
  #25
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,667

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by billytwosheds View Post
I feel like this (or some variation of it) should be stickied somewhere. You covered all of the big topics that people looking to make this conversion would need to know. Nice job.
Thanks. Just the stuff I learned in my first attempt. Hopefully it's helpful to others.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
