Old 08-21-18, 01:07 PM
  #226
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,666

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 385 Times in 275 Posts
Do you already have 7 speed shifters? Or are you going friction. I suggest keeping it 6 speed unless you plan on a more serious "upgrade".
Classtime is offline
Old 08-21-18, 01:10 PM
  #227
diomekes
Senior Member

Join Date: Aug 2017
Location: Atlanta
Posts: 107

Bikes: '87 Centurion Ironman Expert, '88 Basso Loto, '89 Panasonic MC-5500

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm already using it in friction, so the shifter isn't a problem for me. I thought since the rear dropout spacing was the same for 6 and 7, then it would be simple.
diomekes is offline
Old 08-21-18, 02:38 PM
  #228
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,261

Bikes: Lots. Just...lots.

Mentioned: 174 Post(s)
Tagged: 0 Thread(s)
Quoted: 1448 Post(s)
Liked 615 Times in 320 Posts
While nominal dropout spacing is the same for 6 and 7 speed, frames designed for 6 speed freewheels sometimes have too little clearance on the inside of the DS dropout for the gear and chain.
You can place a 1mm shim under the DS axle locknut to give you enough clearance for the chain to roll without interference. Should not be necessary to redish, etc.
You will probably have to remove the freewheel in order to do this.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 08-21-18, 03:23 PM
  #229
diomekes
Senior Member

Join Date: Aug 2017
Location: Atlanta
Posts: 107

Bikes: '87 Centurion Ironman Expert, '88 Basso Loto, '89 Panasonic MC-5500

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
OK, I was worried about having to re-dish, or creating other problems, so wondered how everyone else was doing it. Thanks.
diomekes is offline
Old 08-21-18, 05:56 PM
  #230
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,414

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 416 Post(s)
Likes: 0
Liked 122 Times in 64 Posts

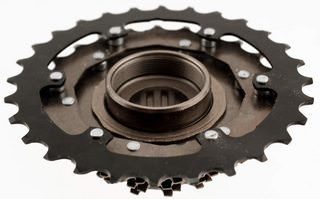

On the freewheel spacing, sometimes there is a differentiation between freewheels of the same number of speeds and how far they thread onto the hub.

I was putting a 7 speed F/W on my Trek 760 (126mm spacing) and got a Shimano MF-T721 14x28 7 speed F/W. The chain couldn't ride the small gear, without hitting the seat stay. I pulled a F/W off another bike, a Shimano MF-HG37, 13x28 7 speed. This one worked fine. The fact that the small cog was one tooth smaller didn't account for the difference, it was the threading on the two F/Ws.

Before I put it on, I set the two freewheels on the work bench and laid a level across them and they were equal distance, front to back. There was, however, a difference in construction between the two that allowed the HG37 to thread on about 2mm further, giving more clearance for the seat stay. The HG37 is constructed like a vintage freewheel, where every cog is on the freewheel body. On the other hand, the T721 has the two largest cogs riveted onto the 5th cog, like outriggers. When threaded all the way onto a hub, it sits farther out.




The Trek 760 has fastback seat stays and the sharper angle was probably a factor here. I have the T721 on two other 126mm spaced bikes with standard seat stays and it works fine.

The T721 (brown/bronze) is made in China. I believe the HG37 (silver) is made in Singapore.

If you have another different F/W, you might want to put it on and see if it works.
Vintage_Cyclist is offline
Old 08-21-18, 07:35 PM
  #231
seedsbelize
smelling the roses

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,599

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 103 Post(s)
Tagged: 1 Thread(s)
Quoted: 6634 Post(s)
Liked 717 Times in 474 Posts
Today I switched from 7 spd to six. I think I'll like it better. Of course it's not an Ironman. It's a lowly Trek.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 08-21-18, 08:05 PM
  #232
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
Jeepers, math AGAIN!
RobbieTunes is offline
Old 08-26-18, 08:35 AM
  #233
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 4,084

Bikes: '85, '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1523 Post(s)
Liked 427 Times in 292 Posts
@ Vintage_Cyclist that explains a lot and very useful to know. Thank you.
texaspandj is offline
Old 08-26-18, 11:47 PM
  #234
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts
Yup, what @Vintage_Cyclist wrote. That's why I use the dork disc with the original Suntour freewheel but omit the disc when I use a SunRace freewheel. Slight differences between the two, just enough that the dork disc acts as a shim with the Suntour, while the SunRace inner facing flange is thick enough to make the dork disc unnecessary. And the rear derailleur needs only minor tweaks when I switch between the two types of freewheels.
canklecat is offline
Old 08-27-18, 04:58 AM
  #235
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
Originally Posted by canklecat View Post
Yup, what @Vintage_Cyclist wrote. That's why I use the dork disc with the original Suntour freewheel but omit the disc when I use a SunRace freewheel. Slight differences between the two, just enough that the dork disc acts as a shim with the Suntour, while the SunRace inner facing flange is thick enough to make the dork disc unnecessary. And the rear derailleur needs only minor tweaks when I switch between the two types of freewheels.
I'm having trouble wrapping my head around a dork disk as a shim. I've never seen one that affected the dimensions on the rear before. I've seen them clipped on in various places, but never as a spacer or shim.

Can you clarify this for me?
RobbieTunes is offline
Old 08-27-18, 08:59 AM
  #236
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 681

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 78 Times in 55 Posts
Originally Posted by rccardr View Post
Yes, it will work, and I have actual experience. Because the chain is narrower externally, you may have to mess with cable tension to get it closer to the next upshift cog, but other than that it's OK. Downshiftng is typically not a problem.

Having said that, I still prefer to use 6-7-8 speed chain for this application, usually SRAM 850. It's relatively inexpensive and lasts a long time.
​​​​​​Can the power link for a Sram 850 chain be reused? I didn't clean the factory lube off mine and 75 miles later it's a gooey mess.I want to put it in my ultrasonic cleaner.
TXsailor is offline
Old 08-27-18, 12:23 PM
  #237
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,261

Bikes: Lots. Just...lots.

Mentioned: 174 Post(s)
Tagged: 0 Thread(s)
Quoted: 1448 Post(s)
Liked 615 Times in 320 Posts
Yes, it can.
I've read where some users (and possibly some manufacturers) suggest they are single use items, but never had a problem myself using them twice.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 08-27-18, 02:41 PM
  #238
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts
Originally Posted by RobbieTunes View Post
I'm having trouble wrapping my head around a dork disk as a shim. I've never seen one that affected the dimensions on the rear before. I've seen them clipped on in various places, but never as a spacer or shim.

Can you clarify this for me?
I'll try to remember to photograph both the SunRace and Suntour freewheels, and original dork disc, next time I swap freewheels -- may be a week or so.

The dork discs may vary between Ironman models, or year to year. On my various other bikes with dork discs the discs were all dispensable plastic, with no function other than to protect the spokes in case the chain overran the freewheel or cassette on shifting with a misaligned derailleur.

But on my '89 Expert the dork disc is plastic attached to a metal inner disc. The metal acts as both a shim or spacer, and a lock washer, with the original Suntour freewheel. The dork disc doesn't just spin freely. When the Suntour freewheel is snugged up it locks into the metal disc, like a washer.

Without the disc the Suntour freewheel snugs up a little closer to the hub, requiring adjusting the rear derailleur. The SunRace freewheel has a thicker flange on the inner facing side toward the hub. It serves the same effective function as the dork disc, a spacer. So I can swap the two freewheels without needing significant adjustments to the rear derailleur.

If I leave the dork disc on with the SunRace freewheel, there's too much space between the freewheel and hub, requiring more adjustments to the derailleur.

The Suntour freewheel *could* function just fine without the dork disc. And the SunRace freewheel *could* function just fine with the dork disc. But swapping freewheels would require significant adjustments of the rear derailleur in index shifting mode. (Probably less critical in friction mode, which I'm using this year.)

Clear as mud, right?

Right now my 13-25 SunRace freewheel is on my Globe Carmel comfy hybrid errand bike, since it works better than the original Shimano MegaRange freewheel. I'm going to get a SunRace 13-28 or 14-28 for the Globe, then try the 13-25 SunRace on the Ironman again. I used the 13-25 SunRace briefly on the Ironman several months ago but didn't care for the spacing in indexed shifting mode. Now that I've switched to friction shifting the 13-25 might work okay. And I'll need a little extra help on climbs while I'm recuperating.
canklecat is offline
Old 08-27-18, 03:29 PM
  #239
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
OK, I get it now. Thanks.

Originally Posted by canklecat View Post
I'll try to remember to photograph both the SunRace and Suntour freewheels, and original dork disc, next time I swap freewheels -- may be a week or so.

The dork discs may vary between Ironman models, or year to year. On my various other bikes with dork discs the discs were all dispensable plastic, with no function other than to protect the spokes in case the chain overran the freewheel or cassette on shifting with a misaligned derailleur.

But on my '89 Expert the dork disc is plastic attached to a metal inner disc. The metal acts as both a shim or spacer, and a lock washer, with the original Suntour freewheel. The dork disc doesn't just spin freely. When the Suntour freewheel is snugged up it locks into the metal disc, like a washer.

Without the disc the Suntour freewheel snugs up a little closer to the hub, requiring adjusting the rear derailleur. The SunRace freewheel has a thicker flange on the inner facing side toward the hub. It serves the same effective function as the dork disc, a spacer. So I can swap the two freewheels without needing significant adjustments to the rear derailleur.

If I leave the dork disc on with the SunRace freewheel, there's too much space between the freewheel and hub, requiring more adjustments to the derailleur.

The Suntour freewheel *could* function just fine without the dork disc. And the SunRace freewheel *could* function just fine with the dork disc. But swapping freewheels would require significant adjustments of the rear derailleur in index shifting mode. (Probably less critical in friction mode, which I'm using this year.)

Clear as mud, right?

Right now my 13-25 SunRace freewheel is on my Globe Carmel comfy hybrid errand bike, since it works better than the original Shimano MegaRange freewheel. I'm going to get a SunRace 13-28 or 14-28 for the Globe, then try the 13-25 SunRace on the Ironman again. I used the 13-25 SunRace briefly on the Ironman several months ago but didn't care for the spacing in indexed shifting mode. Now that I've switched to friction shifting the 13-25 might work okay. And I'll need a little extra help on climbs while I'm recuperating.
RobbieTunes is offline
Old 09-10-18, 10:22 AM
  #240
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,666

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 385 Times in 275 Posts

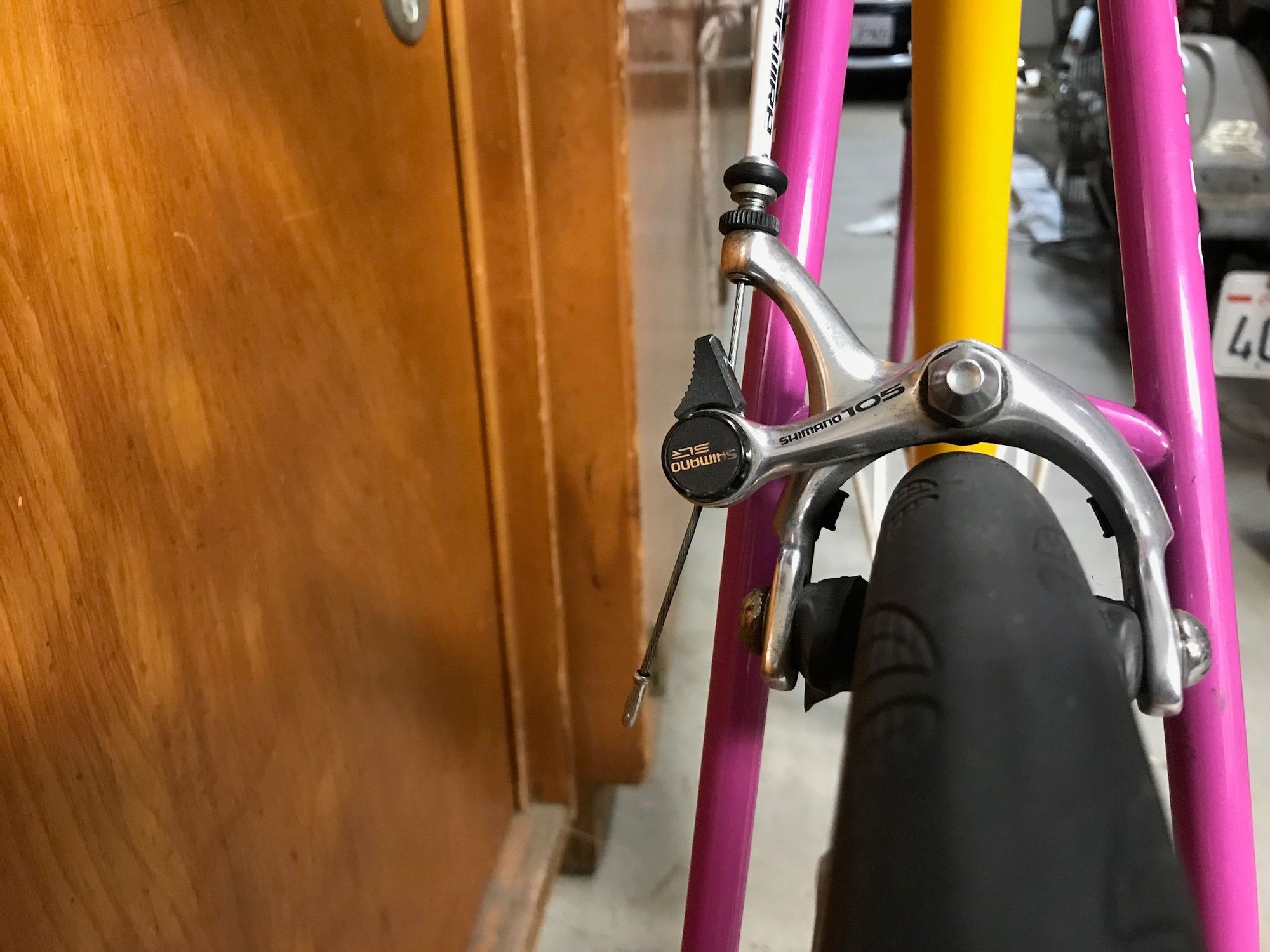

25s are the max for my 87 Expert

There is room at the chain stays but these 28s are too tall.



GP4000s 28s too close for anything that I would want to use 28s for.

Last edited by Classtime; 09-10-18 at 10:23 AM. Reason: Clarity
Classtime is offline
Old 09-10-18, 11:05 AM
  #241
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,261

Bikes: Lots. Just...lots.

Mentioned: 174 Post(s)
Tagged: 0 Thread(s)
Quoted: 1448 Post(s)
Liked 615 Times in 320 Posts
I find that Conti 28's mount up closer to 30mm on my rims.

If you can find them, try Rubino Pro III 28's. On most rims they mount up at just under 27mm, fit my Ironman just fine. Or look at Panaracer Gravel Kings (which are not really gravel specific tires) in size 26, they mount up between 26 and 27, also come in brown sidewall.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-12-18, 03:13 AM
  #242
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts
Continental Ultra Sport II in 700x25 run very slightly wider (about 25.5) on my '89 Ironman Expert's original Araya CTL-370 rims. Plenty of clearance and a noticeable difference in comfort compared with 700x23.

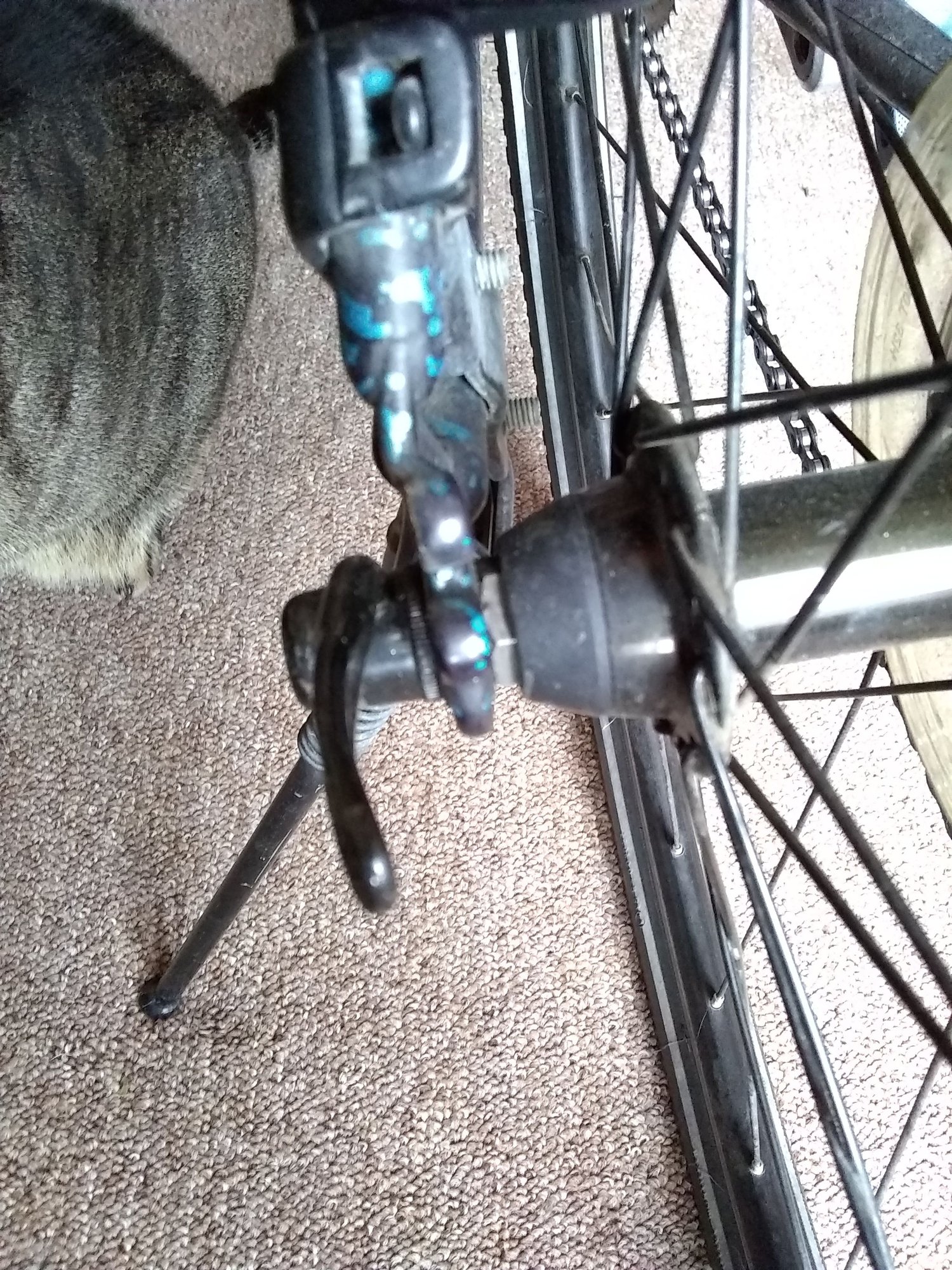

However I didn't care for the handling with a 700x25 on the front. Felt just a bit squirmy on fast turns. There's just a bit too much tire hanging over the rims. So I swapped the front back to Schwalbe One 700x23, and kept the Conti USII on the rear for comfort. Good handling again and still comfortable on chip seal.
canklecat is offline
Old 09-12-18, 03:23 AM
  #243
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts

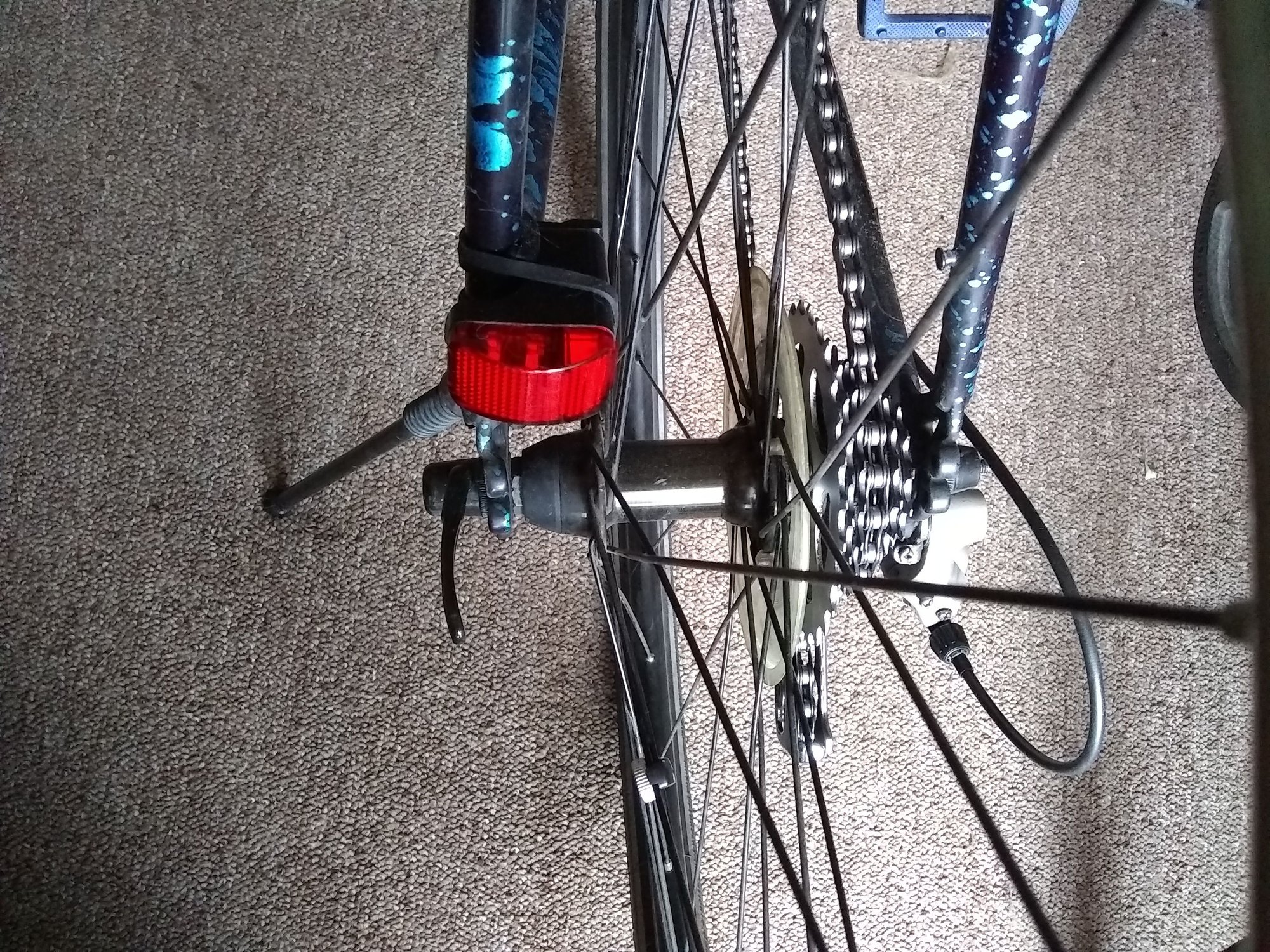

Has anyone converted an Ironman 7-speed freewheel to 8-speed cassette wheel set? Did you need to re-dish the wheel, cold set the frame or any other tricks?

Asking because a friend gave me a set of pretty decent wheels with 622x14 rims that are currently on my hybrid. The hybrid really needs a slightly wider rim to take advantage of the wider tires I prefer on that bike.

But 622x14 would be fine for the Ironman, assuming the hub width is compatible. That way I could tweak the original wheels and keep riding. The original wheels need to be properly trued with the spokes tensioned, and I see the freewheel wobbling slightly as if the axle is warped. I plan to go over it with a mechanic friend who has a truing stand.

And I'm guessing the older style Shimano rear derailleur I'm using at the moment would handle an 8-speed cassette. There appears to be enough movement and room in the limit screws. However I'm not really concerned about making full use of the gear range, since the existing Suntour GPX shifters may not handle it. Mostly I'm curious to see how the wheel would do on the Ironman. It's a bit stiffer, higher profile and both wheels appear true without any hub wobble.
canklecat is offline
Old 09-12-18, 05:51 AM
  #244
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
Look at any of my Ironman models. All use an 8/9/10 wheelset, except for the Not Your Daddy's, which uses an 11-sp wheelset.

So the answer is yes, it works, no re-dish, no cold-set. You will quickly develop the technique to insert that rear wheel. With more gears, be sure to use the axle adjusters, as precision is more important.

Some shifter/RD's will cover the distance of 8/9/10, some won't. Generally I match my R shifter to my RD.
RobbieTunes is offline
Old 09-12-18, 05:52 AM
  #245
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
By the way, folks, I'm thinking of converting a Paramount from 2x7 DA to 2x9 DA. This may well free up a set of DA 7-sp wheels, shifters, brake levers, and crankset. For an Ironman that wants to go fast.
RobbieTunes is offline
Old 09-12-18, 01:42 PM
  #246
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts
Originally Posted by RobbieTunes View Post
By the way, folks, I'm thinking of converting a Paramount from 2x7 DA to 2x9 DA. This may well free up a set of DA 7-sp wheels, shifters, brake levers, and crankset. For an Ironman that wants to go fast.
Hey, I might be interested, at least in the wheels. I really need to replace the original Araya CTL-370 set and get them some proper loving care and attention.
canklecat is offline
Old 09-12-18, 02:16 PM
  #247
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 4,084

Bikes: '85, '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1523 Post(s)
Liked 427 Times in 292 Posts
Originally Posted by RobbieTunes View Post
By the way, folks, I'm thinking of converting a Paramount from 2x7 DA to 2x9 DA. This may well free up a set of DA 7-sp wheels, shifters, brake levers, and crankset. For an Ironman that wants to go fast.
Im interested in what ever CC doesnt need.
texaspandj is offline
Old 09-12-18, 02:59 PM
  #248
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,286

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 3956 Post(s)
Liked 1,718 Times in 1,105 Posts
Originally Posted by RobbieTunes View Post
Look at any of my Ironman models. All use an 8/9/10 wheelset, except for the Not Your Daddy's, which uses an 11-sp wheelset.

So the answer is yes, it works, no re-dish, no cold-set. You will quickly develop the technique to insert that rear wheel. With more gears, be sure to use the axle adjusters, as precision is more important.

Some shifter/RD's will cover the distance of 8/9/10, some won't. Generally I match my R shifter to my RD.
I'll attach some photos to this post separately -- I'm typing from my laptop but the photos are on my phone. It'll take a few minutes.

The wheelset is from a friend who was helping get my Univega working again. It's the bike I was riding when I was hit by a car in May. It sat in a friend's garage for months until I was able to retrieve it a couple of weeks ago. The frame is fine but the original single wall Araya rims (PX-45, I think) were warped. I'll salvage the Shimano Exage hubs from those wheels later.

The wheelset he gave me are Alex S500 double wall rims, 622x14, a nice looking functional set. The Univega really needs 622x18 or wider for my preferred tires, Continental Speed Rides (nominally 700x42 but measure closer to 700x38). The 622x14 rims would probably do nicely on the Ironman.

I didn't notice until a couple of days ago the rear wheel is offset. Finally occurred to me when I could not get the cantilever brake pads both aligned and with the smooth posts roughly equidistant. After an hour of wrenching and cussing I finally realized the entire wheel was offset in the frame. Interestingly enough, it rides just fine. I've ridden it several times, distances from 12-34 miles, no problems. But it looks funky. Dunno if it's potentially dangerous.

I'm wondering whether I could substitute thinner locknuts on the hub side opposite the drive side to balance the wheel a bit.






Last edited by canklecat; 09-12-18 at 03:06 PM. Reason: Add photos
canklecat is offline
Old 09-12-18, 03:29 PM
  #249
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,581

Bikes: 86' Centurion Ironman , 84' Bianchi Alloro

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 77 Times in 67 Posts
Killin' some time on the web I was reading a Sheldon Brown page written by T-Mar . I have read this page before but because this time I was looking at it for different info I noticed that the Comp TA was made in 84' and became the IM in 85' because of the copy right infringement lawsuit . I had always thought the Comp TA was a 85' . ?
markwesti is offline
Old 09-12-18, 04:22 PM
  #250
RobbieTunes
Banned
Thread Starter

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,368 Times in 882 Posts
A. Winthrop and T-Mar sort of combined on that article....

Last edited by RobbieTunes; 09-14-18 at 09:52 PM.
RobbieTunes is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
