Ironman Information Thread

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Ironman Information Thread

Old 11-29-18, 09:27 PM
  #351
seedsbelize
Refugee

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 10,831
Mentioned: 86 Post(s)
Tagged: 1 Thread(s)
Quoted: 4486 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Classtime View Post
I think if we each make a point to read Post #1 before posting here, this sticky will not get so cluttered.

What is the TT length ctc of a size 60 1986 classic? (a real question btw)

jeff
58, no?
__________________
I just love riding a vintage road bike. The smooth speed and quick response of the steel has to be one of the most enjoyable experiences I know.

My bikes: 58cm '72 Schwinn World Voyageur, 24" '79 Trek 930, 58cm '84 Schwinn Letour Luxe, with couplers, 61cm '92 Schwinn Paramount (Panasonic) [Incoming: 60cm '88 Centurion Ironman Expert, 24" '80 Trek 414]
I will buy no more bikes forever.
seedsbelize is offline
Old 11-30-18, 12:08 AM
  #352
RobbieTunes
Half drunk? Finish!
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,352
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seedsbelize View Post
58, no?
+1, the ones I've built for cehowardGS were all 60cm frames and all 58cm TT.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 11-30-18, 10:10 AM
  #353
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,401

Bikes: 69 PX-10, 81 Medici, 84 Turbo, 87 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 479 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RobbieTunes View Post
+1, the ones I've built for cehowardGS were all 60cm frames and all 58cm TT.
Darn it.
The 62 ctt that I am riding now has a TT that measures 57 ctc (surprised me too). I can get the contact points in the right place but I was hoping to find a Classic 60 with a 57 cm TT (like my Miami Vice) so that I would have a little more seat post and stem showing.

Do the Classic 58s that you have measured have a 57cm ctc TT?
Classtime is offline
Old 11-30-18, 05:11 PM
  #354
RobbieTunes
Half drunk? Finish!
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,352
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Classtime View Post
Darn it.
The 62 ctt that I am riding now has a TT that measures 57 ctc (surprised me too). I can get the contact points in the right place but I was hoping to find a Classic 60 with a 57 cm TT (like my Miami Vice) so that I would have a little more seat post and stem showing.

Do the Classic 58s that you have measured have a 57cm ctc TT?
The 58s I’ve had were 57c TT

Last edited by RobbieTunes; 12-09-18 at 07:19 PM.
RobbieTunes is offline
Old 12-22-18, 12:56 PM
  #355
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The early days..
crank_addict is offline
Old 12-22-18, 04:03 PM
  #356
RobbieTunes
Half drunk? Finish!
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,352
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Cool

Very cool.
Originally Posted by crank_addict View Post
The early days..
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 12-30-18, 12:27 AM
  #357
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by crank_addict View Post
The early days..
Is there a larger size image of this?
fleslider is offline
Old 12-30-18, 10:56 AM
  #358
RobbieTunes
Half drunk? Finish!
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,352
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fleslider View Post
Is there a larger size image of this?
Ditto. Posters
RobbieTunes is offline
Old 12-30-18, 11:47 AM
  #359
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fleslider View Post
Is there a larger size image of this?
Sorry I personally don't have a larger image. Its just something I came across stored on an old drive. The Dan Gurney connection / BMX era being ramped up is neat.

Old magazines are often worth it just for the adverts and history. Found another advertisement and learned how Mercedes first established US distribution using Studebaker dealers.
crank_addict is offline
Old 12-30-18, 01:01 PM
  #360
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,434

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Here's a link to a somewhat larger version. It's fairly clean for a jpg. It could be cleaned up with a one-click tool to remove jpg artifacts, adjusted and sharpened carefully, then resized to produce a poster sized version.

canklecat is online now
Old 12-30-18, 03:30 PM
  #361
RobbieTunes
Half drunk? Finish!
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,352
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks
RobbieTunes is offline
Old 12-31-18, 01:06 PM
  #362
seypat
Senior Member

Join Date: Oct 2010
Posts: 3,570
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Breaking news, just in:

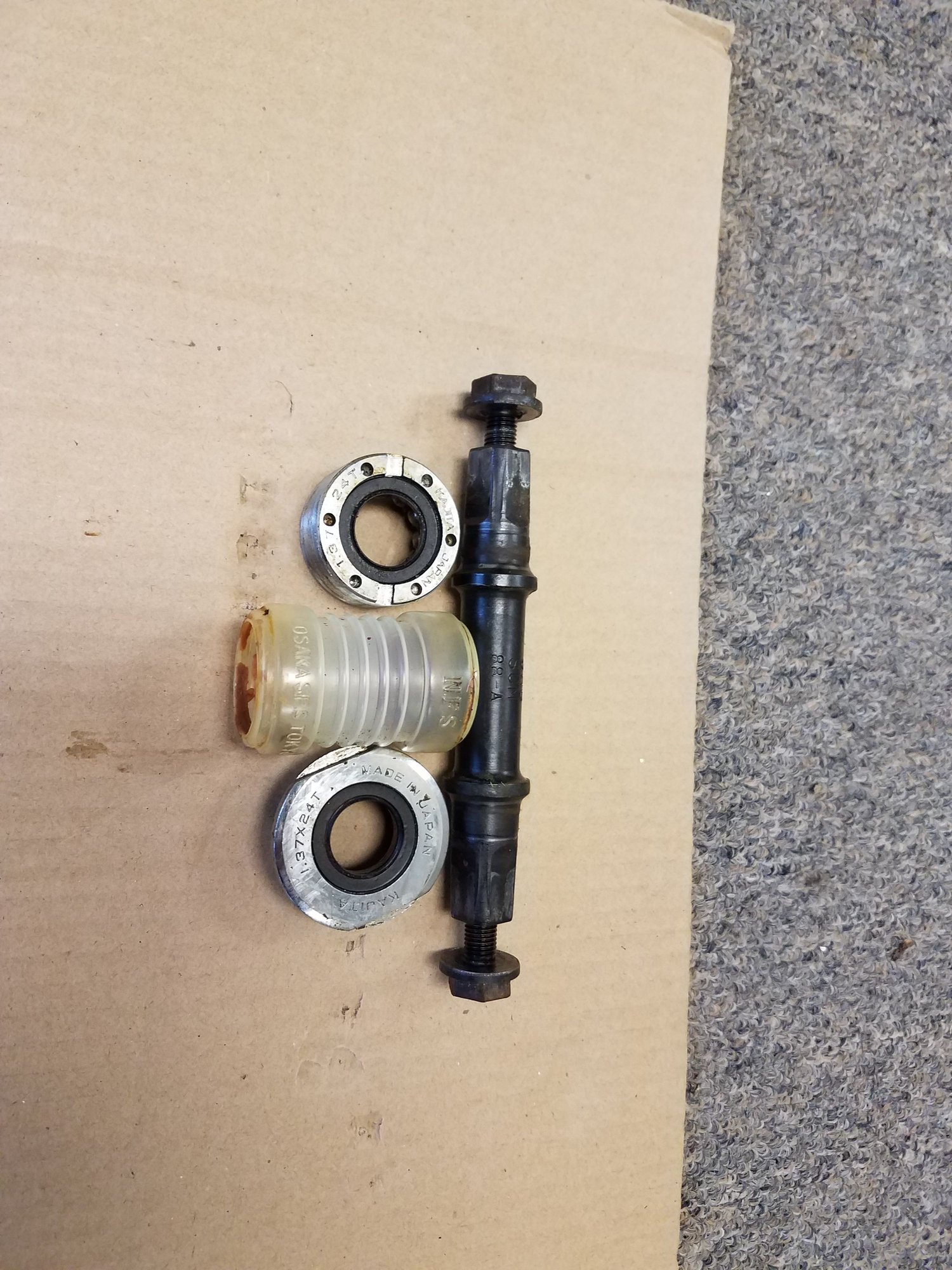

Red/white 60cm 88 IM Expert was being disassembled earlier this afternoon. Disassembler noticed strange markings on BB cups and spindle. Upon closer inspection this was discovered. BB cups are Kajita brand. Spindle is SCM brand. Repeat, Kakita and SCM brand. Loose ball cup/cone with no bearing cages. Appears to be original. Be on the lookout, there could be others out there.

Other related news: The bare frame/fork/headset combo weighed 6.90 lbs on a cheap Dr. Meter hanging scale.



Last edited by seypat; 12-31-18 at 01:09 PM.
seypat is offline
Old 12-31-18, 02:14 PM
  #363
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Right hand wing nut livin' on the left coast
Posts: 1,223

Bikes: 84' Centurion Comp TA , 86' Centurion Ironman , 84' Centurion "track bike" , 84' Bianchi Alloro

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 358 Post(s)
Liked 2 Times in 2 Posts
Sheldon "loose ball" Brown would be proud .

https://www.sheldonbrown.com/tooltips/bbadj.html
markwesti is offline
Old 12-31-18, 05:25 PM
  #364
seedsbelize
Refugee

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 10,831
Mentioned: 86 Post(s)
Tagged: 1 Thread(s)
Quoted: 4486 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by seypat View Post
Breaking news, just in:

Red/white 60cm 88 IM Expert was being disassembled earlier this afternoon. Disassembler noticed strange markings on BB cups and spindle. Upon closer inspection this was discovered. BB cups are Kajita brand. Spindle is SCM brand. Repeat, Kakita and SCM brand. Loose ball cup/cone with no bearing cages. Appears to be original. Be on the lookout, there could be others out there.

Other related news: The bare frame/fork/headset combo weighed 6.90 lbs on a cheap Dr. Meter hanging scale.


Could you provide me with the specs on that spindle? See if I have one to match. Thanks loads.
__________________
I just love riding a vintage road bike. The smooth speed and quick response of the steel has to be one of the most enjoyable experiences I know.

My bikes: 58cm '72 Schwinn World Voyageur, 24" '79 Trek 930, 58cm '84 Schwinn Letour Luxe, with couplers, 61cm '92 Schwinn Paramount (Panasonic) [Incoming: 60cm '88 Centurion Ironman Expert, 24" '80 Trek 414]
I will buy no more bikes forever.
seedsbelize is offline
Old 12-31-18, 05:53 PM
  #365
seypat
Senior Member

Join Date: Oct 2010
Posts: 3,570
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seedsbelize View Post
Could you provide me with the specs on that spindle? See if I have one to match. Thanks loads.
The spindle length is 113mm. According to Sheldon's chart,(linked above by markwesti) the universal marking size is 3H. If you have a 3H in da casa, you are good to go.

Last edited by seypat; 12-31-18 at 05:56 PM.
seypat is offline
Old 12-31-18, 06:16 PM
  #366
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 400

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seypat View Post
The spindle length is 113mm. According to Sheldon's chart,(linked above by markwesti) the universal marking size is 3H. If you have a 3H in da casa, you are good to go.



From 89 Expert 52cm
That looks the same as my granddaughters. Had GPX groupset
TXsailor is offline
Old 12-31-18, 06:29 PM
  #367
seypat
Senior Member

Join Date: Oct 2010
Posts: 3,570
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I guess those 2 became suppliers in 1988. I have to admit, I can't put a spindle in without a plastic sleeve. If I don't have one, I make one from a disposable water bottle.

Patrick
seypat is offline
Old 12-31-18, 06:33 PM
  #368
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 400

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Question for you experts. If everything on these bikes was metric and Japan was on the metric system why are the balls 1/4"? Surely if Japan could make everything else they could make bearings or is the worldwide standard for bearings in Imperial sizes?
TXsailor is offline
Old 12-31-18, 11:42 PM
  #369
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,434

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by seypat View Post
Breaking news, just in:

Red/white 60cm 88 IM Expert was being disassembled earlier this afternoon. Disassembler noticed strange markings on BB cups and spindle. Upon closer inspection this was discovered. BB cups are Kajita brand. Spindle is SCM brand. Repeat, Kakita and SCM brand. Loose ball cup/cone with no bearing cages. Appears to be original. Be on the lookout, there could be others out there.

Other related news: The bare frame/fork/headset combo weighed 6.90 lbs on a cheap Dr. Meter hanging scale.


Originally Posted by TXsailor View Post


From 89 Expert 52cm
That looks the same as my granddaughters. Had GPX groupset
Identical to my '89 Ironman's Suntour GPX group bottom bracket. I expected to see caged bearings like my Univega's BB and headset but found loose bearings. No problem. I replaced 'em last week just for giggles, along with using Phil's grease. The BB didn't even need any servicing, the original grease and everything was still good, no indications of infiltration from water or debris. The rubber seals were still good and doing their job.

The only thing I did differently was to eliminate as much slack as possible from the bearing cones without any grinding sensation. The original BB felt like the cones were snugged up about half a turn tighter than necessary. But, heck, it had lasted almost 30 years without pitting the races or deforming the ball bearings.
canklecat is online now
Old 01-01-19, 12:58 AM
  #370
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 400

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by canklecat View Post
Identical to my '89 Ironman's Suntour GPX group bottom bracket. I expected to see caged bearings like my Univega's BB and headset but found loose bearings. No problem. I replaced 'em last week just for giggles, along with using Phil's grease. The BB didn't even need any servicing, the original grease and everything was still good, no indications of infiltration from water or debris. The rubber seals were still good and doing their job.

The only thing I did differently was to eliminate as much slack as possible from the bearing cones without any grinding sensation. The original BB felt like the cones were snugged up about half a turn tighter than necessary. But, heck, it had lasted almost 30 years without pitting the races or deforming the ball bearings.
The first time I rode my '89 the bottom bracket had a pretty loud clunk and I am hard of hearing. I figured the bearings were shot so I tore it down to see what I needed. The adjustable cup lock ring was good and tight but the fixed cup was loose. I repacked it & adjusted it right and it hasn't made a sound since. I'll bet it clunked since it was new 30 years ago. It would also drop the chain every time I went to little ring if the rear was in any of the three lowest gears. I adjusted the limit screw and its never done it again. From the wear on the chain rings its a very low mileage bike. I wonder if it was poor dealer prep?
TXsailor is offline
Old 01-01-19, 01:26 AM
  #371
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,434

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by TXsailor View Post
The first time I rode my '89 the bottom bracket had a pretty loud clunk and I am hard of hearing. I figured the bearings were shot so I tore it down to see what I needed. The adjustable cup lock ring was good and tight but the fixed cup was loose. I repacked it & adjusted it right and it hasn't made a sound since. I'll bet it clunked since it was new 30 years ago.
Yeah, I finally had to buy a Hozan forged lock ring wrench to properly secure that bugger. My cheap stamped wrench wouldn't grip tightly enough. The Hozan has sharp, squared edges to securely grip the lock ring to tighten it snugly. (Funny side note, it's marked "Rock Ring Wrench" due to a literal transliteration from a Japanese accented person speaking English. Later Hozan corrected it to "Lock Ring Wrench". I wish this were a joke but it's true.)

It would also drop the chain every time I went to little ring if the rear was in any of the three lowest gears. I adjusted the limit screw and its never done it again. From the wear on the chain rings its a very low mileage bike. I wonder if it was poor dealer prep?
Check the front derailleur. Most tutorials for aligning the front derailleur recommend aligning the front plate of the FD cage with the big chainring where it's parallel. But this doesn't work with the GPX front derailleur. Suntour added a clever little bump, hump or knuckle to the inside of the inner plate on the FD. This helps nudge the chain onto the big ring without dropping, and helps keep the chain from dropping on downshifts to the little ring. Problem is, techs have to ignore the old advice for visually aligning the front derailleur.

When I got my Ironman the front derailleur shifted perfectly. No chain drops. Then I noticed the FD was slightly askew. I "fixed" it. Big mistake. For months afterward I had to shift very carefully or risk chain drops.

Recently when I had most of the bike disassembled I studied that GPX front derailleur carefully, comparing it with the three Shimano FDs on my other bikes. I realized why Suntour designed the GPX FD that way. I nudged the front derailleur nose-inward slightly, counter-clockwise, so it was slightly but visibly askew if you eyeball the outer plate of the FD against the big chainring. After that I only needed to tweak the low limit screw slightly.

Now it shifts perfectly. But it looks wonky. Just like when I first got the bike. Before I "fixed" it.

BTW, another bit of the GPX system that seems to be picky -- that long horizontal adjustable dropout. On my bike it really affects not only rear shifting but drivetrain tension and whether I can use the two smallest cogs while in the small chainring.

A couple of weeks ago I completely removed the adjustable set screws from the dropouts because one screw was bent. I probably did that clumsily moving the Ironman on and off the Cycleops trainer. While the set screws were off the bike I decided to try the bike without those screws for awhile. Without the screws the rear wheel can be set fully back into the dropout. This helps clear the chain from the jockey wheels so there's no clatter in the smaller cogs while in the smallest chainring. It also reduced the chain sag -- I had left the chain a couple of links longer than usual just as an experiment to see how it affected drivetrain tension. The B-screw adjustment alone wasn't doing the trick.

I'll try the bike a few times this week, but I suspect the sweet spot will be slightly forward of fully back in the dropout -- this will still be farther back than I could set the wheel if the set screws were installed. So I may need to either modify the screws by filing down the heads, or just leave them out and align the rear wheel by eye. So far the wheel hasn't slipped while riding, even when I stand to stomp the pedals for sprints and climbs. So those set screws in the dropouts may not be absolutely necessary.
canklecat is online now
Old 01-01-19, 06:50 AM
  #372
seedsbelize
Refugee

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 10,831
Mentioned: 86 Post(s)
Tagged: 1 Thread(s)
Quoted: 4486 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by canklecat View Post
Yeah, I finally had to buy a Hozan forged lock ring wrench to properly secure that bugger. My cheap stamped wrench wouldn't grip tightly enough. The Hozan has sharp, squared edges to securely grip the lock ring to tighten it snugly. (Funny side note, it's marked "Rock Ring Wrench" due to a literal transliteration from a Japanese accented person speaking English. Later Hozan corrected it to "Lock Ring Wrench". I wish this were a joke but it's true.)



Check the front derailleur. Most tutorials for aligning the front derailleur recommend aligning the front plate of the FD cage with the big chainring where it's parallel. But this doesn't work with the GPX front derailleur. Suntour added a clever little bump, hump or knuckle to the inside of the inner plate on the FD. This helps nudge the chain onto the big ring without dropping, and helps keep the chain from dropping on downshifts to the little ring. Problem is, techs have to ignore the old advice for visually aligning the front derailleur.

When I got my Ironman the front derailleur shifted perfectly. No chain drops. Then I noticed the FD was slightly askew. I "fixed" it. Big mistake. For months afterward I had to shift very carefully or risk chain drops.

Recently when I had most of the bike disassembled I studied that GPX front derailleur carefully, comparing it with the three Shimano FDs on my other bikes. I realized why Suntour designed the GPX FD that way. I nudged the front derailleur nose-inward slightly, counter-clockwise, so it was slightly but visibly askew if you eyeball the outer plate of the FD against the big chainring. After that I only needed to tweak the low limit screw slightly.

Now it shifts perfectly. But it looks wonky. Just like when I first got the bike. Before I "fixed" it.

BTW, another bit of the GPX system that seems to be picky -- that long horizontal adjustable dropout. On my bike it really affects not only rear shifting but drivetrain tension and whether I can use the two smallest cogs while in the small chainring.

A couple of weeks ago I completely removed the adjustable set screws from the dropouts because one screw was bent. I probably did that clumsily moving the Ironman on and off the Cycleops trainer. While the set screws were off the bike I decided to try the bike without those screws for awhile. Without the screws the rear wheel can be set fully back into the dropout. This helps clear the chain from the jockey wheels so there's no clatter in the smaller cogs while in the smallest chainring. It also reduced the chain sag -- I had left the chain a couple of links longer than usual just as an experiment to see how it affected drivetrain tension. The B-screw adjustment alone wasn't doing the trick.

I'll try the bike a few times this week, but I suspect the sweet spot will be slightly forward of fully back in the dropout -- this will still be farther back than I could set the wheel if the set screws were installed. So I may need to either modify the screws by filing down the heads, or just leave them out and align the rear wheel by eye. So far the wheel hasn't slipped while riding, even when I stand to stomp the pedals for sprints and climbs. So those set screws in the dropouts may not be absolutely necessary.
My ARX fd has that bump, and sure enough it doesn't work well with the cage parralel to the chain.
seedsbelize is offline
Old 01-01-19, 11:35 AM
  #373
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 400

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seedsbelize View Post
My ARX fd has that bump, and sure enough it doesn't work well with the cage parralel to the chain.
My ARX and GPX are both shifting good now. Yes they are slightly askew but not enough to notice without really looking close. The lock ring wasn't the problem on my bottom bracket it was the drive side fixed cup. It wasn't even finger tight. My lock ring tool is a Park but its pretty new and still has sharp corners. If it gets so that it slips I'll get a Hozan.
TXsailor is offline
Old 01-01-19, 03:05 PM
  #374
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,434

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by seedsbelize View Post
My ARX fd has that bump, and sure enough it doesn't work well with the cage parralel to the chain.
Last night I did manage to drop the chain once, using the trainer as a workstand without any resistance on the rear wheel. It happened only once out of several tries, and only with the chain on the third largest cog, while shifting down from the big chainring to the smaller. That's a fairly unusual combo so it shouldn't be a problem while riding. I usually shift from the small to large chainring or vice versa only in the three smallest cogs.

Trying to reproduce the problem, it appears my chain is just a little too long, maybe one link. So when the rear derailleur snaps back to take up the slack there's some bounce before it settles down. If it becomes a problem during actual road rides I'll remove a link.

Originally Posted by TXsailor View Post
My ARX and GPX are both shifting good now. Yes they are slightly askew but not enough to notice without really looking close. The lock ring wasn't the problem on my bottom bracket it was the drive side fixed cup. It wasn't even finger tight. My lock ring tool is a Park but its pretty new and still has sharp corners. If it gets so that it slips I'll get a Hozan.
Yeah, I got a Channel Lock adjustable wrench recently with sharper edges and thin jaws to tighten that cup. My thin stamped wrench had a little too much slop and slightly rounded edges so it wouldn't grip well enough to properly tighten the cup.
canklecat is online now
Old 01-01-19, 07:23 PM
  #375
seedsbelize
Refugee

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 10,831
Mentioned: 86 Post(s)
Tagged: 1 Thread(s)
Quoted: 4486 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by seypat View Post
The spindle length is 113mm. According to Sheldon's chart,(linked above by markwesti) the universal marking size is 3H. If you have a 3H in da casa, you are good to go.
The three I have are in the 120+ range. Could you save that bb for me please? That was the one outstanding question from the very beginning.
seedsbelize is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
