Old 04-18-18, 05:28 PM
  #176
RobbieTunes
Idiot Pro Tempo
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: NC
Posts: 23,279

Bikes: '59 Sports. '75 Teledyne. '84 Klein. '8x Chris Fiorini. '85 Competition. '87/''88/'89 Ironmen. '89 Paramount. '99 Serotta. '14 Wraith.

Mentioned: 23 Post(s)
Tagged: 1 Thread(s)
Quoted: 275 Post(s)
I'll PM you, cc, and get a stem in the post for you.
__________________
Robbie ♪♫♪...☻
I'm pretty sure the zombies can't ride bikes.
RobbieTunes is online now
Reply With Quote
Old 04-30-18, 10:55 AM
  #177
Reynolds 531
Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 41

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, 1 vintage steel bike being built up

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
In facebook marketplace, $100 /919753341540052

Reynolds 531 is offline
Reply With Quote
Old 05-02-18, 08:46 PM
  #178
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,550

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 18 Post(s)
Tagged: 1 Thread(s)
Quoted: 222 Post(s)
Originally Posted by texaspandj View Post
If you're asking me, yes go for it.
Pink housing and pedals not original.
Tony are you still checking your PM's or only enjoying the CF Ironman.
Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is online now
Reply With Quote
Old 05-02-18, 09:19 PM
  #179
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Under the X in Texas
Posts: 2,584

Bikes: 1986 , 87 , 88 , 89 Centurion Dave Scott Ironman.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
Originally Posted by xiaoman1 View Post
Tony are you still checking your PM's or only enjoying the CF Ironman.
Ben
Both.
OK I'll just say it, the new format and me don't get along so well....yet. Man, I'm not getting any younger.
texaspandj is offline
Reply With Quote
Old 05-06-18, 10:01 PM
  #180
67tony
Senior Member

67tony's Avatar

Join Date: Feb 2012
Location: Williamsburg, VA Sebastian, FL
Posts: 915

Bikes: 1985 Shogun 500, 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)

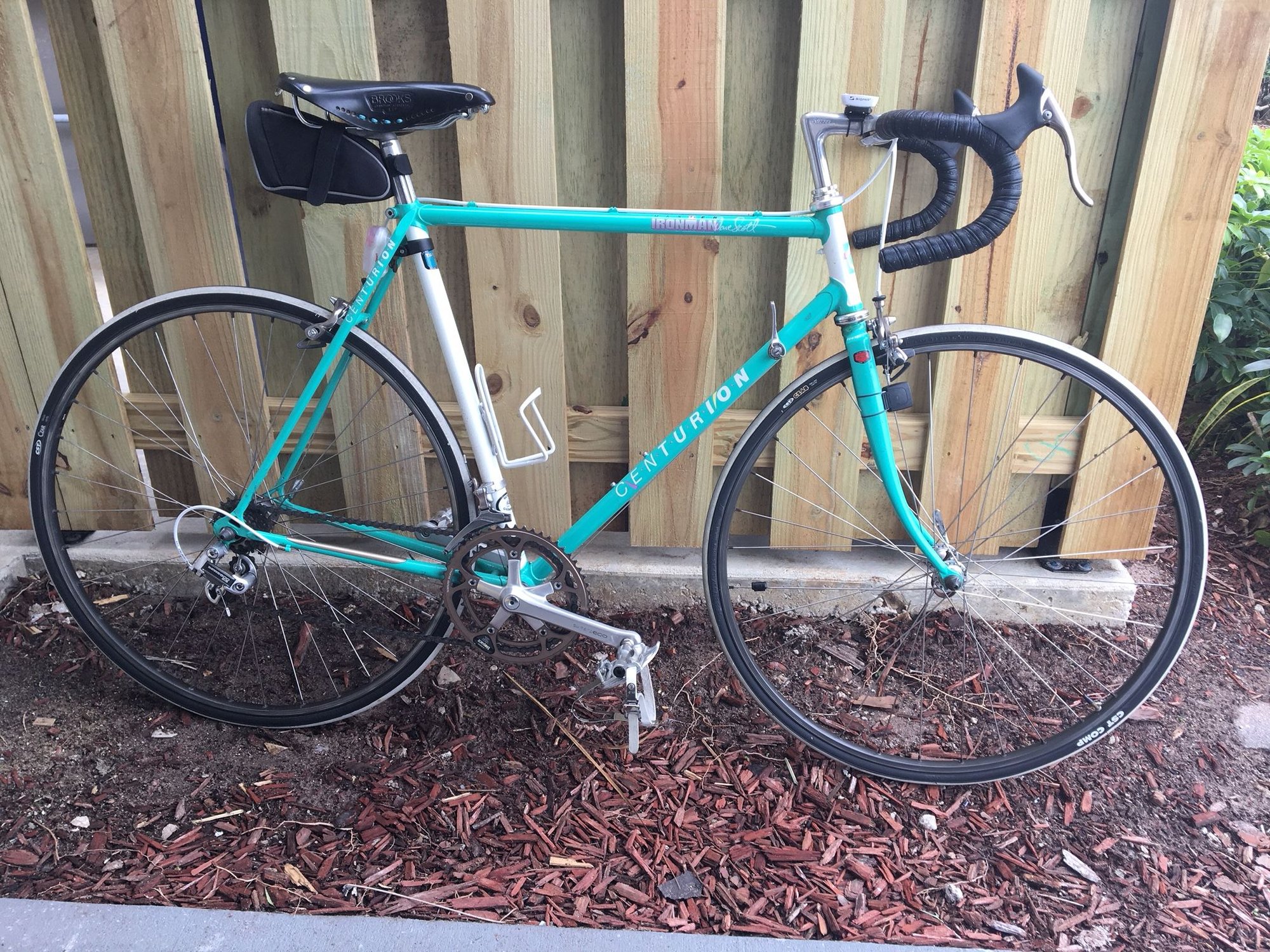

Testing out the new photo upload feature!


1987 Dave Scott Master
67tony is offline
Reply With Quote
Old 05-07-18, 05:46 AM
  #181
RobbieTunes
Idiot Pro Tempo
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: NC
Posts: 23,279

Bikes: '59 Sports. '75 Teledyne. '84 Klein. '8x Chris Fiorini. '85 Competition. '87/''88/'89 Ironmen. '89 Paramount. '99 Serotta. '14 Wraith.

Mentioned: 23 Post(s)
Tagged: 1 Thread(s)
Quoted: 275 Post(s)
Works! Thanks for the pic.

Originally Posted by 67tony View Post
Testing out the new photo upload feature!


1987 Dave Scott Master
__________________
Robbie ♪♫♪...☻
I'm pretty sure the zombies can't ride bikes.
RobbieTunes is online now
Reply With Quote
Old 05-09-18, 02:34 PM
  #182
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have too much in Lancaster, PA
Posts: 1,434

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)

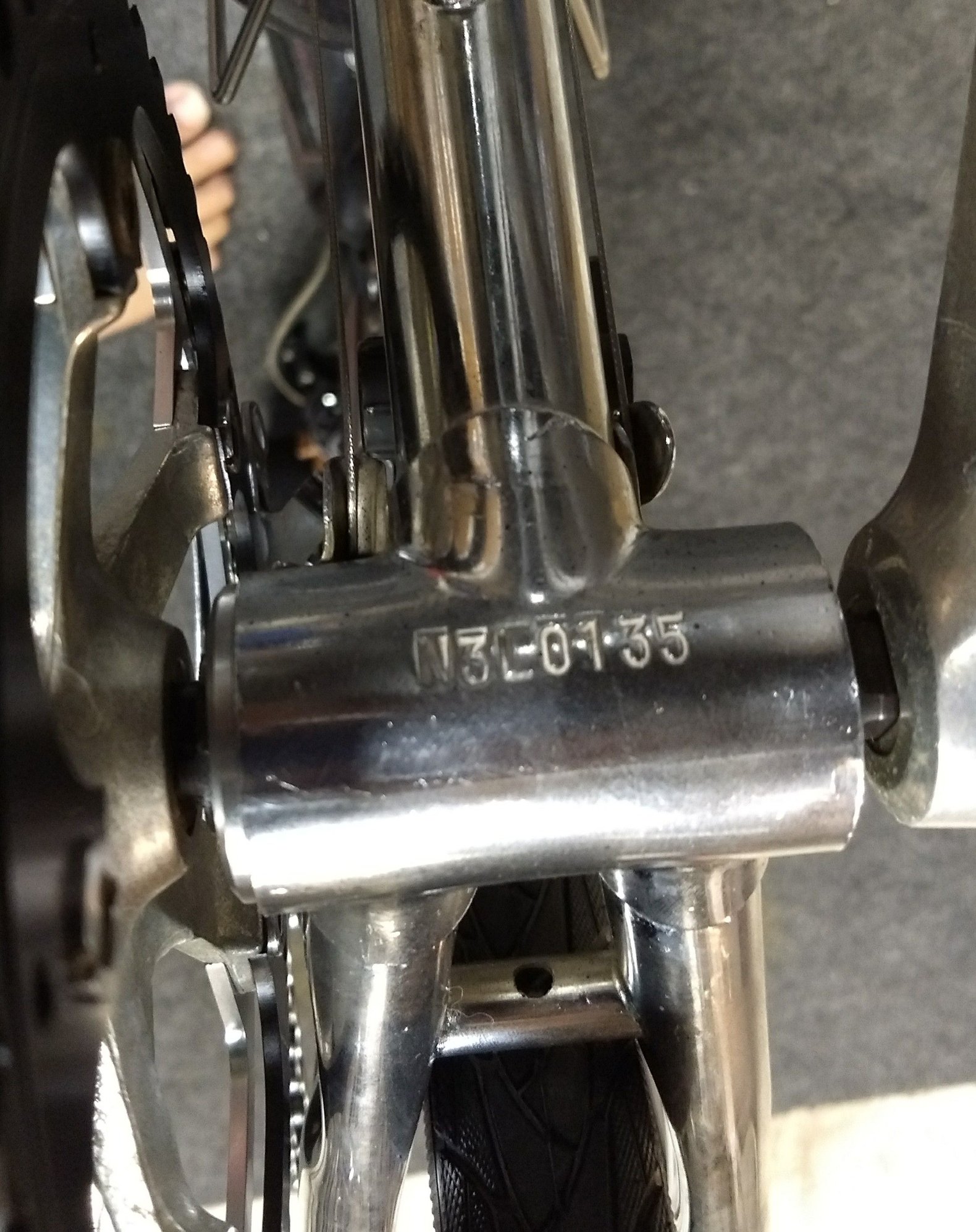

Hey is this a place I can find the age of my Centurion Pro-Tour serial #N3L0135
bwilli88 is offline
Reply With Quote
Old 05-09-18, 03:17 PM
  #183
belacqua
Senior Member

Join Date: Sep 2008
Location: Kansas City
Posts: 305
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Originally Posted by bwilli88 View Post
Hey is this a place I can find the age of my Centurion Pro-Tour serial #N3L0135
this is what @T-Mar, a credible source, says:
"Most Japanese models during this period use a serial number format WXYZZZZ where;

W = a letter, purpose uncertain, but probably indicates manufacturer or Centurion
X = a number, indicating the calendar year of manufacture
Y = a letter, indicating the fortnight of manufacture (A = wk 1 & 2, B = wk 3 & 4, etc)
ZZZZ = four digit number, probably indicating frame number during fortnight

Example: N4E0283 indicates the 283 frame manufactured during the period of weeks 9-10, for the year 1984. "

--which would make yours an '83 with a June birthday.

Last edited by belacqua; 05-09-18 at 03:21 PM.
belacqua is offline
Reply With Quote
Old 05-09-18, 03:42 PM
  #184
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,318
Mentioned: 333 Post(s)
Tagged: 1 Thread(s)
Quoted: 1871 Post(s)
Originally Posted by belacqua View Post
this is what @T-Mar, a credible source, says:
"Most Japanese models during this period use a serial number format WXYZZZZ where;

W = a letter, purpose uncertain, but probably indicates manufacturer or Centurion
X = a number, indicating the calendar year of manufacture
Y = a letter, indicating the fortnight of manufacture (A = wk 1 & 2, B = wk 3 & 4, etc)
ZZZZ = four digit number, probably indicating frame number during fortnight

Example: N4E0283 indicates the 283 frame manufactured during the period of weeks 9-10, for the year 1984. "

--which would make yours an '83 with a June birthday.
FYI, BF member Hummer believes that the 3rd character is a month indicator with the 12 months being represented by A, B, D, E, G, H, K, L, M, N, P & S. that would the subject bicycle August 1983. It's all documented here: https://www.bikeforums.net/classic-v...al-number-guid
T-Mar is offline
Reply With Quote
Old 06-27-18, 08:26 PM
  #185
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,293

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Can someone give me the digital scale weight of the “Expert” model? I’m curious and would appreciate knowing. This will help with some plans I have.

thank you!
OldsCOOL is offline
Reply With Quote
Old 06-28-18, 04:12 AM
  #186
seypat
Senior Member

Join Date: Oct 2010
Posts: 2,895
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 511 Post(s)
My 87 56cm Japanese market(lugged fork) frame/fork/105 headset/BB weighed 7.45lbs on the local post office scale.
seypat is offline
Reply With Quote
Old 06-28-18, 12:01 PM
  #187
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,293

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Originally Posted by seypat View Post
My 87 56cm Japanese market(lugged fork) frame/fork/105 headset/BB weighed 7.45lbs on the local post office scale.
ok, thx!
OldsCOOL is offline
Reply With Quote
Old 06-28-18, 05:23 PM
  #188
RobbieTunes
Idiot Pro Tempo
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: NC
Posts: 23,279

Bikes: '59 Sports. '75 Teledyne. '84 Klein. '8x Chris Fiorini. '85 Competition. '87/''88/'89 Ironmen. '89 Paramount. '99 Serotta. '14 Wraith.

Mentioned: 23 Post(s)
Tagged: 1 Thread(s)
Quoted: 275 Post(s)
Weights?
Weights?

You people.

How much does a legend weigh?
__________________
Robbie ♪♫♪...☻
I'm pretty sure the zombies can't ride bikes.
RobbieTunes is online now
Reply With Quote
Old 06-28-18, 07:23 PM
  #189
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 4,657

Bikes: I'd rather not count how many, thank you

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 719 Post(s)
Originally Posted by RobbieTunes View Post
Weights?
Weights?

You people.

How much does a legend weigh?
Good point. The cojones alone are what, 40 pounds or so? And brass?
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 07-09-18, 09:55 AM
  #190
SpookyReverb
Senior Member

SpookyReverb's Avatar

Join Date: Aug 2011
Location: Portland, Oregon
Posts: 186

Bikes: 2018 All-City Space Horse Disc, 1992 Bridgestone RB-1, 2012 Salsa Casseroll, KidzTandem

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
At the risk of making a redundant post:
I have an '87 Expert (Miami Vice) Will an HP-6400 headset fit?
I think the HP-1050 that I pulled off of the bike has a 27mm crown race and I think that the HP-6400 has a 26.4 crown race.
Or are there HP-6400 headsets with a 27mm crown race?

I know some of the Masters had the HP-6400... what am I missing here?

Thanks for any help!
Austin
SpookyReverb is offline
Reply With Quote
Old 07-11-18, 08:47 PM
  #191
RobbieTunes
Idiot Pro Tempo
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: NC
Posts: 23,279

Bikes: '59 Sports. '75 Teledyne. '84 Klein. '8x Chris Fiorini. '85 Competition. '87/''88/'89 Ironmen. '89 Paramount. '99 Serotta. '14 Wraith.

Mentioned: 23 Post(s)
Tagged: 1 Thread(s)
Quoted: 275 Post(s)
Originally Posted by SpookyReverb View Post
At the risk of making a redundant post:
I have an '87 Expert (Miami Vice) Will an HP-6400 headset fit?
I think the HP-1050 that I pulled off of the bike has a 27mm crown race and I think that the HP-6400 has a 26.4 crown race.
Or are there HP-6400 headsets with a 27mm crown race?

I know some of the Masters had the HP-6400... what am I missing here?

Thanks for any help!
Austin
I've been interchanging headsets on Ironman models for years.
__________________
Robbie ♪♫♪...☻
I'm pretty sure the zombies can't ride bikes.
RobbieTunes is online now
Reply With Quote
Old 07-11-18, 09:37 PM
  #192
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 2,625
Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Just disassembled my IM. My 60cm 1989 IM Expert has a 27.2 seatpost, 42-52 GPX 172.5 cranks and a 13-23 (not 24) 7 speed freewheel. Mavic MA40 rims on GPX hubs, not Araya CTLs but they could be replacements for all I know.

Otherwise it fits the listed specs.
Narhay is offline
Reply With Quote
Old 07-12-18, 07:20 AM
  #193
seedsbelize
Old Chunk of Coal

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 9,356
Mentioned: 61 Post(s)
Tagged: 1 Thread(s)
Quoted: 3800 Post(s)
I'm sorry to say I've begun reading this thread, back to front.
__________________
I just love riding a vintage road bike. The smooth speed and quick response of the steel has to be one of the most enjoyable experiences I know.
My bikes: '72 Schwinn World Voyageur, '79 Trek 930, '84 Schwinn Letour Luxe, with couplers, '92 Schwinn Paramount (Panasonic) [Incoming: '88 Centurion Ironman Expert, '80 Trek 414]
I will buy no more bikes forever.
seedsbelize is offline
Reply With Quote
Old 07-12-18, 05:26 PM
  #194
RobbieTunes
Idiot Pro Tempo
Thread Starter

RobbieTunes's Avatar

Join Date: Dec 2007
Location: NC
Posts: 23,279

Bikes: '59 Sports. '75 Teledyne. '84 Klein. '8x Chris Fiorini. '85 Competition. '87/''88/'89 Ironmen. '89 Paramount. '99 Serotta. '14 Wraith.

Mentioned: 23 Post(s)
Tagged: 1 Thread(s)
Quoted: 275 Post(s)
Originally Posted by seedsbelize View Post
I'm sorry to say I've begun reading this thread, back to front.
It's like getting bit by a tick.
__________________
Robbie ♪♫♪...☻
I'm pretty sure the zombies can't ride bikes.
RobbieTunes is online now
Reply With Quote
Old 07-13-18, 05:16 PM
  #195
geocanada
Member

Join Date: Jul 2018
Location: Ottawa, ON, Canada
Posts: 28

Bikes: 1986 Dawes Super Galaxy

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
1988 Hawaii Ironman Race Memory

I'm a newbie so getting caught up on things. I gotta tell you, seeing that photo of Dave's bike in the Kona rack brought back something burned into my memory. I was a volunteer at the '88 race and met Dave a few days before. I was so pumped to be there. Then, on race morning as I walked through transition I saw Dave's rack spot.....and no bike He had a knee issue that he was hoping would be ok but it wasn't meant to be. Molina went on to win and Paula crushed the women's race. And all these years later Dave and I are friends-ish. He's come stay with me here in Ottawa a number of times to facilitate some camps for my triathlon club. Great memories. Now to get my hands on my own Centurion!

Originally Posted by RobbieTunes View Post
1988 Centurion Dave Scott Ironman Carbon
Frame: Carbon main triangle, carbon stays inserted into aluminum lugs
Fork: Aluminum sloped crown
Wheelset: Shimano 7400 hubs laced to Araya CTL-370 rims.
BB: 7400
Crankset: Shimano 7400
Calipers: Shimano 7400
Levers: Shimano 7400
Bars: Nitto B115-390 (<=54cm) -420 (=>56cm)
Stem: Nitto
Headset: Shimano 7400
Shifters: Shimano 7400
FD: Shimano 7400 28.6 clamp
RD: Shimano 7400
Seatpost: American Classic 25.4
Saddle: Vetta Turbo
Tires: Panaracer Technova II
Cassette: Shimano HG 2x7
Color: Alloy lugs, clear coated black carbon fiber, alloy fork
Scheme: none
Graphics: Squiggles and Geometric shapes in the DT decal and on headbadge.
DT Decal: Centurion in a new un-shaded thinner font, more graduated thickness.
TT Decal: Ironman logo with Dave Scott signature, "Carbon" added over Ironman
Headbadge Decal(s): New heavy "C" without shading, with geometric shapes
Seat stay decal: Squiggles below the caps, no text
Tange Decal: Clear/colored decal on top of fork legs only.
HT Decal: Made in Japan below the headbadge
ST Decal: Centurion on the sides, nearly same size as DT decal


An Ironman Carbon used by Dave Scott.
*Can't include photo in my reply as I'm a newbie to the forum*
geocanada is offline
Reply With Quote
Old 07-19-18, 01:42 AM
  #196
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 188

Bikes: Origin-8 Lactic Acid & Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
89 Expert

I was given a 83 Lemans 12 a few years ago and have put about 1000 miles on it. I really like it even though I know its not really anything special. With that in mind I have had my eyes open for another Centurion. I was looking on E-Bay and saw one not too far from me (180 miles or so) so I made a $100 offer on the Dave Scott Ironman Expert, then I went to bed. Low and behold in the morning I had a counter offer of $160. I started looking it over and from the pictures I determined it was a all original 89 in smoke on the water blue. I didn't dicker any more I just bought it. After about a 8 hour drive with my understanding wife I got it home. It has evidently sat for many years but looks to have been gently used. Only a couple of chips and a lot of grime. The saddle is shot as is the bar tape and the rear shifter cable. I am replacing all the cables and will service all the bearings. I will probably have more questions but the one I have now is about the bar tape. It appears to be put on backwards from the modern way of wrapping the tape. It starts at polished part of the bar and ends at the plug with no electrical tape. That is the way I used to do mine until I was told I was doing it wrong. I think it looks a lot better that way. Is that how these were done at the factory? From the pictures I see on here it looks like it.
TXsailor is offline
Reply With Quote
Old 07-19-18, 02:00 AM
  #197
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Under the X in Texas
Posts: 2,584

Bikes: 1986 , 87 , 88 , 89 Centurion Dave Scott Ironman.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
I've had only 2 Ironman with factory wrap and I don't remember. Someone else will probably chime in who knows. But congratulations on your new acquisition and welcome to the club. Don't forget to check out the Thread: Post your Centurion Ironman.. For the love of 80s paint jobs for inspiration.
texaspandj is offline
Reply With Quote
Old 07-19-18, 11:50 AM
  #198
nesposito
Senior Member

Join Date: Sep 2013
Posts: 52
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)

This is the factory bar wrap on my 1988 Ironman. It does start in the center of the bars and goes down to the plugs with no tape
nesposito is offline
Reply With Quote
Old 07-19-18, 02:18 PM
  #199
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 980

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1978 Trek TX900 ~ 1992 Klein Pinnacle ~ 1997 Klein Stage Comp ~Centurion IronMan 85,87:E/M,88:M,89:E ~ 1992 Cannondale T1000 ~ 1988 GT Avalanche ~

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
I i remember right, it was a change that happened when drops were getting away from the benotto and cloth tape bars going to the cork base.

If its Cork base or any of the padded bar tape then they say go bottom up
if its a benotto or a clot tape then you can go top down.

It basically has to do with the cork tape being as flexible as it is and stretching. so you wrap in the direction that the hand would move to tighten the tape not loosen.
fleslider is offline
Reply With Quote
Old 07-20-18, 01:19 AM
  #200
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 188

Bikes: Origin-8 Lactic Acid & Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Thanks for the info. I guess I was right and mine was factory. I am not a "gripper" and usually just lightly hold my bars so I guess that's how I got away with mine not getting loose even with the newer tape. I think I will do this one that way too it just looks better to me not to have electrical tape on my bike.
TXsailor is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
