I just google imaged' Shogun Kaze and they all have the "S" pantod on the seat stay spears. How sure are you this is a KAZE?

Also, I ran this through the serial number base. Shogun didn't start with a Y

This serial number format matches Yamaguchi, who did make frames for Shogun. However I think the lack of seat stay treatment does maybe point to a different marque but still made by Yamaguchi.

Off a quick search...
If the serial number on your GT triple triangle frame starts with "Y", it likely indicates that the frame was manufactured in Taiwan.

I think you are right about the serial. The stamp could go either way J or U.

1988 Centurion Sport DLX


1988 Centurion Sport DLX.

The serial is quite hard to read. I may use a flat file on the paint to see if I can get it more readable before the frame goes in the scrap metal bin.
71102505

Third one of these I've had. Second one was sent to California. Blue & white color like the catalog photo.

This is the white and yellow which is a bit flashier than the blue. My two least favorite colors for bikes as they shows the dirt and flaws the most.

It arrived covered in fine saw dust. The donor said he bought it from a friend, rode it on Ragbrai the year of Saggy Thursday (legendary headwind day), 1995. Then hasn't ridden it since. It was sitting in his woodwork shop for years.

I started cleaning the dust off, it did clean up quite well, and found the blip & crack on the downtube. Doh. Hum I wonder if the donor crashed the bike or if his friend did and sold it to him anyhow.

The Sport DLX was revised every year, 1987 had stem shifers, 1988 down tube indexed shifters, 1989 completely different bike... The Sport DLX was a lower end model. Stamped steel front der is the cheapest part on it. No brake release. Plenty of aftermarket accessories. Flickstand, 2 cages, mirror, bent Zefal HPX, tiny seat bag.

Plastic rear dropout inserts. Never seen those before.

Been my experience that Centurion branded bikes seem to have the highest damage/failure rate of any brand.




https://cimg5.ibsrv.net/gimg/bikefor...874397bd76.jpghttps://cimg2.ibsrv.net/gimg/bikefor...6d939d2282.jpg
https://cimg7.ibsrv.net/gimg/bikefor...1eb2e916e6.jpg
https://cimg8.ibsrv.net/gimg/bikefor...07b4f74454.jpg
https://cimg0.ibsrv.net/gimg/bikefor...88811d27d8.jpg
https://cimg1.ibsrv.net/gimg/bikefor...a6523b8085.jpg


https://cimg7.ibsrv.net/gimg/bikefor...b2a5da0c86.jpg
https://cimg9.ibsrv.net/gimg/bikefor...c8f7b39451.jpg
https://cimg2.ibsrv.net/gimg/bikefor...aff67f595d.jpg

striped of accessories, bizarro pedals, rusted shift cables and cleaned up.
https://cimg3.ibsrv.net/gimg/bikefor...8a60633322.jpg

unidentified frame

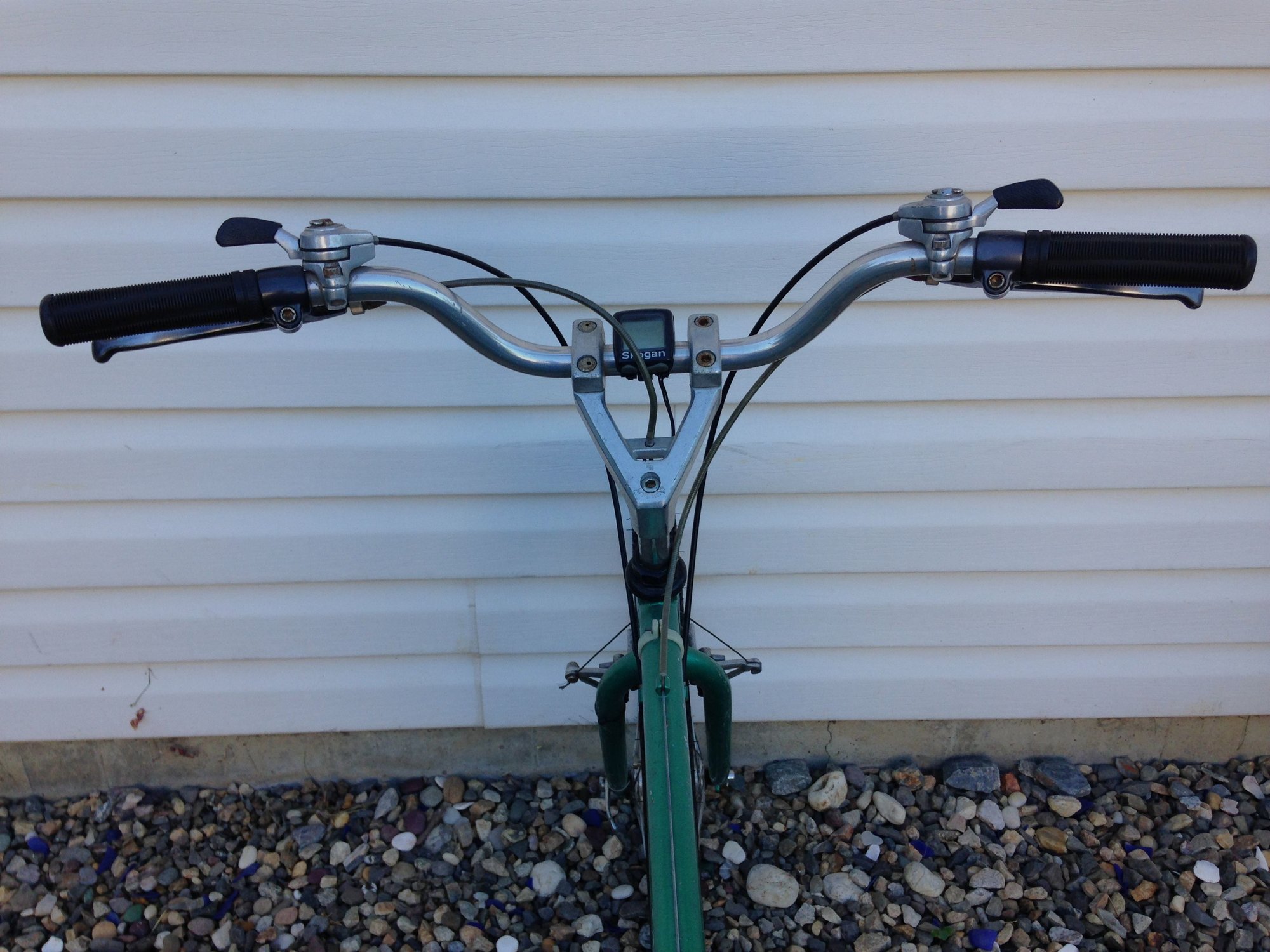

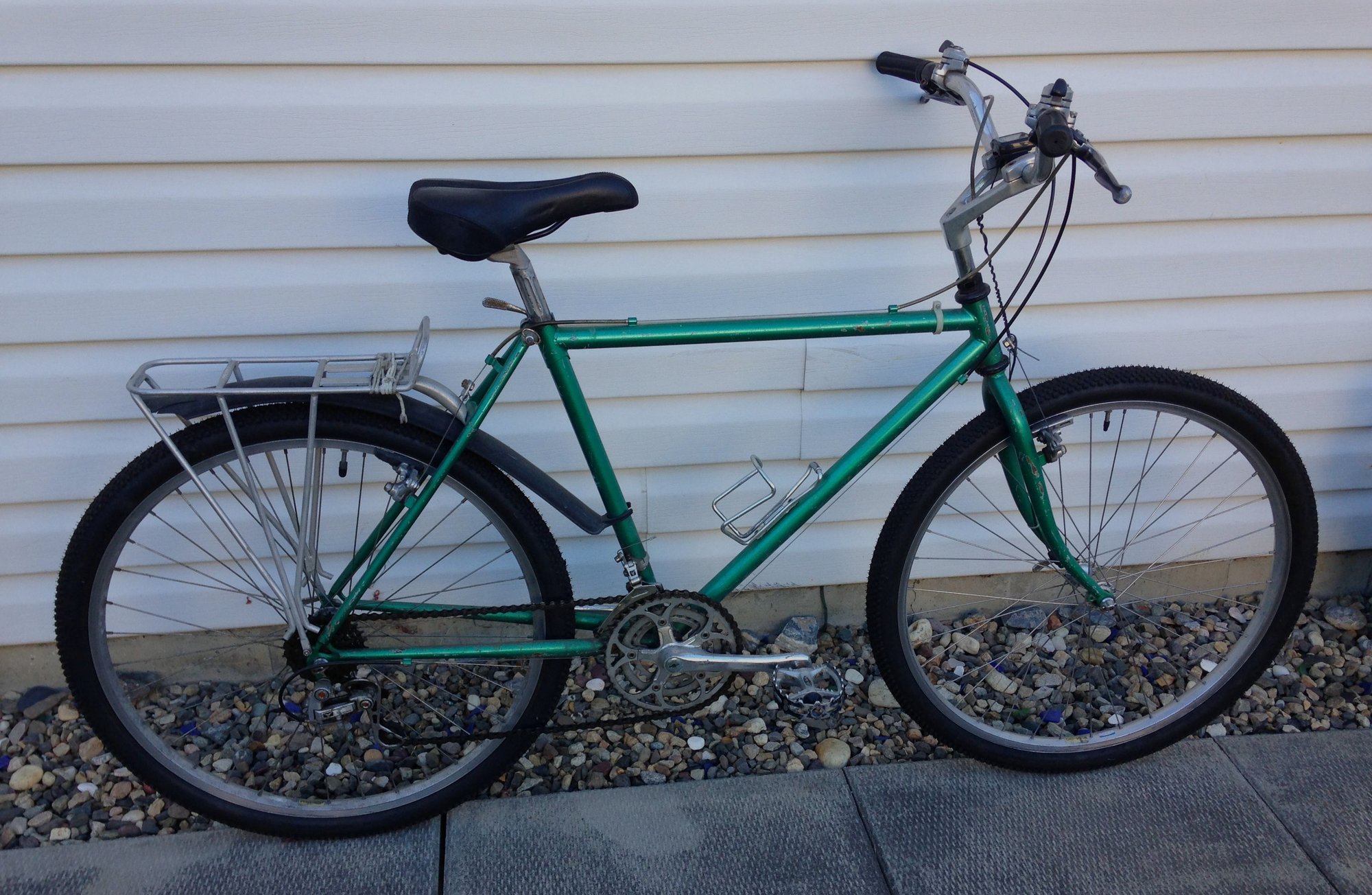

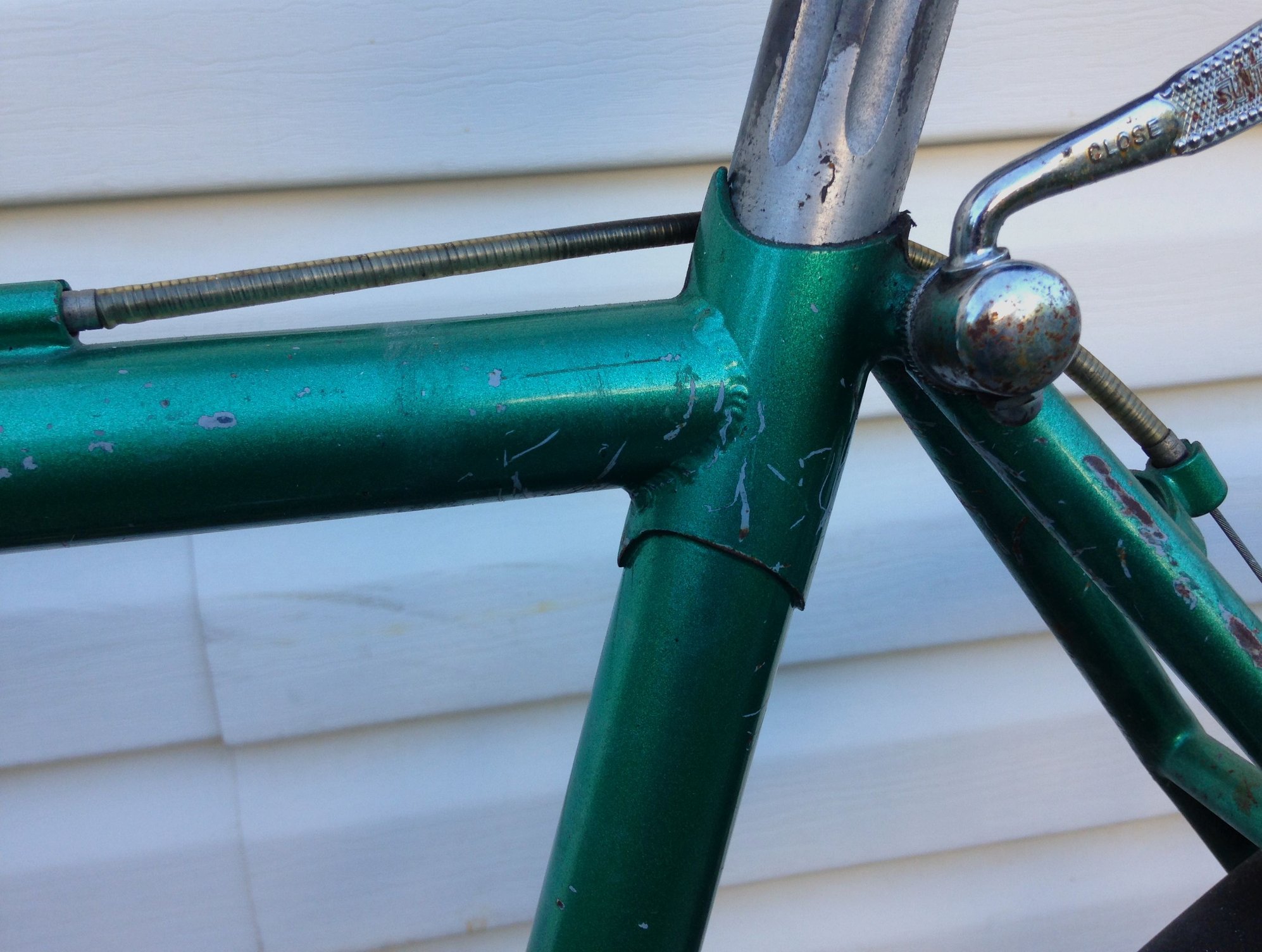

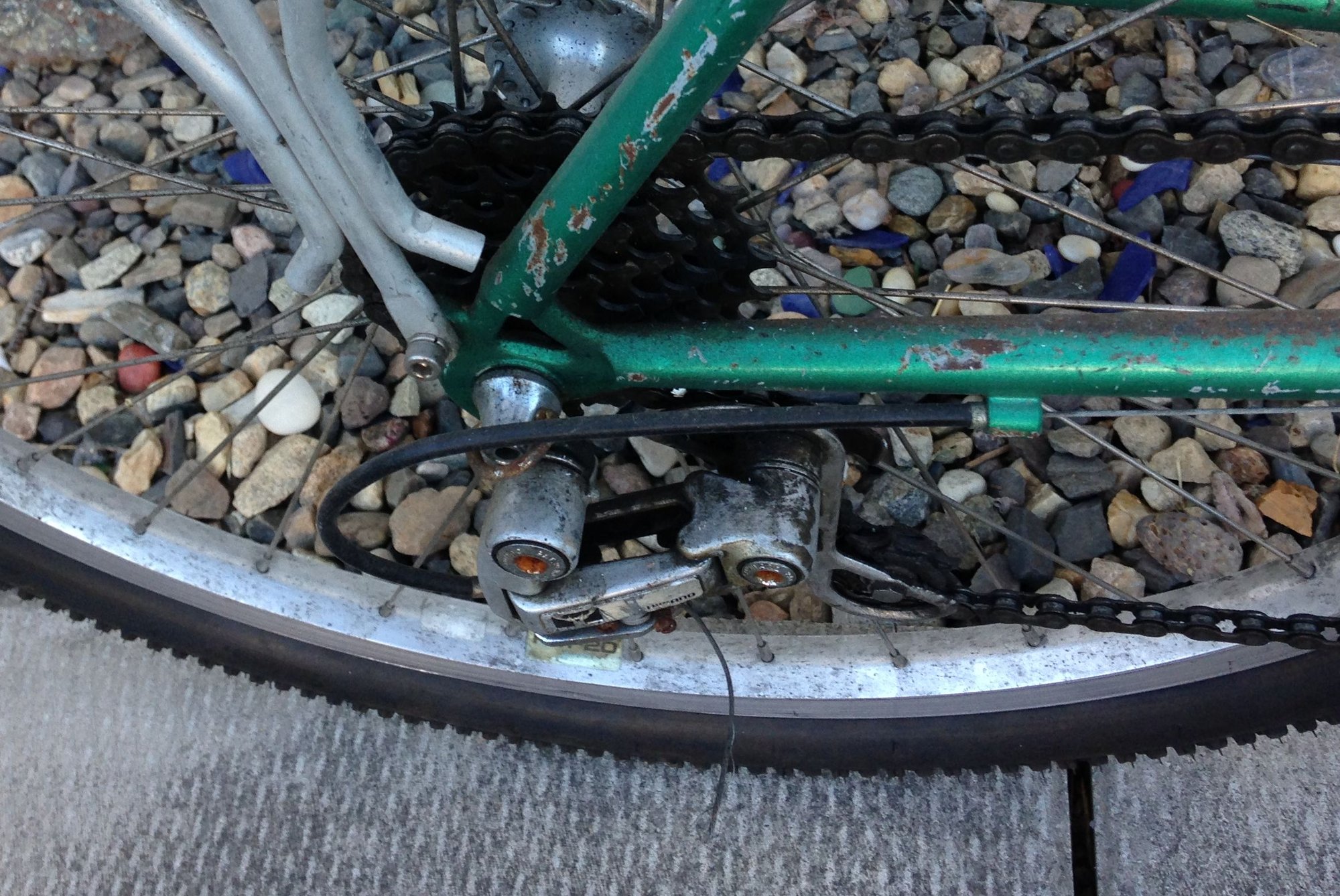

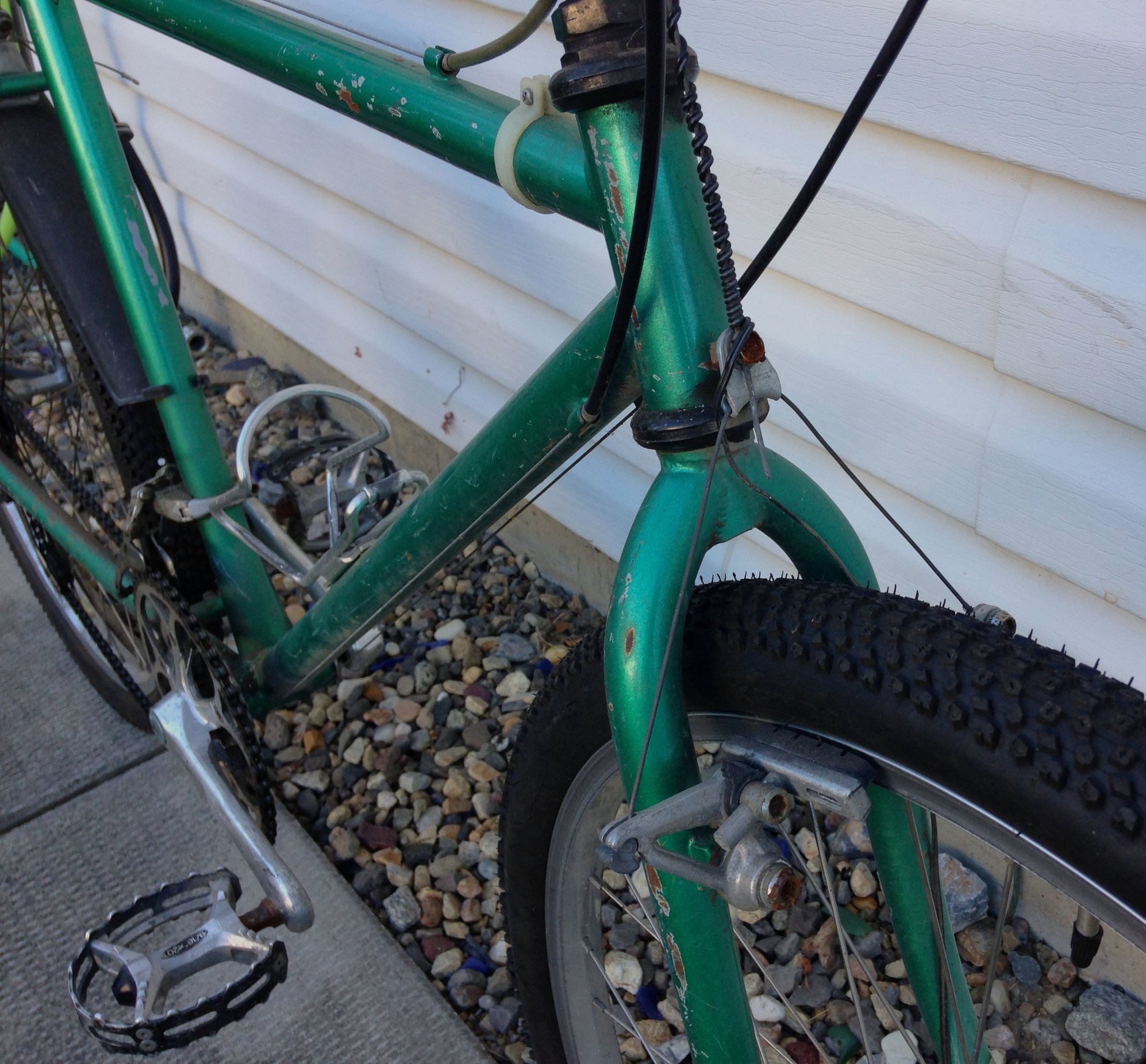

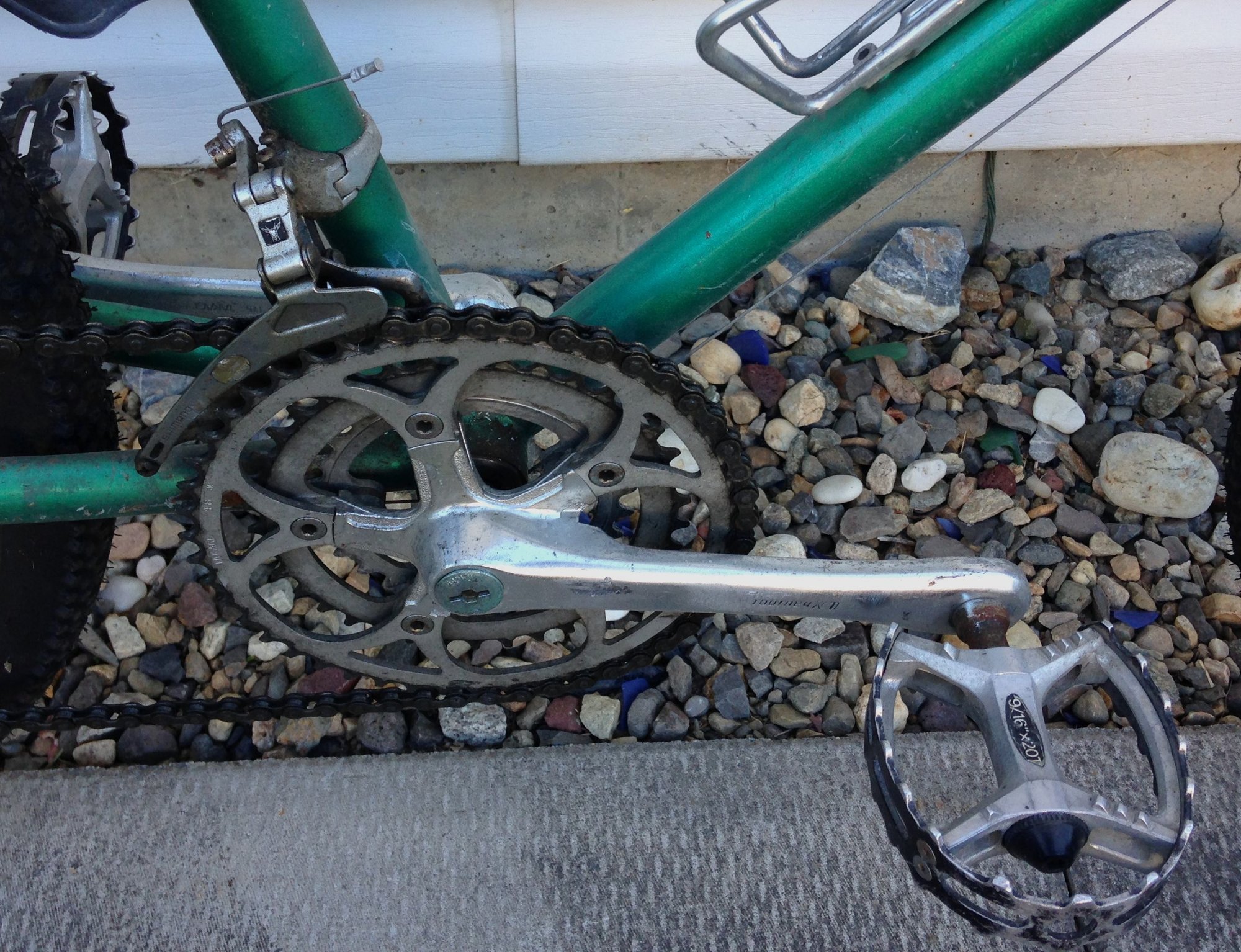

I aquired this repainted frame that was loaded with deerhead components, serial A5A8597. tig welded steel frame with false lug at seatpost cluster. The derailleurs are dated 1984. The previous owner had no information to offer except that he aquired the bike in the 80s.
https://cimg2.ibsrv.net/gimg/bikefor...c81b737b4d.jpg
https://cimg4.ibsrv.net/gimg/bikefor...2742690ea0.jpg
https://cimg6.ibsrv.net/gimg/bikefor...04f17697c5.jpg
https://cimg8.ibsrv.net/gimg/bikefor...8f73269418.jpg
https://cimg1.ibsrv.net/gimg/bikefor...9b9f252376.jpg
https://cimg4.ibsrv.net/gimg/bikefor...e48d88734d.jpg
https://cimg8.ibsrv.net/gimg/bikefor...381cfe3f5c.jpg
https://cimg5.ibsrv.net/gimg/bikefor...8ec65c7ac0.jpg
https://cimg9.ibsrv.net/gimg/bikefor...cfb7bab2e6.jpg

I have a Japanese made Ritchey sold exclusively to the Canadian market thru Rockey Mountain in my horde that has the same serial number format and the same phsical details. Toyo of Japan seems to be the best known maker of lugged frames for Ritchey, but these frames that I have are tig welded and have the reinforcing collar at the seatpost top. Any comments and suggestions are welcome.

Here is another RMB, not mine. The serial number A5C0---.

https://cimg3.ibsrv.net/gimg/bikefor...0550bedb94.jpg
RMB Ritchey side
https://cimg4.ibsrv.net/gimg/bikefor...e732cce6b7.jpg
RMB Ritchey Seat tube
https://cimg5.ibsrv.net/gimg/bikefor...a120f0552d.jpg
RMB Ritchey BB Shell

I have seen this bicycle in the USA as a Ritchey Ascent.

The first character "A" in the serial number may be for ARAYA. Araya made the first Univega MTB frames.

OK Hummer....You WERE Right.........

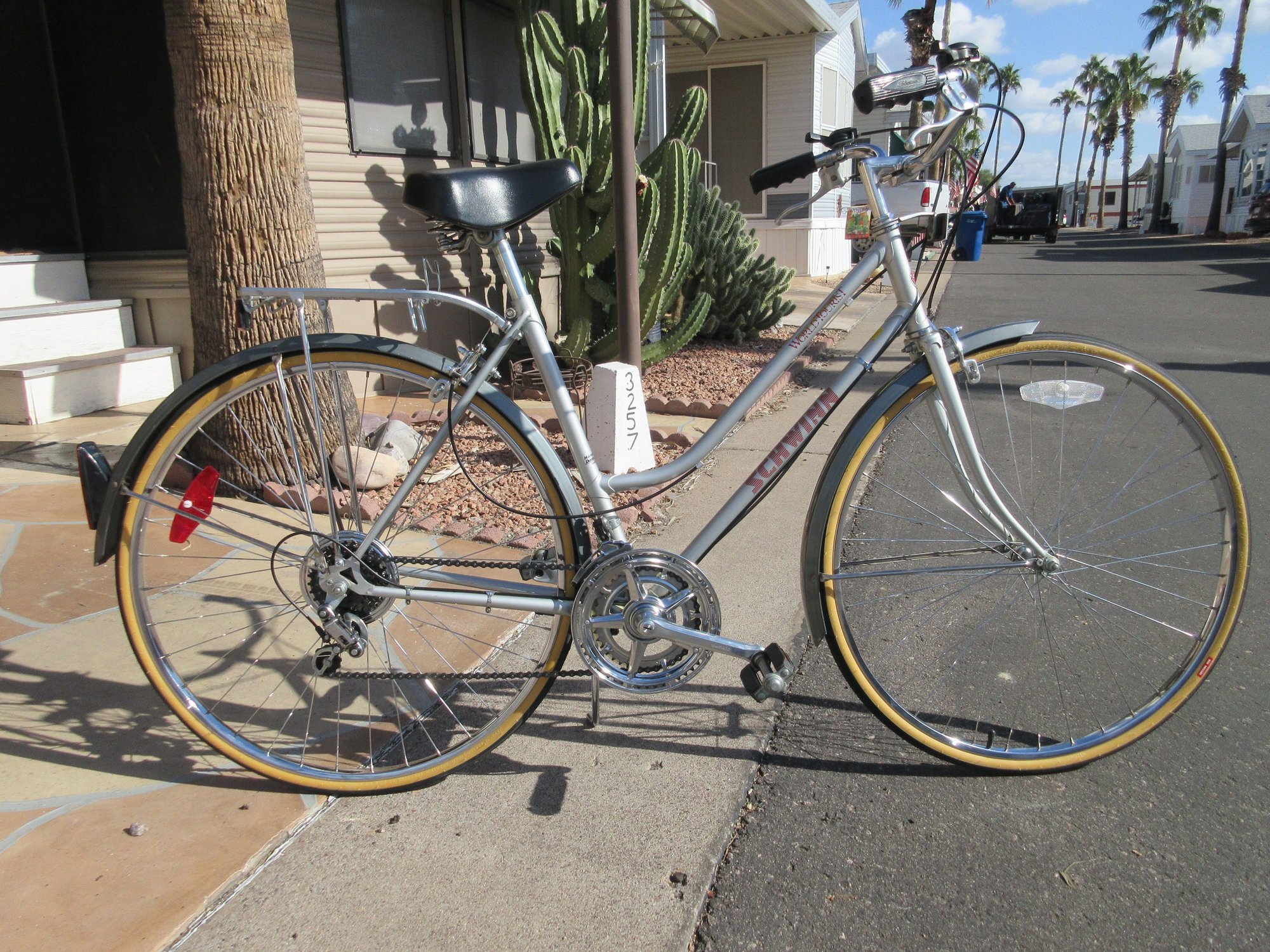

I thought this morning was a good time to FINALLY solve the mystery of my World Tourist as shown below.
https://cimg2.ibsrv.net/gimg/bikefor...0d917a309d.jpg

The serial number is GD8XXXXX and the headbadge stamping is 1048. I still don't know who made it because there are no stickers denoting Japan or Taiwan on the frame anywhere.
However you identified it as a 1988 model and you were correct. After much searching over the bike which is all original (except for the tires/tubes) I found a bunch of date codes on various components. The Shimano freewheel is date coded LK which translates to Nov 1987. The Shimano front derailleur is date coded LL which translates to Dec 1987. The Joytech hub on the rear wheel is coded B88 which I'm guessing is Feb 1988. The 1048 assembly stamping on the headstock badge I now understand from your post way back translates to the 104th day of 1988.....which is April 13th.
So, I'll now be able to quit having this nagging voice in my head saying that I should finally figure out what this bike really is. Yeah, I know......I should get out more. :lol:
Still......it would be nice to know WHO actually built it........

I've had scores of Worlds, World Sports and World Tourists where I've recorded the serial number.

Giant started making bikes for Schwinn in 1977. The Giant (Taiwan) built bikes usually have a Gmmyy number stamped on the other dropout. But looking through my records, those date codes seem to run from 1981 to 1986. I've seen that same date code on other brands of bikes as well.

Schwinn changed to China Bicycle (china) as their next builder. Deal signed in spring of 1987. This time Schwinn bought in to the company so you could say that those bikes were built in a Schwinn owned (partially) factory, not just purchased from another company.

Schwinn also had the Greenville Mississippi plant going then but it's output was mainly mid range road bikes such as the Traveler, Le Tour, Tempo, Circuit, Voyageur and Premis.

Rick

Well, Rick, I'm going to go out on a limb here and call that GD8 serial number a Giant made bike.
I've owned at least 2 early 80's Giant-Schwinns and, yes, the Giant build date code was on the
left hand rear dropout. They MAY have eliminated the build code on my World Tourist and just went
with a "normal" serial number with the G designating Giant. The build date was,of course, moved
up to the head badge.
Maybe this Schwinn will just keep its country of origin a deep dark secret.

Kuwahara Musashi tandem.

Moo Saa Shee
very rare tandem from japan.
serial T2C00013
1982
(number 13 in the production series)
No finding a 1982 Kuwahara catalog on the www. It was all ET the Extraterrestrial movie with the boys riding Kuwahara BMX bikes in 1982.
Suntour BL rear derailleur introduced in 1980.
No finding any info on the www.
Musashi was a Japanese swordsman.
The tandem was coated in barn dust. A quick wipe down. Cannondale rack pack is very filthy, maybe critters were nesting in it. Bar wrap unraveling. Spenco brake lever cover pads.
1982 city license sticker. Odd pedals (not stock). Cyclepro saddles.





https://cimg8.ibsrv.net/gimg/bikefor...a33bc58c15.jpg
Kuwahara Musashi tandem 1982
https://cimg9.ibsrv.net/gimg/bikefor...5858a37bdc.jpg
Kuwahara Musashi tandem 1982
https://cimg0.ibsrv.net/gimg/bikefor...388a20cfaa.jpg
Kuwahara Musashi tandem 1982
https://cimg1.ibsrv.net/gimg/bikefor...3468848467.jpg
Kuwahara Musashi tandem 1982
https://cimg2.ibsrv.net/gimg/bikefor...1d2f769573.jpg
Kuwahara Musashi tandem 1982
https://cimg3.ibsrv.net/gimg/bikefor...bbef5a604a.jpg
Kuwahara Musashi tandem 1982

Centurion accordo

single speed conversion.
serial N3A3379
1983?

https://cimg5.ibsrv.net/gimg/bikefor...50fc50f8a1.jpg
Centurion Accordo N3A3379
https://cimg6.ibsrv.net/gimg/bikefor...4970261cab.jpg
Centurion Accordo N3A3379
https://cimg7.ibsrv.net/gimg/bikefor...aec6606688.jpg
Centurion Accordo N3A3379

https://cimg2.ibsrv.net/gimg/bikefor...5dd6f210f4.jpg
from VintageCenturion.com

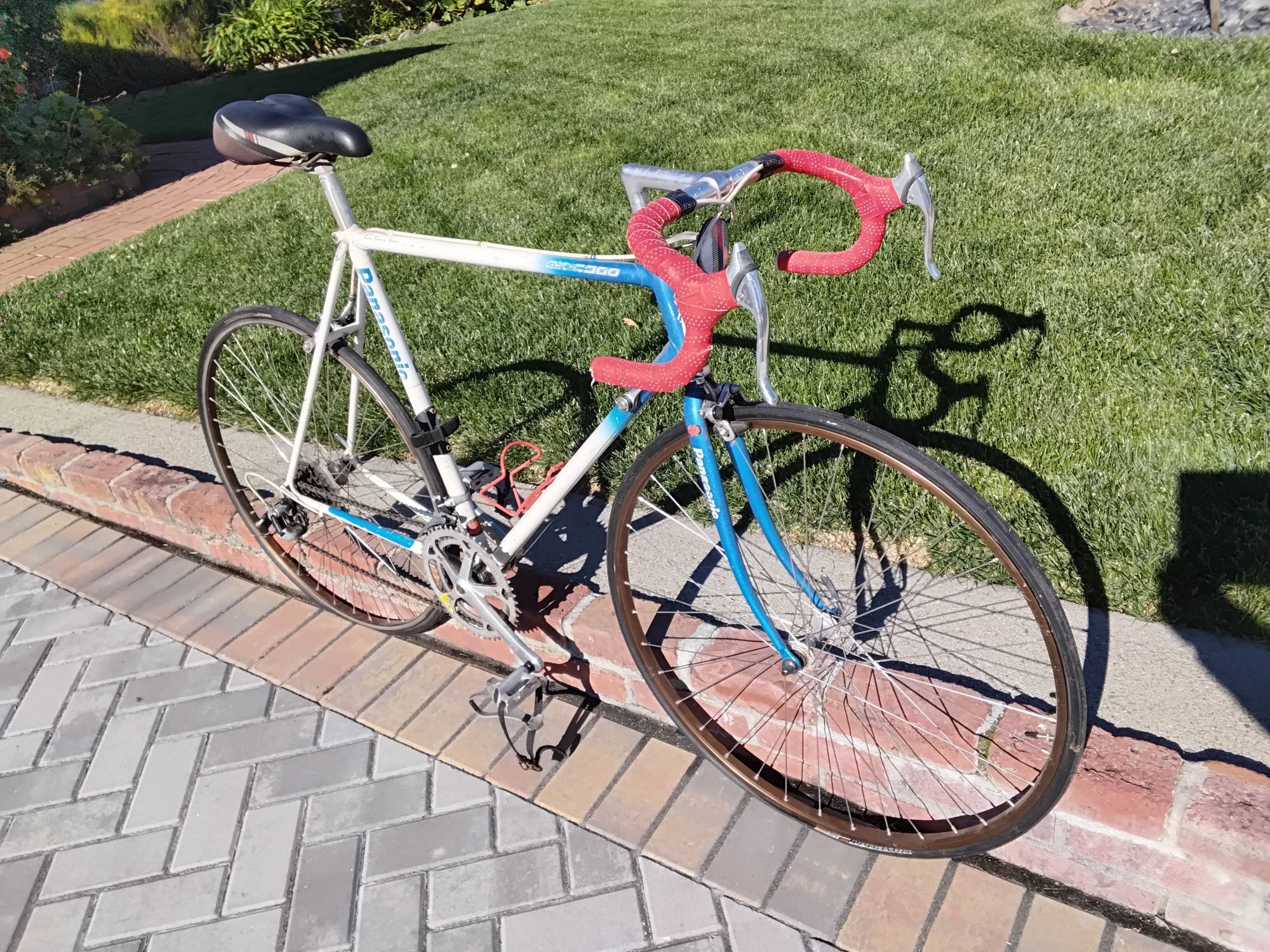

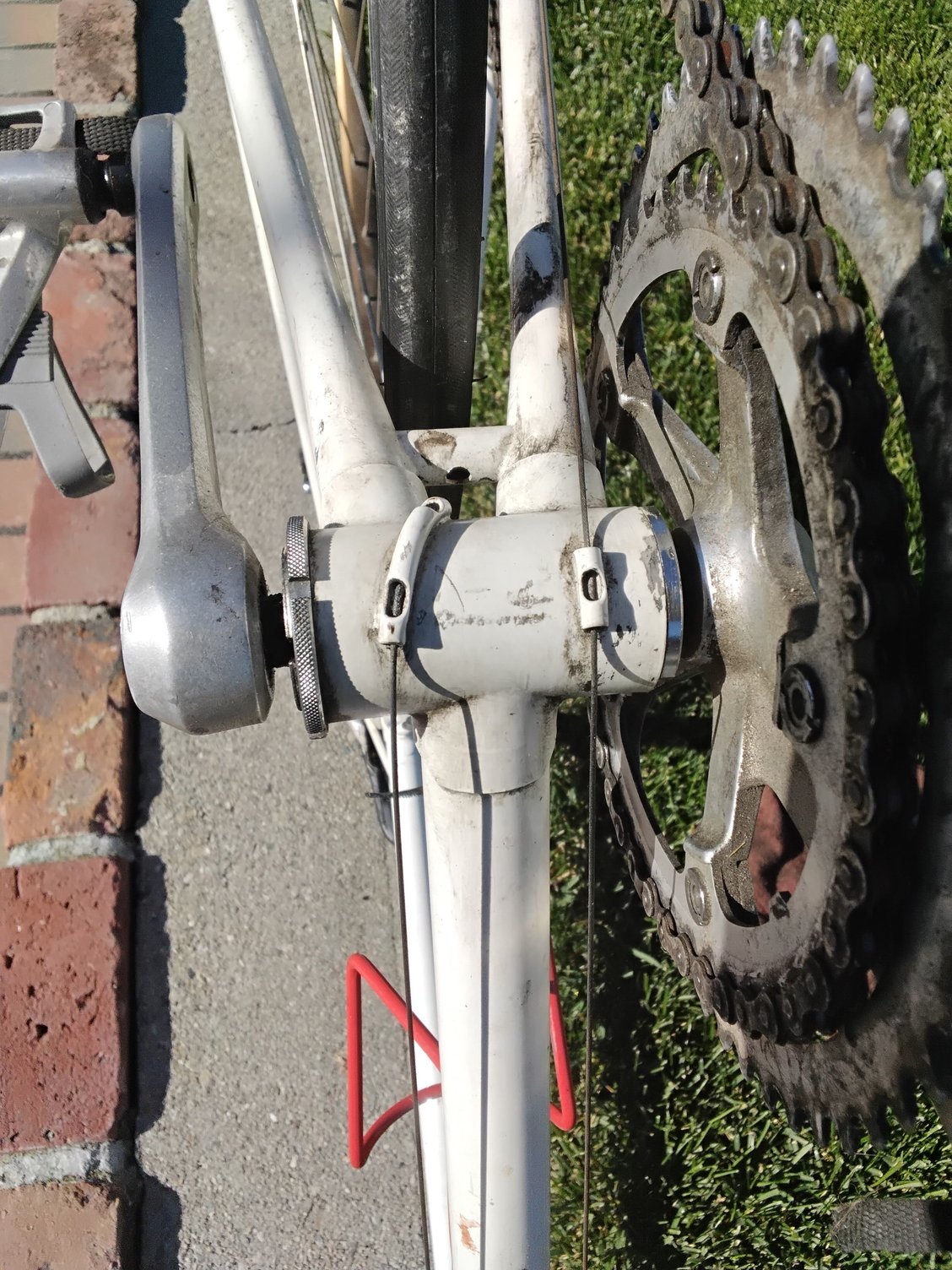

My Eyes aren't what they used to be but I think it's a heavy coat of paint. Panasonic DX4000 that was dropped off for rehab. Of course it has a stuck seatpost.
https://cimg4.ibsrv.net/gimg/bikefor...d90f7352da.jpg
https://cimg5.ibsrv.net/gimg/bikefor...f1e24035d4.jpg

Finally, finally started digging into my 1984 Araya MB26L. It's not done, but it's in fewer pieces than it was. Serial # ARYK411615. After much digging in Araya's catalogs from the time, I found the diamond frame version of this; of course it's in Japanese so I can't tell if it mentions the mixte but it definitely doesn't show it.

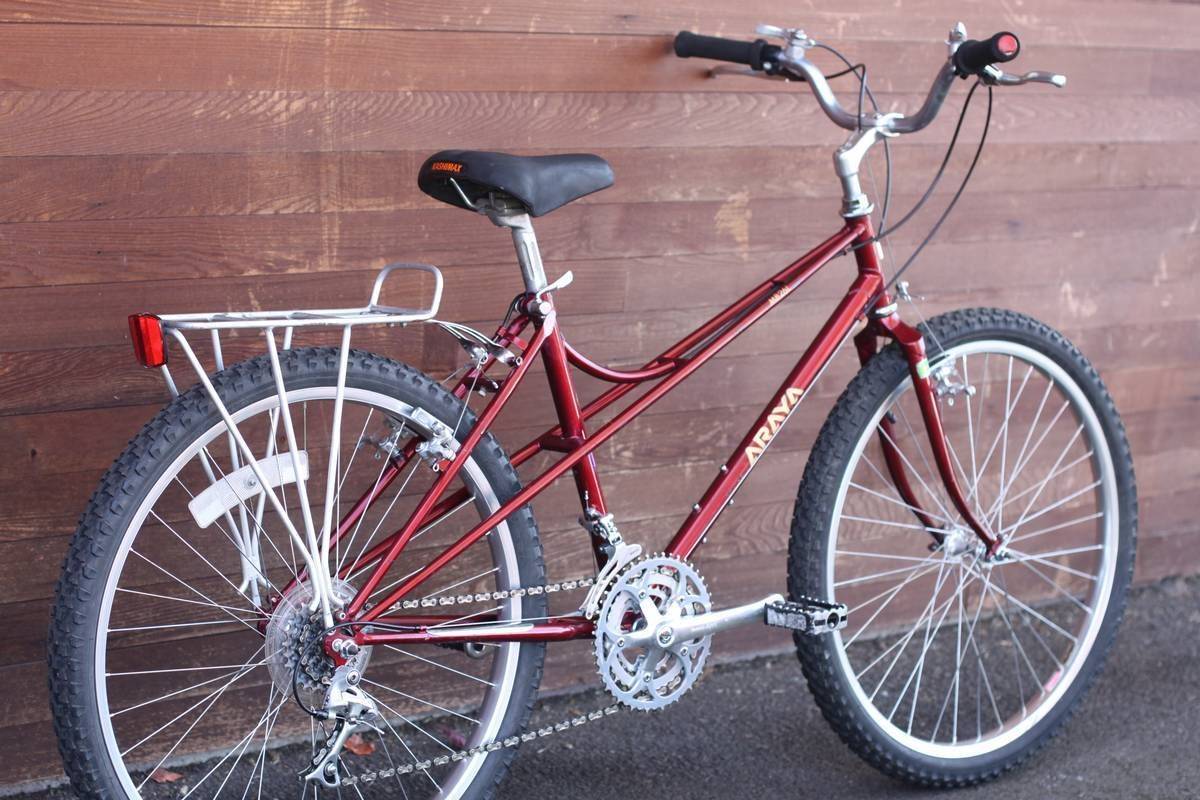

Here's the CL ad photo.


https://cimg1.ibsrv.net/gimg/bikefor...4e6a90dbb4.jpg

For anyone interested, here's the Araya catalog archive; my bike is in the 1983-85 catalog, as near as I can tell on page 5, the MB-MF26B; the stem is the same, the gold decals, the headbadge, the bolted on wheels. I think the RD on mine is a replacement; I couldn't find a name, but the FD is SunTour Mountech. It's all SunTour, including the Power Shifter thumbies, which I love, with Dia-Compe brakes. Judging from the price she's pretty low-end (especially being a "lady's" bike), but damn she's gorgeous. You can't see in the pic, but she's candy apple red with that translucent paint.

If anyone can translate the catalog or know somewhere that can, I'd love to know if I'm right.

[img alt="Does anyone know what year this bike was made?
tanks"]https://cimg4.ibsrv.net/gimg/bikeforums.net-vbulletin/1280x960/602452126_2125208938016632_173908355839913697_n_fa7c54359be12712cbcc753dfcdd3d4233659ceb.jpg[/img]
Does anyone know what year this bike was made? thanks

That's weird; your photo doesn't show up for me on the page, but it does in this quote.

EDIT: Nope, posted and I can't see it, just the ip address.

Graphics are similar to a 98'

Been trying to find information about which manufacturer built this frame, as I want to get it repainted and properly given appropriate decals. I had to come here as a last resort, as ever since I bought the frame before rebuilding, it defied any of my attempts at identifying, having mistakenly thought to be a Muddy Fox, but turned out to be some Mongoose IBOC clone with subtle differences.

Serial number is RY92XXXXXX wrapped around the BB.

https://cimg8.ibsrv.net/gimg/bikefor...72a31f0dca.jpg

bikeforums.net/g/album/38958101

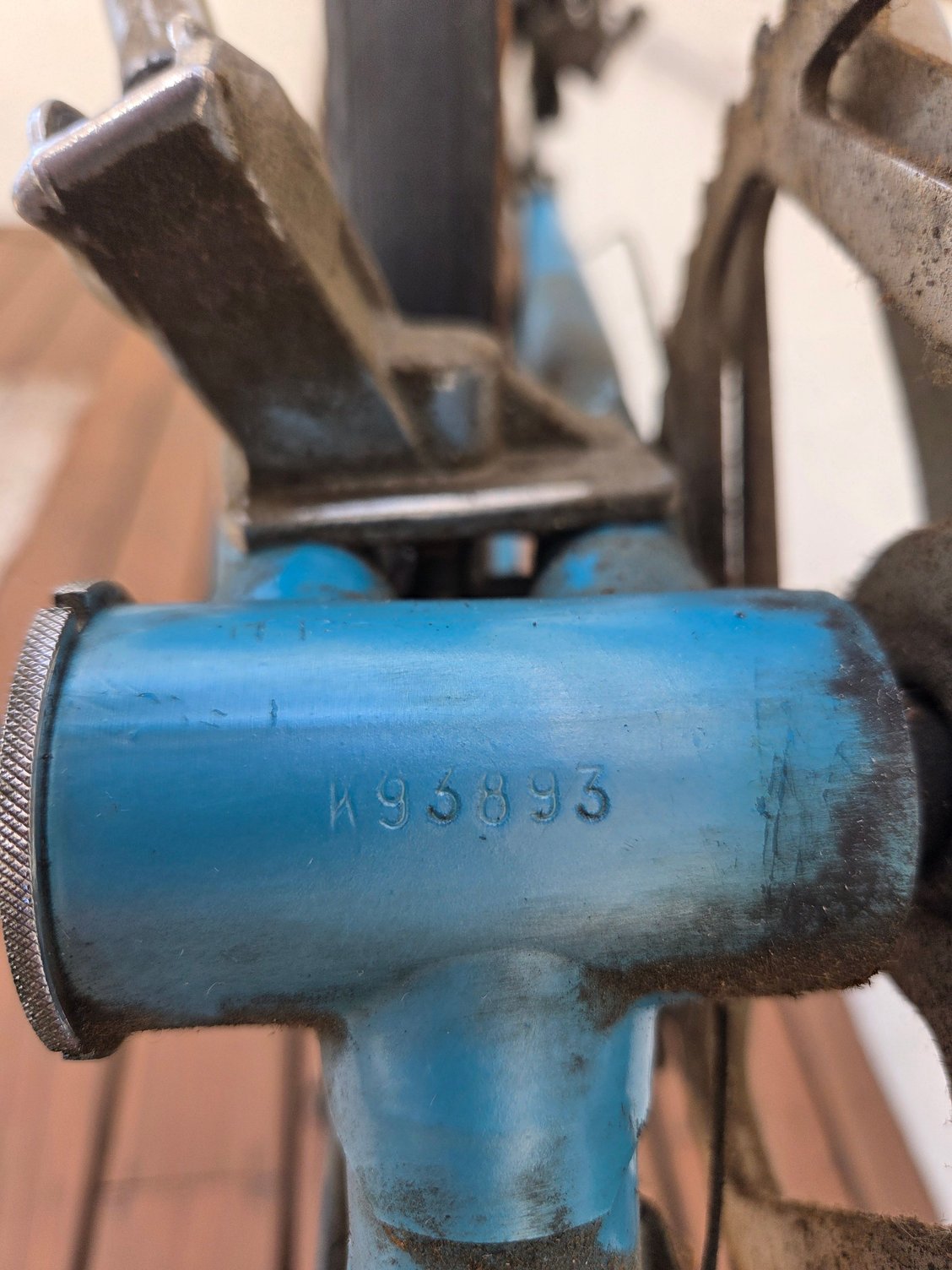

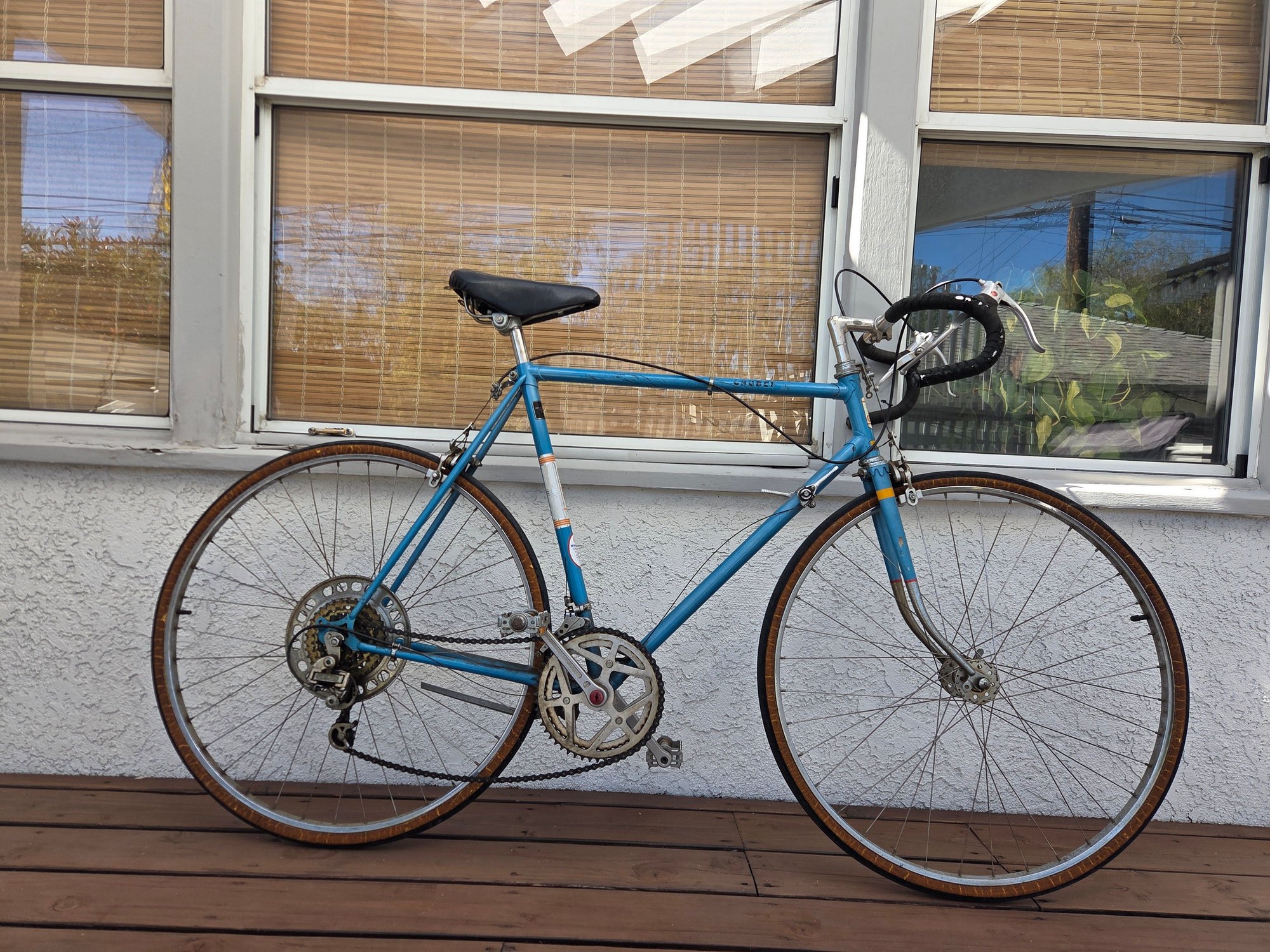

Just picked up a 'Chubei'. Can't make sense of the serial number, any guesses?

K93893


https://cimg3.ibsrv.net/gimg/bikefor...8b7fb9811c.jpg


https://cimg5.ibsrv.net/gimg/bikefor...435c187a96.jpg

That is a great piece of work T-Mar and of great value to many of us. With regard to MIKI (Japan) I understood from Peter White that they used the following: M for Miki followed by the year and month. So M for Miki, 9 for year and D for month.

As UK Marque Enthusiast for Falcon Cycles in the V-CC I have tested this against a number of Falcon frames with known provenance and found it to be accurate.

One always needs to remember, as with all dated components, that the year of their manufacture and the completion of a bicycle are not always exactly the same. One needs to allow for transit time and stock holding, especially over year ends.

Identification Diamond Shimano AX


Still can't figure out the date of my Diamond Shimano AX frame. Full ADAMAS, no code on rear derailleur. Only rear Hub has FH, which should be august 1981
Frame number is 2B14451

In another thread, I found a another one starting with 2B, and that was a 1982... Anyone?

fresh find Rotten Abandonment.
former yard art. crank & freewheel seized. chain rusted solid. tires rotted. seat rotted, spokes rusted, etc.
Centurion Cavaletto mixti.
made in Taiwan decal on the head tube.
Shimano rear derailleur is FD = 1987 April
Serial F7D62 (short!) close fit to FAIRLY (Taiwan): Fymmxxx(xx).
F=Fairly 7=1987 D=April sequence=62
At first I thought it was very faded red but I see other pinks on the www.


https://cimg1.ibsrv.net/gimg/bikefor...58fb61f901.jpg

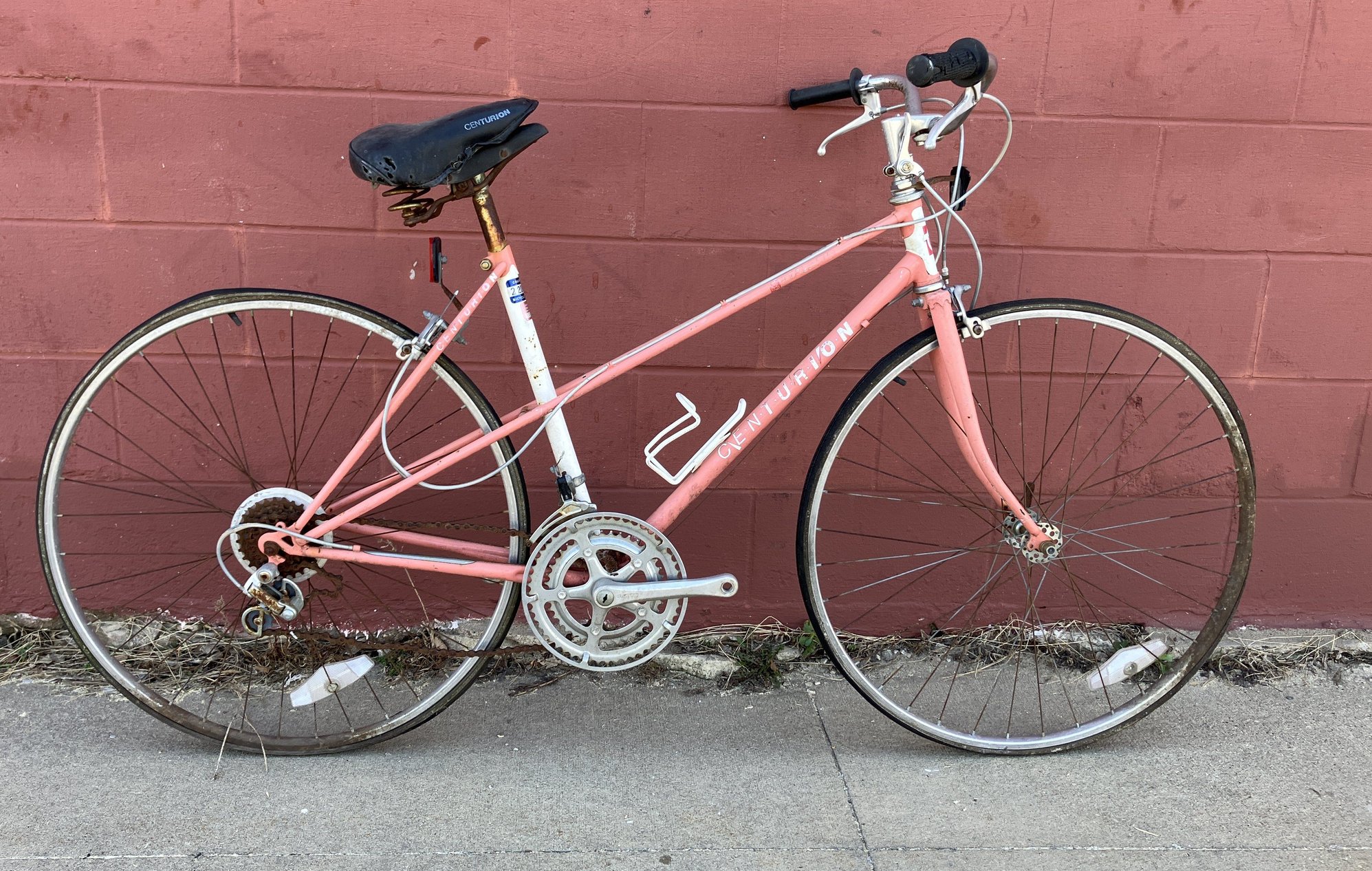

Centurion Cavaletto
https://cimg2.ibsrv.net/gimg/bikefor...4809e11b44.jpg

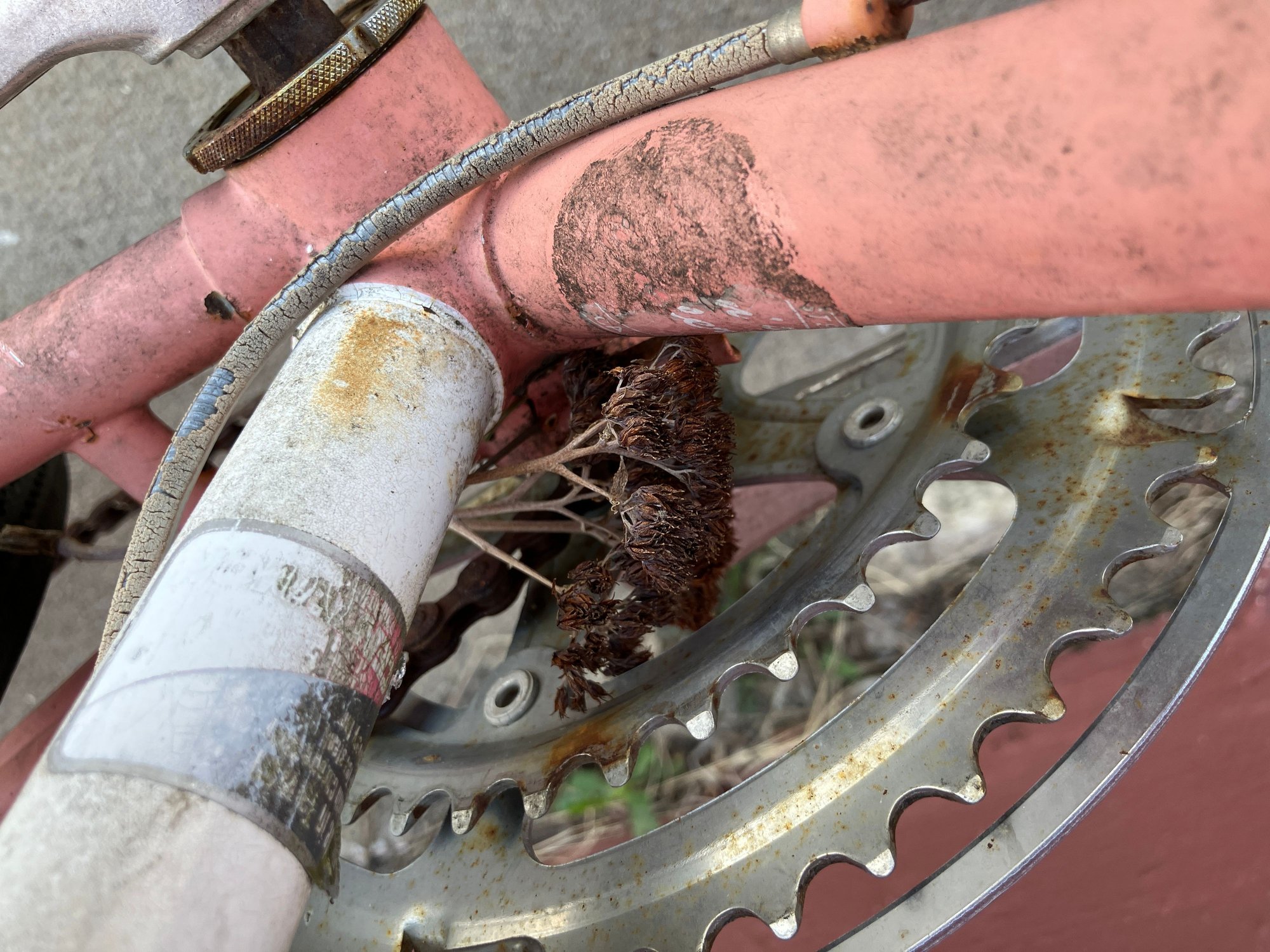

rot & growth
https://cimg3.ibsrv.net/gimg/bikefor...4867f715f7.jpg
F7D62 (sorry about the focus)
https://cimg5.ibsrv.net/gimg/bikefor...ab7459a48b.jpg

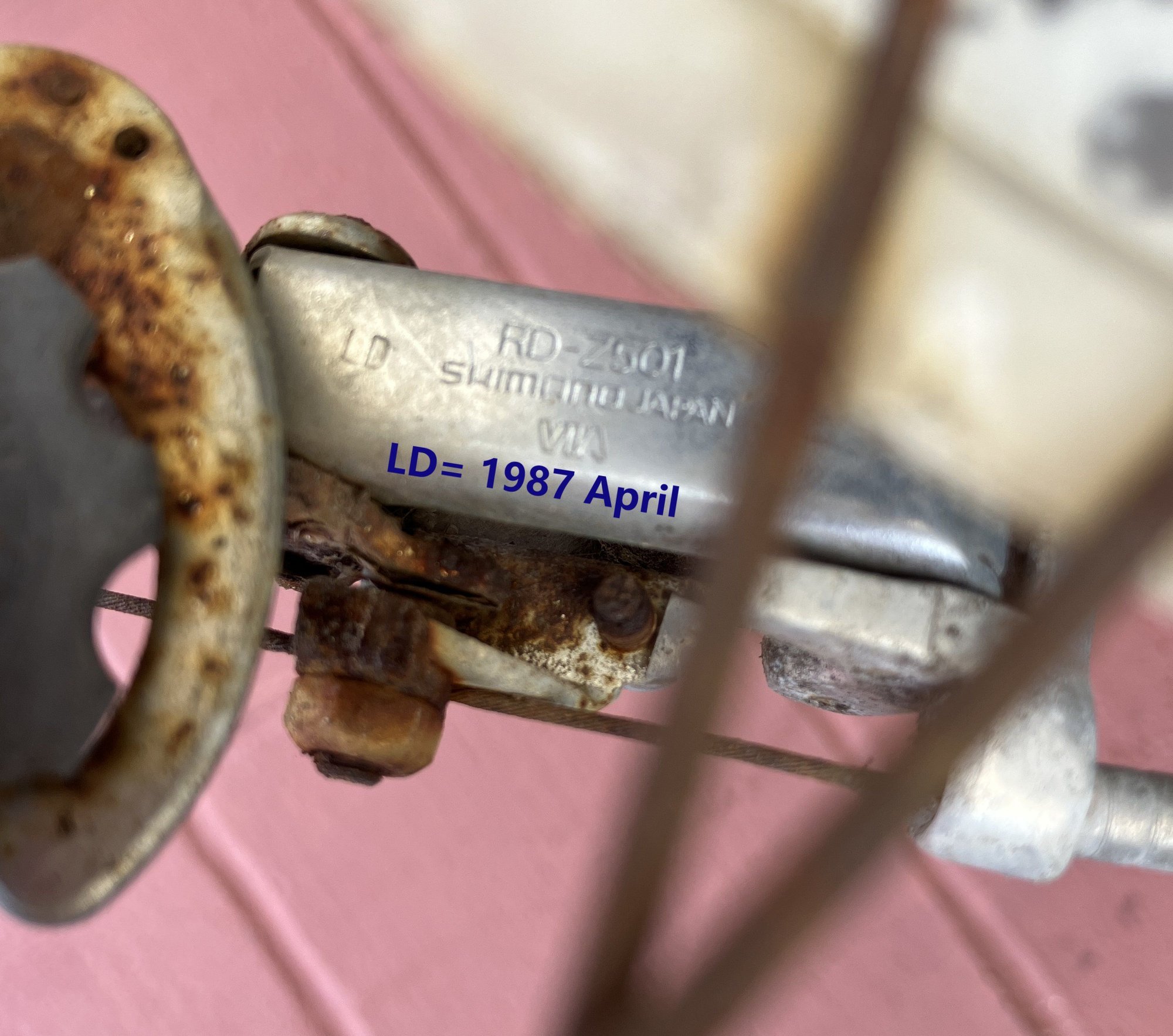

Shimano date code
