Maino 4 speed city/touring bike
#1
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Maino 4 speed city/touring bike
#2
Extraordinary Magnitude
Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,637
Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 2594 Post(s)
Liked 1,670 Times
in
924 Posts
Does yours have a triple plate fork crown?
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
#3
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
#4
Extraordinary Magnitude
Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,637
Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 2594 Post(s)
Liked 1,670 Times
in
924 Posts
It's an attempt to make it look classy!
It's got that old school Italian green thing going on. Congratulations!
It's got that old school Italian green thing going on. Congratulations!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
#5
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
Is lighting system a matched set, all from the same manufacturer?
The large tail lamp - reflector combination resembles one REG used to offer.
Front hub slightly unusual in that it appears to be five-piece steel yet is hollow axle. Is there a name on the barrel? Is skewer something like a Brev Stop?
Is/was there a reflector clamped to the midpoint of the left seat stay? Appears there is a braze-on in the middle of the seat stay on the inner side. Are you able to tell what it is for?
Is rear brake cable routed through top tube?
Frame's head is Agrati "Sport" series while seat lug is Agrati "AM" series.
There are two generations of Campagnolo Sport rear mech. You may be able to bracket the dating of the bicycle by determining with which it is equipped:
VeloBase.com - Component: Campagnolo 1013/2, Sport
VeloBase.com - Component: Campagnolo 1013/3, Sport
The large tail lamp - reflector combination resembles one REG used to offer.
Front hub slightly unusual in that it appears to be five-piece steel yet is hollow axle. Is there a name on the barrel? Is skewer something like a Brev Stop?
Is/was there a reflector clamped to the midpoint of the left seat stay? Appears there is a braze-on in the middle of the seat stay on the inner side. Are you able to tell what it is for?
Is rear brake cable routed through top tube?
Frame's head is Agrati "Sport" series while seat lug is Agrati "AM" series.
There are two generations of Campagnolo Sport rear mech. You may be able to bracket the dating of the bicycle by determining with which it is equipped:
VeloBase.com - Component: Campagnolo 1013/2, Sport
VeloBase.com - Component: Campagnolo 1013/3, Sport
#6
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
There's a wheel lock on the left seat stay.
The rear brake cable is internally routed through the top tube.
The RD looks more like your first link.
The rear brake cable is internally routed through the top tube.
The RD looks more like your first link.
#7
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
#8
Senior Member
Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 2,181
Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes
Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 1,013 Times
in
397 Posts
This may be a useless nit but: there on your front brake cable where it locks into the nut/bolt on the caliper is a green plastic cover. My wife has an Ideor made around 1963 and it has those covers, in red. I've not seen them on any other bikes. Folks may have used them for a narrow window? Could help with dating? Just European or just Italian bikes?? Oh, the Ideor, as you may know, was an Italian maker that (according to CR) finished in 1963.
#9
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
This may be a useless nit but: there on your front brake cable where it locks into the nut/bolt on the caliper is a green plastic cover. My wife has an Ideor made around 1963 and it has those covers, in red. I've not seen them on any other bikes. Folks may have used them for a narrow window? Could help with dating? Just European or just Italian bikes?? Oh, the Ideor, as you may know, was an Italian maker that (according to CR) finished in 1963.
#11
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
#12
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
Looks to be a Nisi Toro and it looks to be kaput.
Corrosion is from electrolysis.
Corrosion is from electrolysis.
Last edited by juvela; 05-01-16 at 06:21 PM. Reason: spellin'
#13
Senior Member
Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 12,138
Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 2986 Post(s)
Liked 3,670 Times
in
1,381 Posts
Sweet bike. Clean the rust and it will be fine. Except the rims, those are toast. The fenders are fantastic. Also, the grips were probably bone at one time.
#14
Senior Member
Join Date: Mar 2007
Posts: 5,737
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Likes: 0
Liked 8 Times
in
8 Posts
Replace them with a modern alloy wheelset... it will shave a good pound off the bike and result in a more lively ride. Tires would need to be replaced as well.
I'd keep everything else - this vintage aspect is part of the charm.
I'd keep everything else - this vintage aspect is part of the charm.
#15
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
A period plausible handgrip to keep an eye out for would be the REG Nr. 348. It is injection moulded plastic made to resemble the colour of horn. Two colours were offered "pale" and "dark." There is a good possibility the machine might have been fitted with it ex-works.
Here is an Umberto Dei wearing a pair:
Here is an Umberto Dei wearing a pair:
Last edited by juvela; 05-01-16 at 07:59 PM. Reason: add images
#16
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
I can't just get a modern wheelset, I don't want to put a cassette on it. I could put some modern rims on nice vintage hubs.
I wonder if it's worth saving the original hubs. They're Campagnolo. They're steel and a little rusted, but they're original. The biggest problem with them is that the freehweel is stuck, but I'm trying destructive removal next.
Less importantly, I got the lights working. The taillight had a bad ground.
What do you think I should do about the chrome? The chainguard has none left. It might be beyond help on the handlebars and stem (which are one piece) and it's definitely beyond help on the brake levers. Is this bike worth re-chroming (not the frame, I think that will clean up fine), or should I just clean it up and live with some patina?
I wonder if it's worth saving the original hubs. They're Campagnolo. They're steel and a little rusted, but they're original. The biggest problem with them is that the freehweel is stuck, but I'm trying destructive removal next.
Less importantly, I got the lights working. The taillight had a bad ground.
What do you think I should do about the chrome? The chainguard has none left. It might be beyond help on the handlebars and stem (which are one piece) and it's definitely beyond help on the brake levers. Is this bike worth re-chroming (not the frame, I think that will clean up fine), or should I just clean it up and live with some patina?
#18
Senior Member
Join Date: Aug 2006
Location: Knoxville, TN
Posts: 1,978
Bikes: Schwinn Paramount P15, Fisher Montare, Proteus, Rivendell Quickbeam
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 4 Times
in
4 Posts
I can't just get a modern wheelset, I don't want to put a cassette on it. I could put some modern rims on nice vintage hubs.
I wonder if it's worth saving the original hubs. They're Campagnolo. They're steel and a little rusted, but they're original. The biggest problem with them is that the freehweel is stuck, but I'm trying destructive removal next.
Less importantly, I got the lights working. The taillight had a bad ground.
What do you think I should do about the chrome? The chainguard has none left. It might be beyond help on the handlebars and stem (which are one piece) and it's definitely beyond help on the brake levers. Is this bike worth re-chroming (not the frame, I think that will clean up fine), or should I just clean it up and live with some patina?
I wonder if it's worth saving the original hubs. They're Campagnolo. They're steel and a little rusted, but they're original. The biggest problem with them is that the freehweel is stuck, but I'm trying destructive removal next.
Less importantly, I got the lights working. The taillight had a bad ground.
What do you think I should do about the chrome? The chainguard has none left. It might be beyond help on the handlebars and stem (which are one piece) and it's definitely beyond help on the brake levers. Is this bike worth re-chroming (not the frame, I think that will clean up fine), or should I just clean it up and live with some patina?
#19
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,277
Mentioned: 413 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Liked 3,256 Times
in
2,124 Posts
wrt gear block removal -
if it is a notched Regina you need a removal tool with the guide ring. then cinch it down good and tight and clamp the tool in a beefy bench vise. the wheel is your removal handle. with the right tool cinched down tight nothing can slip and you will be able to generate enough torque for removal.
if it is a notched Regina you need a removal tool with the guide ring. then cinch it down good and tight and clamp the tool in a beefy bench vise. the wheel is your removal handle. with the right tool cinched down tight nothing can slip and you will be able to generate enough torque for removal.
#20
Senior Member
The replacement rims, are you going to look for ones with the serrated brake surface?
#21
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts

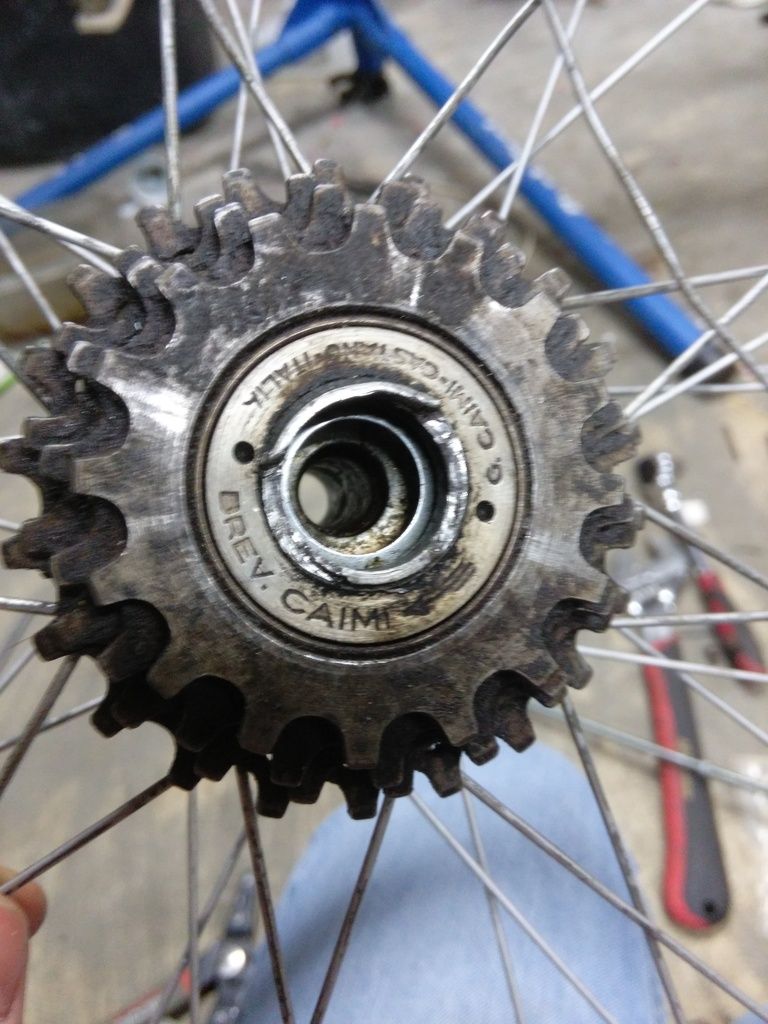

Here's the freewheel.
I got this bike for free because my friend, the previous owner, had given up on freewheel removal. He says he soaked it and everything.
I was leaning towards destructive freewheel removal until I saw eBay prices on 4 speed freewheels. If I can't save this one I might have to convert it to 5 speed. Dropout spacing is already 120mm. I know it would need a new derailleur. What I'm not sure about is the chainring.
I feel like this kind of freewheel would be much easier to remove if the tool had a sleeve or ridge that went down inside the freewheel body to keep it on straight.
Any suggestions?
Edit: 3Speedslow, others are suggesting modern rims, so that would mean no. If I go vintage, maybe. Do they actually help?
I got this bike for free because my friend, the previous owner, had given up on freewheel removal. He says he soaked it and everything.
I was leaning towards destructive freewheel removal until I saw eBay prices on 4 speed freewheels. If I can't save this one I might have to convert it to 5 speed. Dropout spacing is already 120mm. I know it would need a new derailleur. What I'm not sure about is the chainring.
I feel like this kind of freewheel would be much easier to remove if the tool had a sleeve or ridge that went down inside the freewheel body to keep it on straight.
Any suggestions?
Edit: 3Speedslow, others are suggesting modern rims, so that would mean no. If I go vintage, maybe. Do they actually help?
Last edited by Seizedpost; 05-02-16 at 03:32 PM.
#22
Senior Member
Join Date: Jan 2007
Location: Ontario
Posts: 2,648
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 632 Times
in
335 Posts
I had a similar problem getting a Regina single speed freewheel off the Paff. The removal ridges were not quite as bad as yours but clearly others had tried unsuccessfully.
I eventually got it loose through the following combination:
1. Lots of penetrating oil both sides of the freewheel
2. A much bigger chisel than I wanted to use at first
3. After soaking for several days, I applied heat to the hub....enough to make the penetrating oil smoke a bit, but not enough to really get it too hot. Added more penetrating oil immediately and let it soak for a couple more days. Of course, with the single speed the heat gets to the body more easily.
4. Repeat.
5. Use big chisel and firm, well placed strokes (ie. avoid digging more into the body, avoid slipping, etc). It took a few tries but I was rewarded with removal, and after a cleanup there appears to be no permanent damage.
Unfortunately, the 2 replacement Regina freewheels I found in Italy both sold underneath me, so for now I am running some modern chinese clone.... Couldn't reuse the Regina as the teeth are badly hooked from wear.
I eventually got it loose through the following combination:
1. Lots of penetrating oil both sides of the freewheel
2. A much bigger chisel than I wanted to use at first
3. After soaking for several days, I applied heat to the hub....enough to make the penetrating oil smoke a bit, but not enough to really get it too hot. Added more penetrating oil immediately and let it soak for a couple more days. Of course, with the single speed the heat gets to the body more easily.
4. Repeat.
5. Use big chisel and firm, well placed strokes (ie. avoid digging more into the body, avoid slipping, etc). It took a few tries but I was rewarded with removal, and after a cleanup there appears to be no permanent damage.
Unfortunately, the 2 replacement Regina freewheels I found in Italy both sold underneath me, so for now I am running some modern chinese clone.... Couldn't reuse the Regina as the teeth are badly hooked from wear.
#23
Senior Member
Join Date: Jan 2007
Location: Ontario
Posts: 2,648
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 632 Times
in
335 Posts
Oh, and I laced modern alloy rims to the original FB hubs - worked out fabulously - the hubs are smooth as butter after all these years, and the rims look, if not quite period correct, pretty good. New spokes too. My rims were even further gone than your - I could put my fingers through the rim in places.
#24
Bench vise user
Thread Starter
Join Date: Jul 2015
Posts: 533
Bikes: 2004 Orbea Marmaloda, 1982 S12-S LTD, 1956? Maino, 1985 Sagres
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Mark990, My problem is, if I get the freewheel off and can't reuse it a 4 speed freewheel is $100, more than I want to spend on a freewheel. I would consider a five speed, three speed, or single speed conversion, but would any of those work with this hub? Maybe if I re-spaced it?
#25
Senior Member
Join Date: Jan 2007
Location: Ontario
Posts: 2,648
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 632 Times
in
335 Posts
I assumed you are taking it off just to grease the hub and re-lace the wheels - why wouldn't you reuse it? I'd clean up the "removal edges" but its not like you have to take it off regularly.....it looks pretty serviceable to me. Like I said, I would have used my Regina if the teeth weren't worn out!
ps. When putting it back on use some anti-seize (copper or aluminum) so it won't get too badly frozen on next time!
pps. Not sure a 5 speed would fit but I believe you could make a 1 through 3 speed work....single speeds are cheap but not as cool as the multi-gear - not sure 3 speed freewheels are cheaper than the 4-speed.
ps. When putting it back on use some anti-seize (copper or aluminum) so it won't get too badly frozen on next time!
pps. Not sure a 5 speed would fit but I believe you could make a 1 through 3 speed work....single speeds are cheap but not as cool as the multi-gear - not sure 3 speed freewheels are cheaper than the 4-speed.
