Help with parts arrangement for Camp two bolt post

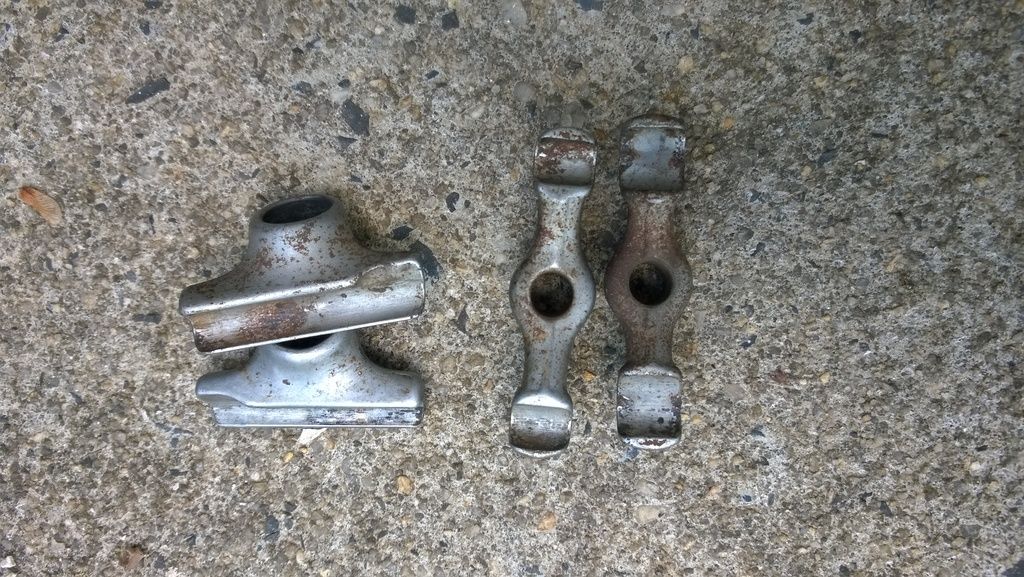

I have this Campy two bolt post, I think it's a Gran Sport but it's similar to other models. I took it apart to try to clean it up a bit and realized the parts aren't all symmetrical.



So the upper clamp bars have different width notches and the lower saddle cradles (excuse my nomenclature) have a widened end. Both of these parts can be oriented toward the front or rear of the seatpost and my search of the internets have shown seatposts with nearly every combination possible.

So anyone want to step up and declare the definitive answer on the orientation of these parts?

Thanks!
__________________
lotekmod is not lotek the moderator.
lotekmod is offline
Old 05-14-16, 02:20 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,119
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1620 Post(s)
Liked 30 Times in 27 Posts
This illustration may help you a bit.

On the upper clamp parts the wider one is the rear and the narrower one the front.

On the lower clamp parts the wide opening goes to the front.

Attached Images
File Type: jpg
juvela is offline
Old 05-14-16, 02:27 PM
  #3
lotekmod
Senior Member
Thread Starter

Join Date: Jul 2008
Location: Columbus OH
Posts: 357

Bikes: '73 Flandria 3 speed, '84 Lotus Legend Compe, '87 Merckx Corsa Extra, '94 Kona Kilauea

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for posting the illustration, that helps, but in the left photo it looks to me like both wide parts are in the front.

Edit: and the parts diagram has the wider one called out as anterior and the narrow one as posterior, so that's that! Thanks!
__________________
lotekmod is not lotek the moderator.
lotekmod is offline
Old 05-14-16, 02:36 PM
  #4
eschlwc
Banned.

Join Date: May 2011
Location: on the beach
Posts: 4,860

Bikes: '73 falcon sr, '76 grand record, '84 davidson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 1 Time in 1 Post
i've had several of these and never noticed the cradle openings are any wider than the others.

i've never worried about it and never had one loosen or slip on a ride.

a tip i'll share is to use a wrench only on the rear bolt. hand tighten the front. adjust saddle tilt like you would adjust the cone of a hub.
eschlwc is offline
Old 05-14-16, 02:50 PM
  #5
artclone
Senior Member

Join Date: Aug 2013
Location: San Francisco
Posts: 1,252

Bikes: '68 Raleigh Suberbe, '92 (German) Centurion Equipe, '85 Schwinn Peloton, 1983ish Zunow Road Racer project, '69 Squanch Super Tourer, 1980 Bianchi Super Corsa, '82 Austro-Daimler Vent Noir, '89 Miyata 914 project, 1982ish Bianchi Rallye

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'll second @eschlwc about finger tightening the front and then wrenching the back. I doubt one could get a normal wrench on the front bolt anyway.

It looks like the illustration shows ways to orient for different rails. Can you line up the top pieces on your saddle to figure out which way ill seat best?
artclone is offline
Old 05-14-16, 02:57 PM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,119
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1620 Post(s)
Liked 30 Times in 27 Posts
in the illustration the lower parts are identified as "sinistro" and as "destro." sinistro if left and destro is right.
juvela is offline
Old 05-14-16, 03:00 PM
  #7
lotekmod
Senior Member
Thread Starter

Join Date: Jul 2008
Location: Columbus OH
Posts: 357

Bikes: '73 Flandria 3 speed, '84 Lotus Legend Compe, '87 Merckx Corsa Extra, '94 Kona Kilauea

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It looks like there are two versions of the seatpost, one for short railed seats (the one with widened notches) and one for long railed saddles (the one with small notches). My guess is the one with widened notches at the front is made that way to allow the saddle to be slid back farther, where the rails would begin to turn in. It all makes sense to me now.
__________________
lotekmod is not lotek the moderator.
lotekmod is offline
Old 05-14-16, 03:13 PM
  #8
Otis
Senior Member

Join Date: Mar 2006
Posts: 2,756
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The wider spaced top clamp goes in the front position. The cutaways in the lower section face forward as well.
__________________
Flickr stuff:

http://www.flickr.com/photos/54616231@N04/
Otis is offline
Old 05-14-16, 03:43 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,119
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1620 Post(s)
Liked 30 Times in 27 Posts
Originally Posted by lotekmod View Post
It looks like there are two versions of the seatpost, one for short railed seats (the one with widened notches) and one for long railed saddles (the one with small notches). My guess is the one with widened notches at the front is made that way to allow the saddle to be slid back farther, where the rails would begin to turn in. It all makes sense to me now.
if you look at the two drawings at the bottom you will see that the two pillars illustrated are made for saddles of differing rail widths.

the pillar shown on the right of the page is made for use with saddles which have a "narrow" as opposed to "standard" width frame.
juvela is offline
Old 05-14-16, 04:14 PM
  #10
Vintage Raleigh
Senior Member

Vintage Raleigh's Avatar

Join Date: Jun 2015
Location: Melbourne, Australia
Posts: 698

Bikes: 1974 Copper Raleigh International, 1975 Olive Green Raleigh Grand Prix, 1974 Raleigh Europa Custom

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just assumed the wider edges were for the rear to allow the seat to be pushed as far back as possible where the rails taper out slightly
Vintage Raleigh is offline
Old 05-14-16, 04:18 PM
  #11
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,992

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Nothing like Italian Design ....I just spent a lot of time this morning figuring this out for myself....where was this thread when I needed it?
Regards, Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Old 05-14-16, 05:55 PM
  #12
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 3,320

Bikes: many

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
I've never had a particular problem getting a wrench on the front bolt. I suppose it depends on the wrench and the saddle. I particularly like the ability to make those small "micro" adjustments. If the saddle is close, but not perfect, you just loosen one a little and tighten the other by a similar amount.

That said, the best wrench for the job, bar none, is a ratcheting flex head wrench, like this:

GearWrench 9910 10mm Flex-Head Combination Ratcheting Wrench - - Amazon.com
smontanaro is offline
Old 05-15-16, 12:47 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,119
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1620 Post(s)
Liked 30 Times in 27 Posts
Originally Posted by smontanaro View Post
I've never had a particular problem getting a wrench on the front bolt. I suppose it depends on the wrench and the saddle. I particularly like the ability to make those small "micro" adjustments. If the saddle is close, but not perfect, you just loosen one a little and tighten the other by a similar amount.

That said, the best wrench for the job, bar none, is a ratcheting flex head wrench, like this:

GearWrench 9910 10mm Flex-Head Combination Ratcheting Wrench - - Amazon.com
+1

And having twelve points instead of the six of the Campag and similar tools is a big plus.
