Shimano RD-M700 Derailleur (Deerhead) Advice Needed

Hi folks, I just bought a Shimano RD-M700 on ebay and it seems fine, maybe, with the exception of one perplexing part. The bolt that the cable adjuster screws into and which also provides a pivot point for the derailleur, swivels. It's not stationary, and therefore, the cable adjuster also swivels. Is this normal, or maybe a case of the bolt originally being press fit and coming loose over the years? It seems a little odd, because I've never encountered a cable adjuster that swivels, and it seems as if it may affect shifting in a negative way, by moving as the cable is tightened during shifting. Also, there is no way to actually tighten and stabilize this bolt built into the design. Any advice appreciated. BTW the original RD-M700 that came with the bike and I have still, had a different setup for cable pass through, but I know the new one hasn't been modded, because I've seen it's setup on original RD-M700s on the web. They are just two different versions of the same model. Thanks, Richard
Trinidor is offline   Reply With Quote
Old 05-18-16, 10:38 AM   #2
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Bikes: are fun!
Posts: 2,648
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)

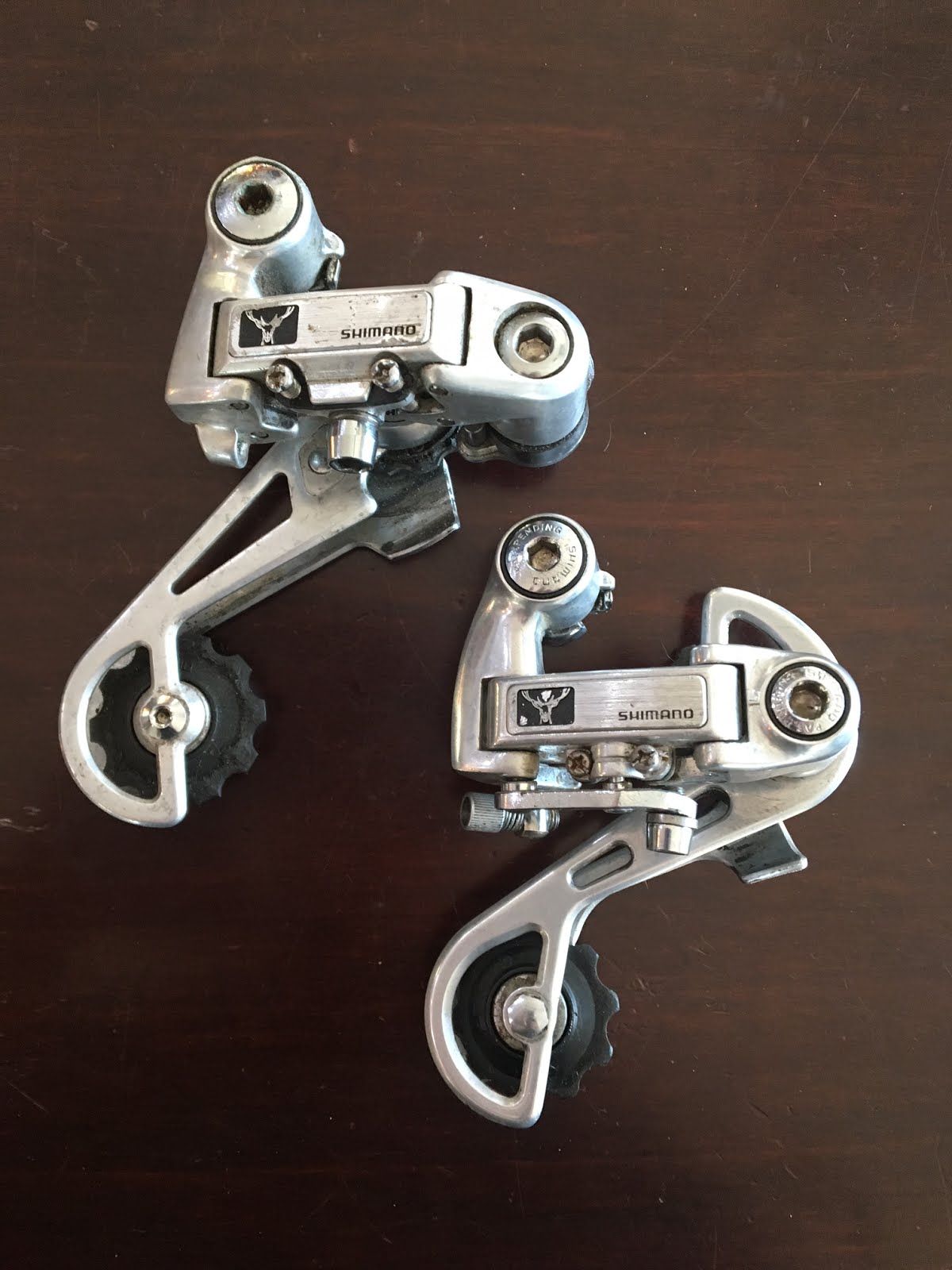

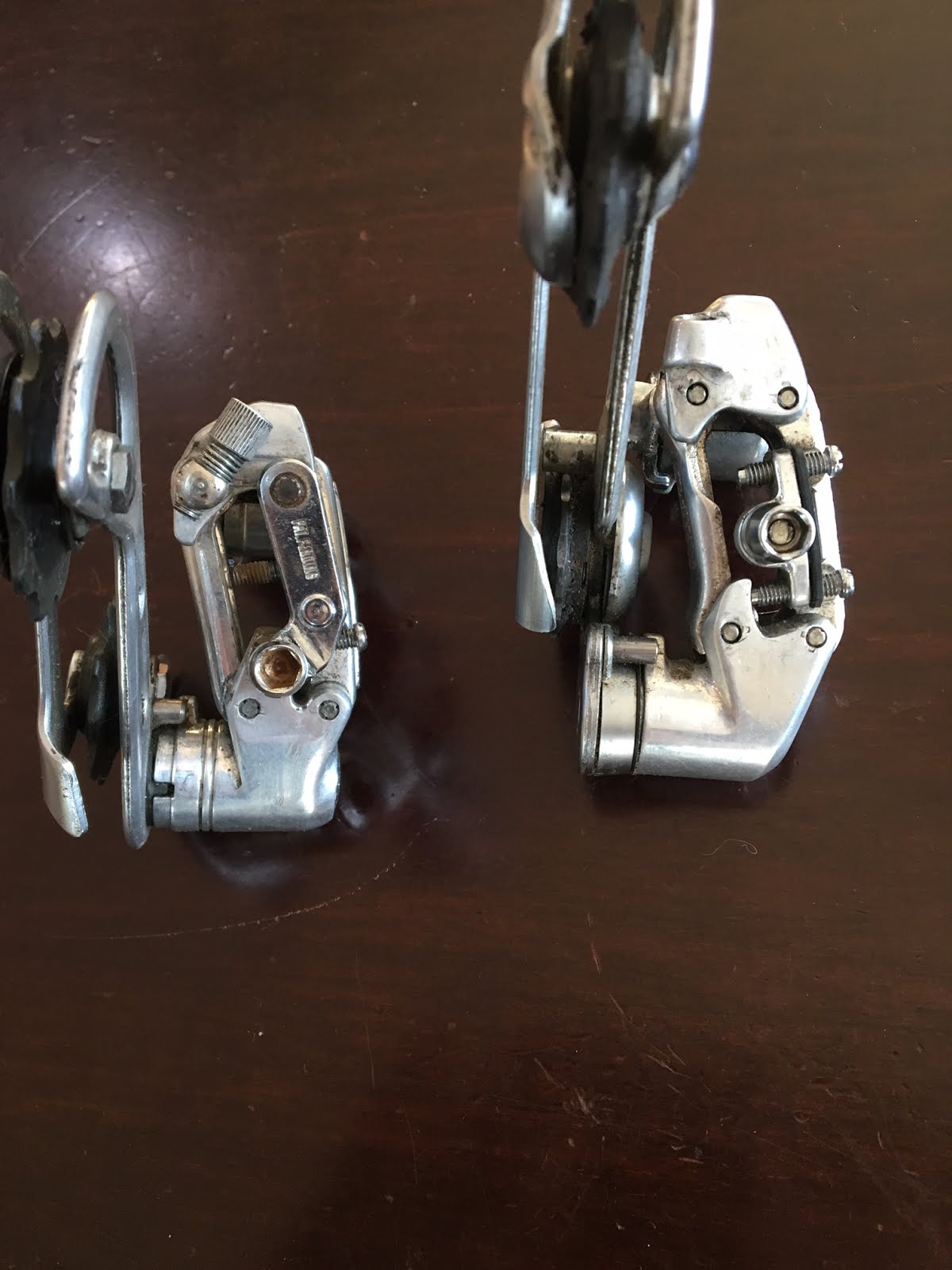

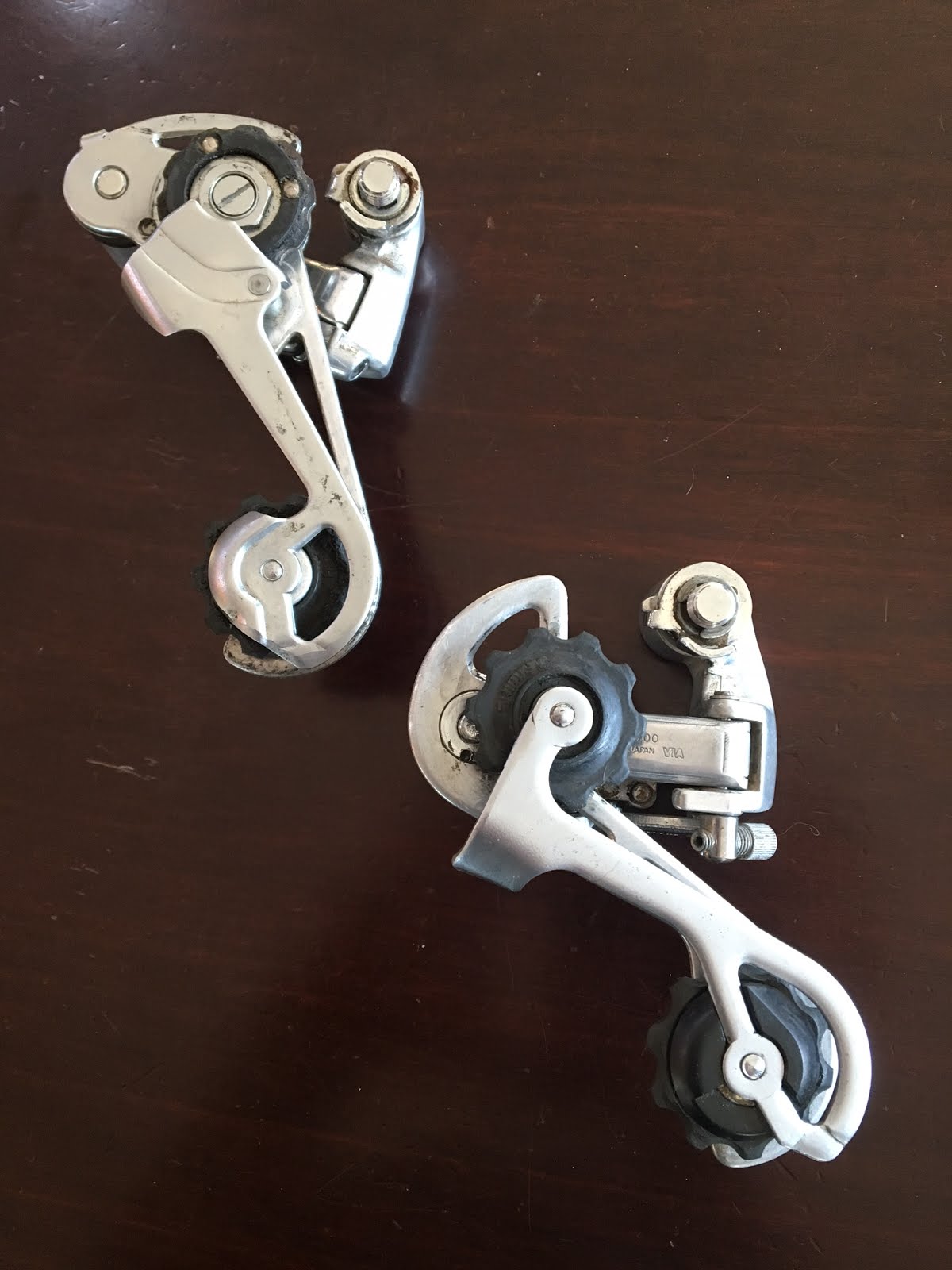

I'm not sure I follow, but can hopefully help. I have a couple of these and each works well. What do you mean by "The bolt that the cable adjuster screws into..."? The barrel/cable adjuster threads into the der. body, are those threads stripped? Can you post a pic? Also, have you installed it yet? Give that a go and see if it works correctly.

On second thought, do you mean the barrel adjuster, or the bolt/nut that anchors the cable to the der? The bolt head should have a flat (from memory, so maybe I'm wrong) that mates to a roughly 'D' shaped hole in the body. Make sure the flats are lined up and the bolt is properly seated as you tighten the nut to anchor the cable.
Sir_Name is offline   Reply With Quote
Old 05-18-16, 11:00 AM   #3
techsensei
Senior Member

Join Date: Aug 2013
Bikes:
Posts: 766
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
No need to wonder or worry; it is normal. There are other Shimano derailleurs of that era with the barrel adjuster on a pivoting mount as well. The pivot was there so that when the derailleur was shifted, the cable would remain straight going to the pinch bolt.
techsensei is offline   Reply With Quote
Old 05-18-16, 11:33 AM   #4
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Quote:
Originally Posted by techsensei View Post
No need to wonder or worry; it is normal. There are other Shimano derailleurs of that era with the barrel adjuster on a pivoting mount as well. The pivot was there so that when the derailleur was shifted, the cable would remain straight going to the pinch bolt.
Yes!!! Thanks so much, techsensei, this is exactly what I had hoped was the case. Sir_Name thanks for the reply as well. I guess, case closed. Maybe Shimano stopped doing that, because it was an extra complication and expense, eh. Now i can put that derailleur on my '86 Fat Chance without trepidation.
Trinidor is offline   Reply With Quote
Old 05-18-16, 11:36 AM   #5
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Bikes:
Posts: 8,728
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Quote:
Originally Posted by Trinidor View Post
my '86 Fat Chance without trepidation.
ooohhhh! photos please!
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline   Reply With Quote
Old 05-18-16, 11:37 AM   #6
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Bikes: are fun!
Posts: 2,648
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)
^Yes please.
Sir_Name is offline   Reply With Quote
Old 05-18-16, 11:41 AM   #7
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thought I'd just show you guys a pic of this little beauty
Attached Images
File Type: jpg IMG_3096.jpg (48.6 KB, 299 views)
Trinidor is offline   Reply With Quote
Old 05-18-16, 11:57 AM   #8
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Bikes: are fun!
Posts: 2,648
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)
Huh, neither of mine have the barrel adjuster mounted on a swivel like that (as stated above...). Pretty neat to see. Wonder if yours is toward the beginning or end of the series (I'd guess toward the end?). Some on eBay are asking stupid high prices for NOS examples...craziness (or maybe an attempt to drive up sale prices of more modest examples).
Sir_Name is offline   Reply With Quote
Old 05-18-16, 11:59 AM   #9
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)

Here you go: custom factory paint, Magura levers, Biopace rings, under chainstay rear brakes, bear trap pedals original deerhead is in pic, (which has a spring issue), all original pretty much except for seat and tires and front rim, which I replaced with as RM-20 with Deore, as opposed to Sansin hub, which is on back. Rides killer!
Attached Images
File Type: jpg IMG_1758.jpg (84.2 KB, 284 views)
File Type: jpg IMG_1759.jpg (68.6 KB, 279 views)
File Type: jpg IMG_1760.jpg (77.1 KB, 451 views)
File Type: jpg IMG_1761.jpg (81.1 KB, 281 views)
File Type: jpg IMG_1762.jpg (90.1 KB, 279 views)
File Type: jpg IMG_1764.jpg (48.9 KB, 282 views)
Trinidor is offline   Reply With Quote
Old 05-18-16, 12:04 PM   #10
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Quote:
Originally Posted by Sir_Name View Post
Huh, neither of mine have the barrel adjuster mounted on a swivel like that (as stated above...). Pretty neat to see. Wonder if yours is toward the beginning or end of the series (I'd guess toward the end?). Some on eBay are asking stupid high prices for NOS examples...craziness (or maybe an attempt to drive up sale prices of more modest examples).
Here's a link to a very cool website with a history of the evolution of the XT derailleur, and a pic of my exact model-http://www.disraeligears.co.uk/Site/Shimano_Deore_XT_derailleur_%28M700_1st_style%29.html
Trinidor is offline   Reply With Quote
Old 05-18-16, 12:15 PM   #11
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Bikes: are fun!
Posts: 2,648
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)
Quote:
Originally Posted by Trinidor View Post
Here's a link to a very cool website with a history of the evolution of the XT derailleur, and a pic of my exact model-http://www.disraeligears.co.uk/Site/Shimano_Deore_XT_derailleur_%28M700_1st_style%29.html
Weird, I stumbled onto that exact page this morning trying to figure out if/how the cage geometry for the front der. changed over the years. Read the page, wasn't paying enough attention to notice the different barrel adjuster mount.....

Killer bike, looks like a lot of fun.
Sir_Name is offline   Reply With Quote
Old 05-18-16, 12:27 PM   #12
techsensei
Senior Member

Join Date: Aug 2013
Bikes:
Posts: 766
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Quote:
Originally Posted by Trinidor View Post
Here's a link to a very cool website with a history of the evolution of the XT derailleur, and a pic of my exact model-http://www.disraeligears.co.uk/Site/Shimano_Deore_XT_derailleur_%28M700_1st_style%29.html
Some had no barrel adjuster; instead, the body had a fixed forged cable stop. This image shows variations of the M700:
techsensei is offline   Reply With Quote
Old 05-18-16, 12:37 PM   #13
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Bikes: are fun!
Posts: 2,648
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)
And none with a swiveling stop, I didn't realize how many iterations there are, neat to see them lined up. Looks like the offset of the parallelogram from the hanger/mounting bolt changed over the years, too (comparing the top two against bottom left). Looks like a function of different pulley geometry for the super plate system.

Last edited by Sir_Name; 05-18-16 at 12:51 PM.
Sir_Name is offline   Reply With Quote
Old 05-18-16, 12:46 PM   #14
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Wow, amazing collection techsensei. The original M700 on my bike was the forged type, top far left in your pic. Do you think the pivoting model was the first?
Trinidor is offline   Reply With Quote
Old 05-18-16, 12:50 PM   #15
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Bikes:
Posts: 8,728
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Quote:
Originally Posted by Trinidor View Post
Wow, amazing collection techsensei. The original M700 on my bike was the forged type, top far left in your pic. Do you think the pivoting model was the first?
Good question, the deore tri-colour rear derailleur had the swiveling barrel adjuster set-up like yours and I think they came out around 1982.

Edit: and if you scroll down in the link you'll the XT stag head just like yours.

http://www.mtb-museum.de/mtb82/shimano-82-83.htm

So I'd guess yours is earlier. There should be a 2 letter date code somewhere.

Edit again: Disraeli gears also corroborates http://www.disraeligears.co.uk/Site/..._style%29.html
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear

Last edited by cyclotoine; 05-18-16 at 12:57 PM.
cyclotoine is offline   Reply With Quote
Old 05-18-16, 12:53 PM   #16
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Quote:
Originally Posted by Trinidor View Post
Wow, amazing collection techsensei. The original M700 on my bike was the forged type, top far left in your pic. Do you think the pivoting model was the first?
I kind of think maybe the swivel was the first version, because the inner hanger piece has no metal flap for keeping the chain close to the bottom pulley. They probably added that later?
Trinidor is offline   Reply With Quote
Old 05-18-16, 01:13 PM   #17
Trinidor
Senior Member
Thread Starter

Join Date: Sep 2012
Bikes: '86 Fat Chance, '86 Bianchi Grizzly, '87 Centurion Ironman, '94 Cannondale Killer V500, Miyata 1000LT
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
[QUOTE=cyclotoine;18778202]Good question, the deore tri-colour rear derailleur had the swiveling barrel adjuster set-up like yours and I think they came out around 1982.

Edit: and if you scroll down in the link you'll the XT stag head just like yours.

1982-1983 Shimano Deore parts

So I'd guess yours is earlier. There should be a 2 letter date code somewhere.

Edit again: Disraeli gears also corroborates Shimano Deore XT derailleur (M700 1st style)[/QUOTE
Yes, you are probably right about the Disraeli Gears reference. Originally, I thought the parenthetical '(First Style') referred to the first style of XT, in general, being the M700, but the corre4ct interpretation is probably a reference to the first style of M700. Anyway, I'm gonna go with that. Thanks for the input. Oh, by the way, I found something that may be a date stamp. It looks like either IE, or 1E

Last edited by Trinidor; 05-18-16 at 01:15 PM. Reason: info
Trinidor is offline   Reply With Quote
Old 05-18-16, 01:21 PM   #18
techsensei
Senior Member

Join Date: Aug 2013
Bikes:
Posts: 766
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Quote:
Originally Posted by Trinidor View Post
Wow, amazing collection techsensei. The original M700 on my bike was the forged type, top far left in your pic. Do you think the pivoting model was the first?
Not my derailleurs or photo; just something I found on the interwebs. I imagine the pivoting mount was first, but I don't know for a fact.
techsensei is offline   Reply With Quote
Old 05-18-16, 03:13 PM   #19
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Bikes: 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT
Posts: 9,666
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Quote:
Originally Posted by techsensei View Post
Some had no barrel adjuster; instead, the body had a fixed forged cable stop. This image shows variations of the M700:
Wow- I knew there was a "Superplate" and one without the Superplate... really cool.


Shimano had a complete and total winner with the M730 crankset...

__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

“You gotta grab life by the lips and yank as hard as you can.”
The Golden Boy is offline   Reply With Quote
Old 01-12-18, 08:05 AM   #20
Tommy1965
Newbie

Tommy1965's Avatar

Join Date: Jan 2018
Bikes:
Posts: 2
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Quote:
Originally Posted by techsensei View Post
Not my derailleurs or photo; just something I found on the interwebs. I imagine the pivoting mount was first, but I don't know for a fact.

They are mine

that running adjuster? for reason of less friction between cable and adjuster, I think
Tommy1965 is offline   Reply With Quote
Old 01-12-18, 08:24 AM   #21
9volt
Senior Member

9volt's Avatar

Join Date: Aug 2007
Location: WI
Bikes:
Posts: 869
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Is this the Deerhead pictures thread?









9volt is online now   Reply With Quote
Old 01-12-18, 08:36 AM   #22
9volt
Senior Member

9volt's Avatar

Join Date: Aug 2007
Location: WI
Bikes:
Posts: 869
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Here are a couple Super Plate versions with slightly different cage and pulley designs. I could use a cage stop pin if anyone has an extra available

9volt is online now   Reply With Quote
Old 01-12-18, 08:43 AM   #23
9volt
Senior Member

9volt's Avatar

Join Date: Aug 2007
Location: WI
Bikes:
Posts: 869
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Date Codes for these 3 Deerhead RDs

IE - 84 May - Pivoting stop
IJ - 84 Oct - Super Plate with plastic backed jockey pulley
JK - 85 Nov - Super Plate with metal backed jockey pulley and cage plate w/ chain guard at idler pulley
9volt is online now   Reply With Quote
Old 01-13-18, 01:17 AM   #24
Tommy1965
Newbie

Tommy1965's Avatar

Join Date: Jan 2018
Bikes:
Posts: 2
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Interesting those plastic backed jockey pulley, i didn't know
Tommy1965 is offline   Reply With Quote
Old 01-13-18, 10:34 AM   #25
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Posts: 5,539
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Quote:
Originally Posted by Tommy1965 View Post
Interesting those plastic backed jockey pulley, i didn't know

The plastic/composite pulley on my Novara Randonee with Deerhead mech came apart, apparently from abuse but I could see all-metal being better for such a composite assembly.
I assume the all-metal pulley came later.
dddd is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 04:26 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    get answers from real people!
Click to start entering your question.
I HAVE A QUESTION
