2cam16

Worked on my '94 Stumpy this morning. Added a set of black LX cantis and switched my bars to black and also my wheel skewers. It's an almost all LX groupset now sans the shifters and levers.
IMG_5286 by 2cam16, on Flickr
IMG_5288 by 2cam16, on Flickr

JaccoW

Did a parts bin build for a neighbour using the 1995 Koga-Miyata Adventure I bought for cheap last year. She's happy and a lot faster now.

It was originally a 15.3kg (33lbs) hybrid with splined triple butted tubing. I believe we did bring the weight down a bit as it feels pretty light but it's just a zippy commuter now. The original chainguard is hanging on by a thread but she will probably look at replacing that when it really breaks down.

randyjawa

Assembled yesterday and took a pic, or two, in the sunlight to see how the paint brush paint job looks in real light (still need a drive chain)...

DorkDisk

I've been taking too long with this one; might try to push it out next week. It is supposed to be a winter bike.


1994 Trek Multitrack 750

Mr. 66

The Trek 716 got the headset rebuilt, new saddle, the raisedsaddle 3/16", and installed lights on the bike and helmet.



The 716 has become my night rider.

capnjonny

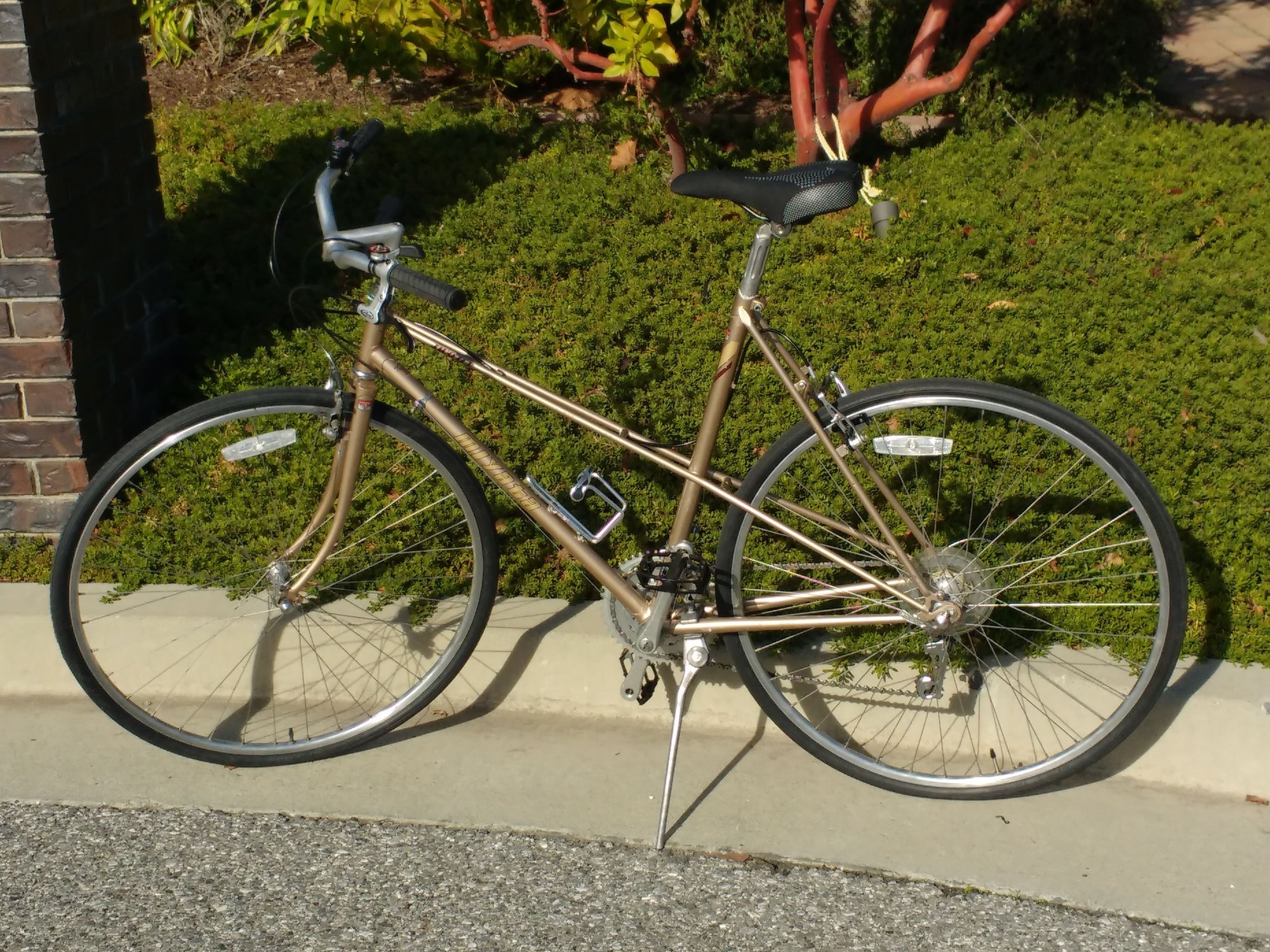

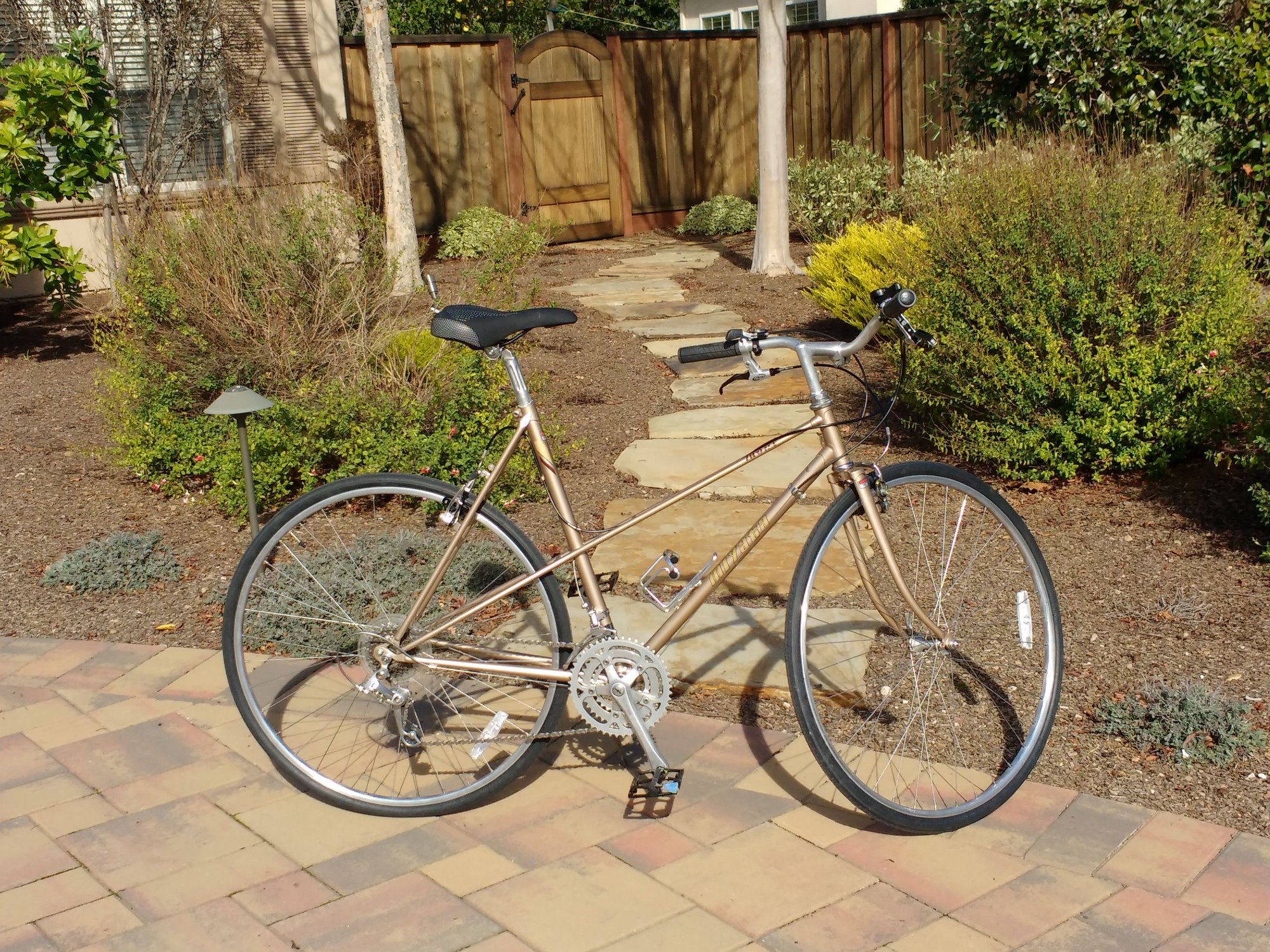

At the Bike Exchange you never know what you will find in the always changing rows of donated bikes waiting to be fixed up for donation or sale. I go I at least once a week and look for quality bikes that are bedraggled and in need of a bath but have good bones and, with a thorough cleaning and some new or new/ used parts, can be made to look and ride as good or better then new. I love Mixte’s and I love Miyata’s so when I saw this one I knew I was going to take it home. The paint reminded me of the gold Miyata touring 1000 I fixed up last year. Too bad we sold it (instantly) as they would have made a great pair.



The first thing to go were the drop bars. These should be city bikes and upright bars are perfect. The original gearing was (14-28) 6 speed rear and (52-45-28) triple front but who wants to double shift all the time so I swapped in 48 and 38 tooth rings. I love this set up as it gives you 3 discrete gear ranges, big for downhill, middle for flats, and small for hills.



Also changed were the shifters from downtube to thumbies, another passion of mine. You never have to take your hands off the bars or your eyes off the road. The bike originally had cantilever brakes. I have been doing a lot of vintage mountain bikes with Canti’s that I have been swapping out with v brakes because they are easier to set up and adjust and we have lots of v brake parts and levers in the shop. Also I think they update the look of the bike. Lastly, I put on a pair of platform pedals. We aren’t allowed to put clips and straps on pedals and these are a great alternative.



Hope you all like the result. The bike should sell fast. It is a real beauty

ascherer

Lacing a Velo Orange PBP rim to the Sturmey XR-F8 on my commuter.

dunrobin

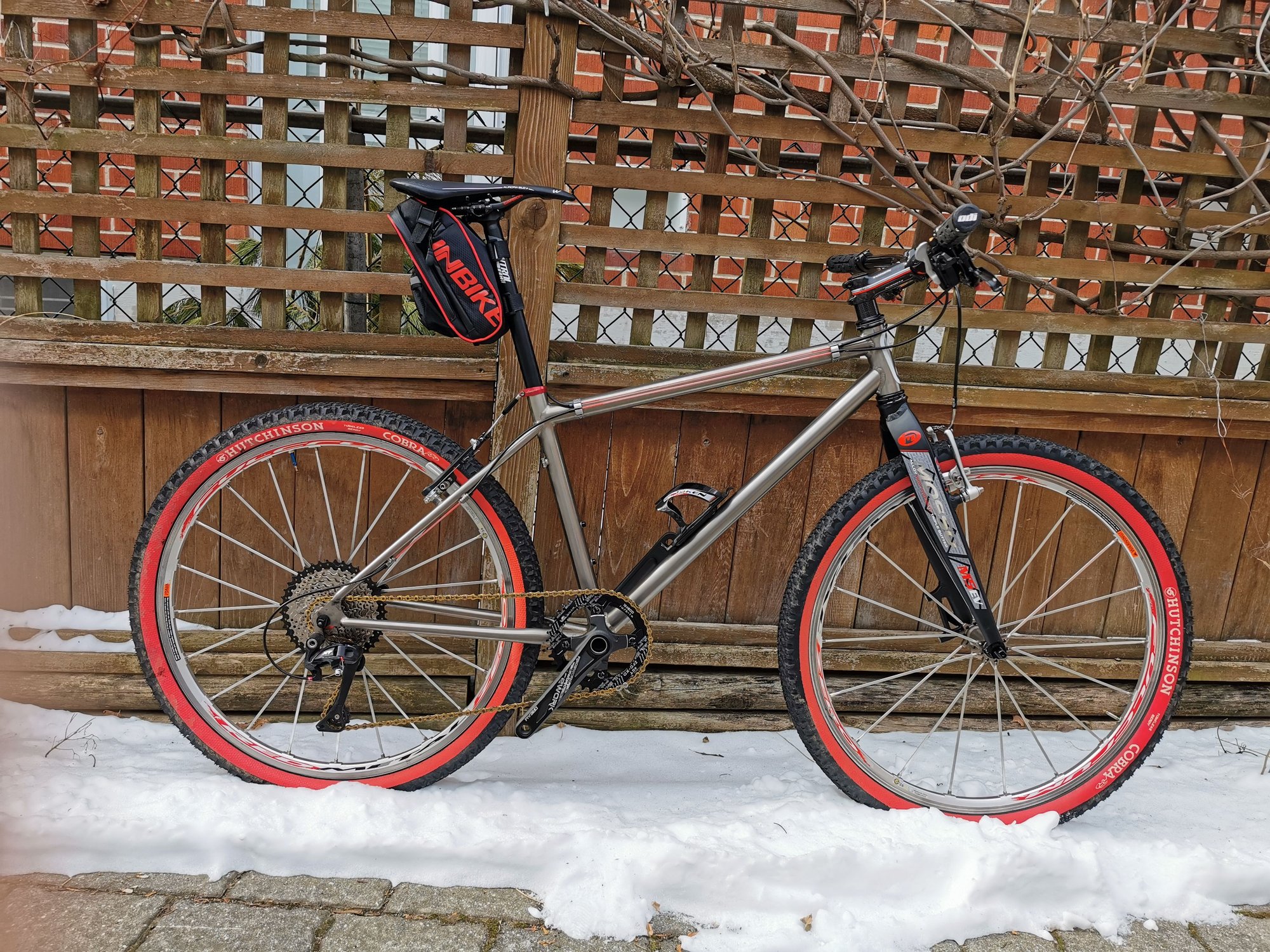

Changed the front fork to a rigid.. Changed the drivetrain to a 1x10. Pre 90s Raleigh ti tomac. Weighs under 20lbs without pedals for a 16".

Nemosengineer

Brought a 65 year old 400 horsepower Worthington high pressure (400 psi) compressor back from death's door. The mounting ear cracked off the loader valve, so weld repair with structural stiffener attached with 8 ea. 5'16" bolts.

20210127_085006 by nemosengineer, on Flickr

IMG_20210128_090505_01 by nemosengineer, on Flickr

IMG_20210128_120524_01 by nemosengineer, on Flickr

IMG_20210201_072306_01 by nemosengineer, on Flickr

8 hours later back in operation.

20210201_120420_HDR by nemosengineer, on Flickr

: Mike

Chuck M

I couldn't get the old spokes on this 54 year old wheel to look as good as the hub and rim, so new stainless spoke were installed tonight. Tomorrow, the rear wheel gets the same treatment.

xiaoman1

Mike,
If only I had the access to equipment like you do.....Nice work...!!!!
Best, Ben

billnuke1

Exactly what operation would that be? Opening and/or closing large valves...

Nemosengineer

Two spring loaded valves internal to the compressor are actuated by diaphragms in two housings with pushrods attached.
At rest the compressor inlet is isolated from the low pressure (100 psi) supply air system that feeds the compressor, this is the load control diaphragm in the repaired housing.
The second diaphragm controls a valve that opens a port to a exhaust manifold, this is the unloader diaphragm in its own housing.
This is the ready state for compressor start up. As the compressor comes up to speed (400 rpm) the pressure on the diaphragms is released and air is compressed and discharged through a check valve.
The high pressure air system receiver tanks are maintained at roughly 400 psi.

This is what C&V looks like.
20210204_133741_HDR by nemosengineer, on Flickr

: Mike

Nemosengineer

Thanks Ben,
The only downside is work has me running at WFO, doing 12 hour days, so no play time. This needs pictures...
This is my bicycle tab and bracket mill with 100% China content and a German chuck, very handy for small stuff, total cost under $200 , very handy.
It only took about 20 hours to build it, most of it in getting the cross slide to actually work. sadly I had to lube it with copper anti seize because oil wasn't doing it.


20181223_133312 by nemosengineer, on Flickr

Best Wishes: Mike

xiaoman1

Mike,
I understand the demands of the real job but my access to shops at UCLA are limited to CNC, laser cutting and very limited metalworking equipment (wood of course). It would be nice to have some real equipment handy...even though I would have a steep learning curve ahead.
I used to have access to a body shop and worked with a frame alignment jig that was great at straightening frame as well as a spot weld gun that was great at pulling small dents (no rolling blocks) but the shop is long gone....nice to see that you aren't afraid to buy internationally.
What will we do with all the great CAD drawings when no one knows how to make machines....I guess 3-d print and bots.
Anyhow nice work.
Best, Ben

billnuke1

Oh, man! I read brought as bought!🤭

JaccoW

Installed a front rack and bottle cage today. The new headset will have to wait until the shops are open again.

JacobLee

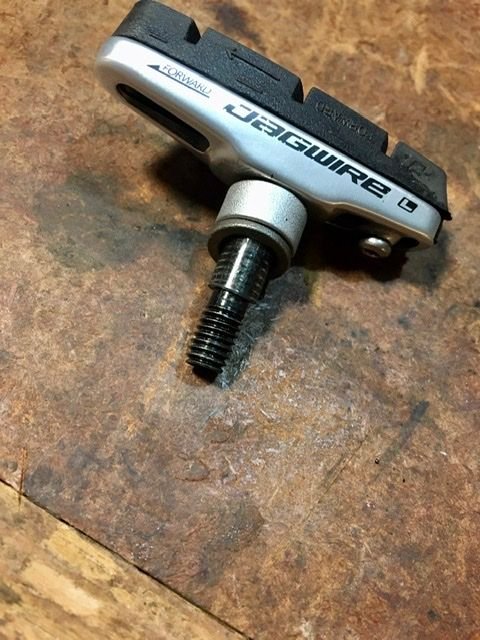

Speaking of Miyatas, I’ve been trying to get these cyclocross cartridge pads to work with the Dura-Ace centerpulls that someone installed on my 82 610.



I’ve had no problems using them on a couple of sets of Weinmanns on my Raleighs, but on these Shimano brakes they slowly creep forward and rotate in the caliper arm. I guess they don’t have the same clamping surface as a block style pad. The bike also came to me with a narrowish set of 700c wheels, so salmon Kool-Stops aren’t thick enough to hit the rim squarely.

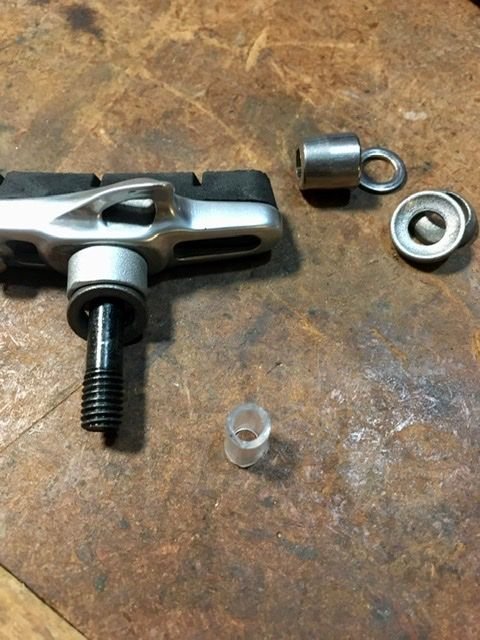

I cut a little piece of 1/4” tubing and slipped it over the stud on the brake pad. Hopefully, this will keep it centered in the arm, and hopefully if it doesn’t creep forward, it also won’t rotate up in the back.



We’ll see. The bike originally came with sidepulls, so if I had to throw on a set of Tektro 559s, it wouldn’t be the end of the world.

Anybody experience rotating pads before? Maybe I’m missing something!

Mogens

Hey, quick question: I'd like to buy a cartridge style bottom bracket for a trek 420. I'm using a Sugino Maxy crankset with a single chainring. I've been looking at charts, searching through forums, googling like mad, and I feel completely mystified by the standards, spindle lengths, etc. Anyone either have a decent resource to suggest or know this stuff offhand? Thanks!

malcala622

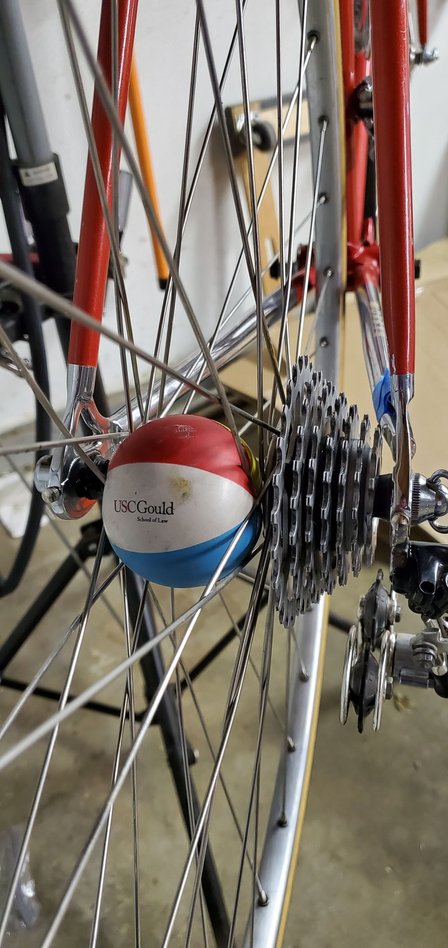

I noticed the smallest cog from my freewheel was too close to the DS drop. Using a crankset from my Gios and a chain I had absolutely no clearance. I moved the silver spacer from the NDS to DS of the hub axle. Worked perfectly.

Also did a quick new grease job on the hub bearings.

merziac

Often nothing quick about this, many a lad have had plenty of experience with this and still get reduced to mush by it. a collection of items and a serious hunt and peck, swap in and swap out till you get there is what it can take.

Also plenty here that know this sort of thing much better, hopefully they will chime in.

SurferRosa

As far as spindle length goes, I look for a chainline around 4.3-4.5 cm as measured from the middle of the seat tube to the middle of the two chainrings (if using a double with two chainrings).

noglider

@JacobLee, I suggest you replace those calipers. Despite the Dura Ace name, these are not very good. It was the first time they used that name, and it was later when they decided to put it on their best offerings.

JacobLee

I’m inclined to agree with you on this, Tom. I knew they were nothing special, but they are a bit of a novelty, so I thought I’d give ‘em a shot. I’ve been able to keep the pads from moving around, but I’m still not sure I’m in love with them. Took a ride yesterday with some really steep descents and they were just barely cutting it. They seem to do pretty well on Ebay!

SurferRosa

@JacobLee, I'd replace the pads before you replace the calipers. Pads with long studs, even though they're threaded, remind me of the type usually used with cantilevers. Those aren't necessary at all with your center pulls and just make things more complex than they need to be. And they look a little out of place.
