Old 10-03-22, 12:14 PM
  #5401
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
I've found Bleche Wite Tire Cleaner to do a bang up job on old dirty hoods.
dpmoo is offline
Likes For dpmoo:
Old 10-03-22, 03:20 PM
  #5402
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,274

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 PeugeotPX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 1,678 Times in 645 Posts

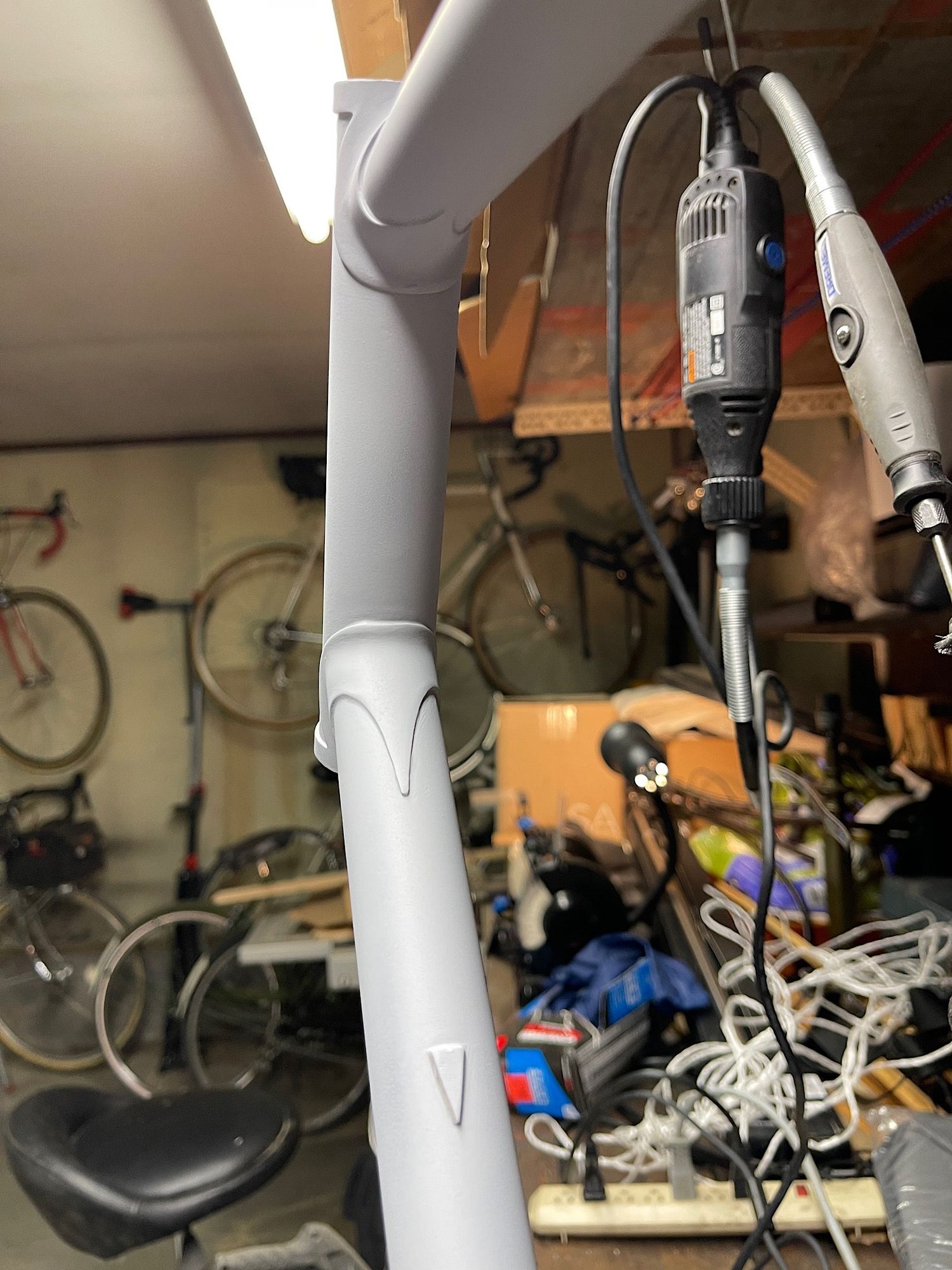

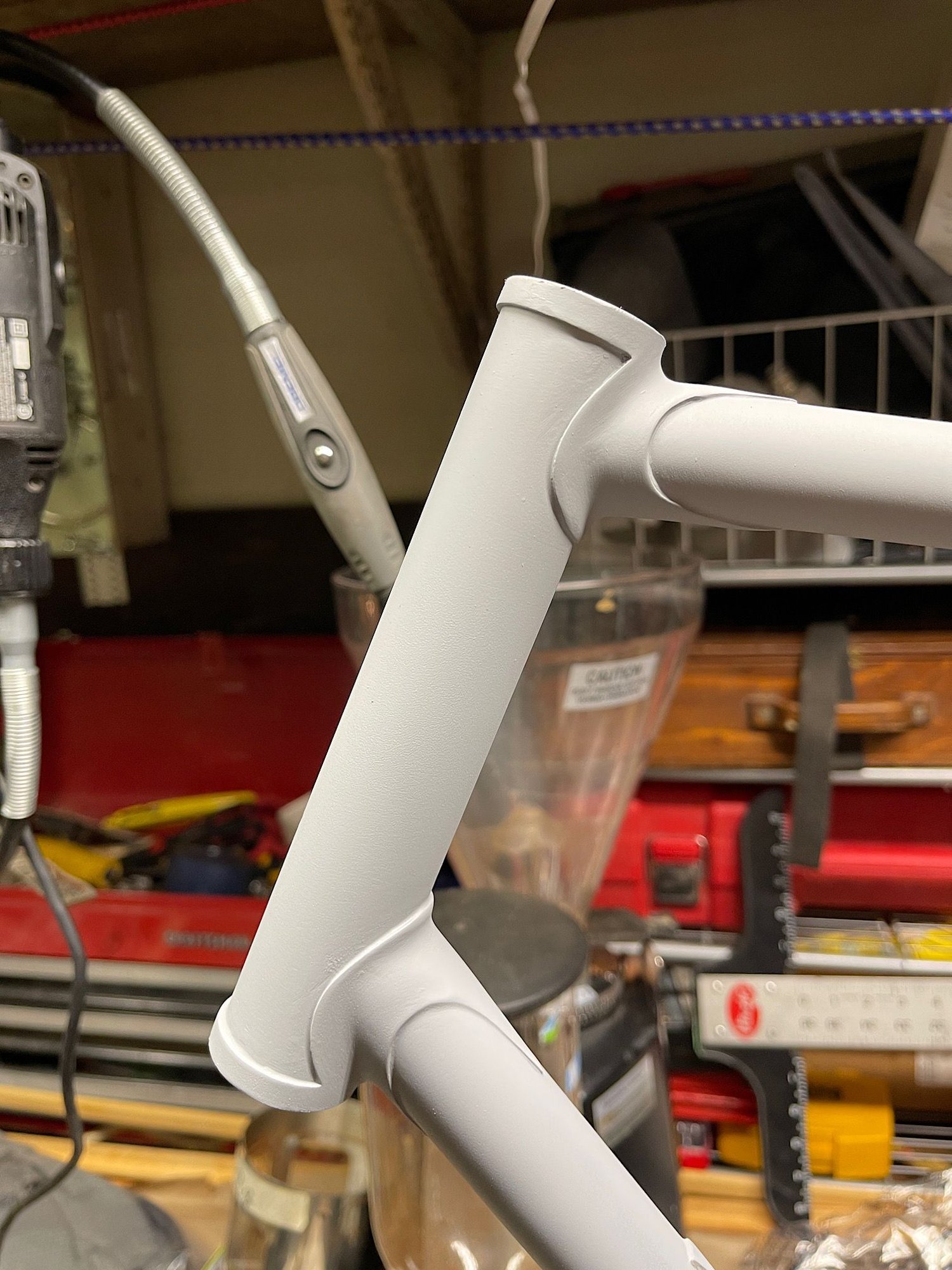

I decided that Iíd reached the point of diminishing returns (and temperatures) and decided to prime the Falcon frame. I attacked a few more bits, masked the stays, wiped it down and hit it with spray.bike primer out in shed #3 which is a former standby generator shed. Iíd rate my coverage 90%, and as expected it revealed a few spots that rub my OCD-ness just right. So Iíll tend to them next weekend and see if I can get the color on it. Decals from Greg Softley are clearing customs, some may go down before the 2K gloss coat, specifically the Reynolds ones and maybe the ďErnie ClementsĒ ones, but Iím thinking of putting the foil Falcon ones on top. Canít say why. Change my mind?



__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport




ascherer is offline
Likes For ascherer:
Old 10-03-22, 03:38 PM
  #5403
RCMoeur
Junior Member

RCMoeur's Avatar

Join Date: Nov 2021
Location: Phoenix, AZ
Posts: 147
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 145 Times in 74 Posts

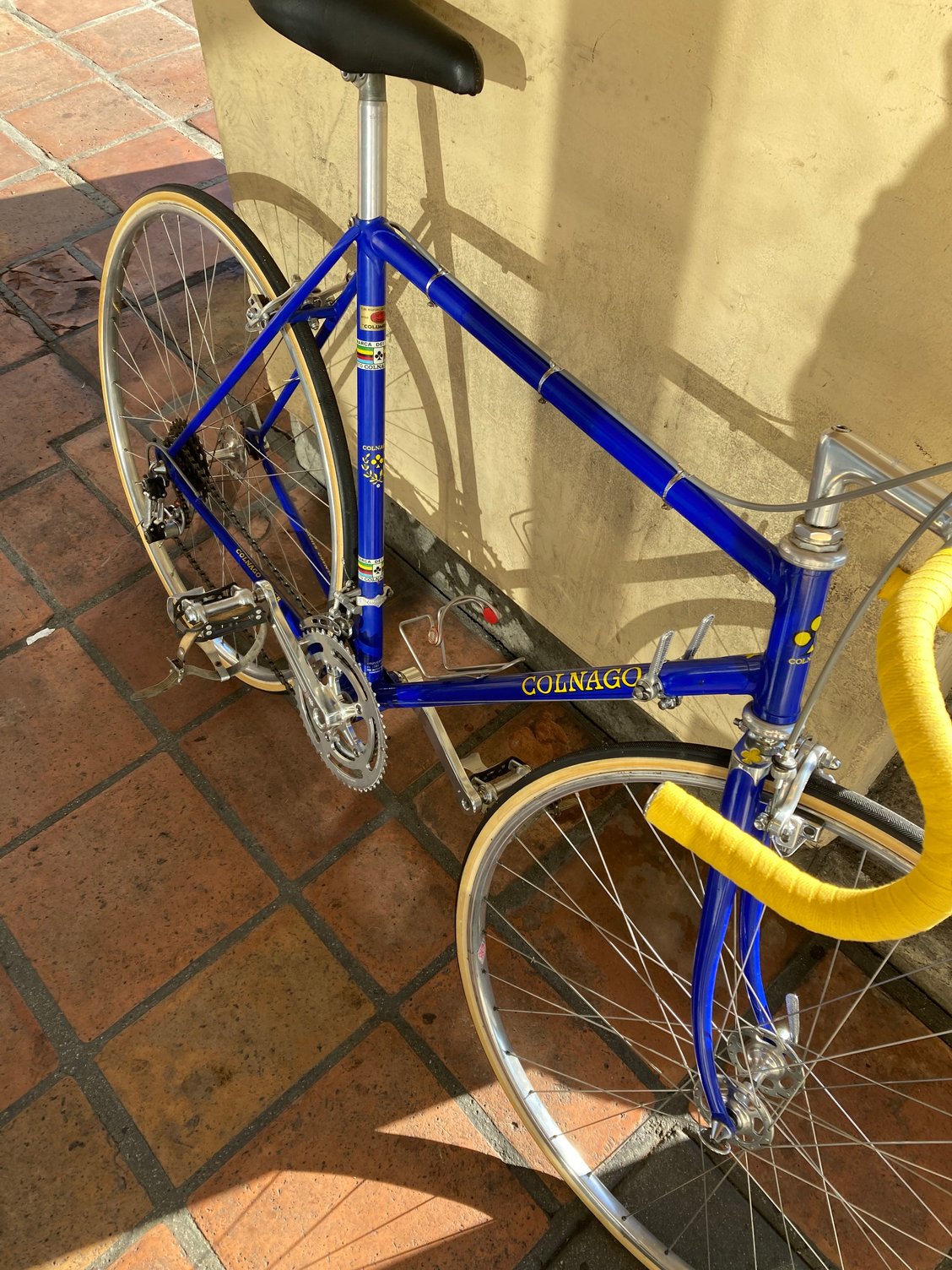

Bike-fixing season is in, well, high gear in our area, and I now have 28 donated bikes in various degrees of disarray in the back yard and garage, not counting our own family's bikes. Many of these are going to the Recycle Your Bicycle program for foster kids in the Phoenix area, and some are going to a local church's bike giveaway program. Five nicer bikes went to the Rusty Spoke bike cooperative downtown yesterday morning.

Most of the fixer-upper bikes are from the 1980s to late 1990s - name brands, 6-8 cogs on the freewheel or cassette, etc. Many of the bikes have Rapidfire shifters that have "gummed up" over the years and will no longer shift. I've found that puling the shifter and dunking it in an ultrasonic cleaner for about 30-40 minutes (periodically working the pawls to loosen them up) gets the old Shimano grease out so they can shift again. Short-term fixes like Clean Streak will get them shifting for a short period, but they inevitably freeze up again as the solvent evaporates and the old grease re-solidifies.

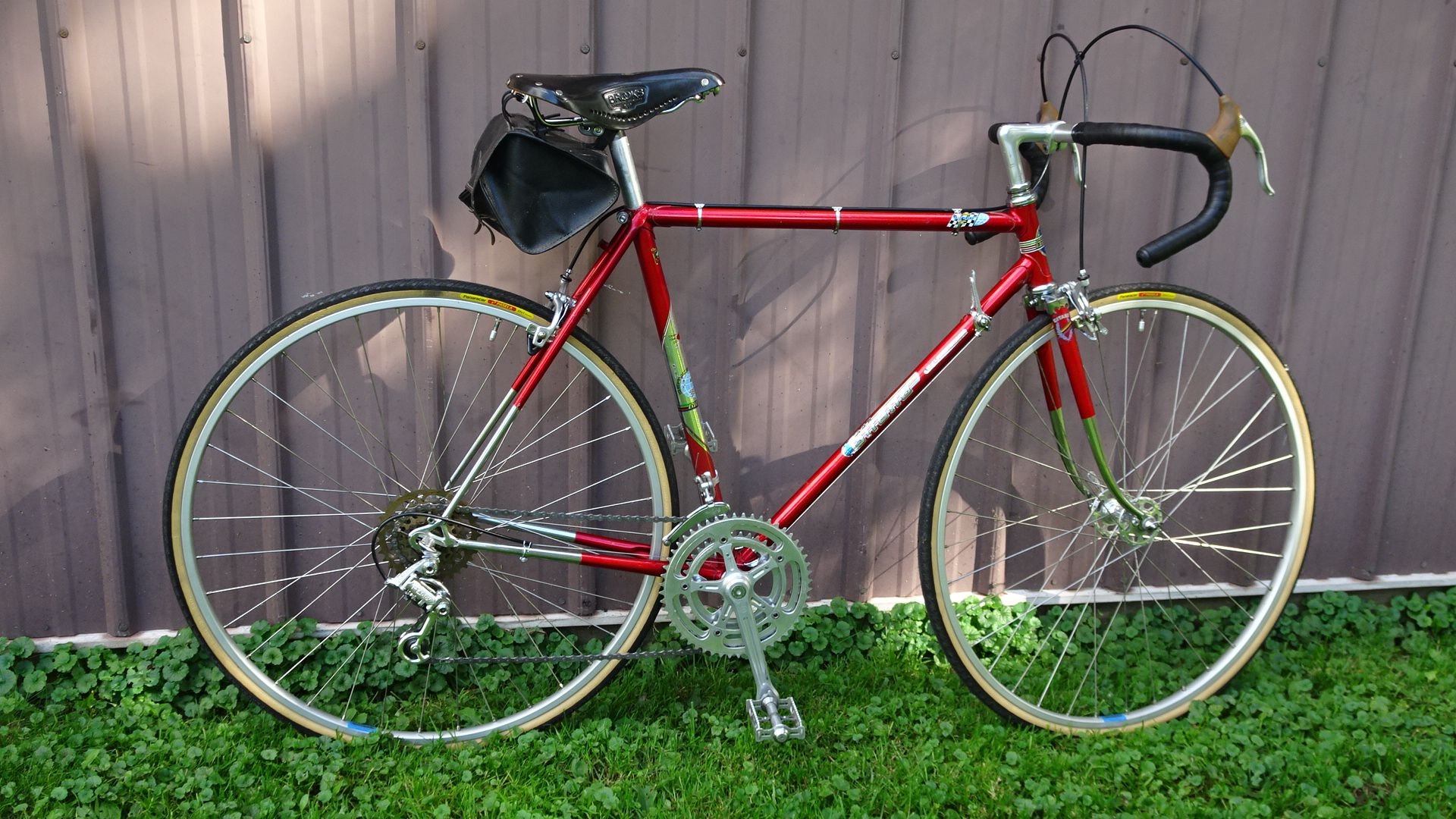

As for my own bikes, I took my 1972 Raleigh Pro Mk 4 (that I've owned since 1982) on a steep ride last month, and the bar-end shifter worked loose.
So I looked at the shifter, and the cable was also frayed.
So I pulled the cable, and realized I wanted to swap the handlebars (put the current Scott AT-2s on another bike & install narrower Nitto pusruit bars).
So I try to pull the stem, and discovered it was seized in the Reynolds 531 steerer tube.
And once I pulled the stem (aided by penetrant and copious inappropriate language) I discovered the OMAS headset was shot.
(I think you all know how that goes...)
Progress: I did install a NOS Tange Levin headset on the Pro yesterday, so at least I've made progress on one of my own bikes. Hoping to have it reassembled some time while the weather is nice.
RCMoeur is offline
Old 10-03-22, 05:12 PM
  #5404
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,052
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1451 Post(s)
Likes: 0
Liked 579 Times in 383 Posts

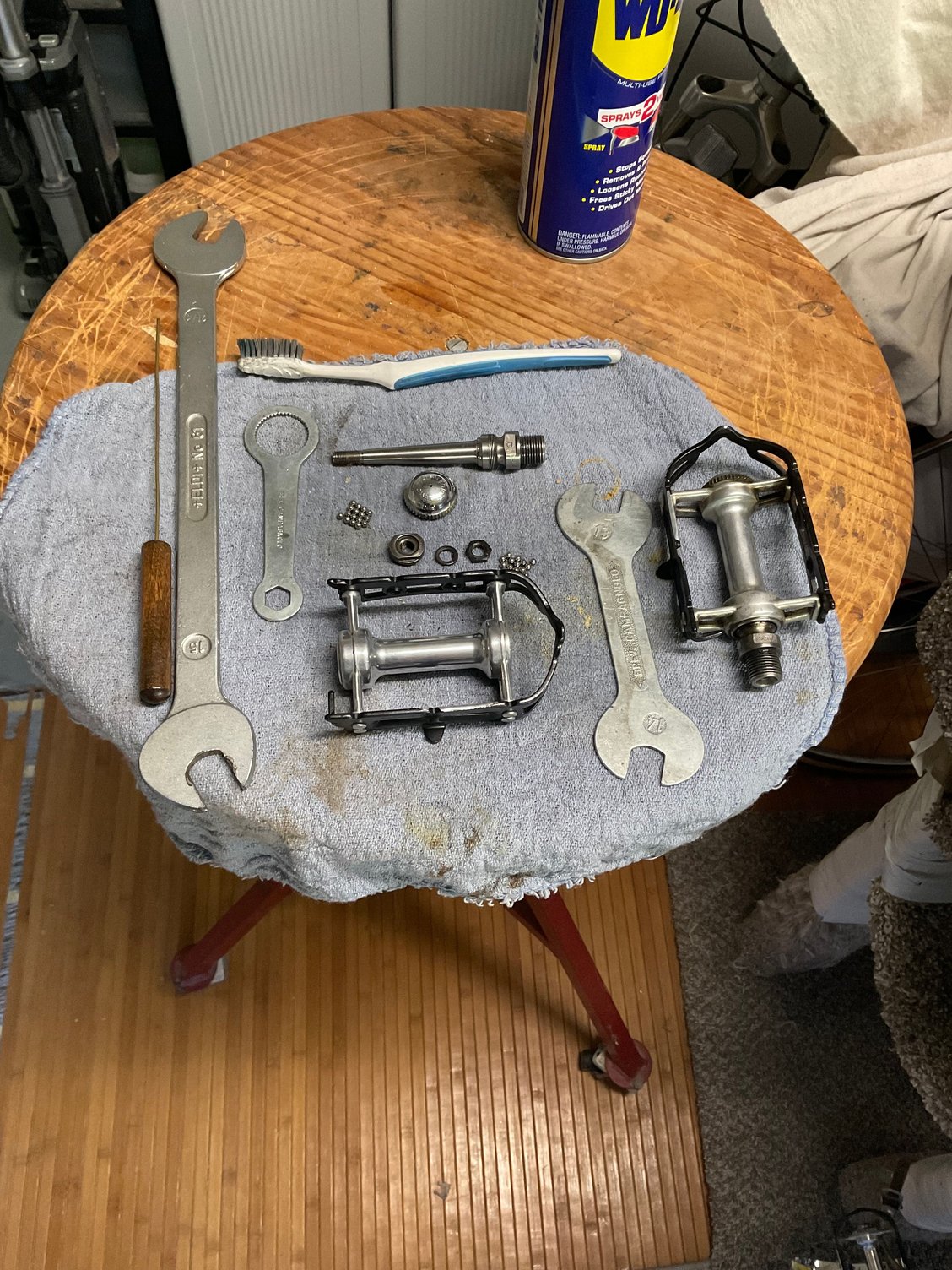

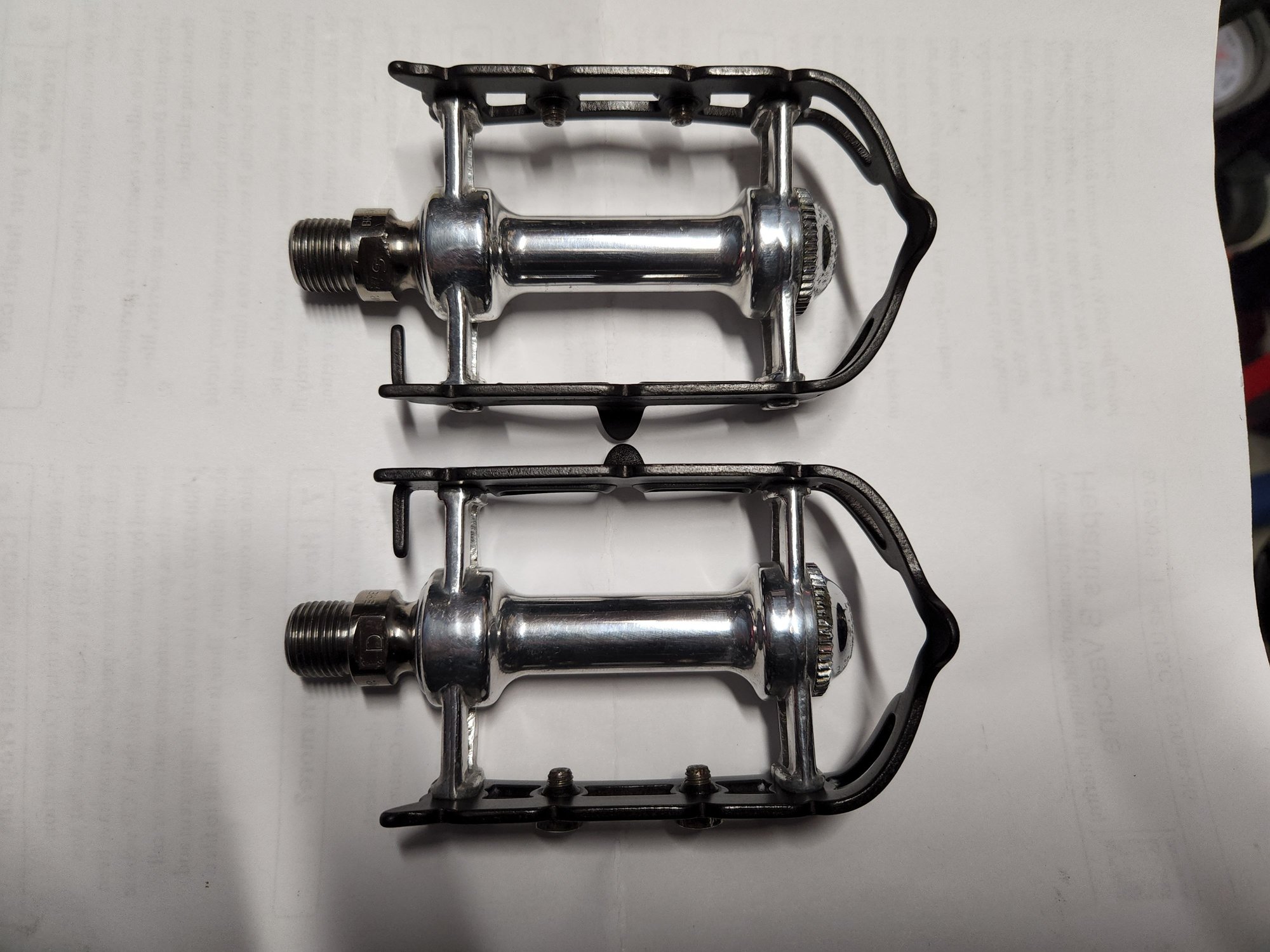

Finally got to overhaul my pair of Campy Superleggeri pedals with Ti axles. I had been planning to do so for more than a year.
Had a hell of a time chasing after the teeny tiny 1/8" bearings as the light Phil Wood grease I was using won't keep them on their races when I was putting the axles back in.
Worse yet I found out later that I put the wrong axles on the wrong pedals when I could not screw them on to my bike's crank arms so I had to do them all over again......
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
Old 10-03-22, 05:15 PM
  #5405
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,096

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 1,943 Times in 987 Posts
Originally Posted by ascherer View Post
I decided that Iíd reached the point of diminishing returns (and temperatures) and decided to prime the Falcon frame. I attacked a few more bits, masked the stays, wiped it down and hit it with spray.bike primer out in shed #3 which is a former standby generator shed. Iíd rate my coverage 90%, and as expected it revealed a few spots that rub my OCD-ness just right. So Iíll tend to them next weekend and see if I can get the color on it. Decals from Greg Softley are clearing customs, some may go down before the 2K gloss coat, specifically the Reynolds ones and maybe the ďErnie ClementsĒ ones, but Iím thinking of putting the foil Falcon ones on top. Canít say why. Change my mind?



​​​​​​Looks terrific to me.... And I'm glad I don't have your ocd.
52telecaster is offline
Likes For 52telecaster:
Old 10-03-22, 05:24 PM
  #5406
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,405

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 225 Post(s)
Tagged: 0 Thread(s)
Quoted: 3561 Post(s)
Liked 3,872 Times in 2,355 Posts
Originally Posted by dpmoo View Post
I've found Bleche Wite Tire Cleaner to do a bang up job on old dirty hoods.
I would proceed with caution, that stuff is oldschool, can have some very robust results.
merziac is offline
Old 10-03-22, 05:32 PM
  #5407
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,052
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1451 Post(s)
Likes: 0
Liked 579 Times in 383 Posts
Originally Posted by merziac View Post
I would proceed with caution, that stuff is oldschool, can have some very robust results.
I agree..... I thought Bleche White died off already with white sidewall tires on cars, many years ago. I would go with something more modern and maybe less harsh..... A lot of these hoods are quite delicate and getting to be unobtainium these days.

Last edited by Chombi1; 10-03-22 at 05:40 PM.
Chombi1 is offline
Likes For Chombi1:
Old 10-03-22, 05:38 PM
  #5408
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,405

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 225 Post(s)
Tagged: 0 Thread(s)
Quoted: 3561 Post(s)
Liked 3,872 Times in 2,355 Posts
Originally Posted by Chombi1 View Post
I agree..... I thought Bleche White died off already with white sidewall tires on cars, many years ago. I would go with something more modern and maybe less harsh..... A lot of these hoods are quite delicate and getting to be unobtainable these days.
I think it has probably been dumbed down by now, no way something strong enough to take black rash off whitewalls will be tolerated now days, especially in CA.
merziac is offline
Old 10-03-22, 06:44 PM
  #5409
Kabuki12
Senior Member

Join Date: Jan 2016
Posts: 2,680
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 1,458 Times in 857 Posts
Originally Posted by Chombi1 View Post

Finally got to overhaul my pair of Campy Superleggeri pedals with Ti axles. I had been planning to do so for more than a year.
Had a hell of a time chasing after the teeny tiny 1/8" bearings as the light Phil Wood grease I was using won't keep them on their races when I was putting the axles back in.
Worse yet I found out later that I put the wrong axles on the wrong pedals when I could not screw them on to my bike's crank arms so I had to do them all over again......
I feel your pain. I did my third set of Ti Superleggeri pedals just before Eroica and those stinking little balls got to me. I couldíve done two sets of steel spindle in the same amount of time.
Kabuki12 is offline
Old 10-03-22, 07:32 PM
  #5410
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,274

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 PeugeotPX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 1,678 Times in 645 Posts
Originally Posted by 52telecaster;[url=tel:22667704
22667704[/url]]​​​​​​Looks terrific to me.... And I'm glad I don't have your ocd.
Thanks, man. At least Iím not ordering finishing files on Amazon!
__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport




ascherer is offline
Likes For ascherer:
Old 10-03-22, 08:58 PM
  #5411
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,405

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 225 Post(s)
Tagged: 0 Thread(s)
Quoted: 3561 Post(s)
Liked 3,872 Times in 2,355 Posts
Originally Posted by ascherer View Post
Thanks, man. At least Iím not ordering finishing files on Amazon!
What are you waiting for?

Looks great, glad its you and not me.
merziac is offline
Likes For merziac:
Old 10-04-22, 06:57 AM
  #5412
stardognine
Partially Sane.

stardognine's Avatar

Join Date: Jan 2016
Location: Sunny Sacramento.
Posts: 3,431

Bikes: Soma Saga, pre-disc

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 928 Post(s)
Likes: 0
Liked 569 Times in 420 Posts
I finally changed my bottom bracket yesterday, on my Soma Saga. It has an Ultegra 6603 crank, and I put on a Deore MTB BB, using the old inner sleeve. 😎

I also changed the 30t small chainring, for a 28t, which definitely helps on hills. 👍 I might even go smaller, if I can find a proper chainring. 🤔

​​​
stardognine is offline
Likes For stardognine:
Old 10-04-22, 09:59 AM
  #5413
DQRider
Old Boy

DQRider's Avatar

Join Date: Jan 2016
Location: Minnesota
Posts: 2,284

Bikes: Mostly 1st-generation, top-of-the-line, MTBs/ATBs: All 1984 models: Dawes Ranger, Peugeot Canyon Express, Ross Mt. Whitney (chrome), Schwinn High Sierra, and a 1983 Trek 850.

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 938 Post(s)
Liked 1,420 Times in 532 Posts
Originally Posted by stardognine View Post
I finally changed my bottom bracket yesterday, on my Soma Saga. It has an Ultegra 6603 crank, and I put on a Deore MTB BB, using the old inner sleeve. 😎

I also changed the 30t small chainring, for a 28t, which definitely helps on hills. 👍 I might even go smaller, if I can find a proper chainring. 🤔

​​​
SOMA Saga? Ooh... pics please?
*
*
*
__________________

Roulez pour la joie, jamais pour la douleur.


USMC 1981-1991 Semper Fi!
DQRider is offline
Old 10-04-22, 10:06 AM
  #5414
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,016
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2624 Post(s)
Liked 1,632 Times in 1,206 Posts
Originally Posted by Chombi1 View Post

Finally got to overhaul my pair of Campy Superleggeri pedals with Ti axles. I had been planning to do so for more than a year.
Had a hell of a time chasing after the teeny tiny 1/8" bearings as the light Phil Wood grease I was using won't keep them on their races when I was putting the axles back in.
Worse yet I found out later that I put the wrong axles on the wrong pedals when I could not screw them on to my bike's crank arms so I had to do them all over again......
I recently did a set of those. The small bearings and the shallow cone and race shape makes them a buggar to assemble.
the inboard side is easier but the outboard end is a definite challenge.
my solution was a bored hole into a scrap of thick hardwood big enough for the spindle to be freestanding but no more with an upright to hold the pedal body vertical.
that stabilized the parts and loading the bearings was relatively easy after.
tweezers at hand.
I only have one set of Super Record pedals purchased by accident with a bike so fitted.
upon taking them apart noted that one pedal was short 2 bearings. Must have frustrated a mechanic prior.

this set up speeds any Campagnolo pedal assembly but the regular pedals are so much easier.

the bike so fitted, provisional assembly.

repechage is offline
Likes For repechage:
Old 10-04-22, 03:15 PM
  #5415
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by merziac View Post
I think it has probably been dumbed down by now, no way something strong enough to take black rash off whitewalls will be tolerated now days, especially in CA.
I'm in PA, ordered the bleche wite on eBay, never been to California, but I've had nothing but success, and no negative side effects, with bleche wite on 1980's white dia compe and Shimano hoods. I spray some in a plastic container, water it down, soak and toothbrush scrub. It cleans my car tires really well too, they're black.
dpmoo is offline
Likes For dpmoo:
Old 10-04-22, 04:05 PM
  #5416
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,405

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 225 Post(s)
Tagged: 0 Thread(s)
Quoted: 3561 Post(s)
Liked 3,872 Times in 2,355 Posts
Originally Posted by repechage View Post
I recently did a set of those. The small bearings and the shallow cone and race shape makes them a buggar to assemble.
the inboard side is easier but the outboard end is a definite challenge.
my solution was a bored hole into a scrap of thick hardwood big enough for the spindle to be freestanding but no more with an upright to hold the pedal body vertical.
that stabilized the parts and loading the bearings was relatively easy after.
tweezers at hand.
I only have one set of Super Record pedals purchased by accident with a bike so fitted.
upon taking them apart noted that one pedal was short 2 bearings. Must have frustrated a mechanic prior.

this set up speeds any Campagnolo pedal assembly but the regular pedals are so much easier.

the bike so fitted, provisional assembly.

Pic of the tool, it work for regular too?
merziac is offline
Likes For merziac:
Old 10-04-22, 04:12 PM
  #5417
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,405

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 225 Post(s)
Tagged: 0 Thread(s)
Quoted: 3561 Post(s)
Liked 3,872 Times in 2,355 Posts
Originally Posted by dpmoo View Post
I'm in PA, ordered the bleche wite on eBay, never been to California, but I've had nothing but success, and no negative side effects, with bleche wite on 1980's white dia compe and Shimano hoods. I spray some in a plastic container, water it down, soak and toothbrush scrub. It cleans my car tires really well too, they're black.
Guess I should have assumed you were diluting it.

And yes it is for all tires but as the "wite" in the name denotes, it was originally the go to for white walls that were really a thing for a long time.

Glad you get the good results you are getting, its always great to find a good process for things that are a PITA.
merziac is offline
Old 10-04-22, 04:14 PM
  #5418
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,016
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2624 Post(s)
Liked 1,632 Times in 1,206 Posts
Originally Posted by merziac View Post
Pic of the tool, it work for regular too?
Not a tool, but an assembly fixture I would call it, will get to it.

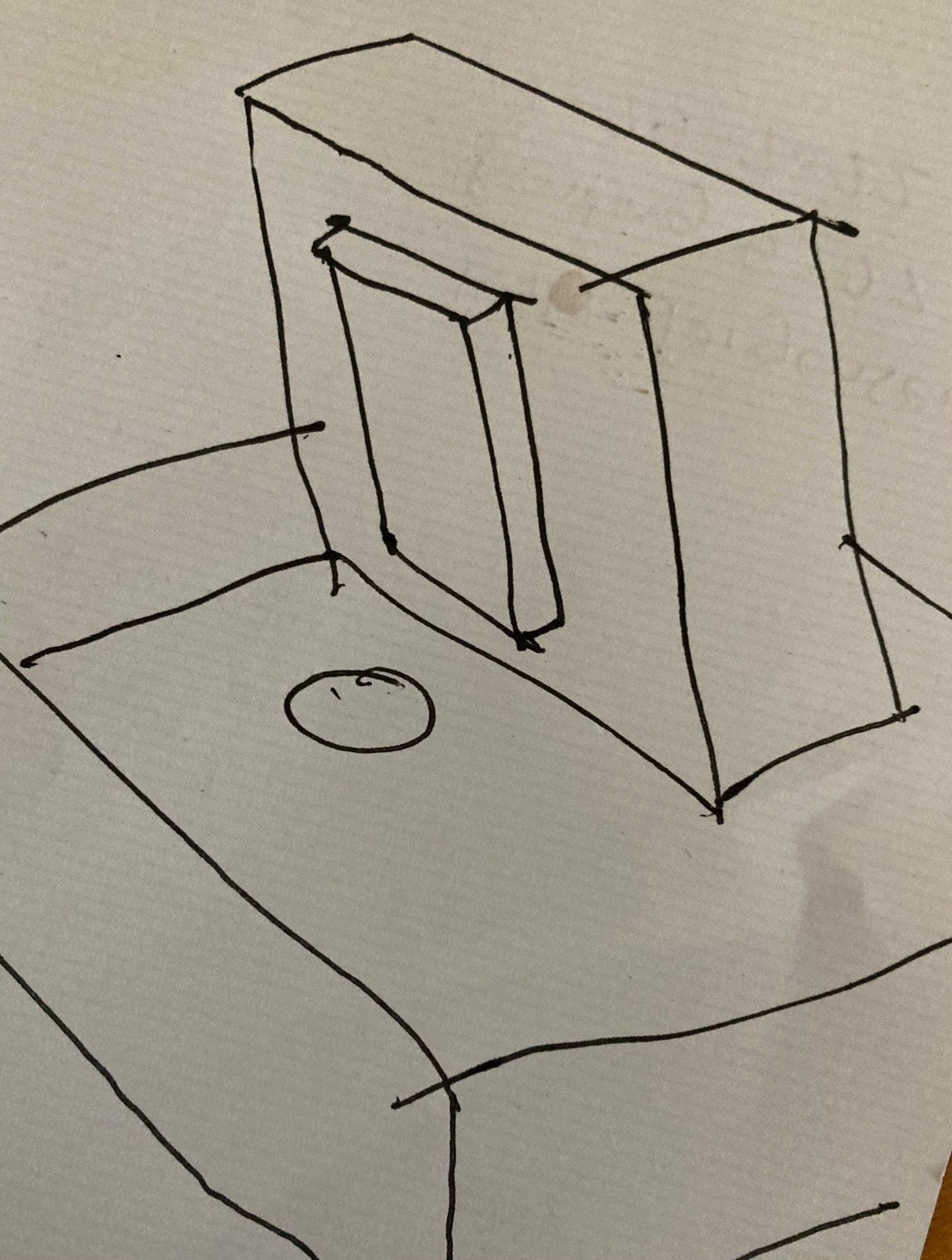

here is a quick schematic
thin rectangle nests in the pedal frame.
toe strap holds the pedal.
spindle thread indexes with bore.


Last edited by repechage; 10-04-22 at 04:18 PM.
repechage is offline
Likes For repechage:
Old 10-04-22, 05:03 PM
  #5419
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
I think not assuming is appropriate conventional wisdom. Please, keep it up. And thank you for helping me get to my first 10 posts.
dpmoo is offline
Likes For dpmoo:
Old 10-05-22, 07:26 AM
  #5420
Kabuki12
Senior Member

Join Date: Jan 2016
Posts: 2,680
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 1,458 Times in 857 Posts
Originally Posted by repechage View Post
I recently did a set of those. The small bearings and the shallow cone and race shape makes them a buggar to assemble.
the inboard side is easier but the outboard end is a definite challenge.
my solution was a bored hole into a scrap of thick hardwood big enough for the spindle to be freestanding but no more with an upright to hold the pedal body vertical.
that stabilized the parts and loading the bearings was relatively easy after.
tweezers at hand.
I only have one set of Super Record pedals purchased by accident with a bike so fitted.
upon taking them apart noted that one pedal was short 2 bearings. Must have frustrated a mechanic prior.

this set up speeds any Campagnolo pedal assembly but the regular pedals are so much easier.

the bike so fitted, provisional assembly.

Thanks for the tip!! I have 3 sets , as I said , and a few sets of the steel spindle pedals. It has been a while since I did a couple of the sets so I need to at least check them. I did the set in the pic just before Eroica for my Colnago as I had just bought them and they didn't feel very smooth even though I could see grease on the outboard side. The other two sets are butter smooth and taking the dust cap off shows nice grease but I dunno , I didn't do them so..... I will make a fixture as you did.The first set of them came to me as a gift from a guy who needed his '73 Paramount assembled and HATES traps and straps so he took the Sweet Campy pedals (still in bubble wrap) and handed them to me. I had no idea that they were Ti until a few months later when I decided to put them on one of my bikes and removed the Japanese copy cat pedals and unwrapped the Campy one and....Holy Cow these things are light! The magnet solved the mystery . Joe
Kabuki12 is offline
Old 10-06-22, 08:35 AM
  #5421
Sierra
Uff Da!

Join Date: Sep 2003
Posts: 1,135
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 105 Times in 57 Posts
Early seventies Gitane Super Corsa

Just finished building this up.
Bought the frame set years ago and it's just been hanging in the garage since.
Used as much Campagnolo as I could, but with "geezer gearing" for my geezer legs and the southern Wisconsin topography.
Had most of the parts in my stash, but had to pay an arm & leg for the French threaded BB cups for the triple crank set.
I think it looks pretty good from about 10'. Closer than that you can begin to see the wear & tear.

Sierra is offline
Likes For Sierra:
Old 10-06-22, 10:15 AM
  #5422
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
Cables and Stops

I'm restoring a 1982 Puch Luzern and an '86 Centurion Ironman (aka Loretta); they're my first build and restoration projects, got the Puch as a test case because Loretta's special to me. Are there any particular shift and brake cables and housings that you would recommend for these? Both are running Shimano 600 (6208) groupsets.

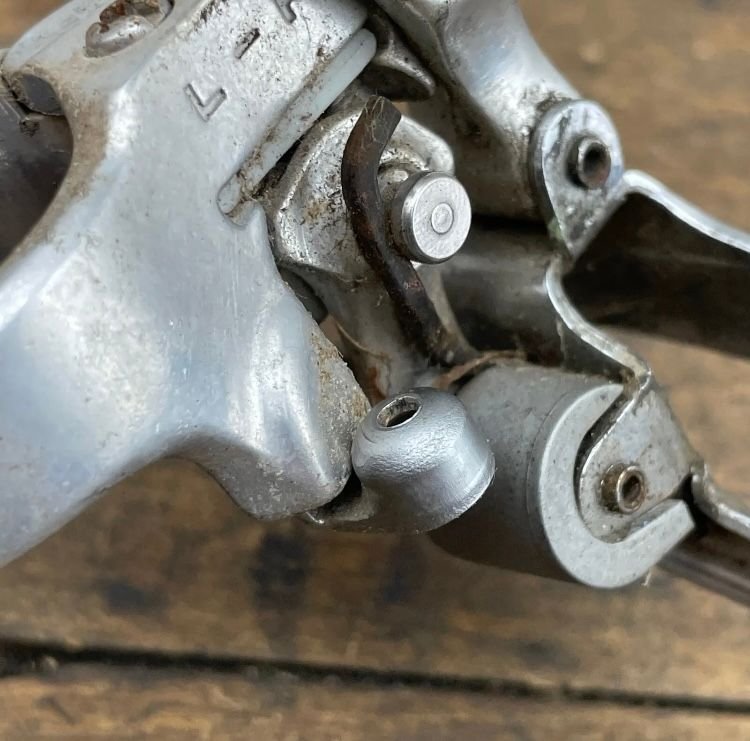

Also, the Puch has limited braze ons (I'm going to have down tube posts brazed on and I have to replace one on Loretta). I came across the following front derailleur cable stop on eBay (though the seller won't budge on a ridiculous price for the derailleur and cable stop set). This cable stop is made to fit into the groove on the FD-6207 front derailleur, which I think is pretty awesome (never knew about the stop till I saw it on the eBay listing). Does anyone know where I may be able to get my hands on one of these cable stops?? (I've exhausted all negotiations with the eBay seller, who initially asked for $38 and came down to $29 until finally raising the price $54, I apparently convinced him of the rarity of the item in his possession).

Alternatively, I'm thinking I'd drill and file a slot into the same groove location on the front derailleur to fit the following, more readily accessible cable stop. I'd really appreciate any suggestions or cautions on why this alternative would not work (I think I'm relying on the brake cable housing from the front derailleur cable stop to the clamp-on down tube cable guide to hold the FD cable stop in place within the slot).

Thanks so much for all the input that's bound to come!





dpmoo is offline
Old 10-06-22, 10:16 AM
  #5423
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
Did those photos come through?
dpmoo is offline
Old 10-06-22, 11:51 AM
  #5424
dpmoo
Newbie

Join Date: Sep 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
Cables and Stop

Originally Posted by dpmoo View Post
I'm restoring a 1982 Puch Luzern and an '86 Centurion Ironman (aka Loretta); they're my first build and restoration projects, got the Puch as a test case because Loretta's special to me. Are there any particular shift and brake cables and housings that you would recommend for these? Both are running Shimano 600 (6208) groupsets.

Also, the Puch has limited braze ons (I'm going to have down tube posts brazed on and I have to replace one on Loretta). I came across the following front derailleur cable stop on eBay (though the seller won't budge on a ridiculous price for the derailleur and cable stop set). This cable stop is made to fit into the groove on the FD-6207 front derailleur, which I think is pretty awesome (never knew about the stop till I saw it on the eBay listing). Does anyone know where I may be able to get my hands on one of these cable stops?? (I've exhausted all negotiations with the eBay seller, who initially asked for $38 and came down to $29 until finally raising the price $54, I apparently convinced him of the rarity of the item in his possession).

Alternatively, I'm thinking I'd drill and file a slot into the same groove location on the front derailleur to fit the following, more readily accessible cable stop. I'd really appreciate any suggestions or cautions on why this alternative would not work (I think I'm relying on the brake cable housing from the front derailleur cable stop to the clamp-on down tube cable guide to hold the FD cable stop in place within the slot).

Thanks so much for all the input that's bound to come!



dpmoo is offline
Old 10-07-22, 11:47 AM
  #5425
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,274

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 PeugeotPX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 1,678 Times in 645 Posts
Originally Posted by ascherer View Post
So I’ll tend to them next weekend and see if I can get the color on it.
Pretty pleased with the spray.bike experience! Everything others have said about using it is true, it was really pretty easy for me. The color is perhaps a bit darker than Falcon used but it's close enough for me. I tacked the headbadge on for reference. I think the blue is a bit lighter than in the photos and given spray.bike's semi-gloss, semi-matte finish it may appear differently once it's got the 2K top coat(s). I sanded and resprayed the divots on the head tube and lug, and now I wait for the transfers to arrive so I can place them and hit it with gloss.







__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport





Last edited by ascherer; 10-07-22 at 12:07 PM. Reason: added an image
ascherer is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
