Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

need help identifying

Old 07-14-16, 01:19 AM
  #1
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
need help identifying

Hi All, greeting from newbie, please help me to identify my old mtb frame with serial number HH57757, ishiwata fork, tange falcon headset, diacompe front cantilever,rear brake suntour roller cam xcd, braze on pump holder and braze on shoulder strap..

here are some pict
pict6_zpsedanhkbw.jpg Photo by rsdpaintless | Photobucket
pict1_zpsd2a5xdfb.jpg Photo by rsdpaintless | Photobucket
pict3_zpsrlpyic1o.jpg Photo by rsdpaintless | Photobucket
pict2_zpsdwpp6fq1.jpg Photo by rsdpaintless | Photobucket
pict4_zpspoqkpigh.jpg Photo by rsdpaintless | Photobucket
pict5_zpslu4f642u.jpg Photo by rsdpaintless | Photobucket
pict7_zps3vs7zevc.jpg Photo by rsdpaintless | Photobucket

thanks for your help
Regards
Rsdesign is offline
Old 07-14-16, 04:53 AM
  #2
Bikedued
Senior Member

Bikedued's Avatar

Join Date: Jul 2004
Posts: 10,929
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That's a tough one, as there were MANY bikes that shared these attributes and frame features back then. The serial number on the seat tube has me thinking Japanese Bianchi, but I could be way off. The pointed lugs that late in the game is a nice touch, as a lot of bikes had become tig welded by then. Good luck with the ID.,,,,BD

Last edited by Bikedued; 07-14-16 at 05:00 AM.
Bikedued is offline
Old 07-14-16, 05:28 AM
  #3
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks Bikedued for your info..I've tried browsing but still do not get the same characteristics...
Rsdesign is offline
Old 07-14-16, 06:13 AM
  #4
pagedeveloper
Junior Member

pagedeveloper's Avatar

Join Date: Jul 2016
Location: Orange County, Calif
Posts: 17

Bikes: Looking for one

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Take the serial number and do a google search. That will tell you a lot. Do a search of "Bike Frame XXXXXX" without the quotes. I bet you will get a ton of information on the frame.
pagedeveloper is offline
Old 07-14-16, 06:20 AM
  #5
pagedeveloper
Junior Member

pagedeveloper's Avatar

Join Date: Jul 2016
Location: Orange County, Calif
Posts: 17

Bikes: Looking for one

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
OK.. what I said did not work, but I did get this link

bike serial number code - WOW.com - Web Results

That shows a lot of sites that might be able to help with a serial number.
Good Luck....
pagedeveloper is offline
Old 07-14-16, 07:33 AM
  #6
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for your info pagedeveloper, ok i will try it..
Rsdesign is offline
Old 07-14-16, 08:56 AM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,741
Mentioned: 427 Post(s)
Tagged: 1 Thread(s)
Quoted: 2447 Post(s)
Likes: 0
Liked 45 Times in 42 Posts
Offhand, the serial number does not ring an bells with me. It's also not from the two major, known, Asian, Bianchi sources. I believe that XCD came out in 1988 and that while it survived into 1990, the roller cam did not. That gives us a fairly narrow timeline, assuming it is OEM. The market was also substantially Shimano by this period, which narrows it down further. A shoulder strap boss would narrow it down even more.

The place to start would be by determining the year and if the XCD is OEM. The fork should have a year and month code expressed as a number and letter. The XCD roller-cam should have a double letter date code.
T-Mar is offline
Old 07-14-16, 11:01 AM
  #8
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

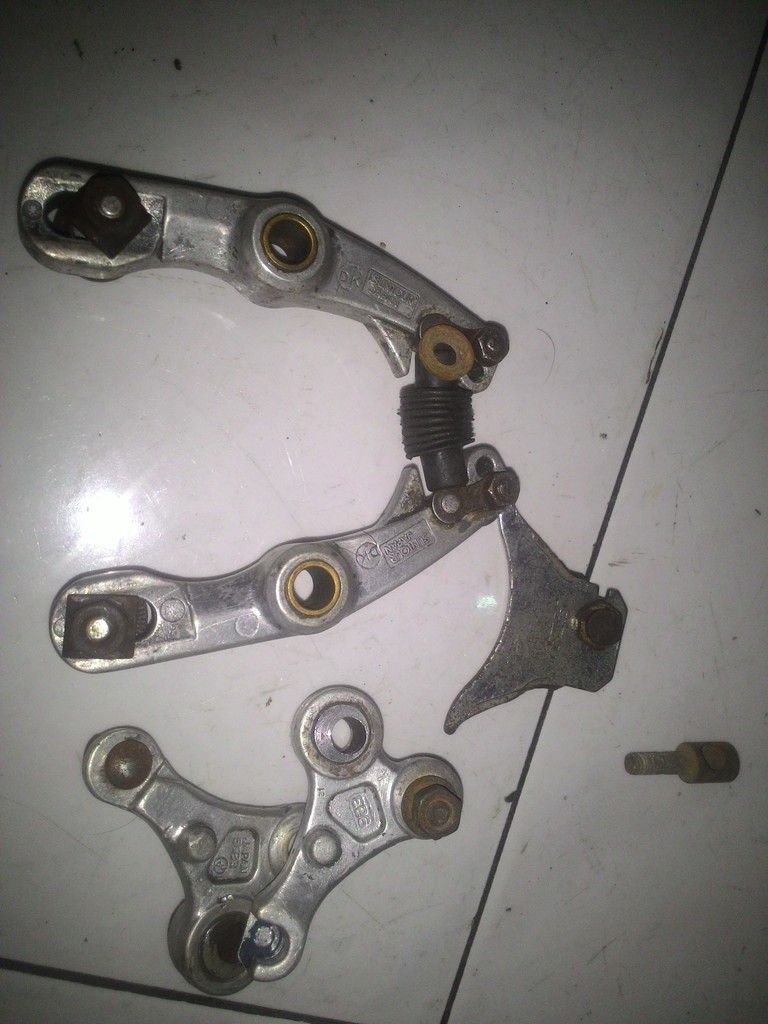

Thanks T-Mar for your explanation, the fork serial number cannot read clearly, it could be 88D or 89D, attached picture of the brake..
Rsdesign is offline
Old 07-14-16, 11:16 AM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,741
Mentioned: 427 Post(s)
Tagged: 1 Thread(s)
Quoted: 2447 Post(s)
Likes: 0
Liked 45 Times in 42 Posts
The roller cam is from November 1987, which would be a pretty good match if the fork is April 1988. I'll check through my literaure and see who used XCD in 1988.
T-Mar is offline
Old 07-14-16, 11:27 AM
  #10
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 1,889

Bikes: Rivendell Sam Hillborne, Brompton S/M3L (modified), custom Winter Cycles

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 303 Post(s)
Liked 4 Times in 3 Posts
What country did you find the frame? It might help distinguish it from others depending on country of origin.
blakcloud is offline
Old 07-14-16, 11:31 AM
  #11
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks T-Mar for your help
Rsdesign is offline
Old 07-14-16, 11:35 AM
  #12
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi Blakcloud, i got it from my hometown Jakarta;Indonesia
Rsdesign is offline
Old 07-17-16, 07:17 AM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,741
Mentioned: 427 Post(s)
Tagged: 1 Thread(s)
Quoted: 2447 Post(s)
Likes: 0
Liked 45 Times in 42 Posts
Originally Posted by Rsdesign View Post
Hi Blakcloud, i got it from my hometown Jakarta;Indonesia
That may complicate things, as there is a good possibility that it may be a brand that did not distribute in North America, where most forum members are located. Regardless, I'm still going through my literature in my spare time. I hope to have something in a day or two.
T-Mar is offline
Old 07-17-16, 07:53 PM
  #14
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks T - Mar, sorry to bother you, really apreciate for your help..
Rsdesign is offline
Old 07-27-16, 01:11 PM
  #15
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,741
Mentioned: 427 Post(s)
Tagged: 1 Thread(s)
Quoted: 2447 Post(s)
Likes: 0
Liked 45 Times in 42 Posts
I went though my 1988 & 1989 literature. While I found about two dozen bicycles spec'd with XCD, none had the shoulder strap boss.
T-Mar is offline
Old 07-31-16, 10:00 PM
  #16
Rsdesign
Junior Member
Thread Starter

Join Date: Jul 2016
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Many thanks T - Mar for your help, same problem when i identify the shoulder strap boss, no one had it...I still trying to identify it....
Rsdesign is offline
