So this is a 130bcd crank with a 36t inner ring...

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

So this is a 130bcd crank with a 36t inner ring...

Old 07-16-16, 08:24 PM
  #1
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 8,132

Bikes: '87 Miyata 912, '87 Schwinn Prelude, '90 Fuji Saratoga, Black Mountain Cycles Monstercross V4, '89 Novara/Centurion Ironman, '18 Diamondback Syncr, '18 handmade steel roadbike

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2860 Post(s)
Likes: 0
Liked 86 Times in 60 Posts
So this is a 130bcd crank with a 36t inner ring...


130bcd is a 38t ring at smallest, i thought.
What am i missing here?
mstateglfr is offline
Old 07-16-16, 08:53 PM
  #2
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,059
Mentioned: 237 Post(s)
Tagged: 0 Thread(s)
Quoted: 1076 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Isn't that a 110 bcd?
nlerner is offline
Old 07-16-16, 09:03 PM
  #3
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 1,900
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

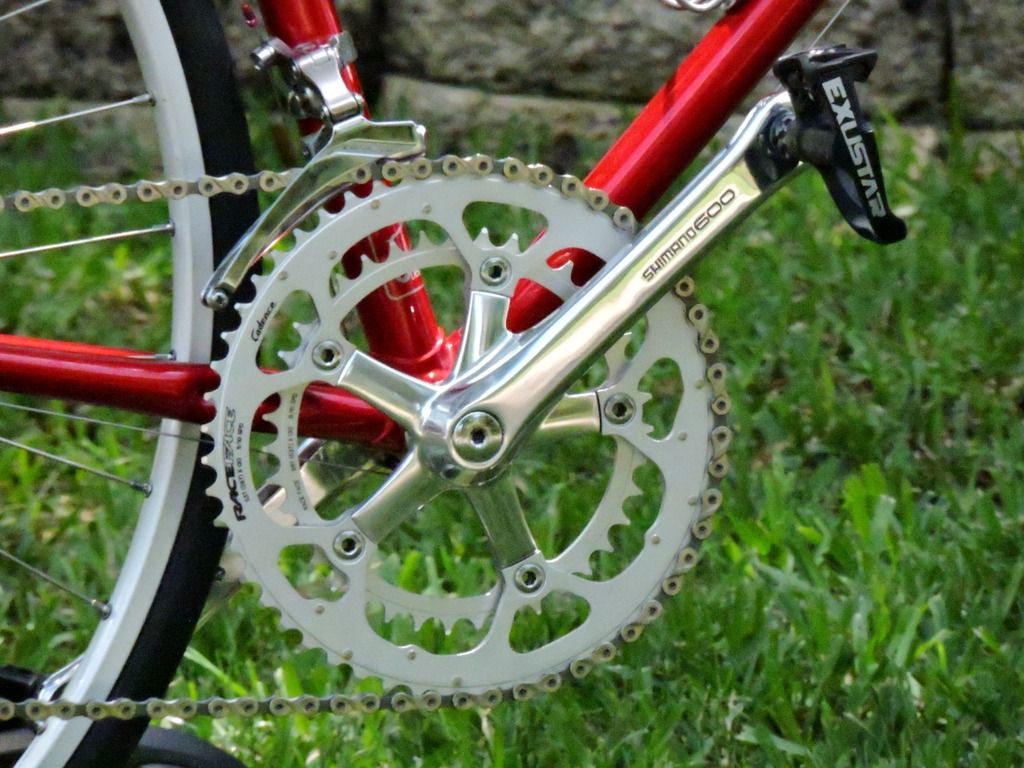

I have 6207 cranks on my Centurion Ironman and they are 130BCD. Worked perfectly with the Race Face chainrings they're practically giving away on Nasbar.

plonz is offline
Old 07-16-16, 09:14 PM
  #4
Mobile 155
Senior Member

Mobile 155's Avatar

Join Date: Sep 2011
Location: So Cal
Posts: 4,997

Bikes: 72-76 Peugeot, 89 Klein Quantum Road Bike, 2013 Haro FL Comp 29er MTB.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1420 Post(s)
Likes: 0
Liked 29 Times in 24 Posts
How do the get the bolts in a 36 tooth chainring with a 130 BCD?
Mobile 155 is offline
Old 07-16-16, 10:16 PM
  #5
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,232

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 3 Times in 3 Posts
Thats a mix of cranks , Drive Side Deore XT (FC-M730) and then Shimano 600 (FC-6207) on the other.

Deore XT (FC-M730) is 110 not 130. Not sure where 130 is coming from
fleslider is online now
Old 07-16-16, 11:39 PM
  #6
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,213

Bikes: A green one, "Ragleigh," or something.

Mentioned: 152 Post(s)
Tagged: 0 Thread(s)
Quoted: 1278 Post(s)
Liked 7 Times in 6 Posts
...
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●

Last edited by Lascauxcaveman; 07-16-16 at 11:43 PM.
Lascauxcaveman is offline
Old 07-17-16, 08:18 AM
  #7
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 8,132

Bikes: '87 Miyata 912, '87 Schwinn Prelude, '90 Fuji Saratoga, Black Mountain Cycles Monstercross V4, '89 Novara/Centurion Ironman, '18 Diamondback Syncr, '18 handmade steel roadbike

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2860 Post(s)
Likes: 0
Liked 86 Times in 60 Posts
Originally Posted by fleslider View Post
Thats a mix of cranks , Drive Side Deore XT (FC-M730) and then Shimano 600 (FC-6207) on the other.

Deore XT (FC-M730) is 110 not 130. Not sure where 130 is coming from
And there it is. Makes sense now.
Thanks
mstateglfr is offline
Old 07-17-16, 11:59 AM
  #8
vtchuck
Senior Member

vtchuck's Avatar

Join Date: Feb 2015
Location: Great White North (VT)
Posts: 486

Bikes: Falcon SR 76, Romic, Trek 660, GT Talera, Shogun 500 Touring

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Not possible....according to Velo News

"A little geometry lesson is clearly in order. No, there is no such thing as a 36-tooth chainring for a 130mm bolt-circle-diameter (BCD) crank. That’s because 130 BCD means that the centers of the chainring bolts are 65mm from the center of the crank spindle. But the smallest chainring, with tooth valleys external to chainring bolt holes drilled on a 130mm bolt circle, has 38 teeth. A 36-tooth would not work, because the bolts would be among the chainring teeth! (The valley-to-valley diameter of a 36T chainring is 137mm, but the heads of the crank bolts are 11mm across, so the outer edges of the crank bolts on a 130mm bolt circle scribe a circle 141mm in diameter, thus overlapping where the chain needs to go by 2mm.)"

Read more at Technical FAQ: Chainring and cog compatibility - VeloNews.com

Too bad.... I'd love to have a 36T inner ring
__________________
http://tinyurl.com/VTchucksBikes
vtchuck is offline
Old 07-17-16, 04:50 PM
  #9
AlexCyclistRoch
The Infractionator

AlexCyclistRoch's Avatar

Join Date: Mar 2016
Location: Rochester, NY
Posts: 2,208

Bikes: Classic road bikes: 1986 Cannondale, 1978 Trek

Mentioned: 9 Post(s)
Tagged: 1 Thread(s)
Quoted: 875 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by plonz View Post
I have 6207 cranks on my Centurion Ironman and they are 130BCD. Worked perfectly with the Race Face chainrings they're practically giving away on Nasbar.

Yeah, but your photo clearly shows a 39 tooth inner ring, not a 36 tooth.
AlexCyclistRoch is offline
Old 07-17-16, 05:04 PM
  #10
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 1,900
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by AlexCyclistRoch View Post
Yeah, but your photo clearly shows a 39 tooth inner ring, not a 36 tooth.
You sir are absolutely correct. I was just confirming the crankset was 130BCD.
