C&V road bike for long femurs/short torso?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

C&V road bike for long femurs/short torso?

Old 07-26-16, 11:52 PM
  #1
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
C&V road bike for long femurs/short torso?

I've just learned something that may explain a lot of the fit issues I've fought with, which is that I have relatively long femurs. I find it hard to get the saddle back far enough to maintain proper balance when I take my hands off the bars. This is made even worse by modern frames in my size (which tend to have a 74 or steeper seat tube angle) and a preference for leather saddles (which are already hard to set far back on their own).

So now I'm wondering what I should keep an eye out for, that would help. I'm thinking like 72 seat tube angle (or shallower), or maybe 73 with a 27.2mm seatpost diameter (so that I can use an extra long setback seatpost).

Current bikes range from 73 with 26.4mm seatpost (so the most setback I can get is ~20mm with a regular LaPrade style) to 74 and 74.5 with 27.2mm VO seatposts with 30.2mm of setback (which basically works out to the same effective seat tube angle as the 73 bike with a standard seatpost).

I run into that falling-forward problem on all of the aforementioned bikes, even with my saddles set as far back as they can go. Is there anything out there for me?
agmetal is offline
Old 07-27-16, 05:31 AM
  #2
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,628

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 506 Times in 360 Posts
This is a big part of what we mean when we talk about a frame providing a good fit for a particular rider, but I would think you could get some relief by choosing a handlebar stem with an appropriate forward reach and then adjusting its height appropriately. Among 1970 vintage bicycles I have owned, the Nishiki (73 degrees parallel) had a proportionately very short top tube and the Peugeot UO-8 (72 degrees parallel) had a very long one.

Is your saddle nosed too far downward, which in turn creates load on the hands and a falling-forward feeling? Does bringing up the nose just a bit provide some relief?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 07-27-16, 05:44 AM
  #3
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Italian bikes and French rando bikes pretty much always have short top tubes. You can also also think about shortening your your stem reach by a cm or 2.
I'm 6'3" and all limbs (short torso). My old bike boom 25-1/2" Raleigh fits me like a glove with the correct cockpit setup, and is my benchmark for starting measurements whenever I build another bike.
On that particular bike, I also like Thomson zero-offset seatpost, which conveniently comes in 25.4mm.
If you want the maximum seatpost offset available (37mm), only in 27.2mm seatpost diameter, it's the Nitto S84 lugged Cr-Mo post, which you can find for the best price in Japan - it was designed from the start to move Brooks saddles farther back
bulldog1935 is offline
Old 07-27-16, 07:52 AM
  #4
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by John E View Post
This is a big part of what we mean when we talk about a frame providing a good fit for a particular rider, but I would think you could get some relief by choosing a handlebar stem with an appropriate forward reach and then adjusting its height appropriately. Among 1970 vintage bicycles I have owned, the Nishiki (73 degrees parallel) had a proportionately very short top tube and the Peugeot UO-8 (72 degrees parallel) had a very long one.

Is your saddle nosed too far downward, which in turn creates load on the hands and a falling-forward feeling? Does bringing up the nose just a bit provide some relief?
My 58cm Shogun has a 55cm top tube and is, to the best of my knowledge, 73 parallel. It's maybe a tiny bit long for me, but I can ride it without undue discomfort, and I like how it handles. If it fit a 27.2mm seatpost, I'd probably be fine in terms of being able to get the saddle back far enough...but then I'd probably be pretty stretched out. It's a bit taller than what I normally ride, but the height makes it easy to get the handlebar to the right height without a tall stem...plus, I got the frame for free!

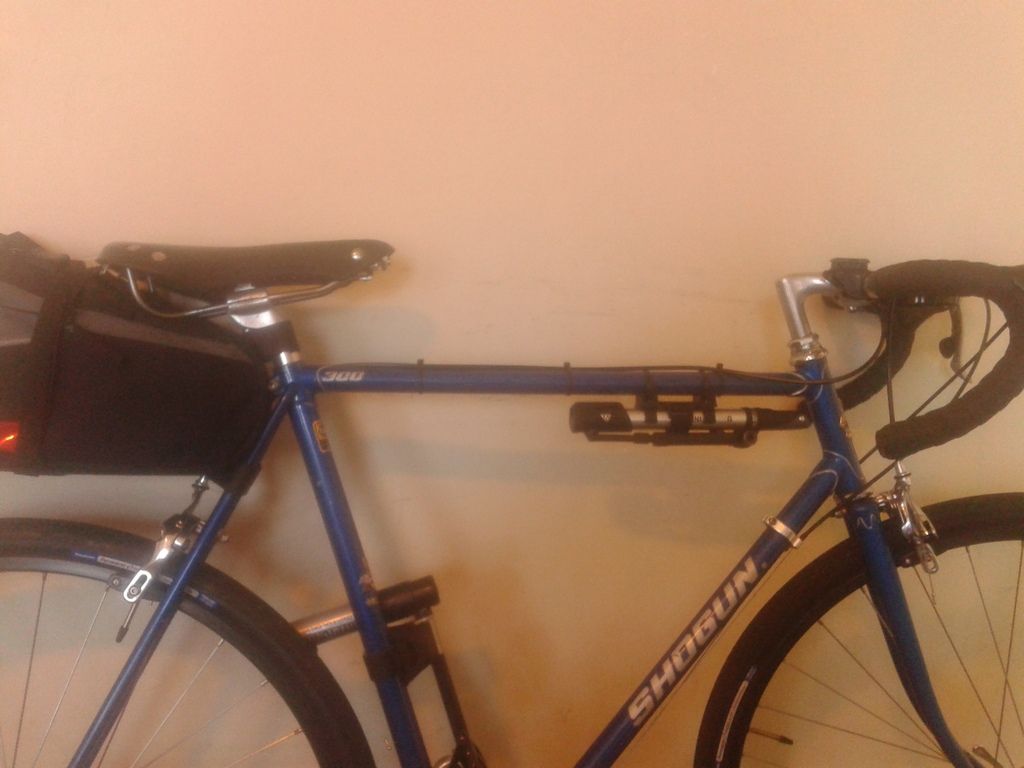

I do have my saddles adjusted with the noses tilted upward, here are my most easily accessible-to-photograph road bikes with leather saddles:



It's a fine line between having the nose up enough to keep me from sliding forward, and being uncomfortable.

Originally Posted by bulldog1935 View Post
Italian bikes and French rando bikes pretty much always have short top tubes. You can also also think about shortening your your stem reach by a cm or 2.
I'm 6'3" and all limbs (short torso). My old bike boom 25-1/2" Raleigh fits me like a glove with the correct cockpit setup, and is my benchmark for starting measurements whenever I build another bike.
On that particular bike, I also like Thomson zero-offset seatpost, which conveniently comes in 25.4mm.
If you want the maximum seatpost offset available (37mm), only in 27.2mm seatpost diameter, it's the Nitto S84 lugged Cr-Mo post, which you can find for the best price in Japan - it was designed from the start to move Brooks saddles farther back
I'm familiar with that Nitto post, but it's quite expensive, and still limited by only being available in 27.2mm diameter. The VO Grand Cru seatpost has the same limitation. What's out there for C&V type stuff with that seatpost size?
agmetal is offline
Old 07-27-16, 11:59 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,822

Bikes: Yes, please.

Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 1764 Post(s)
Liked 1,882 Times in 909 Posts
If too little setback is the issue:

__________________
Autumn Leaves











non-fixie is offline
Old 07-27-16, 02:15 PM
  #6
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by non-fixie View Post
If too little setback is the issue:

What is that? Tell me more!
agmetal is offline
Old 07-27-16, 02:29 PM
  #7
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Catskills/Brooklyn, NY
Posts: 6,966

Bikes: See sig

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 42 Times in 27 Posts
Man, I have the opposite problem: Short legs and long arms! I find for me something like a 54 seat tube x 57 top tube works best. Tough to find.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 07-27-16, 02:37 PM
  #8
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2312 Post(s)
Liked 567 Times in 407 Posts
That seatpost is early mountain bike tech. It allows you to slam your seat all the way back for an off road descent. Moving you center of gravity back in this situation is helpful. Most people found it easier just to slide back or even behind your seat, so these things died out.

RE: the OP

I guess my build also leans somewhat in the long femur shorter torso direction. I never really had the problem you are having, and I'm not sure I even understand it. Are you having trouble riding no hands, or one handed? Sounds kind of like you are having trouble compensating for extra weight on one side of the bars when you go for a water bottle or something??

If that's the case, yeah, you may be happier with a more relaxed road geometry. Something like 73 parallel with neutral trail is going to be easy to ride no hands. No problem for me to ride my old Masi (73.5 parallel) endlessly no hands, and it always feels very neutral and natural.

Also, double check the headset adjustment. A hs that is too tight will negatively affect handling and no hands riding.

These days I do in fact ride 72 parallel. It does work well with leather saddles since it's kind of what they were designed for. Both my old PX10 and new Mercian have what might be called traditional touring geometry. The PX is actually a bit divey because of the moderately high trail, though at high speeds it is on rails.
Salamandrine is offline
Old 07-27-16, 03:07 PM
  #9
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,861

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 318 Times in 196 Posts
What dimensions are you looking for in ST and TT?
philbob57 is offline
Old 07-27-16, 03:08 PM
  #10
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: Santa Rosa, California
Posts: 10,489

Bikes: Waterford 953 RS-22, several Paramounts

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 626 Post(s)
Liked 51 Times in 43 Posts
I'm 6' tall with a 36" leg length, so half of my overall height is in my legs. Bikes that fit me best generally have 60 - 61cm seat tubes with 56cm top tubes. Such short top tubes are rare in stock frames, but they're out there.

In 1989, for example, Schwinn offered a short top tube option for smaller frame size Paramounts to fit long legged riders.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Likes For Scooper:
Old 07-27-16, 03:13 PM
  #11
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by lostarchitect View Post
Man, I have the opposite problem: Short legs and long arms! I find for me something like a 54 seat tube x 57 top tube works best. Tough to find.
My Panasonic Sport 500 is pretty much exactly those dimensions
agmetal is offline
Old 07-27-16, 03:22 PM
  #12
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by Salamandrine View Post
That seatpost is early mountain bike tech. It allows you to slam your seat all the way back for an off road descent. Moving you center of gravity back in this situation is helpful. Most people found it easier just to slide back or even behind your seat, so these things died out.

RE: the OP

I guess my build also leans somewhat in the long femur shorter torso direction. I never really had the problem you are having, and I'm not sure I even understand it. Are you having trouble riding no hands, or one handed? Sounds kind of like you are having trouble compensating for extra weight on one side of the bars when you go for a water bottle or something??

If that's the case, yeah, you may be happier with a more relaxed road geometry. Something like 73 parallel with neutral trail is going to be easy to ride no hands. No problem for me to ride my old Masi (73.5 parallel) endlessly no hands, and it always feels very neutral and natural.

Also, double check the headset adjustment. A hs that is too tight will negatively affect handling and no hands riding.

These days I do in fact ride 72 parallel. It does work well with leather saddles since it's kind of what they were designed for. Both my old PX10 and new Mercian have what might be called traditional touring geometry. The PX is actually a bit divey because of the moderately high trail, though at high speeds it is on rails.
The issue is really that I can't get enough weight off of my hands, unless I'm constantly pedaling hard, and again, this is already with my saddle as far back as it goes and the saddle nose tilted a little bit upward. I think it's Steve Hogg who recommends the test of riding in your primary position, and taking your hands off the bars without changing position; the goal being that you should be able to maintain it without falling forward. That's what I was referring to when I mentioned taking my hands off. In general, I have no trouble riding no-hands, but even in the bolt-upright position that I can do that in, I have to actively use my legs to keep me from sliding forward.

Originally Posted by philbob57 View Post
What dimensions are you looking for in ST and TT?
ST can be up to 58cm depending on BB height. I can't easily give you a definitive answer on the TT length, because I've yet to find the bike with the right ST angle, and of course the TT length is affected by this. Likely not more than about 55cm, but that's what my 73deg bike has, and I'm still trying to get the saddle back more.
agmetal is offline
Old 07-27-16, 03:26 PM
  #13
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,822

Bikes: Yes, please.

Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 1764 Post(s)
Liked 1,882 Times in 909 Posts
Originally Posted by agmetal View Post
What is that? Tell me more!
SR MTE-100 seatpost. Found it on my Union Randonneur, which I bought because my curiosity got the better of me. And it was cheap. And I liked the parts.

As bought, and apparently pretty much stock:

__________________
Autumn Leaves











non-fixie is offline
Old 07-27-16, 05:11 PM
  #14
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by Scooper View Post
I'm 6' tall with a 36" leg length, so half of my overall height is in my legs. Bikes that fit me best generally have 60 - 61cm seat tubes with 56cm top tubes. Such short top tubes are rare in stock frames, but they're out there.

In 1989, for example, Schwinn offered a short top tube option for smaller frame size Paramounts to fit long legged riders.

Look at those seat tube angles, though! They make my 74.5deg bikes seem relaxed! I'd never be able to ride that comfortably
agmetal is offline
Old 07-27-16, 05:22 PM
  #15
Essthreetee
Senior Member

Essthreetee's Avatar

Join Date: Jun 2012
Location: Central California
Posts: 1,078

Bikes: 2001 LeMond Nevada City, 92 Merlin Titanium, '84 Torpado Super Strada, 84 Schwinn Tempo, '81 Bianchi Limites, '73 Raleigh Supercourse

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 59 Times in 37 Posts
I am in the same situation. 6'1" with a 36" inseam. My most comfortable bike is my '81 Bianchi Limited. ST = 61ctc and TT = 58ctc. I also have a short stem (100) and short reach handlebars.
Essthreetee is offline
Old 07-27-16, 05:48 PM
  #16
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,895

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 878 Times in 582 Posts
You might want to checkout Miyata's think 58/55 60/56 63/57

look toward the bottom of this

Miyata Bicycle Catalogs: Miyata Catalog 1989
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 07-27-16, 07:01 PM
  #17
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,884
Mentioned: 365 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,516 Times in 1,224 Posts
I don't know about specific models, but relying on seat tube and top tube length might not be the best way to go. I've learned that frame stack and reach are better indicators of what fits me. Try measuring whatever you have that seems to fit the best and compare that to others:

nlerner is offline
Old 07-27-16, 07:55 PM
  #18
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,012
Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 2324 Post(s)
Liked 1,669 Times in 744 Posts
Originally Posted by lostarchitect View Post
Man, I have the opposite problem: Short legs and long arms! I find for me something like a 54 seat tube x 57 top tube works best. Tough to find.
Anything Italian prior to 1955 should do you just fine.
iab is offline
Old 07-27-16, 09:20 PM
  #19
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,786

Bikes: 87 Marinoni SLX Sports Tourer, 79 Miyata 912 by Gugificazione

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 233 Times in 148 Posts
I'm built like Scooper, Essthreetee and nlerner - 6'0" with a 36" (91 cm) inseam. I was 6' 1.5" years ago, but my torso has shrunk over the last decade or so (I'm 67). Thankfully I can still ride the same bikes, but have shortened the cockpits. Both the Miyata 912 and Marinoni Sport Touring are 62cm ctc with 58cm TT's, albeit with relatively steep geometry (around 74deg parallel). I use short reach bars (love the Soma Highway One) and 80-100mm stems, with bars about 2cm below the saddle. They're comfortable for any distance, and I'm happy with the steering - both have about 45mm of trail using 28-32mm tires.

But I can relate to the OP's problem, since I also need leather saddles and have to deal with their short rails, and might like the saddles farther back to keep my hands from getting "buzzy". I plan to try a Rivet Independence at some point on the Miyata, which can't take a 27.2 seatpost. Can anyone comment on whether that saddle slides farther back, compared to a Berthoud or Brooks?

Last edited by Dfrost; 07-27-16 at 10:39 PM.
Dfrost is offline
Old 07-27-16, 11:04 PM
  #20
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 18 Times in 12 Posts
Originally Posted by Dfrost View Post
I'm built like Scooper, Essthreetee and nlerner - 6'0" with a 36" (91 cm) inseam. I was 6' 1.5" years ago, but my torso has shrunk over the last decade or so (I'm 67). Thankfully I can still ride the same bikes, but have shortened the cockpits. Both the Miyata 912 and Marinoni Sport Touring are 62cm ctc with 58cm TT's, albeit with relatively steep geometry (around 74deg parallel). I use short reach bars (love the Soma Highway One) and 80-100mm stems, with bars about 2cm below the saddle. They're comfortable for any distance, and I'm happy with the steering - both have about 45mm of trail using 28-32mm tires.

But I can relate to the OP's problem, since I also need leather saddles and have to deal with their short rails, and might like the saddles farther back to keep my hands from getting "buzzy". I plan to try a Rivet Independence at some point on the Miyata, which can't take a 27.2 seatpost. Can anyone comment on whether that saddle slides farther back, compared to a Berthoud or Brooks?
I tried the Independence Allroad for a few minutes, but the shape really didn't work for me. The dimensions are very similar to the Berthoud Aspin (which I love and now have two of), but it felt like it had an arch shape that was trying to split me in two, and I just couldn't get comfortable on it. I bought a second Aspin as a result. The difference in available setback is only slight...maybe 5mm, which wasn't enough to notice any real difference, but I also, as mentioned, just couldn't get comfortable on the Rivet regardless.
agmetal is offline
Old 07-28-16, 05:42 AM
  #21
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,844

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 442 Times in 223 Posts
Originally Posted by agmetal View Post
I think it's Steve Hogg who recommends the test of riding in your primary position, and taking your hands off the bars without changing position; the goal being that you should be able to maintain it without falling forward. That's what I was referring to when I mentioned taking my hands off.
I'll admit that I do not understand what your Mr Hogg is saying. I'm very comfortable on all my frames and am also a pretty slim old cuss with decent core strength. Despite that I cannot just take my hands off without changing position and ride for more than a few seconds. I'm generally leaned comfortably over, riding the top, ramps or hoods most of the time, maybe 20% of the time in the drops. Does your Mr Hogg say that I should easily and long term just lift my hands and ride merrily along? Nope. For no hands riding I need to shift my CG back to where Mr Hogg would fail me. This makes no sense to this old woodworker/tractor mechanic. I do move my hands/change positions constantly - for variety and to prevent numbness. I do that normally, on the mtn bikes on the mowers, on the tractor, on the tools.

BTW: my frames are in the 58cm ST range and 73 deg parallel range with the reach set the same on all of them. 30 mile rides are a regular event and I hardly plan for metric centuries anymore. They all use old Vetta TriShock saddles set about mid range with the nose tilted slightly down so my sit bones are nicely up on the rear of the saddle - back 'on the rivets' where I trained them to sit.
Prowler is offline
Old 07-28-16, 06:19 AM
  #22
ppg677
Senior Member

Join Date: Feb 2012
Location: Madison, WI
Posts: 649

Bikes: 1982 Trek 957 (retro), 70s Gios Torino, 80s Trek 710 (retro), 1995 Trek 930 MTB (singlespeed), Surly LHT

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by nlerner View Post
I don't know about specific models, but relying on seat tube and top tube length might not be the best way to go. I've learned that frame stack and reach are better indicators of what fits me. Try measuring whatever you have that seems to fit the best and compare that to others:

Handlebar reach is also not good enough because the handlebars themselves and the hoods make a huge difference. When I converted my bike from non-aero C&V brake levers to modern STI hoods, the increase in effective reach was probably a whopping 20mm.
ppg677 is offline
Old 07-28-16, 09:23 AM
  #23
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Catskills/Brooklyn, NY
Posts: 6,966

Bikes: See sig

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 42 Times in 27 Posts
Originally Posted by iab View Post
Anything Italian prior to 1955 should do you just fine.
That makes sense, since I inherited these dimensions from my father.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 07-28-16, 09:47 AM
  #24
ColonelJLloyd
Senior Member

ColonelJLloyd's Avatar

Join Date: Dec 2009
Location: Louisville
Posts: 8,382
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 6 Times in 5 Posts
To the OP, I have a similar build. My preferred reach is around 380-390mm and stack 600mm+. Take the time to take good measurements and use an online fit calculator to give you some numbers to go on. Plenty of people will tell you, "well, I can ride all sorts of different size frames" and "the human body is adaptable". That's fine, but I've moved on and have realized there is something better than "good enough". My stack/reach preference strikes some people as way out of whack, but if you meet me I don't think you would say that my frame is disproportional.

Originally Posted by ppg677 View Post
Handlebar reach is also not good enough because the handlebars themselves and the hoods make a huge difference. When I converted my bike from non-aero C&V brake levers to modern STI hoods, the increase in effective reach was probably a whopping 20mm.
That doesn't really matter. You should be apply your own preferred stem and handlebar measurements to a given frame reach number and determine your own fit. I've never seen handlebar reach listed without frame reach. I don't pay any attention to the former if it is listed.

I agree with what nlerner posted. I started keeping a spreadsheet with the geometry measurements of bikes I own, have owned or am interested in owning. Comparing these numbers and then thinking about how those bikes that I've ridden felt has been illuminating. ST and TT measurements can get you pretty close when talking about classic 70s and 80s road bikes, but more figures are extremely helpful.

Some things to consider.

More or less, your saddle height and setback should be a static number. This may change if you ride bikes with different crank lengths and various pedals, but I like to keep those pretty damn close on any bicycle.

Saddle position is tied to one thing, the bottom bracket. That is why frame reach is such a valuable measurement. It too is tied to the BB. For me, frame reach and stack are first numbers I want when looking at a frame.

Frame stack is also tied to the BB and will tell me if I am able to get my desired bar position in relation to my saddle with a stem/spacer/bar combo that is acceptable to me.

Formulas are easily found on the internet. You can use a tape measure to pretty accurately measure bicycle tubes. What's a bit more difficult are the ST and HT angles and TT slope. I've found taking the average of several measurements using a $30 digital angle finder to be plenty accurate.

Originally Posted by agmetal View Post
I tried the Independence Allroad for a few minutes, but the shape really didn't work for me. The dimensions are very similar to the Berthoud Aspin (which I love and now have two of), but it felt like it had an arch shape that was trying to split me in two, and I just couldn't get comfortable on it. I bought a second Aspin as a result. The difference in available setback is only slight...maybe 5mm, which wasn't enough to notice any real difference, but I also, as mentioned, just couldn't get comfortable on the Rivet regardless.
Agreed. I have an Independence and it will slide further back than a Brooks Pro, but not by much.
__________________
Bikes on Flickr
I prefer email to private messages. You can contact me at justinhughes@me.com

Last edited by ColonelJLloyd; 07-28-16 at 10:14 AM.
ColonelJLloyd is offline
Old 07-28-16, 10:10 AM
  #25
ColonelJLloyd
Senior Member

ColonelJLloyd's Avatar

Join Date: Dec 2009
Location: Louisville
Posts: 8,382
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by Scooper View Post
I'm 6' tall with a 36" leg length, so half of my overall height is in my legs. Bikes that fit me best generally have 60 - 61cm seat tubes with 56cm top tubes. Such short top tubes are rare in stock frames, but they're out there.
Scooper, give my contact information to the future executor of your estate, please. If any of your bikes leave the family they should go to someone whom they fit extremely well.
__________________
Bikes on Flickr
I prefer email to private messages. You can contact me at justinhughes@me.com
ColonelJLloyd is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
