Narhay's 1978 Raleigh Competition GS

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Narhay's 1978 Raleigh Competition GS

Old 08-30-16, 10:59 AM
  #26
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,759
Likes: 0
Liked 16 Times in 14 Posts
Originally Posted by rootboy
It IS one tall bike.

And yet another Comp where they ran out of N. Gran Sport front derailleurs, so put a Record on.
Mwahahah!



Seriously Narhay, I know you're in Van, if you do decide to sell the frame and Mike passes his dibs, I'd be very keen on the frame-set, I've been looking for a 1970s clean frame, no braze ons, 531, 120 spaced frame for years in that size.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 08-30-16, 06:33 PM
  #27
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,943

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR-5 Viscount Aerospace Pro Raleigh C50 Cromoly Hybrid Legnano Tipo Roma Pista

Liked 7,099 Times in 4,026 Posts
Originally Posted by Narhay
Agreed! But mostly so I can google Narhay competition in a couple years and find my thread again.
Title fixed.
cb400bill is offline
Old 08-30-16, 07:49 PM
  #28
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts
Originally Posted by cb400bill
Title fixed.
Thank you mr. Moderator.
Narhay is offline
Old 08-30-16, 07:58 PM
  #29
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts
Shoo, shoo you vultures.

I actually bought this one for a decent price because I have a soft spot for Raleighs. I have been half looking for a taller frame to see how I like it. Yes, this one is the 24.5" model and a 57cm top tube. I think the shorter top tube but higher head tube will eliminate some of the back pain I have hunched over the bars. We will see. Maybe I'll want to move it on and who doesn't like a full Reynolds 531 frame?
Narhay is offline
Old 08-30-16, 11:29 PM
  #30
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,759
Likes: 0
Liked 16 Times in 14 Posts
Originally Posted by Narhay
Shoo, shoo you vultures.

I actually bought this one for a decent price because I have a soft spot for Raleighs. I have been half looking for a taller frame to see how I like it. Yes, this one is the 24.5" model and a 57cm top tube. I think the shorter top tube but higher head tube will eliminate some of the back pain I have hunched over the bars. We will see. Maybe I'll want to move it on and who doesn't like a full Reynolds 531 frame?
Apologies for salivating on your bike. I hope you do enjoy it and that short top tube might be just the ticket for a nice french fit for you. I ride 25" frames and they are a definite eddy fit. I have one a 62cm c-t gazelle and the super record post is at max extension with 180mm cranks. It fits, just barely, but I do like a 58-59cm top tube. I think taller riders can tolerate more drop though, that is my experience. My road bike has 5" of saddle to bar drop and it feels just right. My commuter has more like 2.5" and I think of it as upright.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 08-31-16, 08:06 AM
  #31
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts
Originally Posted by cyclotoine
Apologies for salivating on your bike. I hope you do enjoy it and that short top tube might be just the ticket for a nice french fit for you. I ride 25" frames and they are a definite eddy fit. I have one a 62cm c-t gazelle and the super record post is at max extension with 180mm cranks. It fits, just barely, but I do like a 58-59cm top tube. I think taller riders can tolerate more drop though, that is my experience. My road bike has 5" of saddle to bar drop and it feels just right. My commuter has more like 2.5" and I think of it as upright.
Hmm, maybe all this saliva is where that rusty spot came from.

I had this 24.5" c-c miyata 610 for a period of time. It had a short top tube as well. It was quite comfortable and I could reach the drops in comfort but decided in the end it may have been slightly too tall. I will just have to build this one up and ride.


Last edited by Narhay; 08-31-16 at 11:07 AM.
Narhay is offline
Old 08-31-16, 11:04 AM
  #32
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts


Appears as though my frame is a 24.5" c-t and serial number WD9003630 which means it is a 1979. This size was not made in 1978. I'm excited to see how it fits as it is slightly smaller than the too big 24.5" c-c miyata I posted earlier.
Narhay is offline
Old 08-31-16, 01:28 PM
  #33
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,925

Bikes: A green one, "Ragleigh," or something.

Liked 636 Times in 358 Posts
Yep, this one's on my list. too. Nice find The old-time running gear is icing on the cake.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●

Lascauxcaveman is offline
Old 09-02-16, 08:49 AM
  #34
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts

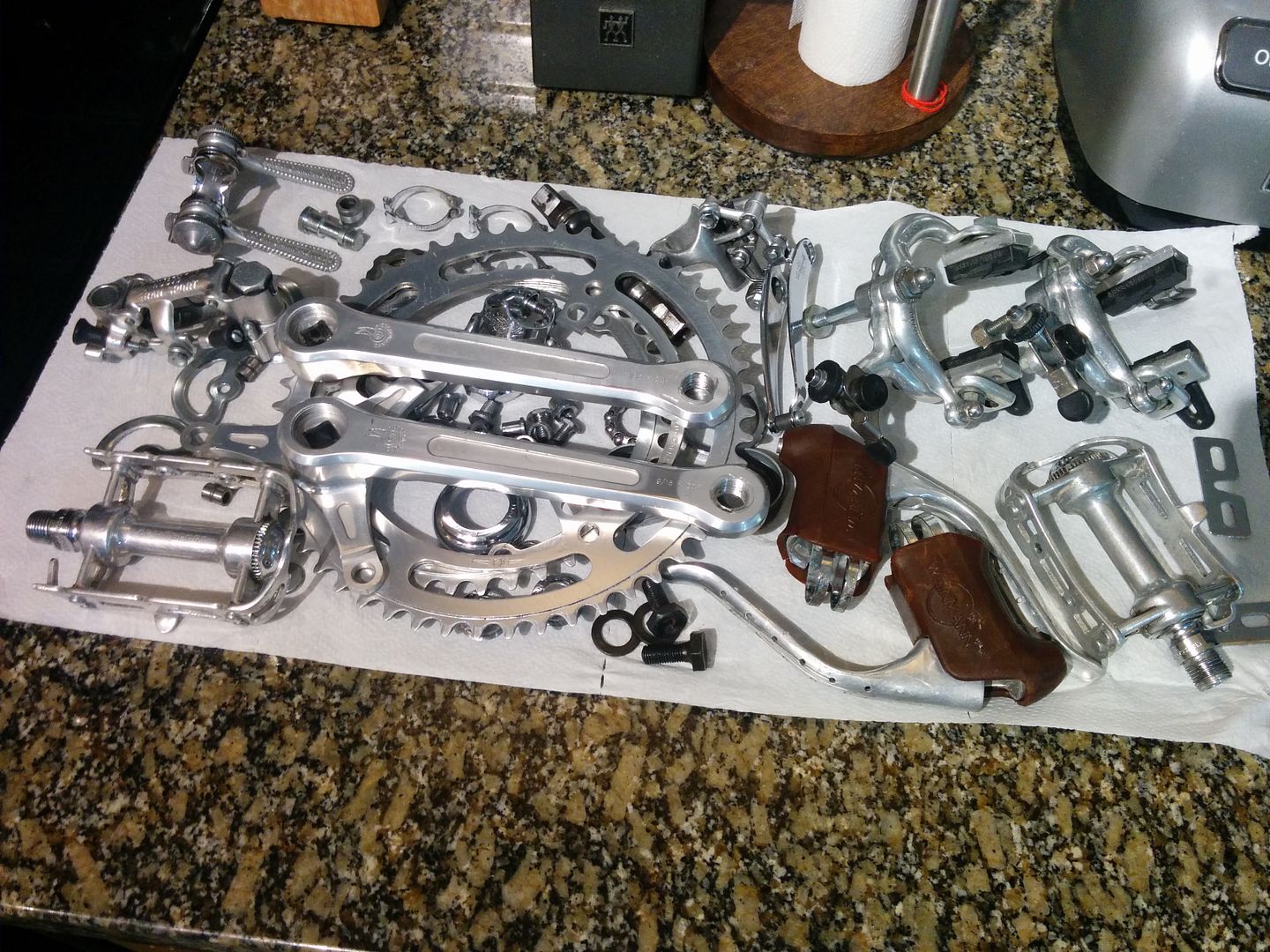

Nothing too exciting to report. I've managed to strip down the bike.

Drive side pedal threads were not in the best of condition. I chased them but the pedal is loose. May need something like a helicoil to repair it. Freewheel is completely fused to the wheel. I will try again after some pb blaster.

Narhay is offline
Old 09-02-16, 03:57 PM
  #35
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,269

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Liked 1,214 Times in 705 Posts
Originally Posted by Narhay
Freewheel is completely fused to the wheel. I will try again after some pb blaster.
Have you tried it with the removal tool in a vise and turning the wheel like a bus steering wheel? Lots of leverage that way. Someone showed me at the bike co-op a couple of years ago and it was like clouds parting.
noobinsf is offline
Old 09-02-16, 06:42 PM
  #36
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,873

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Liked 1,384 Times in 871 Posts
I have always liked the Raleigh Competition -- you get a nice 531 frame and Brooks saddle and save a little money on the components, which is a good compromise.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 09-02-16, 11:08 PM
  #37
Senior Member

mikemowbz's Avatar

Join Date: Aug 2011
Location: Vancouver, BC
Posts: 1,324

Bikes: Are several.

Liked 75 Times in 21 Posts
Originally Posted by Narhay
Shoo, shoo you vultures.
I will consider myself shoo'd.

Originally Posted by Narhay
Nothing too exciting to report. I've managed to strip down the bike.

Drive side pedal threads were not in the best of condition. I chased them but the pedal is loose. May need something like a helicoil to repair it. Freewheel is completely fused to the wheel. I will try again after some pb blaster.

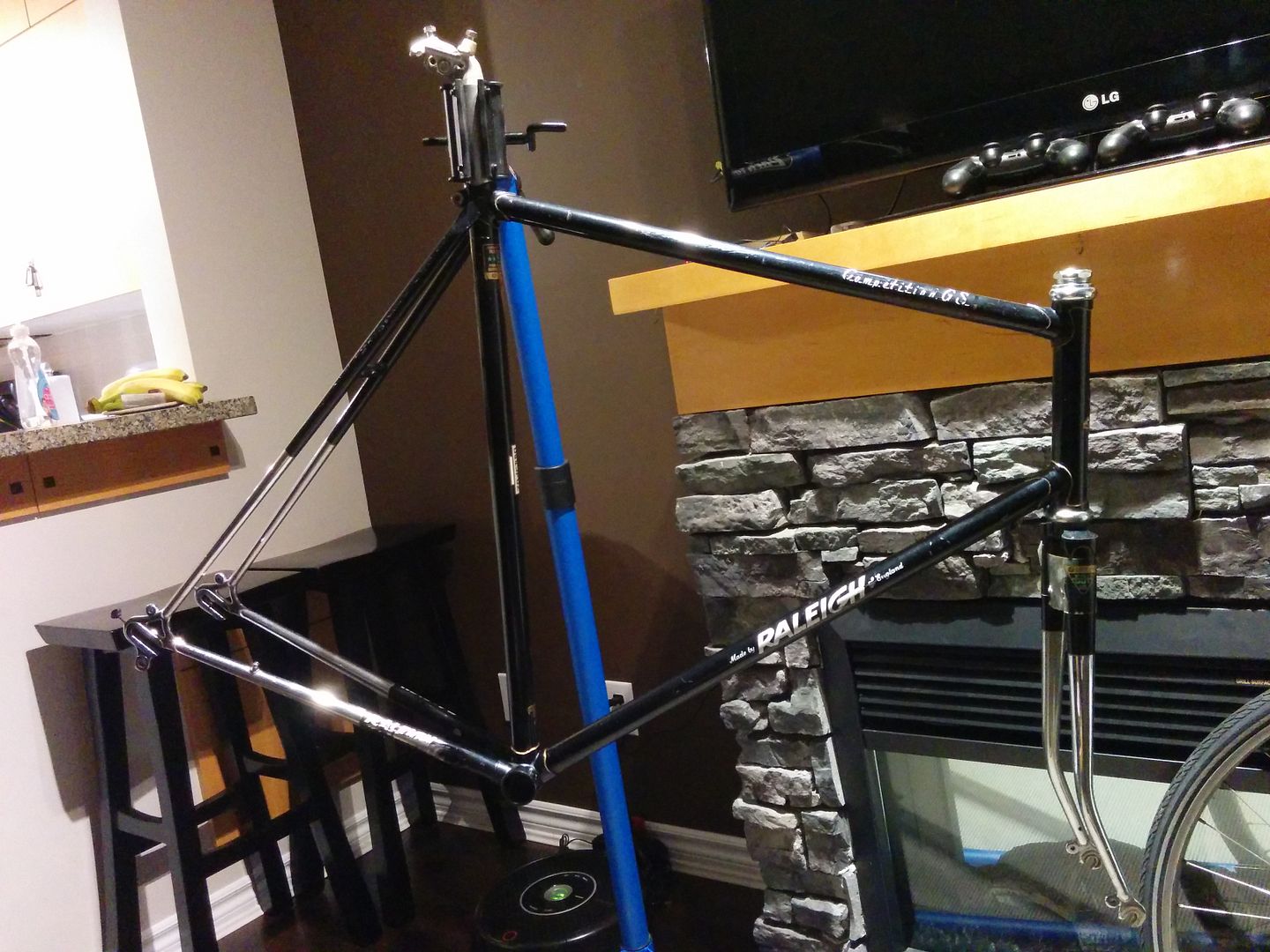

Stripped f/f looking sharp.

If needed, that three-arm crank is a candidate for a helicoil repair if I've ever seen one.

Mechanics at work try to avoid going that route typically, but some cranks are unquestionably worth whatever effort it takes to keep 'em rolling in good working order.
mikemowbz is offline
Old 09-03-16, 02:17 PM
  #38
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts

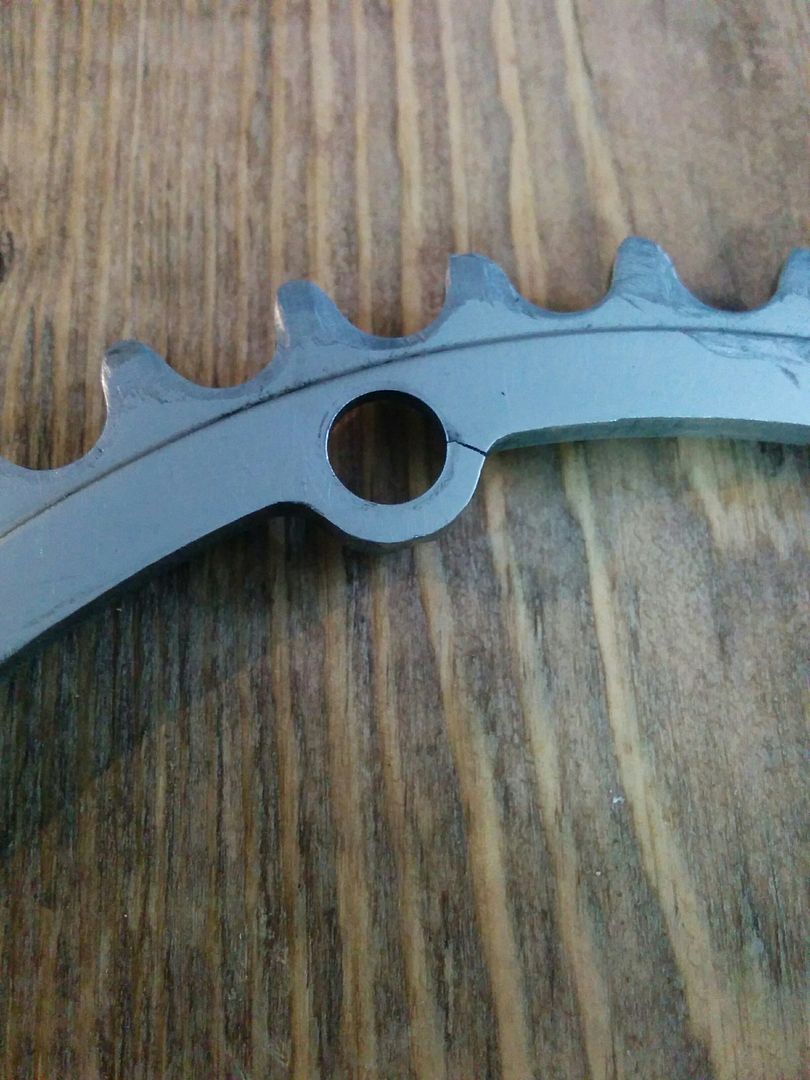

I was able to do a bit more today on the bike. More bad news for the crank. The inner chainring mounting hole has a crack. The spacers are also different. Two of them are about 3.3-3.4mm wide. One of them was 4.3mm. I found a set of three at 3.8mm. I'd imagine 0.5mm won't affect things greatly, especially as it seemed ok with the one 4.3mm spaxer in there.

Otherwise the bearing surfaces in the headset and bottom bracket are in excellent condition. The pedals are nice and smooth and the rest of the gear cleaned up nicely. Still have the wheels and a couple other bits to do but things are moving nicely. I am leaning towards a modern drivetrain since the issue with the crank and mismatched wheels have manifested themselves. I have two other similar bikes, a 1972 Peugeot PX-10 with Nuovo Record/stronglight/simplex and a Nuovo Record 1978 Motobecane Le Champion. I dont have a modern road bike and this frame looks like it would fit one nicely.

I've also ordered some touch up, Reynolds decals (no chance of saving the existing ones) and black car polish for the frame. Hopefully it will bring out the colour nicely.



Narhay is offline
Old 09-03-16, 03:58 PM
  #39
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,897

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Liked 923 Times in 191 Posts
Nice pics and project you have there Narhay. Replace the inner chainring with a true Campy part and the right spacers and you'll be much happier with it. That's going to be a nice Comp GS when you're done.

I have one of the gray ones myself:

[IMG]Raleigh Comp GS 074 by Mark, on Flickr[/IMG]

I have since replaced the levers with the drilled SR Campy version, which really look the part along with cotton bar tape. I need to do a few more pics of the final version.
poprad is offline
Old 09-03-16, 05:30 PM
  #40
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,869

Bikes: roadsters, club bikes, fixed and classic

Liked 2,070 Times in 1,262 Posts
Originally Posted by rootboy
It IS one tall bike.

And yet another Comp where they ran out of N. Gran Sport front derailleurs, so put a Record on.
Exactly!

Originally Posted by cyclotoine
Mwahahah!
Hey, don't decrease the value of my NG...er Record gears!
clubman is offline
Old 09-03-16, 06:19 PM
  #41
Senior Member

WolfRyder's Avatar

Join Date: Jul 2016
Location: In my crap Apt.
Posts: 589

Bikes: Not that many, just getting started.

Likes: 0
Liked 0 Times in 0 Posts
I got a Raliegh Comp GS black just like that a few months ago. I think they are pretty nice and the model just under the Professional. Just missed out one of those recently ohh well. But I like what I have. Got it from original owner and nice little upgrade when he bought it was to put on Campy Record brakes. I will post some pics at some point.
WolfRyder is offline
Old 09-03-16, 07:28 PM
  #42
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,748
Likes: 0
Liked 133 Times in 79 Posts
Originally Posted by WolfRyder
I got a Raliegh Comp GS black just like that a few months ago. I think they are pretty nice and the model just under the Professional. Just missed out one of those recently ohh well. But I like what I have. Got it from original owner and nice little upgrade when he bought it was to put on Campy Record brakes. I will post some pics at some point.
The model just below the Pro was the International, wasn't it?

The only upgrade I did to my Competition was adding Record brakes to it too.
Which was quite a financial leap for me in 1976.
Man that was a nice bike.
rootboy is offline
Old 09-03-16, 11:38 PM
  #43
Senior Member

WolfRyder's Avatar

Join Date: Jul 2016
Location: In my crap Apt.
Posts: 589

Bikes: Not that many, just getting started.

Likes: 0
Liked 0 Times in 0 Posts
Yeah I guess your right. Raliegh Proffessional, International then GS Competion. They are all pretty good though. Some models from other mfg's have more of a quality drop off than the Raleigh. Comp GS is solid. Feel like I did ok on mine price wise , but maybe should of plopped down an extra $50 to make a play at that Professional though. It was clean and original. Would of cost me $500 maybe plus after shipping so, had to think about it. Still pretty good price after all and was very clean.

Last edited by WolfRyder; 09-04-16 at 12:05 AM.
WolfRyder is offline
Old 09-03-16, 11:55 PM
  #44
Senior Member

Kilroy1988's Avatar

Join Date: Aug 2016
Location: Visalia, CA
Posts: 2,263
Liked 1,866 Times in 619 Posts
Originally Posted by rootboy
The model just below the Pro was the International, wasn't it?
The last year for the International was 1976, and from '77 on the Competition G.S. sat below the Professional in the lineup.
Kilroy1988 is offline
Old 09-04-16, 05:19 AM
  #45
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,748
Likes: 0
Liked 133 Times in 79 Posts
Ah! Thanks.
rootboy is offline
Old 09-04-16, 09:45 PM
  #46
Senior Member

WolfRyder's Avatar

Join Date: Jul 2016
Location: In my crap Apt.
Posts: 589

Bikes: Not that many, just getting started.

Likes: 0
Liked 0 Times in 0 Posts
Ok thats good to know my Comp GS is an 80
WolfRyder is offline
Old 09-05-16, 09:58 PM
  #47
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,759
Likes: 0
Liked 16 Times in 14 Posts
Originally Posted by Narhay
I was able to do a bit more today on the bike. More bad news for the crank. The inner chainring mounting hole has a crack. The spacers are also different. Two of them are about 3.3-3.4mm wide. One of them was 4.3mm. I found a set of three at 3.8mm. I'd imagine 0.5mm won't affect things greatly, especially as it seemed ok with the one 4.3mm spaxer in there.

Otherwise the bearing surfaces in the headset and bottom bracket are in excellent condition. The pedals are nice and smooth and the rest of the gear cleaned up nicely. Still have the wheels and a couple other bits to do but things are moving nicely. I am leaning towards a modern drivetrain since the issue with the crank and mismatched wheels have manifested themselves. I have two other similar bikes, a 1972 Peugeot PX-10 with Nuovo Record/stronglight/simplex and a Nuovo Record 1978 Motobecane Le Champion. I dont have a modern road bike and this frame looks like it would fit one nicely.

I've also ordered some touch up, Reynolds decals (no chance of saving the existing ones) and black car polish for the frame. Hopefully it will bring out the colour nicely.



Is the bolt circle the same at TA 3-pin cranks? The small ring mounts to the big instead of using the same bolt circle as the big ring? Weird. If you can somehow use a TA 3-pin. I can set you up with a 42 for a very reasonable amount.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 09-05-16, 10:03 PM
  #48
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts
Originally Posted by cyclotoine
Is the bolt circle the same at TA 3-pin cranks? The small ring mounts to the big instead of using the same bolt circle as the big ring? Weird. If you can somehow use a TA 3-pin. I can set you up with a 42 for a very reasonable amount.

Thank you very much. They both appear to be 116mm. I am going a different direction with this build, however, and I am letting someone else try to salvage this crankset.
Narhay is offline
Old 09-09-16, 03:06 PM
  #49
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts
Nothing too exciting to report once again. I did have a coworker put an air gun and socket to the freewheel remover and it popped off nicely. Way less effort than me hanging off of it.
Narhay is offline
Old 10-13-16, 09:45 AM
  #50
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,698
Liked 571 Times in 316 Posts

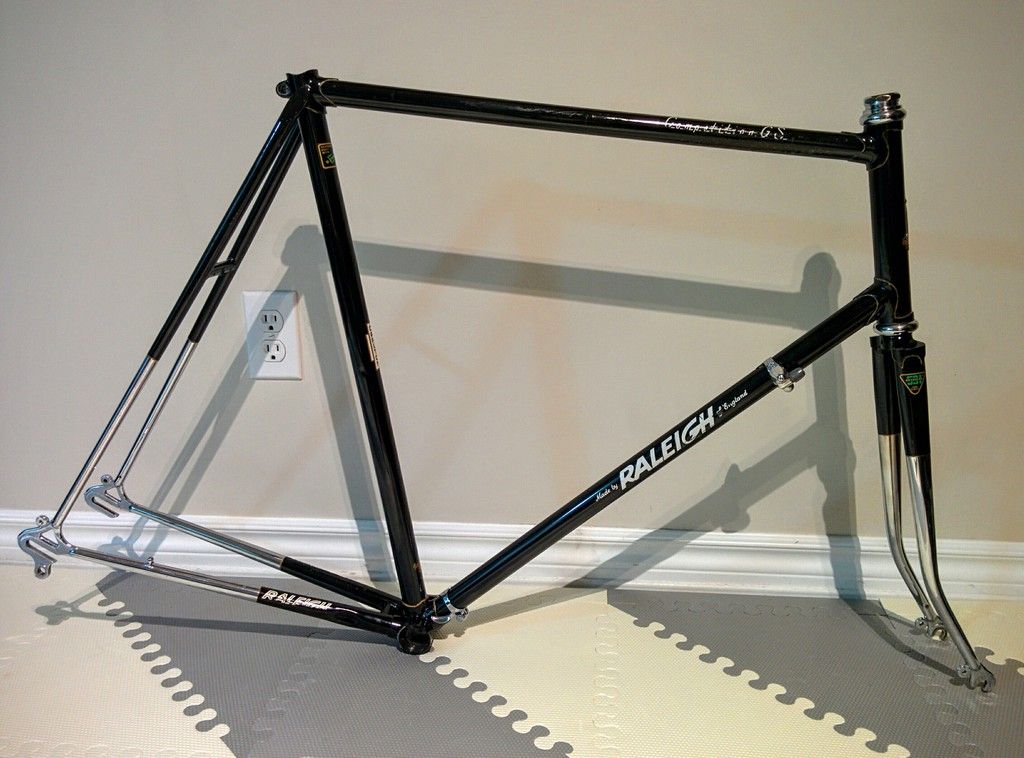

I've touched up some rough spots on the frame with testors gloss black paint. It looks good from a few feet away but it isn't perfect. Lots of black polish and a waxing and the paint has come back a bit. Repacked the headset and managed to remove the bent dropout screws in anticipation of their replacements. Huret downtube clamp with some shifter bosses, new Campagnolo seat binder bolt and the Campagnolo cable guide have been reattached to the frame. I've cleaned up the seatpost as well but I'll install that once I cold set the frame. I have some frame tools arriving so I will do the frame work when I am feeling a bit more brave.
Narhay is offline
