Cable routing for upright handlebar

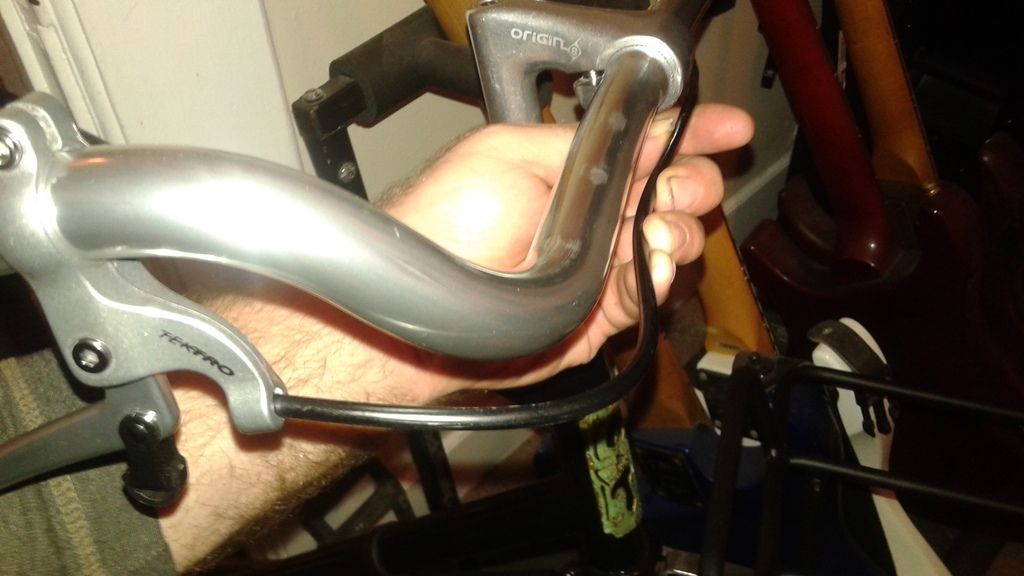

Ok, call me crazy, but I think it'd be cool to have my brake cables routed so that they go along the handlebar in a similar way to how rod brake levers are attached. I'm wondering if there's any elegant way to do this, with some sort of clamp-on guide? I did a ton of googling last night, and found it frustrating that the exact type of thing I have in mind exists for motorcycle handlebars, but of course the diameter is too large to work with a bicycle - at least without shims, and shims would take away from the aesthetics. Here's how I want the cables routed, roughly:

agmetal is offline
Old 11-30-16, 10:15 AM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6907 Post(s)
Liked 240 Times in 198 Posts
less internal friction if it's just a smooth curve..

Maybe if you put a V brake noodle right at the brake lever?


Linear Pull Brake Noodles | Jagwire...
fietsbob is offline
Old 11-30-16, 11:05 AM
  #3
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,540

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 12 Times in 7 Posts
Originally Posted by fietsbob View Post
less internal friction if it's just a smooth curve..

Maybe if you put a V brake noodle right at the brake lever?


Linear Pull Brake Noodles | Jagwire...
That's an idea for a start, but what about a way to attach the cable to the handlebar?

This is the kind of thing I'm asking about, but I can't find a good way to do it with a bicycle handlebar diameter

agmetal is offline
Old 11-30-16, 02:08 PM
  #4
dabac
Senior Member

Join Date: Mar 2008
Posts: 7,957
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 829 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Cut strips of thin aluminium stock. With a bit of determination it'll shape well enough with hand force. A screw in the middle to pinch it together.
Or try P-clamps. One in bar size and one in cable sleeve size. Clamp to each other, or via a small piece of sheet metal stock.
dabac is offline
Old 11-30-16, 02:20 PM
  #5
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,014
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 126 Times in 95 Posts
I like the natural curve of the housing in front of the bars. Only reason I can think of to do what you are saying is to keep them out of the way of a handlebar bag or basket.

TenGrainBread is offline
Old 11-30-16, 02:28 PM
  #6
agmetal
Senior Member
Thread Starter

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,540

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 12 Times in 7 Posts
Originally Posted by TenGrainBread View Post
I like the natural curve of the housing in front of the bars. Only reason I can think of to do what you are saying is to keep them out of the way of a handlebar bag or basket.

I do have a porteur rack that's going on the bike. The bigger thing is just that I'm wanting to emulate the look of my 1937 Raleigh as much as possible, within reason.


agmetal is offline
Old 11-30-16, 06:28 PM
  #7
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,556

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Likes: 0
Liked 19 Times in 17 Posts
Try some zip ties & see if it will even function properly. If it does, then look for a more elegant clamp.
ramzilla is offline
Old 11-30-16, 07:57 PM
  #8
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 NW of Philadelphia
Posts: 1,310

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 24 Times in 13 Posts
Originally Posted by dabac View Post
Cut strips of thin aluminium stock. With a bit of determination it'll shape well enough with hand force. A screw in the middle to pinch it together.
In my shop I would do this, either with sheet aluminum or even cereal box cardboard until I had the shape and dimensions right. Then I'd fabricate the actual brackets out of sheet stainless steel. Of course my shop is stocked with the doggonest materials that I keep when they look like they could be handy for making something some day. I got my stainless steel from the transfer station, an old industrial drinking cup holder IIRC. Flattened the sheet steel out and now I snip pieces off it when needed.
Prowler is offline
