Lightweight front rack / basket suggestions for cantilever brakes

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Lightweight front rack / basket suggestions for cantilever brakes

Old 12-20-16, 11:10 AM
  #1
kalash74
Senior Member
Thread Starter

Join Date: Oct 2015
Posts: 201
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Lightweight front rack / basket suggestions for cantilever brakes

I'm looking for a front rack / basket setup that will work in tandem with my Busch and Miller Cyo T Premium dynamo front light. Bike is a vintage 1980s Bridgestone with cantilever brakes.


The Nitto M12 rack is $72 shipped from Amazon (no weight listed)
https://www.amazon.com/Nitto-M12-Fro...words=m12+rack

The Velo Orange Pass Hunter rack is $80 and weighs only 250 g
VO Pass Hunter Front Rack - Racks, Decaleurs, Accessories - Accessories

Any preference between the two? Is there another rack I should consider?

For baskets, the Wald medium basket WALD 137 is listed as weighing 52 g, which to me seems rather lightweight
https://www.rivbike.com/products/wald-wire-basket


It doesn't look quite as classy as something like the VO Six Pack Rack
VO Six Pack Rack
but it seems it would hold more volume and is 1/5 the weight as well. (Any other suggestions for classy front baskets?)

Also, if you have suggestions for securing a basket like the Wald to one of these front racks, that would be helpful as well. I will also need to find a solution for mounting my Cyo T Premium headlight.
kalash74 is offline
Old 12-20-16, 11:18 AM
  #2
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,301

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 636 Post(s)
Liked 214 Times in 171 Posts
I got one of those Wald baskets laying around in the garage somewhere. Used to have it on back of a Trek hybrid. It's not very heavy. But, it's bare bones. You have to figure out how to connect it to the rack. I used little stainless hose clamps.
ramzilla is offline
Old 12-20-16, 11:23 AM
  #3
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,193

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 502 Times in 363 Posts
Originally Posted by kalash74 View Post

For baskets, the Wald medium basket WALD 137 is listed as weighing 52 g, which to me seems rather lightweight
https://www.rivbike.com/products/wald-wire-basket
Wald baskets are chromed steel utility baskets. Not light. Until Rivendell decided they were hip, people only put them on cheap heavy city bikes, or maybe messenger bikes. For them to be 52 g they'd have to be made from balsa wood. Must be a mistake.
Salamandrine is offline
Old 12-20-16, 11:27 AM
  #4
tarwheel
Senior Member

tarwheel's Avatar

Join Date: May 2007
Location: Raleigh, NC
Posts: 8,900

Bikes: Waterford RST-22, Bob Jackson World Tour, Ritchey Breakaway Cross, Soma Saga, De Bernardi SL, Specialized Sequoia

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
A had a Nitto M12 front rack on my Bob Jackson touring bike for many years. It is a very nice rack and finely constructed and finished, like all Nitto products. It weighs about 1 lb.

Ultimately, I removed the rack and sold it because I didn't find it very useful. I don't like carrying loads in the front of my bikes because it obscures my view of the front wheel and adversely affects handling. If I need to carry a load in the front, a handlebar bag works just as well. However, the Nitto rack adds a classy touch to a bike and is sometimes very handy. Here are some photos of mine.
Attached Images
File Type: jpg
BJ-front rack.jpg (96.9 KB, 460 views)
File Type: jpg
BJ-final build.jpg (98.6 KB, 444 views)
File Type: jpg
GAP 6.jpg (93.9 KB, 448 views)
tarwheel is offline
Old 12-20-16, 11:41 AM
  #5
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I have two Nitto and one VO mini front racks.
The Nitto are superior.
bulldog1935 is offline
Old 12-20-16, 11:42 AM
  #6
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,466

Bikes: It's complicated.

Mentioned: 922 Post(s)
Tagged: 0 Thread(s)
Quoted: 2836 Post(s)
Liked 820 Times in 456 Posts
I have found that the "off the shelf" non-adjustable racks don't quite fit right. Once you braze a fitting onto the fork for the rack stays to attach, it's a fixed distance between those hard points and where it attaches to the fork crown. After purchasing 3-4 and having to bend, cut, and rebraze piece back so the rack fit properly, I started making my own. That freed me up to make cable guides, lighting attachments, and fender attachments without having to use spacers. No more tie wraps as well.

The Nitto Mark's rack is adjustable, and although pricy, works quite well. It's a bit pricey.

For $12, this seems to be like a good solution.

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 12-20-16 at 11:55 AM.
gugie is offline
Old 12-20-16, 11:48 AM
  #7
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Mark's rack doesn't easily mount to canti bosses.
Use the M12 if you can.

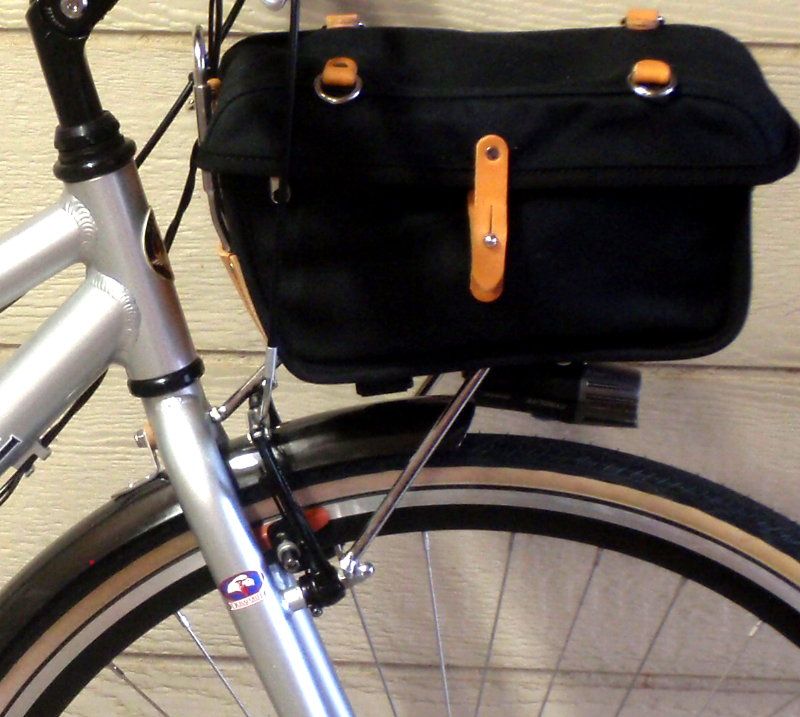

On my CX frame, with no fork crown brake bolt hole, I couldn't. Attaching the Mark's rack to Paul canti rack bolts required a couple of L-brackets from McMaster (and Tubus LM-clamps to the unifork crown). I thought about all my options for a long time before buying anything this setup



Last edited by bulldog1935; 12-20-16 at 12:55 PM.
bulldog1935 is offline
Old 12-20-16, 11:53 AM
  #8
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,466

Bikes: It's complicated.

Mentioned: 922 Post(s)
Tagged: 0 Thread(s)
Quoted: 2836 Post(s)
Liked 820 Times in 456 Posts
Originally Posted by tarwheel View Post
don't like carrying loads in the front of my bikes because it obscures my view of the front wheel and adversely affects handling.
I imagine that the trail on your bike is too high. A low trail bike (IMHO, ~30-35 is the sweet spot) can carry quite a load up front.

Set up for a 3 day trip:


Hauling down the Columbia River Gorge with friends. Stable enough to reach down into my handlebar bag pocket, pull out my camera, and take some pix:


Climbing up hills with zero shoulder, front loaded low trail we all noted that you could stand and pedal. Rear loaded the tail wags when you stand.

8 out of 10 frontloaded, low trail bikes at the Bridge of the Gods:
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-20-16, 11:57 AM
  #9
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts

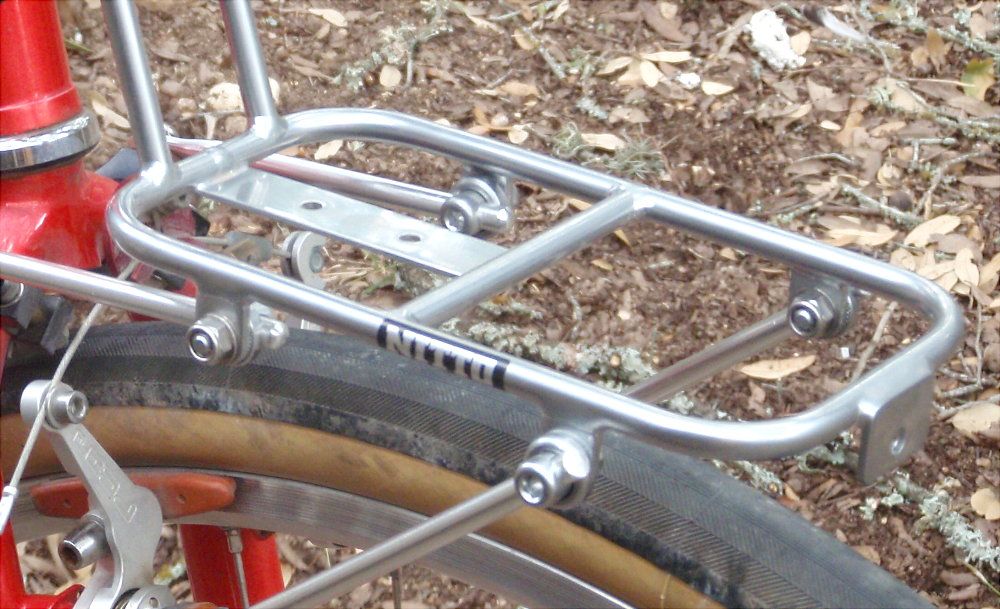

front load on the low-trail fork of a Raleigh Interational (M18 rack with long struts to drop-out bosses - spaced away from forks with Bridgestone standoffs from Rivendell)



Last edited by bulldog1935; 12-20-16 at 12:03 PM.
bulldog1935 is offline
Old 12-20-16, 12:06 PM
  #10
tarwheel
Senior Member

tarwheel's Avatar

Join Date: May 2007
Location: Raleigh, NC
Posts: 8,900

Bikes: Waterford RST-22, Bob Jackson World Tour, Ritchey Breakaway Cross, Soma Saga, De Bernardi SL, Specialized Sequoia

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
I don't think the low-trail issue was my problem. My BJ is a touring bike designed for carrying loads, but it just handles differently with a load in the front. That's probably just a matter of adjusting too, like riding with a different size stem. However, I don't think I would adjust to riding with my front wheel obscured. I like to see my front wheel when riding in order to avoid rocks, sticks, potholes and other obstacles. I bike commute year-round, so I am riding in the dark very frequently, and it's critical for me to have an unobstructed view of the road ahead.

Last edited by tarwheel; 12-20-16 at 02:05 PM.
tarwheel is offline
Old 12-20-16, 12:15 PM
  #11
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
My International would handle poorly with a rear load because of the main triangle flex.

That wasn't the case on my Grand Prix - it was great with front load and rear load.

bulldog1935 is offline
Old 12-20-16, 12:18 PM
  #12
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,466

Bikes: It's complicated.

Mentioned: 922 Post(s)
Tagged: 0 Thread(s)
Quoted: 2836 Post(s)
Liked 820 Times in 456 Posts
Originally Posted by bulldog1935 View Post
Mark's rack doesn't easily mount to canti bosses.
Use the M12 if you can.
Good to know. The only time I've used one is to test out handling with a bag on bikes that are in queue for low trail conversion/canti/centerpull bosses. I use P-clamps for that.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-20-16, 12:24 PM
  #13
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,466

Bikes: It's complicated.

Mentioned: 922 Post(s)
Tagged: 0 Thread(s)
Quoted: 2836 Post(s)
Liked 820 Times in 456 Posts
Originally Posted by tarwheel View Post
I don't the low-trail issue was my problem. My BJ is a touring bike designed for carrying loads, but it just handles differently with a load in the front. That's probably just a matter of adjusting too, like riding with a different size stem. However, I don't think I would adjust to riding with my front wheel obscured. I like to see my front wheel when riding in order to avoid rocks, sticks, potholes and other obstacles. I bike commute year-round, so I am riding in the dark very frequently, and it's critical for me to have an unobstructed view of the road ahead.
If I'm looking down at my front wheel to avoid stuff, it's too late. I can see just past my front wheel which is more than far enough.

The top of my handlebar bag(s) are below my handlebars. My racks attach to the front fender, which makes the bag as low as possible, giving me a fairly clear view, even with a fairly tall bag:




__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-20-16, 12:31 PM
  #14
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
there is one spendy option that has some advantages.
When I put a VO passhunter rack on my daughter's big-tire V-brake bike, the fork crown bolt didn't want to align with the hole.
I gave a buddy at work a $15 cigar to cut and re-weld the rack brake bosses at a different angle to solve it.

Compass sells two versions of their Nitto-made M13, narrow tire and wide tire, with 5mm reach difference.
The wide tire would have worked for our dilemma - my solution was cheaper, but not available to everybody...

bulldog1935 is offline
Old 12-20-16, 12:37 PM
  #15
crank_addict
Banned

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 378 Times in 246 Posts

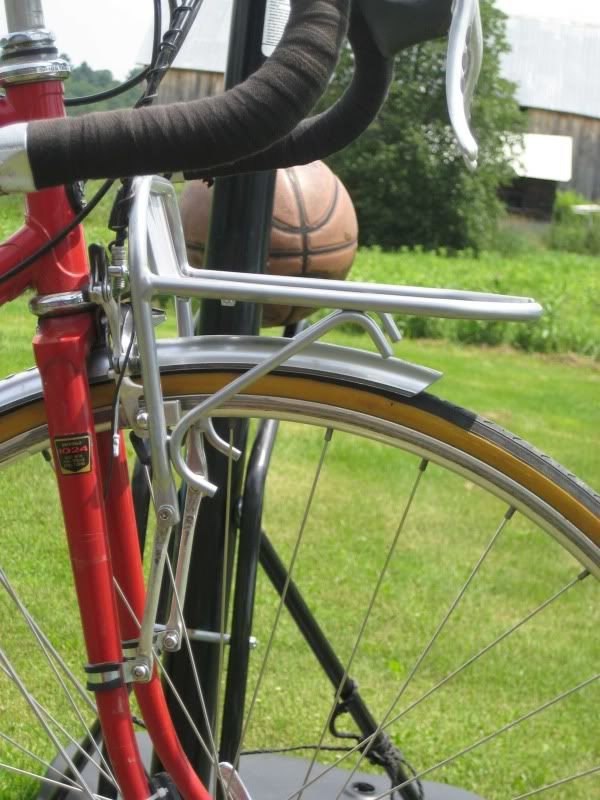

Do the hack thing. Can find any old beat-up or not rear rack and mod. I cut the bent portion off a Vetta rear rack and mounted to the front on this super cheapo project. Most stable, no contact with any cantilever parts / boss, can hold substantial weight, mount a basket and far enough out for a milk crate.

[IMG]IMG_7648 by carrera247, on Flickr[/IMG]

[IMG]IMG_7649 by carrera247, on Flickr[/IMG]

[IMG]front rack mount on Schwinn Hurricane fork by carrera247, on Flickr[/IMG]

[IMG]hurricane b by carrera247, on Flickr[/IMG]

[IMG]IMG_6971sm by carrera247, on Flickr[/IMG]
crank_addict is offline
Old 12-20-16, 01:16 PM
  #16
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,193

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2267 Post(s)
Liked 502 Times in 363 Posts
Originally Posted by bulldog1935 View Post
Mark's rack doesn't easily mount to canti bosses.
Use the M12 if you can.

On my CX frame, with no fork crown brake bolt hole, I couldn't. Attaching the Mark's rack to Paul canti rack bolts required a couple of L-brackets from McMaster (and Tubus LM-clamps to the unifork crown). I thought about all my options for a long time before buying anything this setup


Thanks for posting this. I was actually wondering what Rivendell were thinking with the threaded fittings on the top of the fork crown of my Clem Smith. Stupid as it sounds I thought maybe for lights or homemade racks. A Mark's rack works. Now I know.

I went with a Nitto M18 instead though, partly because I could easily swap it to my Mercian, should I want to carry a bigger front load than a Carradice handlebar bag allows.

To the OP, that brings up something I realized recently: brake mounted racks are not a great idea if you plan to swap them between bikes.

Also, I would favor Nitto over VO in this case. I would expect the VO would need some tweaking to work. Maybe even consider an adjustable Nitto. VO stuff can be nice, but I prefer the no BS high quality nature of Nitto racks generally speaking. It depends on the project though. I have a VO constructeur front rack, and while the quality was quite nice and better than I was expecting, it did take some bending to get it to sit level.
Salamandrine is offline
Old 12-20-16, 01:43 PM
  #17
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
you're welcome
bulldog1935 is offline
Old 12-20-16, 03:12 PM
  #18
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,275
Mentioned: 294 Post(s)
Tagged: 0 Thread(s)
Quoted: 1682 Post(s)
Liked 820 Times in 465 Posts
I have the Nitto M18 and a Wald wire basket on my commuter. I find the basket to be super useful and versatile. I attached the basket to the rack using extra small hose clamps and cover it with a cheap Nashbar cargo net. I don't have a current pic, but here it is on a previous commuter setup:

nlerner is offline
Old 12-20-16, 03:21 PM
  #19
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,152

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 475 Post(s)
Tagged: 0 Thread(s)
Quoted: 6494 Post(s)
Liked 1,036 Times in 687 Posts
There's no way a steel basket weighs 52 grams (1.85 ounces). That's a misprint.

@kalash74 wants to mount his dynamo headlight. It's tricky. I'm trying to figure that out for myself, too. I have a big VO front rack but no cantilever brakes.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 12-20-16, 03:45 PM
  #20
EnzoRWD
enginerd

Join Date: Nov 2005
Location: MKE
Posts: 688

Bikes: officially too many now...

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 36 Times in 17 Posts
I've got an Old Man Mountain front rack on my CX bike. It mounts to a special extended QR and the canti studs. Would something like this be too big? I weighed mine at 640g

EnzoRWD is offline
Old 12-20-16, 04:09 PM
  #21
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Compass makes one with a light mount


I've mounted cygolights to racks in different ways.
On Mark's Rack and M18, tapped a Gino light mount to the M6 of a Nitto 20182 Rod bolt, and added an M6 Bellville washer
(can also do on a Mark's rack, but not on an M-12)


On my daughter's VO rack, used the VO light hanger bracket - a simple strap that hangs down from an M5 boss on the VO rack, and used the normal Gino hardware to strap to the other end - lock washers keep everything from rotating, and it's more solid than it seems it should be.


The Mark's rack also has a front-and-center headlight mount, which might work for your dyno light mount


Last edited by bulldog1935; 12-20-16 at 10:11 PM.
bulldog1935 is offline
Old 12-20-16, 08:36 PM
  #22
AZORCH
Senior Member

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Posts: 3,068

Bikes: 1946 Hobbs of Barbican | 1966 Paramount P-13 | 1971 Raleigh International | ca. 1970 Bernard Carre | 1980s Freschi Supreme Super Cromo | 1989 Waterford Paramount | 2012 Boulder Brevet | 2017 Jeff Lyon L'Avecaise

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by kalash74 View Post
I'm looking for a front rack / basket setup that will work in tandem with my Busch and Miller Cyo T Premium dynamo front light...I will also need to find a solution for mounting my Cyo T Premium headlight.
I'm pretty sure this solution would work with cantilever brakes.



If you can find one of these, it's a vintage Jim Blackburn front rack. Very stable, pretty light, decent footprint. I cobbled together the light bracket from odds and ends.
AZORCH is offline
Old 12-20-16, 09:16 PM
  #23
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,342

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Likes: 0
Liked 59 Times in 33 Posts
I don't believe Blackburn makes those anymore, but Soma makes a similar rack.
Vintage_Cyclist is offline
Old 12-20-16, 10:18 PM
  #24
bulldog1935
Banned.

Join Date: Jul 2016
Location: downtown Bulverde, Texas
Posts: 2,717

Bikes: '74 Raleigh International utility; '98 Moser Forma road; '92 Viner Pro CX upright

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
something nice about the narrow tombstones is good rando bags are primarily supported by a tight-fitting sleeve over the tombstone

bulldog1935 is offline
Old 12-21-16, 06:58 AM
  #25
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,809

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 106 Times in 65 Posts
JBI -Search Grid Results

I have two in the fleet, one stocked and one kludged. Both work fine, and the price is right.





Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)

Last edited by top506; 12-21-16 at 07:02 AM.
top506 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
