Italian octagonal tubing frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Italian octagonal tubing frame

Old 01-05-17, 07:08 PM
  #1
Reynolds
Passista
Thread Starter

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,188

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 349 Times in 203 Posts
Italian octagonal tubing frame

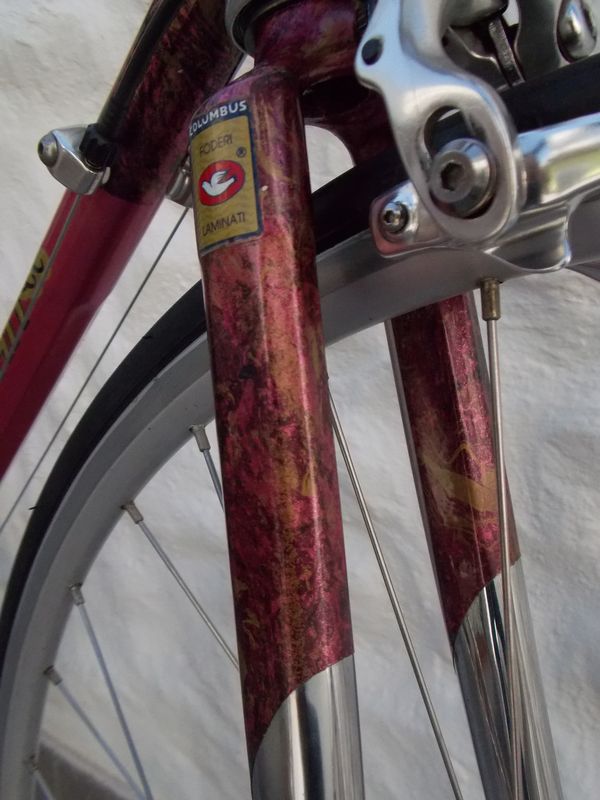

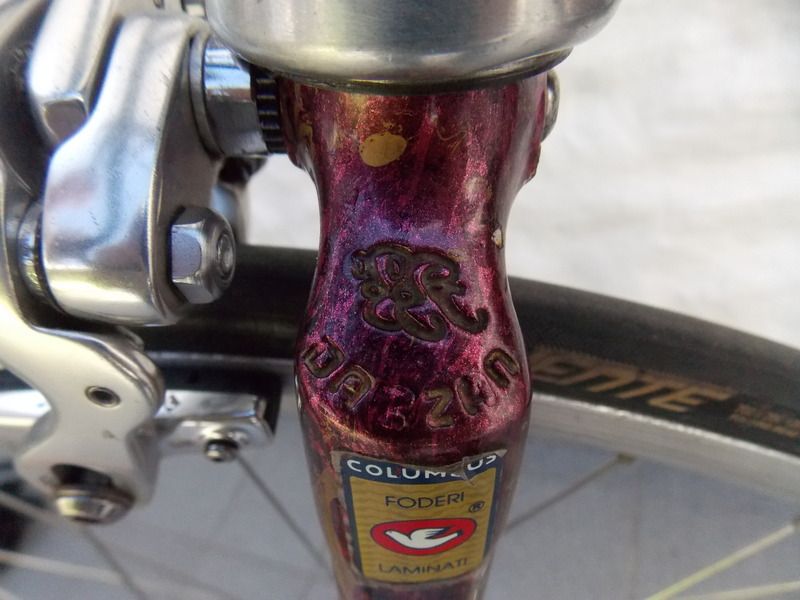

A friend of mine bought this frame a few days ago. It's a Dazzan, made in Italy probably in the '90s for Octavio Dazzan, an Argentinian racer and bike shop owner. The used frame was in the shop backroom, my friend bought it and built it with some Campagnolo parts he had lying around in his own shop (he's an avid cyclist and vintage bike collector). The frame has some interesting features, especially the octagonal main tubes, chainstays (not seatstays) and fork blades. Dropouts are Campagnolo, seatpost is 27.2. The paint is also not common, with some panels resembling marble. A decal says it was painted by Carlo Dossena, a famed bike painter who's still in business. The head tube decal says "Settimo Tse. To Italy".
My friend is very interested about this frame's background. I wasn't able to find information about it elsewhere on the web, so I thought probably someone in this great C&V forum knows about it:





Last edited by Reynolds; 01-05-17 at 07:28 PM.
Reynolds is offline
Old 01-05-17, 07:14 PM
  #2
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Posts: 8,772
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Be still, my beating heart.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline
Old 01-05-17, 07:20 PM
  #3
Reynolds
Passista
Thread Starter

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,188

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 349 Times in 203 Posts

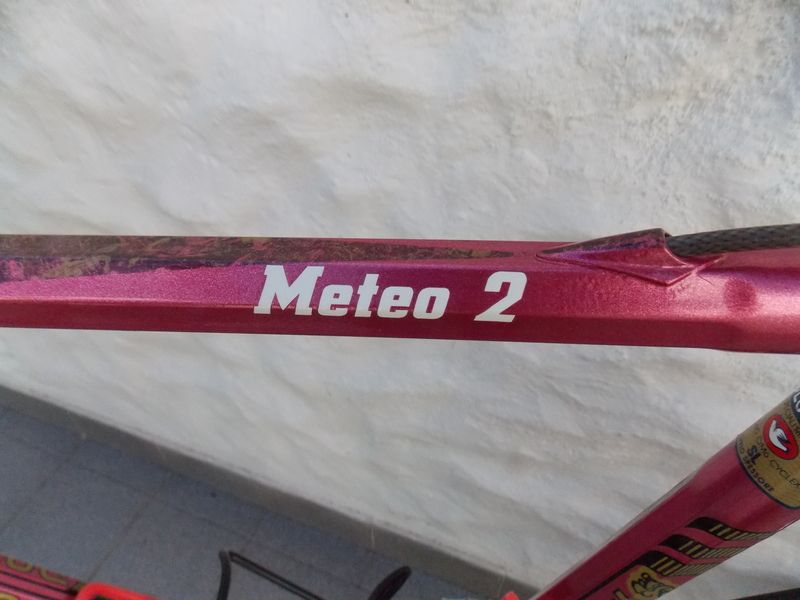

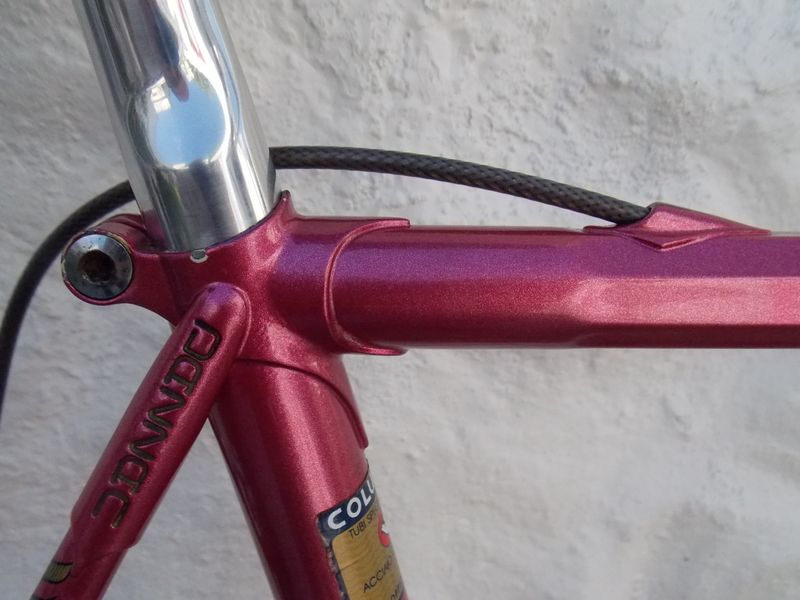

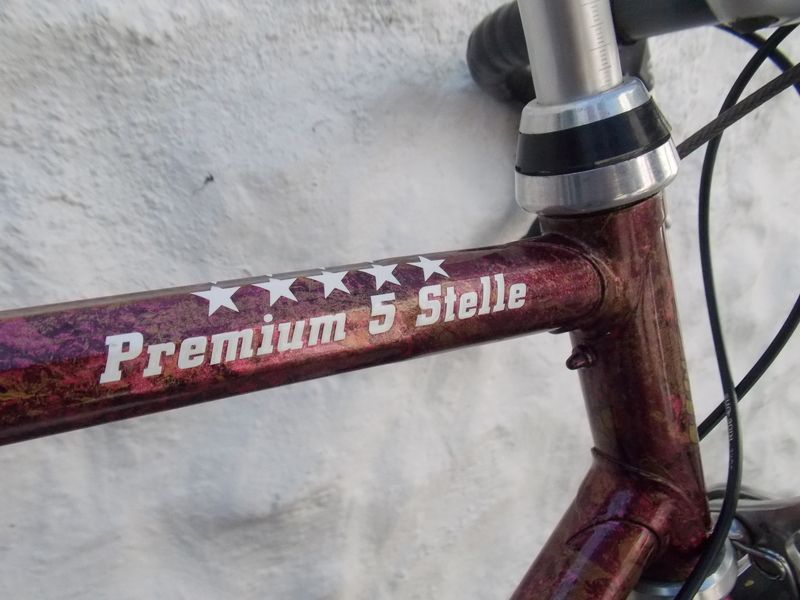

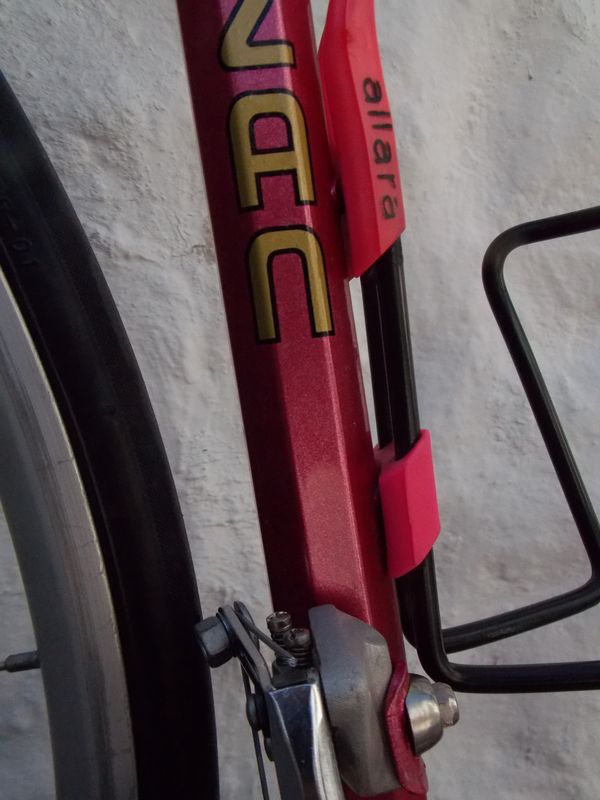

Some more pics:


















Last edited by Reynolds; 01-05-17 at 07:27 PM.
Reynolds is offline
Old 01-05-17, 07:26 PM
  #4
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
I want one.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 01-05-17, 07:38 PM
  #5
Lazyass
Senior Member

Join Date: Jul 2008
Location: NC
Posts: 8,349

Bikes: Vintage steel, aluminum, modern carbon disc, single speed, MTB's, the works

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 2018 Post(s)
Liked 96 Times in 60 Posts
This fluted Dacccordi has been on CL for awhile.



Lazyass is offline
Old 01-05-17, 07:48 PM
  #6
wrote4luck
Senior Member

wrote4luck's Avatar

Join Date: Oct 2006
Location: North Carolina
Posts: 577

Bikes: 2008 Cannondale Six 13, 1980 Dawes Super Galaxy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I had one of those formed Daccordi turbo frames, they are just cold formed SL tubes. I think this bike is the same. Still, they are very high on the cool scale. The Daccordis even predate Colnago in formed tubes.

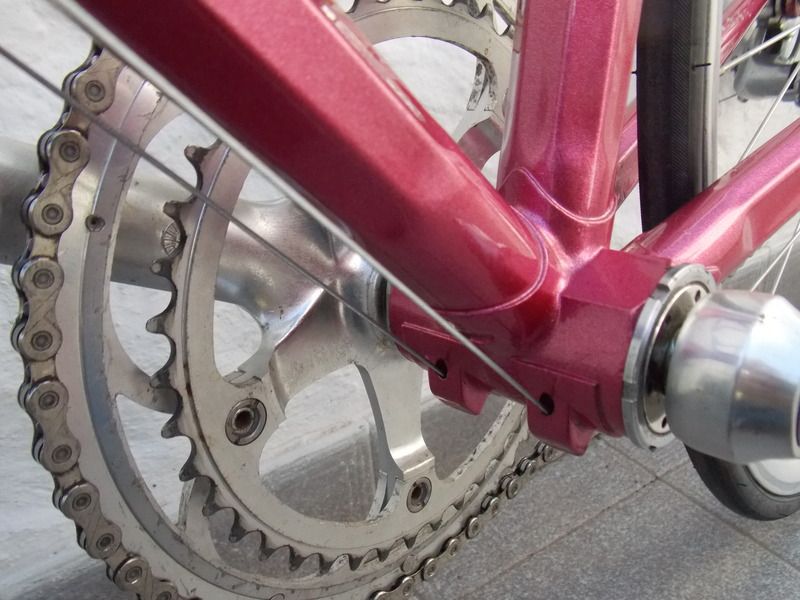

ETA that bb shell is the coolest I have ever seen.

Last edited by wrote4luck; 01-05-17 at 07:51 PM.
wrote4luck is offline
Old 01-05-17, 07:56 PM
  #7
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,444
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1549 Post(s)
Liked 359 Times in 246 Posts
The Daccordi frames are completely different from the op's Dazzan...

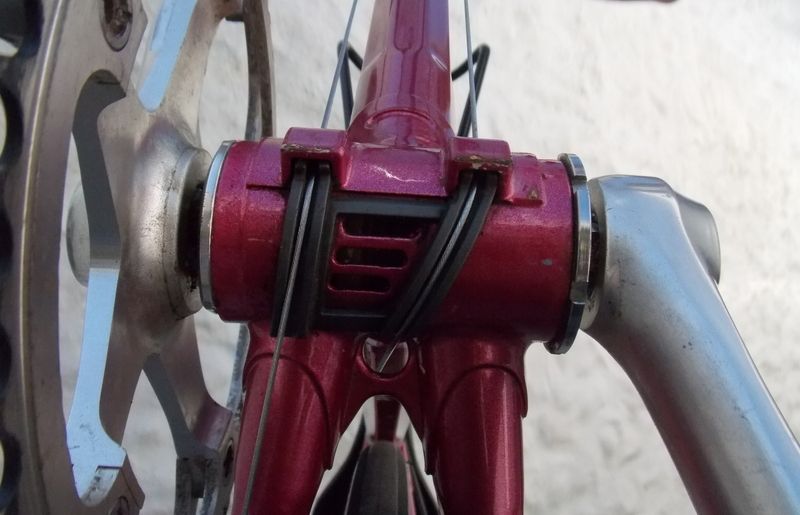

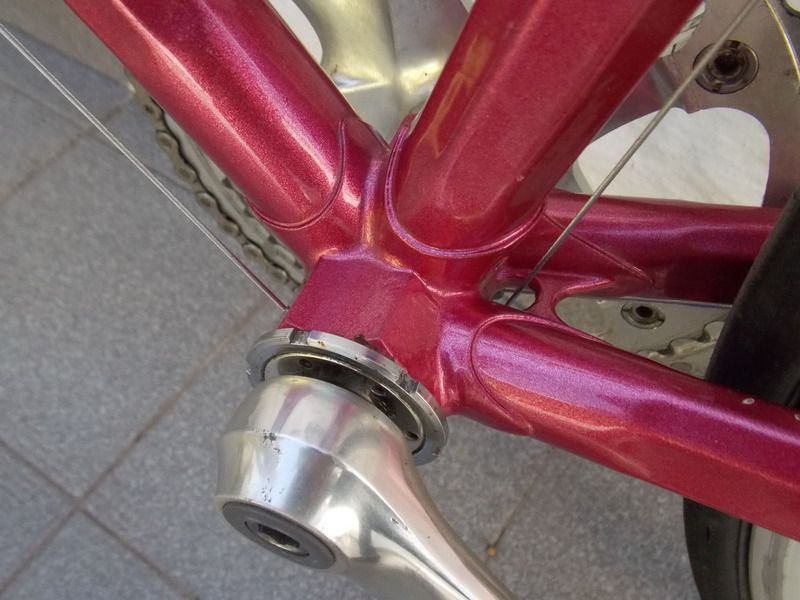

I like the fact that the top of the Dazzan's BB is square. Rather cool looking.
Wileyone is offline
Old 01-05-17, 08:09 PM
  #8
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13320 Post(s)
Liked 1,782 Times in 1,347 Posts
Nice bike. It looks a little like my Colnago Spiral Conic, but that is a pure octagon, and very nicely finished.

Does your friend have one of these? I'm not sure what "size 6" means.

Vintage SMS Santini Dazzan Cycling Jacket Cycliste sz- 6 | eBay


CliffordK is offline
Old 01-05-17, 08:14 PM
  #9
wrote4luck
Senior Member

wrote4luck's Avatar

Join Date: Oct 2006
Location: North Carolina
Posts: 577

Bikes: 2008 Cannondale Six 13, 1980 Dawes Super Galaxy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Wileyone View Post
The Daccordi frames are completely different from the op's Dazzan...

I like the fact that the top of the Dazzan's BB is square. Rather cool looking.
I would disagree. They both use formed SL tubes and custom cast lugs. I would bet good money these 2 frame builders got their tubes from the same source in Italy, albeit about 3 years apart. Builders could special order this stuff but it was not cheap. Seat tube/top tube lug is unique to both frames.

Last edited by wrote4luck; 01-05-17 at 08:20 PM.
wrote4luck is offline
Old 01-05-17, 08:48 PM
  #10
zze86
Senior Member

Join Date: Oct 2016
Posts: 664
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No clue on the bike, but that is some hotness right there. The paint job is really insane and I love how the BB lines up perfectly with the tubes, crazy attention to detail.

Is that a dent on the seat post or is it supposed to be like that? If so to what end? Either way, sizzlin.
zze86 is offline
Old 01-05-17, 09:11 PM
  #11
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,897

Bikes: A green one, "Ragleigh," or something.

Mentioned: 181 Post(s)
Tagged: 0 Thread(s)
Quoted: 1577 Post(s)
Liked 465 Times in 273 Posts
As far as gimmicks go, that's a pretty darn cool one Lovely bicycle!

Octagonal tubing, because the O.O.'s name is Octavio, duh.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Old 01-05-17, 09:59 PM
  #12
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,969
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 13320 Post(s)
Liked 1,782 Times in 1,347 Posts
Originally Posted by zze86 View Post
Is that a dent on the seat post or is it supposed to be like that? If so to what end? Either way, sizzlin.
In the 80's and 90's, Campy introduced an Aero seatpost.

VeloBase.com - Component: Campagnolo C-Record (Aero type, 180mm)
VeloBase.com - Component: Campagnolo Chorus Aero



It undoubtedly made the bikes faster
CliffordK is offline
Old 01-05-17, 10:38 PM
  #13
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,444
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1549 Post(s)
Liked 359 Times in 246 Posts
Originally Posted by wrote4luck View Post
I would disagree. They both use formed SL tubes and custom cast lugs. I would bet good money these 2 frame builders got their tubes from the same source in Italy, albeit about 3 years apart. Builders could special order this stuff but it was not cheap. Seat tube/top tube lug is unique to both frames.
Yes I would agree with you there. If they are SL they both probably got their tube sets from Columbus...
Wileyone is offline
Old 01-06-17, 12:12 AM
  #14
Gary Fountain
Senior Member

Gary Fountain's Avatar

Join Date: Sep 2005
Location: Hervey Bay, Qld, Australia.
Posts: 2,816

Bikes: Colnago (82, 85, 89, 90, 91, 96, 03), 85 Cinelli, 90 Rossin, 83 Alan, 82 Bianchi, 78 Fountain, 2 x Pinarello, Malvern Star (37), Hillman (70's), 80's Beretto Lo-Pro Track, 80's Kenevans Lo-Pro, Columbus Max (95), DeGrandi (80's) Track.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 90 Times in 68 Posts
Wow - beautiful bike.

There are similarities with Rossin Prestige frames but these frames have 6 facets. The Rossin frames are made from Tange Prestige tubes.


Last edited by Gary Fountain; 01-06-17 at 12:16 AM.
Gary Fountain is offline
Old 01-06-17, 12:24 AM
  #15
zze86
Senior Member

Join Date: Oct 2016
Posts: 664
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by CliffordK View Post
In the 80's and 90's, Campy introduced an Aero seatpost.

VeloBase.com - Component: Campagnolo C-Record (Aero type, 180mm)
VeloBase.com - Component: Campagnolo Chorus Aero



It undoubtedly made the bikes faster
Very cool! Must be like how painting anything red makes it 10x faster.
zze86 is offline
Old 01-06-17, 08:51 AM
  #16
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,885
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Likes: 0
Liked 1,180 Times in 877 Posts
Therer's nothing new about frames with polygonal tubes. Caminade of France used octagonal tubing in the late 1930s and they were even more unusual in that they were aluminum and riveted! . Monark of the USA had hexagonal aluminum tubes around the same period. In the late 1960s and early 1970s, Sanki of Japan sold entry level lighweights with hexagonal steel tubing under the Jupiter and University brands.
Attached Images
File Type: jpg
T-Mar is offline
Old 01-06-17, 10:20 AM
  #17
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,885
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Likes: 0
Liked 1,180 Times in 877 Posts
Originally Posted by Chuckk View Post
We used to call all the funny shaped Columbus tube bikes "Gilco tubing". I thought they were the post processor of Columbus during the short "It makes them stiffer!" phase.
Were the odd shapes ever produced by Columbus or other makers?

I'm pretty certain that Tommasini did Gilco/Columbus bikes as a saw a bunch at Bil Lewis' warehouse here in Austin around '90.
Based on my research Gilco appears to have been a subsidiary of A.L. Colombo (Columbus). It was established in 1946 by Colombo's son Gilberto to design and manufacture sports cars. Gilco produced tubing designs for Columbus but also hired out to produce proprietary designs for other manufacturers. Columbus' MS (Multi-Shape) tubing is a Gilco design and the tubing decals bear the Gilco's "G" logo and states "Gilco Design". Unfortunately, Gilco has become a generic term to refer to any non-round, cold formed, tubing shapes, much the same as Kleenex and Ski-Doo are used to refer to any facial tissue or snowmobile, even though they are brand names.
Attached Images
File Type: jpg
Columbus MS_0001.jpg (99.4 KB, 134 views)
T-Mar is offline
Old 01-06-17, 08:34 PM
  #18
Reynolds
Passista
Thread Starter

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,188

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 349 Times in 203 Posts
Thanks all! I knew about the Gilco in Colnagos and the Caminargent - in fact my friend has one in his collection. New to me are the Daccordi and Rossin shaped tubes. The Daccordi seat lug looks similar to the Dazzan.
Was there any advantage with polygonal tubes or was it just to be different?
Reynolds is offline
Old 01-07-17, 08:50 AM
  #19
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,885
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Likes: 0
Liked 1,180 Times in 877 Posts
Originally Posted by Reynolds View Post
Thanks all! I knew about the Gilco in Colnagos and the Caminargent - in fact my friend has one in his collection. New to me are the Daccordi and Rossin shaped tubes. The Daccordi seat lug looks similar to the Dazzan.
Was there any advantage with polygonal tubes or was it just to be different?
Altering the shape of the tube affects it rigidity. A round tube is equally rigid in all directions (assuming uniform thickness). Ideally, you want a bicycle to be stiffer laterally than vertically, as the lateral stiffness preserves the handling and transfers more power, while decreased vertical stiffness absorbs more road shock and provides a more comfortable ride. Altering the shape allows the designer to selectively increase the stiffness in specific directions, without the need to resort to increased tube thickness, which would increase weight.

Most members are aware that a larger diameter tube is stiffer than a smaller diameter tube. As the diameter increases, so does the stiffness. When you take a round tube and deform it into an oval, it is has a minor and major axis. The major axis is longer than the diameter of the previously round tube and it will be stiffer than the previous round tube, in that direction. The minor axis will be shorter than the old diameter and the oval tube will be less stiff than the round tube in that direction.

Oval tubes, as used on time trial and triathlon bicycles are more stiff vertically than laterally. This is the reverse the ideal situation, but in this case we are looking to make the tubes narrower for the purpose of reduced aerodynamic drag and the relatively steady power output of this type of event will not have as much effect of the lateral rigidity.

In the very late 1980s it became popular to ovalize the bottom bracket ends of the seat and down tubes on ATBs. The major axes were oriented laterally to increase lateral stiffness of the bottom bracket. It was even seen on some road frames, such as the Bianchi Superest II models.

When tubes are polygonal, they will still have a major and minor axes. Basically, they will be stiffer in the directions across the apexes and less stiff in the direction across the flats. Assuming that they were all cold formed from a tube of the same diameter, for any regular polygon (i.e. equal length sides and angles) the differential between the major and minor axes will become less as the number of sides increase. Basically, a octagon would would be less stiff than a hexagon across it apexes but stiffer across the flats, assuming they were both formed from a tube of the same diameter and thickness.

A longitudinal indentation along a tube works like a u-shaped stiffening channel applied to piece of sheet metal, such as a car hood. Indentations along the side of a tube will increase lateral stiffness.

By altering and orientating the shape of a tube, a designer can tailor the stiffness of a frame to more closely approach his vision of an ideal frame. Basically, it increases the flexibility of steel tube design and when used in conjunction with tubes of varying wall thickness and diameter, approaches the design flexibility of carbon fibre monocoques.

Last edited by T-Mar; 01-07-17 at 09:10 AM.
T-Mar is offline
Old 01-07-17, 07:05 PM
  #20
Reynolds
Passista
Thread Starter

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,188

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 349 Times in 203 Posts
Thanks T-Mar, great explanation. My '92 KHS has round tubes ovalized at the BB like you say.
