Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Photo of the bike you use to pick up your groceries

Old 01-13-20, 07:56 PM
  #76
flangehead
Senior Member

Join Date: Dec 2006
Location: Houston, TX
Posts: 682

Bikes: 2017 Co-op ADV 1.1; ~1991 Novara Arriba; 1990 Fuji Palisade; mid-90's Moots Tandem; 1985 Performance Superbe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 413 Times in 245 Posts
Kiddie Trailer Flatbed

Originally Posted by Notso_fastLane View Post
What trailer is that? I want one.
We'll see what noglider says, but it sure looks like a conversion of an old kiddie trailer to me.

I did one similarly; see The post your trailer thread.

Several brands sold very similar designs. The old style had tubing on each side of each wheel, which feels strong. Mine was rated for total of 100 pounds per manufacturer as a kiddie trailer. I am comfortable planning for 150 pounds and I'm sure I've done 200 pounds several times. Weak link is probably the hitch and practically, being able to brake with that much weight becomes an issue.

The newer models on the market tend to have cantilevered wheels which I would not load as aggressively.
flangehead is offline
Likes For flangehead:
Old 01-14-20, 10:15 AM
  #77
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,136

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6993 Post(s)
Liked 1,713 Times in 1,067 Posts
Notso_fastLane flangehead is right. It's a Burley trailer with the top and sides removed. I think I've hauled over 150 pounds with it. When it's heavily loaded, I'm shifting like a tractor-trailer driver. But with sufficiently low gears, I don't have to exert myself hard; I just roll more slowly. I once took this trailer to Costco and got a full Costco-size load that would normally fill my car's trunk. People looked at me with envy.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 01-14-20, 10:17 AM
  #78
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,136

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6993 Post(s)
Liked 1,713 Times in 1,067 Posts
To find a trailer like this at a good price, set up a google alert with the search terms "bike trailer site:newyork.craigslist.org" and substitute "newyork" with your local craigslist. You will get an email each time a listing pops up. Trailers sell for many hundreds of dollars new but less than $100 used.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 01-14-20, 11:42 AM
  #79
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,403

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 1212 Post(s)
Liked 489 Times in 192 Posts
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Likes For jimmuller:
Old 01-14-20, 07:21 PM
  #80
norskagent
car dodger

norskagent's Avatar

Join Date: Aug 2005
Location: garner/raleigh nc
Posts: 3,439
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 92 Times in 44 Posts

1980 McLean perfect pleasure...my beer run bike!
__________________
1989 Schwinn Paramount OS
1980 Mclean/Silk Hope Sport Touring
1983 Bianchi pista
1976 Fuji Feather track
1979 raleigh track
"I've consulted my sources and I'm pretty sure your derailleur does not exist"
norskagent is offline
Old 01-14-20, 07:52 PM
  #81
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,877

Bikes: Indeed!

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 1,940 Times in 666 Posts
I can't compete with a McLean for a grocery getter, but here's mine.
I'm less than a mile from the grocery store, hardware store, and post office so this old PX10 gets put to work often.
Shown here hauling the Box o' Crap home from the Post Office.



Brent
obrentharris is offline
Likes For obrentharris:
Old 01-14-20, 08:03 PM
  #82
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,649
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2939 Post(s)
Liked 3,649 Times in 1,634 Posts
While I showed my Raleigh Int’l with trailer on a Costco run earlier in this thread, the bike I use most often for grocery runs is my ‘94 Bridgestone RB-T. I have a Topeak rear bag system and a Wald basket up front, perfect for two+ bags of groceries.

nlerner is offline
Likes For nlerner:
Old 01-15-20, 08:47 AM
  #83
cooperryder
Senior Member

cooperryder's Avatar

Join Date: Oct 2006
Location: Dallas / Ft Worth
Posts: 854
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 368 Times in 158 Posts

Trek 950 with front rack and groceries.

Added rear rack. Works great as grocery getter.
cooperryder is offline
Likes For cooperryder:
Old 01-15-20, 02:12 PM
  #84
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,092

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 PeugeotPX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Liked 1,302 Times in 530 Posts
Originally Posted by noglider View Post
You're pulling a trailer with your Maclean? Interesting choice.
__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1972 Raleigh Super Course, 1971 Philips Sport



ascherer is offline
Old 01-15-20, 04:41 PM
  #85
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts
Twinn Deluxe, baby!

Spouse and I usually do grocery shopping together, on this 1970 Schwinn Twinn Deluxe 5-speed. I'll do separate posts about our single-bike grocery getters (hers is pretty awesome, custom titanium!).



Got the Twinn maybe 30 years ago and we've ridden it quite a lot -- short hops only though. Grocery shopping, going to movies or parties or out to dinner, or just for a fun cruise around Greenlake, often with a picnic. We have carried loads up to maybe 100 lb, in the three baskets front and rear. Heaviest load that I actually weighed was 85 lb. The bike itself weighs 80 lb.

Apologies to vintage purists, but I've modified it pretty severely, with more mods planned. It came with a horrible forged one-piece Ashtabula fork, where the blades aren't even hollow, they're solid steel -- but too thin to be rigid. Heavy AND flexible. The fork flexed so much that the tire would rub on both sides from taking a sharp turn, or climbing while standing.

The front brake was even worse, a wimpy Weinmann aluminum alloy side-pull. You know how brakes get less leverage and more flex as the arms get longer to go around balloon tires? And on chromed steel rims, yikes. This was possibly the worst brake ever... Other than the rear drum brake on this bike, which was even weaker! So our downhill speed was limited to however fast we were willing to crash -- not very fast!

So I replaced the fork, with one with canti braze-ons. It was a little tricky though, because of the strange Schwinn headset standards, WAY off from everyone else.

I had this nice '80s MTB fork, pretty heavy duty with an extra-reinforced steerer at the bottom, strong sand-cast crown, oversized blades. Made by Tange, with good Cr-Mo tubing. Nice chrome. Problem is, the Schwinn crown race was way too big to fit on the crown race seat of the Tange fork. And any modern headset was way too small to fit in the Schwinn head tube.

What did fit inside the Schwinn head tube was an entire Reynolds 531 head tube -- it slips right through. So I brazed it in place, and left it a bit long, to avoid having to add more threads on the long steerer of the Tange fork. Machined it for a Campy headset, and now we have an awesome fork with a cantilever brake. The difference in stopping is extreme, like having a new bike.

The old forged-steel Ashtabula handlebar stem that came with the bike has an 0.833" diameter quill, and the Tange fork needs a stem with an 0.875" quill (7/8" or 22.2 mm). Luckily I had been hoarding this somewhat ridiculous looking Cinelli MTB stem forever, never could imagine what bike to put it on -- 'til now! It's perfect.

Front wheel has been upgraded from steel Schwinn 26 x 1-3/4" (ISO 571) to alloy, ISO 559 -- regular MTB size. Rear wheel hasn't been upgraded yet so it's still steel, with the horrible old 26 x 1-3/4" tire. Gotta get around to finishing that. I should braze cantilever bosses too or maybe some sort of U-brake (Mafac Raid maybe?) For now, the drum brake still works -- sort of.

Twin bells on the handlebars, which are both very loud, and play different notes so we make an unholy racket when we ring them both.

Matching Idéale saddles, padded with leather tops, and big ol' coil springs in back. Perfect for an 80 lb. bike -- what other bike could you put those on?

Hey, check out the Velo Orange front rack. It came with this optional bolt-on fence or top rail, that you might use if you weren't using a basket. But I had the brilliant idea of bolting it on upside-down, where it serves as a protector for the headlight against bike racks etc, and as the forward mounting point for the fender.

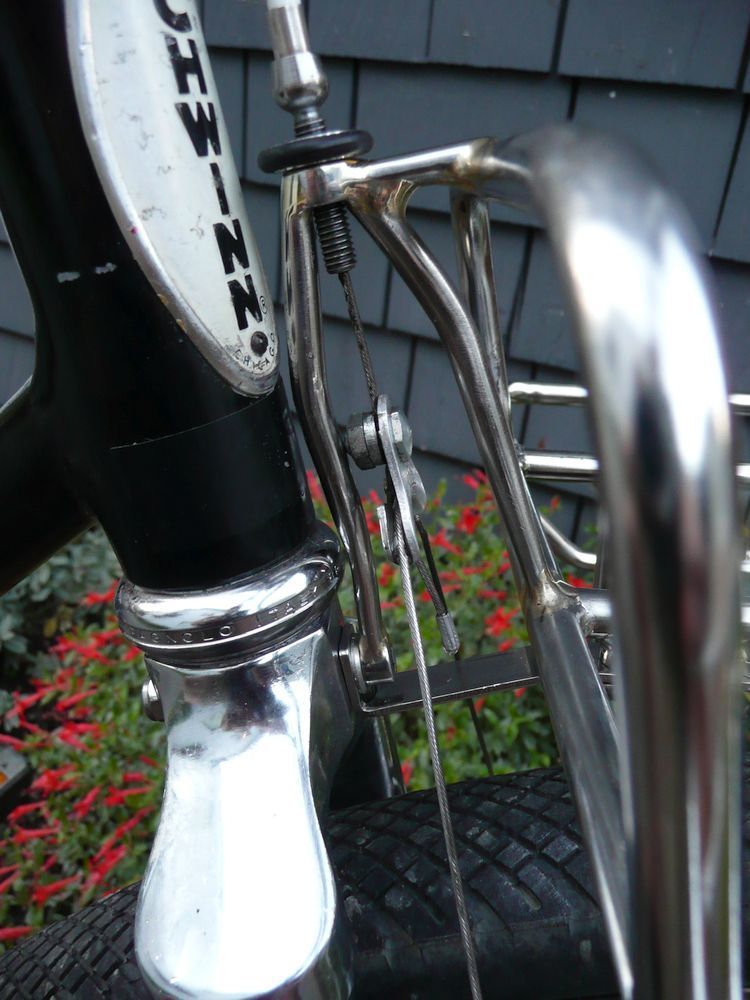

I also brazed on the cable housing stop for the front brake onto the rack, which completely cured the bad brake shudder we got when the housing stop was the hole through the Cinelli stem. I also tried a normal housing stop hanger in the headset, which helped but didn't cure it. The rack-mounted stop worked like magic. The VO rack being stainless steel, I was able to silver braze stainless bits to the rack without having to deal with paint or chrome. (Normally, fillet-brazing with silver is difficult, not recommended, but this is "Fillet Pro" from Cycle Design -- great stuff.)



It attaches to the rack in two places, plus to the fork crown, so it is strong, rigid and with redundancy -- any two of the three attachment points are enough for strength.

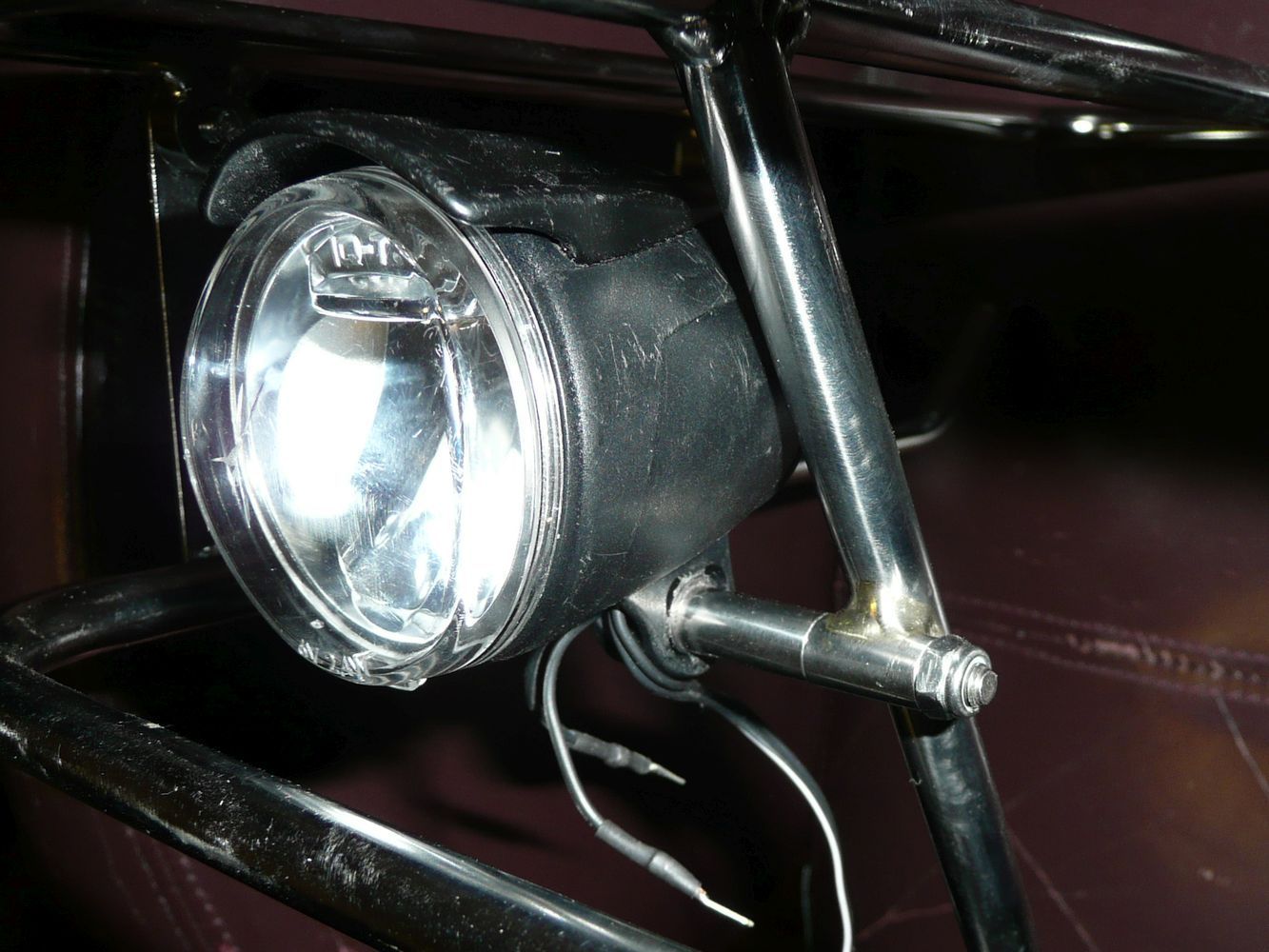

Here's the headlight braze-on:



And the front fender attachment:



You can also see the second headlight braze on, on the other rack strut. Planning to put dual headlights on it, someday.

We shove the bike into parking racks all the time, never any worry about the fender or the headlight getting bashed.

Anyone still reading this, thanks for your perseverance. You might be a bike nut.
bulgie is offline
Likes For bulgie:
Old 01-15-20, 06:18 PM
  #86
Sandstrom
Senior Member

Sandstrom's Avatar

Join Date: Sep 2019
Location: Cincinnati
Posts: 167
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 71 Times in 44 Posts
I was hungry this day

Sandstrom is offline
Likes For Sandstrom:
Old 01-15-20, 06:57 PM
  #87
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,877

Bikes: Indeed!

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 1,940 Times in 666 Posts
Originally Posted by bulgie View Post

Fantastic!
This is one of the things that I like about this forum; people willing to go to great effort over small details to improve a bike in ways that most of the rest of the world would never even notice. To all but a small group of us "It's just a bike."
Brent
obrentharris is offline
Old 01-15-20, 08:35 PM
  #88
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts

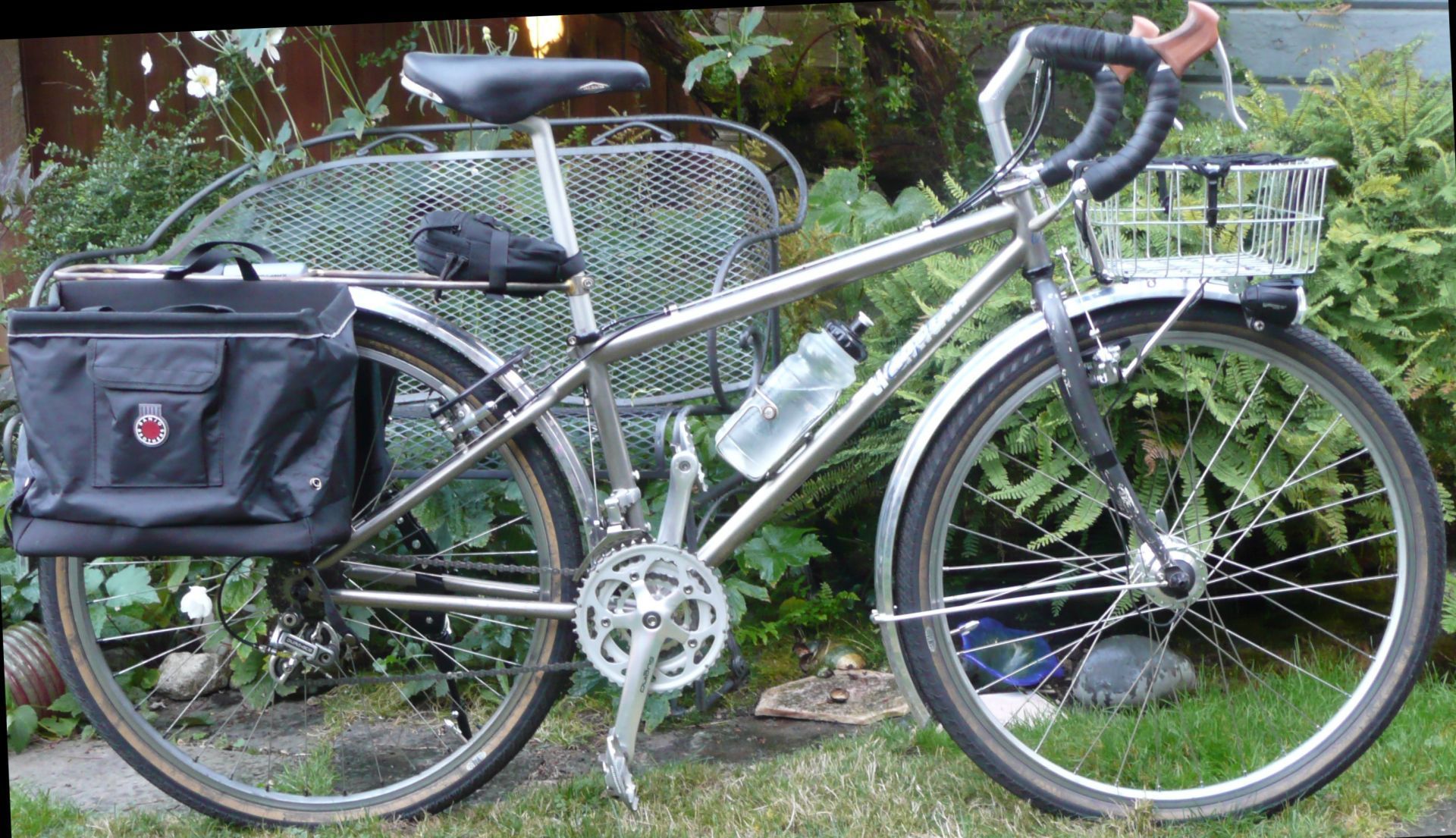

Custom titanium grocery-getter?



I made this for Laurie when I worked at Ti Cycles, as an XC-racing ultralight MTB. It originally had a SID suspension fork, maybe the lightest you could get back then, which I then lightened further because Laurie is petite and doesn't break things. I machined down a Ti BB spindle because it was too heavy -- stuff like that all over the bike.

Then the bike got stolen! It was gone for a long time, years, until I found just the frame (with the customized Ti BB still installed) for sale in a bike shop. Fork and everything else long gone. (I won't name the shop because it wasn't their fault and they turned it over to me no questions asked.)

Laurie by then had a full-sus MTB she liked, and this one is pretty obsolete with the 1" steerer. Would have been expensive (and redundant) to re-create it as a real MTB, so it just hung around as a frame for a few more years.

Then Laurie's grocery-getter, built on a dumpster-dive low-end Diamondback, was getting kinda creaky and annoying, so we decided to spruce up the ol' Ti beast. Almost all parts we had on hand in various junk piles. The fork, off a Bridgestone MB-1, lowers the front end enough (compared to the suspension fork) that the head angle and BB height are brought well into road bike range. It made the seat tube angle kinda steep, but a long-setback post cured that. (The original, stolen post was a zero-setback design.)

I did have to buy the crankset, when the triplized Dura-Ace I tried (from the junk pile) wouldn't quite clear the chainstay, on the custom-shortened Ti spindle. Gotta use that spindle -- I spent an hour milling it down, back in the '90s! Here's the resulting clearance of the shortened spindle:

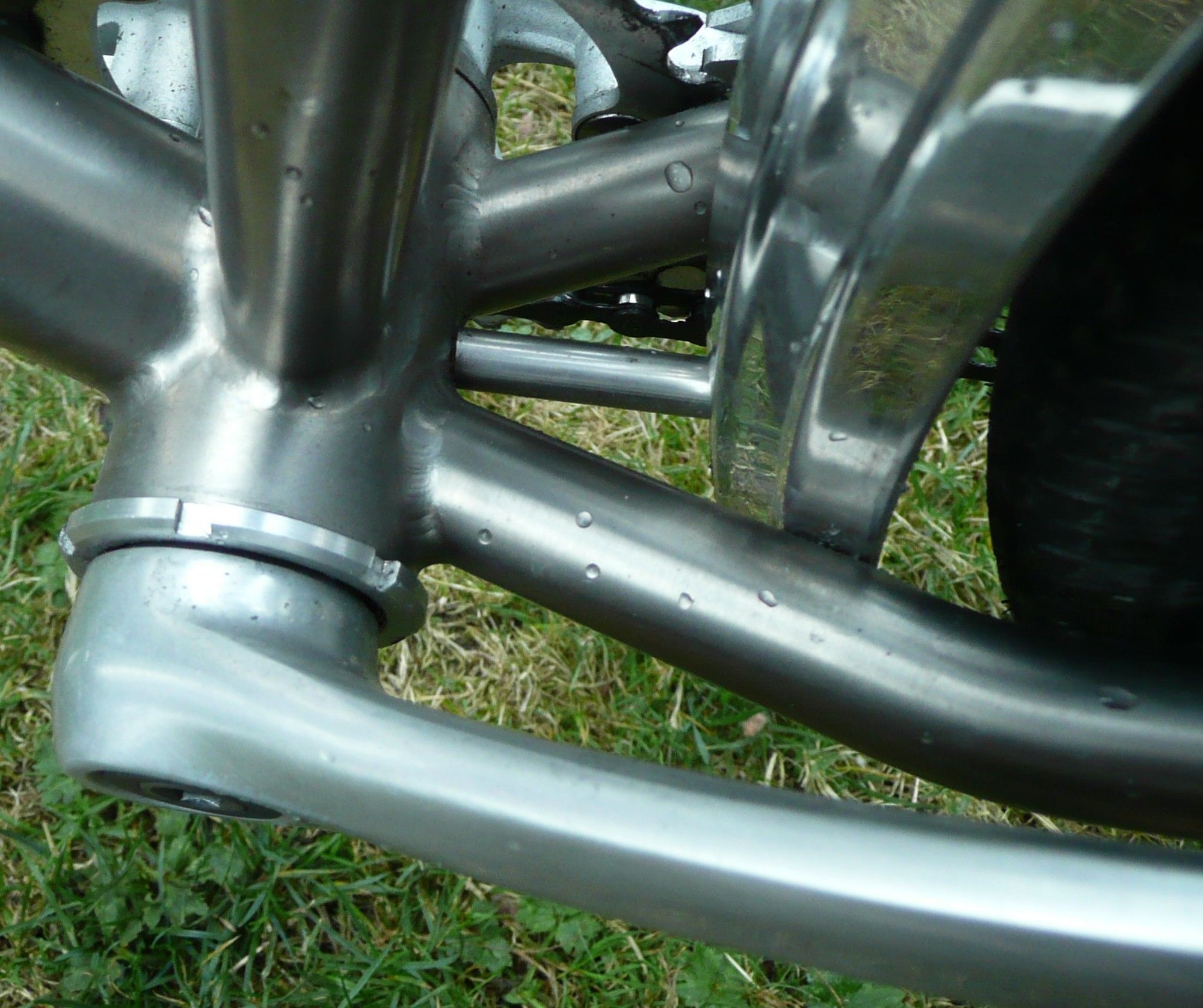

Clearance there, between the bearing cup and the crankarm, is similar on the right. It almost rubs but not quite -- and acts as a shield helping to keep water/mud/grit away from the bearings.

The bike wasn't designed for fenders, but they worked out great. No chainstay bridge, so I tapped a hole in the BB shell and used a looong bolt.

I bought a Velo Orange stainless front rack and modified it to fit (do those ever fit any bike without mods?)

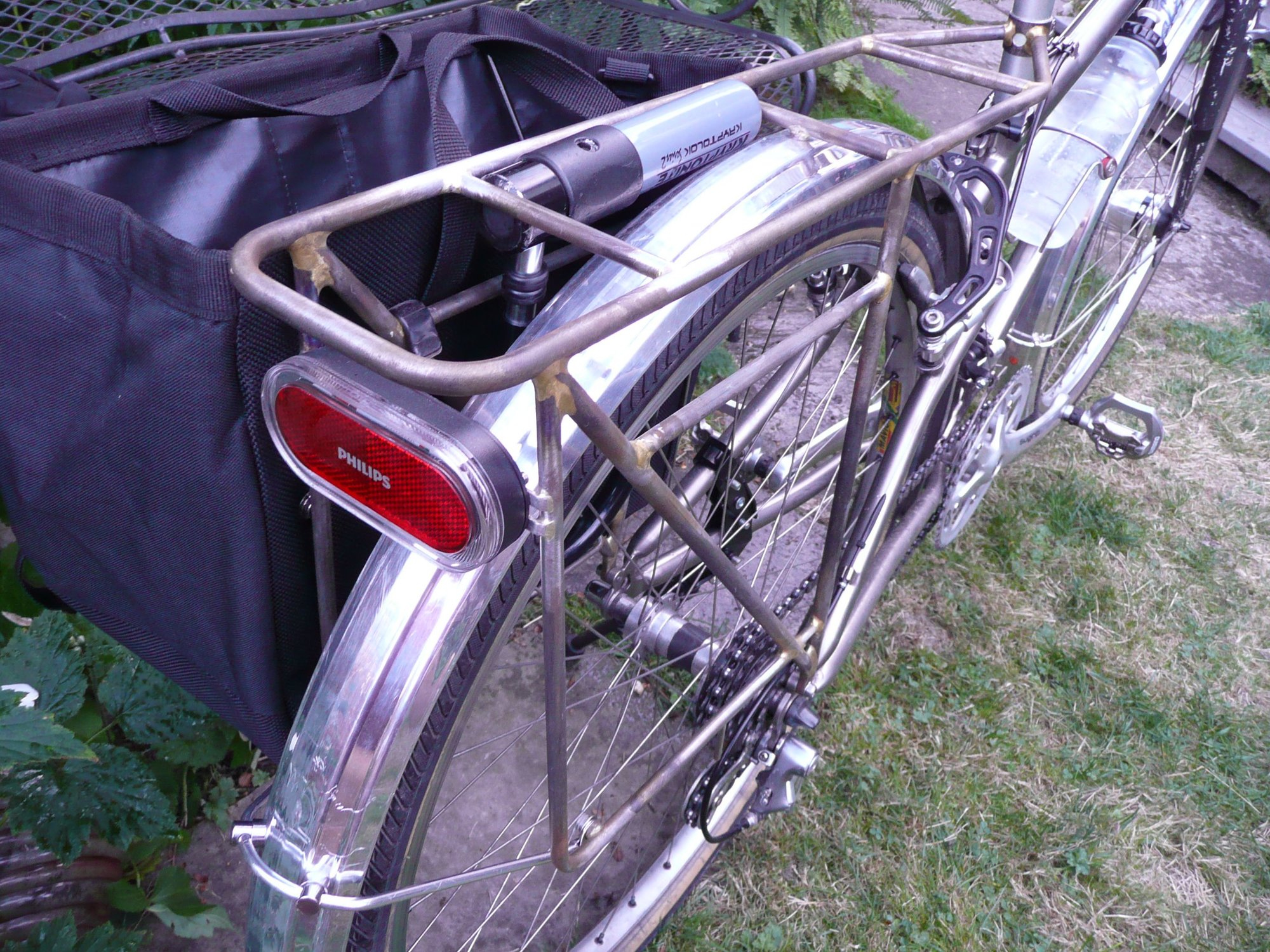

I built the rear rack from Cr-Mo tubing. So far we're letting it rust, gotta get that thing powdercoated one day... Due to the very short (16") chainstays, the rack needs to stick out further back than normal for heel clearance, so I made it out of fairly large-diameter tubing (3/8") for rigidity. It doesn't sway noticeably, even with the heaviest loads she's carried.

Some rear rack pix:

These panniers fold and snap shut when not in use (for improved aerodynamics!)


Note the built-in features for U-lock, tail light and fender struts.

Note also the DKG brand canti brake booster, coolest one ever. The fender attaches to the booster, so I didn't need to drill the monostay wishbone on the frame. Brake is an Avid Tri-Align, one of the better low-profile designs. Gotta be low-pro with such a low seatstay, or else the rider's ankles hit the brakes. Wide-profile NGC 982 canti brake on the front, modified with a cable clamp off a '70s Campy sidepull... just 'cuz.


Does that last picture (above) make sense? It shows the bail that secures the bottom of the U-lock, and the method of attaching the bottom of the grocery pannier. The panniers are (by design) extremely difficult to get off -- requires a pry-bar and know-how -- so they can stay on the bike while shopping, and not get stolen.

I offered flat bars but Laurie wanted drop bars. The Wald basket would have rubbed on her fingers when in the drops, so I modded the basket -- can you see how it tapers for finger clearance?

Not a trick of the lens, it's about 2" narrower in back.

Other features that are nice to have in a grocery-getter: Dura-Ace AX aerodynamic brake levers shave milliseconds from your time-trial to the store. The Ti-rail "Rolls Titanio" saddle let's you drop everyone on the climb of the mountain pass (probably 50 ft elevation change between here and the food co-op). I got the Rolls for $15 at a swap meet, in the closing minutes when sellers are desperate to get rid of stuff. Rolls is Laurie's fave saddle.

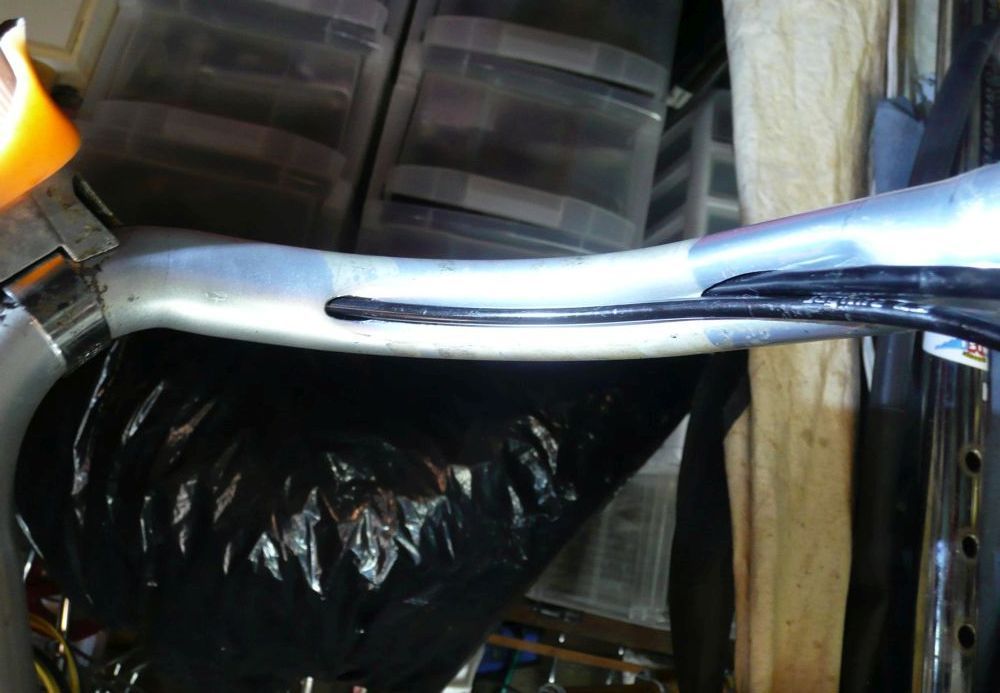

All 4 cables run inside the handlebars to avoid unsightly lumps under the tape. (this crummy tape in the picture above didn't last long and has been replaced.)

This Modolo handlebar has a groove for the brake cable, but for some inscrutable reason, the groove starts something like 2" away from the lever. So I made the cable go inside the handlebar and emerge where the groove begins. The groove is obscured by the cable in this shot, but the hole to the left is where the groove begins. The bar-con cable enters just past the internal expander of the bar-con perch. I wouldn't have done all that work for a grocery-getter (how obnoxious are the lumps from cables after all?), but these bars are off her old retired road race bike, which was a 'show bike' when we built it around 1990.

All in all, a fun exercise in excess.

Last edited by bulgie; 01-15-20 at 08:52 PM. Reason: typo
bulgie is offline
Likes For bulgie:
Old 01-15-20, 10:15 PM
  #89
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts
Originally Posted by obrentharris View Post
Fantastic!
This is one of the things that I like about this forum; people willing to go to great effort over small details to improve a bike in ways that most of the rest of the world would never even notice. To all but a small group of us "It's just a bike."
Brent
Thanks Brent! You're very kind.
Making the front brake work better should be enough satisfaction, but my life's not complete until I get affirmation from BF people.
I hope that doesn't sound snarky. I'm sorta kidding but also kinda serious!

-Mark
bulgie is offline
Likes For bulgie:
Old 01-15-20, 10:18 PM
  #90
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,136

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6993 Post(s)
Liked 1,713 Times in 1,067 Posts
Great stuff, bulgie. I read it all. Yes, I am a cyclephile aka bike nut.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 01-15-20, 10:58 PM
  #91
Last ride 76
1/2 as far in 2x the time

Last ride 76's Avatar

Join Date: Nov 2013
Location: Northern Bergen County, NJ
Posts: 1,935

Bikes: Yes, Please.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 499 Post(s)
Liked 283 Times in 220 Posts
Bulgie, that work rocks! Not just the work, all of it, Including the history/ story! Cool as heck.
Last ride 76 is offline
Old 01-15-20, 11:18 PM
  #92
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,567

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 516 Post(s)
Liked 707 Times in 383 Posts
Enjoyable topic, great bikes, but with a family of 5, I’m using a car!
Tim
tkamd73 is offline
Old 01-15-20, 11:19 PM
  #93
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts
Originally Posted by noglider View Post
Great stuff, bulgie. I read it all. Yes, I am a cyclephile aka bike nut.
Thanks man! Don't change, you're beautiful the way you are, you (bike) nut!
bulgie is offline
Likes For bulgie:
Old 01-15-20, 11:50 PM
  #94
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,532

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1267 Post(s)
Liked 855 Times in 592 Posts
I use either my MTB, my MTB with dropbar or my touring bike to get groceries or run errands. When getting groceries I use my panniers. When picking up large items I use my Arno straps like in this case when I used my touring bike to bring home my dehumidifier.


Cheers
Miele Man is offline
Likes For Miele Man:
Old 01-15-20, 11:52 PM
  #95
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,532

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1267 Post(s)
Liked 855 Times in 592 Posts
Originally Posted by bulgie View Post


I made this for Laurie when I worked at Ti Cycles, as an XC-racing ultralight MTB. It originally had a SID suspension fork, maybe the lightest you could get back then, which I then lightened further because Laurie is petite and doesn't break things. I machined down a Ti BB spindle because it was too heavy -- stuff like that all over the bike.

Then the bike got stolen! It was gone for a long time, years, until I found just the frame (with the customized Ti BB still installed) for sale in a bike shop. Fork and everything else long gone. (I won't name the shop because it wasn't their fault and they turned it over to me no questions asked.)

Laurie by then had a full-sus MTB she liked, and this one is pretty obsolete with the 1" steerer. Would have been expensive (and redundant) to re-create it as a real MTB, so it just hung around as a frame for a few more years.

Then Laurie's grocery-getter, built on a dumpster-dive low-end Diamondback, was getting kinda creaky and annoying, so we decided to spruce up the ol' Ti beast. Almost all parts we had on hand in various junk piles. The fork, off a Bridgestone MB-1, lowers the front end enough (compared to the suspension fork) that the head angle and BB height are brought well into road bike range. It made the seat tube angle kinda steep, but a long-setback post cured that. (The original, stolen post was a zero-setback design.)

I did have to buy the crankset, when the triplized Dura-Ace I tried (from the junk pile) wouldn't quite clear the chainstay, on the custom-shortened Ti spindle. Gotta use that spindle -- I spent an hour milling it down, back in the '90s! Here's the resulting clearance of the shortened spindle:

Clearance there, between the bearing cup and the crankarm, is similar on the right. It almost rubs but not quite -- and acts as a shield helping to keep water/mud/grit away from the bearings.

The bike wasn't designed for fenders, but they worked out great. No chainstay bridge, so I tapped a hole in the BB shell and used a looong bolt.

I bought a Velo Orange stainless front rack and modified it to fit (do those ever fit any bike without mods?)

I built the rear rack from Cr-Mo tubing. So far we're letting it rust, gotta get that thing powdercoated one day... Due to the very short (16") chainstays, the rack needs to stick out further back than normal for heel clearance, so I made it out of fairly large-diameter tubing (3/8") for rigidity. It doesn't sway noticeably, even with the heaviest loads she's carried.

Some rear rack pix:

These panniers fold and snap shut when not in use (for improved aerodynamics!)


Note the built-in features for U-lock, tail light and fender struts.

Note also the DKG brand canti brake booster, coolest one ever. The fender attaches to the booster, so I didn't need to drill the monostay wishbone on the frame. Brake is an Avid Tri-Align, one of the better low-profile designs. Gotta be low-pro with such a low seatstay, or else the rider's ankles hit the brakes. Wide-profile NGC 982 canti brake on the front, modified with a cable clamp off a '70s Campy sidepull... just 'cuz.


Does that last picture (above) make sense? It shows the bail that secures the bottom of the U-lock, and the method of attaching the bottom of the grocery pannier. The panniers are (by design) extremely difficult to get off -- requires a pry-bar and know-how -- so they can stay on the bike while shopping, and not get stolen.

I offered flat bars but Laurie wanted drop bars. The Wald basket would have rubbed on her fingers when in the drops, so I modded the basket -- can you see how it tapers for finger clearance?

Not a trick of the lens, it's about 2" narrower in back.

Other features that are nice to have in a grocery-getter: Dura-Ace AX aerodynamic brake levers shave milliseconds from your time-trial to the store. The Ti-rail "Rolls Titanio" saddle let's you drop everyone on the climb of the mountain pass (probably 50 ft elevation change between here and the food co-op). I got the Rolls for $15 at a swap meet, in the closing minutes when sellers are desperate to get rid of stuff. Rolls is Laurie's fave saddle.

All 4 cables run inside the handlebars to avoid unsightly lumps under the tape. (this crummy tape in the picture above didn't last long and has been replaced.)

This Modolo handlebar has a groove for the brake cable, but for some inscrutable reason, the groove starts something like 2" away from the lever. So I made the cable go inside the handlebar and emerge where the groove begins. The groove is obscured by the cable in this shot, but the hole to the left is where the groove begins. The bar-con cable enters just past the internal expander of the bar-con perch. I wouldn't have done all that work for a grocery-getter (how obnoxious are the lumps from cables after all?), but these bars are off her old retired road race bike, which was a 'show bike' when we built it around 1990.

All in all, a fun exercise in excess.
You trust that handlebar not to snap sometime down the road? Shivers.

Cheers
Miele Man is offline
Old 01-16-20, 02:28 AM
  #96
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts
Originally Posted by Miele Man View Post
You trust that handlebar not to snap sometime down the road? Shivers.
Good question, thanks for asking. Yes, drilling handlebars can be risky and I recommend that people don't do it. Don't do it!

But I believe this one is safe enough because of the following:
  1. Laurie is light in weight and doesn't strain things much.
  2. This grocery-getter is seldom ridden more than a few miles. Its time of long hard rides is well in the past.
  3. I used them (different bars but drilled the same way) on my own racing bike for a couple years, while I was racing. That bike also got most of my training miles at the time. I weighed 50% more than Laurie weighs, with even more difference in the shoulders and arms, and I am more fast-twitch in my muscle make-up, more of a sprinter. I'm sure I pull more than twice as hard on the bars when sprinting, probably three times as hard. I retired those bars after a few years, out of an abundance of caution, but they might well have gone another 20 years without breaking.
  4. Professional racers raced on drilled bars (back when pros used aluminum bars), and I never saw one broken, nor heard of one breaking. And if one broke in competition, we probably would have heard about it. (Please forward any examples of bars broken at the cable hole -- preferably with photo evidence. Not "I know a guy who knew a guy who heard of it".) While it's true that pro bikes usually get retired at the end of the season, they often get handed down to friends/family, or sold to fans and get ridden lots more.
  5. These are strong alloy, heat-treated bars, probably somewhere around twice as strong as most non-heat-treated bars. I have bent them out wider to use as off-road bars (not Laurie's, but others of this brand/model, that I used on my own MTB). They are astoundingly hard to bend!
  6. I drilled them correctly. I placed the holes farther away from the stem than the pro-bike drilled bars I saw. Stress on bars increases as you get closer to the stem. Right at the stem is where the maximum stress is seen, and it decreases as you move away from there.
  7. These bars are drilled down in the groove put there by the manufacturer. This is an area of lower stress. Stress flows to the parts of a structural member that are farthest from the neutral axis. Broad generalization with exceptions possible, but I do believe it is the case with grooved handlebars -- cracks or other failures are less likely down in the groove.
  8. I drilled them to the minimum size needed to allow the housing through. Most of the holes I saw on pro bikes were larger.
  9. I deburred and polished the edges of the holes to help prevent initiation points for fatigue cracks.
My gut feeling* for how long these bars can go before breaking, at her weight/strength, at this level of riding intensity and mileage, is somewhere between 100 years and infinity. If someone in the 22nd century gets hurt because of the bar snapping at the drilled hole, then I'd feel bad, except I'll be long dead, so tough luck sucker.
*Gut feeling based on ~50 years as a bike mechanic and 20+ years of that as a full-time bike framebuilder. Doesn't make me infallible, but it's something.

Laurie knows the bars are drilled and accepts the risk. She knows to stop riding on them if she feels anything weird about them. After 40+ years of riding hard and working on her own bikes, she's more aware than most riders, of how they should and shouldn't feel. And she promises not to sue me if they break! I have never done, would never do this for a customer, no matter what they say or what waiver they sign.

Oh and did I mention? Don't do this!

-Mark

Last edited by bulgie; 01-16-20 at 02:31 AM.
bulgie is offline
Old 01-16-20, 05:10 PM
  #97
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,724
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1886 Post(s)
Liked 981 Times in 741 Posts
Pardon my ignorance, but is that ^^^^^^^ unpainted titanium? I suppose with a coat of paint, that chainring might not clear.....
madpogue is offline
Old 01-16-20, 05:34 PM
  #98
riva
low end rider

riva's Avatar

Join Date: Sep 2008
Posts: 793

Bikes: 80's. hoarder.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 41 Times in 35 Posts
I'm so confused by the original post to this thead..
riva is offline
Likes For riva:
Old 01-16-20, 06:04 PM
  #99
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 838
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 780 Times in 387 Posts
Originally Posted by madpogue View Post
Pardon my ignorance, but is that ^^^^^^^ unpainted titanium? I suppose with a coat of paint, that chainring might not clear.....
Yep it's close, but we like low-"Q" and wide tire clearance. These chainstays are so lightweight that I suppose there must be a lot of flex. Haven't measured the flex, but the tubes are smaller diameter than even traditional (non-OS) steel chainstays, and they're thinner wall (0.7 mm) than most steel, and Ti has roughly half the inherent stiffness (Young's Modulus) of steel. But even with all that (presumed) flex, the stay never touches the chainring teeth, so I call it good. Any more clearance there would serve no purpose. "A miss is as good as a mile", except in horseshoes and hand grenades

The chainstay leaves the BB at an abnormally sharp angle, needed to achieve the wide tire clearance with such a short chainstay dimension (16"). So if the chainring were any larger, it would hit. That's a 24t, but we like that it's so small because it allows a smaller freewheel for the same ratio. That in turn allows the short-cage racing derailer, a Dura-Ace 7400 in this case. So we have no desire to run larger than a 24t granny ring.

Did I answer your question?
bulgie is offline
Likes For bulgie:
Old 01-16-20, 06:45 PM
  #100
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,724
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1886 Post(s)
Liked 981 Times in 741 Posts
Originally Posted by bulgie View Post
Did I answer your question?
What was my question?

Whoa, did not notice the short cage on the first look. Nice how you're able to make that work here. I just picked up two of these at the swap for $10 apiece; now you've got me thinking.....
madpogue is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
