1982 Miyata 610 as 650b Randonneur?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1982 Miyata 610 as 650b Randonneur?

Reply

Old 01-12-18, 10:50 AM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Posts: 244

Bikes: Bianchi Avenue "Full Fred Road Ready", Projects>>> Koga Miyata City Liner, Bridgestone '92 X0-3 + CB-1, Schwinn Mirada 650b, Diamond Back Ascent 1983 Miyata 610

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
1982 Miyata 610 as 650b Randonneur?

I've got a line on a 1982 Miyata 610. This is the precantaliver brake model with downtube shifters. I've been looking at Sports Tourers on craigslist with the idea of a low trail 650b conversion, but just as an idea.

What I do have, is hundreds of miles of country roads right starting at my driveway and a number of established long distance events that pass through every summer.

I'd like to confirm that this bike will be a good start for an all day riding bike. I weigh in at 230lbs and have a short of leg, long of back build. The I think Miyata frames are a little shorter on the top tube than the comparable Treks, but I don't know how this will translate with Randonneur bars.

The Miyata looks to have less BB drop which is good for dropping to 700c or 650b wheels, but I don't think it has a lot of tire clearance. I read that 27x 32mm tires with fenders is the limit, and being on the Clyde scale I like fatter tire.
So I'm wondering the Miyata will get me down the road with 27x32 tires, and how much of a clearance improvement will I get dropping to 700c or 650b?

Or should I keep looking for a more suitable frame?

Thanks, Woody

Last edited by bark_eater; 01-12-18 at 11:16 AM.
bark_eater is offline
Reply With Quote
Old 01-12-18, 12:40 PM
  #2
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 4,827

Bikes: I'd rather not count how many, thank you

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
The first thing you need to do is measure the distance from the center of the BB to the ground and then compute how much that will be reduced with 650B tires. In all likelihood it will be an ideal conversion opportunity, as are most Japanese bikes of that era.

As an example, my late 80's Schwinn Voyageur came shod with 27 X 1 3/4 tires, but it easily takes 650 X 42 Compass tires that measure out to an actual 40mm or so.

Your weight should not be an issue with properly built wheels.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 01-12-18, 06:37 PM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 11,790
Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 951 Post(s)
Going from 27”/630mm rims to 650b/584mm rims will require an additional 23mm of brake reach. That could be an issue depending on how long of a reach the original brakes have.
nlerner is offline
Reply With Quote
Old 01-12-18, 07:06 PM
  #4
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Posts: 244

Bikes: Bianchi Avenue "Full Fred Road Ready", Projects>>> Koga Miyata City Liner, Bridgestone '92 X0-3 + CB-1, Schwinn Mirada 650b, Diamond Back Ascent 1983 Miyata 610

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
From a quick Google survey I'm pretty sure it has been done. I would have to go back through my book marks to see if the length and model of the brakes are noted. Unfortunately just because it's possible doesn't make it a good idea.
bark_eater is offline
Reply With Quote
Old 01-12-18, 08:44 PM
  #5
mountaindave
Happy Commuter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,110

Bikes: Red bikes. Why do I have so many red bikes?! I thought green was my favorite color

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
Originally Posted by bark_eater View Post
From a quick Google survey I'm pretty sure it has been done. I would have to go back through my book marks to see if the length and model of the brakes are noted. Unfortunately just because it's possible doesn't make it a good idea.
650b is always a good idea! ;P
mountaindave is offline
Reply With Quote
Old 01-13-18, 01:06 AM
  #6
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,277

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Be sure to look at these 650B conversion guidelines. In particular, check the possible tire size in both front and rear.

650B Conversion Guidlines

About the BB height - seems like lots of folks ask about that, but I don’t find that to be an issue on my own conversion, although I did switch from 175 to 170mm cranks arms, and discovered I prefer the easier spin with the shorter cranks for these 68-year old legs. I’ve never been a pedal through the corners rider anyway, even in my racing days.
Dfrost is offline
Reply With Quote
Old 01-13-18, 09:26 AM
  #7
mountaindave
Happy Commuter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,110

Bikes: Red bikes. Why do I have so many red bikes?! I thought green was my favorite color

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
Good link, dfrost. I find that I don’t pedal so much through tight turns. What has caught me is pedaling over rough stuff and catching roots, rocks and irregularities.

Use bikeman’s guides and see just how big you can go. It is important to compare what the max size tire is. I don’t know what the biggest tire size is for a 610, but touring bikes typically had large clearances for bigger tires and fenders.

I would also consider a 27” to 700c conversion. This is much more easily done and it is easy to find tire sizes. I have done this on a number of bikes and easily got clearance for 38mm tires.

Last edited by mountaindave; 01-13-18 at 10:53 PM.
mountaindave is offline
Reply With Quote
Old 01-13-18, 02:18 PM
  #8
dunrobin
Senior Member

Join Date: Dec 2014
Posts: 493

Bikes: colnago titanio oval master, pinarello treviso es, centurion prestige, tomac ti 26er, lemond buenos aires, mbk 753, vitus 992 and zx1, rocky mountain hammer disc,bd century titanium, specialized venge expert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Nice bike, go 27 to 700 with Panaracer gravelkings.
dunrobin is offline
Reply With Quote
Old 01-13-18, 08:41 PM
  #9
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Posts: 244

Bikes: Bianchi Avenue "Full Fred Road Ready", Projects>>> Koga Miyata City Liner, Bridgestone '92 X0-3 + CB-1, Schwinn Mirada 650b, Diamond Back Ascent 1983 Miyata 610

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
I think i would be happy with 700x38's and fenders.
bark_eater is offline
Reply With Quote
Old 01-19-18, 04:03 PM
  #10
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Posts: 244

Bikes: Bianchi Avenue "Full Fred Road Ready", Projects>>> Koga Miyata City Liner, Bridgestone '92 X0-3 + CB-1, Schwinn Mirada 650b, Diamond Back Ascent 1983 Miyata 610

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Well... I brought this bike home.. Probably paid more than '"market value" but I did pretty much chase down the nice flipper who got there first, and made him sell me his new toy.... it needs some cosmetic work and some mechanical fettling, but before hanging it in the garage ceiling project queue, I confirmed that my $10 650B wheelset has the same axle spacing. So my proof of concept won't be much more of an investment to get on the road.
bark_eater is offline
Reply With Quote
Old 07-30-18, 04:16 AM
  #11
darcybuck
Junior Member

Join Date: Jul 2018
Posts: 12

Bikes: Miyata 710, Fuji Gran Fondo, Cannondale Prophet

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I'm nearing the completion of converting my Miyata 710 (1984) into 650b. I was riding it in its natural form heaps as a gravel bike with 28c tyres. Pretty smooth and stable but was prone to punctures if I was going hard and not dodging potholes. I've fitted Tektro long drop brakes which fit the 650b wheels perfect. The wheels are modern spacing so I have 'cold set' the stays to fit the spacing. Simple procedure that I looked up on youtube. Wheels I sourced through my LBS, they are basic but well made and are double walled and sealed bearing.
By my measurements I could have just fit 42c tyres but went for 38c's to allow for mud and crap. Using Soma B-Lines tyres. Looking at a chart I found online, end wheel diameter will only be 12mm smaller than a 700 x 25c setup. Barely noticeable. My bike already had 170mm cranks, so I doubt there will be any pedal strike.

I will post up some pictures once done if you see this and want to see the finished product.

Last edited by darcybuck; 07-30-18 at 04:20 AM. Reason: Addition
darcybuck is offline
Reply With Quote
Old 08-04-18, 11:01 PM
  #12
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,397

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
Originally Posted by darcybuck View Post
I'm nearing the completion of converting my Miyata 710 (1984) into 650b. I was riding it in its natural form heaps as a gravel bike with 28c tyres. Pretty smooth and stable but was prone to punctures if I was going hard and not dodging potholes. I've fitted Tektro long drop brakes which fit the 650b wheels perfect. The wheels are modern spacing so I have 'cold set' the stays to fit the spacing. Simple procedure that I looked up on youtube. Wheels I sourced through my LBS, they are basic but well made and are double walled and sealed bearing.
By my measurements I could have just fit 42c tyres but went for 38c's to allow for mud and crap. Using Soma B-Lines tyres. Looking at a chart I found online, end wheel diameter will only be 12mm smaller than a 700 x 25c setup. Barely noticeable. My bike already had 170mm cranks, so I doubt there will be any pedal strike.

I will post up some pictures once done if you see this and want to see the finished product.
I wanna see it!
ThermionicScott is offline
Reply With Quote
Old 08-05-18, 05:21 AM
  #13
ironwood
Senior Member

Join Date: Nov 2009
Location: Boston area
Posts: 1,595

Bikes: 1984 Bridgestone 400 1985Univega nouevo sport 650b conversion 1993b'stone RBT 1985 Schwinn Tempo

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
The first bike I converted to 650B was a Miyata built Univega. You should be able to fir 650Bx38 tires with fenders, and Weinmann /Dia-Comp 750 , or Mafac Raids should have enough reach if sidepulls don't. Miyatas usually have a higher bottom bracket so pedal strike shouldn't be a problem. If you really like the bike and want another modification, have a builder braze on centerpull posts for the brakes.
ironwood is offline
Reply With Quote
Old 08-05-18, 07:35 AM
  #14
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,148

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 L23 and L19, Schwinn Cimarron oddball build, Raleigh DL-1

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1047 Post(s)

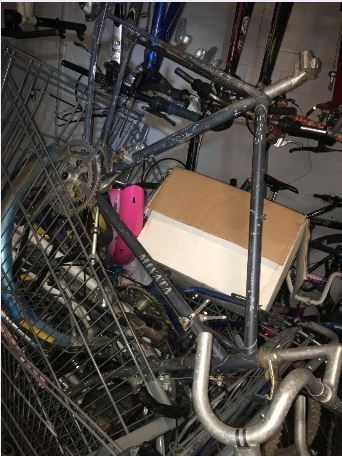

This one is at the local co-op and would probably go for less than $50. I think there's a dent in the seat tube. Not my size or I'd have brought it home.

thumpism is offline
Reply With Quote
Old 08-07-18, 02:53 AM
  #15
darcybuck
Junior Member

Join Date: Jul 2018
Posts: 12

Bikes: Miyata 710, Fuji Gran Fondo, Cannondale Prophet

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Unfortunately I can't post pictures as I'm only a newbie. I will load them up as soon as able. Very happy with the outcome. Rides beautifully and opens up a huge range of roads around my local area.
darcybuck is offline
Reply With Quote
Old 08-09-18, 12:30 AM
  #16
darcybuck
Junior Member

Join Date: Jul 2018
Posts: 12

Bikes: Miyata 710, Fuji Gran Fondo, Cannondale Prophet

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Ok, I'm just going to write a nothing post here so that I clock over enough posts to show off my beauty. Sorry, but I keen to show you all what is achievable........
darcybuck is offline
Reply With Quote
Old 08-09-18, 12:37 AM
  #17
darcybuck
Junior Member

Join Date: Jul 2018
Posts: 12

Bikes: Miyata 710, Fuji Gran Fondo, Cannondale Prophet

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)

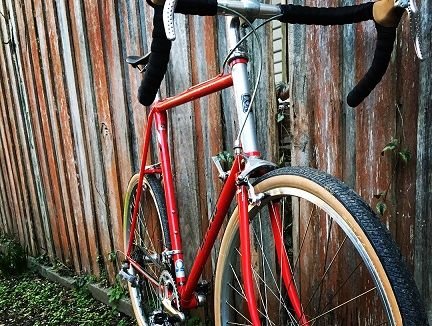

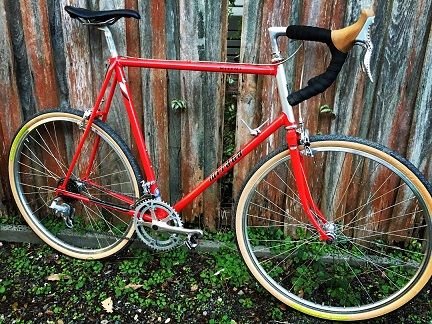

Only lost about 6-7mm ride height. Not really an issue as this frame has a high BB.

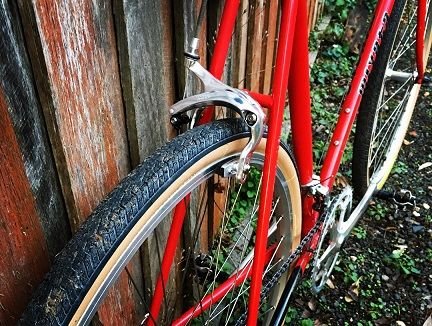

38c Soma B-line tyres. Brake levers are retro TRP RRL's. They look similar to the original Dia-compe but with a modern shape which I find far more comfortable.


Clearance at the chainstays is only a couple of millimeters either side with 38c fitted. Brakes are Tektro long reach versions. Added bonus is that they are dual pull offering far better braking.
darcybuck is offline
Reply With Quote
Old 08-09-18, 04:43 AM
  #18
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Posts: 244

Bikes: Bianchi Avenue "Full Fred Road Ready", Projects>>> Koga Miyata City Liner, Bridgestone '92 X0-3 + CB-1, Schwinn Mirada 650b, Diamond Back Ascent 1983 Miyata 610

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Very nice. I got distracted with other projects but It looks like the Miyata 610 will stay"period correct" with 27'' wheels for a bit and the 650b wheels will go on a Miyata 110 that I tore the derailleur off of.

And things were going so well (warning graphic images)

Since its going to have "I did it myself" metal work, brazing and paint touch up, I'm going to dimple the stays to get 42mm tires fit while I'm at it and keep my eyes open for donor forks to try my hand at fork re-raking.
bark_eater is offline
Reply With Quote
Old 08-09-18, 04:58 AM
  #19
darcybuck
Junior Member

Join Date: Jul 2018
Posts: 12

Bikes: Miyata 710, Fuji Gran Fondo, Cannondale Prophet

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
bark_eater
Didn't do the stays but did braze on a lower rear brake bridge and re-rake the fork on an old Malvern Star frame I had a while back. Good experience, learnt heaps from doing it. Even if my methods were a bit agricultural.
