Pro-Flex suspension woes and hacks.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Pro-Flex suspension woes and hacks.

Old 01-17-18, 12:23 PM
  #1
dddd
Ride, Wrench, Swap, Race
Thread Starter

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Pro-Flex suspension woes and hacks.

I hope this might ring a bell with some others here who buy and flip good old bikes, since I am seeing a lot of 1990's Pro-Flex full-suspension bikes going up for sale with missing, cracked or melted(!) suspension "bumpers" at extremely low price points (priced for part-out basically, I got the clean model 756 shown below at Goodwill for $30 the other night).
I see aftermarket vendors offering a solid urethane (or coil) spring for $55 per wheel, but at the price points of these used bikes these days I am daring to humbly seek an even cheaper fix.

These were quite high-quality bikes with usable suspension geometry and relatively simple and solid frame pivots.
I also consider a complete fork swap-out in some cases to be a possible best fix for the front suspension (when a good 26" fork with long-enough steer tube is available for cheap).
I used to race these things, and my brother even won a B-class CX championship on the model 856 that I sold to him, so I have to say that I just hate to see these bike's frames being sent to the recycler's only for want of new suspension "rubbers".

So, does anyone here know of a good "hack" for the Pro-Flex suspension rubbers?




Last edited by dddd; 01-17-18 at 12:45 PM.
dddd is offline
Old 01-17-18, 01:00 PM
  #2
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 376 Times in 245 Posts
Perhaps check the online McMaster-Carr catalog for urethane bushings, size, durameter specs, etc..

The search engine may need polyurethane, bumpers, isolation / vibration dampers, other description.

Last edited by crank_addict; 01-17-18 at 01:04 PM.
crank_addict is offline
Old 01-17-18, 03:11 PM
  #3
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 936
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 24 Times in 20 Posts
Another company offered a rebuild kit that was way more basic than the elastomer replacements. It was sections of reinforced rubber industrial hose, something pretty thick walled with a decent rating. When installed it was smaller diameter than the original elastomer so it looked a little funny but worked great. I did one for someone and tested it around the block a few times, jumped off some curbs etc. Couldn't tell you the name of the company though, the kit was brought in with the bike.

One thing i do recall though is it's not always the elastomers that are the issue. The pivots have these tiny washers on the outside and nobody has ever made replacements. Check that every single piece of hardware and the pivots are in good shape before you even bother.
wesmamyke is offline
Old 01-17-18, 03:22 PM
  #4
AngryFrankie
Senior Member

Join Date: Sep 2006
Posts: 497

Bikes: Trek 400 Elance, Losa Winner, 1994 Schwinn Paramount, Specialized Tarmac Pro, Miele SLX, Ibis Ripley, Colnago Oval CX, 84 Masi GC, 1986 Schwinn Voyageur, 1988 Schwinn Tempo, 1998 Schwinn Peloton, 1991 Paramount Ser3

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 20 Times in 13 Posts
Just a few years ago a kid bought such a frame off of me knowing what you know. I suggested contacting K2 who bought Proflex. He emailed me shortly thereafter to tell me that they sent him the elastomers. Since then, the resident know-it-all blowhard at the co-op insisted that K2 would not help a visitor when I suggested this. Worth a try.
Hack: Decide on the right size tube, cut out the valve section, and wrap it tightly around and around where each elastomer goes, tightly, until it suffices, and secure it with zip ties...and go ride it!
AngryFrankie is offline
Old 01-17-18, 03:39 PM
  #5
dddd
Ride, Wrench, Swap, Race
Thread Starter

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Thanks, AngryFrankie. I've seen one such hack locally using innertube!


I've seen recently on Ebay what looks like someone selling off all of K2/ProFlex's suspension rebuild stock, including bags of rings and bushings for these old forks and frames. And only $14.95 per kit.
I am not keen to retain the fork except perhaps for road use where a firmer "hack" elastomer would be welcome, snce there is no oil damper just an enclosed grease-dashpot rubber ball damper!
I wish that I had the tooling to just stamp out a stack of rubber washers made from car tire treads, perhaps separated by Belleville washers!
I used to buy the original, pressurized nitrogen foam bumpers for $20 each from the bike shop. These only ever lasted a few years though.

Last edited by dddd; 01-17-18 at 03:44 PM.
dddd is offline
Old 01-17-18, 07:32 PM
  #6
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,311

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 875 Times in 445 Posts
Whoa, how do those things melt? Is it a function of the urethane breaking down chemically, or is it heat-related?

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 01-17-18, 08:00 PM
  #7
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
Don't know about melting but they break down with age. If yours are intact you can try nuking them in five second increments to soften them up but they'll re-harden soon thereafter. If you can get replacements you want the pairs of bumpers to have durometer numbers 20 points different in your stack with the higher number piece placed above the lower; like 80 over 60, etc. Proflex referred to those things as "foam springs," by the way.
thumpism is offline
Old 09-17-19, 11:05 AM
  #8
TheBikeStore
Member

Join Date: Aug 2019
Location: 110 Alpine St. Mt Shasta, CA
Posts: 25

Bikes: I've owned 49 to date, I'm down to 15 after a recent sale.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 6 Times in 4 Posts

I have used plumbing pipe stops like this one: https://www.zoro.com/cherne-industri...27/i/G0254423/

Mixed results, the first couple of times I used them they worked great. The most recent time it seemed like they had made the rubber softer and I ended up using (2) 2" rubber stops and stuffed (1) 1.5" stopper inside of each 2" rubber stop and they mimic the 60d bumpers rather well. They are black and don't look as cool as the original yellow bumpers, but they work.

Cheaper than the $54 they want for them here: https://www.suspensionforkparts.net/....html?page=all

Cheers,

-Mike
TheBikeStore is offline
Old 11-24-19, 07:51 PM
  #9
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
Originally Posted by TheBikeStore View Post

I have used plumbing pipe stops like this one: https://www.zoro.com/cherne-industri...27/i/G0254423/

Mixed results, the first couple of times I used them they worked great. The most recent time it seemed like they had made the rubber softer and I ended up using (2) 2" rubber stops and stuffed (1) 1.5" stopper inside of each 2" rubber stop and they mimic the 60d bumpers rather well. They are black and don't look as cool as the original yellow bumpers, but they work.

Cheaper than the $54 they want for them here: https://www.suspensionforkparts.net/....html?page=all
Clarification, please. You say you used two of the 2" with a 1.5" plug inside each of the 2"? And was that repair only on the rear, or did you do a similar fix on the front? I thought I recalled the front foam springs being different sizes than the rears. I sold my old sample 656 to a buddy and the bumpers have bitten it during the intervening years. If your fix works I'll get the bike back from him and give it a try. Thanks for the info.
thumpism is offline
Old 11-25-19, 01:26 AM
  #10
MiloFrance
Not riding enough

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,287

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 50 Times in 34 Posts
If you're on face book, send a message to Fin at Full Factory Suspension. He's a bit of a suspension guru, may or may not have a hack but can't hurt to ask, and not doing him out of any business as you're in the US.
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 11-25-19, 08:53 AM
  #11
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 905

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 153 Times in 92 Posts
Our Noleen Mountain Bike Shocks - Noleen J6 Technologies

Noleen was the next generation of the shocks and they seem to still have components available. I was obsessed with these back in the day.
mechanicmatt is offline
Old 11-25-19, 09:29 AM
  #12
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 462

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 207 Post(s)
Liked 48 Times in 36 Posts
I probably have many, if you can PM me dimensions.
Reynolds 531 is offline
Old 11-25-19, 10:47 AM
  #13
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,418
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 253 Times in 142 Posts

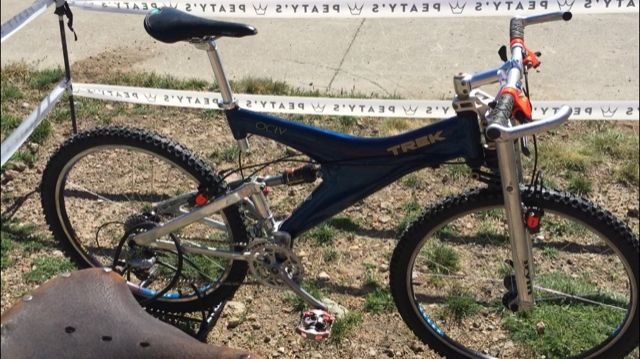

I put a noleen on the back and Manitou 4 up front. This was on my 855. This was 1996 I think.

If I had that bike today, I'd put a big dowel in there and run it as a hardtail.
rosefarts is offline
Likes For rosefarts:
Old 11-29-19, 11:59 AM
  #14
TheBikeStore
Member

Join Date: Aug 2019
Location: 110 Alpine St. Mt Shasta, CA
Posts: 25

Bikes: I've owned 49 to date, I'm down to 15 after a recent sale.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Originally Posted by thumpism View Post
Clarification, please. You say you used two of the 2" with a 1.5" plug inside each of the 2"? And was that repair only on the rear, or did you do a similar fix on the front? I thought I recalled the front foam springs being different sizes than the rears. I sold my old sample 656 to a buddy and the bumpers have bitten it during the intervening years. If your fix works I'll get the bike back from him and give it a try. Thanks for the info.

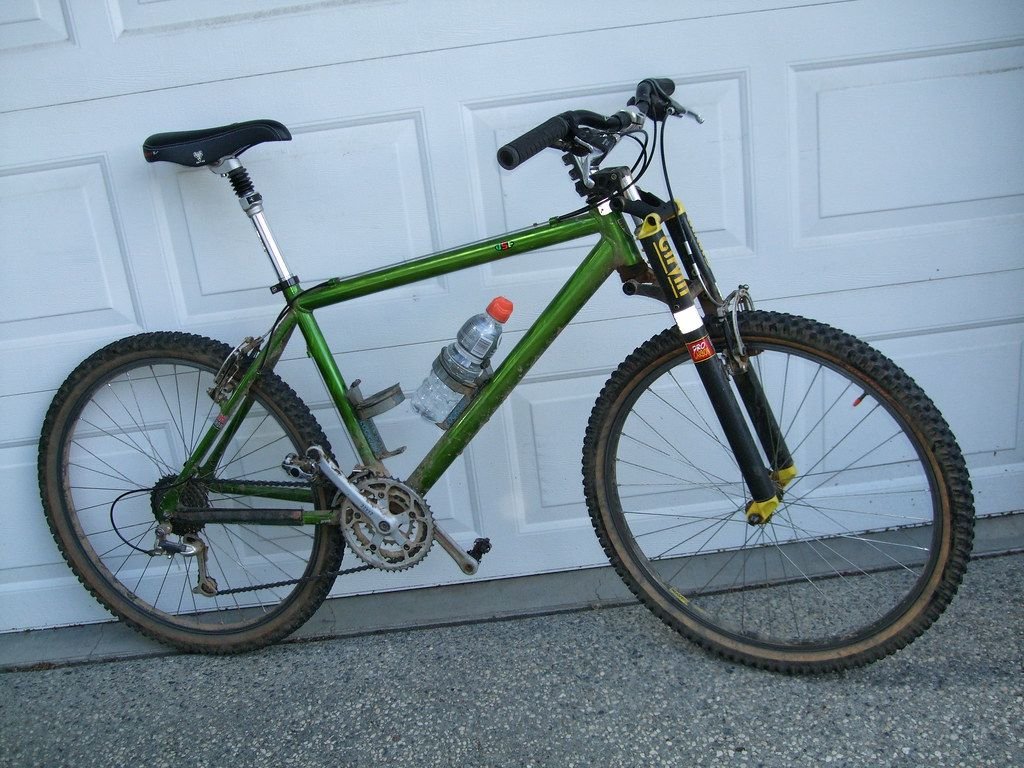

I only repaired the front fork this way on the bike pictured, but I have repaired front and rear in the same manner in the past. You can get different diameter plugs and fine tune your suspension rate. I stuffed the smaller diameter plugs into the larger ones to add stiffness.

cheers,

-Mike
TheBikeStore is offline
Old 11-29-19, 09:46 PM
  #15
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
Thanks!
thumpism is offline
Old 11-30-19, 12:14 AM
  #16
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,059

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 2017 Post(s)
Liked 593 Times in 411 Posts
Is it out of the question to put an actual shock in there?
__________________
Genesis 49:16-17
Darth Lefty is offline
Likes For Darth Lefty:
Old 11-30-19, 08:30 PM
  #17
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
Originally Posted by Darth Lefty View Post
Is it out of the question to put an actual shock in there?
Real shocks are available but you're looking at about $200 per end. Not cheap. You'd have to be crazy about the bike to want to spend that kind of coin. Sample below for the '96 656 that I sold my buddy.

Proflex Attack/656 P/N Wheel Travel Weight MSRP Genesis Damper 50618 2.5" (63mm) 195 grams $198.00

Genesis installed on Attack frame

Last edited by thumpism; 11-30-19 at 08:34 PM.
thumpism is offline
Old 11-30-19, 08:36 PM
  #18
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,404

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1076 Post(s)
Liked 952 Times in 604 Posts
Has anyone looked up a source for generic cylindrical elastomers, or at least considered adapting others that are already commercially available (e.g., from a Birdy folder)?

What sizes of elastomers does that ProFlex need? Inner diameter and length of each elastomer would help.

-Kurt
__________________







cudak888 is offline
Old 12-01-19, 09:16 AM
  #19
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
I think I still have a Proflex manual with the bumper specs. I'll try to find it.

*edit*

This is the book I was thinking of and it shows a lot of info on the forks and shocks, including exploded diagrams and dis/assembly instructions, but it does not provide the specs or the dimensions of the foam (MCU=Micro Cellular Urethane) springs. Does call them "spring" in the diagrams.

Incidentally, up to '94 the bikes used single foams at each end but the next year (depending on the model) they began using two foams separated by a plastic washer and the two were about 20 durometer (hardness) points apart; 40 and 60, or 50 and 70, etc., for a more progressive spring action than the single provided. Also, smaller bikes used softer springing for presumably lighter small riders and larger bikes were suitably more strongly sprung.


Last edited by thumpism; 12-01-19 at 02:13 PM.
thumpism is offline
Old 12-01-19, 12:46 PM
  #20
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,059

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 2017 Post(s)
Liked 593 Times in 411 Posts
Originally Posted by thumpism View Post
Real shocks are available but you're looking at about $200 per end. Not cheap. You'd have to be crazy about the bike to want to spend that kind of coin. Sample below for the '96 656 that I sold my buddy.

Proflex Attack/656 P/N Wheel Travel Weight MSRP Genesis Damper 50618 2.5" (63mm) 195 grams $198.00

Genesis installed on Attack frame
Does it have to be one of theirs? Look at the yoke on an Ibis, I was thinking there must be some way to do that, maybe with a couple of lathe parts. There have been a lot of shock ends and lengths over the years
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 12-01-19, 02:11 PM
  #21
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,088

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1753 Post(s)
Likes: 0
Liked 488 Times in 349 Posts
It would be easiest if a kludge were not required. Most of us don't have lathe access or talent and carving one by hand out of stock is unlikely for several reasons. If a given bike's shock dimensions and specs were known there is probably one out there that would slip into place painlessly, although at some cost. As usual, making that connection is the crucial aspect.
thumpism is offline
Old 12-02-19, 11:33 AM
  #22
dddd
Ride, Wrench, Swap, Race
Thread Starter

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Originally Posted by Darth Lefty View Post
Is it out of the question to put an actual shock in there?
Note that a simple shock isn't suitable for the rear, since one end of the shock needs to be solidly mounted to the "seatstay" strut and with only the other end free to pivot.
So the entire strut+shock is actually considered a "strut" which means that it handles side-loads.

The front shock uses a normal two-eye shock, but is very critical about the exact length on the Vector forks. Because the links swing through large angular displacements, the axle path and not just the ride height and spring rate can have huge effects on the bike's handling and on the actuation leverage acting on the shock.

As was mentioned, there are no inexpensive shocks for these, though some of these bikes still turn up with still-functionng original Noleen shocks, some of which feature damping adjustment.
I used a swap-sourced Carbon Vector fork on what turned out to be my best budget build ever, and the fork played really well with the lowly Pacific(!) frame that I based it on. The box-store bike frame featured a great acid-green paint that the decals peeled right off of, and also featured a faux downhill fork so was blessed with a slack steering head angle that made for great fun literally ripping through the manzanita section of Manzanita trail up in the ASRA. I still have it, complete with the wheels I built for it back in 2000.


dddd is offline
Likes For dddd:
Old 12-02-19, 11:50 AM
  #23
dddd
Ride, Wrench, Swap, Race
Thread Starter

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,507

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Likes: 0
Liked 306 Times in 235 Posts
Originally Posted by thumpism View Post
I think I still have a Proflex manual with the bumper specs. I'll try to find it.

*edit*

This is the book I was thinking of and it shows a lot of info on the forks and shocks, including exploded diagrams and dis/assembly instructions, but it does not provide the specs or the dimensions of the foam (MCU=Micro Cellular Urethane) springs. Does call them "spring" in the diagrams.

Incidentally, up to '94 the bikes used single foams at each end but the next year (depending on the model) they began using two foams separated by a plastic washer and the two were about 20 durometer (hardness) points apart; 40 and 60, or 50 and 70, etc., for a more progressive spring action than the single provided. Also, smaller bikes used softer springing for presumably lighter small riders and larger bikes were suitably more strongly sprung...
Good info there. Oh, and about the special washer that separates the foam cylinders on the longer-travel Pro-Flex shocks, note that adding the washers contains the rubbers from distorting wildly under compression, and also adds firmness since the washer's surfaces control the outward bulging of the rubbers under heavy compression, preventing rubber damage and also preventing bottoming.

So any rubber material used that is perhaps too soft can be firmed up with the addition of washers. Ideally these washers will have a flange around their perimeter, but not necessary if there are enough washers per overall length of the spring stack. The washers need to be of a material that won't wear against the chromed shaft, so hard plastic is ideal, and there mustn't be any gaps at any time for abrasive dirt to enter the inside near the shaft. The challenge is to find a material that is soft enough to control ride height, yet rebounds fully enough to prevent the shock from extending past the free length of the springs and causing gaps. The nitrogen-charged urethane foam really is ideal in this regard because of the compressible gas accounting for most of the rubber spring's volume, and of course a coil spring (like a Speed Spring) also has the travel needed and won't foul the shock shaft with rubbing and dirt.
dddd is offline
Old 12-02-19, 12:57 PM
  #24
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 11,059

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 2017 Post(s)
Liked 593 Times in 411 Posts
dddd I can't square the photo in post 1 where the system appears to have a pivot at the front of the shock, the seatstay strut's pivots keeps everything in a straight line, and there's only compression through the shock, which seems normal, and you could make it work just by turning the aft eye of the shock vertical because it's really just a longer analogue of the Ibis yoke I mentioned... to the one in post 17 where the top of the shock is in a socket and it has to take some bending, which seems terrible. (though considering that's what a telescoping fork does all day, maybe not that terrible, but prevents using a regular shock)
__________________
Genesis 49:16-17

Last edited by Darth Lefty; 12-02-19 at 01:02 PM.
Darth Lefty is offline
Old 12-02-19, 05:48 PM
  #25
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,404

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1076 Post(s)
Liked 952 Times in 604 Posts
Originally Posted by dddd View Post
...and the fork played really well with the lowly Pacific(!) frame that I based it on. The box-store bike frame featured a great acid-green paint that the decals peeled right off of...
OMG moment of the year. I'm looking at it, and I still don't believe it.

-Kurt
__________________







cudak888 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
