SR Melt Forging Custom crankset

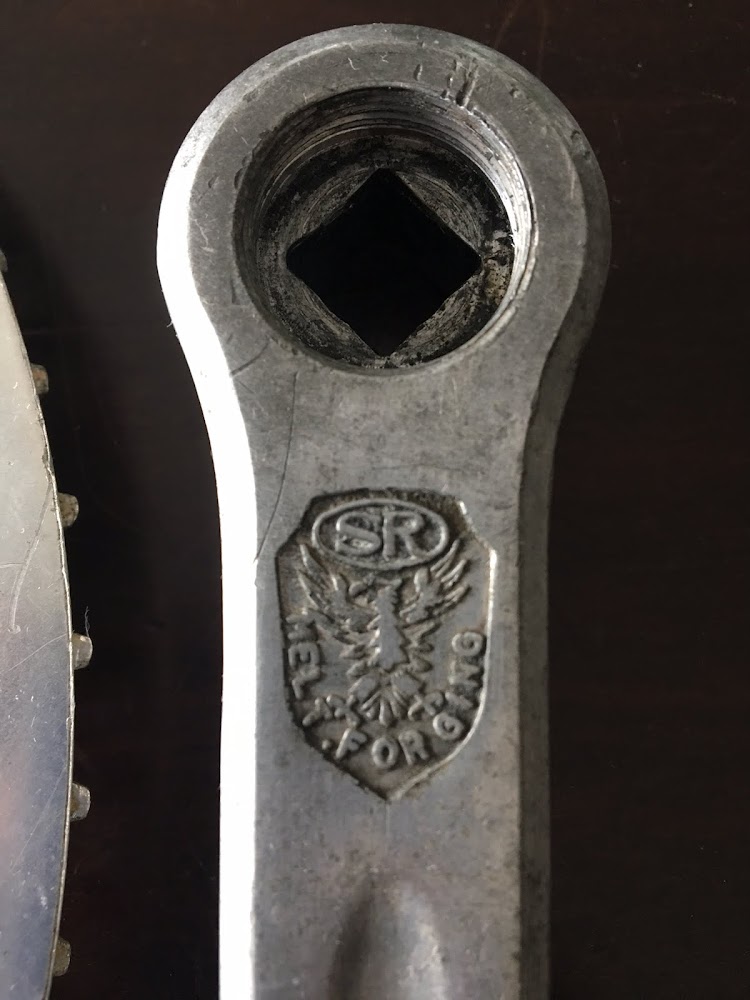

Just some pics of an early SR crankset I picked up recently. The crest on these is really neat. I want to build a frame around this stuff.





First time I've run into these chainring bolts - SR Silver Cotterless

9volt is offline
Old 01-28-18, 10:01 AM
  #2
juls
over the hill

juls's Avatar

Join Date: Apr 2009
Location: florida
Posts: 1,410

Bikes: 72 maino-76 austro daimler inter 10-? giant kronos

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I have the 3 arm version. They are purty. Mine has a chainguard 52/47

Last edited by juls; 01-30-18 at 04:30 AM. Reason: more info
juls is offline
Old 01-28-18, 10:10 AM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

The three arm model with this crest was offered in a boxed luxury presentation format, similar to original Shimano DuraAce components.



Before putting it to service check carefully to see if it is made for two degree or for three degree taper. Many of the early Sakae Ringyo sets were done for three degree.

-----

Last edited by juvela; 01-29-18 at 11:44 PM. Reason: claritude
juvela is online now
Likes For juvela:
Old 01-28-18, 02:30 PM
  #4
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 912
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
3 arm is very cool. I need to locate a pair of those dust caps.

Last edited by 9volt; 01-28-18 at 02:36 PM.
9volt is offline
Old 01-28-18, 02:40 PM
  #5
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 912
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Originally Posted by juvela View Post
Before putting it to service check carefully to see if it is made for two degree or for three degree taper. Many of the early Sakae Ringyo sets were done for three degree.
Thanks for mentioning this. I wasn't aware and it didn't come with a BB.
9volt is offline
Old 01-28-18, 03:04 PM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
Originally Posted by 9volt View Post
Thanks for mentioning this. I wasn't aware and it didn't come with a BB.
-----

The odds are pretty strong it is two degree. In general, the ones with the three degree are variations of Silstar. Some of these were private labelled, IIRC. Do not know if anyone else made three degree cotterless chainsets...

One potential stumbling block to making use of the three degree sets is locating the correct spindles.

----
juvela is online now
Old 01-28-18, 03:05 PM
  #7
Bikerider007
Senior Member

Bikerider007's Avatar

Join Date: Aug 2015
Location: AZ
Posts: 2,457

Bikes: Yes

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 459 Post(s)
Liked 44 Times in 28 Posts
That is cool looking. Have seen the three arm but not that one. SR is seen lower range but did have some neat stuff and their quality increased with part of that being BMX in the 80s. Sheldon Brown does an explanation of countries beginning with a cheap offering for a decade or so, moving to quality for decade.... etc in stages that ends up being too expensive to continue or something to that effect. Just insert one of the old company names. It's interesting. Anywho, that's a nice looking set. And the chainring bolts as well.
Bikerider007 is offline
Old 01-28-18, 03:28 PM
  #8
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,775

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 553 Post(s)
Tagged: 0 Thread(s)
Quoted: 1867 Post(s)
Liked 403 Times in 262 Posts
Originally Posted by juvela View Post
-----

The three arm model with this image was offered in a boxed luxury presentation format, similar to original Shimano DuraAce components.



Before putting it to service check carefully to see if it is made for two degree or for three degree taper. Many of the early Sakae Ringyo sets were done for three degree.

-----
The best thing about the SR Custom 3 (on your photo) is that the three pin 86mm bcd chain rings have recently become available from fsa, in sizes as small as 27t. You can make yourself a very nifty compact crank. Downside is that there is very little space between the large chaining and the crank arm so though the Q factor is small, most "modern" front derailleurs won't work.

But I digress. Sorry for the off topic bump.
rhm is offline
Likes For rhm:
Old 01-29-18, 11:57 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

Thanks rhm for this good point about interference/clearance.

Only encountered it once as a spanner twister. Ironically it was on a 1959 Cinelli fitted with Cinelli-Magistroni cranks and T.A. adaptor for Criterium chainwheels. Not a whole lotta residential space in thar...

---

Came upon this fitting of a three-arm Custom the other day on a private-labelled Flandria frame from the '60's. Cycle domiciled in Poland.







As I remember it, launch was ~1974.

-----
juvela is online now
Old 01-30-18, 04:39 AM
  #10
juls
over the hill

juls's Avatar

Join Date: Apr 2009
Location: florida
Posts: 1,410

Bikes: 72 maino-76 austro daimler inter 10-? giant kronos

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
https://www.bikeforums.net/images/attach/jpg.gif
Attached Images
File Type: jpg
6 speed 009.jpg (758.6 KB, 360 views)
juls is offline
Old 01-30-18, 05:47 AM
  #11
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,775

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 553 Post(s)
Tagged: 0 Thread(s)
Quoted: 1867 Post(s)
Liked 403 Times in 262 Posts
Here's the 'compact double' version! As shown here, the 47t ring is placed so the teeth are on the outside. This allows the chain ring bolts to sit in the recess designed for them. But I've found it works better when the ring is reversed, with the teeth on the inside, so the heads of the chain ring bolts stand proud of the surface.



__________________
www.rhmsaddles.com.

Last edited by rhm; 01-30-18 at 06:00 AM.
rhm is offline
Old 01-30-18, 07:41 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

Thanks so much!

Looks like they were still copying Verot and Specta at this juncture in only cutting teeth from one side.

Later, top models joined the balance of the known universe and had their teeth cut from both sides of the stock.

-----
juvela is online now
Old 01-30-18, 09:00 AM
  #13
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,775

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 553 Post(s)
Tagged: 0 Thread(s)
Quoted: 1867 Post(s)
Liked 403 Times in 262 Posts
Originally Posted by juvela View Post
-----

Thanks so much!

Looks like they were still copying Verot and Specta at this juncture in only cutting teeth from one side.

Later, top models joined the balance of the known universe and had their teeth cut from both sides of the stock.

-----
Yeah. These were a pretty cheap crankset and it was presumably cheaper to cut the teeth on only one side.

Whatever. I'm just happy we can get teeny tiny little chainrings that fit it!

__________________
www.rhmsaddles.com.

Last edited by rhm; 01-30-18 at 09:03 AM.
rhm is offline
Old 01-30-18, 09:36 AM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

Always much appreciate any and all notices regarding modern available spares which fit annuated componentry. An excellent resource to keep our vintage equipment in operation!


-----
juvela is online now
Old 01-30-18, 09:49 AM
  #15
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 912
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Great pics! Feel free to hijack with modern chainring discussion

When were these cranks new? Early/Mid/Late 70s? Did the 3 arm come before or after the 5?
9volt is offline
Old 01-30-18, 10:41 AM
  #16
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
Originally Posted by 9volt View Post
Great pics! Feel free to hijack with modern chainring discussion

When were these cranks new? Early/Mid/Late 70s? Did the 3 arm come before or after the 5?
-----

These are good questions!

From what I have seen and worked with the earliest SR chainsets were three-arm Silstar variants whose outer chainwheels are swaged to the right crank arm. These included alloy cottered models. Would think launch mid-to-late sixties but do not know a hard date. Other readers are sure to know more precisely.

Five-arm models seemed to appear later, beginning 1970-ish.

The many iterations of SR chainsets through time can be seen pretty well at VB.

https://velobase.com/ListComponents.aspx?Category=115

There is a relatively late Sakae Ringyo catalogue from 1980 housed here:

https://cyclespeugeot.web.fc2.com/rem...ce/sakae80.htm

-----
juvela is online now
Old 01-30-18, 01:51 PM
  #17
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,861
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1370 Post(s)
Likes: 0
Liked 471 Times in 323 Posts
What is the difference between "Melt" and "Regular", as we know, aluminum forging?
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 01-30-18, 02:42 PM
  #18
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,775

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 553 Post(s)
Tagged: 0 Thread(s)
Quoted: 1867 Post(s)
Liked 403 Times in 262 Posts
There was a thread on that once, many years ago:
hat's the difference between " Melt Forged" and just "Forged"??

What we learned, from the 1992 Bridgestone Catalog (https://sheldonbrown.com/bridgestone/1992/1992.pdf):

"MELT-FORGING is high-pressure casting, in which molten Ac4c-T6 aluminum (tensile strength
approx. 32,714 psi) is forced into a mold under roughly 11,378 .4 lbs. of pressure. This eliminates ,
bubbles much faster and more economically than in gravity-casting. The "forged" piece is then
cooled quickly with water. To compensate for the lower strength Of Ac4c-T6 (only 50 percent of
typical. crank cold-forging alloys and 75 percent of crank gravity-casting alloys), the parts tend to be
chunkier . Since Ac4c-T6 cannot be anodized, melt-forged parts never display the fine finishes
possible withhot-forgings, cold-forgings, or gravity-castings . Still, melt-forging has made relatively
lightweight, attractive, reliable components affordable to people who would otherwise ride steel."
__________________
www.rhmsaddles.com.
rhm is offline
Likes For rhm:
Old 10-12-20, 07:23 AM
  #19
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,603

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 297 Times in 210 Posts
I've got a set of these on the way and I have a few questions. I found the FSA 27t chainrings. The come in steel and alloy. I was wondering if I should go with the steel chainring for durability?

The other technical issue is the chainring bolts which are not original and too long. Is there anything specific to the original bolts, or can I just file the replacements to leangth?

Third question is gearing. This is starting as a 52-40t and I'll be going down to a 40-27t. Any recommendations for 6-7 speed gearing. I'm generally riding in the flat lands, but hopefully will riding hilly areas next summer. Thanks

bark_eater is offline
Old 10-12-20, 07:38 AM
  #20
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,482

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 573 Post(s)
Liked 504 Times in 322 Posts
Originally Posted by bark_eater View Post
I've got a set of these on the way and I have a few questions. I found the FSA 27t chainrings. The come in steel and alloy. I was wondering if I should go with the steel chainring for durability?
This is something I've wondered as well. My thinking is that steel chain-rings will last longer but would be harder on your chain and if not replaced regularly, a worn chain would wear the rear cogs faster. I have bikes with steel chain-rings, but I don't ride them hard.
branko_76 is offline
Old 10-12-20, 08:02 AM
  #21
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,958
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 733 Post(s)
Likes: 0
Liked 768 Times in 465 Posts
Originally Posted by branko_76 View Post
This is something I've wondered as well. My thinking is that steel chain-rings will last longer but would be harder on your chain and if not replaced regularly, a worn chain would wear the rear cogs faster. I have bikes with steel chain-rings, but I don't ride them hard.
The material that chainrings are made of makes a difference, but not in the direction you think. All else being equal, steel teeth will wear more slowly than aluminium ones; and it is the point-stress created on single rollers (when a sprocket is worn) that wears chains - so steel chainring teeth are better for your chain that aluminium ones.

And the fewer teeth the more this matters.
oneclick is offline
Likes For oneclick:
Old 10-12-20, 08:05 AM
  #22
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

When this set came packaged for retail sale it appeared in a presentation carton the interior of which was coated with a velvet look layer.

Can recall seeing one in the display case o' me local ~1973-74.


-----
juvela is online now
Old 10-12-20, 10:21 AM
  #23
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 70 Times in 58 Posts
just a polite or higher tech sounding way of saying "cast" not as strong as cold forged
steve sumner is offline
Old 10-12-20, 11:06 AM
  #24
Dougieh65
Junior Member

Join Date: Aug 2020
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 1 Time in 1 Post
Originally Posted by 9volt View Post
3 arm is very cool. I need to locate a pair of those dust caps.
hi the crest is right , but itís not the right one , the chain guard is thicker , I wish I could post pics on here as I have a few of what I need
Dougieh65 is offline
Old 10-12-20, 11:10 AM
  #25
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,603

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 297 Times in 210 Posts
Here's another one: Ebay listing

Last edited by bark_eater; 10-12-20 at 11:17 AM.
bark_eater is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
