Mondia Special

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mondia Special

Old 02-14-18, 06:38 AM
  #1
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Mondia Special

Just wanted to show some pictures of my european model Mondia Special I picked up at a flee market about a year ago.
This is the starting situation:

The cables and cable guides are clearly ready for some new hardware. The bike was also in definite need for a deep, DEEP clean.

Removing the cotton bartape revealed the horror beneath - 20 year old crusty glue and shellac residue. Let me tell you, trying to clean this mess has been a real pain. After a while I gave up, but I managed to remove most of the residue. Then, Fizik tape to the rescue:


The luckiest moment of the year: finding out that some old nailpolish I used to wear in my teens matched the Mondia orange exactly. After de-rusting I covered most spots up with the polish.


So here's a quick before and after all the cleaning, de-rusting and various touch-ups:

vlan_z is offline
Old 02-14-18, 06:40 AM
  #2
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

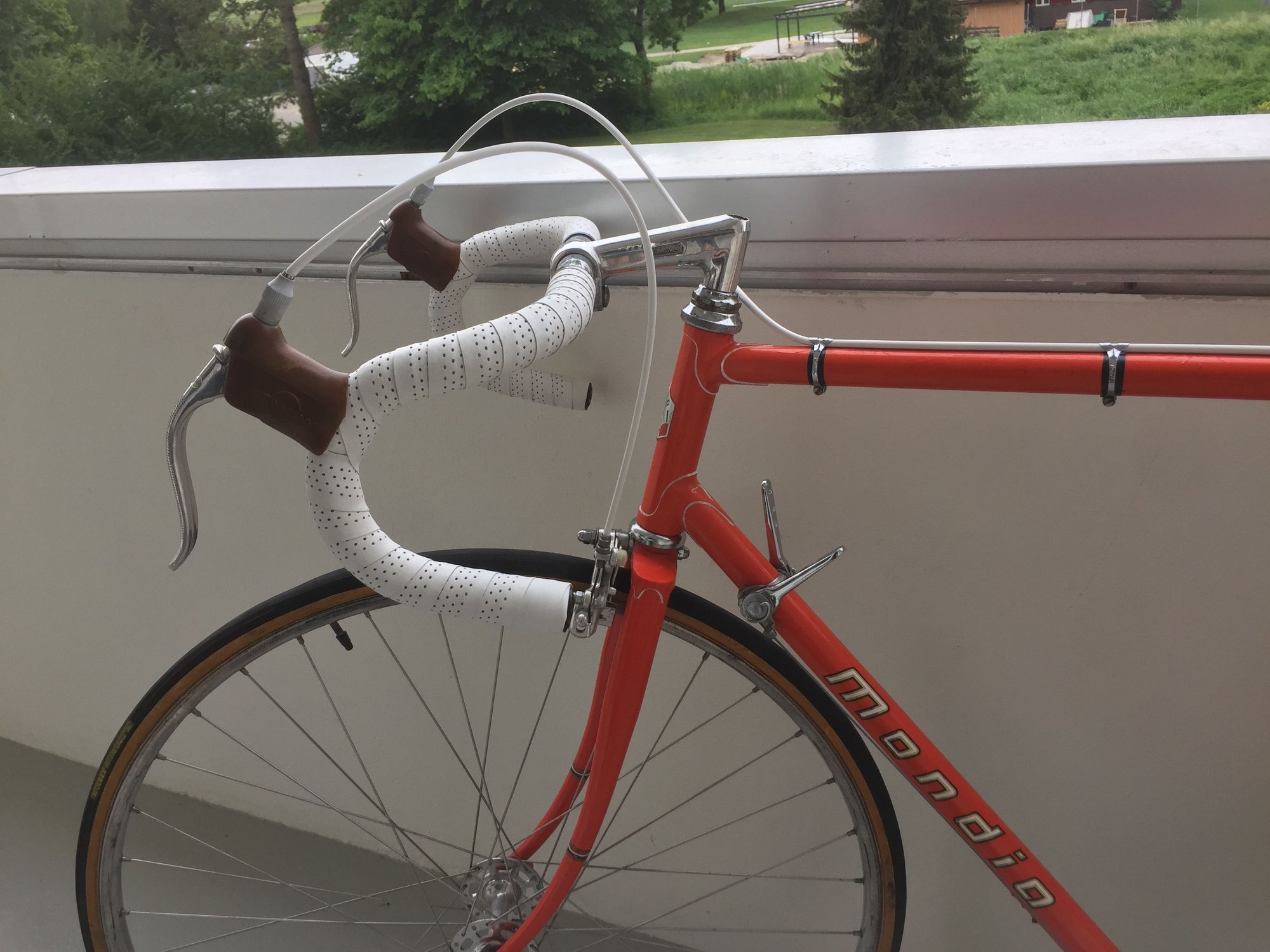

And some more "after" photos:









vlan_z is offline
Old 02-14-18, 06:41 AM
  #3
qcpmsame
Semper Fi

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,749

Bikes: 1980 Medici Pro Strada, 1984 Tommasini Prestige, 2012 Cannondale CAAD 10 Ultegra

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1115 Post(s)
Liked 155 Times in 125 Posts
Amazing how your Mondia has been resurrected, good job on saving it. Now for some new shoes on it, any plans on which tires you are using?

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 02-14-18, 06:44 AM
  #4
joesch
Senior Member

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 637

Bikes: 83 Colnago Super, 87 50th Daccordi, 87 Guerciotti, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 08 Lemond Filmore, 12 Cervelo R3

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked 76 Times in 55 Posts
Nice restoration !
Do you have any of the specs ?
Year ?
Tubing ?
Hubs ?
joesch is offline
Old 02-14-18, 06:56 AM
  #5
Wildwood
Veteran/Pacifist/Resister

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 9,960

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 219 Post(s)
Tagged: 0 Thread(s)
Quoted: 2336 Post(s)
Liked 805 Times in 497 Posts
Congrats from another Mondia lover. And nice job on the clean-up.
Hope you enjoy yours as much as I have mine.


PS - Love the helmet. I use one too.
Attached Images
File Type: jpg

Last edited by Wildwood; 02-14-18 at 07:07 AM.
Wildwood is online now
Old 02-14-18, 07:24 AM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
-----

Very nice job, thank you for sharing the bike.

What is going on with the bottom bracket, is it some manner of Nadax, Briga?

Wonder if pillar correct size for frame. The NiKrom seat binder has been able to mash the seat lug binder ears together.

The handlebar stem is too high for safety; its split is exposed in image below.



@joesch - hubs are Sanshin Matsumoto, "Sunshine."

-----

Last edited by juvela; 02-14-18 at 07:27 AM. Reason: addition
juvela is offline
Old 02-14-18, 07:40 AM
  #7
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,035

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 227 Post(s)
Liked 263 Times in 183 Posts
Very nice job. If that bike is anything like the American Super Mondia Special, you will love the way it rides. Which nail polish did you use , I have a 1972 that looks to be the same color. Joe
Kabuki12 is offline
Old 02-14-18, 07:59 AM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
-----

Cranks are out of registration by a good bit. The drive side wedgebolt is mounted so that tail leads in the pedalling rotation while the non drive side pin is fitted so that head leads in the pedalling rotation. They can be mounted either way as long as they are well seated but they must be mounted in the same way to achieve good crank arm opposition.

-----
juvela is offline
Old 02-14-18, 08:47 AM
  #9
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 346

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 56 Times in 30 Posts
Geile Scheiss, guet gmacht
Kovkov is offline
Old 02-14-18, 10:02 AM
  #10
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,762
Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 175 Times in 143 Posts
Ditto to all of juvela's points some of which are areas of concern(!) like the too-high stem quill and a little less so the too-small seatpost.
But those aside: very nice job on it and quite a handsome bike, I'm also curious about what tubing used cause it generally appears a much higher-grade frame than the components on it.
Probably deserves some up-grades!
unworthy1 is offline
Old 02-14-18, 10:19 AM
  #11
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 346

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 56 Times in 30 Posts
As far as i know the high end Mondias used to be 531.
Kovkov is offline
Old 02-14-18, 10:22 AM
  #12
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,079

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4532 Post(s)
Liked 854 Times in 598 Posts
Love the bike and the story about the nail polish.
bikemig is offline
Old 02-14-18, 10:45 AM
  #13
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,934

Bikes: fewer (n-1)

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 782 Post(s)
Likes: 0
Liked 440 Times in 217 Posts
Nice job!
Lower that stem for safety and take a lot of pictures on your rides so you can post them on the "Where Did You Ride Today" thread in this forum. Those of us here in North America don't get to see many photos of bike rides in Switzerland. Where in Switzerland are you?
Brent
obrentharris is offline
Old 02-14-18, 11:02 AM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
Originally Posted by joesch View Post
Nice restoration !
Do you have any of the specs ?
Year ?
Tubing ?
Hubs ?
Originally Posted by Kovkov View Post
As far as i know the high end Mondias used to be 531.
-----

An indication could be made with a measurement of true pillar size by removing pillar and gently prising apart binder ears for a digital measurement.

-----

Last edited by juvela; 02-14-18 at 02:52 PM. Reason: fix error
juvela is offline
Old 02-14-18, 01:05 PM
  #15
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by joesch View Post
Nice restoration !
Do you have any of the specs ?
Year ?
Tubing ?
Hubs ?
Thanks!
Don't know the year, no indication on the rear derailleur. The oldest license plate (which was still required in Switzerland until 2011) that came mounted on the bike was from '68 ('68 to '89 were all mounted on the frame. After '89 they started using stickers); it's also the one I left on and you can see in the picture.

All I know about the frame is that it's steel, and I think I can read Campagnolo in the back - would have to take a better look another time to be sure.

Hubs are Sunshine 5345.

If I'm missing some info and you know how I can get it, I'm still a bit of a newbie in the vintage cycles area. Tips are appreciated
vlan_z is offline
Old 02-14-18, 01:07 PM
  #16
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by juvela View Post
-----

Cranks are out of registration by a good bit. The drive side wedgebolt is mounted so that tail leads in the pedalling rotation while the non drive side pin is fitted so that head leads in the pedalling rotation. They can be mounted either way as long as they are well seated but they must be mounted in the same way to achieve good crank arm opposition.

-----
Yeah, whoops, my bad. Was probably very eager in the reassembly process. It's fixed now
vlan_z is offline
Old 02-14-18, 01:10 PM
  #17
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Kabuki12 View Post
Very nice job. If that bike is anything like the American Super Mondia Special, you will love the way it rides. Which nail polish did you use , I have a 1972 that looks to be the same color. Joe
Well describing colours might be a bit of a challenge: it's a very dark orange, or in HEX I would say about #FF5A00.
vlan_z is offline
Old 02-14-18, 01:12 PM
  #18
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by obrentharris View Post
Nice job!
Lower that stem for safety and take a lot of pictures on your rides so you can post them on the "Where Did You Ride Today" thread in this forum. Those of us here in North America don't get to see many photos of bike rides in Switzerland. Where in Switzerland are you?
Brent
I currently ride around Bienne and Solothurn I'll be sure to post some nice pictures once the weather gets better!
vlan_z is offline
Old 02-14-18, 02:22 PM
  #19
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
-----

The 5345 number on these standard quality Sunshine hubs has been discussed in another forum thread. Some readers thought it a model number but the experts weighed in and explained that is not the case. Cannot recall if its meaning was ever made clear...

Member rhm has made this post -

https://m.bikeforums.net/showpost.php...78&postcount=3

-----
juvela is offline
Old 02-14-18, 02:49 PM
  #20
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,280

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Liked 298 Times in 217 Posts
Nice work, and from the Mondia homeland...
curbtender is offline
Old 02-14-18, 06:44 PM
  #21
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
Originally Posted by vlan_z View Post
Thanks!
Don't know the year, no indication on the rear derailleur. The oldest license plate (which was still required in Switzerland until 2011) that came mounted on the bike was from '68 ('68 to '89 were all mounted on the frame. After '89 they started using stickers); it's also the one I left on and you can see in the picture.
-----

The marking of a date on Huret products did not commence until ~1978.

The cycle's fittings, if taken to be contemporaneous with it, can offer some date clues.

Its Huret Challenger gear ensemble was announced in 1973 and became available in 1974. By 1977 the Challenger ensemble is still being offered.

This information suggests that cycle dates from between 1974 and 1977. Of course a cycle manufacturer can always have some fittings which have been replaced by newer models to use up in the assembly line.

One additional date clue is provided by the Sanshin Matsumoto quick release skewers. In the early 1970's the levers were straight and by the mid '70's they had become curved.

Below, a Huret launch announcement with illustration for the Challenger ensemble in 1973 followed by a 1977 catalogue page showing the Challenger rear mech is still being offered.

If cycle later than 1977 we would expect Huret fittings to be date marked.






-----

Last edited by juvela; 02-14-18 at 06:54 PM. Reason: fix wonky image
juvela is offline
Old 02-14-18, 08:33 PM
  #22
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,270

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1545 Post(s)
Liked 819 Times in 426 Posts
You have a very good eye for the details here. Bravo!

I, too, sport a Swiss bicycle registration on some rides:



DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 05-15-18, 02:16 AM
  #23
vlan_z
Mondia Enthusiast
Thread Starter

vlan_z's Avatar

Join Date: Jan 2018
Location: Switzerland
Posts: 23

Bikes: 70s Mondia Special, 60s Puch Elegance, 4 others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Stem height issue

Originally Posted by juvela View Post
-----

Cranks are out of registration by a good bit. The drive side wedgebolt is mounted so that tail leads in the pedalling rotation while the non drive side pin is fitted so that head leads in the pedalling rotation. They can be mounted either way as long as they are well seated but they must be mounted in the same way to achieve good crank arm opposition.

-----
Finally got my hands on the right tool to adjust the stem height. Stem is now slammed!


Adjusted stem height
vlan_z is offline
Old 05-15-18, 07:34 AM
  #24
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2118 Post(s)
Liked 335 Times in 296 Posts
-----

Thanks very much for the update!

Good to read.

Beautiful job with the bike, much enjoyed here. ; ^ ]

Now that the good weather is here hope you two are getting some quality time together.

Have been debating from the first post as to the cycle's pedals. Trying to decide between WECO and Eclair. Have finally settled on Eclair. Is that correct?

Tip - drive side front brake pad holder is in backwards.

-----
juvela is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Cwurfel
Classic & Vintage
3
07-25-19 10:37 AM
Hatchet
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
0
10-06-18 01:31 PM
Surferbruce
Road Cycling
26
02-06-11 01:27 PM
funrover
Clydesdales/Athenas (200+ lb / 91+ kg)
11
01-14-11 01:07 AM
kingfish254
Classic & Vintage
5
07-10-10 05:01 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
