What would you do with this rear brake?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What would you do with this rear brake?

Old 03-06-18, 07:27 AM
  #1
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
What would you do with this rear brake?

...besides putting brake blocks in the caliper... :-)

This is on an '84 Schwinn, low-step frame.



The original brake caliper was a Dia-Compe single pivot with reversed cable stop/anchor, typical of brakes used with these types of frames, where the brake cable comes up from the bottom in a large radius curve (also pictured below). I didn't care for that approach too much, as it seemed to restrict me to older single pivot brake calipers. I got these center-pull calipers for free from my LBS from a bike they were disassembling, and I've ran the rear brake cable through both:

(1) the noodle-and-hanger you see in the picture above, and
(2) through a small pulley attached to the seat clamp bolt with a bolt-on cable stop on the seat tube.

Neither one of these solutions seems to be ideal, either. The primary problem I'm having now is the yoke is not centered on the straddle cable, so I get uneven pull from each brake arm. The yoke appears centered in the picture above, but after a number of pulls on the lever, it eventually works its way over to the right side, pulled by the off-centered cable hanger. Neither solution seems all that elegant to me.

I know these low-step frames can be troublesome in setting up a rear brake. Is the stock setup, shown below, about the most elegant way possible for a frame like this? I appreciate any thoughts, comments, or ideas.

hokiefyd is offline
Old 03-06-18, 07:33 AM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,393

Bikes: Too many to list here check my signature.

Mentioned: 145 Post(s)
Tagged: 2 Thread(s)
Quoted: 1962 Post(s)
Liked 762 Times in 476 Posts
Are you set on having that center pull style brake? I think unless you can get the hanger between the lug ears you’ll always be off to the side.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-06-18, 08:05 AM
  #3
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
Originally Posted by Bianchigirll View Post
Are you set on having that center pull style brake? I think unless you can get the hanger between the lug ears you’ll always be off to the side.
No, I'm not married to one type over another. Which is why I started this thread -- I've come to the same conclusion that you have -- it seems to me that a center pull will always be compromised as a rear brake due to the cable routing problem here. But you guys work with and build a ton more bikes than I do, at least collectively, so I'm looking for advise on the most elegant approach. The off-center pull on these center pull brakes isn't appealing to me. But the large loop of cable to a rear single pivot wasn't very appealing either.

Maybe that's the lesser of the two evils on a frame type such as this?

Are there any clever ways of using a modern dual pivot brake? I guess the cable would have to snake up the seat tube (like it is now) and then loop back down towards the caliper. Is there a good way to keep that cable secured/mounted? Or would such an S-curve not work well in the first place?
hokiefyd is offline
Old 03-06-18, 08:26 AM
  #4
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,870

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1025 Post(s)
Liked 678 Times in 422 Posts
There are cable hanger that will center the cable.

Universal CP Hanger:
[IMG]075_PaTrek, on Flickr[/IMG]

Front brakes typically have shorter calipers. Your rear one looks like one as well so you might not have an option other than to swap to 700 rims, if that will be enough.

Upon further examination, there may be CP's with less distance between the mounting bolt and pivot mounts. Here is a front Universal that my be shorter than yours:

[IMG]085_PaTrek_front brake and tire saver, on Flickr[/IMG]
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 03-06-18, 08:51 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,547

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2575 Post(s)
Liked 1,214 Times in 766 Posts
Originally Posted by Bianchigirll View Post
Are you set on having that center pull style brake? I think unless you can get the hanger between the lug ears youíll always be off to the side.
That style of hanger is actually intended to be mounted between the lug ears:


Attached Images
File Type: jpg

Last edited by JohnDThompson; 05-07-21 at 11:16 AM.
JohnDThompson is offline
Likes For JohnDThompson:
Old 03-06-18, 09:00 AM
  #6
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
Originally Posted by SJX426 View Post
Front brakes typically have shorter calipers. Your rear one looks like one as well so you might not have an option other than to swap to 700 rims, if that will be enough.
I'm sorry that I wasn't clear -- these calipers are what I think used to be referred to as "mid reach" calipers -- they have enough slot so that I can reach the 27" rims with these (but I can also swap to 700s if I need to). These calipers do work with the wheels on the bike -- I'm just looking for a better cable routing.

Originally Posted by JohnDThompson View Post
That style of hanger is actually intended to be mounted between the lug ears.
Thanks -- yes, I agree. In order to do that, I think I'd have to run a length of cable up so that the cable itself would be stopped by the hanger, rather than use a linear pull brake noodle. I was hoping to avoid an S-curve in the cable like this, but I'd have to do it if I were using a dual pivot brake anyway...so I could try it with my existing center pull.

Thanks for the reminder on this -- it may be my best solution with the existing hardware.
hokiefyd is offline
Old 03-06-18, 09:58 AM
  #7
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,459

Bikes: Indeed!

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,138 Times in 453 Posts
I think the pulley and cable stop method may be the best solution if you can center the pulley between the ears of the seat lug and mount the cable stop on the back of the seat tube:

Photo from an image search.

Otherwise, ditch the noodle and try a loop in the cable housing:

Another copied image.
Brent
obrentharris is offline
Likes For obrentharris:
Old 03-06-18, 11:29 AM
  #8
Ghrumpy
Senior Member

Join Date: Jul 2009
Posts: 788
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 379 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by obrentharris View Post
I think the pulley and cable stop method may be the best solution if you can center the pulley between the ears of the seat lug and mount the cable stop on the back of the seat tube:

Photo from an image search.
Look closely and you'll notice there's no need for the added stop on the seat tube. The pulley bracket has a stop built in. All that's needed is a step-down ferrule.

Originally Posted by obrentharris View Post
Otherwise, ditch the noodle and try a loop in the cable housing:

Another copied image.
Brent
Agree. No need for the noodle.
Ghrumpy is offline
Likes For Ghrumpy:
Old 03-06-18, 11:50 AM
  #9
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
Thanks for the ideas, everyone. I thought the noodle would reduce flex/compression in the system and figured that any loop of cable that I could eliminate, or at least replace with a non-compressible piece, would be worth doing. It obviously didn't work as well as I wanted it to. I will also concede that the pulley I used was pretty small in diameter, and the cable just sort of "bent" around it rather than wrapped around it smoothly, if that makes any sense.

I definitely have some things to try.
hokiefyd is offline
Old 03-06-18, 12:35 PM
  #10
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,520

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2879 Post(s)
Likes: 0
Liked 1,389 Times in 943 Posts
The really easy fix is to replace the OEM yoke with any of the yokes that have set screws for the bridle cable. I use the popular black ones on several bikes. You may well find you have to set it off center to get the brake pads centered but everything stays put and requires no attention.

Harris Cyclery Tektro Deluxe Yoke Silver BRH05 $6.95 (There are several other similar yokes. I've never used these but they should do just fine.)
Ben
79pmooney is online now
Old 03-06-18, 08:27 PM
  #11
Fahrenheit531
Lover of Vintage Steel

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,851

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 682 Post(s)
Liked 406 Times in 219 Posts
Here's another shot of probably your best option, which is the stock Schwinn pulley; it ain't pretty but it works like a champ. This one's on a Mesa Runner, brakes are cantilever. I'd wager you can find one at your local co-op for a buck or two.
Attached Images
File Type: jpg
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Likes For Fahrenheit531:
Old 03-07-18, 01:27 AM
  #12
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,794

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 10 Times in 6 Posts

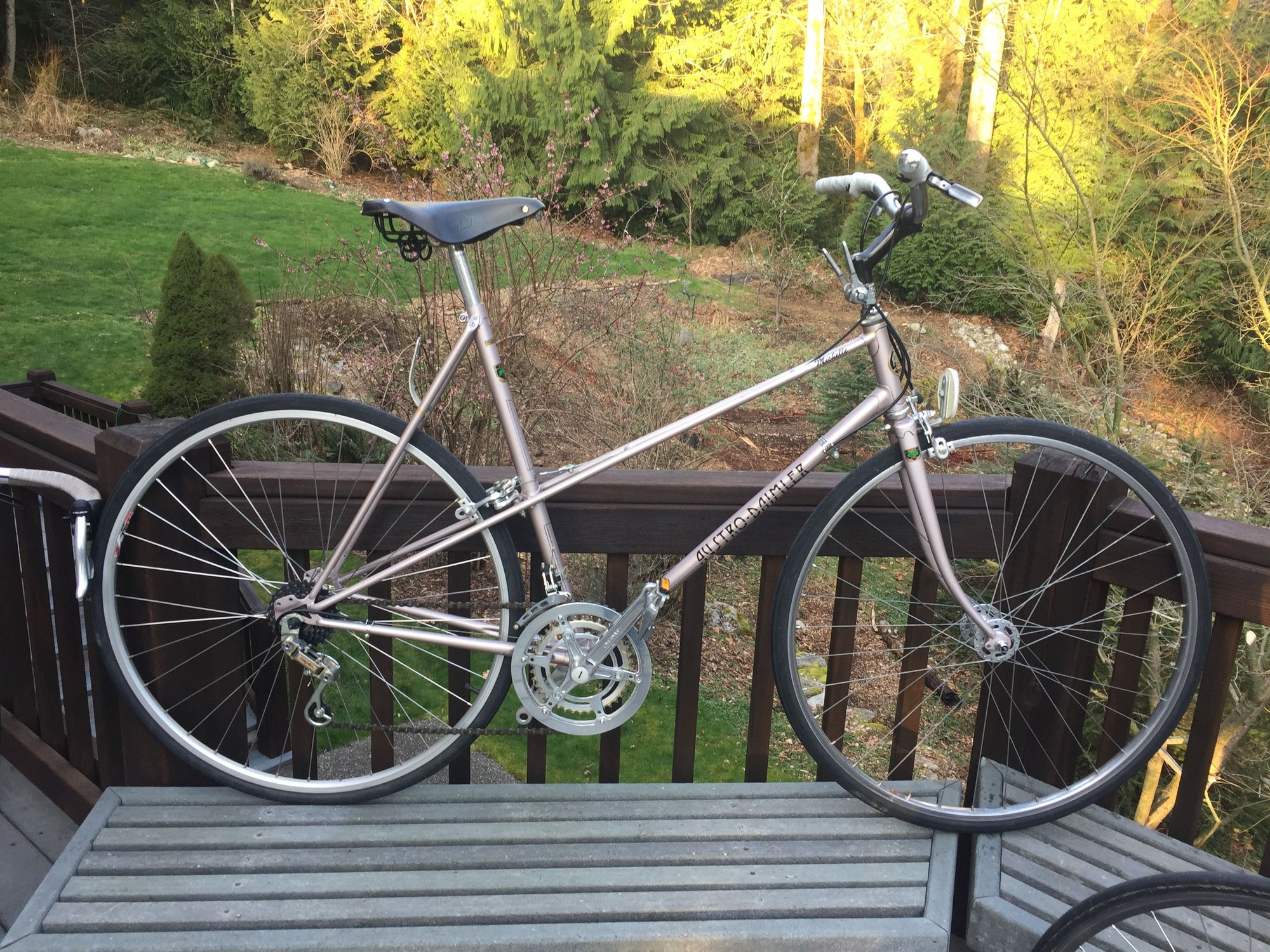

It may be hard to see in this picture, but my daughter's Bianchi Advantage is set up with one of those pulleys. Works great for her cantilever brakes and I don't see why it wouldn't work just as well for centerpulls.

SkyDog75 is offline
Old 03-07-18, 06:01 AM
  #13
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
I did reposition the hanger to between the seat post clamp lugs (centered), and that definitely centers the yoke, but the cable's route to get there isn't ideal. I agree that a larger diameter pulley may be best. I like the option of having the cable stop built in to the pulley. I live in the country, and the nearest bike co-op is over an hour and a half away. Next time I go to the big city, I'll check it out.

Does anyone happen to have one of these Schwinn/similar pulleys unused you'd be willing to sell? If so, please PM me. Thanks, all.
hokiefyd is offline
Old 03-07-18, 10:14 AM
  #14
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,794

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 10 Times in 6 Posts
Originally Posted by hokiefyd View Post
I live in the country, and the nearest bike co-op is over an hour and a half away.
Understood. I'm in the same boat. There's only one within a few hours' drive of here and there's no way I'd be able to show up during their limited hours.

Originally Posted by hokiefyd View Post
Does anyone happen to have one of these Schwinn/similar pulleys unused you'd be willing to sell?
They turn up on eBay pretty regularly, and if memory serves, I think that's where I got mine. Unfortunately, the only ones listed right now seem to be in the UK, bumping up the shipping charge a few bucks. They're still under $20, though:

https://www.ebay.com/itm/381293125287
SkyDog75 is offline
Old 03-13-18, 05:10 AM
  #15
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
Through the generosity of a forum member (@3speedslow), I have a rear cable pulley on the bike.



The cable is centered over the yoke and I was able to keep using the stock Dia-Compe yoke (that I prefer over the "closed" triangular yokes, as this is essentially my quick release on the brake).

As installed, the pulley doesn't turn -- the cable just slides over it. I think the unit got compressed just slightly when installed on the seat post clamp. The pulley will turn, but with some finger force. I think it's okay for now, and I may just use some dry lube there where the cable slides.
hokiefyd is offline
Likes For hokiefyd:
Old 03-13-18, 06:01 PM
  #16
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,678

Bikes: A few

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1722 Post(s)
Liked 564 Times in 381 Posts
Glad I could help. A washer placed under the bolt could open up the pulley bracket.
I like the yellow cables which match the decals and fork and go well with the blue.
3speedslow is offline
Old 03-14-18, 05:12 AM
  #17
hokiefyd
Senior Member
Thread Starter

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,440

Bikes: '18 Redline Zander MTB, '14 Surly Pugsley, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1176 Post(s)
Liked 405 Times in 316 Posts
Originally Posted by 3speedslow View Post
Glad I could help. A washer placed under the bolt could open up the pulley bracket.
I like the yellow cables which match the decals and fork and go well with the blue.
Yes, I may eventually do this. The seat clamp bolt is fairly short, and there are only a few threads' of engagement right now (with the extra spacing of the pulley bracket). I may eventually replace it with a longer bolt or something like a quick release lever in which the pulley and its bracket would be free to find their own position during use. I will play some more with it over time...and will test it more when it's more pleasant to ride outside (winter just isn't giving up in the Shenandoah Valley).

Thank you for the compliment on the color coordination. I think the bike looks pretty nice. I bought it to try a road bar and road levers, but I just couldn't get into it, so I've got a hodge-podge of mountain/hybrid bike parts on it at the moment. The step-through frame is interesting, though it definitely makes the bike feel a little twitchy at speed. The combination of the "soft" chromoly tubing, the parallelogram of a main "triangle", the already steep(ish) head tube angle ('80s road bike), and the replacement Fuji fork that appears to have more offset than the OEM fork (which should reduce trail) makes for a "whippy" feeling bike when steering at speed. Most of my bikes feel very stable at speed, but this one feels like the front of the frame is only casually connected to the rear. It's a different feeling, but I think this flexibility in the frame/system is also what makes it super comfortable to ride. Despite the relatively narrow tires (compared to what I have on my other bikes) and higher inflation pressure, this bike is one of my softest-riding.

It's been fun to play with and ride around the neighborhood.
hokiefyd is offline
Old 05-05-21, 06:31 PM
  #18
Sportivo
Newbie

Join Date: May 2021
Posts: 1
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
rear cable pulley

Hi,

I am looking for a rear cable pulley, for a very similar bike as the one shown in the forum... do you know where I could find one?

Thanks!

Originally Posted by 3speedslow View Post
Glad I could help. A washer placed under the bolt could open up the pulley bracket.
I like the yellow cables which match the decals and fork and go well with the blue.
Sportivo is offline
Old 05-05-21, 06:59 PM
  #19
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 10,922

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 2754 Post(s)
Liked 1,619 Times in 942 Posts
You just need a design with a braze-on in the proper location for a cleaner brake run of much shorter cable length for a tighter system.
hereís one pic. let me check for a closer-up.
Wildwood is offline
Old 05-07-21, 06:50 AM
  #20
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,678

Bikes: A few

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1722 Post(s)
Liked 564 Times in 381 Posts
Originally Posted by Sportivo View Post
Hi,

I am looking for a rear cable pulley, for a very similar bike as the one shown in the forum... do you know where I could find one?

Thanks!
Welcome to the CV Forum!

Sorry, not at the moment. They are out there, maybe at a close to you bike shop or co-op.

happy hunting!
3speedslow is offline
Old 05-07-21, 10:12 AM
  #21
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,850

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '75 Peugeot PR-10L, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
Liked 530 Times in 214 Posts
@Sportivo. Welcome! If you donít find what you need at your local bike shop or co-op, there are several options currently available on eBay. Try searching with terms: cable hanger pulley.
gaucho777 is offline
Old 05-08-21, 08:26 AM
  #22
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 339

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 75 Times in 63 Posts
I know that it has NO effect on function but aesthetically, I would turn the “Dia-Compe” yoke around . Just looks better that way . If you think that the cable routing compromises brake “pull” in any way, I’d definitely keep the centerpulls opposed sidepulls. IMHO, they provide better stopping power. Of course, that’s my opinion
sovende is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Bryanjp2
Classic & Vintage
7
10-27-18 11:54 PM
Snowden
Bicycle Mechanics
4
03-23-15 06:58 AM
atlantis
Bicycle Mechanics
7
03-11-13 08:58 PM
Miyata110
Bicycle Mechanics
18
02-21-12 12:45 PM
Hangtownmatt
Bicycle Mechanics
2
10-28-11 01:12 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
