Frame ID help - Shimano UF Semi vertical dropouts, 80/81 600 Arabesque, pics and SN

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Frame ID help - Shimano UF Semi vertical dropouts, 80/81 600 Arabesque, pics and SN

Old 03-31-18, 07:24 AM
  #1
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 903
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Frame ID help - Shimano UF Semi vertical dropouts, 80/81 600 Arabesque, pics and SN

Can anyone ID this frame? Dropouts are Shimano UF, fork is Tange, it had 80/81 dated 600 Arabesque parts on it. More pics available. Thanks!

SN appears to be MU06494







9volt is offline
Old 03-31-18, 07:31 AM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,267

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1239 Post(s)
Likes: 0
Liked 23 Times in 21 Posts
Looks interesting! Pics of the whole bike, pls.

Have you pulled the fork?
3speedslow is online now
Old 03-31-18, 07:42 AM
  #3
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 903
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here's the frame and fork. Fork is stamped Tange OL





9volt is offline
Old 03-31-18, 07:55 AM
  #4
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,267

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1239 Post(s)
Likes: 0
Liked 23 Times in 21 Posts
Nothing is coming to mind except the earlier thoughts of a well made early 80's frame. Those rear drop outs are throwing that off though. Nice details but plain in other areas.

Right now, a personal frame one off?
3speedslow is online now
Old 03-31-18, 07:57 AM
  #5
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,267

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1239 Post(s)
Likes: 0
Liked 23 Times in 21 Posts
Just saw the shifter brazenings, maybe bumps it up to mid 80's.
3speedslow is online now
Old 03-31-18, 08:18 AM
  #6
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 903
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The HS, crank, shifters, and derailleurs were Arabesque. I figured that pointed to original pieces but it seems just as likely they were swapped in when the frame was painted.
9volt is offline
Old 04-03-18, 08:22 PM
  #7
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 903
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Bump?
9volt is offline
Old 04-03-18, 09:17 PM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,817
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2471 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
The fork is coded for December 1980, which matches the components. My original thought was that the serial number was consistent for a 1985 Miyata manufactured in late 1984 but that's at odds with the components and fork. However, Tsunoda used a similar format and their M-codes are circa 1981, so a Lotus would be a candidate. Lotus had a few models with different degrees of 600EX in the very early 1980s. Given the repaint it is possible that some features have been added, which may complicate identification.
T-Mar is offline
Old 04-03-18, 10:14 PM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,416

Bikes: Several, mostly not name brands.

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1687 Post(s)
Liked 57 Times in 39 Posts
My guess is a mid-level Japanese production frame from the early 1980s. It looks pretty clean, but nothing really calls out high-end custom work.
JohnDThompson is online now
Old 04-05-18, 10:43 PM
  #10
Hummer
Senior Member

Hummer's Avatar

Join Date: Sep 2010
Location: Rupert's Land
Posts: 813

Bikes: 1981 Raleigh GP, 1985 Norco Bush Pilot, . . .

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The serial number for Tsunoda manufactured frames. The cable guides under the BB are also Tsunoda type.

The first character "M" is probably for the year 1981. The second letter "U" is for the month, but I do not know which month.

This is based in large part on the serial numbers of Lotus collected by @Snyderman.

Serial Number Project Information
Hummer is offline
Old 04-06-18, 05:54 AM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,817
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2471 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
The only Lotus models featuring cable routing under the shell in 1981-982 were the three racing models. It's obviously not the Super Pro, as it lacks the aero tubeset. Similarly the Supreme had brazed-on shift lever bosses. The Competition fits the general configuration of cable routing under the BB shell, vertical dropouts and brazed-on bottle bosses, cable tunnels and cable stops but no shift lever bosses. This model did use 600EX during this period but only for the crankset and brakeset.
T-Mar is offline
Old 04-09-18, 07:53 PM
  #12
Hummer
Senior Member

Hummer's Avatar

Join Date: Sep 2010
Location: Rupert's Land
Posts: 813

Bikes: 1981 Raleigh GP, 1985 Norco Bush Pilot, . . .

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
The only Lotus models featuring cable routing under the shell in 1981-982 were the three racing models. It's obviously not the Super Pro, as it lacks the aero tubeset. Similarly the Supreme had brazed-on shift lever bosses. The Competition fits the general configuration of cable routing under the BB shell, vertical dropouts and brazed-on bottle bosses, cable tunnels and cable stops but no shift lever bosses. This model did use 600EX during this period but only for the crankset and brakeset.
I did not state that the bicycle was branded as a Lotus. I said the frame was manufactured by Tsunoda.

Much of the available Tsunoda serial number data comes from Lotus branded bicycle.

Several brand names have Tsunoda frames, including Tsunoda.
Hummer is offline
Old 04-09-18, 08:37 PM
  #13
9volt
Senior Member
Thread Starter

9volt's Avatar

Join Date: Aug 2007
Location: WI
Posts: 903
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for all the info. There is no evidence of headbadge mount holes and from what I've seen the Lotus badges have two rivets.
9volt is offline
Old 04-09-18, 10:07 PM
  #14
Hummer
Senior Member

Hummer's Avatar

Join Date: Sep 2010
Location: Rupert's Land
Posts: 813

Bikes: 1981 Raleigh GP, 1985 Norco Bush Pilot, . . .

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
@9volt, this bicycle may be a match for your frame:

https://www.steel-vintage.com/tsunod...e-1980s-detail
Hummer is offline
Old 04-10-18, 04:58 AM
  #15
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,817
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2471 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
Originally Posted by Hummer View Post
I did not state that the bicycle was branded as a Lotus. I said the frame was manufactured by Tsunoda.

Much of the available Tsunoda serial number data comes from Lotus branded bicycle.

Several brand names have Tsunoda frames, including Tsunoda.
I wasn't commenting on you post but following up on my earlier post (#8), where I noted that the serial number format was similar with Tsunoda's and that Lotus was a possible candidate.
T-Mar is offline
Old 06-29-18, 01:39 PM
  #16
lukepro
Senior Member

lukepro's Avatar

Join Date: Aug 2017
Location: Poznan
Posts: 96
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

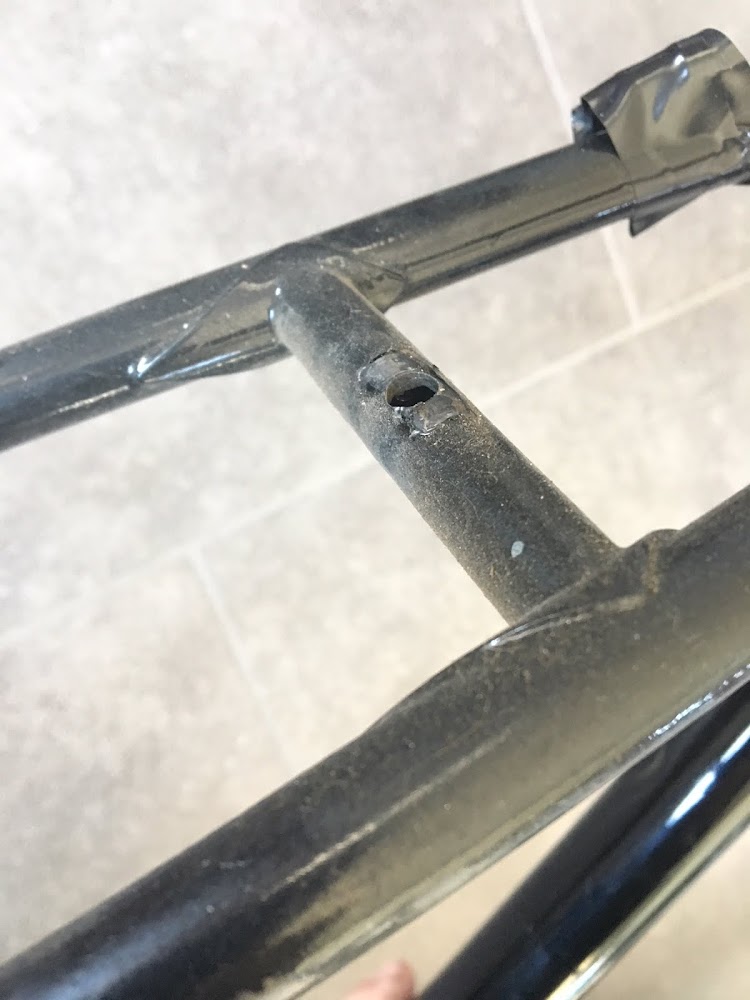

Hi, got tsunoda i.c. exacly the same
lukepro is offline
Old 07-18-18, 08:58 AM
  #17
lukepro
Senior Member

lukepro's Avatar

Join Date: Aug 2017
Location: Poznan
Posts: 96
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts




Last edited by lukepro; 07-18-18 at 09:02 AM.
lukepro is offline
Old 07-18-18, 06:14 PM
  #18
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,334

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1700 Post(s)
Liked 40 Times in 32 Posts
Mystery solved, Gang!

"I would have gotten away with it, if it hadn't been for those meddling kids and their dog!"
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
