Pretty SunTour XC stem canít support drop handlebars

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Pretty SunTour XC stem canít support drop handlebars

Old 05-02-18, 08:36 AM
  #1
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,632

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 90 Times in 67 Posts
Pretty SunTour XC stem canít support drop handlebars

I am making a drop bar commuter road bike out of a Trek Multitrack. The SunTour stem has a nice look to it with like a 30 degree upward rise stem. This stem is designed for 25.4 straight bars. It appears to be incompatible with drop bars. The instruction manual says the stem arrives as opened up as it can be & to not remove the bolts. The Salsa ergo bars (25.8 mm) that I was trying to mount did not get past the first turn.

Can anyone think of a road handlebar with more gradual bends that I might be able to mount on this pretty (but surprisingly heavy) stem?
masi61 is offline
Old 05-02-18, 08:49 AM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,250

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1575 Post(s)
Liked 366 Times in 271 Posts
Easy solution would be to use a cromo MTB stem and open it up to navigate the bar through.
3speedslow is offline
Old 05-02-18, 08:53 AM
  #3
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,270

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 180 Post(s)
Tagged: 0 Thread(s)
Quoted: 1165 Post(s)
Liked 146 Times in 95 Posts
Originally Posted by masi61 View Post
The Salsa ergo bars (25.8 mm) that I was trying to mount did not get past the first turn.
25.8? Is that some newfangled CF handlebar? There are many thing sin this world I have never heard of, and this is one of them.

Are you sure that wasn't meant to use an Italian-standard 26.0 handlebar clamp?
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 05-02-18, 09:00 AM
  #4
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,632

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 90 Times in 67 Posts
Originally Posted by 3speedslow View Post
Easy solution would be to use a cromo MTB stem and open it up to navigate the bar through.
like I said - this is a very pretty stem, my desire is to find some drop bars that will work with this stem.
masi61 is offline
Old 05-02-18, 09:02 AM
  #5
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,632

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 90 Times in 67 Posts
Originally Posted by jimmuller View Post
25.8? Is that some newfangled CF handlebar? There are many thing sin this world I have never heard of, and this is one of them.

Are you sure that wasn't meant to use an Italian-standard 26.0 handlebar clamp?
I believe that Salsa bars are 25.8 to work with either 25.4 or 26.0 stems. This might only work for chromoly type stems or removeable faceplate stems though.
masi61 is offline
Old 05-02-18, 09:21 AM
  #6
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,908

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18610 Post(s)
Liked 2,138 Times in 1,570 Posts
...find a source for used stuff, like a co-op and then look at all the old Asian bars that are hanging around.
You should find some 25.4 drops, although most of them are pretty narrow by today's user standards.
3alarmer is offline
Old 05-02-18, 09:22 AM
  #7
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,997

Bikes: fewer (n-1)

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Likes: 0
Liked 490 Times in 243 Posts
With experimentation you may find a bar that works but it will have a much deeper drop than the compact bars that you have. Your local bike shop or co-op should have some bars you can try. You may also find some older steel drop bars that will work: They tended to have a smaller diameter outside of the area where the stem clamps on.
Brent
obrentharris is offline
Old 05-02-18, 09:30 AM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,908

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18610 Post(s)
Liked 2,138 Times in 1,570 Posts
https://www.ebay.com/b/25-4-mm-Drop-...817/bn_1984342
3alarmer is offline
Old 05-02-18, 10:02 AM
  #9
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,257

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2068 Post(s)
Liked 418 Times in 283 Posts
I spose you could sand out the clamp area. I’ve considered doing this to a beat up MTS-100 stem. Just because I think it would look cute.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-02-18, 10:36 AM
  #10
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,632

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 90 Times in 67 Posts
yeah that Nitto one would be great if it would fit.
iíve got some old Schwinn LeTour 25.4 bars (I think) that are 25.4 that iíll Try a test fit on. It would be a shame not to use that XC stem. The Trek has a long top tube - apparently it was designed for flat bars.
masi61 is offline
Old 05-02-18, 02:19 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,514

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Likes: 0
Liked 307 Times in 236 Posts
25.8mm was a TTT clamp size, was considered analogous to 26.0 in every shop situation I can remember.

One can put an Allen key into the slot and then twist for a bit of expansion of the clamp, but too much force could weaken the stem.

Here is a picture showing said Allen key in place as I reamed out a 25.4mm stem for a 26.0mm handlebar. Note that this stem has a lot of meat in the clamp area (it's even available already sized for 26.0mm).
Also note that this sort of reaming procedure is self-aligning, and that these Origin-8 (Kalloy) stems are carefully sized to just slip into a French steer tube, even as they measure appreciably larger in quill diameter than any real French-sized stem from back in the day.

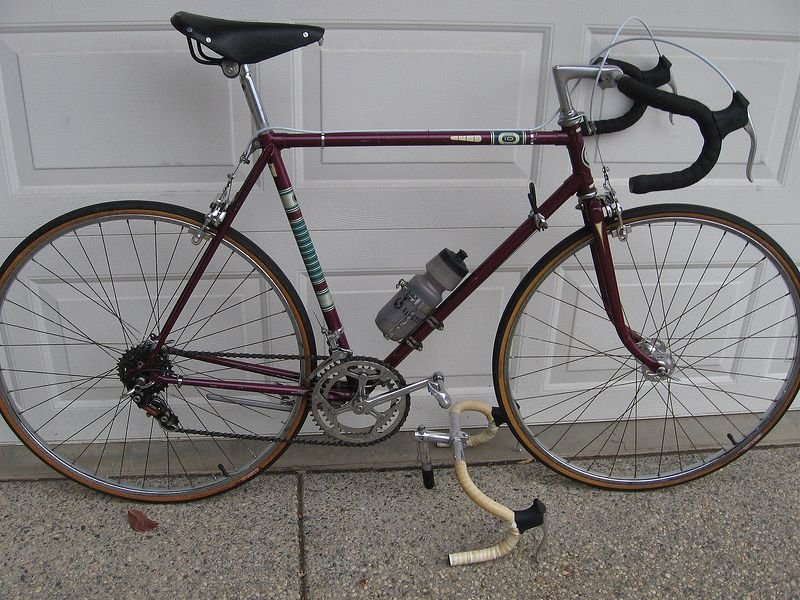

...with logo polished off and installed on a 26.0mm handlebar:

Last edited by dddd; 05-02-18 at 02:29 PM.
dddd is offline
Old 05-02-18, 02:27 PM
  #12
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,278 Times in 798 Posts
Cinelli added a mm to an inchtube standard, for their bars for a long time ..26.4,
then fell back with the rest only adding 0.6mm.
fietsbob is offline
Old 05-02-18, 07:26 PM
  #13
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,794

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by masi61 View Post
This stem is designed for 25.4 straight bars. It appears to be incompatible with drop bars. The instruction manual says the stem arrives as opened up as it can be & to not remove the bolts. The Salsa ergo bars (25.8 mm) that I was trying to mount did not get past the first turn.
First things first: Don't try to install 25.8 mm bars in a 25.4 mm stem. They're incompatible.

As @dddd mentioned above, 25.8 mm bars are effectively 26.0 in my experience. I've purchased a few sets of Deda Speciale 26 handlebars in the past few years and the silkscreening on the bar says 25.8.

Originally Posted by masi61 View Post
Can anyone think of a road handlebar with more gradual bends that I might be able to mount on this pretty (but surprisingly heavy) stem?
In my experience, bars with gradual, traditional curves are easier to thread through stems than compact/anatomic bars. The Deda Speciale I mentioned above is an inexpensive drop bar with traditional curves, but I don't think it comes in a 25.4 size. The Nitto Classic Road Bar does, though.
SkyDog75 is offline
Old 05-03-18, 01:06 AM
  #14
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,150

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 99 Times in 67 Posts
To answer the original question, your best bet is deep drop like Brent said, and non-ergo style. A "criterium" style bar will help when you get to the second bend. But still you may not make it if the stem is not shaped to navigate the bend radii of drop bars. Clamp diameter is irrelevant if the stem never makes it past the hook.
__________________
I.C.
Insidious C. is online now
