BB service

Good morning All,
When servicing the bb yesterday, on my 84 Letour Luxe, I changed out the loose balls on the drive side for a set of caged bearings. Now that it's back together it will no longer shift onto the big ring (of three). Would those caged bearings alone change the shaft length enough to cause this?
TIA
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 07:25 AM
  #2
oddjob2
Still learning

oddjob2's Avatar

Join Date: May 2012
Location: North of Canada, Adirondacks
Posts: 11,607

Bikes: 45 keepers, 31 others to sell

Mentioned: 91 Post(s)
Tagged: 2 Thread(s)
Quoted: 838 Post(s)
Liked 41 Times in 26 Posts
Caged bearings should not make a difference. But is your bb symetric or is one side longer than the other?
oddjob2 is offline
Old 05-04-18, 07:35 AM
  #3
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
Drive side is longer
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 08:37 AM
  #4
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,794

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Going from loose balls to caged or vice versa shouldn't make any difference at all, so long as the balls are the same size.

Is there any chance your spindle was installed backward before you serviced the bottom bracket? If it was, and you corrected the problem, the chainrings would be moved outboard a few mm, potentially causing the problem you describe.

If I had the bike in front of me, I might start by measuring the chainline. If the crank spins smoothly and the chainline's good, leave the bottom bracket alone and focus on the derailleur.
SkyDog75 is offline
Old 05-04-18, 08:50 AM
  #5
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,528

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Likes: 0
Liked 314 Times in 240 Posts
I've encountered this when the right side crankarm didn't get seated as far up the spindle taper during reassembly.

I would first stand on the pedals and jump a couple of times, then turn the cranks 180 degrees and repeat that. The spindle nuts (notorious for providing lower press-fit force for any given torque level versus bolts) are likely the culprit, so a retorquing after stressing the spindle press-fit as above should move the crankarms inward sufficiently to re-validate your original front derailer adjustments. Shifting should thus be restored, though it is normal to have to re-visit the front derailer settings after the reinstallation of any square-taper drive-side crankarm.
dddd is offline
Old 05-04-18, 10:42 AM
  #6
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
Thanks all. It does appear that the crank is not seating all the way. It is currently still in the stand, and the derailleur is not the problem. I may just go ahead and pull it apart again just to see.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 10:46 AM
  #7
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,249
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 406 Post(s)
Liked 48 Times in 35 Posts
You did turn the caged bearings the correct way, right? It almost looks backwards if you don't take a closer look.
Ex Pres is offline
Old 05-04-18, 11:34 AM
  #8
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,528

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Likes: 0
Liked 314 Times in 240 Posts
Originally Posted by Ex Pres View Post
You did turn the caged bearings the correct way, right? It almost looks backwards if you don't take a closer look.
If the cages were in backwards, the spindle wouldn't turn smoothly and the crank would sit more inboard. It sounds from his description of slow upshifting that the crank is still a little to the outboard side of where it was originally.
dddd is offline
Old 05-04-18, 11:47 AM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,528

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Likes: 0
Liked 314 Times in 240 Posts
QUOTE=Ex Pres;20322256]You did turn the caged bearings the correct way, right? It almost looks backwards if you don't take a closer look.[/QUOTE]

If the cages were in backwards, the spindle wouldn't turn smoothly and the crank would sit more inboard. It sounds from his description of slow upshifting that the crank is still a little to the outboard side of where it was originally.

Likewise with a backwards spindle, the right crank would now be too far inboard, but it seems to be too far outboard in this case.

Is the spindle in fact one of the "nutted" variety with M10 threaded stud ends? Was any torque specification used btw? The common 8mm bolts are supposed to get about 30 ft-lbs, which feels like a lot and is about the same torque level one would use to secure a threaded bb cup! Cassette lockrings are another place with a surprisingly high torque specification, again about 30 foot pounds!

Because of the larger thread pitch, and with friction forces at both the threads and "washer" surface acting at larger diameters than with the 8mm bolt-type fasteners, these nuts don't do nearly as good of a job of pulling the cranks up the tapers as the fine-threaded 8mm bolts with smooth-face washers do. Heavily tightening them in one shot risks fracturing their threads however, since the spindle is not made to the same standards as normal high-strength bolts. So I always torque these nuts at least twice, before and after applying "pedaling" torque from one crankarm through the spindle to the other crankarm. The nuts can then be observed to have lost a lot of tightness (tension on the studs), which resulted from the crankarms migrating further up the tapers. Don't worry about this enlarging the tapers in the arms, it won't, but a loosening nut sure will!

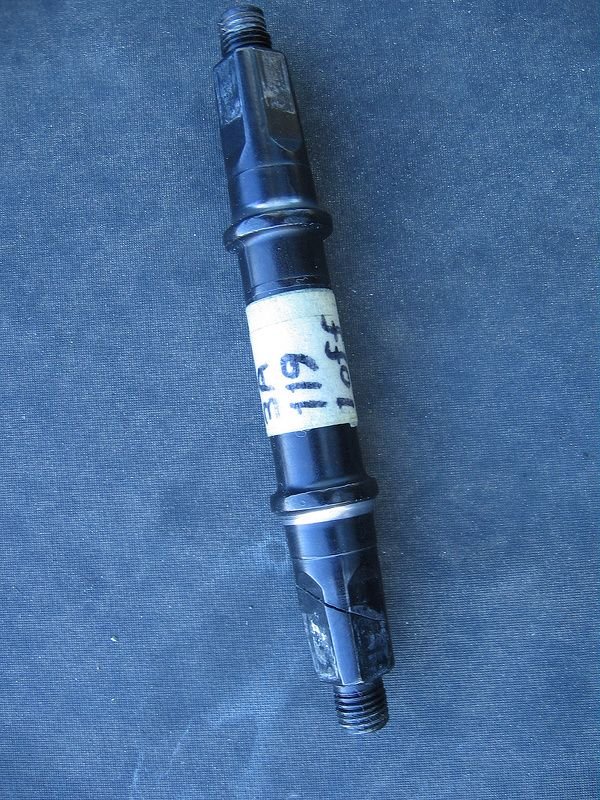

Nutted spindle shown with (among other issues, LOL) fractured threads, all too common with this type!

Second day in a row that the image editor refuses to work in an existing reply or edit box. I'll open a new reply box (see below) and try posting the photo there...

Last edited by dddd; 05-04-18 at 12:03 PM.
dddd is offline
Old 05-04-18, 11:49 AM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,528

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Likes: 0
Liked 314 Times in 240 Posts
dddd is offline
Old 05-04-18, 12:13 PM
  #11
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
I'm gonna take it for a spin in a few minutes, and see if I can seat it better by that method. I am a non-user of torque wrenches. I learned correct orientation of caged bearings from doing headsets, so I know that is correct also. It is the nutted variety, and I hope that turn out to be the issue. Will report back.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 12:39 PM
  #12
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
A little comic relief here. I stirruped up, threw my leg over, and couldn't find the pedal. They were both in the same plane. A first for me. I put it back right, finished the ride, and now have it back on the stand. The crank seated better this time, but the derailleur bottoms out without reaching the big ring. Clearly something is wrong inside.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 01:09 PM
  #13
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
Mystery solved. The reason I used the caged bearing is because I couldn't find all the loose ones. Just now I removed the nds cup, and there was an extra bearing ball. It must've been hiding in one of the tubes. Anyway, its presence prevented the shaft from properly seating in the nds cup. I am continually amazed at how resilient these old school systems are. Thanks again for all the suggestions.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-04-18, 01:45 PM
  #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,528

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Likes: 0
Liked 314 Times in 240 Posts
I once found a headset ball had fallen between my bike's steer tube and head tube, just couldn't get it adjusted right no matter how many times I tried.

These are our "tequila moments", no?
dddd is offline
Old 05-04-18, 06:05 PM
  #15
seedsbelize
smelling the roses
Thread Starter

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 14,082

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6337 Post(s)
Liked 587 Times in 390 Posts
I don't know that I'd attempt a loose ball headset installation. Kudos to you if you do it.Headsets can be like that though. But once you figure it out, it's cake.
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 05-06-18, 03:05 PM
  #16
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,794

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by seedsbelize View Post
I don't know that I'd attempt a loose ball headset installation...
It's not bad. The trick is to turn the frame upside-down when putting balls in the lower cup. Grease the cup, place balls in it, then insert the fork and flip the bike upright.
