Upgrading Modolo Brakes

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Upgrading Modolo Brakes

Old 05-19-18, 06:46 PM
  #1
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 147

Bikes: '88 Cannondale ST400, '89 Bianchi Incline, ’88 Bianchi Limited, '87 Schwinn Tempo

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 19 Times in 11 Posts
Upgrading Modolo Brakes

So I'm toying with the idea of upgrading my brakes. I've got an '87 Bianchi CdI with it's original Modolo Start brakes. They're not great but they've been doing the job well enough for the nine years I've been riding on em. So I feel like I could upgrade them... Or not. But I was thinking if I did it would be fun to just put better Modolo brakes on the bike from the same period, with the same look. I've already looked up the heirarchy of Modolo brakes and read a bit about them, but I'm hoping to hear from people who have first hand experience using them. My question is: If I were to switch from Modolo Start to say Modolo Equipe calipers, would this be a worthwhile upgrade? As in is the increase in breaking performance between Start and Equipe calipers worth the $80 I'd spend on them?

The other thing I like about the Equipe are that they look just like the Start brakes but they're black. All my modern cockpit components are black, and I've got an original drivetrain. So black vintage brakes would make for a nice marriage between the old and new parts of my bike.

And because everyone loves photos, here she is on a recent rainy commute:

Celeste Mike is offline
Old 05-19-18, 06:53 PM
  #2
Cyclist0108
Occam's Rotor

Join Date: Jul 2013
Posts: 7,248
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,322 Times in 1,157 Posts
I upgraded mine about 35 years too late -- into the trash can. I got a set of Veloce calipers for $35 from Chainreaction, and felt like an idiot for keeping them so long. What horrible brakes.

They are about $55 now: Campagnolo Veloce Dual Pivot Brakeset | Chain Reaction Cycles
Cyclist0108 is offline
Old 05-19-18, 07:03 PM
  #3
devinfan
Senior Member

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 1,987
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 33 Times in 15 Posts
I would try putting Kool Stop salmon pads on them first and see what you think. They make a massive improvement in almost any brake. Nice bike btw!
devinfan is offline
Likes For devinfan:
Old 05-19-18, 07:16 PM
  #4
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,365

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 64 Times in 43 Posts
Another vote for the Campy dual pivots. I bought a pair of Campy Potenza calipers for about $50 on eBay and they work great. However, they were designed for levers with tension releases, so there are no releases in the calipers.
CroMo Mike is offline
Old 05-19-18, 07:18 PM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,834
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Likes: 0
Liked 458 Times in 316 Posts
Never been impressed with most of the early generation Modol brakes because of their very thin cross section caliper arms that flexed quite a bit, that resukts in quite a mushy feel on the levers, so unless you move over to later Modolo designs with the stouter caliper arms, there's definitely not much improvement you can do with them, other than a good pivot adjustment to get rid of any play, less compressible brake casings and most importantly, dumping the "sintered" brake pads that came with most of them, for more conventional, rubber compound pads like Koolstops.
Chombi1 is offline
Likes For Chombi1:
Old 05-19-18, 08:38 PM
  #6
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 147

Bikes: '88 Cannondale ST400, '89 Bianchi Incline, ’88 Bianchi Limited, '87 Schwinn Tempo

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 19 Times in 11 Posts
Originally Posted by devinfan View Post
I would try putting Kool Stop salmon pads on them first and see what you think. They make a massive improvement in almost any brake. Nice bike btw!
Thanks!
I would try the Kool Stop pads first, but my brakes don't have their original brake pad holders anymore. So they've currently got Shimano M50T pads on the front, and similar Jagwire pads on the rear.

Originally Posted by Chombi1 View Post
Never been impressed with most of the early generation Modol brakes because of their very thin cross section caliper arms that flexed quite a bit, that resukts in quite a mushy feel on the levers, so unless you move over to later Modolo designs with the stouter caliper arms, there's definitely not much improvement you can do with them, other than a good pivot adjustment to get rid of any play, less compressible brake casings and most importantly, dumping the "sintered" brake pads that came with most of them, for more conventional, rubber compound pads like Koolstops.
Ok, this is the info I was really looking for. I had a feeling this may be the case with that caliper design in general. Thanks! So would something like Modolo Mach 1's perform considerably better?

Those Campy Veloce or Potenza brakes are lookin pretty good, but with no quick release on the calipers I'd have to deflate and refill my tire every time I remove it.
Celeste Mike is offline
Old 05-19-18, 08:48 PM
  #7
joejack951
Senior Member

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 12,075

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 76 Times in 55 Posts
Get some non-SLR EV Shimano dual pivot calipers. Ultegra or even Dura Ace from the 9 and 10 speed era ought to be able to be found on Ebay dirt cheap and they are excellent brakes.

See here for example: https://www.ebay.com/itm/Dura-Ace-ro...wAAOSwwwRa~im3
joejack951 is offline
Old 05-19-18, 08:50 PM
  #8
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 13,277

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 538 Times in 293 Posts
My ‘86 Trek 760 has Modolo Equipe brakes, they seem to be more of a dark gray that seems to me a close enough to black but that’s just me. Otherwise, the performance aspect is decent enough, no complaints. If you want a more solid feel for mountain descents or hard braking I’d go with Shimano 600.
OldsCOOL is offline
Old 05-19-18, 11:17 PM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,834
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Likes: 0
Liked 458 Times in 316 Posts
Originally Posted by Celeste Mike View Post
Thanks!
I would try the Kool Stop pads first, but my brakes don't have their original brake pad holders anymore. So they've currently got Shimano M50T pads on the front, and similar Jagwire pads on the rear.



Ok, this is the info I was really looking for. I had a feeling this may be the case with that caliper design in general. Thanks! So would something like Modolo Mach 1's perform considerably better?

Those Campy Veloce or Potenza brakes are lookin pretty good, but with no quick release on the calipers I'd have to deflate and refill my tire every time I remove it.
I have the Mavic (Model 440 SSC) re-branded version of the Modolo ALX 90, which shares the same basic (very beefy and short) caliper arm design as the Mach 1. Based on what I experienced with the brakeset, it's definitely stiffer than the older Modolos like the Speedy which shares the same basic design as your brakes, but just like with all Modolo sidepulls, I had to get rid of the original sintered brake pads on mine, to get the most braking out of it.

Last edited by Chombi1; 05-19-18 at 11:20 PM.
Chombi1 is offline
Old 05-20-18, 01:15 AM
  #10
devinfan
Senior Member

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 1,987
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 33 Times in 15 Posts
Good luck in your search. FYI if you use Kool Stop Continental pads, which are the ones I use on all my brakes, you donít need pad holders because they replace them entirely. Just replacing the fronts would give you a pretty good idea if it was going to make the difference youíre looking for without much investment.
devinfan is offline
Old 05-20-18, 05:17 AM
  #11
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,127

Bikes: Seriously downsizing.

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Liked 366 Times in 185 Posts
Originally Posted by Chombi1 View Post
most importantly, dumping the "sintered" brake pads that came with most of them, for more conventional, rubber compound pads like Koolstops.
This.
The sintered Modolo pads don't hack it. I replaced the pads on the Equipe calipers on a Vitus and it made all the difference in the world.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Likes For top506:
Old 05-20-18, 05:44 AM
  #12
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,008

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1164 Post(s)
Liked 704 Times in 495 Posts
Originally Posted by Celeste Mike View Post
Thanks!
I would try the Kool Stop pads first, but my brakes don't have their original brake pad holders anymore. So they've currently got Shimano M50T pads on the front, and similar Jagwire pads on the rear. ...
I can testify from a personal harrowing experience that those Shimanos are the "pads of death." I put a set on my first-gen. Campag. sidepulls because they looked cool, but the combination provided very poor braking performance. KoolStop salmon pads work much better. I also use Shimano aero brake levers (among the few obvious non-Italian components on my Bianchi), which provide 15% more leverage than the original Modolos and actually fit my hands properly. With these pad and lever changes (new cables and housings are also on my get-around-to-it list), I can actually stop now.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-20-18, 05:44 AM
  #13
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2316 Post(s)
Liked 578 Times in 417 Posts
Swap pads first if you are interested in more braking power. IMO if by better braking performance you mean you are seeking more stopping power, you're better off with modern dual pivots that a fancier model Modolo, which won't be much different.

There was a brief Modolo craze around 1984. I never got it. It was mostly the anatomic hoods I think. I preferred Campy Record/Super Record.

All brakes of that time assumed that you only did serious braking from the drops, and that you had strong hands.
Salamandrine is offline
Old 05-20-18, 10:19 AM
  #14
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,359

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
Liked 148 Times in 107 Posts
Celeste Mike-

The Start doesn't have much in the brake arm cross section compared to the Speedy or Equipes. If you do an upgrade to the calipers then lined cables and Kool Stop inserts would be necessary to see improvement. Kool Stop International - High Performance Bicycle Brake Pads Since 1977

bertinjim is offline
Old 05-20-18, 11:50 AM
  #15
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,143
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Likes: 0
Liked 207 Times in 136 Posts
I volunteer as a mechanic as a local bike Co-op. As suggested by an earlier poster, I've 'upgraded' many sets of Modolo brakes direct to the trash.

They are close to the worst vintage brakes ever made, only a slight upgrade from the appallingly inadequate Dia-Compe calipers found on legions of cheap 70s and 80s bikes.

The Modolos featured flexy arms, overly strong springs (to overcome the high cable friction caused by 80s cable housing), poor mechanical advantage, cheap awkward hardware and tiny ineffective brake pads.

Plus they are single pivot brakes, which have an inherent insurmountable disadvantage against newer dual pivots.

So save a bunch of pointless frustration, and get some current or somewhat 'vintage' dual pivot calipers. All are better than any single pivot brake ever made. I recommend the Dura-Ace 7403 or Shimano 600 6403 dual pivots from about 20-25 years ago. The 7403's are the best road rim brakes ever made - to date.

BTW: change out all of your old brake cables and housing to something current. The old unlined brake and shifter housings were terrible. You should be changing these out yearly anyway.
Dave Mayer is offline
Old 05-20-18, 11:54 AM
  #16
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,143
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Likes: 0
Liked 207 Times in 136 Posts
Addendum: the old Shimano 600 single pivot brakes were pretty bad as well, especially the first generation. Flexy arms, cheap hardware, and about the worst pads every made. It took Shimano about 3 decades to come up with a set of decent pads. The last generation of Shimano 600 single pivots were well made, but still substantially inferior in terms of braking power relative to the next generation 6403 dual pivot calipers.

You can buy the 6403's on Ebay for next to nothing. Great brakes, as long as they are not seized-up with corrosion.
Dave Mayer is offline
Old 05-20-18, 12:38 PM
  #17
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,483

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2937 Post(s)
Liked 1,949 Times in 1,166 Posts
Originally Posted by Celeste Mike View Post
I would try the Kool Stop pads first, but my brakes don't have their original brake pad holders anymore. So they've currently got Shimano M50T pads on the front, and similar Jagwire pads on the rear.

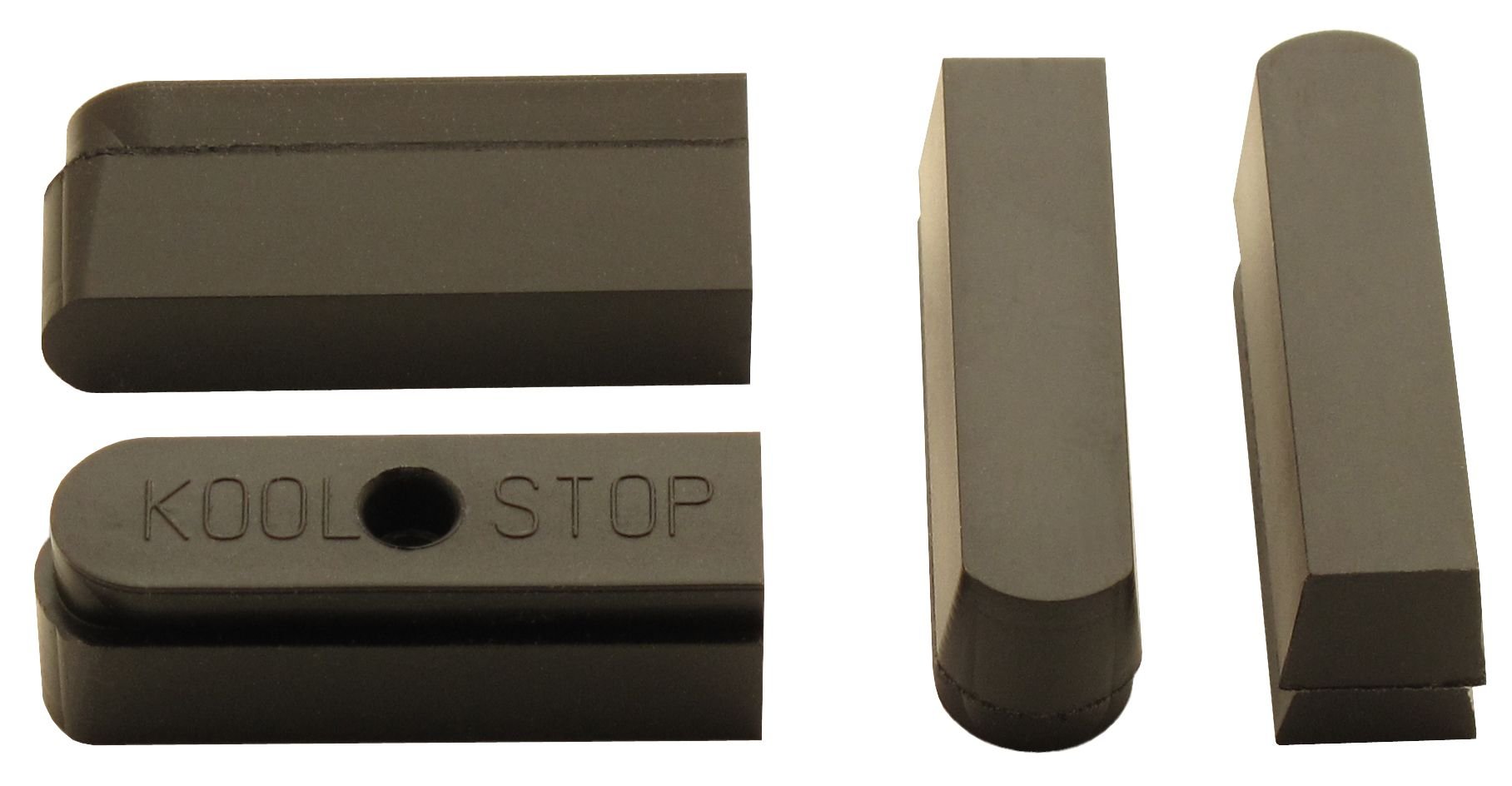

You could use Kool Stop "Continental" pads, as they're a one-piece design. They'd even be period-correct, since they've been on the market since the late 1970s.

JohnDThompson is offline
Old 05-20-18, 09:17 PM
  #18
Celeste Mike
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Philadelphia
Posts: 147

Bikes: '88 Cannondale ST400, '89 Bianchi Incline, ’88 Bianchi Limited, '87 Schwinn Tempo

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 19 Times in 11 Posts
Thanks for all the responses, alotta great info here! I think I will start with the Kool Stop pads, and keep an eye on eBay for some of the calipers suggested here. I did recently run all new brake lines with Shimano PTFE cables. I'm assuming that falls into the category of "lined" brake cables a couple of you mentioned, yes?
Celeste Mike is offline
Old 05-21-18, 05:35 AM
  #19
crank_addict
Banned

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 399 Times in 264 Posts
Originally Posted by Dave Mayer View Post
I volunteer as a mechanic as a local bike Co-op. As suggested by an earlier poster, I've 'upgraded' many sets of Modolo brakes direct to the trash.

They are close to the worst vintage brakes ever made, only a slight upgrade from the appallingly inadequate Dia-Compe calipers found on legions of cheap 70s and 80s bikes.

The Modolos featured flexy arms, overly strong springs (to overcome the high cable friction caused by 80s cable housing), poor mechanical advantage, cheap awkward hardware and tiny ineffective brake pads.

Plus they are single pivot brakes, which have an inherent insurmountable disadvantage against newer dual pivots.

So save a bunch of pointless frustration, and get some current or somewhat 'vintage' dual pivot calipers. All are better than any single pivot brake ever made. I recommend the Dura-Ace 7403 or Shimano 600 6403 dual pivots from about 20-25 years ago. The 7403's are the best road rim brakes ever made - to date.

BTW: change out all of your old brake cables and housing to something current. The old unlined brake and shifter housings were terrible. You should be changing these out yearly anyway.
No disrespect, Dave but to toss these brakes to the trash is absurd.

Firstly, people you do realize these are vintage bikes, ah.. most retaining their vintage parts. Its what they're about. Some on this site just love to shred on about how awful this stuff is. Jeez.

That's quite fine and often practical for some to upgrade but I completely disagree to throw away Modolo brakes, or 'death forks' 'stems', etc..

I have a few bikes with Modolo brakes and properly upgraded with cables and PADS are great. Of course I know of shortcomes but they are not garbage! In their day were used by top pro riders, with many major wins to the brand.

ps. Throw those Modolo Professional brakesets my way. You don't need the money right?

Last edited by crank_addict; 05-21-18 at 05:39 AM.
crank_addict is offline
Old 05-09-22, 12:44 PM
  #20
scrolltonowhere
Junior Member

Join Date: May 2022
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I'm in the same boat that I'm thinking of swapping out my Modolo Speedy's for something that....works. I'm not married to the idea that this bike needs to maintain all of its vintage parts to maintain its appeal.
scrolltonowhere is offline
Old 05-09-22, 12:56 PM
  #21
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 815

Bikes: 1989 Cinelli Super Corsa

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 270 Times in 198 Posts
New pads and compressionless brake housing--98% of all problems solved.
smd4 is offline
Old 05-09-22, 01:05 PM
  #22
jrg1244
Senior Member

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts
Originally Posted by smd4 View Post
New pads and compressionless brake housing--98% of all problems solved.
Agreed. I've done this to Modolo Speedys on my '84 Basso Gap and they're every bit as good as any non dual-pivot brakeset out there. IMO.
jrg1244 is offline
Old 05-09-22, 01:51 PM
  #23
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,867

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 3179 Post(s)
Liked 2,725 Times in 1,385 Posts
I run DiaCompe and Modolo brakes on a couple of bikes, never ever have had a problem.
They are not the most robust design but they work acceptably with new brake pads.

Double pivot brakes stop faster.
Integrated brake/shift levers shift faster.
8/9/10/11/12 systems have smaller steps between cogs given a similar gear inch range.
Threadless headsets offer stiffer front end handling.
Square taper spindles are mostly obsolete now.
Carbon weighs less than steel or aluminum, make everything out of it for better climbing.

Why would anyone ride an originally equipped C&V bike? What heaps of garbage! - all of them should be upgraded to roll on public streets and paths.
Wildwood is offline
Old 05-09-22, 02:03 PM
  #24
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 815

Bikes: 1989 Cinelli Super Corsa

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 270 Times in 198 Posts
Unless we're talking about a museum piece, why wouldn't you make upgrades that don't detract at all visually from the C&V aesthetic but provide vastly improved performance? This is why I switched my rear axle to titanium, swapped most bolts to titanium or aluminum, and use compressionless housing.

Last edited by smd4; 05-09-22 at 03:45 PM.
smd4 is offline
Old 05-09-22, 03:35 PM
  #25
trucklet
good cheap fun

trucklet's Avatar

Join Date: Jan 2022
Location: Lansing, MI
Posts: 23

Bikes: 2017 Specialized Fuse, '75 Schwinn Voyageur II, '86 Schwinn LeTour, '86 Cannondale SR800 pre-Black Lightning, '90s Cannondale H200, '90 Trek 720, '76 Schwinn Super Le Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 15 Times in 6 Posts
Another vote for Kool-Stops, they're an essential C&V upgrade in my opinion.
trucklet is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
