Broken Cannondale Shifter Boss

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Broken Cannondale Shifter Boss

Old 05-22-18, 10:05 PM
  #1
sjpitts
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Mesa, Arizona
Posts: 563

Bikes: 90 Bridgestone MB2/3, 97 Lemond Zurich, 97 Waterford 2200, 95 Mondonico Futura Leggero

Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Broken Cannondale Shifter Boss

I have what I think is a 1992 Cannondale R600 with a broken shifter boss. In this frame, the shifter boss is attached with a threaded rod that extends through the tube. On mine, one end is broken and the rod is bent. I think the Cannondale part number is A905. I haven't been able to find a Cannondale replacement, but I did find that Nova sells something that might work.

Nova Shifter Boss

So my questions--
Anyone have one?
Anyone know where I can get the Cannondale one?
Anyone know if the Nova part will work for me?


.

Not my photo, but this is what mine looks like.



Cannondale A095 Shifter Boss. I found this picture on Paceline

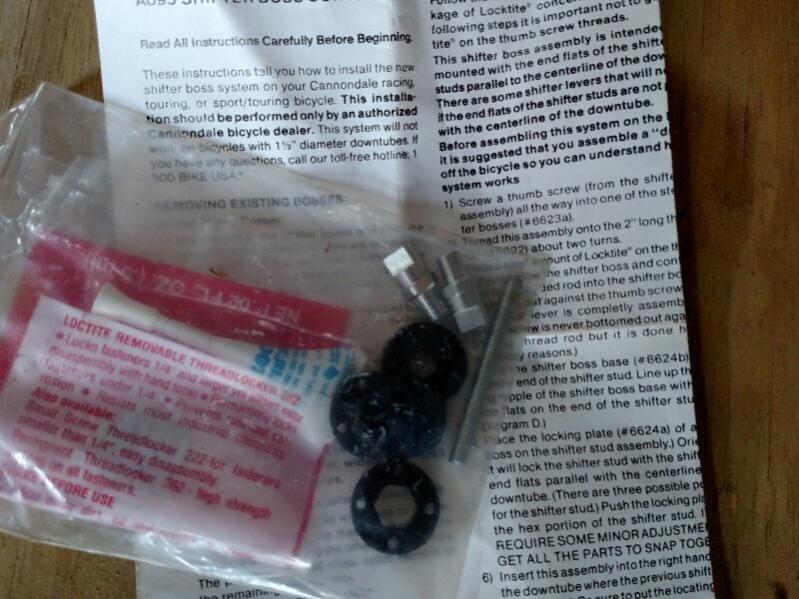

Possible Nova Replacement
sjpitts is offline
Old 05-23-18, 06:36 AM
  #2
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,989

Bikes: Lots. Just...lots.

Mentioned: 172 Post(s)
Tagged: 0 Thread(s)
Quoted: 1330 Post(s)
Liked 429 Times in 230 Posts
Finding the Cannondale one will be nearly impossible. I have some partials but nothing complete. If you post a picture of everything you have, perhaps I have the bit that has broken.
Otherwise, the NOVA part will work with some fitting.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 05-23-18, 06:51 AM
  #3
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,523
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,010 Times in 649 Posts
I think I have the NOVA one, probably got it from rccardr. I also had half the Cannondale one, but tossed it recently. It is flimsier, unless I had the wrong one.

I would be glad to send it to you. PM me while I go look for it. I'm only back in town for a day, then back in the air for a couple of days.
__________________

I have unfinished business.

RobbieTunes is offline
Old 05-23-18, 04:05 PM
  #4
sjpitts
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Mesa, Arizona
Posts: 563

Bikes: 90 Bridgestone MB2/3, 97 Lemond Zurich, 97 Waterford 2200, 95 Mondonico Futura Leggero

Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks to both of you. I will take pictures of what I have. I think I really need only one side. And maybe the threaded rod is just a generic threaded rod.

Jared
sjpitts is offline
Old 05-23-18, 11:24 PM
  #5
sjpitts
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Mesa, Arizona
Posts: 563

Bikes: 90 Bridgestone MB2/3, 97 Lemond Zurich, 97 Waterford 2200, 95 Mondonico Futura Leggero

Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post

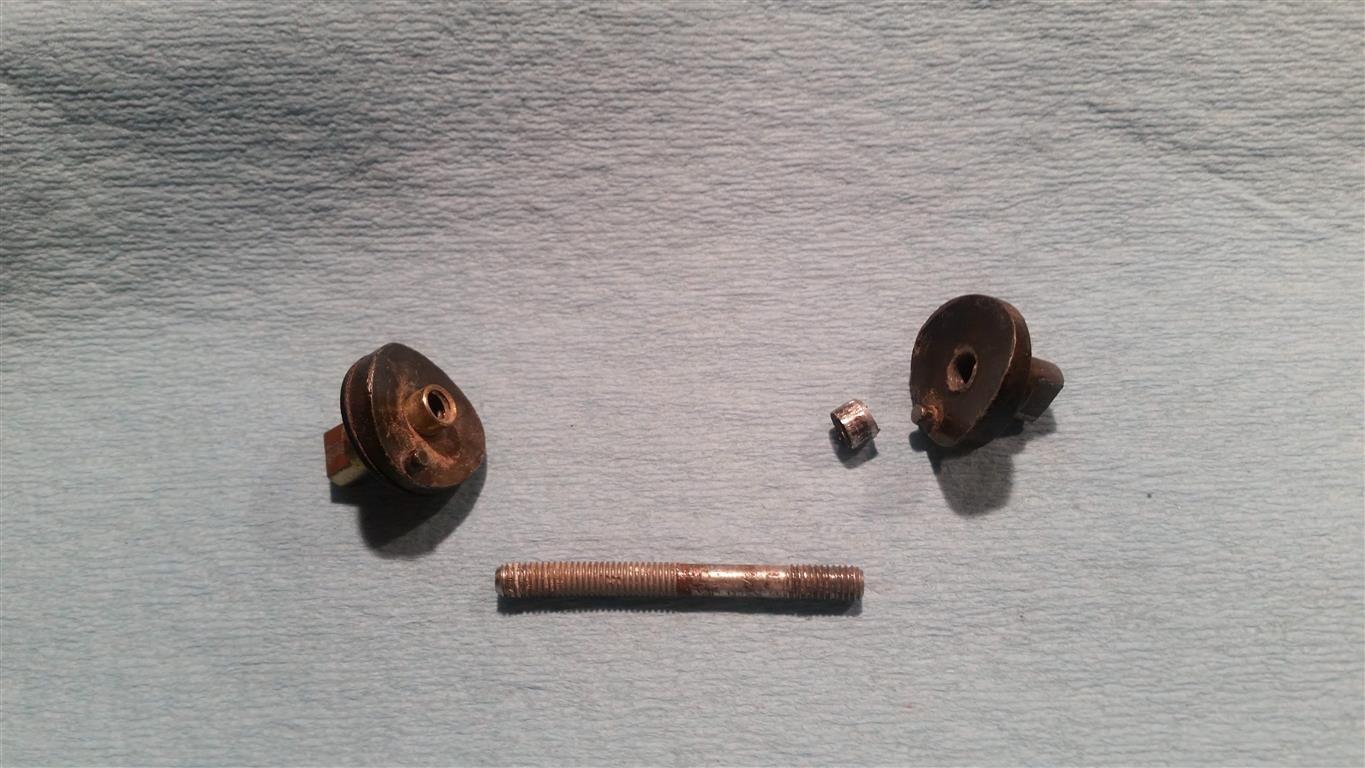

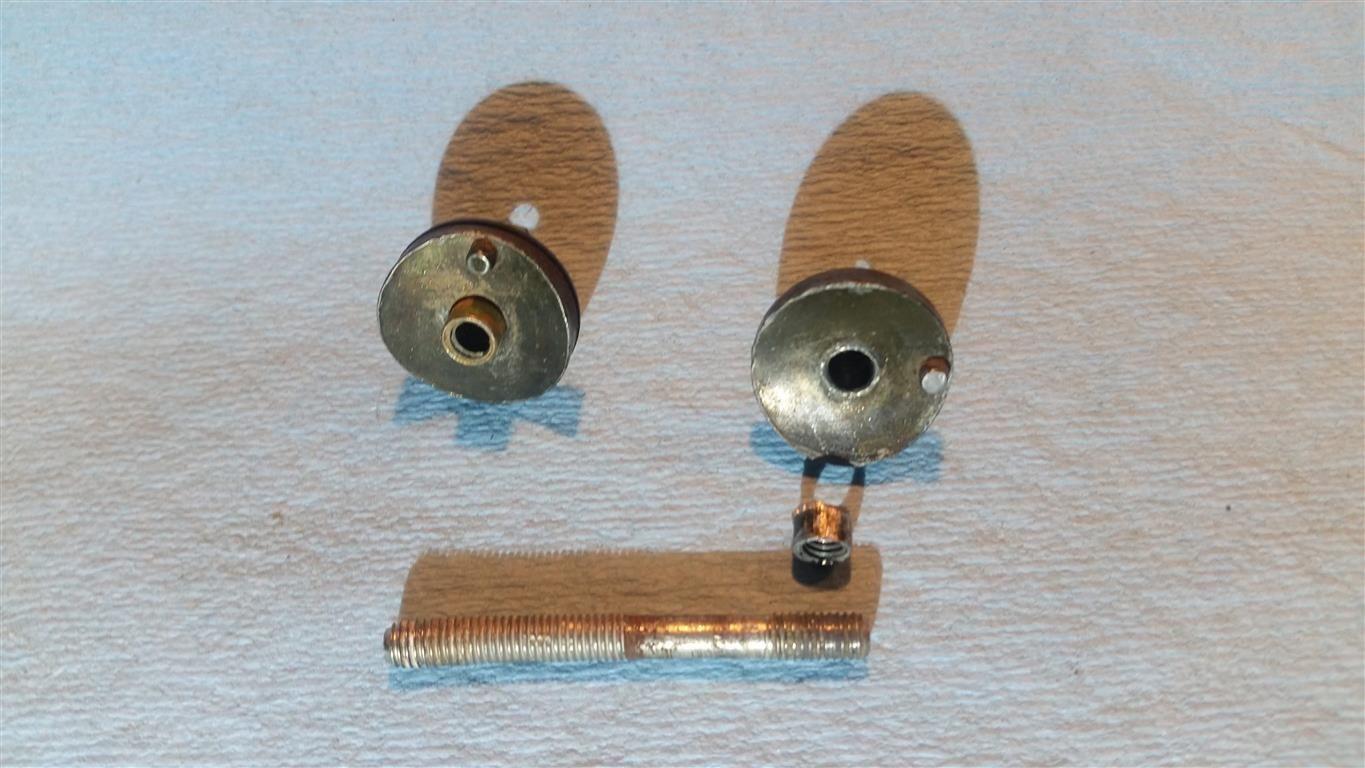

Here are photos of what I have. Basically, just one of the ends is broken-- the part with the threads is broken off so it can't be screwed on. The other other end is fine. The threaded rod is a little bent, but I am guessing I could make it work.

So I think I just really need one end.

I should note that one end (the broken one) appears to be all plastic. The other end has metal for the actual shifter boss. But other than that they look the same.

Jared



sjpitts is offline
Old 05-24-18, 06:02 AM
  #6
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,989

Bikes: Lots. Just...lots.

Mentioned: 172 Post(s)
Tagged: 0 Thread(s)
Quoted: 1330 Post(s)
Liked 429 Times in 230 Posts
Those are different than anything I've got. Sorry, can't help.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 05-25-18, 10:29 AM
  #7
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,523
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,010 Times in 649 Posts
I am in Michigan on business, will check when I get back.
RobbieTunes is offline
Old 05-30-18, 01:57 PM
  #8
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,523
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,010 Times in 649 Posts
SJ,

I found the parts. I have the Nova kit, complete. PM me your mailing address.
__________________

I have unfinished business.

RobbieTunes is offline
Old 05-30-18, 03:29 PM
  #9
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,536

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1004 Post(s)
Liked 311 Times in 231 Posts
I have spare Cannondale shifter bits.

You need threaded rod, and metal boss ??
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 05-30-18, 03:57 PM
  #10
sjpitts
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Mesa, Arizona
Posts: 563

Bikes: 90 Bridgestone MB2/3, 97 Lemond Zurich, 97 Waterford 2200, 95 Mondonico Futura Leggero

Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Homebrew01 View Post
I have spare Cannondale shifter bits.

You need threaded rod, and metal boss ??
I think I need just the boss. But my threaded rod is bent, and I haven't tried to make it work. So I might need the rod.

But I also think Robbie is going to send me the Nova kit. But maybe we should save the kit for someone that needs the whole kit? Or vice versa? Or if the kit works for me I should send you my good boss so you have a full kit?

I am sure someone else will come along looking for these bits.

Jared
sjpitts is offline
Old 05-30-18, 05:39 PM
  #11
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,536

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1004 Post(s)
Liked 311 Times in 231 Posts
How long is the threaded rod ? Not sure if there are different lengths for different down tube diameters.

I have various bits, including metal rod glued into a metal boss, so maybe saving the kit for someone who needs everything makes sense.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html

Last edited by Homebrew01; 05-30-18 at 06:13 PM.
Homebrew01 is offline
Old 05-31-18, 09:05 PM
  #12
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,523
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,010 Times in 649 Posts
Nova kit en route.
RobbieTunes is offline
Old 06-25-20, 01:25 PM
  #13
Tang88
Newbie

Join Date: Jun 2020
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Homebrew01 View Post
How long is the threaded rod ? Not sure if there are different lengths for different down tube diameters.

I have various bits, including metal rod glued into a metal boss, so maybe saving the kit for someone who needs everything makes sense.
Do you still happen to have that metal boss?
Tang88 is offline
Old 06-26-20, 02:25 PM
  #14
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 730

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 41 Times in 35 Posts
I haven't read thru the whole thread so forgive if it has been pointed out.
I had this and I used one long bolt which held on the shifter and the shifter pod and threaded straight thru to the other side. I drilled out the threads on the broken side.
The other shifter attached normally.
Took a little while to get the correct lenght of bolt but it worked perfectly and looked normal.

Last edited by blamester; 06-26-20 at 02:28 PM.
blamester is offline
Old 06-27-20, 01:53 PM
  #15
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,536

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1004 Post(s)
Liked 311 Times in 231 Posts
Originally Posted by Tang88 View Post
Do you still happen to have that metal boss?
You need the metal boss that the shifter screw threads into ?
Do you need other parts ?
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
