Anyone know how to tell the difference between a high tensile and chromo fork

Old 06-01-18, 09:25 PM
  #1
uncle uncle
Senior Member
Thread Starter

Join Date: Aug 2010
Location: south kansas america
Posts: 1,859

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 181 Times in 120 Posts
Anyone know how to tell the difference between a high tensile and chromo fork

So, I bought a bike with a replacement chrome fork, basically for the fork... but, I have no idea whether it's a high tensile material or the coveted... chromoly. How does one tell, if one buys it used? Thanks, in advance, for your comments...
uncle uncle is offline
Old 06-01-18, 09:43 PM
  #2
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,946

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 1,516 Times in 645 Posts
Weight might give a clue.
thinktubes is offline
Old 06-01-18, 10:02 PM
  #3
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 8,262

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 2380 Post(s)
Liked 1,540 Times in 1,072 Posts
How about a picture, or several showing details? A fork that is just chrome-plated might not be as nicely finished as a CroMo fork that has been plated. The better fork might have forged tips and a nicer crown and the steerer tube might have some stamping on it to indicate what you have.

Last edited by thumpism; 06-01-18 at 10:21 PM.
thumpism is offline
Old 06-02-18, 12:35 AM
  #4
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,687

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 669 Post(s)
Liked 271 Times in 169 Posts
Stamped fork crown and stamped drop outs = yuck!

Investment cast crown and forged drop outs = yum!
Bad Lag is offline
Old 06-02-18, 05:22 AM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,878
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1380 Post(s)
Likes: 0
Liked 477 Times in 328 Posts
Some high ten carbon steel forks also have a seam visible along the legnth of their fork legs. Peugeot Carbolite 103 bike forks had the said seam (a small, shallow groove) running along the back of their fork legs. Nothing wrong with them at all, as the seam was always done very well.and very cleanly.
Most CrMo forks had seamless fork leg tubes.
Fork crown construction (Cast or pressed steel) does not always tell you too exactly what the fork is all about. Some mid and higher model bikes could still have pressed steel fork crowns instead of cast. IIRC, Some Treks had pressed steel fork crowns and they weren't cheap bikes....
Chombi1 is offline
Old 06-02-18, 07:18 AM
  #6
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,653

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3004 Post(s)
Liked 2,110 Times in 1,255 Posts
Unless the fork is marked in some way, AFAIK there's no definitive non-destructive means of identifying the alloy. Spark testing can help, but you need to be able to grind some of the metal:


(A) High-carbon steel
(B) Manganese steel
(C) Tungsten steel
(D) Molybdenum steel

https://en.wikipedia.org/wiki/Spark_testing
JohnDThompson is offline
Old 06-02-18, 09:14 AM
  #7
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,097

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2396 Post(s)
Liked 1,077 Times in 639 Posts
There's some nice Hi-Ten forks out there. I'm thinking specifically of Schwinns- the Passage / LeTour Luxe- the 84 and later World Tours and Travelers... well made bikes with Hi-Ten, maybe actually NOT for cost saving but for the properties of a Hi-Ten fork. Maybe...
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 06-02-18, 09:24 AM
  #8
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,709

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
Liked 1,536 Times in 785 Posts
Originally Posted by The Golden Boy View Post
There's some nice Hi-Ten forks out there. I'm thinking specifically of Schwinns- the Passage / LeTour Luxe- the 84 and later World Tours and Travelers... well made bikes with Hi-Ten, maybe actually NOT for cost saving but for the properties of a Hi-Ten fork. Maybe...
i have an 81 miyata 912 with a high tensile fork. the bike rides like a dream and is actually pretty light.
52telecaster is online now
Old 06-02-18, 11:19 AM
  #9
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,918
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15974 Post(s)
Liked 3,298 Times in 2,450 Posts
Originally Posted by Bad Lag View Post
Stamped fork crown and stamped drop outs = yuck!

Investment cast crown and forged drop outs = yum!
That is what I use. I go by the quality of the build. Nice forged dropouts are usually put on better quality forks.

Fake chrome crowns were put on the lowest quality forks.

I don't know if there is a general rule with fork rake, but again, the higher quality racing bikes got less fork rake, while the lower quality commuters got more fork rake.

It doesn't definitively give a material, but it does give some idea of the quality.
CliffordK is offline
Old 06-02-18, 11:22 AM
  #10
uncle uncle
Senior Member
Thread Starter

Join Date: Aug 2010
Location: south kansas america
Posts: 1,859

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 181 Times in 120 Posts
Hopefully, I get to pulling it off this Sunday. It looks to be Hi-Ten, because it has stamped drop outs. Either way, I'm going to end up using it, and, Hi-Ten doesn't really bother me. Pictures, weights... all coming, assuming I can overcome the technical difficulties associated with both.
uncle uncle is offline
Old 06-02-18, 12:27 PM
  #11
desconhecido
Senior Member

Join Date: Mar 2010
Posts: 1,796
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 401 Post(s)
Liked 124 Times in 98 Posts
Originally Posted by CliffordK View Post
That is what I use. I go by the quality of the build. Nice forged dropouts are usually put on better quality forks.

Fake chrome crowns were put on the lowest quality forks.

I don't know if there is a general rule with fork rake, but again, the higher quality racing bikes got less fork rake, while the lower quality commuters got more fork rake.

It doesn't definitively give a material, but it does give some idea of the quality.
Isn't fork rake a matter of geometry? A bike with "slack" head tube angle will likely have too much trail if fitted with a low offset fork, if I understand how this works. A racing bike with a steep head tube angle would have a fork with less offset in order to get sufficient trail for a stable riding machine. I understand that inexpensive bikes made for leisure cyclists probably have low head tube angle and, therefore, more fork offset, but there are plenty of "relaxed" geometry frames of good quality.
desconhecido is offline
Old 06-02-18, 12:43 PM
  #12
uncle uncle
Senior Member
Thread Starter

Join Date: Aug 2010
Location: south kansas america
Posts: 1,859

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 181 Times in 120 Posts
Originally Posted by JohnDThompson View Post
Unless the fork is marked in some way, AFAIK there's no definitive non-destructive means of identifying the alloy. Spark testing can help, but you need to be able to grind some of the metal:

https://en.wikipedia.org/wiki/Spark_testing
That's pretty cool... I wonder if I would be able to definitively tell? Being new to the sparks and all? Almost wizard's work, reallly... ever try to determine something this way yourself John?
uncle uncle is offline
Old 06-04-18, 07:02 PM
  #13
uncle uncle
Senior Member
Thread Starter

Join Date: Aug 2010
Location: south kansas america
Posts: 1,859

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 181 Times in 120 Posts

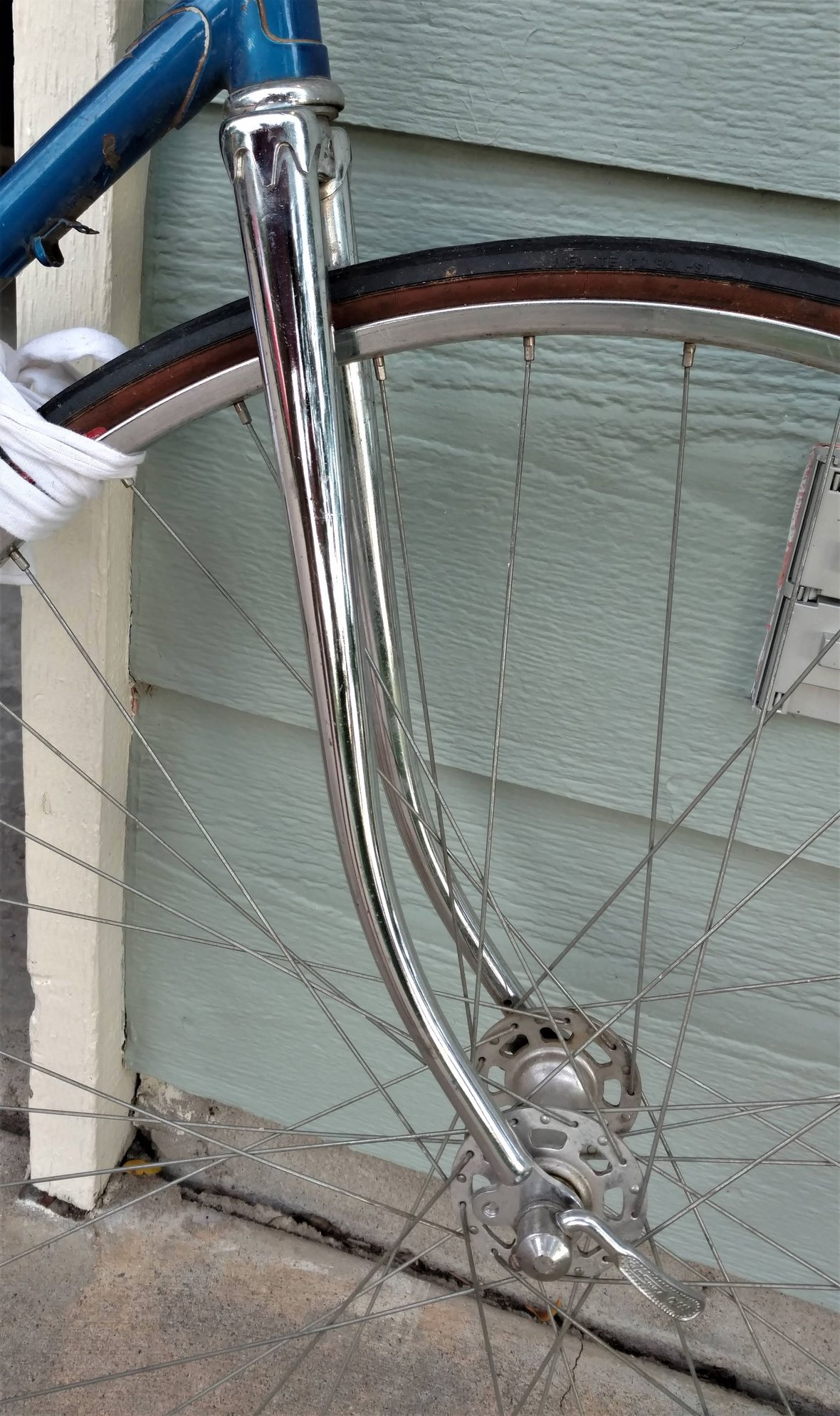

I haven't gotten the fork off the frame yet, because I'm not ready for it yet, and this seems like the best way to keep all the parts in one spot...
uncle uncle is offline
