Chorus brake levers in non-aero configuration

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Chorus brake levers in non-aero configuration

Old 12-17-18, 04:01 PM
  #26
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,744
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Originally Posted by Choke View Post
I tried it without anything in the slot at first, hence my solution. When the brake lever is pulled the barrel does move to the back of the slot so it only pulls a small amount of cable at the brake....nowhere near enough for the brake to work.
I had this exact situation a few years ago. I filled the slots in front of the barrel with JB Weld, thinking the cable tension would keep the barrel at the back of the slot.. It fell out about 3 months later. The tension on the cable keeps the barrel in the "rear" part of the slot, but you get very little cable length on the pull.

A mountain bike mechanic looked at it and said "dude, those holes on top are for show." He was pretty much right, and not because he was experienced. He didn't know a Campy part from a Coleman lantern. However, his logic was different, and correct. I was trying to solve a problem that he didn't see. \ I ended up buying plugs at Lowe's. I should have just squirted some Plasti-Dip in there from inside the hood.
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 12-17-18 at 04:04 PM.
RobbieTunes is offline
Old 12-17-18, 04:06 PM
  #27
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,744
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Originally Posted by Vince Hoffmann View Post

Thanks for all of your input everyone. I believe this brake lever was never made to be used in any configuration other than aero. Since I've never found any extra parts intended to lock the barrel in one position, I made my own from a piece of birch wood. The wood fits very tight but still allows the barrel to rotate when the lever is pulled.

Pretty good solve.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 12-17-18, 04:11 PM
  #28
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,744
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Originally Posted by speedevil View Post
This thread is timely for me. I have a set of Chorus levers exactly like yours @Vince Hoffmann.

I was intending to use them on my Masi so that the bike could be ridden in Eroica-type events. The usual configuration will be Chorus 10s shifter/brakes. My plan was to fit these, cut the cables and housings to length, and then put them aside. I'll have to re-wrap the bars to install them, but that only takes a few minutes. Adding a set of VO DT shifters, which don't require any housing, just cable, it's ready to go.

EDIT: Maybe filing a radius in the top of the slot at the front would provide a way to more easily keep the barrel at the front. There is plenty of metal there, so it shouldn't cause any weakness.

I might look into 3D printing a spacer to use in these levers, radiused at the front for the barrel. Maybe I should just build it without shifter/brakes from the start and leave it with brakes and DT shifters. I could sell the Chorus shifter/brakes easily. Something to consider...
Originally Posted by speedevil View Post
Not sure about shifting 10s Chorus with DT shifters, but after some practice to get the feel of it, I should be reasonably OK with it.
You could also use some real 10sp indexed Campy downtube shifters. There are people on BF who sell them.
Classy look, old-school technique, modern precision. Makes you look down the road a bit, anticipate. No chicken winging.

And you know where to unload the Ergos….
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 12-17-18 at 04:21 PM.
RobbieTunes is offline
Old 04-26-19, 05:36 PM
  #29
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 456
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Likes: 0
Liked 14 Times in 14 Posts
Can I just jump in with some inane questions about Chorus brake levers?

The exploded diagram of the Record version shows a BL-RE006 return spring, but there isnít one on my Chorus levers, although Velobase seems to think there should be. Is this correct or am I missing a part?

How does that quick release pin work? I canít see how it Ďreleasesí as it hits the lever body in every position.
P!N20 is offline
Old 04-26-19, 07:17 PM
  #30
Last ride 76
Senior Member

Last ride 76's Avatar

Join Date: Nov 2013
Location: Just moved...1 km S. Now above the "Bike Path" ( River Road, Piermont, NY)
Posts: 848

Bikes: Old Bikes: '74 Ron Cooper, Crashed and repaired '76, restored 2015!!! need restoration '74 Witcomb track bike (bought in '75) '75 Carlsbad Masi, bought in '76 New bikes: 84-85 Gios torino "Professional" '76 Olmo Competition C Titiano

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 29 Times in 27 Posts
Originally Posted by Chombi1 View Post
Uhmmm..... I believe that hole on the front of the lever is for accss to the handlebar bar clamp allen headed bolt, when installing or removing the lever. I guess it will work to thread in the cable from the front too, but I never thought of doing that yet.
I don't think so, most cable stops are wider than the cutout in the lever. Press the lever against the handlebars and thread it in from the top.
Last ride 76 is offline
Old 04-27-19, 03:02 AM
  #31
pbekkerh
Senior Member

Join Date: Oct 2014
Location: Denmark
Posts: 57

Bikes: --------------Boreas AŽr Roadbike,----Ghost SE7000 MTB----Bike Friday Tikit Hyperfold---Colnago Sprint---- Solio 1910

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 0 Times in 0 Posts
@speedevil did you do the 3D printing? Where is the file available? I have my own printer.
pbekkerh is offline
Old 04-27-19, 05:46 AM
  #32
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 986

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
@pbekkerh, I didn't pursue the 3D printing, as I traded the levers for other components. I decided to use Campy brifters on my Masi. I picked up a 1983 Pinarello that will be my Eroica-style bike, should I ever need such a machine.
__________________
Dale, NL4T
speedevil is offline
Likes For speedevil:
Old 04-27-19, 09:05 AM
  #33
pbekkerh
Senior Member

Join Date: Oct 2014
Location: Denmark
Posts: 57

Bikes: --------------Boreas AŽr Roadbike,----Ghost SE7000 MTB----Bike Friday Tikit Hyperfold---Colnago Sprint---- Solio 1910

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 0 Times in 0 Posts
Here are my eroica bikes



Colnago Sprint with Campagnolo Athena

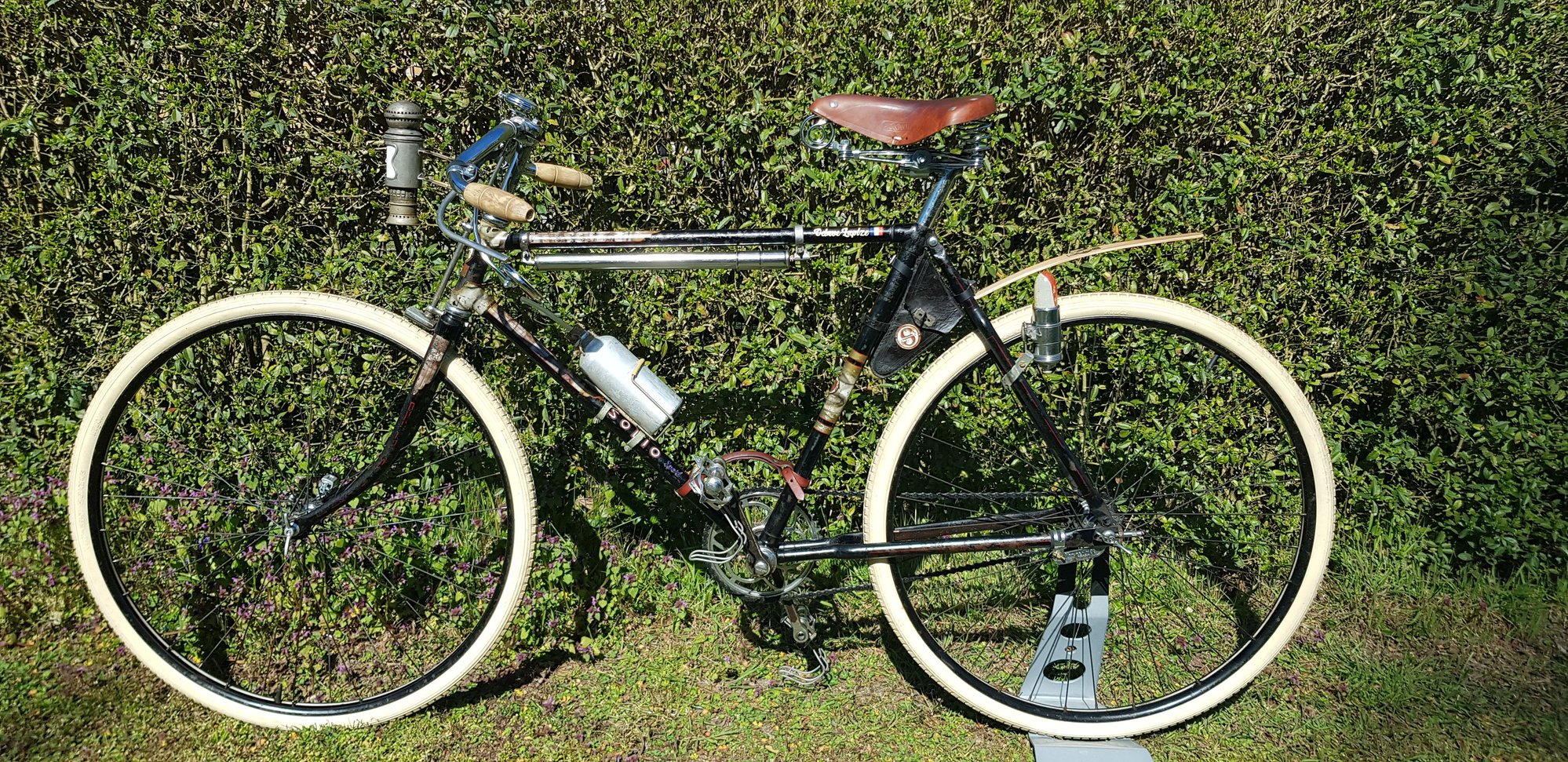

Solio Sport 1910 replica
pbekkerh is offline
Old 04-27-19, 09:34 AM
  #34
agmetal
Senior Member

agmetal's Avatar

Join Date: Jul 2009
Location: Boston, MA
Posts: 1,541

Bikes: Bianchi Volpe, ANT 3-speed roadster, New Albion Privateer singlespeed, Raleigh One Way singlespeed, Raleigh Professional "retro roadie" rebuild, 198? Fuji(?) franken-5-speed, 1937 Raleigh Tourist, 1952 Raleigh Sports, 1966 Raleigh Sports step-through

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by pbekkerh View Post


Solio Sport 1910 replica
Nice!
agmetal is offline
