Weinmann covered center-pull brakes, Delta style

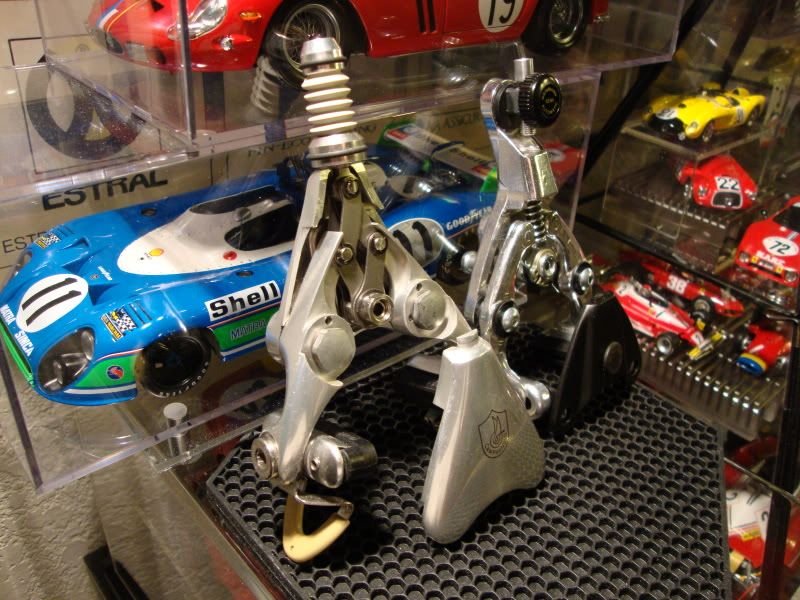

pic attached from phone, will edit in a bit asking info. I havenít started a search yet, Velobade or else where.

One brake is is missing the step down ferrule and adjuster, prominently shown on good one. NOS.

Last edited by Wildwood; 06-14-18 at 05:52 PM.
Wildwood is online now
Old 06-14-18, 06:12 PM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 18,137
Mentioned: 459 Post(s)
Tagged: 1 Thread(s)
Quoted: 2595 Post(s)
Likes: 0
Liked 124 Times in 111 Posts
Late 1980s, Weinmann Delta 531 Pro.
T-Mar is offline
Old 06-14-18, 06:14 PM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,554

Bikes: Several, mostly not name brands.

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1773 Post(s)
Liked 105 Times in 78 Posts
I remember we got a sample of these from Weinmann at Trek BITD. Don't remember what happened to them. Probably sat on a shelf for years until somebody binned them. Too bad; they're probably worth something now.
JohnDThompson is online now
Old 06-14-18, 06:24 PM
  #4
Wildwood
Veteran/Pacifist/Resister
Thread Starter

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 8,796

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 175 Times in 126 Posts

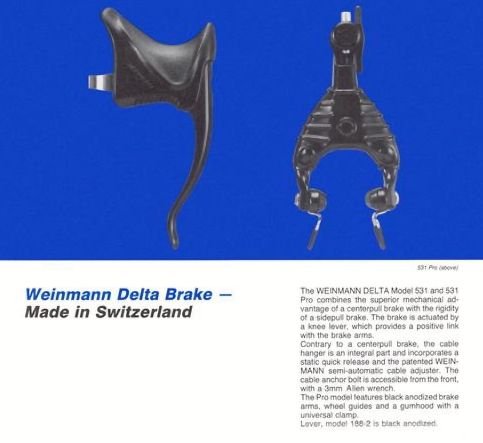

Good ol Velobase.com

late '80s, Delta Pro. Mine take recessed bolts.

VeloBase even had a closeup of the missing piece(s). Without an adjuster, I'm hoping to make this work (edit: meaning an acceptable cable stop)

Questions would be to anyone with knowledge of, experience with, or 2nd hand rumors about their performance.
Not lightweight. Short reach.
.to
__________________
70sFollis 072/71 Bottecchia Giro d Italia/72 Zeus Competition/78 Batavus Competition/80 Mondia Super/81 AustroDaimler Olympian/82 Harding(Holdsworth) Special/84 Pinarello Record/85 EM Corsa Extra/86 DeRosa Pro/88 Falcon Race/99 Pinarello Cadore/99 Calfee TetraPro/03 Macalu Cirrus/04 Tallerico: The less ridden = '97 CoMotion tandem + city bike, mtn bike, beach cruiser

Last edited by Wildwood; 06-14-18 at 06:32 PM.
Wildwood is online now
Old 06-14-18, 06:28 PM
  #5
Wildwood
Veteran/Pacifist/Resister
Thread Starter

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 8,796

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 175 Times in 126 Posts
Assuming a fix for the one brake, this might be a component that deserves a bike built around it.

I don't own any late 80s or early 90s framesets?

Anybody got one for parts????


edit: I'll even take solicitations for an appropriate frameset for black Deltas from Weinmann.
Does it have to be Swiss? The Mondia is 1978 and too nice to change. Condors don't come around every day.
__________________
70sFollis 072/71 Bottecchia Giro d Italia/72 Zeus Competition/78 Batavus Competition/80 Mondia Super/81 AustroDaimler Olympian/82 Harding(Holdsworth) Special/84 Pinarello Record/85 EM Corsa Extra/86 DeRosa Pro/88 Falcon Race/99 Pinarello Cadore/99 Calfee TetraPro/03 Macalu Cirrus/04 Tallerico: The less ridden = '97 CoMotion tandem + city bike, mtn bike, beach cruiser

Last edited by Wildwood; 06-14-18 at 06:41 PM.
Wildwood is online now
Old 06-14-18, 09:59 PM
  #6
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,868
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 32 Times in 28 Posts
I've seen that "Semi-auto" quick release cable stop assembly for sale on their own, usually NOS and not for crazy money. Just do searches in Ebay. IIRC, it was shared with a couple of other brake caliper models at that time.
Chombi1 is offline
Old 06-14-18, 10:40 PM
  #7
Wildwood
Veteran/Pacifist/Resister
Thread Starter

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 8,796

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 175 Times in 126 Posts
Originally Posted by Chombi1 View Post
I've seen that "Semi-auto" quick release cable stop assembly for sale on their own, usually NOS and not for crazy money. Just do searches in Ebay. IIRC, it was shared with a couple of other brake caliper models at that time.
Thx.
__________________
70sFollis 072/71 Bottecchia Giro d Italia/72 Zeus Competition/78 Batavus Competition/80 Mondia Super/81 AustroDaimler Olympian/82 Harding(Holdsworth) Special/84 Pinarello Record/85 EM Corsa Extra/86 DeRosa Pro/88 Falcon Race/99 Pinarello Cadore/99 Calfee TetraPro/03 Macalu Cirrus/04 Tallerico: The less ridden = '97 CoMotion tandem + city bike, mtn bike, beach cruiser
Wildwood is online now
Old 06-15-18, 09:14 PM
  #8
Wildwood
Veteran/Pacifist/Resister
Thread Starter

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 8,796

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 175 Times in 126 Posts
Originally Posted by Chombi1 View Post
I've seen that "Semi-auto" quick release cable stop assembly for sale on their own, usually NOS and not for crazy money. Just do searches in Ebay. IIRC, it was shared with a couple of other brake caliper models at that time.
Credits to you ++++++++++++++.

Found on the-bay, for a fair price I guess. Sold.


Now,.... what (yet to be purchased) frameset fits them best?
Wondering if they were ever original equipment on a retail bike?
__________________
70sFollis 072/71 Bottecchia Giro d Italia/72 Zeus Competition/78 Batavus Competition/80 Mondia Super/81 AustroDaimler Olympian/82 Harding(Holdsworth) Special/84 Pinarello Record/85 EM Corsa Extra/86 DeRosa Pro/88 Falcon Race/99 Pinarello Cadore/99 Calfee TetraPro/03 Macalu Cirrus/04 Tallerico: The less ridden = '97 CoMotion tandem + city bike, mtn bike, beach cruiser

Last edited by Wildwood; 06-15-18 at 09:19 PM.
Wildwood is online now
Old 06-15-18, 09:51 PM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,868
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 32 Times in 28 Posts
Very glad to have helped!
I'd feel really bad too if my Weinmann Deltas were missing a part!
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 06-15-18, 10:33 PM
  #10
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,999

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 541 Post(s)
Likes: 0
Liked 101 Times in 71 Posts
Early Swiss "STEAM PUNK"...

I've never seen those brakes in person or even a picture of them on a bike.

Beauty is in the eye of the beholder and everyone has different aesthetic tastes. For me, they look like economy model techno geek knock offs of Campy Delta brakes.

I have 3 different sets of Campy Deltas... Not impressed by their performance - just like most pros in the peloton when Valentino lost his way.

Weinmann appears to have been trying to make themselves relevant in the market place when those brakes were introduced.

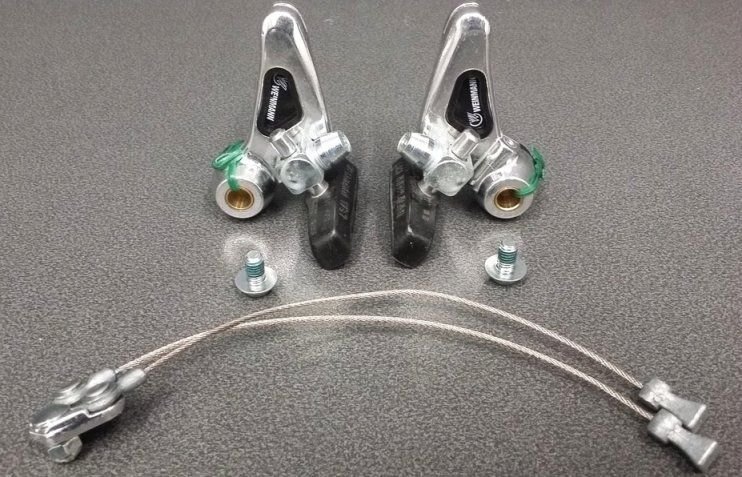

E.G. they sold some Weinmann badged or maybe licensed MAFAC cantilever brakes to try to get a piece of the MTB, Cyclocross and Touring action.


Later they came out with some more modern looking arms.



Nothing against Weinmann brakes. I have 3 different versions of Carrera brakes that I use. Recently I got and early 70's Raleigh Competition with Weinmann center pulls. They stop surprisingly well with good brake pads.

Aesthetics:

This?



or this?


verktyg

Last edited by verktyg; 06-15-18 at 10:37 PM.
verktyg is offline
Old 06-15-18, 10:50 PM
  #11
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,868
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 32 Times in 28 Posts



I have both Campy and Weinmann Deltas on two of my bikes.....
Actually, the Weinmanns were so much easier to set up and make work properly than the Campy.
Sure, Campy put more into the styling of their Deltas, as pretty much expected when compared to most other marques, but it seems like Campy just went overboard trying to improve their Delta brakes that they ended up making them unnecessarily complicated without too much improvement on their braking performance as they went though different generations of the brakeset.
Also notice in the pics how Weinmann was able to make their Deltas much more compact (maybe more aerodynamic with less frontal area?) than the Campy. A much more efficient brake package IMO. Braking performance-wise, I would say they feel pretty much the same. with both easy to improve with better compound, modern brake pads.
Delta Brake are just "different" you either like the way they look or you don't..... Heck!, I don't like the way bicycles and most things on them after the mid 90's, but I don't care cause I'm sure I'll never have to own nor ride one of them!.....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)

Last edited by Chombi1; 06-15-18 at 11:14 PM.
Chombi1 is offline
Old 06-16-18, 02:53 AM
  #12
vintageiron
Junior Member

Join Date: Jun 2018
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Looks like a lot of added weight where its not needed?
vintageiron is offline
Old 06-16-18, 06:36 AM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,554

Bikes: Several, mostly not name brands.

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1773 Post(s)
Liked 105 Times in 78 Posts
Originally Posted by vintageiron View Post
Looks like a lot of added weight where its not needed?
Keep in mind that these came out at a time when purported aerodynamics trumped weight.
JohnDThompson is online now
Old 06-16-18, 07:02 AM
  #14
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 18,137
Mentioned: 459 Post(s)
Tagged: 1 Thread(s)
Quoted: 2595 Post(s)
Likes: 0
Liked 124 Times in 111 Posts
Aerodynamic brakes could have weights competitive with traditional, high end, side pull calipers. Shimano's Dura-Ace AX was actually slightly lighter than their Dura-Ace EX of the same period. It's interesting to note that Campagnolo, Modolo and Weinmann were introducing their delta brakesets, just as Shimano was discontinuing their delta design. Shimano's Parapull design remains my favourite of all the 1980s delta brake designs.
T-Mar is offline
Old 06-16-18, 07:34 AM
  #15
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 1,987
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by vintageiron View Post
Looks like a lot of added weight where its not needed?

X2
Looks like someone chromed over a yield sign.
Wileyone is offline
Old 06-16-18, 07:50 AM
  #16
Wildwood
Veteran/Pacifist/Resister
Thread Starter

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 8,796

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 175 Times in 126 Posts
Originally Posted by VintageIron;
Looks like a lot of added weight where its not needed?
Originally Posted by Wileyone View Post
X2 Looks like someone chromed over a yield sign.
The Boulevard of Progress has many side streets to visit and enjoy.
A few grams too heavy for some - I don't ride with a bell or fat tires.

Definitely a different aesthetic - which is a draw.
Perfect for the right frameset I need to find. Maybe the black Harding/Holdsworth, already in the fleet.
I like them a LOT on @Chombi1's Alan.
__________________
70sFollis 072/71 Bottecchia Giro d Italia/72 Zeus Competition/78 Batavus Competition/80 Mondia Super/81 AustroDaimler Olympian/82 Harding(Holdsworth) Special/84 Pinarello Record/85 EM Corsa Extra/86 DeRosa Pro/88 Falcon Race/99 Pinarello Cadore/99 Calfee TetraPro/03 Macalu Cirrus/04 Tallerico: The less ridden = '97 CoMotion tandem + city bike, mtn bike, beach cruiser

Last edited by Wildwood; 06-16-18 at 08:03 AM.
Wildwood is online now
Old 06-16-18, 11:20 AM
  #17
xetaprime
Senior Member

Join Date: Sep 2015
Location: Florida
Posts: 175
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My first thought was Alien vs Predator
xetaprime is offline
Old 06-16-18, 02:20 PM
  #18
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,868
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 32 Times in 28 Posts
Here's the Campy Delta on my Montello:

Wasn't sure about it till I mounted it in place of the Chorus calipers that was on it.
I think it looks great on the bike.... You can't really tell how it looks like on a bike until you do so and see it in the flesh.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 06-16-18, 02:43 PM
  #19
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 1,987
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Chombi1 View Post
Here's the Campy Delta on my Montello:

Wasn't sure about it till I mounted it in place of the Chorus calipers that was on it.
I think it looks great on the bike.... You can't really tell how it looks like on a bike until you do so and see it in the flesh.
Still not a fan of the Delta's, but that sure is a pretty Bike.
Wileyone is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
jlax2485
Classic and Vintage Sales
22
02-25-18 01:32 PM
Fortygrit
Classic & Vintage
2
03-29-17 11:30 AM
jpaschall
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
9
11-14-14 06:24 PM
dimm0k
Bicycle Mechanics
0
09-05-14 11:17 PM
sailor42
Road Cycling
1
07-28-09 09:12 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
