MKS (Mikashima) pedals

Reply

Old 07-09-18, 01:59 PM
  #1
LucasHartong
Senior Member
Thread Starter

LucasHartong's Avatar

Join Date: Aug 2016
Location: Netherlands, near the sea
Posts: 276

Bikes: Liberty/Wargee '76, Heck Colney Special '79, Gazelle Tour de l'Avenir '76, Giovanni '88 (alu), Giovanni '77 (steel), Marcel Kint '69, Fausto Coppi '95 (steel).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
MKS (Mikashima) pedals

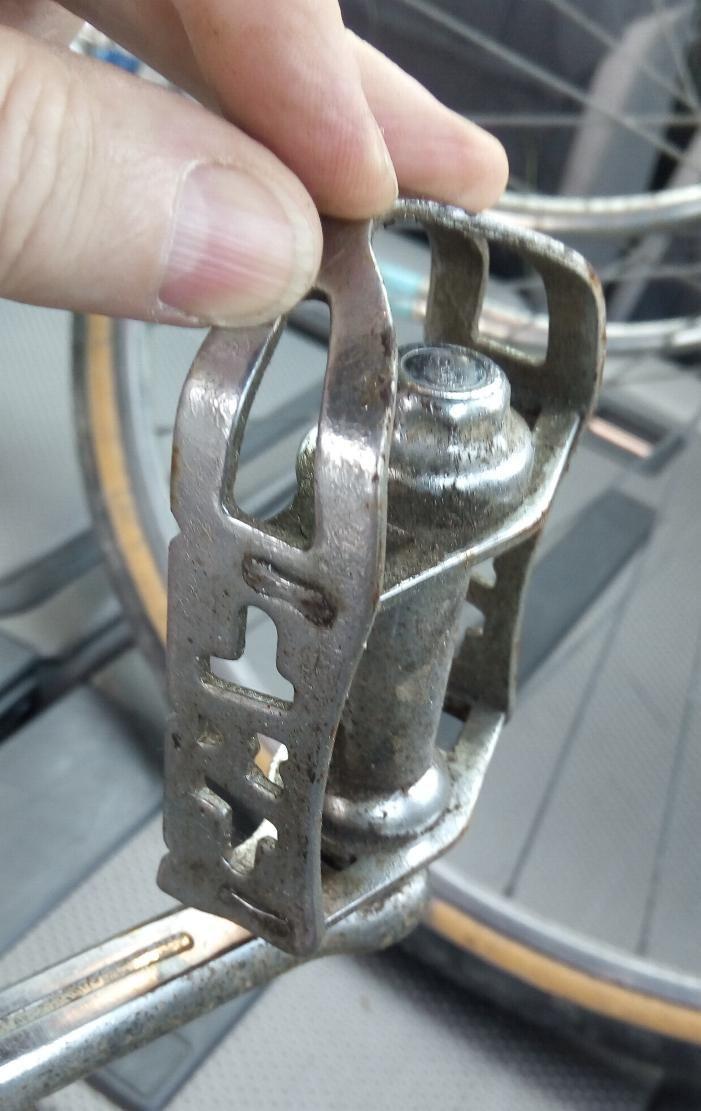

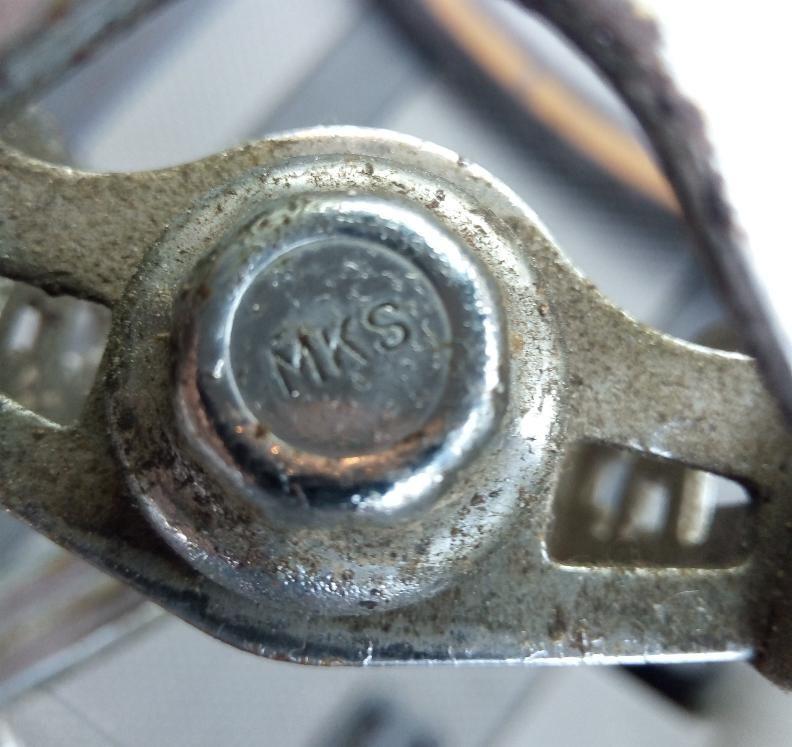

Hi, does anyone recognize these MKS pedals? I've been looking around, but to little avail. No brochures online... From what year are they approx? Thanks for any tips!
LucasHartong is offline
Reply With Quote
Old 07-09-18, 02:10 PM
  #2
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Wrong Island
Posts: 250

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Hybrid Drive concoction

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
It looks like it came before the sylvan road pedal. I am no expert though. Looks like late '70's or early '80's.
Velo Mule is offline
Reply With Quote
Old 07-09-18, 03:19 PM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 12,813
Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
70's or even earlier.
repechage is offline
Reply With Quote
Old 07-09-18, 08:37 PM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,561
Mentioned: 351 Post(s)
Tagged: 1 Thread(s)
Quoted: 1958 Post(s)
The subject pedals are MKS Model 60-8. They go back to at least the mid-1960s and the '60' may be the year of introduction.
T-Mar is offline
Reply With Quote
Old 07-10-18, 12:18 AM
  #5
LucasHartong
Senior Member
Thread Starter

LucasHartong's Avatar

Join Date: Aug 2016
Location: Netherlands, near the sea
Posts: 276

Bikes: Liberty/Wargee '76, Heck Colney Special '79, Gazelle Tour de l'Avenir '76, Giovanni '88 (alu), Giovanni '77 (steel), Marcel Kint '69, Fausto Coppi '95 (steel).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Originally Posted by T-Mar View Post
The subject pedals are MKS Model 60-8. They go back to at least the mid-1960s and the '60' may be the year of introduction.
Thanks! This really helps.
LucasHartong is offline
Reply With Quote
Old 07-10-18, 09:07 AM
  #6
LucasHartong
Senior Member
Thread Starter

LucasHartong's Avatar

Join Date: Aug 2016
Location: Netherlands, near the sea
Posts: 276

Bikes: Liberty/Wargee '76, Heck Colney Special '79, Gazelle Tour de l'Avenir '76, Giovanni '88 (alu), Giovanni '77 (steel), Marcel Kint '69, Fausto Coppi '95 (steel).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)

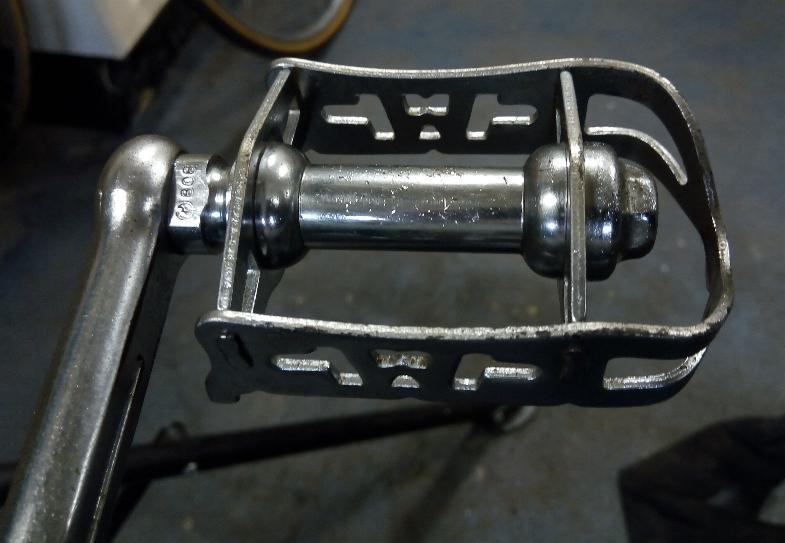

Did my homework this afternoon. It says '808' on the pedal. What to make of this, dear Watson?

LucasHartong is offline
Reply With Quote
Old 07-10-18, 01:26 PM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,538
Mentioned: 170 Post(s)
Tagged: 1 Thread(s)
Quoted: 1436 Post(s)
Originally Posted by T-Mar View Post
The subject pedals are MKS Model 60-8. They go back to at least the mid-1960s and the '60' may be the year of introduction.
-----

Great information as ever T-Mar!

Much appreciated here.

Was thinking 1960's only because this dust cap pattern seemed to have gone out of use by the early 1970's.

Wonder of the 808 number could be of similar function to Yoshi's 333 number or Maeda's 888 number?

-----
juvela is offline
Reply With Quote
Old 07-10-18, 03:32 PM
  #8
LucasHartong
Senior Member
Thread Starter

LucasHartong's Avatar

Join Date: Aug 2016
Location: Netherlands, near the sea
Posts: 276

Bikes: Liberty/Wargee '76, Heck Colney Special '79, Gazelle Tour de l'Avenir '76, Giovanni '88 (alu), Giovanni '77 (steel), Marcel Kint '69, Fausto Coppi '95 (steel).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Did Mikashima have any dating-system of it's components?
LucasHartong is offline
Reply With Quote
Old 07-11-18, 07:35 AM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,561
Mentioned: 351 Post(s)
Tagged: 1 Thread(s)
Quoted: 1958 Post(s)
I've had the opportunity to examine 10-12 pairs on MKS pedals where the numbers on the flats had not been rendered illegible by wrench marring. Due to the range of numbers, I can unequivocally state that it is not a branding, like the 3.3.3.and 8.8.8 used by Shimano and Maeda respectively. Nor is it a model number, as the numbers can differ between axles. While the sample size is relatively small, the last two numbers have always ranged between '01' and '12" suggesting that it is a date code, format ymm.


Of course, the big question is whether early samples may have used the Japanese Imperial Calendar for the year indicator, as this was popular with some Japanese manufacturers until non-Asian bicycle brands started specifying their components during the early 1970s bicycle boom. Furthermore, if there was a transition to the Gregorian calendar, I don't know exactly when it occurred. However, none of the model numbers in my 1966 literature are above 66-x, suggesting a Gregorian calendar may have been used to indicate the year of introduction. If so, the date codes from this period may also be Gregorian based. Attached is the catalogue entry for the subject pedal. While it is the typical vague spec for the era, it at least identifies the model number and the era.

T-Mar is offline
Reply With Quote
Old 07-12-18, 08:18 AM
  #10
LucasHartong
Senior Member
Thread Starter

LucasHartong's Avatar

Join Date: Aug 2016
Location: Netherlands, near the sea
Posts: 276

Bikes: Liberty/Wargee '76, Heck Colney Special '79, Gazelle Tour de l'Avenir '76, Giovanni '88 (alu), Giovanni '77 (steel), Marcel Kint '69, Fausto Coppi '95 (steel).

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Originally Posted by T-Mar View Post
I've had the opportunity to examine 10-12 pairs on MKS pedals where the numbers on the flats had not been rendered illegible by wrench marring. Due to the range of numbers, I can unequivocally state that it is not a branding, like the 3.3.3.and 8.8.8 used by Shimano and Maeda respectively. Nor is it a model number, as the numbers can differ between axles. While the sample size is relatively small, the last two numbers have always ranged between '01' and '12" suggesting that it is a date code, format ymm.


Of course, the big question is whether early samples may have used the Japanese Imperial Calendar for the year indicator, as this was popular with some Japanese manufacturers until non-Asian bicycle brands started specifying their components during the early 1970s bicycle boom. Furthermore, if there was a transition to the Gregorian calendar, I don't know exactly when it occurred. However, none of the model numbers in my 1966 literature are above 66-x, suggesting a Gregorian calendar may have been used to indicate the year of introduction. If so, the date codes from this period may also be Gregorian based. Attached is the catalogue entry for the subject pedal. While it is the typical vague spec for the era, it at least identifies the model number and the era.

Thanks, T-mar! Japanese dating... It's like an enigma. At least no doubt about the model.
LucasHartong is offline
Reply With Quote
Old 07-12-18, 09:15 AM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,561
Mentioned: 351 Post(s)
Tagged: 1 Thread(s)
Quoted: 1958 Post(s)
Originally Posted by LucasHartong View Post
...Japanese dating... It's like an enigma...
Assuming the code is based on the Japanese Imperial Calendar, they would be Showa year 38 (i.e. 1964), while the 8th month (Hazuki) is late enough for them to have been used on a 1965 model year bicycle. Conversely, they may be August 1968 and originally used on a 1969 model year bicycle. I'd just call them late 1960s, which is a good fit with the literature.
