Raleigh frame ID query! Super Course or.., ?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Raleigh frame ID query! Super Course or.., ?

Old 07-10-18, 02:00 PM
  #1
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Raleigh frame ID query! Super Course or.., ?

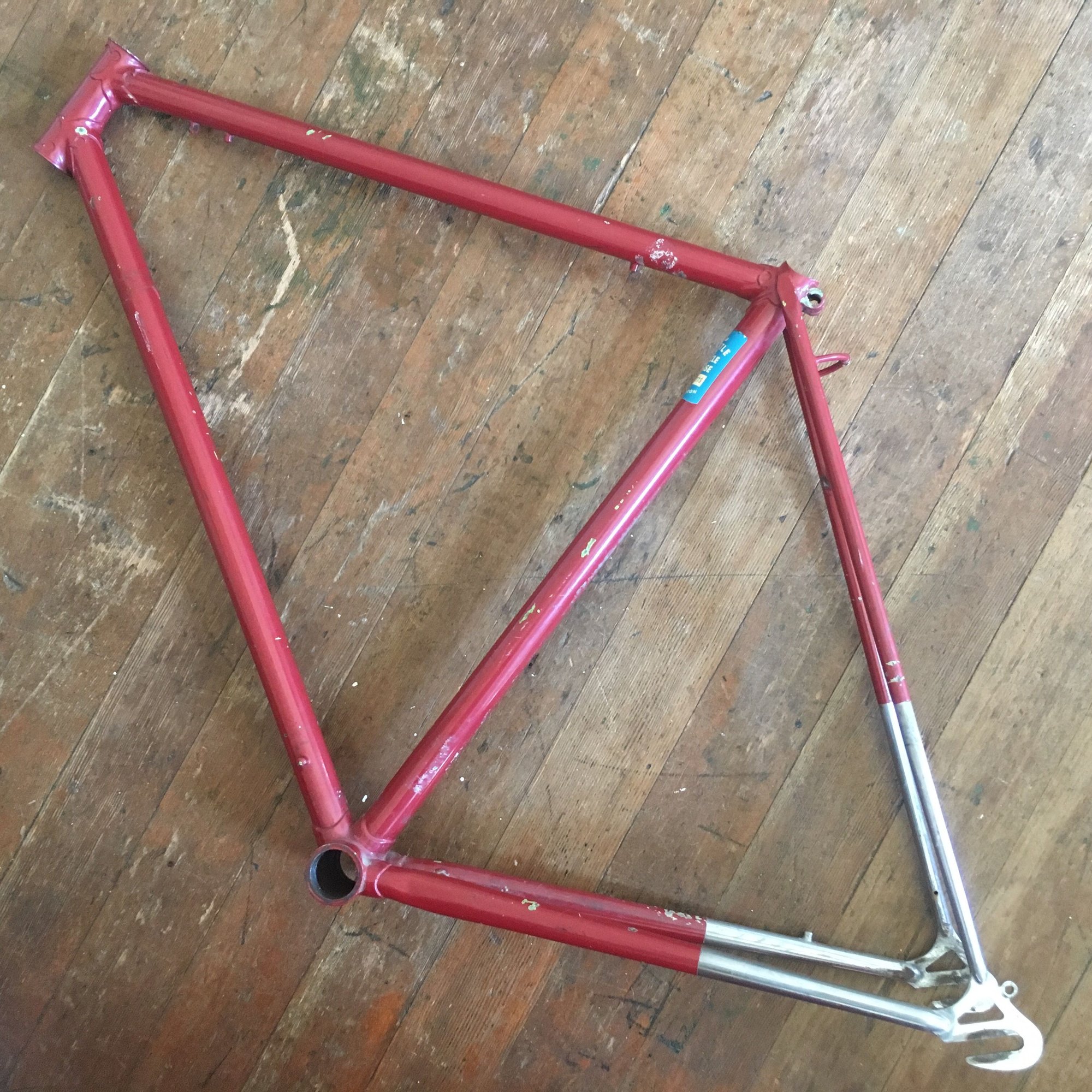

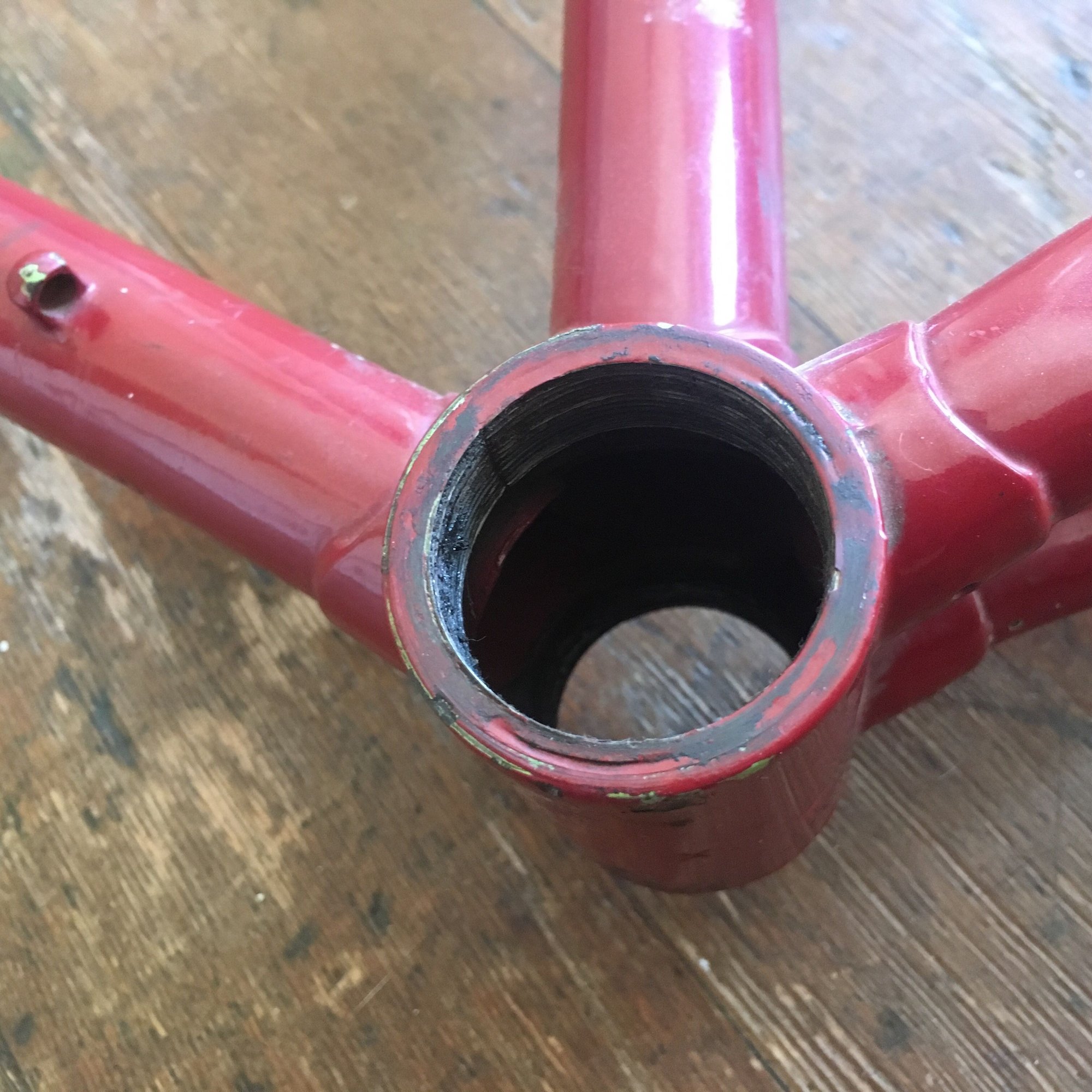

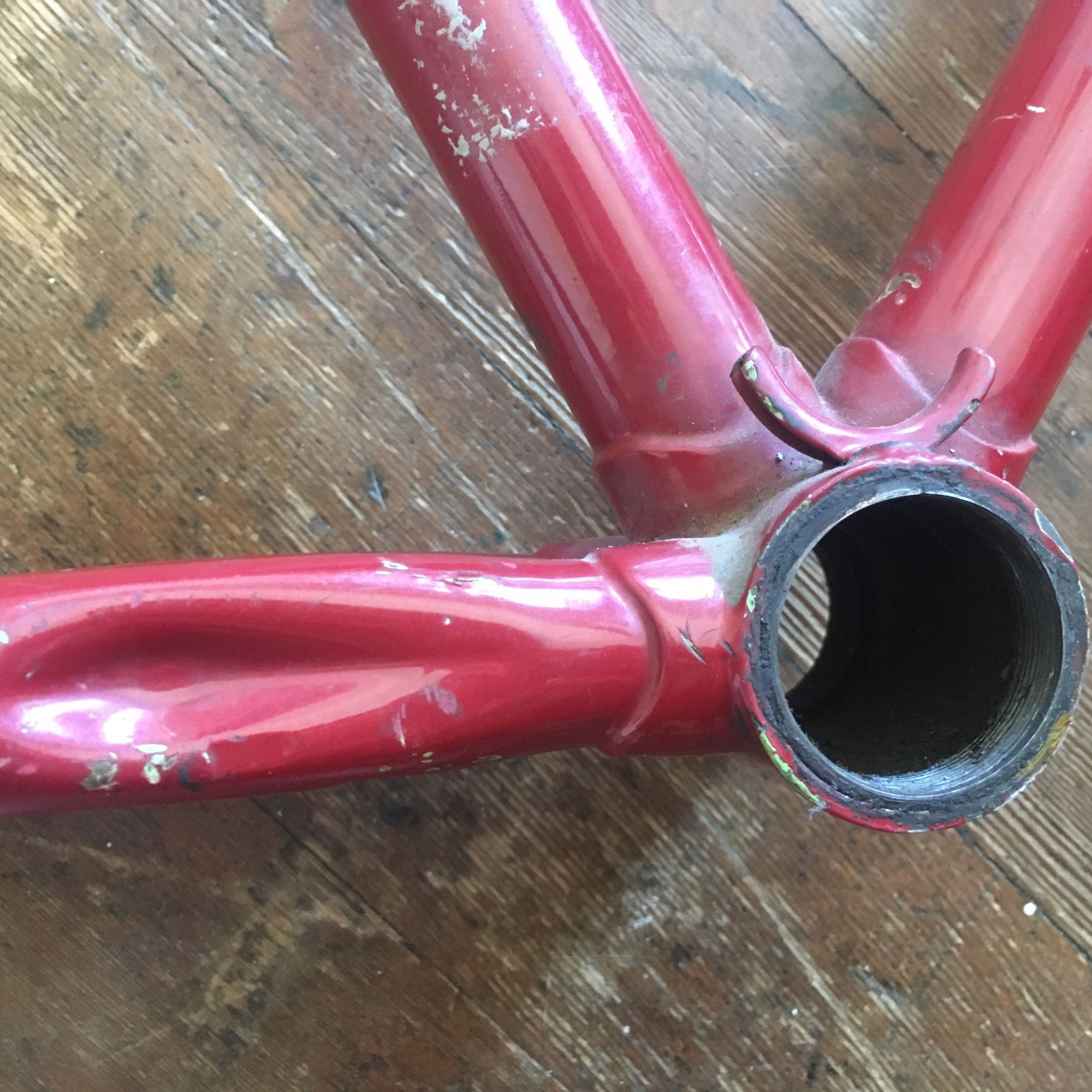

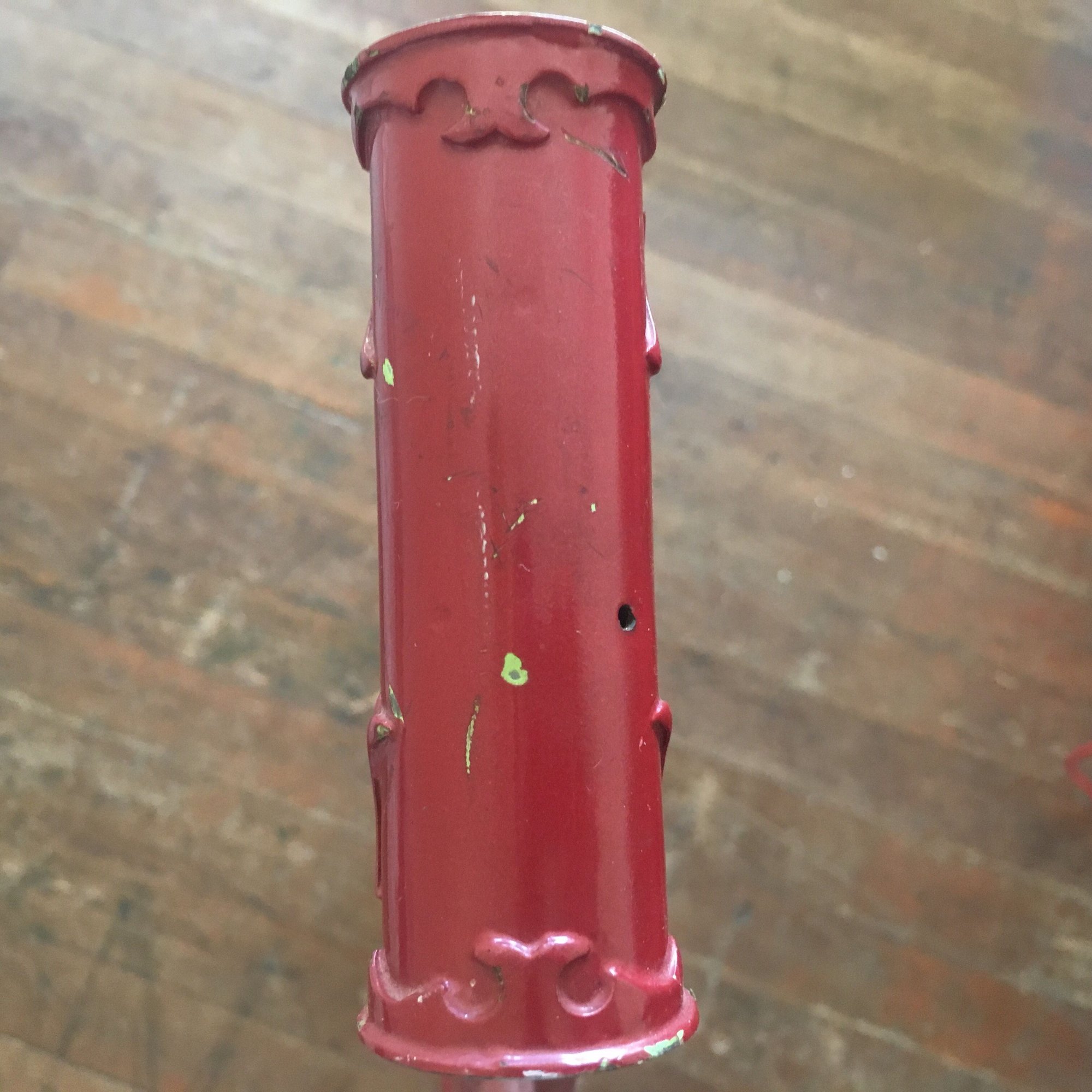

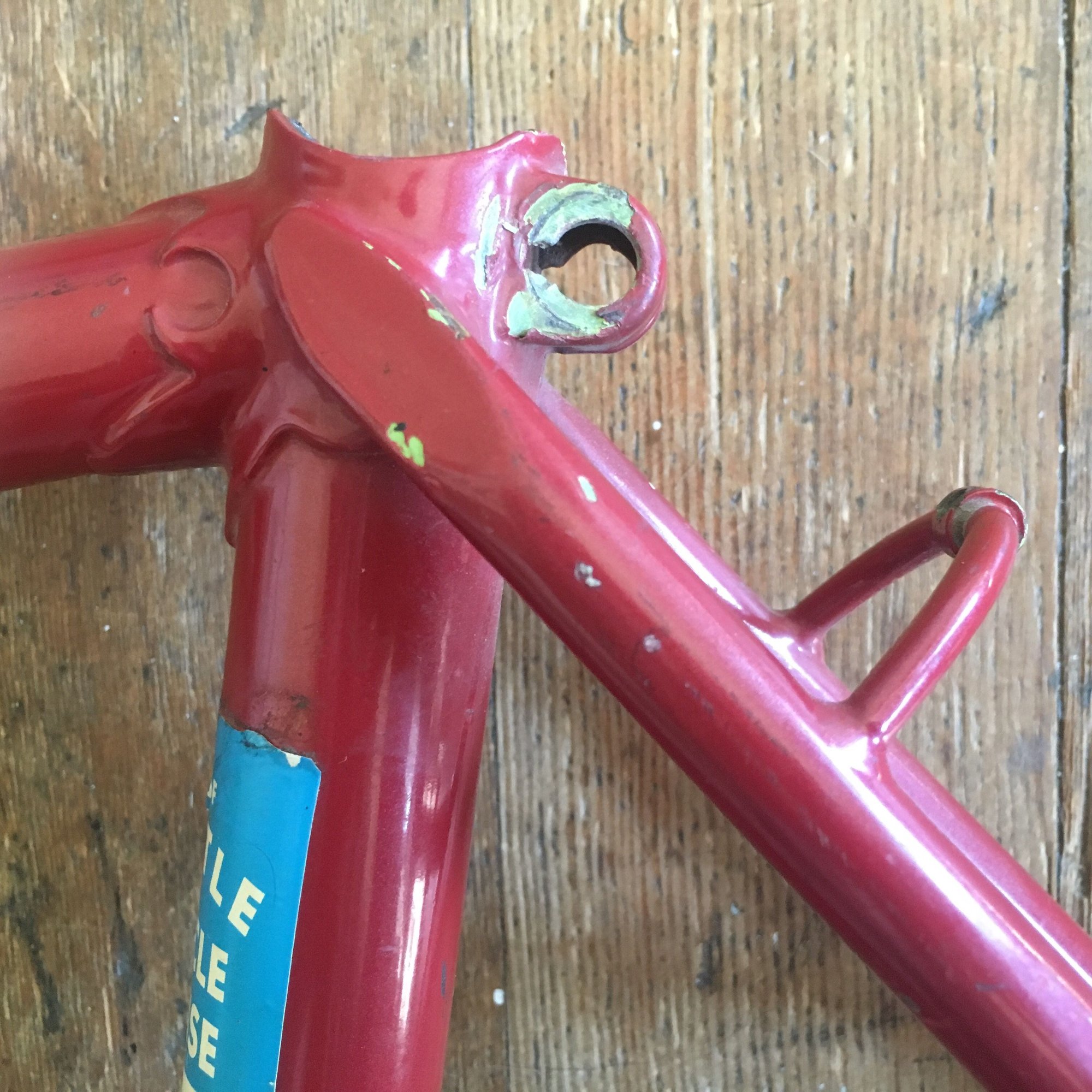

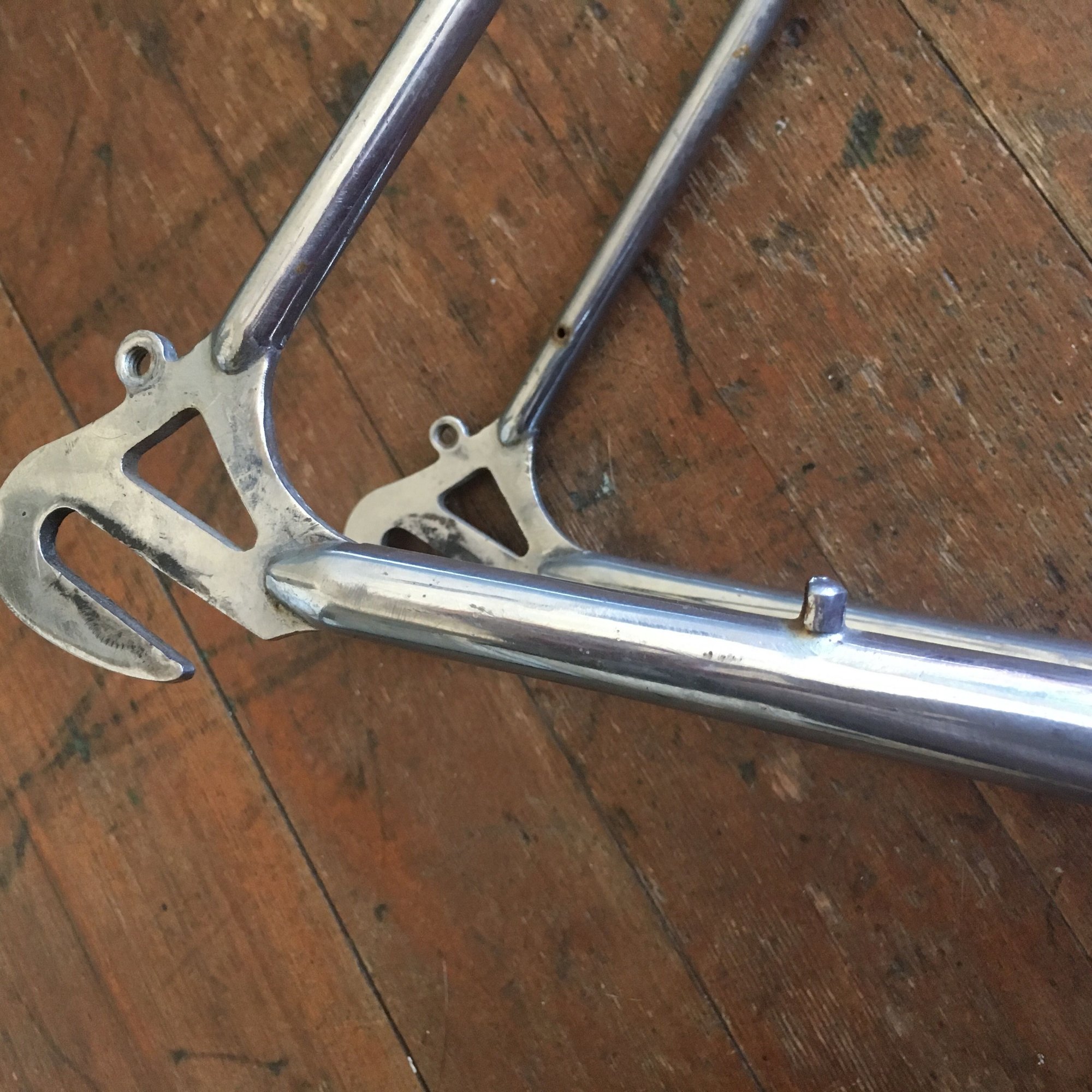

Picked this frame up last week, and suspect itís a Super Course. However, as unfamiliar with Raleigh as I am, I canít be sure. Hoping an expert might chime in to help ID, and perhaps date this frame.

Research is so far showing me that the Super Course, and the International were the two models which came with Nervex lugs. If there were others, Iíve missed that. Iím also gathering that while the the International would have chromed lugs at the head, the Super Course would not. It appears that under the repaint, the head lugs here were not chromed, pointing me towards the hunch that this is the lower model. The green paint underneath the repaint however seems lighter than I would expect ďbronze greenĒ to be which is what was offered for the Super Course. It looks closer to a chartreuse which I understand was offered with the International. Furthermore, the drive side chain stay on my frame is dimpled, which would indicate that it is not an International if Iím of the correct understanding.

Early 70s probably? Maybe between 71í and Ď73? The missing head badge would have mounted with three rivets, and the 6 digit serial number is stamped on the left dropout, while the underside of the bottom bracket simply bares an ďXĒ.
deux jambes is offline
Old 07-10-18, 02:13 PM
  #2
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 760

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1971 Gitane Tour de France, 1991 Diamond Back Venture

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 31 Times in 19 Posts
I say it's a Super Course. Internationals not only had chromed head lugs but also Campagnolo forged dropouts with a derailleur hanger. Anniversary oval badges and the usual heron badge both took three rivets, so you could go back to what, 1970? 1969? I am not rock solid on when Raleigh started using Nervex Professional lugs on the SC.
rustystrings61 is offline
Old 07-10-18, 02:21 PM
  #3
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,074

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 438 Post(s)
Tagged: 0 Thread(s)
Quoted: 1538 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Yes.
rhm is offline
Old 07-10-18, 02:25 PM
  #4
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 965

Bikes: 1960s Bertin C37, 1970s Bertin C 37

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
deux jambes -

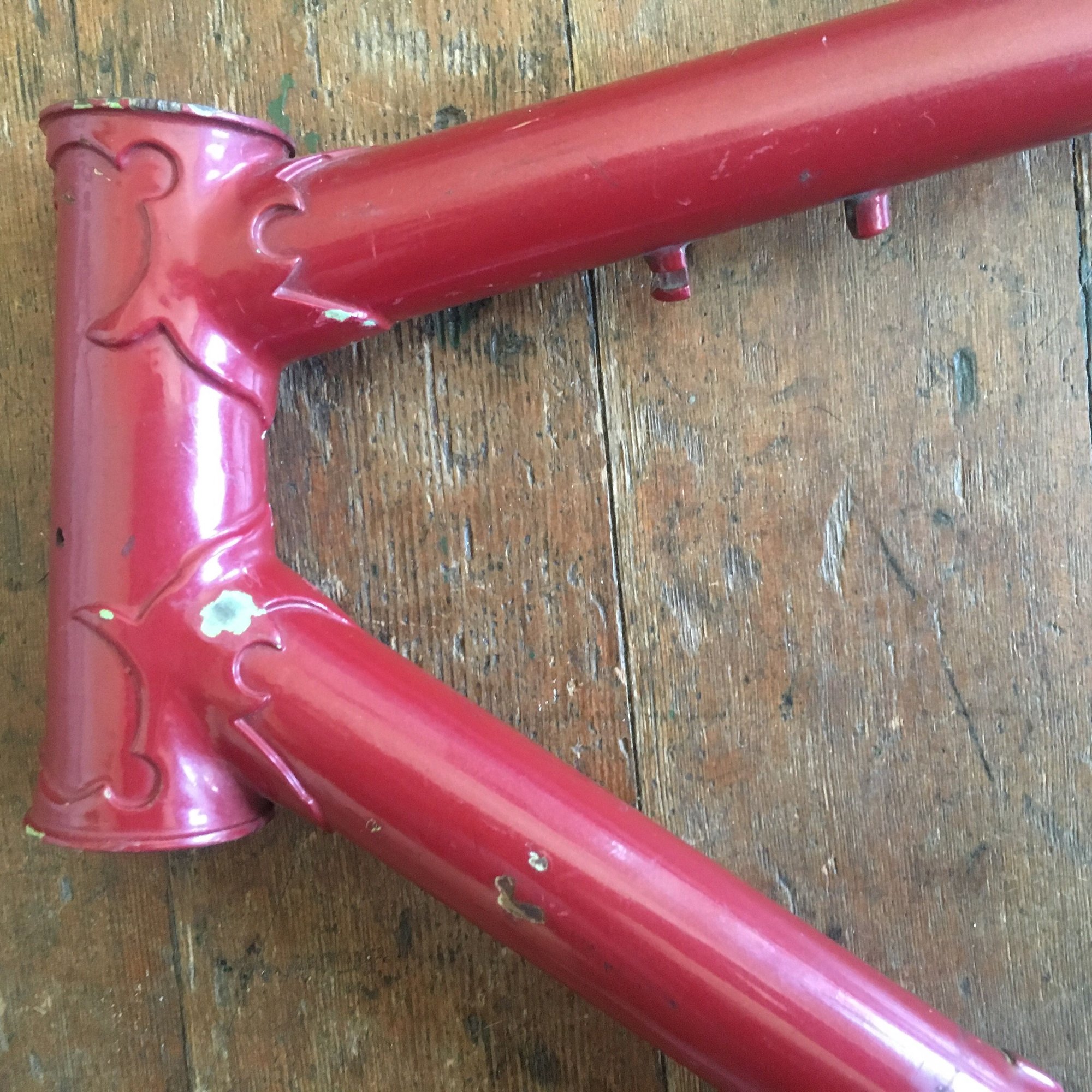

Definitely a Carlton made Raleigh Super Course. The Nervex lugs put it to very early 1970s and the three hole badge mounts indicate a Raleigh Heron badge. The dropout style, the rear brake cable arch and the chrome all place the bike in period. Hope you got the matching fork. Have you seen this thread: Show us your Raleigh Super Course! ?
bertinjim is online now
Old 07-10-18, 02:28 PM
  #5
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rustystrings61 View Post
Internationals... also Campagnolo forged dropouts with a derailleur hanger.
Thank you for some facts I was unaware of. Iíve also noticed the Internationals had wrap around seat stays, though perhaps that wasnít consistent through the years? Anyway, enough there to rule out an International, and put a positive ID on the Super Course it seems.

Last edited by deux jambes; 07-23-18 at 01:37 PM.
deux jambes is offline
Old 07-10-18, 02:35 PM
  #6
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by bertinjim View Post
deux jambes -

Definitely a Carlton made Raleigh Super Course. The Nervex lugs put it to very early 1970s and the three hole badge mounts indicate a Raleigh Heron badge. The dropout style, the rear brake cable arch and the chrome all place the bike in period. Hope you got the matching fork. Have you seen this thread: Show us your Raleigh Super Course! ?
Thanks for the further information, and for the link which I hadnít come across yet. Unfortunately the original fork did not come with the frame. I have something that might work until I can locate a proper replacement. Iím tempted to build this frame for the $100 100 day clunker challenge.
deux jambes is offline
Old 07-10-18, 02:38 PM
  #7
jj1091
Mike J

Join Date: Nov 2013
Location: Jacksonville Florida
Posts: 1,611

Bikes: 1975 Peugeot PX-50L, 1971 Peugeot PX-10, 1974 Peugeot PX-8

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 391 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

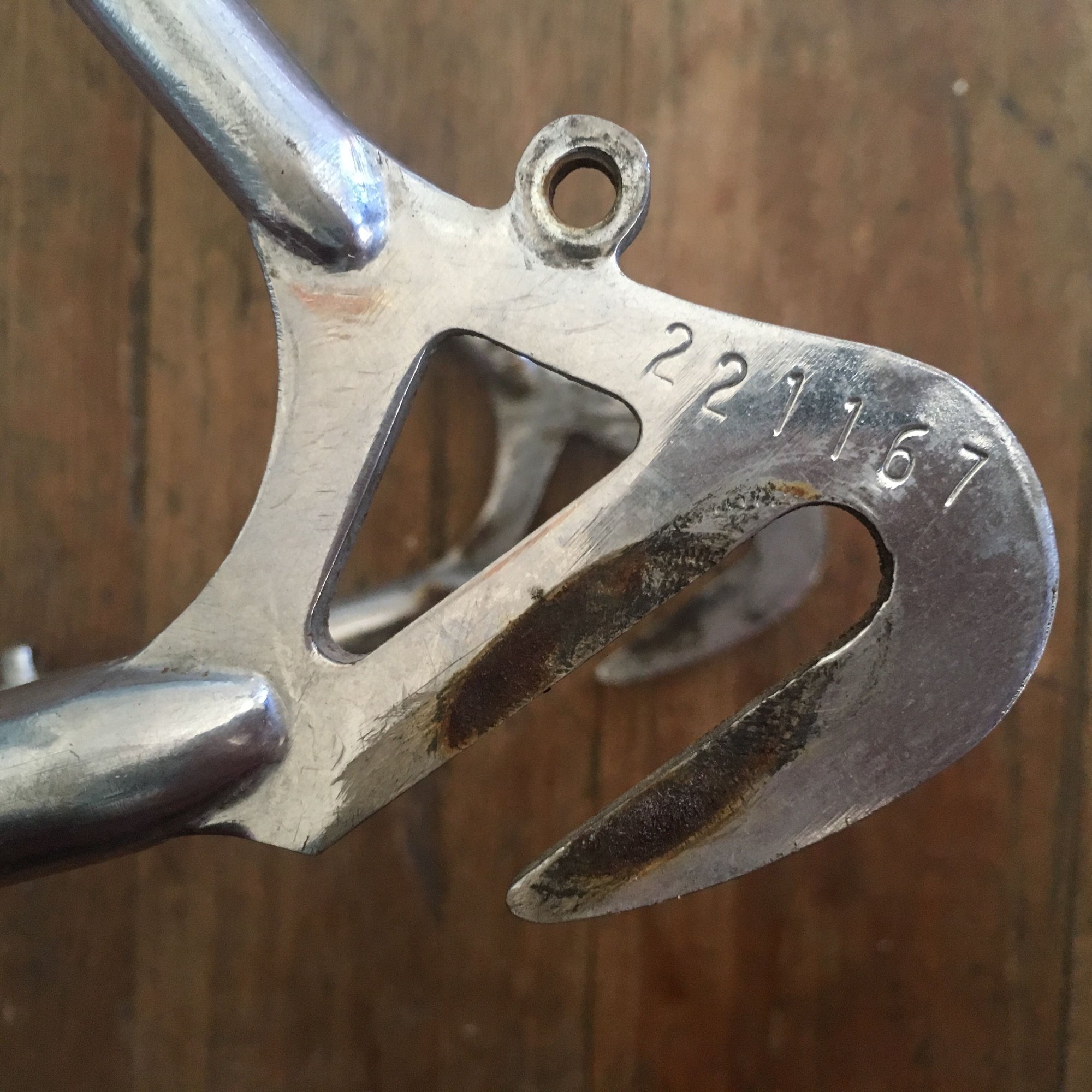

According to Kurt Kaminer's site, the only 6-digit serial number scheme was for 1972, or early 1973. Additionally, you might want to send him a query on your serial number for 1972, since his chart shows the serial number ranges from 67xxxx-900000 but not starting with 2 as yours does. It's not an International, since the dropouts are stamped-steel, not forged. The green underneath the paint on your frame is also not Chartreuse, so it's likely a previous repaint. I'd concur from the frame details that it's a 1972 Super Course.
jj1091 is offline
Old 07-10-18, 02:45 PM
  #8
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 965

Bikes: 1960s Bertin C37, 1970s Bertin C 37

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
deux jambes -

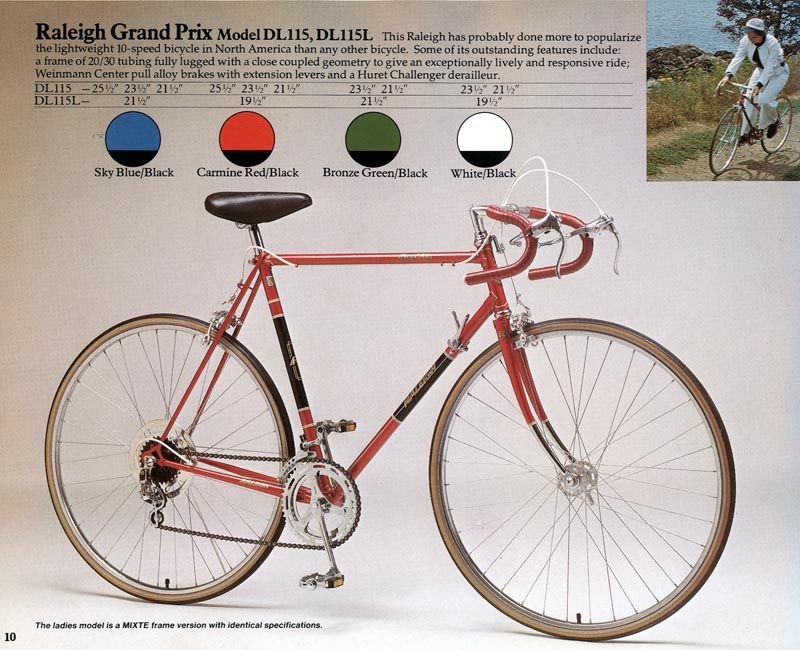

You might want to get a fork off a Raleigh Grand Prix. They are much more common, are hi-tensile just like the SC's fork and have chrome socks with the same fork crown.

bertinjim is online now
Old 07-10-18, 02:49 PM
  #9
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jj1091 View Post
Kurt Kaminer's site... you might want to send him a query on your serial number for 1972... The green underneath the paint on your frame is also not Chartreuse, so it's likely a previous repaint. I'd concur from the frame details that it's a 1972 Super Course.
Thank you. Your points make good sense, and Iíve suspected too that the bike may have been repainted more than once. I may just email him as you suggested. Iíve referred to his site already, but found it slightly confusing as even he noted that the numbering systems were all over the place, and in now way definitive.
deux jambes is offline
Old 07-10-18, 03:30 PM
  #10
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by bertinjim View Post
deux jambes -




You might want to get a fork off a Raleigh Grand Prix. They are much more common, are hi-tensile just like the SC's fork and have chrome socks with the same fork crown.
Ah! Good to know. Thank you.
deux jambes is offline
Old 07-10-18, 04:08 PM
  #11
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,556

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 490 Post(s)
Likes: 0
Liked 67 Times in 50 Posts

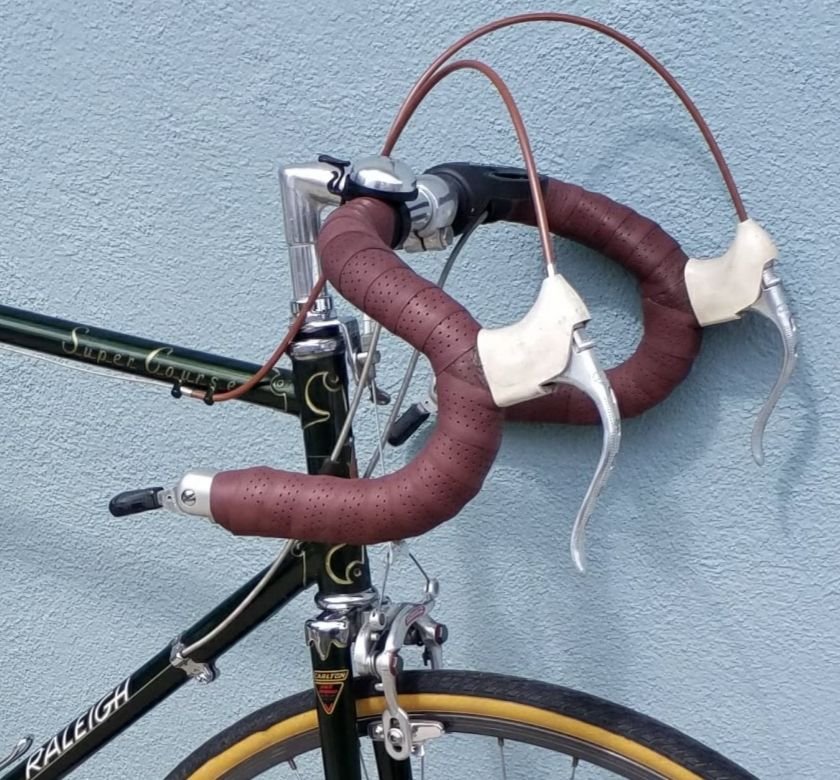

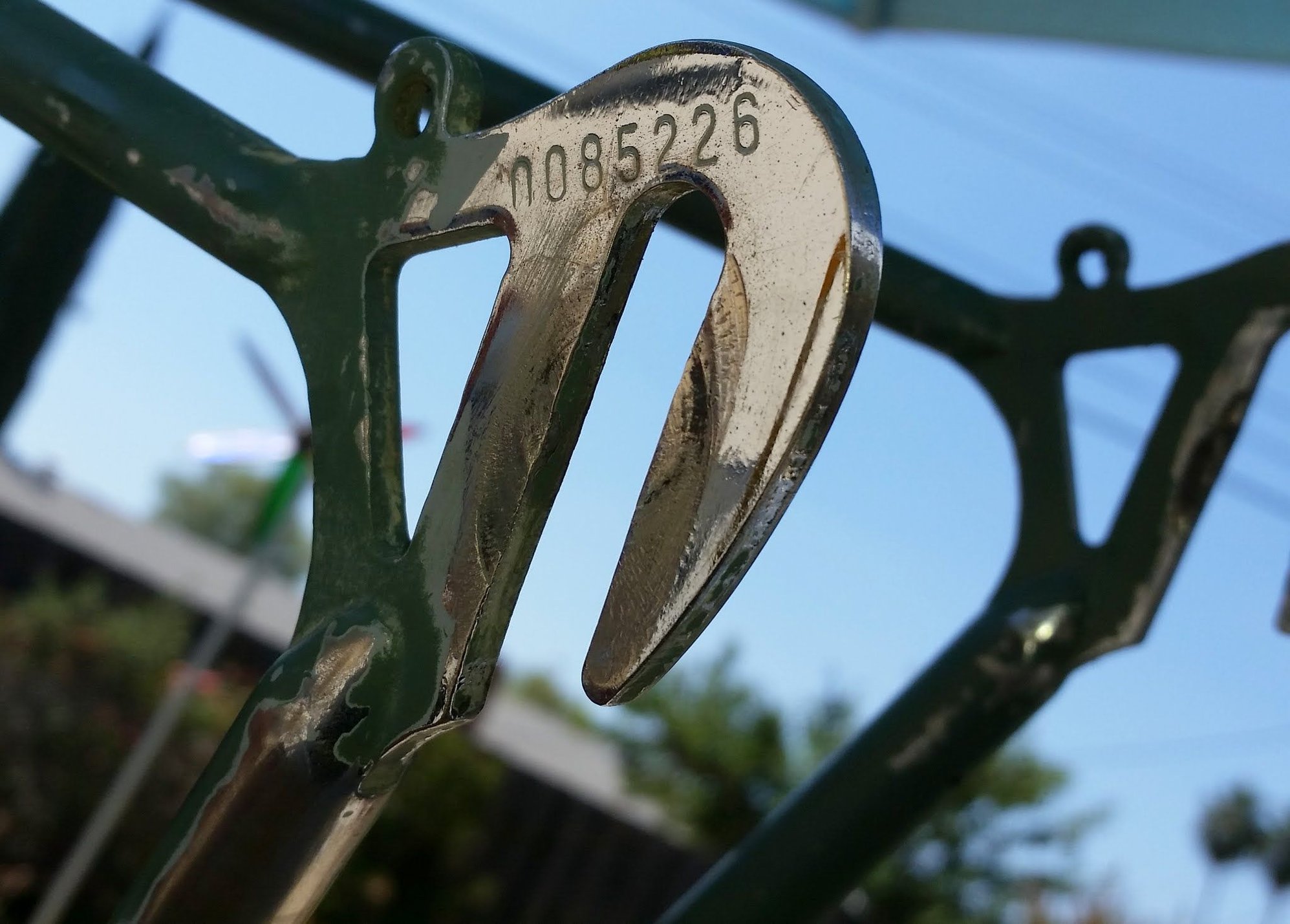

It's a great frame to build from. Yours looks very similar to my '73, except for the lugs. Yours has a higher serial no. Mine was a trash pile find, with cable guides all removed, wrong fork and crank. I built it up as an Eroica ride, and had a great time with it last year, more than $100, but worth every penny. I found a NOS Ebay Rampar Tange fork, wrong type crown, but it rides very well. I have a spare Grand Prix fork with a too short steerer. If you need it, PM me, I'm in the LA area.



Slightspeed is offline
Old 07-11-18, 07:21 AM
  #12
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 572
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Welcome to the fun of researching a mystery Raleigh. You may or may not be able to get it definitively identified but if you like internet research and going down rabbit holes, then you will enjoy the process.
__________________
Andy
beicster is offline
Old 07-11-18, 08:08 AM
  #13
msmessyjessy
Newbie

Join Date: Jul 2018
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Where is the serial number located on vintage Raleighs? I have a bike that I'm having trouble id-ing.
msmessyjessy is offline
Old 07-11-18, 08:29 AM
  #14
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,421
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Look at the pictures above.
Grand Bois is offline
Old 07-11-18, 10:21 AM
  #15
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by msmessyjessy View Post
Where is the serial number located on vintage Raleighs? I have a bike that I'm having trouble id-ing.
No easy answer to that Iím afraid. Hopefully this site can put you closer to finding one though...

Raleigh Serial Numbers & Charts
deux jambes is offline
Old 07-11-18, 11:39 AM
  #16
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 858
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts



Originally Posted by Slightspeed View Post
It's a great frame to build from. Yours looks very similar to my '73, except for the lugs. Yours has a higher serial no. Mine was a trash pile find, with cable guides all removed, wrong fork and crank. I built it up as an Eroica ride, and had a great time with it last year, more than $100, but worth every penny. I found a NOS Ebay Rampar Tange fork, wrong type crown, but it rides very well. I have a spare Grand Prix fork with a too short steerer. If you need it, PM me, I'm in the LA area.
Beautiful bike, and gorgeous lugs. Itís amazing what folks will toss in the trash isnít it? Oddly enough, I also have a Tange fork (not sure which exactly) that I purchased at the same time as the frame. Itís attached to a wrecked Pinarello. Fingers crossed itíll fit the Raleigh. If it doesnít, and I have difficulty finding something thatíll work, Iíll certainly PM about that Grand Prix fork. Thanks for mentioning it!

Originally Posted by beicster View Post
Welcome to the fun of researching a mystery Raleigh. You may or may not be able to get it definitively identified but if you like internet research and going down rabbit holes, then you will enjoy the process.
Itís fun alright... until the headache sets in!

Last edited by deux jambes; 07-11-18 at 11:41 AM. Reason: Spacing
deux jambes is offline
Old 07-11-18, 12:31 PM
  #17
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,144

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 419 Post(s)
Tagged: 0 Thread(s)
Quoted: 5365 Post(s)
Liked 79 Times in 62 Posts
I also got my Super Course from the trash! It was the one day a year we were allowed to put bulky items on the curb. I grabbed it and rebuilt it. Then my neighbor J from the other side of the town told me he had picked it from the trash a few years earlier and rebuilt it for the neighbor, D, from whose property I had taken it.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

ďWhen man invented the bicycle he reached the peak of his attainments.Ē ó Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-24-18, 03:40 PM
  #18
illhaveanother
Newbie

Join Date: Jul 2018
Location: On the poco trail Canada
Posts: 3

Bikes: Rebuild super course ,little bit of a touring raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

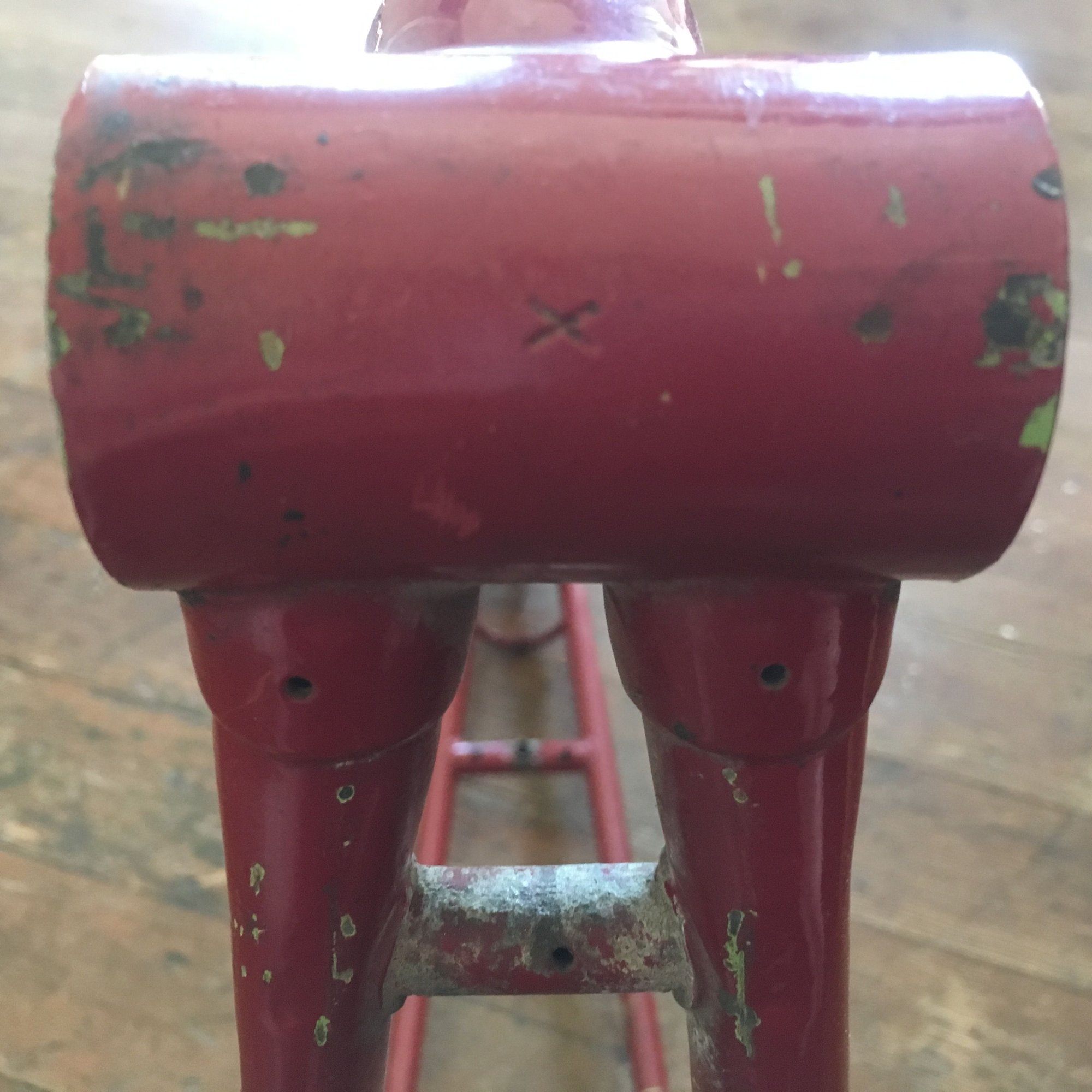

Mine came from the dump nasty acictent no numbers just an big X on BB
