RIP Miyata 1400

Miyata's with internal Cable routing have a reputation for cracks forming at the routing hole.
I had thought I had escaped that problem, with a bike that I bought new and has been stored inside and well kept

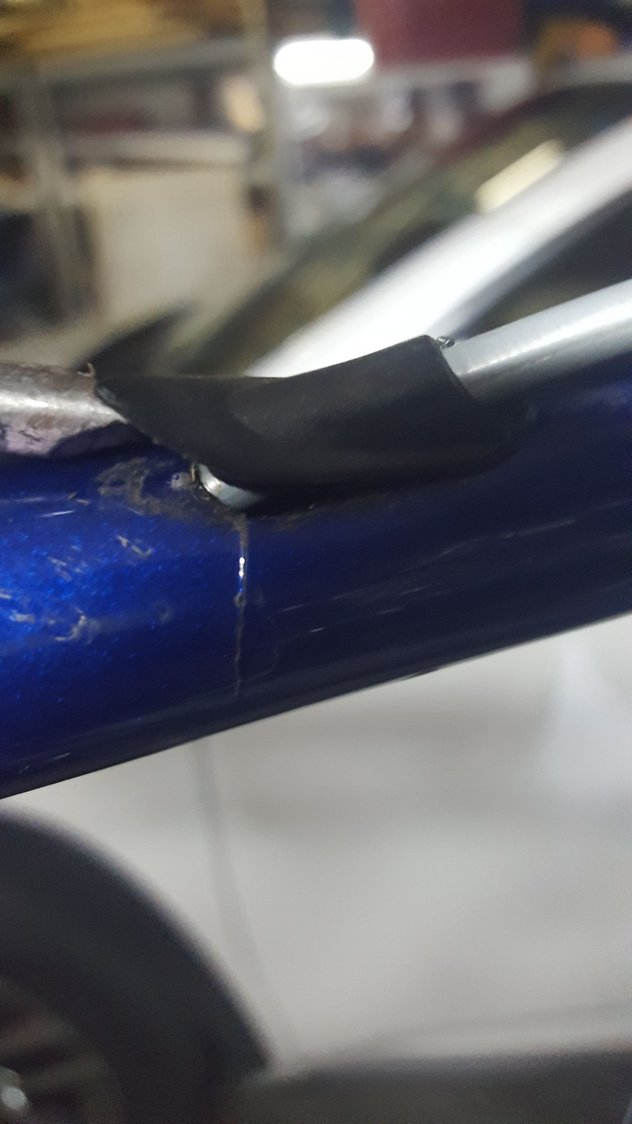

That is not the case, as can be seen from the pic.

I have asked frame builders forum for input, but other than top tube replacement am assuming the frame is toast...and no matter what it still would not really be the same

So I will be watching for sale for 58cm frames, But if anyone has anything in that area, PM me I will also ping people who I recall had interesting frames at one point

RIP 89 Miyata 1400


__________________
Looking for Torpado Superlight 58cm
squirtdad is offline
Reply With Quote
Old 07-11-18, 12:27 PM
  #2
cb400bill
Administrator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 15,378

Bikes: Fuji SL 2.1, Pinarello Stelvio, Legnano Pista

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
My condolences.
cb400bill is offline
Reply With Quote
Old 07-11-18, 01:14 PM
  #3
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Under the X in Texas
Posts: 2,584

Bikes: 1986 , 87 , 88 , 89 Centurion Dave Scott Ironman.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
Sad...time to get a New BIKE.
texaspandj is offline
Reply With Quote
Old 07-11-18, 01:27 PM
  #4
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 1,936
Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 622 Post(s)
Can't figure out why the frame designers back then thought it would be OK to punch such a large hole on the thin walled areas of the TT, without adding any reinforcement to the cut edge.....
If that happened today, it would certainly be a basis for a mass product safety recall...
Sad thing is, I think this design was really a cost saving approach on how to provide internal cable routing at the TT....
Chombi1 is offline
Reply With Quote
Old 07-11-18, 01:43 PM
  #5
FrenchFit
The Left Coast, USA

FrenchFit's Avatar

Join Date: Feb 2008
Posts: 3,590

Bikes: Bulls, Bianchi, Koga, Trek, Miyata

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 267 Post(s)
I sold my 1400 a few years ago, timing seemed right. Very sorry for your loss, but the good news is you can pick-up a Miyata or Koga frame on ebay and do an easy swap! The Miyata-Koga frames can be a great value, love my Gentsracer.
__________________
“Comparison is the thief of joy” - Roosevelt
"Be a creator; not a critic" - J. Weissman
FrenchFit is offline
Reply With Quote
Old 07-11-18, 01:45 PM
  #6
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,215
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 6494 Post(s)
Probably not a safety recall if it doesn't cause crashes and injuries, but might get warranty replacement.

Do you have a better photo of where it occurred on the frame? There are probably a few repair options.
  • Tig welding. Cheap and quick. Probably OK for Chromoly, but not optimal for Reynolds 531 and other older alloys. Still, it would make a quick and dirty repair to get you back on the road.
  • Cutting tubing in half and brazing on external gussets. Not pretty, but it would be functional. You could probably shape your gussets like lugs, and they may blend in.
  • Either redrill your cable routing holes after the repair, or find some vintage straps for externally routed cables.
CliffordK is online now
Reply With Quote
Old 07-11-18, 02:11 PM
  #7
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,551
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
How I fixed mine:

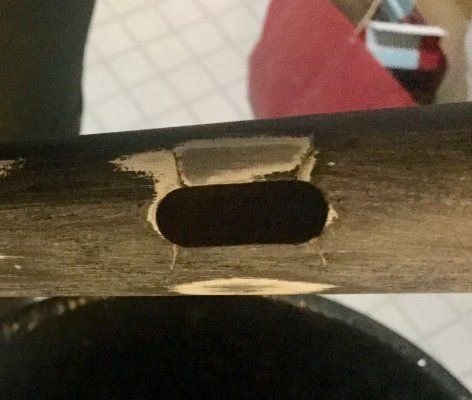

Fairly easy fix. My '87 512 had 3 cracks in the rear cable routing opening. The tube was almost broken in half.

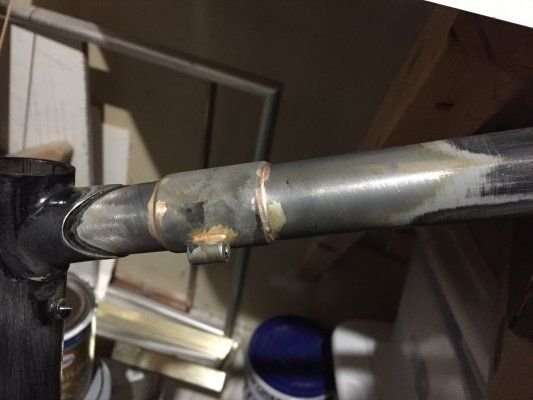

Anyway, what I did was find a donor frame, and cut a 6" section of steel tubing out. Then cut the section of tubing lengthwise into two halves. Drilled a hole for the cable routing. Placed two sections over the crack in the frame.

Bought a $50 MAPP gas torch, silver brazing rod and flux. Brazed the two halves over the cracked section of tubing. Touched up with rattlecan. Frame fixed for under $100.





Colnago Mixte is offline
Reply With Quote
Old 07-11-18, 02:18 PM
  #8
Bikerider007
Senior Member

Join Date: Aug 2015
Posts: 2,279
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Oh man, I am sure that is heartbreaking.
__________________
Never lose your sense of humor, ability to change and want to learn.
-RDR-
Bikerider007 is online now
Reply With Quote
Old 07-11-18, 02:35 PM
  #9
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 6,645

Bikes: A green one, "Ragleigh," or something.

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 1024 Post(s)
@Colnago Mixte, that there is a fix approved by Red Green and the majority of the possum Lodge! "If the women don't find ya handsome, they should at least find you handy."

__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1972 Peugeot UE-18 Mixte ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline
Reply With Quote
Old 07-11-18, 02:47 PM
  #10
exmechanic89
Senior Member

exmechanic89's Avatar

Join Date: May 2015
Location: Richmond VA area
Posts: 2,575

Bikes: '00 Koga Miyata Full Pro Oval Road bike.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Originally Posted by Chombi1 View Post
Can't figure out why the frame designers back then thought it would be OK to punch such a large hole on the thin walled areas of the TT, without adding any reinforcement to the cut edge.
I agree, terriby shortsighted design. Personally I've always disliked internally routed cable frames, they just seem like a bad idea on multiple levels to me.
That's a drag about the frame failing though. Shows you those frames must've been destined to fail if someone who takes care of their bikes buys one new, and it ends up like this.
exmechanic89 is offline
Reply With Quote
Old 07-11-18, 03:05 PM
  #11
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,215
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 6494 Post(s)
Originally Posted by exmechanic89 View Post
Shows you those frames must've been destined to fail if someone who takes care of their bikes buys one new, and it ends up like this.
It is only 30 years old.

It wouldn't hurt to check the warranty coverage as the company more or less still exists.

I bet a bunch of companies would be happy if their products wear out after 30 years, and the person is forced to buy new.
CliffordK is online now
Reply With Quote
Old 07-11-18, 03:30 PM
  #12
exmechanic89
Senior Member

exmechanic89's Avatar

Join Date: May 2015
Location: Richmond VA area
Posts: 2,575

Bikes: '00 Koga Miyata Full Pro Oval Road bike.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Originally Posted by CliffordK View Post
It is only 30 years old..
Yeah in the life of a well made steel frame, not a lot.

I didnt know Miyata still existed, interesting.
exmechanic89 is offline
Reply With Quote
Old 07-11-18, 03:34 PM
  #13
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,215
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 6494 Post(s)
Originally Posted by exmechanic89 View Post
Yeah in the life of a well made steel frame, not a lot.

I didnt know Miyata still existed, interesting.
Apparently the modern ones are all Koga-Miyata, but not big in the USA. Nonetheless, still available elsewhere.
CliffordK is online now
Reply With Quote
Old 07-11-18, 03:51 PM
  #14
exmechanic89
Senior Member

exmechanic89's Avatar

Join Date: May 2015
Location: Richmond VA area
Posts: 2,575

Bikes: '00 Koga Miyata Full Pro Oval Road bike.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Originally Posted by CliffordK View Post
Apparently the modern ones are all Koga-Miyata, but not big in the USA. Nonetheless, still available elsewhere.
I thought Miyata stopped building the Koga frames almost 20 years ago..? I guess there wouldnt be much point in their name being on the new frames then, though.
exmechanic89 is offline
Reply With Quote
Old 07-11-18, 04:48 PM
  #15
squirtdad
Senior Member
Thread Starter

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 5,432

Bikes: 90/91 De Rosa, '82 nishiski, 84 Torpado super strada (Cino someday) RIP '89 Miyata 1400

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
I checked with my favorite LBS, which also builds frames.....and confirmed the cost to fix it right would be more than finding a replacement frame. @Colnago Mixte pretty creative fix, but this is my "good, best bike" so I am going for a smoother look than your repair

Interestingly they had a a miyata 512 bike and it had good reinforcement for the top tube cable holes. It was really clean and a good price, but I am thinking I will hold out for a higher end frame....
__________________
Looking for Torpado Superlight 58cm
squirtdad is offline
Reply With Quote
Old 07-11-18, 05:04 PM
  #16
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,208

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
My wife’s custom Erickson developed a similar crack after about 18 years of many lovely miles, but it had additional heating to braze on the decorative snowflakes. The crack visible under the big TT snowflake continues around past the internal routing hole and its reinforcement out of sight in this photo to the opposite tip of this snowflake..

Cant wait to hear what you eventually select as the 1400’s “replacement”.

Dfrost is offline
Reply With Quote
Old 07-11-18, 06:13 PM
  #17
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,551
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Originally Posted by squirtdad View Post
I checked with my favorite LBS, which also builds frames.....and confirmed the cost to fix it right would be more than finding a replacement frame. @Colnago Mixte pretty creative fix, but this is my "good, best bike" so I am going for a smoother look than your repair

Interestingly they had a a miyata 512 bike and it had good reinforcement for the top tube cable holes. It was really clean and a good price, but I am thinking I will hold out for a higher end frame....
I would think it might be worth repairing cheaply for a single speed conversion. I have a Miyata-built Univega in 58 cm that I ride SS with wider tires for dirt roads and it's great.

You're not gonna just throw that frame away, are you? At very least, cut it in half for use as a sample of what splined triple butted tubing looks like from the inside. As far as replacement goes, fortunately Miyatas are not rare, I have seen a few Triple Crosses that really tempted me. I like the range of tire sizes you can use on those.

Last edited by Colnago Mixte; 07-11-18 at 06:31 PM.
Colnago Mixte is offline
Reply With Quote
Old 07-11-18, 07:23 PM
  #18
KLOSHE
Junior Member

Join Date: Feb 2016
Location: Alaska
Posts: 19

Bikes: Domane 6.9 , Trek 5200 , Miyata 1400

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
I've got the same '89 miyata 1400 in a 60cm frame that hasn't seen any damage yet. Anything I can do or have done to reinforce the frame and prevent a frame crack at the cable drilling ?
KLOSHE is offline
Reply With Quote
Old 07-11-18, 07:41 PM
  #19
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 1,936
Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 622 Post(s)
Originally Posted by KLOSHE View Post
I've got the same '89 miyata 1400 in a 60cm frame that hasn't seen any damage yet. Anything I can do or have done to reinforce the frame and prevent a frame crack at the cable drilling ?
Check for any sharp edges at the openings on the TT......
I suspect the cracking start at stress rises caused by any unevenness or sharpness at those areas. Not sure if easing out such with maybe a jeweler's fine file could help, but maybe, if done right it could not harm it either....
The largish frame size might help disperse the stresses on the frame too, so maybe that's why your haven't cracked....yet?...
Chombi1 is offline
Reply With Quote
Old 07-11-18, 07:46 PM
  #20
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 18,970

Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 579 Post(s)
This is yet another reason to detest internal cable routing, which has no benefits and lots of drawbacks. Really stupid engineering.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Reply With Quote
Old 07-11-18, 09:15 PM
  #21
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 1,936
Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 622 Post(s)
Originally Posted by John E View Post
This is yet another reason to detest internal cable routing, which has no benefits and lots of drawbacks. Really stupid engineering.
Internal cable routing works, as long as it is done right by the bike manufacturer and handled by the owner correctly.......
Whether it really gives enough aero difference on a frame is very debatable, but some really like the cleaner looks it gives the frame....
Chombi1 is offline
Reply With Quote
Old 07-11-18, 09:27 PM
  #22
Dave Cutter
Senior Member

Dave Cutter's Avatar

Join Date: Oct 2013
Location: D'uh... I am a Cutter
Posts: 6,152

Bikes: '17 Access Old Turnpike Gravel bike, '14 Trek 1.1, '15 Cannondale CAAD 10, '98 CAAD 2, R300

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1495 Post(s)
Originally Posted by Chombi1 View Post
Can't figure out why the frame designers back then thought it would be OK to punch such a large hole on the thin walled areas of the TT, without adding any reinforcement to the cut edge......
It's lasted nearly 30 years. No ones ever even hinted that any bike I've ever bought would last that long. Although... still very sad. But I wouldn't discredit the designers or engineers or whoever decided to poke those holes. Godo idea or NOT... it did get the job done.
Dave Cutter is offline
Reply With Quote
Old 07-11-18, 10:39 PM
  #23
Chicago Al
Senior Member

Chicago Al's Avatar

Join Date: Jun 2009
Location: Chicago, the leafy NW side
Posts: 2,415

Bikes: 1974 Motobecane Grand Record, 1987 Miyata Pro, 1988 Bob Jackson Lady Mixte (wife's), others in the family

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Somewhere back in the C&V archives there is mention of an office in the US (or maybe it was Canada?) still handling Miyata warranty issues up to ten or so years ago. I think it was an import/export firm or something, and they might have been doing so as a courtesy to Miyata, which had stopped selling bikes to the US in 1993 or so.
__________________
I never think I have hit hard, unless it rebounds.

- Dr Samuel Johnson
Chicago Al is offline
Reply With Quote
Old 07-11-18, 11:49 PM
  #24
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,215
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 6494 Post(s)
Originally Posted by KLOSHE View Post

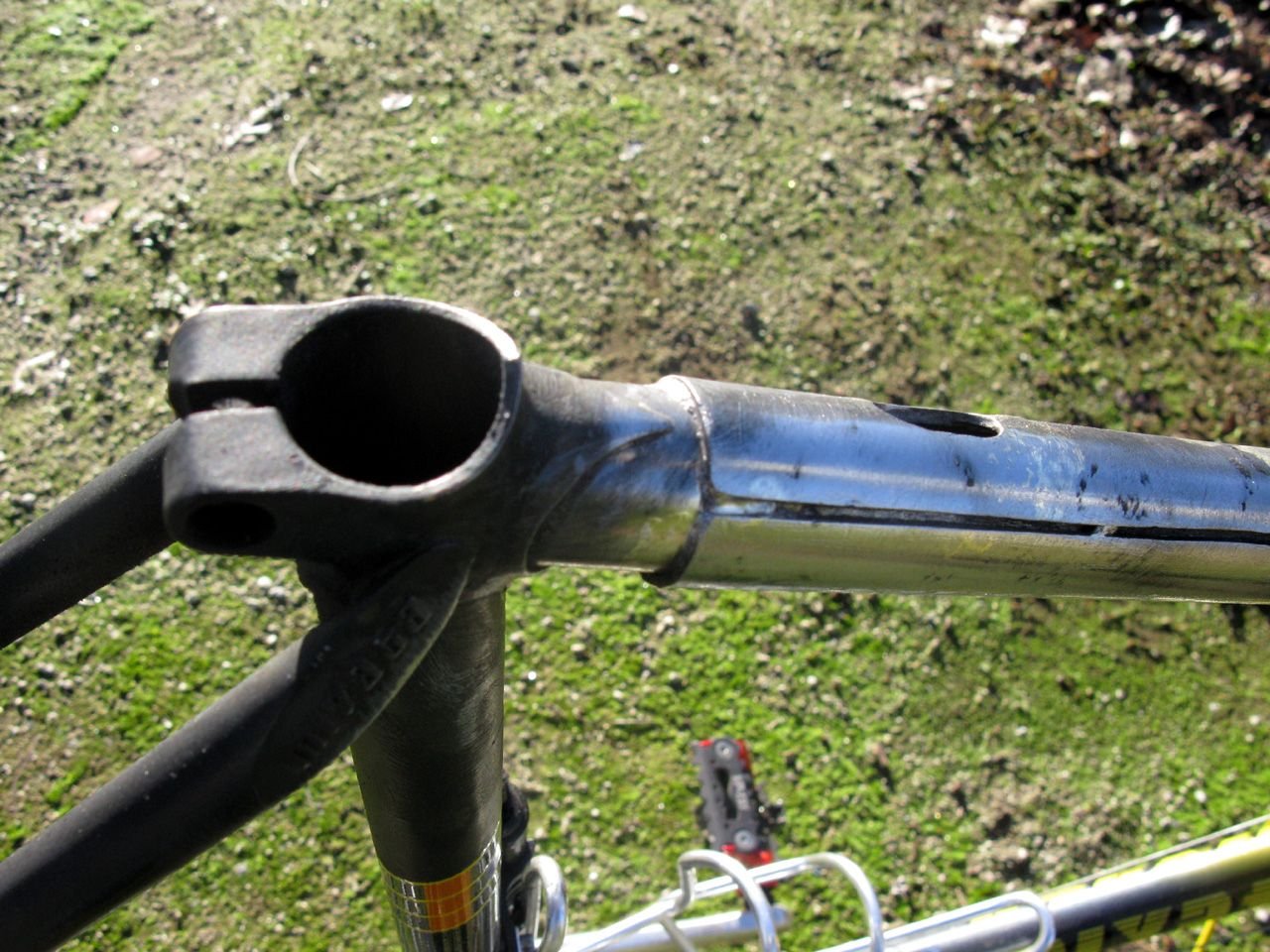

I've got the same '89 miyata 1400 in a 60cm frame that hasn't seen any damage yet. Anything I can do or have done to reinforce the frame and prevent a frame crack at the cable drilling ?
You could probably add something like this coverplate.

INTERNAL BRAKE GUIDE COVERPLATE :: SMALL PARTS :: BRAZON/SMALL PARTS :: Nova Cycles Supply Inc.



I'd probably choose something a little larger, perhaps a custom formed one.

But, then you're into at least locally stripping the frame, brazing, and repainting.
CliffordK is online now
Reply With Quote
Old 07-11-18, 11:52 PM
  #25
ddeand
Senior Member

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 570
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)

I had that problem, too, but I didn’t find out untilI sanded some paint away. I was bummed!



I found a local builder who brazed a couple collars and cable guides on the top tube for $55. Worked out OK.


__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
